DLK-48
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
HAZARD AND BUZZER REMINDER FUNCTION

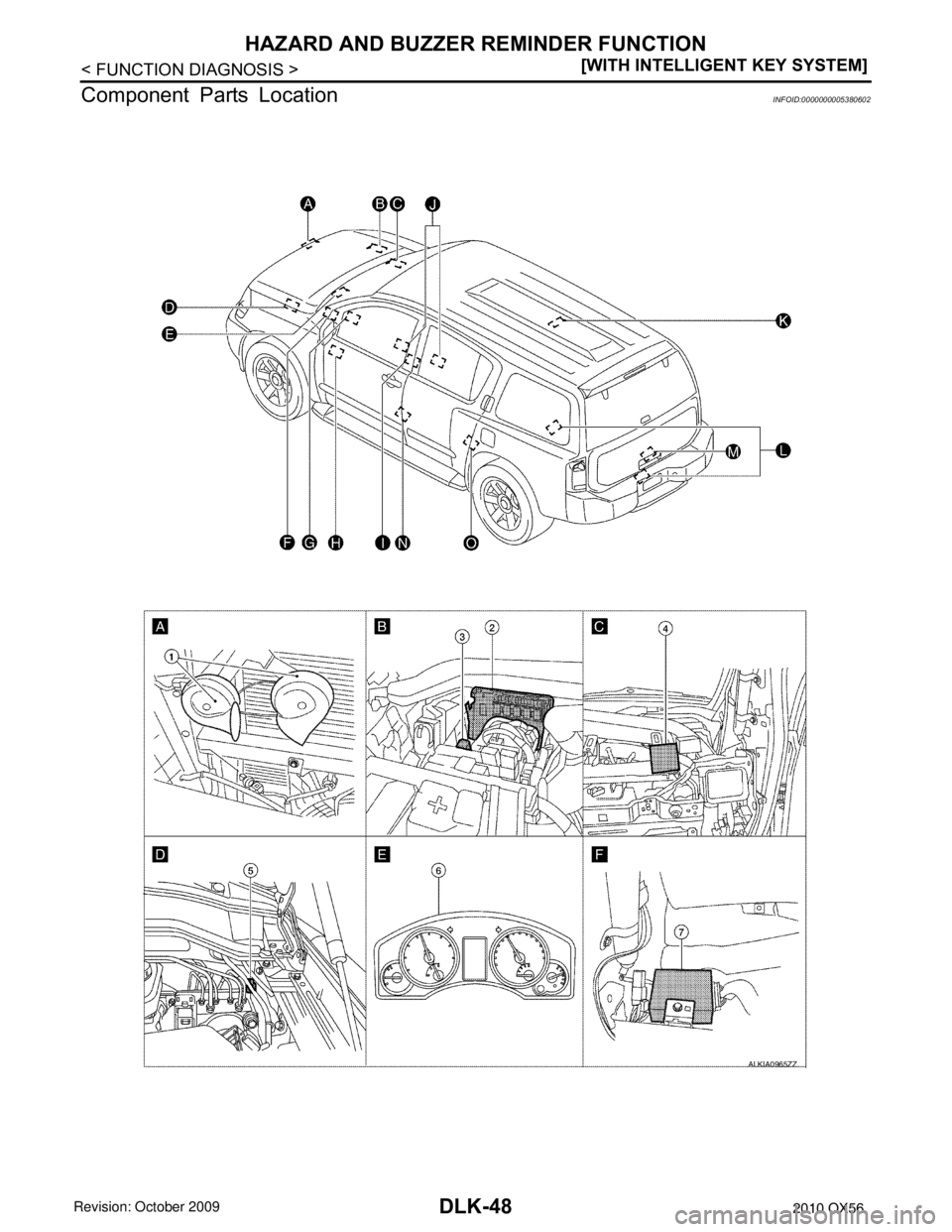

Component Parts Location
INFOID:0000000005380602
ALKIA0965ZZ
Revision: April 20092010 QX56

HAZARD AND BUZZER REMINDER FUNCTIONDLK-49
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O PALKIA0579ZZ
1. Horn E3 (view with hood open) 2. IPDM E/R E122, E124
(view with co ver removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Center console area antenna (front)
M210
(view with center console removed)
13. Center console area antenna (rear) M209 14. Overhead console area antenna R210
(view with overhead console removed) 15. Luggage area antenna B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: April 20092010 QX56

DLK-50
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
HAZARD AND BUZZER REMINDER FUNCTION
Component Description
INFOID:0000000005146898
Item Function
BCM Controls the hazard and buzzer reminder function (without Intelligent Key).
Intelligent Key unit Controls the hazard and buzzer reminder function (with Intelligent Key).
Combination meter Turns ON the LOCK indicator, KEY indicator, turn signal
indicator and buzzer
(built in combination meter) by the request from Intelligent Key unit via CAN com-
munication.
Intelligent Key warning buzzer Sounds by the request signal from Intelligent Key unit via CAN communication.
Revision: April 20092010 QX56

HOMELINK UNIVERSAL TRANSCEIVERDLK-51
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
HOMELINK UNIVERSAL TRANSCEIVER
Component DescriptionINFOID:0000000005146899
Item FunctionReference page
Homelink universal transceiver A maximum of 3 radio signals can be stored and transmitted to operate
the garage door, etc. Refer to Owner's
Manual
Revision: April 20092010 QX56

DLK-52
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Fu
nction (BCM - COMMON ITEM)INFOID:0000000005380573
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.
SYSTEM APPLICATION
BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.
DOOR LOCK
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
SELF-DIAG RESULTS Displays the diagnosis results judged by BCM. Refer to BCS-54, "
DTCIndex".
CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from BCM.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
ECU IDENTIFICATION The BCM part number is displayed.
CONFIGURATION • Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.
System
Sub system selection item Diagnosis mode
WORK SUPPORT DATA MONITOR ACTIVE TEST
BCM BCM ×
Door lock DOOR LOCK ×××
Rear window defogger REAR DEFOGGER ×
Warning chime BUZZER ××
Interior room lamp timer INT LAMP ×××
Remote keyless entry system MULTI REMOTE ENT ××
Exterior lamp HEAD LAMP ×××
Wiper and washer WIPER ×××
Turn signal and hazard warning lamps FLASHER ××
Air conditioner AIR CONDITONER ×
Intelligent Key system INTELLIGENT KEY ×
Combination switch COMB SW ×
Immobilizer IMMU ××
Interior room lamp battery saver BATTERY SAVER ×××
Back door open TRUNK ××
RAP (retained accessory power) RETAINED PWR ×××
Signal buffer system SIGNAL BUFFER ××
TPMS (tire pressure monitoring sys-
tem) AIR PRESSURE MONITOR
×××
Vehicle security system THEFT ALM ×××
Panic alarm system PANIC ALARM ×
Revision: April 20092010 QX56

DIAGNOSIS SYSTEM (BCM)DLK-53
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
DOOR LOCK : CONSULT-III Fu nction (BCM - DOOR LOCK)INFOID:0000000005380574
WORK SUPPORT
DATA MONITOR
ACTIVE TEST
MULTIREMOTE ENT
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)
INFOID:0000000005380575
WORK SUPPORT
Work Item Description
DOOR LOCK-UNLOCK SET •ON
•OFF
ANTI-LOCK OUT SET •ON
•OFF
AUTOMATIC DOOR LOCK SELECT • SHIFT OUT OF P
• VH SPD
AUTOMATIC DOOR UNLOCK SE-
LECT •MODE1
•MODE2
•MODE3
•MODE4
•MODE5
•MODE6
AUTOMATIC LOCK/UNLOCK SE-
LECT •ON
•OFF
Monitor Item
[Unit} Description
IGN ON SW [ON/OFF] Indicates condition of ignition switch in ON position
KEY ON SW [ON/OFF] Indicates condition of key switch
CDL LOCK SW [ON/OFF] Indicates condition of door lock and unlock switch
CDL UNLOCK SW [ON/OFF] Indicates condition of door lock and unlock switch
DOOR SW-DR [ON/OFF] Indicates condition of front door switch LH
DOOR SW-AS [ON/OFF] Indicates condition of front door switch RH
DOOR SW-RR [ON/OFF] Indicates condition of rear door switch RH
DOOR SW-RL [ON/OFF] Indicates condition of rear door switch LH
BACK DOOR SW [ON/OFF] Indicates condition of back door switch
KEY CYL LK-SW [ON/OFF] Indicates condition of lo ck signal from door key cylinder switch
KEY CYL UN-SW [ON/OFF] Indicates condition of un lock signal from door key cylinder switch
I-KEY LOCK [ON/OFF] Indicates condition of lock signal from Intelligent Key
I-KEY UNLOCK [ON/OFF] Indicates condition of unlock sign al from Intelligent Key
Test Item Description
DOOR LOCK This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].
Test Item
Description
REMO CONT ID REGIST Keyfob ID code can be registered.
REMO CONT ID ERASUR Keyfob ID code can be erased.
Revision: April 20092010 QX56

DLK-54
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (BCM)
Hazard and horn reminder mode
Auto locking function mode
Panic alarm operation mode
Back door open operation mode
Keyless power window down operation mode
DATA MONITOR
REMO CONT ID CONFIR It can be checked whether keyfob ID code is registered or not in this mode.
HORN CHIRP SET
Horn chirp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT- III screen is touched.
HAZARD LAMP SET Hazard lamp function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT- III screen is touched.
MULTI ANSWER BACK SET Hazard and horn reminder mode can be changed in this mode. The reminder mode will be changed
when “CHANG SETT” on CONSULT-III screen is touched.
AUTO LOCK SET Auto locking function mode can be changed in this mode. The function mode will be changed when
"CHANG SETT" on CONSULT-
III screen is touched.
PANIC ALRM SET Panic alarm operation mode can be changed in this mode. The operation mode will be changed when
"CHANG SETT" on CONSULT-
III screen is touched.
PW DOWN SET Keyless power window down (open) operation mode can be changed in this mode. The operation
mode will be changed when "CHANG SETT" on CONSULT-III screen is touched.
MODE 1
(C mode) MODE 2
(S mode) MODE 3MODE 4MODE 5MODE 6
Keyfob
operation Lock Unlock Lock Unlock Lock Unlock Lock Unlock Lock Unlock Lock Unlock
Hazard warning
lamp flash TwiceOnceTwice — — — TwiceOnceTwice — — Once
Horn sound Once———————Once—Once—
MODE 1MODE 2MODE 3
Auto locking function 5 minutesNothing1 minute
MODE 1 MODE 2MODE 3
Keyfob operation 0.5 secondsNothing1.5 seconds
MODE 1 MODE 2MODE 3
Keyfob operation 0.5 secondsNothing0.5 seconds
M ODE 1M ODE 2M ODE 3
Keyfob operation 3 secondsNothing5 seconds
Te s t I t e m
D e s c r i p t i o n
Monitored Item Description
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
KEY ON SW Indicates [ON/OFF] condition of key switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
KEYLESS PANIC Indicates [ON/OFF] condition of panic signal from keyfob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from keyfob.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from keyfob.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from door key cylinder switch.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from door key cylinder switch.
Revision: April 20092010 QX56

DIAGNOSIS SYSTEM (BCM)DLK-55
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
ACTIVE TEST
INTELLIGENT KEY
INTELLIGENT KEY : CONSULT-III Fu nction (BCM - INTELLIGENT KEY)INFOID:0000000005380576
DATA MONITOR
CDL UNLOCK SW Indicates [ON/OFF] condition of unlock signal from lock/unlock switch.
CDL LOCK SW Indicates [ON/OFF] condition of lock signal from lock/unlock switch.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
RKE LCK-UNLCK Indicates [ON/OFF] condition of lock/unlock signal at the same time from keyfob.
RKE KEEP UNLK Indicates [ON/OFF] condition of unlock signal from keyfob.
Monitored Item
Description
Test ItemDescription
FLASHER This test is able to check right and left hazard reminder operation. The right hazard lamp turns on
when “RH” on CONSULT-III screen is touched and th e left hazard lamp turns on when "LH" on CON-
SULT-III screen is touched.
POWER WINDOW DOWN This test is able to check power window down operation. The windows are lowered when “ON” on CONSULT-III screen is touched.
HORN This test is able to check panic alarm and horn reminder operations. The alarm activate for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.
DOOR LOCK This test is able to check door lock operation. The doors lock and unlock based on the item on CON-
SULT-III screen touched.
Monitor Item [Unit] Condition
I-KEY LOCK [ON/OFF] Indicates condition of lock signal from Intelligent Key
I-KEY UNLOCK [ON/OFF] Indicates [condition of unlock signal from Intelligent Key
I-KEY TRUNK [ON/OFF] Indicates condition of trunk open signal fr om Intelligent Key
I-KEY PW DWN [ON/OFF] Indicates condition of all power window signal from Intelligent Key
I-KEY PANIC [ON/OFF] Indicates condition of panic signal from Intelligent Key
PUSH SW [ON/OFF] Indicates condition of ignition knob switch
Revision: April 20092010 QX56

DLK-56
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
DIAGNOSIS SYSTEM (I
NTELLIGENT KEY UNIT)
DIAGNOSIS SYSTEM (INT ELLIGENT KEY UNIT)
CONSULT-III Function (INTELLIGENT KEY)INFOID:0000000005380577
APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with Intelligent Key unit.
SELF-DIAG RESULT
Refer to DLK-196, "DTCIndex".
DATA MONITOR
ACTIVE TEST
Diagnosis mode Function Description
SELF-DIAG RESULTS Displays the diagnosis results judged by Intelligent Key unit.
CAN DIAG SUPPORT MNTR Monitors the reception status of CAN communication viewed from Intelligent Key unit.
DATA MONITOR The Intelligent Key unit input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from Intelligent Key unit.
ECU IDENTIFICATION The Intelligent Key unit part number is displayed.
Monitor Item Condition
PUSH SW Indicates [ON (pushed)/OFF (released)] condition of ignition knob switch.
KEY SW Indicates [ON (inserted)/OFF (removed)] condition of key switch.
DR REQ SW Indicates [ON (pressed)/OFF (released)] co ndition of door request switch (driver side).
AS REQ SW Indicates [ON (pressed)/OFF (released)] condition of door request switch (passenger side).
IGN SW Indicates [ON (ON or START position)/OFF (other than ON and START position)] condition of
ignition switch ON position.
ACC SW Indicates [ON/OFF] condition of ignition switch ACC position.
STOP LAMP SW Indicates [ON/OFF] condition of stop lamp switch.
P RANGE SW Indicates [ON/OFF] position of shift lever park position switch.
DOOR LOCK SIG Indicates [ON/OFF] condition of LOCK signal from Intelligent Key.
DOOR UNLOCK SIG Indicates [ON/OFF] condition of UNLOCK signal from Intelligent Key.
KEYLESS PANIC Indicates [ON (pressed)/OFF (released)] condition of Intelligent Key panic button.
KEYLS PBD SIG Indicates [ON (pressed)/OFF (released)] condition of Intelligent Key back door button.
DOOR SW DR Indicates [OPEN/CLOSE] condition of front door switch (driver side) from BCM via CAN com-
munication.
DOOR SW AS Indicates [OPEN/CLOSE] condition of front door switch (passenger side) from BCM via CAN
communication.
DOOR SW RR Indicates [OPEN/CLOSE] condition of rear door switch (RH) from BCM via CAN communication.
DOOR SW RL Indicates [OPEN/CLOSE] condition of rear door switch (LH) from BCM via CAN communication.
DOOR BK SW Indicates [OPEN/CLOSE] condition of back door switch from BCM via CAN communication.
VEHICLE SPEED Displays the vehicle speed signal received from combinatio n meter by numerical value [km/h].
Revision: April 20092010 QX56

DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)DLK-57
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Test item Description
DOOR LOCK/UNLOCK This test is able to check door lock/unlock operation.
• ALL UNLK: All door lock actuators are unlocked.
• DR UNLK: Door lock actuator (driver side) is unlocked.
• AS UNLK: Door lock actuator (passenger side) is unlocked.
• BK UNLK: This item is indicated, but inactive.
• LOCK: All door lock actuator is locked.
ANTENNA This test is able to check Intelligent Key antenna operation.
When the following condition are met, hazard warning lamps flash.
• ROOM ANT1: Center console area antenna (rear) and luggage area antenna detect Intelligent Key, when
“ROOM ANT1” is selected.
• ROOM ANT2: Center console area antenna (front) and overhead console area antenna detect Intelligent Key, when “ROOM ANT2” is selected.
• LUG ANT: This selection is not used.
• DR ANT: Outside key antenna (driver side) detects Intelligent Key, when “DR ANT” is selected.
• AS ANT: Outside key antenna (passenger side) detects Intelligent Key, when “AS ANT” is selected.
• BK DR ANT: Outside key antenna (rear bumper) detects Intelligent Key, when “BK DR ANT” is selected.
OUTSIDE BUZZER This test is able to check Intelligent Key warning buzzer operation.
•ON
•OFF
INSIDE BUZZER This test is able to check warning chime in combination meter operation.
• TAKE OUT: Take away warning chime sounds.
• KNOB: Ignition knob switch warning chime sounds.
• KEY: Key warning chime sounds.
•OFF
Revision: April 20092010 QX56
