INFINITI QX56 2010 Factory Service Manual

DRIVER SEAT CONTROL UNITADP-117
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
19 G CAN-L ——
21 L A/T shift selector (park position
switch) signal A/T selector lever in P position
0
A/T selector lever in other than P
position with ignition key in ignition
cylinder Battery voltage
24 R/L Seat sliding motor sensor signal ON (seat sliding motor operation)
Other than above
0 or 5
25 Y/G Front lifting motor sensor signal ON (front lifting motor operation)
Other than above.
0 or 5
26 L/R Seat sliding switch FORWARD
signal ON (seat sliding switch FOR-
WARD operation)
0
Other than above Battery voltage
27 V/W Seat reclining switch FORWARD
signal ON (seat reclining switch FOR-
WARD operation)
0
Other than above Battery voltage
28 BR/Y Front lifting switch UP signal ON (front lifting switch UP opera-
tion)
0
Other than above Battery voltage
29 G/R Rear lifting switch UP signal ON (rear lifting switch UP opera-
tion)
0
Other than above Battery voltage
30 L/Y Pedal adjusting switch FOR-
WARD signal ON (pedal adjusting switch FOR-
WARD operation)
0
Other than above Battery voltage
31 GR/R Sensor ground —0
32 G/W Ground —0
33 W/B Battery power supply —Battery voltage
35 R/G Sliding motor FORWARD output
signal Sliding switch FORWARD opera-
tion (Motor operated)
Battery voltage
Other than above 0
36 L Reclining motor FORWARD out-
put signal Reclining switch FORWARD oper-
ation (Motor operated)
Battery voltage
Other than above 0
37 B Front lifting motor DOWN output
signal Front lifting switch DOWN opera-
tion (Motor operated)
Battery voltage
Other than above 0
Te r m i n a l
Wire
Color Item
Condition Voltage (V)
(Approx.)
PIIA3277E
SIIA0691J
Revision: April 20092010 QX56

ADP-118
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
38 GRRear lifting motor UP output sig-
nal Rear end lifting switch UP opera-
tion (Motor operated)
Battery voltage
Other than above 0
39 R Rear lifting motor DOWN output
signal Rear end lifting switch DOWN op-
eration (Motor operated)
Battery voltage
Other than above 0
40 G Battery power supply —Battery voltage
42 R/Y Sliding motor BACKWARD out-
put signal Sliding switch BACKWARD opera-
tion (Motor operated)
Battery voltage
Other than above 0
44 G/B Reclining motor BACKWARD
output signal Reclining switch BACKWARD op-
eration (Motor operated)
Battery voltage
Other than above 0
45 G/Y Front lifting motor UP output sig-
nal Front lifting switch UP operation
(Motor operated)
Battery voltage
Other than above 0
48 B Ground — 0
Te r m i n a l
Wire
Color Item
Condition Voltage (V)
(Approx.)
Revision: April 20092010 QX56

DRIVER SEAT CONTROL UNITADP-119
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P

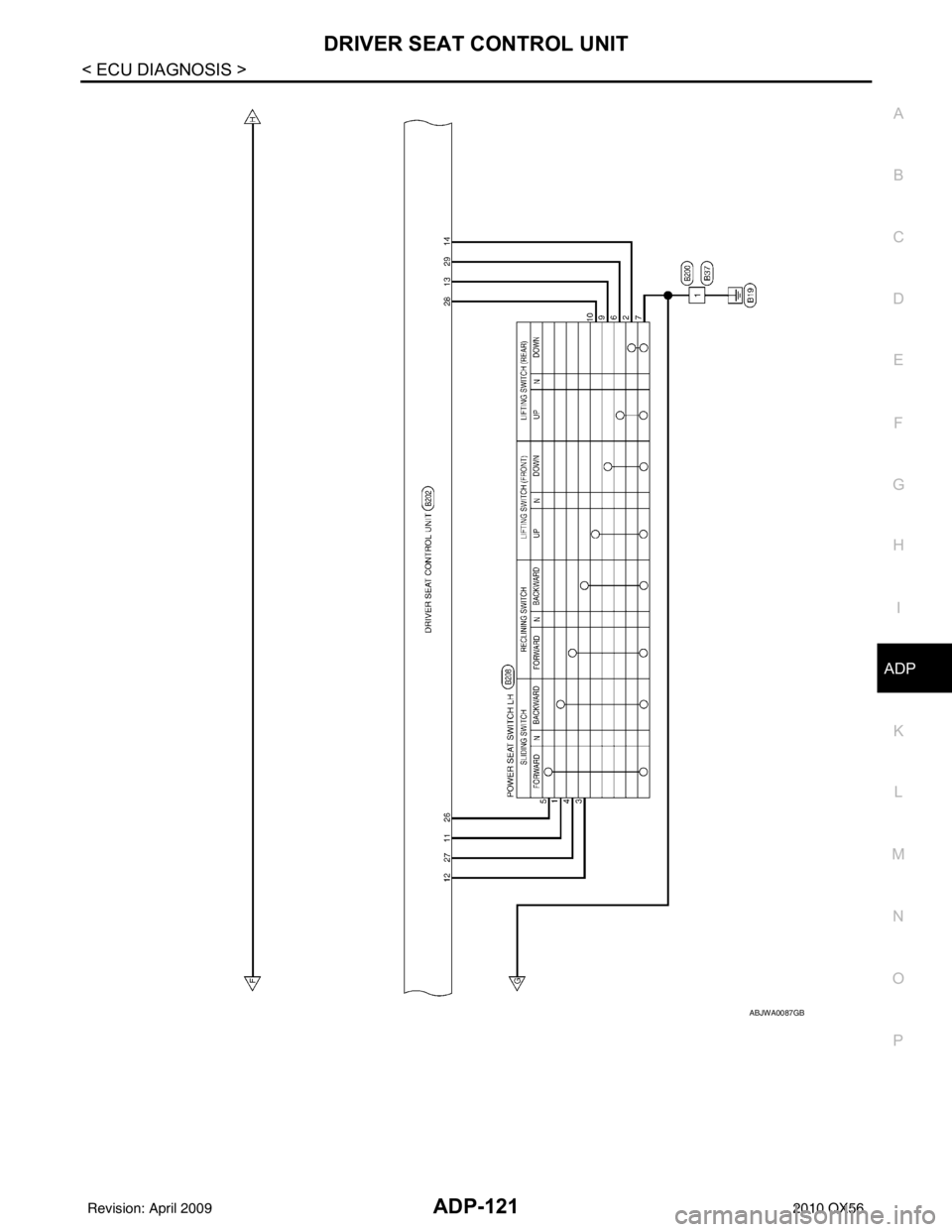

Wiring DiagramINFOID:0000000005147577
ABJWA0085GB
Revision: April 20092010 QX56

ADP-120
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
ABJWA0086GB
Revision: April 20092010 QX56

DRIVER SEAT CONTROL UNITADP-121
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
ABJWA0087GB
Revision: April 20092010 QX56

ADP-122
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
ABJWA0088GB
Revision: April 20092010 QX56

DRIVER SEAT CONTROL UNITADP-123
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
ABJIA0272GB
Revision: April 20092010 QX56

ADP-124
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
ABJIA0273GB
Revision: April 20092010 QX56

DRIVER SEAT CONTROL UNITADP-125
< ECU DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
ABJIA0274GB
Revision: April 20092010 QX56

ADP-126
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
ABJIA0275GB
Revision: April 20092010 QX56
