INFINITI QX60 2016 Owner's Manual

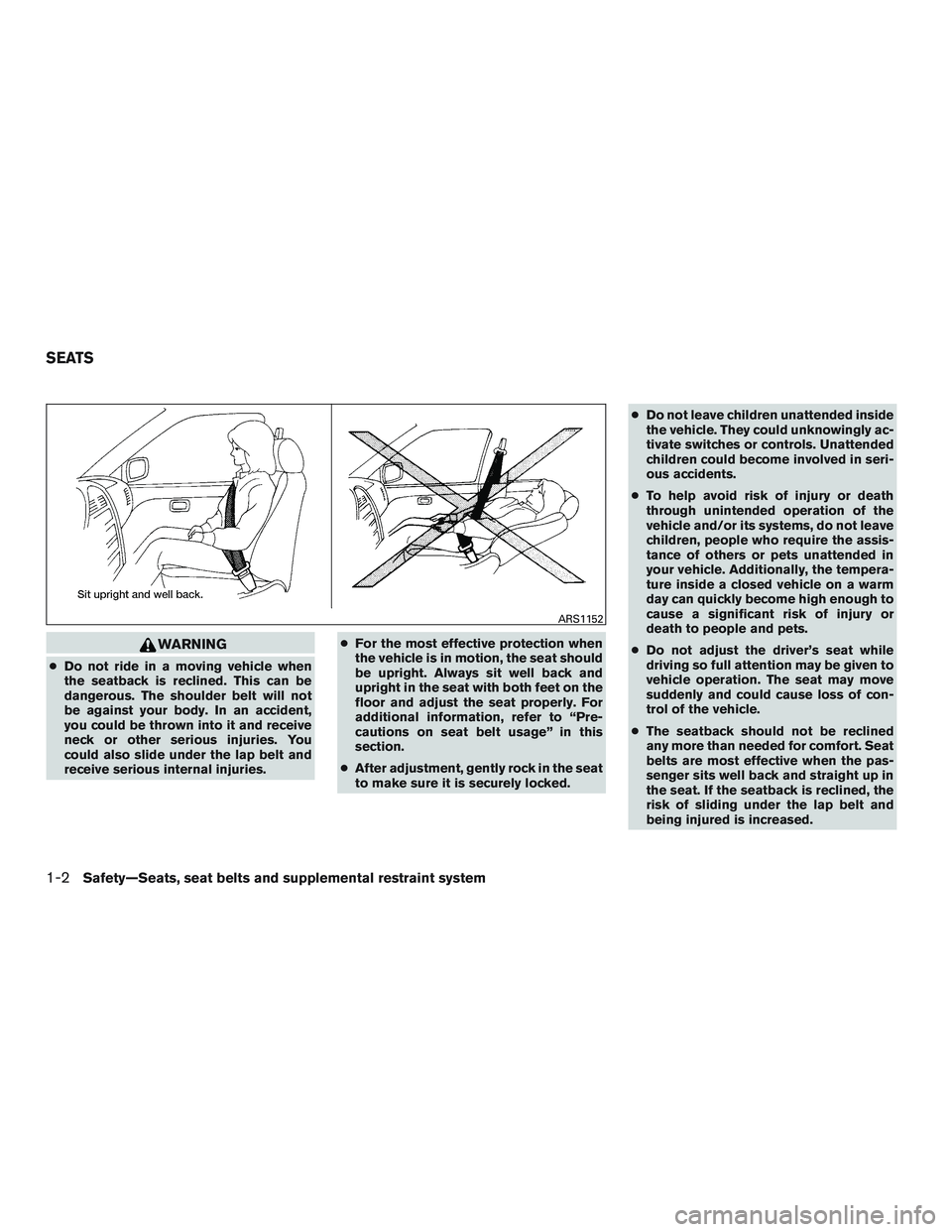

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked. ●
Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
● Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT POWER SEAT ADJUSTMENT
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
For additional information, refer to “Automatic
drive positioner” in the “Pre-driving checks and
adjustments” section of this manual.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
LRS2662
Safety—Seats, seat belts and supplemental restraint system1-3

belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .

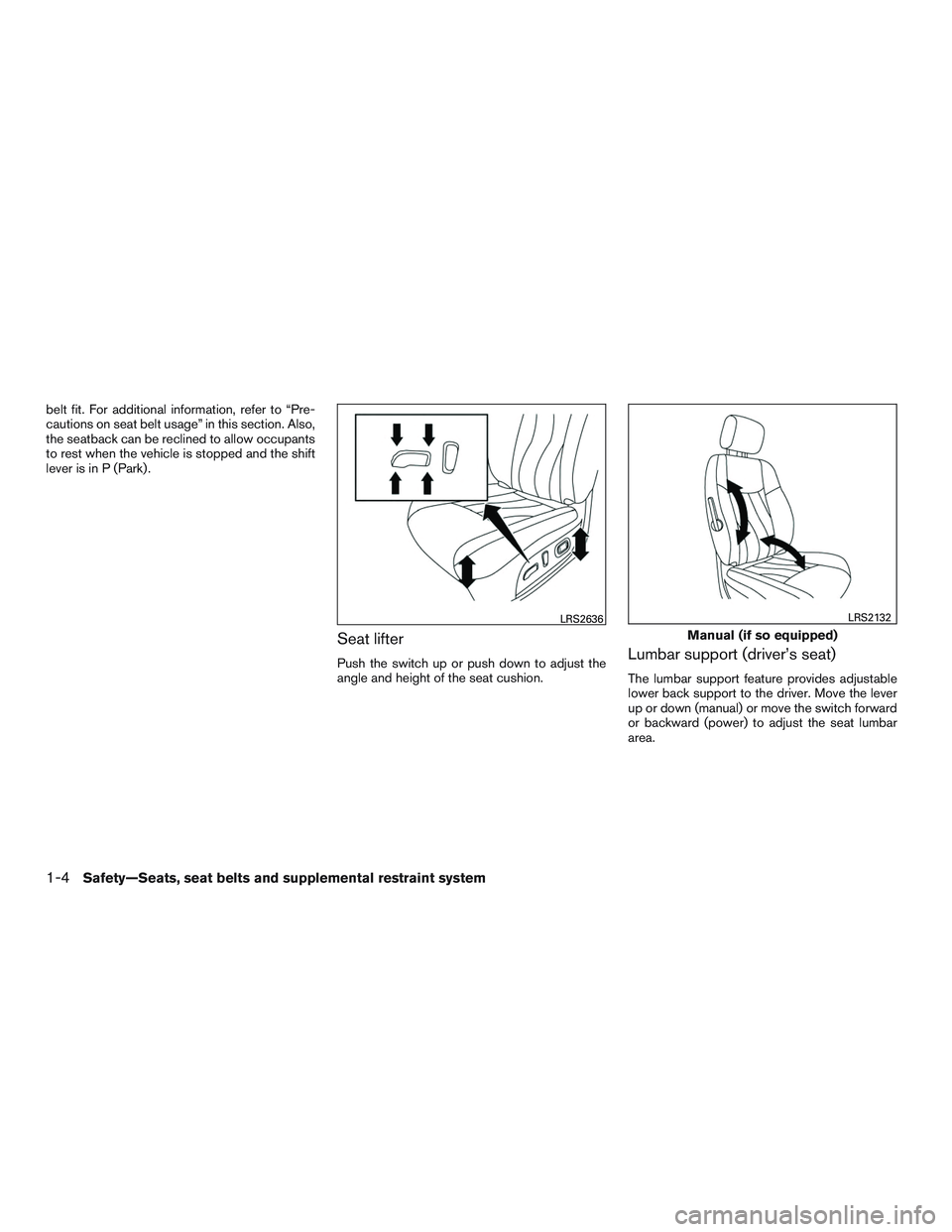

Seat lifter
Push the switch up or push down to adjust the
angle and height of the seat cushion.Lumbar support (driver’s seat)
The lumbar support feature provides adjustable
lower back support to the driver. Move the lever
up or down (manual) or move the switch forward
or backward (power) to adjust the seat lumbar
area.
LRS2636
Manual (if so equipped)
LRS2132
1-4Safety—Seats, seat belts and supplemental restraint system

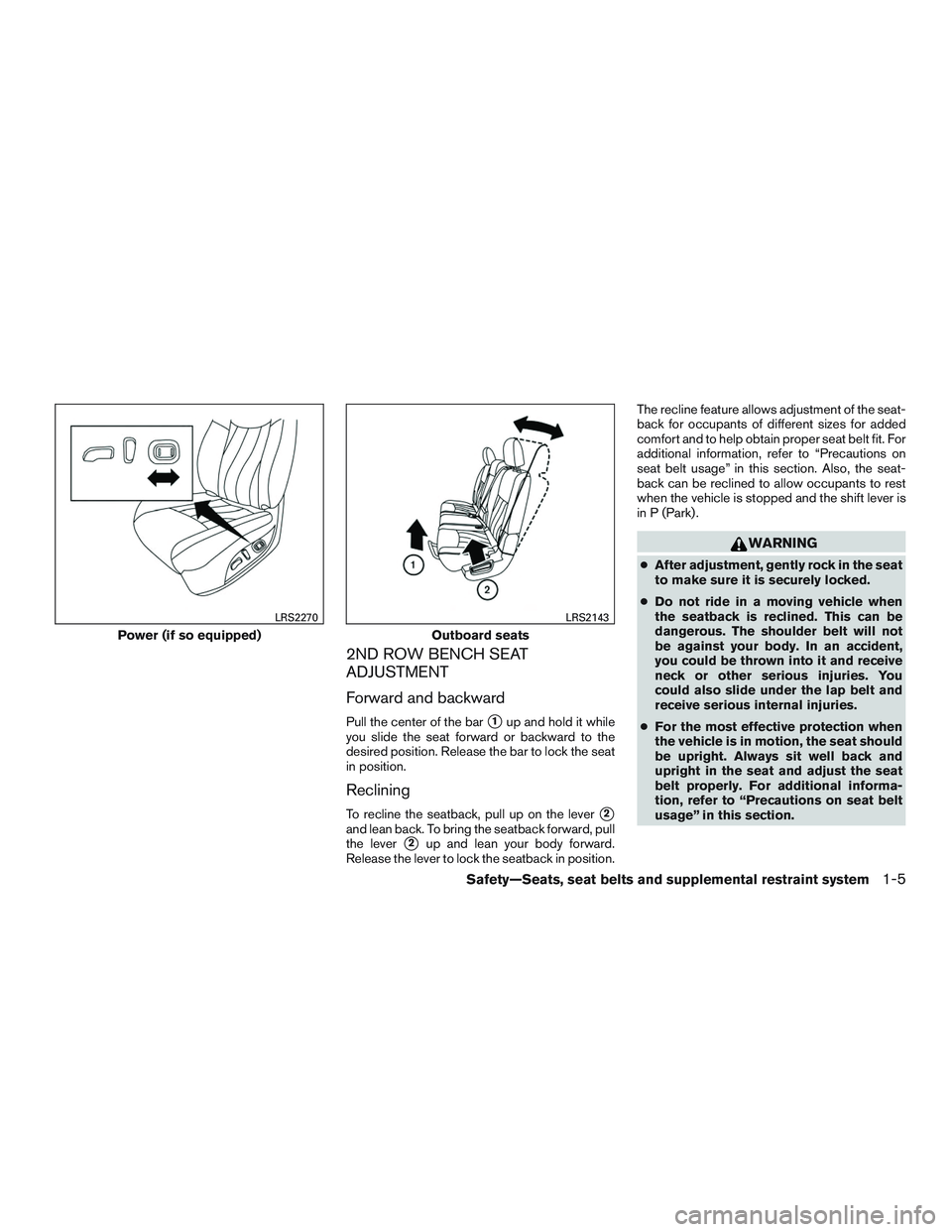

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar to lock the seat
in position.
Reclining
To recline the seatback, pull up on the lever2
and lean back. To bring the seatback forward, pull
the lever
2up and lean your body forward.
Release the lever to lock the seatback in position. The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit. For
additional information, refer to “Precautions on
seat belt usage” in this section. Also, the seat-
back can be reclined to allow occupants to rest
when the vehicle is stopped and the shift lever is
in P (Park) .
WARNING
●
After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat and adjust the seat
belt properly. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section.
Power (if so equipped)
LRS2270
Outboard seats
LRS2143
Safety—Seats, seat belts and supplemental restraint system1-5

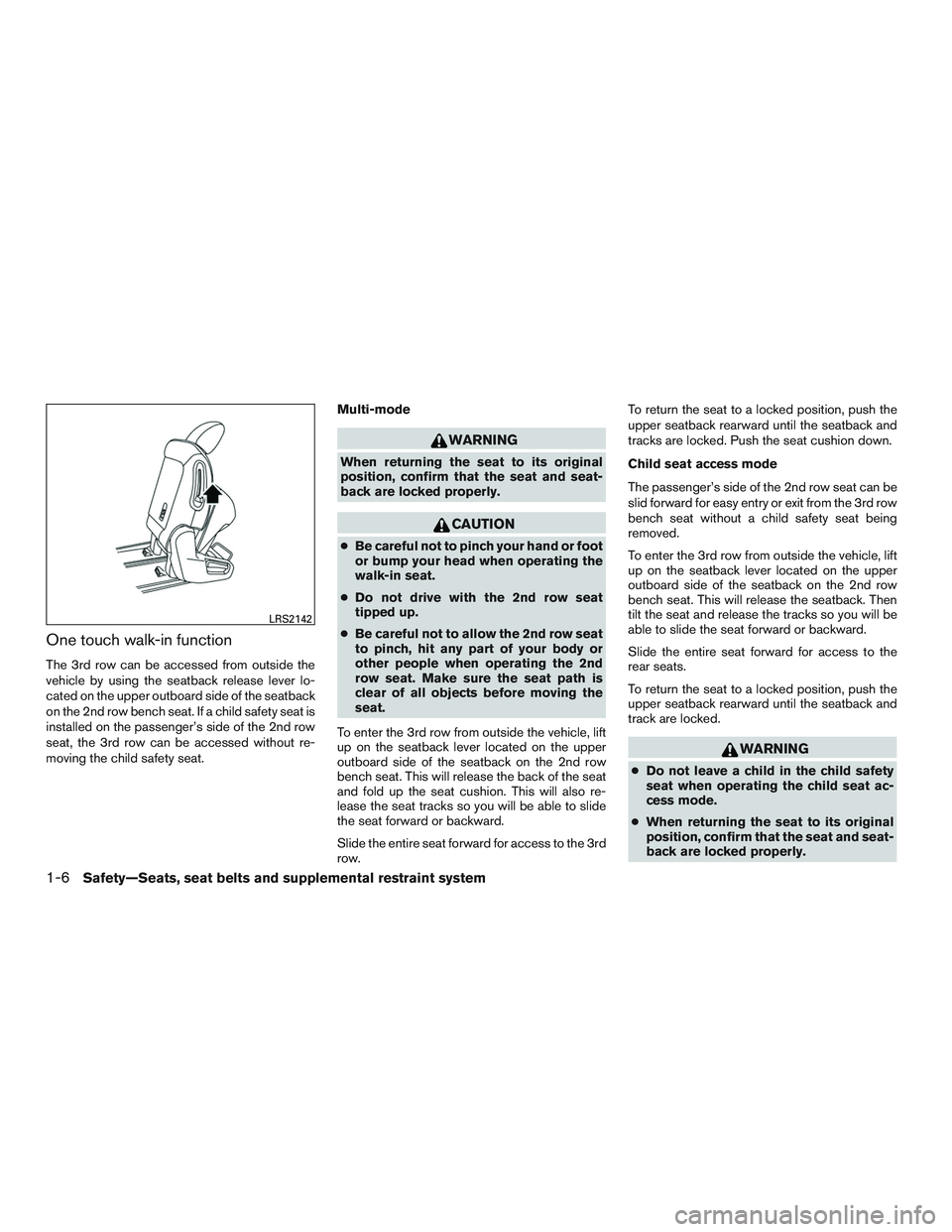

One touch walk-in function
The 3rd row can be accessed from outside the
vehicle by using the seatback release lever lo-
cated on the upper outboard side of the seatback
on the 2nd row bench seat. If a child safety seat is
installed on the passenger’s side of the 2nd row
seat, the 3rd row can be accessed without re-
moving the child safety seat.Multi-mode
WARNING
When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
CAUTION
●
Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
● Do not drive with the 2nd row seat
tipped up.
● Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat.
To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the back of the seat
and fold up the seat cushion. This will also re-
lease the seat tracks so you will be able to slide
the seat forward or backward.
Slide the entire seat forward for access to the 3rd
row. To return the seat to a locked position, push the
upper seatback rearward until the seatback and
tracks are locked. Push the seat cushion down.
Child seat access mode
The passenger’s side of the 2nd row seat can be
slid forward for easy entry or exit from the 3rd row
bench seat without a child safety seat being
removed.
To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the seatback. Then
tilt the seat and release the tracks so you will be
able to slide the seat forward or backward.
Slide the entire seat forward for access to the
rear seats.
To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.
WARNING
●
Do not leave a child in the child safety
seat when operating the child seat ac-
cess mode.
● When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
LRS2142
1-6Safety—Seats, seat belts and supplemental restraint system

CAUTION
●Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
● Do not drive with the 2nd row seat
tipped up.
● Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat.

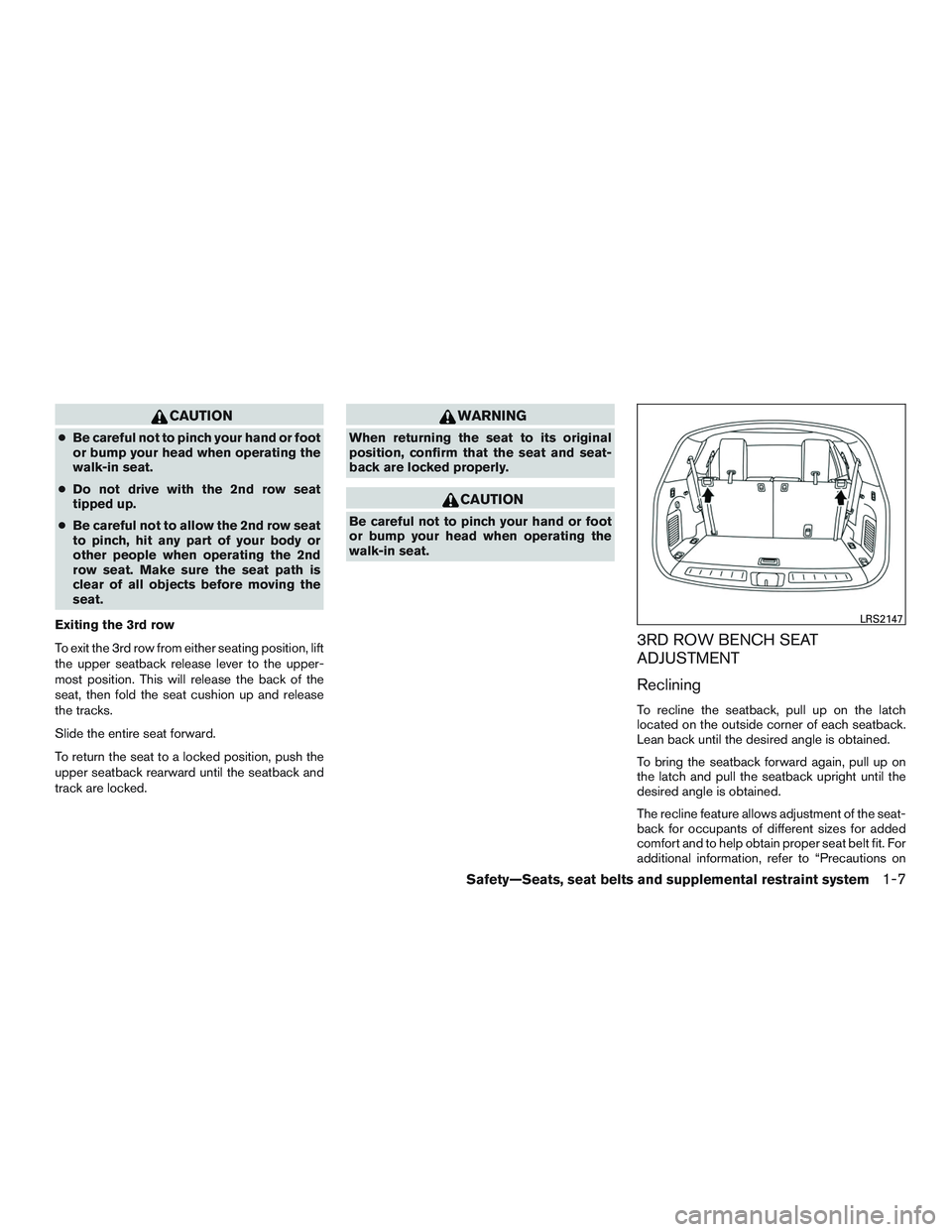

Exiting the 3rd row
To exit the 3rd row from either seating position, lift
the upper seatback release lever to the upper-
most position. This will release the back of the
seat, then fold the seat cushion up and release
the tracks.
Slide the entire seat forward.
To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.
WARNING
When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
CAUTION
Be careful not to pinch your hand or foot
or bump your head when operating the
walk-in seat.
3RD ROW BENCH SEAT
ADJUSTMENT
Reclining
To recline the seatback, pull up on the latch
located on the outside corner of each seatback.
Lean back until the desired angle is obtained.
To bring the seatback forward again, pull up on
the latch and pull the seatback upright until the
desired angle is obtained.
The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit. For
additional information, refer to “Precautions on
LRS2147
Safety—Seats, seat belts and supplemental restraint system1-7

seat belt usage” in this section. Also, the seat-
back can be reclined to allow occupants to rest
when the vehicle is stopped and the shift lever is
in P (Park) .
WARNING
●After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat and adjust the seat
belt properly. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section.
ARMRESTS
The 2nd row bench seat comes equipped with an
armrest. Pull the armrest down until in resting
position.
FLEXIBLE SEATING
WARNING
● Never allow anyone to ride in the cargo
area or on the rear seats when they are
in the fold-down position. In a collision,
people riding in these areas without
proper restraints are more likely to be
seriously injured or killed. ●
Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Do not allow more than one person to
use the same seat belt.
● Do not fold down the rear seats when
occupants are in the rear seat area or
any luggage is on the rear seats.
– Make sure that the seat path is clear before moving the seat.
– Be careful not to allow hands or feet to get caught or pinched in the seat.
● Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace and adjust
them properly if they have been re-
moved for any reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
WRS0167
1-8Safety—Seats, seat belts and supplemental restraint system

●When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maximum
cargo hauling:
1. Make sure that the head restraints/headrests are lowered. To remove
the head restraints/headrests, push and
hold the lock knob while moving the head
restraints/headrests in an upward direction.
Store the head restraints/headrests properly
so it is not loose in the vehicle. 2. Stow the 2nd row seat belts in the seat belt
hooks found on the sides of the vehicle.
3. Lift up on the recline lever on the side of the outboard seats to fold the seatbacks flat.
4. To return the 2nd row bench seats to a seating position, push up on the seatback
until it latches in place.
LRS2144
Safety—Seats, seat belts and supplemental restraint system1-9

3rd row manual folding seats
To fold the 3rd row seats flat for maximum cargo
capacity:1. Pull the strap
Ato release the head
restraint/headrest forward.
2. Stow the 3rd row seat belts in the seat belt hooks
Dfound on the sides of the cargo
area.
3. Pull up on the latch
Blocated in the upper
corner of each seatback and lower the seat-
back forward over the seat base. Manual operation to return the 3rd row seats to a
seating position (if so equipped):
1. Use the pull straps
Cto raise each seat-
back. Pull back until the seatback latches
into position. Make sure to properly raise
each seatback to an upright and se-
cured position.
2. Do not use the pull strap to return the head restraint/headrest to the upright position.
Pull back on the head restraint/headrest until
it latches in the upright position.
Power operation to return the 3rd row seats to a
seating position (if so equipped):1. Push and hold the corresponding switch
E
located on the right and left side in the cargo
area.
A beep sounds once and the seatback will be
returned automatically.
A beep sounds twice when the seatback is fully
returned to the seating position.
If the control unit detects any obstacle or mal-
functions while in the power operation, a beep
sounds for 4 seconds and the seatback will re-
turn to the folded position automatically. Check if
LRS2765LRS2623
1-10Safety—Seats, seat belts and supplemental restraint system

there are any obstacles caught that prevent seats
from returning to the folded position. It is recom-
mended you visit an INFINITI retailer if the beep
still sounds.
CAUTION
When operating the 3rd row power seat-
back return, make sure that the vehicle is
stopped and the transmission is in the P
(Park) position.
WARNING
●When the seat is returned to the normal
seating position, the head
restraints/headrests must be returned
to the upright position to properly pro-
tect vehicle occupants.
● Never allow anyone to ride in the cargo
area or on the 3rd row seats when they
are in the fold-down position. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly. ●
Do not fold down the 3rd row seats
when occupants are in the 3rd row seat
area or any luggage is on the 3rd row
seats.
– Make sure that the seat path is clear
before moving the seat.
– Be careful not to allow hands or feet
to get caught or pinched in the seat.
● Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head
restraint/headrest has been removed. If
the head restraint/headrest was removed,
reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the ef-
fectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-11
