INFINITI QX60 2017 User Guide

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-50)
4. Head restraints/headrests (P.1-12)
5. Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-17, 1-50)
6. Supplemental air bags (P.1-50)
7. Occupant classification sensor
(weight sensor) (P.1-50)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact supple-
mental air bag (P. 1-50)
10. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-28)
11. 2nd row seat top tether strap anchor
(located on bottom of seatback)
(P. 1-28)
12. 3rd row bench seat top tether strap an-
chor (located on bottom of seatback)
(P. 1-28)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-21)
2. Wiper and washer switch (P. 2-33)Wiper blades (P. 8-15)
3. Windshield (P. 8-15)
4. Power windows (P. 2-60)
5. Door locks (P. 3-4) INFINITI Intelligent Key (P. 3-7)
Remote engine start (if so equipped)
(P. 3-19)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side camera (if so equipped) (P. 4-27)
7. Tire pressure (P. 8-24) Flat tire (P. 6-3)
Tire chains (P. 8-24)
8. Replacing bulbs (P. 8-22) Headlight and turn signal switch
(P. 2-37)
Daytime running lights system (P. 2-37)
9. Fog light switch (P. 2-37)
10. Sonar sensors (if so equipped)
(P. 5-138)
11. Front camera (if so equipped) (P. 4-27)
See the page number indicated in paren-
theses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch (P. 2-33)
2. Liftgate release (P. 3-22)Rearview camera (P.4-27)
3. Sonar sensors (if so equipped)
(P. 5-138)
4. Replacing bulbs (P. 8-22)
5. Fuel-filler cap (P. 3-29) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-29)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

1. Power moonroof (P. 2-62, 2-64)Panoramic sunshade (if so equipped)
(P. 2-64)
2. Console box (P. 2-53)
3. Map lights (P. 2-67)
4. Sun visors (P. 3-32)
5. Glove box (P. 2-53)
6. Cup holders (P. 2-53)
7. Luggage hooks (P. 2-53)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

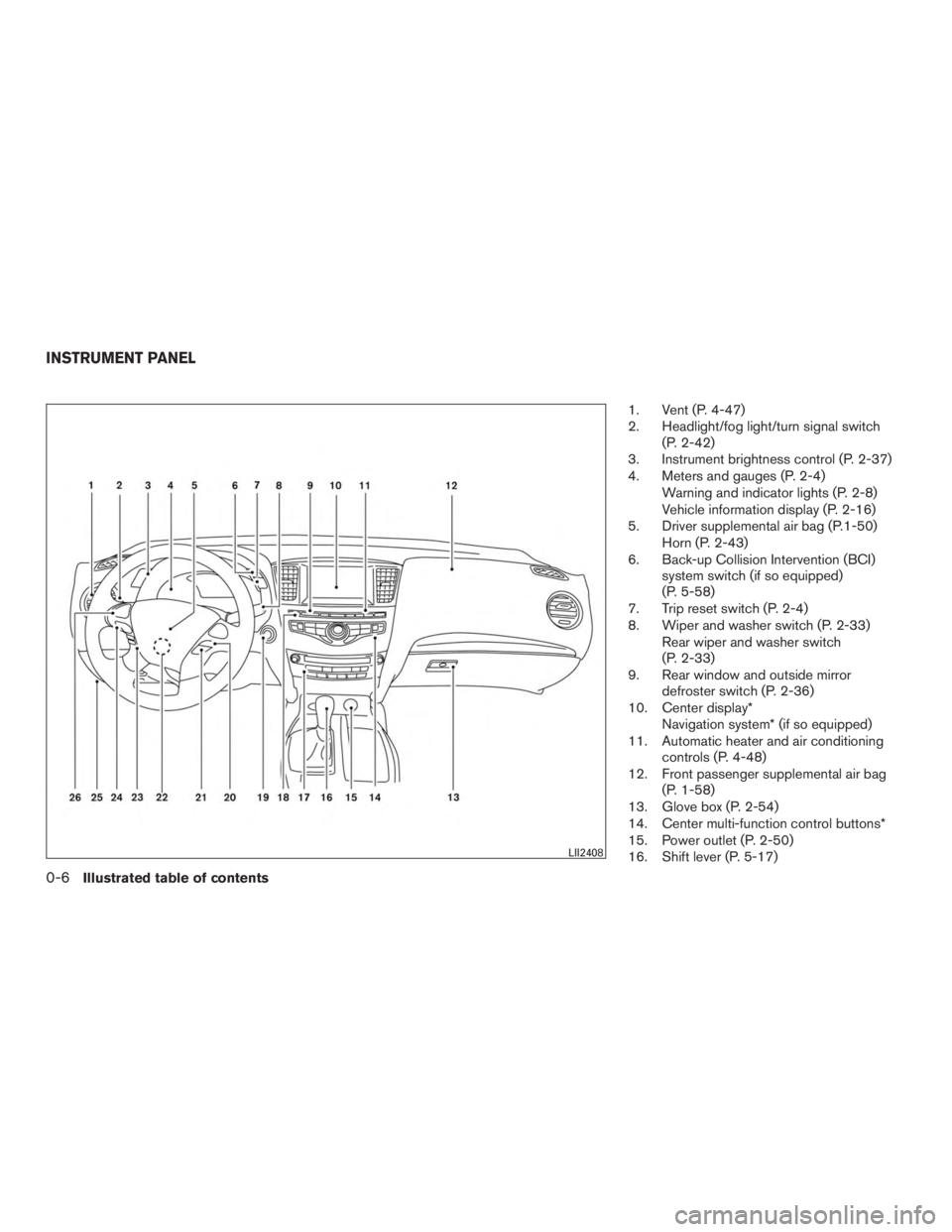

1. Vent (P. 4-47)
2. Headlight/fog light/turn signal switch(P. 2-42)
3. Instrument brightness control (P. 2-37)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-50) Horn (P. 2-43)
6. Back-up Collision Intervention (BCI) system switch (if so equipped)
(P. 5-58)
7. Trip reset switch (P. 2-4)
8. Wiper and washer switch (P. 2-33) Rear wiper and washer switch
(P. 2-33)
9. Rear window and outside mirror defroster switch (P. 2-36)
10. Center display* Navigation system* (if so equipped)
11. Automatic heater and air conditioning controls (P. 4-48)
12. Front passenger supplemental air bag (P. 1-58)
13. Glove box (P. 2-54)
14. Center multi-function control buttons*
15. Power outlet (P. 2-50)
16. Shift lever (P. 5-17)
LII2408
INSTRUMENT PANEL
0-6Illustrated table of contents

17. Audio system controls*Front passenger air bag status light
(P. 1-50)
18. Hazard warning flasher switch (P. 6-2)
19. Push-button ignition switch (P. 5-13)
20. Cruise control main/set switches (if so equipped) (P. 5-74)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-76)
21. Dynamic Driver Assistance switch (if so equipped) (P. 5-96)
22. Tilt steering wheel control (P. 3-31)
23. Bluetooth® Hands-Free Phone System*
24. Steering wheel switch for audio control*
25. Hood release (P. 3-21) Vehicle Dynamic Control (VDC) OFF
switch (P. 2-48)
Heated steering wheel switch
(if so equipped) (P. 2-47)
Warning Systems switch
(if so equipped) (P. 2-47)
Power inverter switch (if so equipped)
(P. 2-49)
Liftgate release switch (P. 3-22)
Power liftgate main switch (P. 3-22) 26. Control panel and vehicle information
display switches (P. 2-17)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
Refer to the page number indicated in pa-
rentheses for operating details.
Illustrated table of contents0-7

VQ35DD engine
1. Power steering fluid reservoir (P. 8-9)
2. Engine coolant reservoir (P. 8-4)
3. Drive belt location (P. 8-13)
4. Fuse box (P. 8-18)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-10)
7. Air cleaner (P. 8-14)
8. Fuse box (P. 8-18)
9. Fuse/Fusible link box (P. 8-18)
10. Fuse/Fusible link box (P. 8-18)
11. Battery (P. 8-11)
12. Engine oil dipstick (P. 8-6)
13. Radiator cap (P. 8-4)
14. Windshield-washer fluid reservoir
(P. 8-10)
Refer to the page number indicated in pa-
rentheses for operating details.
LDI3012
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-9
or
Brake warning light 2-9
Charge warning
light
2-10
Forward Emergency
Braking (FEB) with
Pedestrian Detec-
tion system warning
light (if so equipped)2-10
Low tire pressure
warning light
2-10
Warning
light Name Page
Master warning light 2-12
Power steering
warning light 2-12
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
Continuously Vari-
able Transmission
(CVT) position indi-
cator light 2-13
Front fog light indi-
cator light (green)
2-13
Front passenger air
bag status light2-13
Indicator
light Name Page
High bean assist
indicator light
(green) (if so
equipped) 2-13
High beam indicator
light (blue)
2-13
Malfunction Indica-
tor Light (MIL)2-14
Security indicator
light2-14
Side light and head-
light indicator light
(green)2-14
Slip indicator light 2-15
Turn signal/hazard
indicator lights
2-15
WARNING AND INDICATOR LIGHTS
Illustrated table of contents0-9

Indicatorlight Name Page
Vehicle Dynamic
Control (VDC) OFF
indicator light 2-15
0-10Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment .....................1-3
2nd row bench seat adjustment ..................1-5
3rd row bench seat adjustment ..................1-8
Armrests ......................................1-8
Flexible seating .................................1-8
Head restraints/headrests ......................... 1-12
Adjustable head restraint/headrest
components .................................. 1-13
Non-adjustable head restraint/headrest
components .................................. 1-13
Remove ...................................... 1-13
Removable (without Dual head restraint/
headrest DVD system only) .....................1-14
Install ........................................ 1-14
Adjust ........................................ 1-15
Folding head restraint/headrest .................1-16
Seat belts ....................................... 1-17
Precautions on seat belt usage ..................1-17
Seat belt warning light ......................... 1-20
Pregnant women .............................. 1-20
Injured persons ................................ 1-20
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-20Three-point type seat belt with retractor
..........1-21
Seat belt extenders ............................ 1-25
Seat belt maintenance ......................... 1-25
Child safety ...................................... 1-26
Infants ........................................ 1-26
Small children ................................. 1-27
Larger children ................................ 1-27
Child restraints ................................... 1-28
Precautions on child restraints ..................1-29
LATCH (Lower Anchors and Tethers for
CHildren) system .............................. 1-30
Rear-facing child restraint installation using
LATCH....................................... 1-34
Rear-facing child restraint installation using
the seat belts ................................. 1-36
Forward-facing child restraint installation
using LATCH .................................. 1-38
Forward-facing child restraint installation
using the seat belts ............................ 1-42
Booster seats................................. 1-47
Supplemental

Restraint System (SRS) ..............1-50
Precautions on SRS ........................... 1-50
Supplemental air bag warning labels .............1-68
Supplemental air bag warning light ..............1-69
