INFINITI QX60 2018 Owner's Manual

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Press the CLIMATE button on the control
panel and turn the display to the Climate
mode.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Press the CLIMATE button. 2. If the CLIMATE screen is displayed and
the A/C indicator is ON, press the soft-
touch A/C button to turn A/C OFF.
3. Press the temperature control button to set the desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the “A/C” indicator
light illuminates.
Dual control mode setting
Press the DUAL button on the control panel
to activate dual climate control functions.
Or, you can individually set the driver and
front passenger side temperature using each
temperature control button. 1. Press the CLIMATE button. 2. By touching the “DUAL” key, or when the
passenger side temperature control but-
ton or manual air control button is
pressed, the “DUAL” indicator on the
screen will illuminate.
3. To turn off the passenger side tempera- ture control, touch the “DUAL” key and
the “DUAL” indicator will turn off.
∙ The Dual control mode cannot be acti- vated when the air conditioner is in the
front defrosting mode.
Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System
(ACCS) keeps the air inside of the vehicle
clean, using the ion control and the automatic
air intake control with exhaust gas detecting
sensor.
LHA4425
4-38Monitor, climate, audio, phone and voice recognition systems

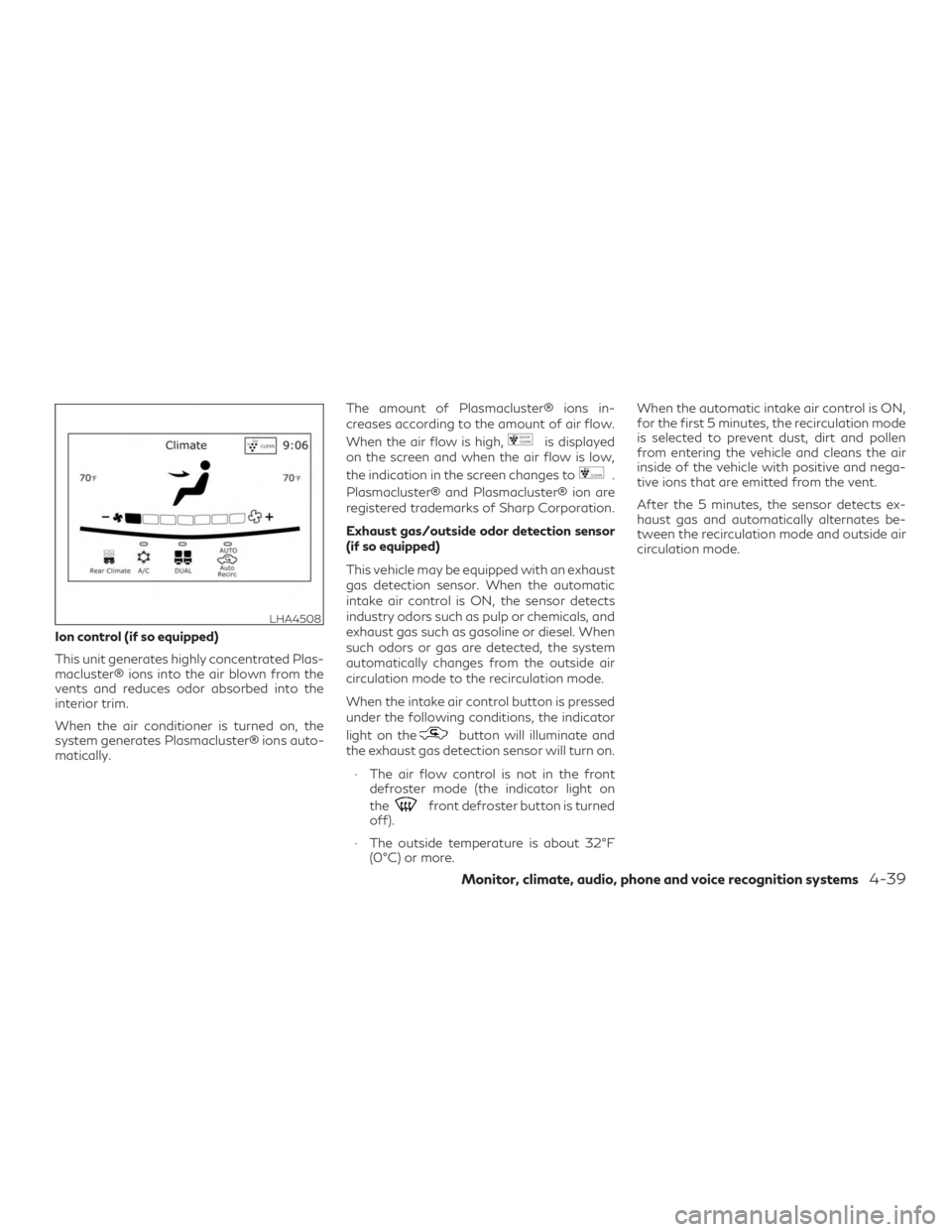

Ion control (if so equipped)
This unit generates highly concentrated Plas-
macluster® ions into the air blown from the
vents and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster® ions auto-
matically.The amount of Plasmacluster® ions in-
creases according to the amount of air flow.
When the air flow is high,
is displayed
on the screen and when the air flow is low,
the indication in the screen changes to
.
Plasmacluster® and Plasmacluster® ion are
registered trademarks of Sharp Corporation.
Exhaust gas/outside odor detection sensor
(if so equipped)
This vehicle may be equipped with an exhaust
gas detection sensor. When the automatic
intake air control is ON, the sensor detects
industry odors such as pulp or chemicals, and
exhaust gas such as gasoline or diesel. When
such odors or gas are detected, the system
automatically changes from the outside air
circulation mode to the recirculation mode.
When the intake air control button is pressed
under the following conditions, the indicator
light on the
button will illuminate and
the exhaust gas detection sensor will turn on.
∙ The air flow control is not in the front defroster mode (the indicator light on
the
front defroster button is turned
off).
∙ The outside temperature is about 32°F (0°C) or more. When the automatic intake air control is ON,
for the first 5 minutes, the recirculation mode
is selected to prevent dust, dirt and pollen
from entering the vehicle and cleans the air
inside of the vehicle with positive and nega-
tive ions that are emitted from the vent.
After the 5 minutes, the sensor detects ex-
haust gas and automatically alternates be-
tween the recirculation mode and outside air
circulation mode.
LHA4508
Monitor, climate, audio, phone and voice recognition systems4-39

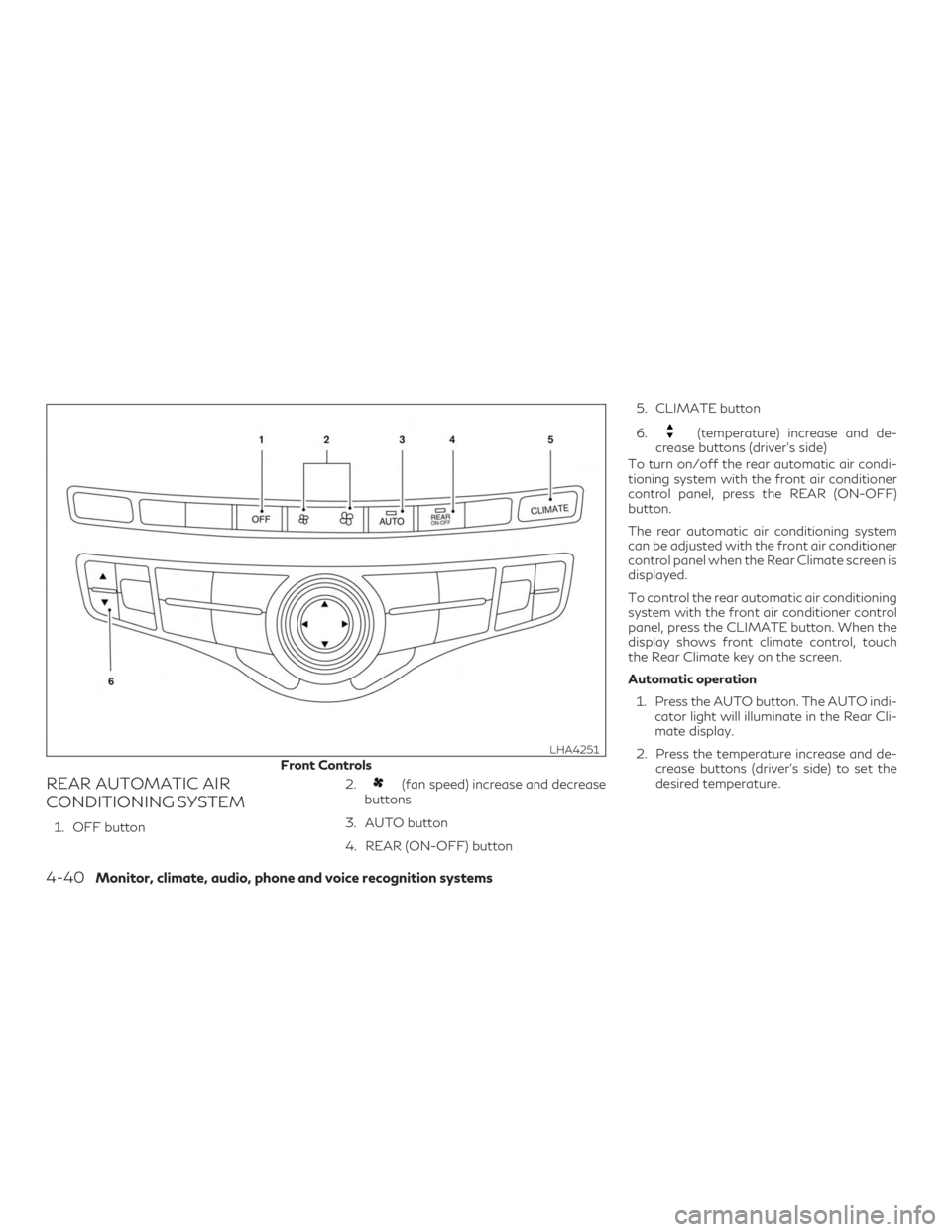

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. OFF button2.
(fan speed) increase and decrease
buttons
3. AUTO button
4. REAR (ON-OFF) button 5. CLIMATE button
6.
(temperature) increase and de-
crease buttons (driver’s side)
To turn on/off the rear automatic air condi-
tioning system with the front air conditioner
control panel, press the REAR (ON-OFF)
button.
The rear automatic air conditioning system
can be adjusted with the front air conditioner
control panel when the Rear Climate screen is
displayed.
To control the rear automatic air conditioning
system with the front air conditioner control
panel, press the CLIMATE button. When the
display shows front climate control, touch
the Rear Climate key on the screen.
Automatic operation
1. Press the AUTO button. The AUTO indi- cator light will illuminate in the Rear Cli-
mate display.
2. Press the temperature increase and de- crease buttons (driver’s side) to set the
desired temperature.
Front Controls
LHA4251
4-40Monitor, climate, audio, phone and voice recognition systems

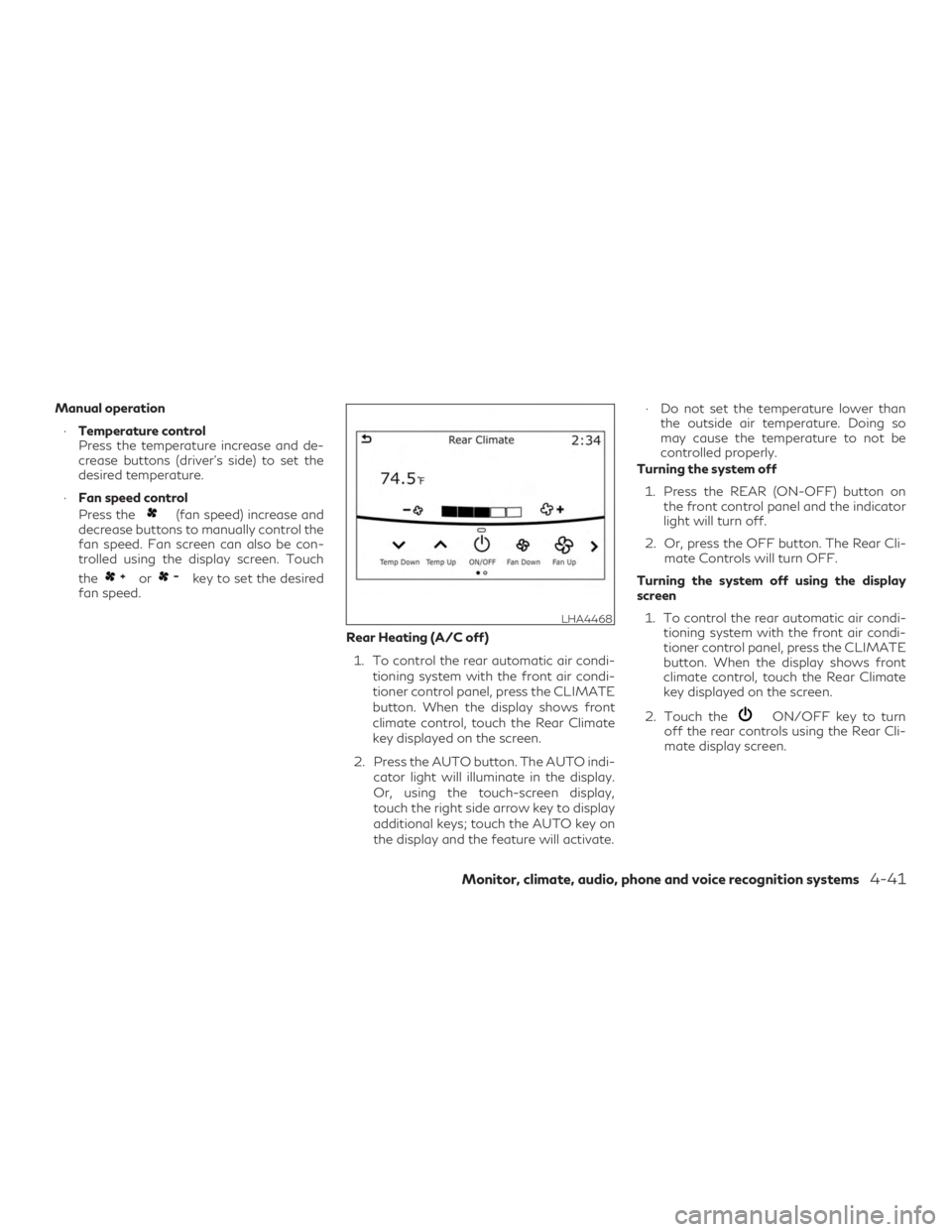

Manual operation∙ Temperature control
Press the temperature increase and de-
crease buttons (driver’s side) to set the
desired temperature.
∙ Fan speed control
Press the
(fan speed) increase and
decrease buttons to manually control the
fan speed. Fan screen can also be con-
trolled using the display screen. Touch
the
orkey to set the desired
fan speed.
Rear Heating (A/C off)1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Press the AUTO button. The AUTO indi- cator light will illuminate in the display.
Or, using the touch-screen display,
touch the right side arrow key to display
additional keys; touch the AUTO key on
the display and the feature will activate. ∙ Do not set the temperature lower than
the outside air temperature. Doing so
may cause the temperature to not be
controlled properly.
Turning the system off
1. Press the REAR (ON-OFF) button on the front control panel and the indicator
light will turn off.
2. Or, press the OFF button. The Rear Cli- mate Controls will turn OFF.
Turning the system off using the display
screen 1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Touch the
ON/OFF key to turn
off the rear controls using the Rear Cli-
mate display screen.
LHA4468
Monitor, climate, audio, phone and voice recognition systems4-41

Rear control buttons1. OFF button
2.
(fan speed increase) button
3. AUTO button
4.
(temperature increase) button
5.
(temperature decrease) button
6. Display
7. — (fan speed decrease) button The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches at the rear of the center
console.
The rear control buttons do not function
when the Rear Climate screen is shown on
the front display. To activate the rear control
buttons, press the CLIMATE button and the
screen will return to Front Climate control.
This will enable the second row Rear Climate
controls.
∙ OFF button Turns rear automatic air
conditioning system off. ∙
Fan speed increase and decrease but-
tons Adjusts the rear fan speed up or
down.
∙ AUTO button Turns rear automatic air
conditioning system on, AUTO mode on.
∙ Temperature increase and decrease but-
tons Adjusts the rear temperature up or
down.
Rear Controls
LHA2134
4-42Monitor, climate, audio, phone and voice recognition systems

The air conditioner system in your INFINITI
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant does not harm the earth’s
ozone layer.
Special charging equipment and lubricant is
required when servicing your INFINITI air
conditioner. Using improper refrigerants or
lubricants will cause severe damage to your
air conditioner system. For additional infor-
mation, refer to “Air conditioner system re-
frigerant and oil recommendations” in the
“Technical and consumer information” sec-
tion of this manual.
It is recommended that you visit an INFINITI
retailer for servicing your “environmentally
friendly” air conditioning system.
WARNING
The air conditioner system contains refrig-
erant under high pressure. To avoid per-
sonal injury, any air conditioner service
should be done only by an experienced
technician with proper equipment.There are USB/iPod® charging ports located
in the 2nd row on the back of the center
console and in the 3rd row located above the
cup holders. These ports will charge compat-
ible devices.
NOTE:
The USB/iPod® charging ports will not op-
erate with the display screen or the Mobile
Entertainment System (MES) (if so
equipped). Only the USB connection port lo-
cated in the console box will operate
USB/iPod® devices.
2nd row
LHA4063
3rd row
LHA4064
SERVICING AIR CONDITIONER USB/iPod® CHARGING PORTS (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-43

The vehicle is equipped with a shark fin an-
tenna and an antenna pattern is printed in-
side the rear window.
CAUTION
∙ Do not place metalized film near the rearwindow glass or attach any metal parts
to it. This may cause poor reception or
noise.
∙ When cleaning the inside of the rear win- dow, be careful not to scratch or damage
the rear window antenna. Lightly wipe
along the antenna with a dampened soft
cloth. When installing a CB, ham radio or car phone
in your vehicle, be sure to observe the follow-
ing precautions; otherwise, the new equip-
ment may adversely affect the engine control
system and other electronic parts.WARNING
∙ A cellular phone should not be used for
any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of cel-
lular phones while driving.
∙ If you must make a call while your vehicle is in motion, the hands free cellular phone
operational mode is highly recom-
mended. Exercise extreme caution at all
times so full attention may be given to
vehicle operation.
∙ If you are unable to devote full attention to vehicle operation while talking on the
phone, pull off the road to a safe location
and stop your vehicle.
CAUTION
∙ Keep the antenna as far away as possiblefrom the electronic control modules.
∙ Keep the antenna wire more than 8 in (20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.
∙ Adjust the antenna standing-wave ratio as recommended by the manufacturer.
∙ Connect the ground wire from the CB ra- dio chassis to the body.
∙ For additional information,, it is recom- mended that you visit an INFINITI re-
tailer for servicing.
ANTENNA CAR PHONE OR CB RADIO
4-44Monitor, climate, audio, phone and voice recognition systems

5 Starting and driving
Precautions when starting and driving.............5-4
Exhaust gas (carbon monoxide) ................5-4
Three-way catalyst ............................5-4
Tire Pressure Monitoring System (TPMS) .......5-5
On-pavement and off-road driving
precautions ...................................5-9
Avoiding collision and rollover ..................5-9
Off-road recovery .............................5-9
Rapid air pressure loss ....................... 5-10
Drinking alcohol/drugs and driving ...........5-10
Driving safety precautions ....................5-11
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ...........5-13
Push-Button Ignition Switch ....................5-13
Operating range ............................ 5-14
Push-button ignition switch positions .........5-15
Emergency engine shut off ..................5-16
INFINITI Intelligent Key battery
discharge ................................... 5-16
INFINITI Vehicle Immobilizer System ..........5-17
Before starting the engine .......................5-17
Starting the engine .............................. 5-17
Remote Engine Start (if so equipped) .........5-18
Driving the vehicle .............................. 5-19Continuously Variable Transmission (CVT).....5-19
Parking brake .................................. 5-23
INFINITI Drive Mode Selector ..................5-24
Standard mode ............................. 5-24
Sport mode ................................. 5-24
Snow mode ................................. 5-24
ECO mode .................................. 5-25
Lane Departure Warning (LDW)
(if so equipped) ................................. 5-27
LDW system operation ......................5-28
How to enable/disable the LDW system .....5-29
LDW system limitations .....................5-30
System temporarily unavailable ..............5-31
System maintenance ........................ 5-31
Lane Departure Prevention (LDP)
(if so equipped) ................................. 5-32
LDP system operation ....................... 5-33
How to enable/disable the LDP system ......5-34
LDP system limitations ......................5-35
System temporarily unavailable ..............5-36
System maintenance ........................ 5-37
Blind Spot Warning (BSW) (if so equipped) ......5-38
BSW system operation ......................5-39
How to enable/disable the BSW system .....5-40

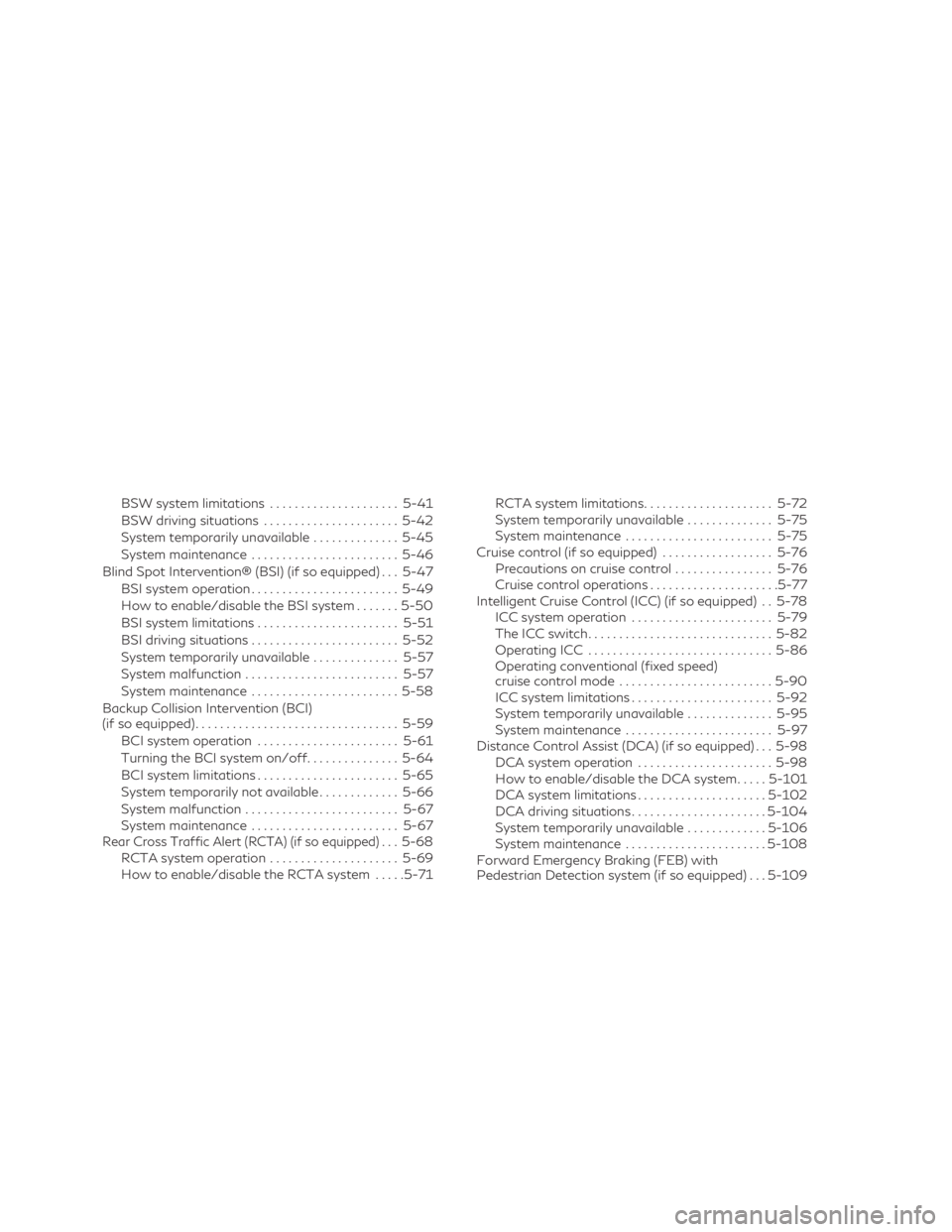

BSW system limitations.....................5-41
BSW driving situations ......................5-42
System temporarily unavailable ..............5-45
System maintenance ........................ 5-46
Blind Spot Intervention® (BSI) (if so equipped) . . . 5-47 BSI system operation ........................ 5-49
How to enable/disable the BSI system .......5-50
BSI system limitations ....................... 5-51
BSI driving situations ........................ 5-52
System temporarily unavailable ..............5-57
System malfunction ......................... 5-57
System maintenance ........................ 5-58
Backup Collision Intervention (BCI)
(if so equipped) ................................. 5-59
BCI system operation ....................... 5-61
Turning the BCI system on/off ...............5-64
BCI system limitations ....................... 5-65
System temporarily not available .............5-66
System malfunction ......................... 5-67
System maintenance ........................ 5-67
Rear Cross Traffic Alert (RCTA) (if so equipped). . . 5-68
RCTA system operation .....................5-69
How to enable/disable the RCTA system .....5-71 RCTA system limitations
.....................5-72
System temporarily unavailable ..............5-75
System maintenance ........................ 5-75
Cruise control (if so equipped) ..................5-76
Precautions on cruise control ................5-76
Cruise control operations .....................5-77
Intelligent Cruise Control (ICC) (if so equipped) . . 5-78 ICC system operation ....................... 5-79
The ICC switch .............................. 5-82
Operating ICC .............................. 5-86
Operating conventional (fixed speed)
cruise control mode ......................... 5-90
ICC system limitations ....................... 5-92
System temporarily unavailable ..............5-95
System maintenance ........................ 5-97
Distance Control Assist (DCA) (if so equipped) . . . 5-98 DCA system operation ......................5-98
How to enable/disable the DCA system .....5-101
DCA system limitations .....................5-102
DCA driving situations ......................5-104
System temporarily unavailable .............5-106
System maintenance ....................... 5-108
Forward Emergency Braking (FEB) with
Pedestrian Detection system (if so equipped) . . . 5-109

System operation.......................... 5-110
Turning the FEB with Pedestrian
Detection system ON/OFF .................5-112
FEB with Pedestrian Detection system
limitations ................................. 5-113
System temporarily unavailable .............5-115
System malfunction ........................ 5-116
System maintenance ....................... 5-116
Predictive Forward Collision Warning (PFCW)
(if so equipped) ................................ 5-117
PFCW system operation ...................5-119
Turning the PFCW system on/off ..........5-120
PFCW system limitations ...................5-122
System temporarily unavailable .............5-126
System malfunction ........................ 5-127
System maintenance ....................... 5-127
Break-in schedule ............................. 5-128
Fuel efficient driving tips .......................5-129
Increasing fuel economy .......................5-130
Intelligent All-Wheel Drive (AWD) (if so
equipped) ..................................... 5-130
Parking/parking on hills .......................5-133
Power steering ................................ 5-134Brake system
................................. 5-134
Brake precautions .......................... 5-134
Anti-lock Braking System (ABS) .............5-135
Brake assist ................................ 5-136
Vehicle Dynamic Control (VDC) system .........5-136
Active Trace Control (if so equipped) ........5-138
Brake force distribution .....................5-138
Hill start assist system ......................... 5-139
Front and Rear Sonar System (if so equipped) . . 5-140 System operation .......................... 5-140
How to enable/disable the sonar system ....5-142
Sonar limitations ........................... 5-143
System temporarily unavailable .............5-143
System maintenance ....................... 5-143
Cold weather driving .......................... 5-144
F
reeing a frozen door lock ..................5-144
Antifreeze ................................. 5-144
Battery .................................... 5-144
Draining of coolant water ..................5-144
Tire equipment ............................. 5-144
Special winter equipment ...................5-145
Driving on snow or ice ...................... 5-145
Engine block heater (if so equipped) .........5-145
