INFINITI QX60 2018 Owner's Manual

4. Maneuver the steering wheel to makethe vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking
brake.
ADJUSTING THE SCREEN
To adjust the Display ON/OFF, Brightness,
Tint, Color, Contrast and Black Level of the
RearView Monitor, press the SETTING but-
ton with the RearView Monitor on. Select
one of the items and change the value by
touching the “+” or “-” key or by turning the
INFINITI controller. NOTE:
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the RearView
Monitor while the vehicle is moving. Make
sure the parking brake is firmly applied.
HOW TO TURN ON AND OFF
PREDICTED COURSE LINES
To toggle on and off the predicted course
lines while in the P (Park) position:
1. Press the SETTING button.
2. Touch the Camera or Camera/Sonar key.
3. Touch the Camera key.
4. Touch the Predicted Course Lines key to turn the feature on or off.
REARVIEW MONITOR SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
RearView Monitor. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
LHA4243
4-8Monitor, climate, audio, phone and voice recognition systems

∙ The system cannot completely eliminateblind spots and may not show every
object.
∙ Underneath the bumper and the corner areas of the bumper cannot be viewed on
the RearView Monitor because of its
monitoring range limitation. The system
will not show small objects below the
bumper, and may not show objects close
to the bumper or on the ground.
∙ Objects viewed in the RearView Monitor differ from actual distance because a
wide-angle lens is used.
∙ Objects in the RearView Monitor will ap- pear visually opposite compared to when
viewed in the rearview and outside
mirrors.
∙ Use the displayed lines as a reference. The lines are highly affected by the num-
ber of occupants, fuel level, vehicle posi-
tion, road conditions and road grade.
∙ Make sure that the liftgate is securely closed when backing up.
∙ Do not put anything on the rearview camera. The rearview camera is installed
above the license plate. ∙ When washing the vehicle with high
pressure water, be sure not to spray it
around the camera. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
∙ Do not strike the camera. It is a precision instrument. Otherwise, it may malfunc-
tion or cause damage resulting in a fire or
an electric shock.
The following are operating limitations and
do not represent a system malfunction: ∙ When the temperature is extremely high or low, the screen may not clearly display
objects.
∙ When strong light directly shines on the camera, objects may not be displayed
clearly.
∙ Vertical lines may be seen in objects on the screen. This is due to strong reflected
light from the bumper.
∙ The screen may flicker under fluorescent light.
∙ The colors of objects on the RearView Monitor may differ somewhat from the
actual color of objects. ∙ Objects on the monitor may not be clear
in a dark environment.
∙ There may be a delay when switching between views.
∙ If dirt, rain or snow accumulate on the camera, the RearView Monitor may not
display objects clearly. Clean the camera.
∙ Do not use wax on the camera lens. Wipe off any wax with a clean cloth dampened
with a diluted mild cleaning agent, then
wipe with a dry cloth.
Monitor, climate, audio, phone and voice recognition systems4-9

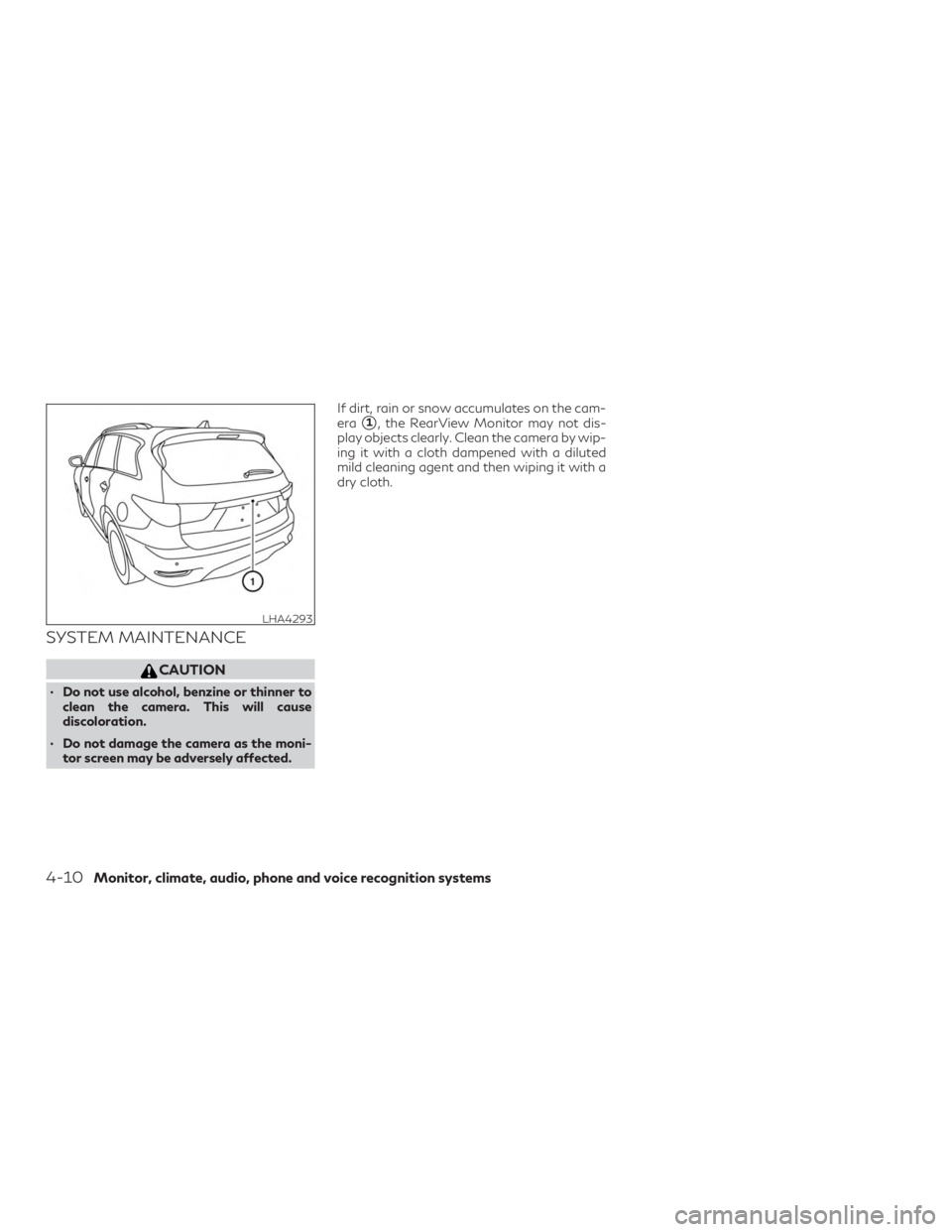

SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner toclean the camera. This will cause
discoloration.
∙ Do not damage the camera as the moni- tor screen may be adversely affected. If dirt, rain or snow accumulates on the cam-
era
1, the RearView Monitor may not dis-
play objects clearly. Clean the camera by wip-
ing it with a cloth dampened with a diluted
mild cleaning agent and then wiping it with a
dry cloth.
LHA4293
4-10Monitor, climate, audio, phone and voice recognition systems

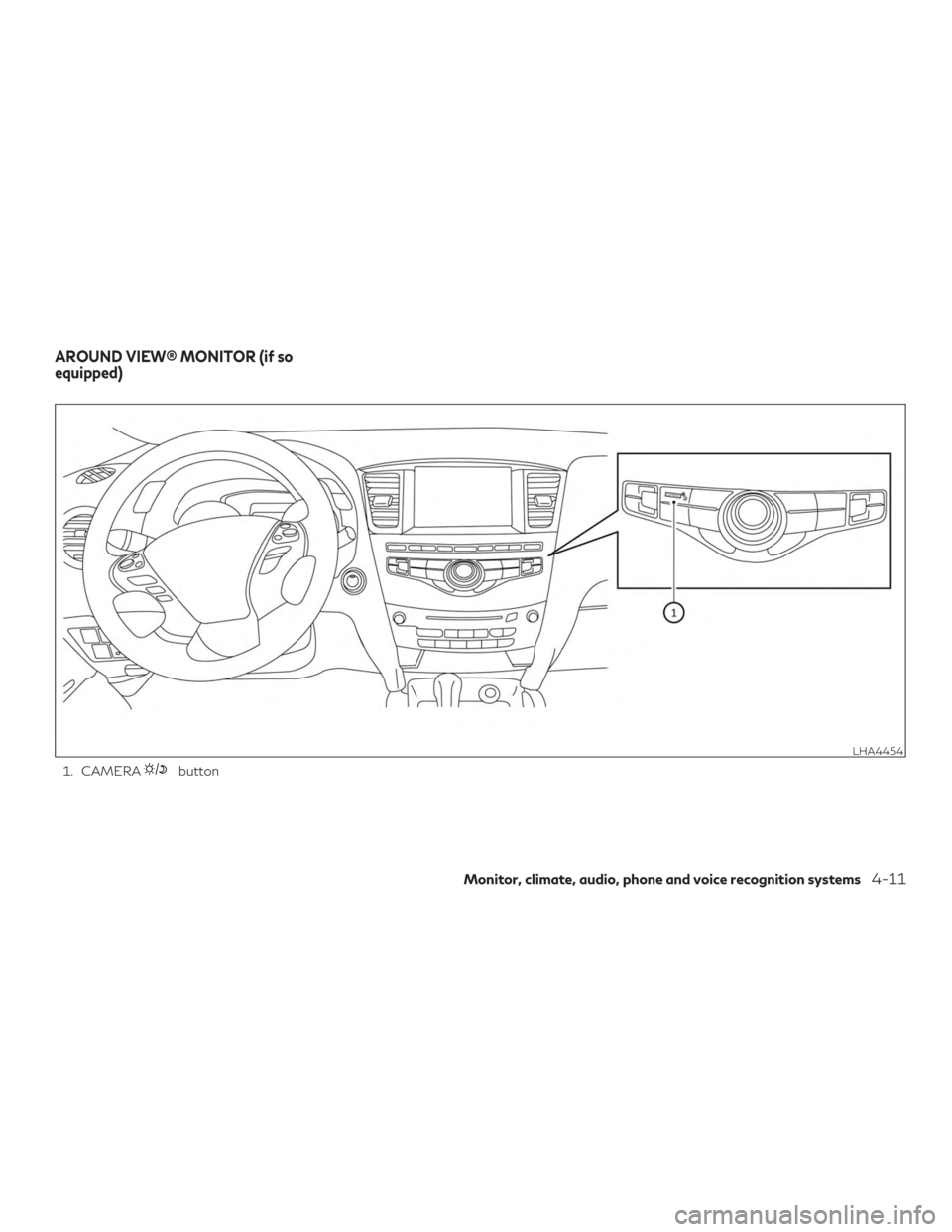

1. CAMERAbutton
LHA4454
AROUND VIEW® MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-11

WARNING
∙ Failure to follow the warnings and in-structions for the proper use of the
Around View® Monitor system could re-
sult in serious injury or death.
∙ The Around View® Monitor is a conve- nience feature and is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in particu-
lar, are areas where objects do not al-
ways appear in the bird’s-eye, front, or
rear views. Always check your surround-
ings to be sure that it is safe to move
before operating the vehicle. Always op-
erate the vehicle slowly.
∙ The driver is always responsible for safety during parking and other
maneuvers.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera.
The Around View® Monitor system is de-
signed as an aid to the driver in situations
such as slot parking or parallel parking. The monitor displays various views of the
position of the vehicle in a split screen format.
Not all views are available at all times.
Available views:
∙ Front View An approximately 150–degree view of
the front of the vehicle.
∙ Rear View An approximately 150–degree view of
the rear of the vehicle.
∙ Bird’s-Eye View The surrounding views of the vehicle
from above.
∙ Front-Side View The view around and ahead of the front
passenger’s side wheel.
∙ Front-Wide View An approximately 180–degree view of
the front the vehicle.
∙ Rear-Wide View An approximately 180–degree view of
the rear of the vehicle. To display the multiple views, the Around
View® Monitor system uses cameras located
in the front grille, on the vehicle’s outside
mirrors and one just above the vehicle’s li-
cense plate
1.
AROUND VIEW® MONITOR
SYSTEM OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion or press the CAMERA
button to
operate the Around View® Monitor.
LHA4347
4-12Monitor, climate, audio, phone and voice recognition systems

When the camera is first activated with the
bird’s-eye view in the display, a red icon will
flash on the screen. This indicates that the
sonar system is activated. For additional in-
formation on the front and rear sonar system
(if so equipped), refer to “Front and Rear
Sonar System” in the “Starting and driving”
section of this manual.
Available views
WARNING
∙ The distance guide lines and the vehiclewidth lines should be used as a reference
only when the vehicle is on a paved, level
surface. The apparent distance viewed
on the monitor may be different than the
actual distance between the vehicle and
displayed objects.
∙ Use the displayed lines and the bird’s-eye view as a reference. The lines and the
bird’s-eye view are greatly affected by
the number of occupants, cargo, fuel
level, vehicle position, road condition and
road grade.
∙ If the tires are replaced with different sized tires, the predicted course lines and
the bird’s-eye view may be displayed
incorrectly. ∙ When driving the vehicle up a hill, objects
viewed in the monitor are further than
they appear. When driving the vehicle
down a hill, objects viewed in the monitor
are closer than they appear.
∙ Objects in the rear view will appear visu- ally opposite compared to when viewed
in the monitor and outside mirrors.
∙ Use the mirrors or actually look to prop- erly judge distances to other objects.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course lines and the actual
course line.
∙ The vehicle width and predicted course lines are wider than the actual width and
course.
∙ The displayed lines will appear slightly off to the right, because the rearview
camera is not installed in the rear center
of the vehicle. Front and rear view
Guiding lines that indicate the approximate
vehicle width and distance to objects with
reference to the vehicle body line
Aare dis-
played on the monitor.
Distance guide lines
Indicate distances from the vehicle body:
∙ Red line
1: approximately 1.5 ft (0.5 m)
∙ Yellow line
2: approximately 3 ft (1 m)
∙ Green line
3: approximately 7 ft (2 m)
∙ Green line
4: approximately 10 ft (3 m)
Front view
SAA1840
Monitor, climate, audio, phone and voice recognition systems4-13

Vehicle width guide lines5:
Indicate the approximate vehicle width when
backing up.
Predicted course lines
6:
Indicate the predicted course when operating
the vehicle. The predicted course lines will be
displayed on the monitor when the steering
wheel is turned. The predicted course lines
will move depending on how much the steer-
ing wheel is turned and will not be displayed
while the steering wheel is in the straight-
ahead position. The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the straight-ahead posi-
tion, both the right and left predicted course
lines
6are displayed. When the steering
wheel turns about 90 degrees or more, a line
is displayed only on the opposite side of the
turn.
Bird’s-eye view
The bird’s-eye view shows the overhead view
of the vehicle, which helps confirm the vehicle
position and the predicted course to a park-
ing space.
The vehicle icon
1shows the position of the
vehicle. Note that the apparent distance be-
tween objects viewed in the bird’s-eye view
may differ somewhat from the actual dis-
tance to the vehicle.
The areas that the cameras cannot cover
2
are indicated in black.
Rear view
SAA1896
Front view
LHA4546
4-14Monitor, climate, audio, phone and voice recognition systems

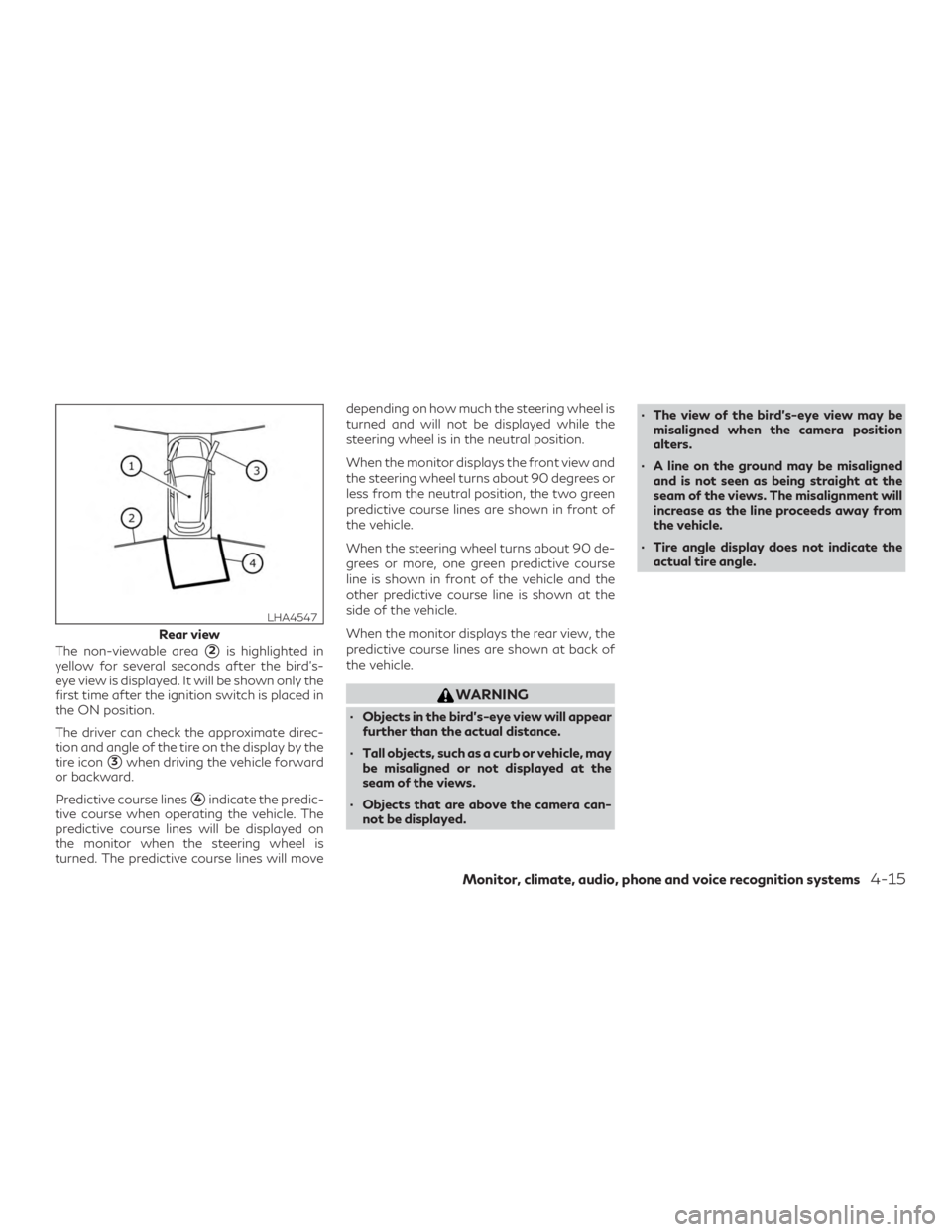

The non-viewable area2is highlighted in
yellow for several seconds after the bird’s-
eye view is displayed. It will be shown only the
first time after the ignition switch is placed in
the ON position.
The driver can check the approximate direc-
tion and angle of the tire on the display by the
tire icon
3when driving the vehicle forward
or backward.
Predictive course lines
4indicate the predic-
tive course when operating the vehicle. The
predictive course lines will be displayed on
the monitor when the steering wheel is
turned. The predictive course lines will move depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
When the monitor displays the front view and
the steering wheel turns about 90 degrees or
less from the neutral position, the two green
predictive course lines are shown in front of
the vehicle.
When the steering wheel turns about 90 de-
grees or more, one green predictive course
line is shown in front of the vehicle and the
other predictive course line is shown at the
side of the vehicle.
When the monitor displays the rear view, the
predictive course lines are shown at back of
the vehicle.
WARNING
∙ Objects in the bird’s-eye view will appear
further than the actual distance.
∙ Tall objects, such as a curb or vehicle, may be misaligned or not displayed at the
seam of the views.
∙ Objects that are above the camera can- not be displayed. ∙ The view of the bird’s-eye view may be
misaligned when the camera position
alters.
∙ A line on the ground may be misaligned and is not seen as being straight at the
seam of the views. The misalignment will
increase as the line proceeds away from
the vehicle.
∙ Tire angle display does not indicate the actual tire angle.
Rear view
LHA4547
Monitor, climate, audio, phone and voice recognition systems4-15

Front-side view
Guiding lines
Guiding lines that indicate the approximate
width and the front end of the vehicle are
displayed on the monitor.
The front-of-vehicle line
1shows the front
part of the vehicle.
The side-of-vehicle line
2shows the ap-
proximate vehicle width including the outside
mirrors.
The extensions
3of both the front1and
side
2lines are shown with a green dotted
line.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.
LHA2652
LHA4216
4-16Monitor, climate, audio, phone and voice recognition systems

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.
Backing up near a projecting object
The predicted course linesAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object
LHA4217LHA1201LHA4218
Monitor, climate, audio, phone and voice recognition systems4-17
