INFINITI QX60 2018 User Guide

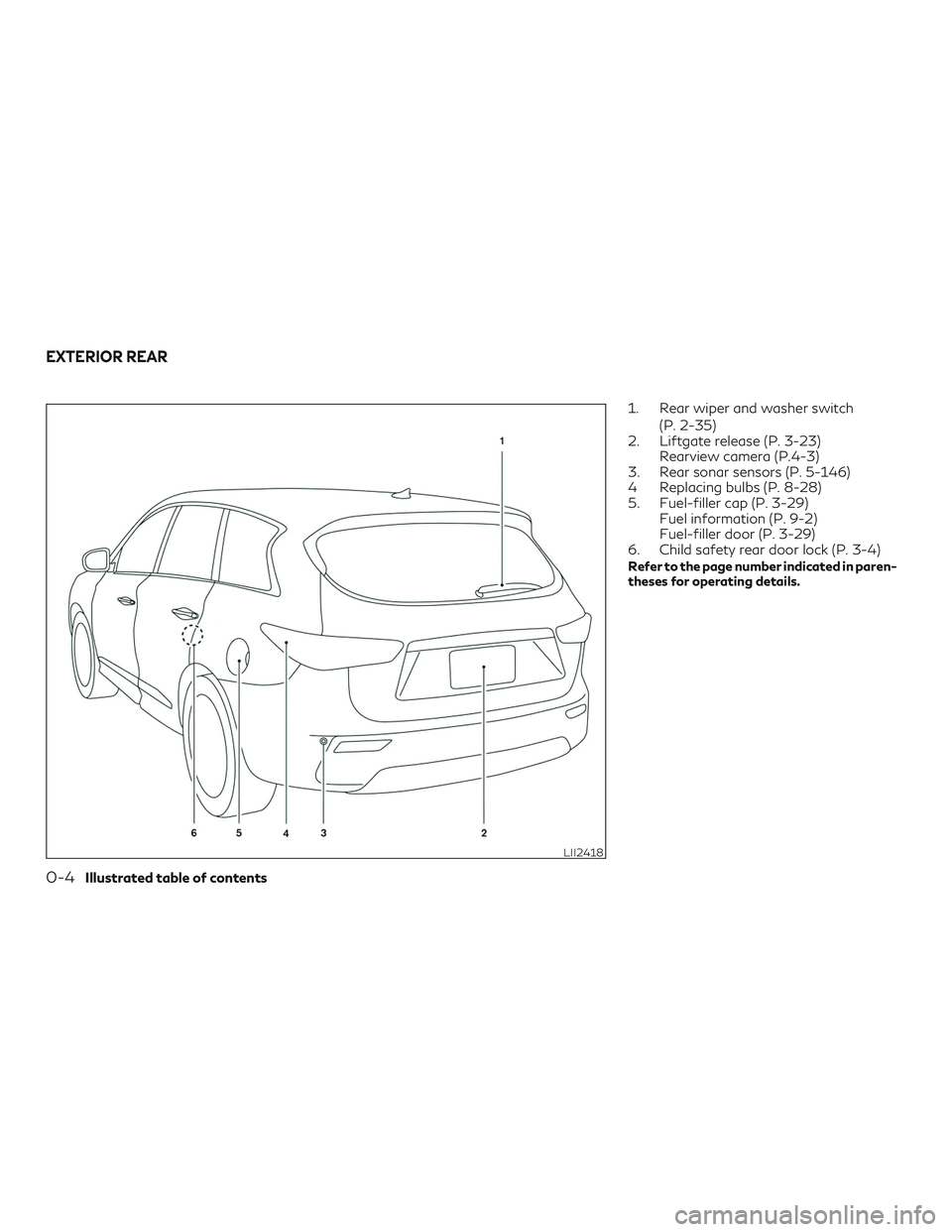

1. Rear wiper and washer switch(P. 2-35)
2. Liftgate release (P. 3-23) Rearview camera (P.4-3)
3. Rear sonar sensors (P. 5-146)
4 Replacing bulbs (P. 8-28)
5. Fuel-filler cap (P. 3-29) Fuel information (P. 9-2)
Fuel-filler door (P. 3-29)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in paren-
theses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

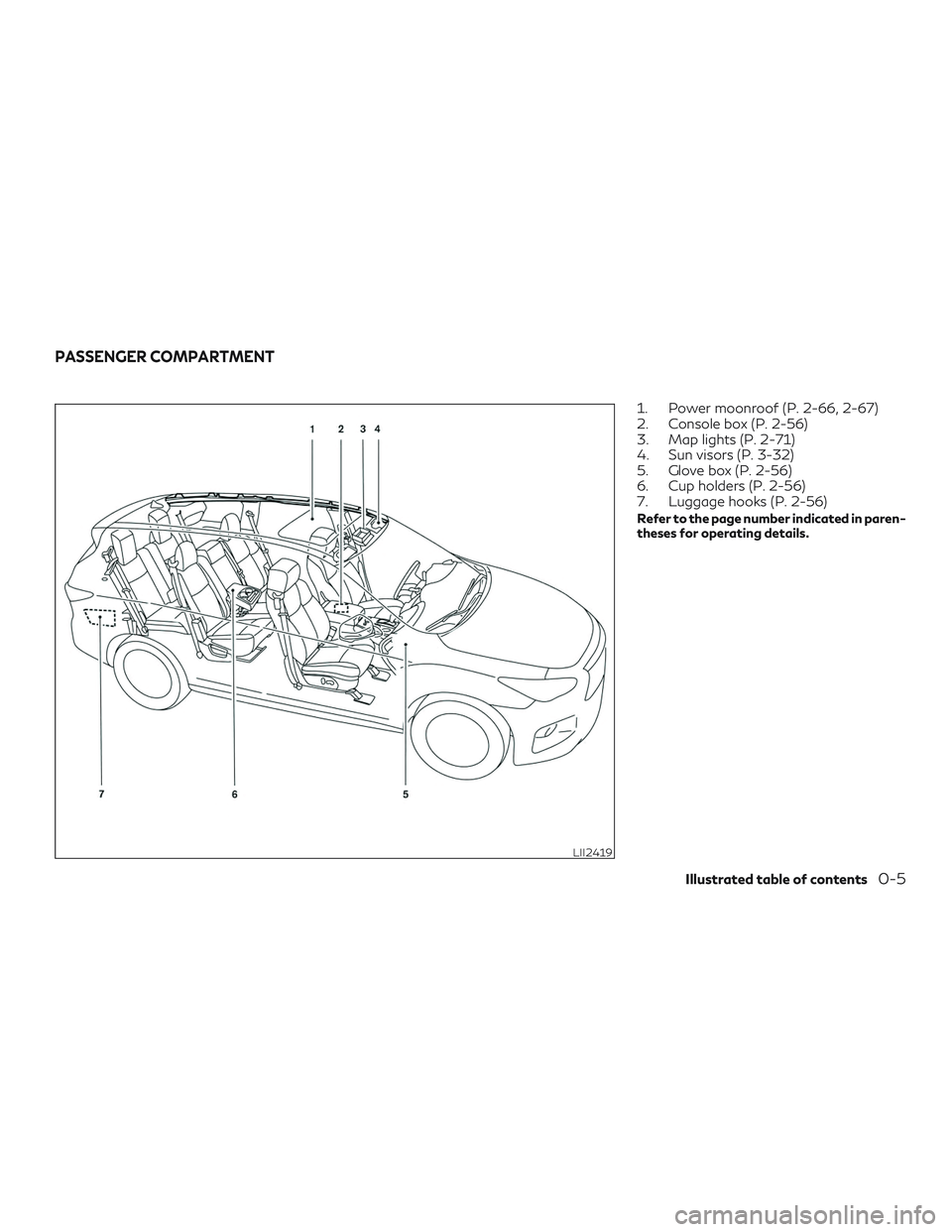

1. Power moonroof (P. 2-66, 2-67)
2. Console box (P. 2-56)
3. Map lights (P. 2-71)
4. Sun visors (P. 3-32)
5. Glove box (P. 2-56)
6. Cup holders (P. 2-56)
7. Luggage hooks (P. 2-56)
Refer to the page number indicated in paren-
theses for operating details.
LII2419
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vent (P. 4-32)
2. Headlight/fog light/turn signalswitch (P. 2-39)
3. Instrument brightness control
(P. 2-39)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-8)
Vehicle information display (P. 2-16)
5. Driver supplemental air bag (P.1-47) Horn (P. 2-45)
6. Back-up Collision Intervention (BCI)
system switch (if so equipped)
(P. 5-60)
7. Twin trip odometer reset switch
(P. 2-5)
8. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
9. Vent (P. 4-32)
10. Rear window defogger switch
(P. 2-38)
11. Center display/Navigation system*
12. Automatic heater and air condition-
ing controls (P. 4-33)
13. Vent (P. 4-32)
14. Front passenger supplemental air
bag (P. 1-47)
15. Vent (P. 4-32)
16. Glove box (P. 2-56)
LII2421
INSTRUMENT PANEL
0-6Illustrated table of contents

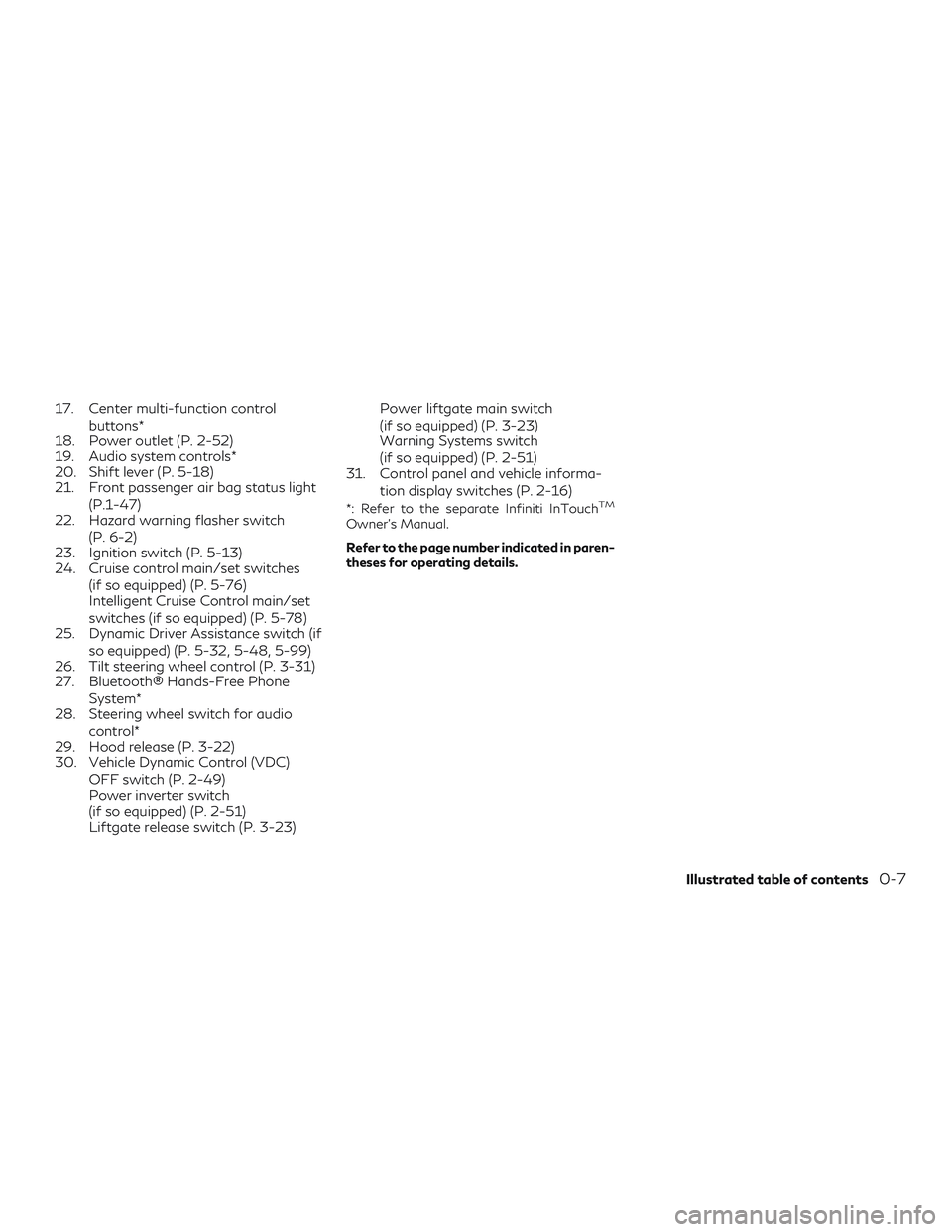

17. Center multi-function controlbuttons*
18. Power outlet (P. 2-52)
19. Audio system controls*
20. Shift lever (P. 5-18)
21. Front passenger air bag status light
(P.1-47)
22. Hazard warning flasher switch
(P. 6-2)
23. Ignition switch (P. 5-13)
24. Cruise control main/set switches
(if so equipped) (P. 5-76)
Intelligent Cruise Control main/set
switches (if so equipped) (P. 5-78)
25. Dynamic Driver Assistance switch (if
so equipped) (P. 5-32, 5-48, 5-99)
26. Tilt steering wheel control (P. 3-31)
27. Bluetooth® Hands-Free Phone
System*
28. Steering wheel switch for audio
control*
29. Hood release (P. 3-22)
30. Vehicle Dynamic Control (VDC)
OFF switch (P. 2-49)
Power inverter switch
(if so equipped) (P. 2-51)
Liftgate release switch (P. 3-23) Power liftgate main switch
(if so equipped) (P. 3-23)
Warning Systems switch
(if so equipped) (P. 2-51)
31. Control panel and vehicle informa-
tion display switches (P. 2-16)
*: Refer to the separate Infiniti InTouchTM
Owner’s Manual.
Refer to the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

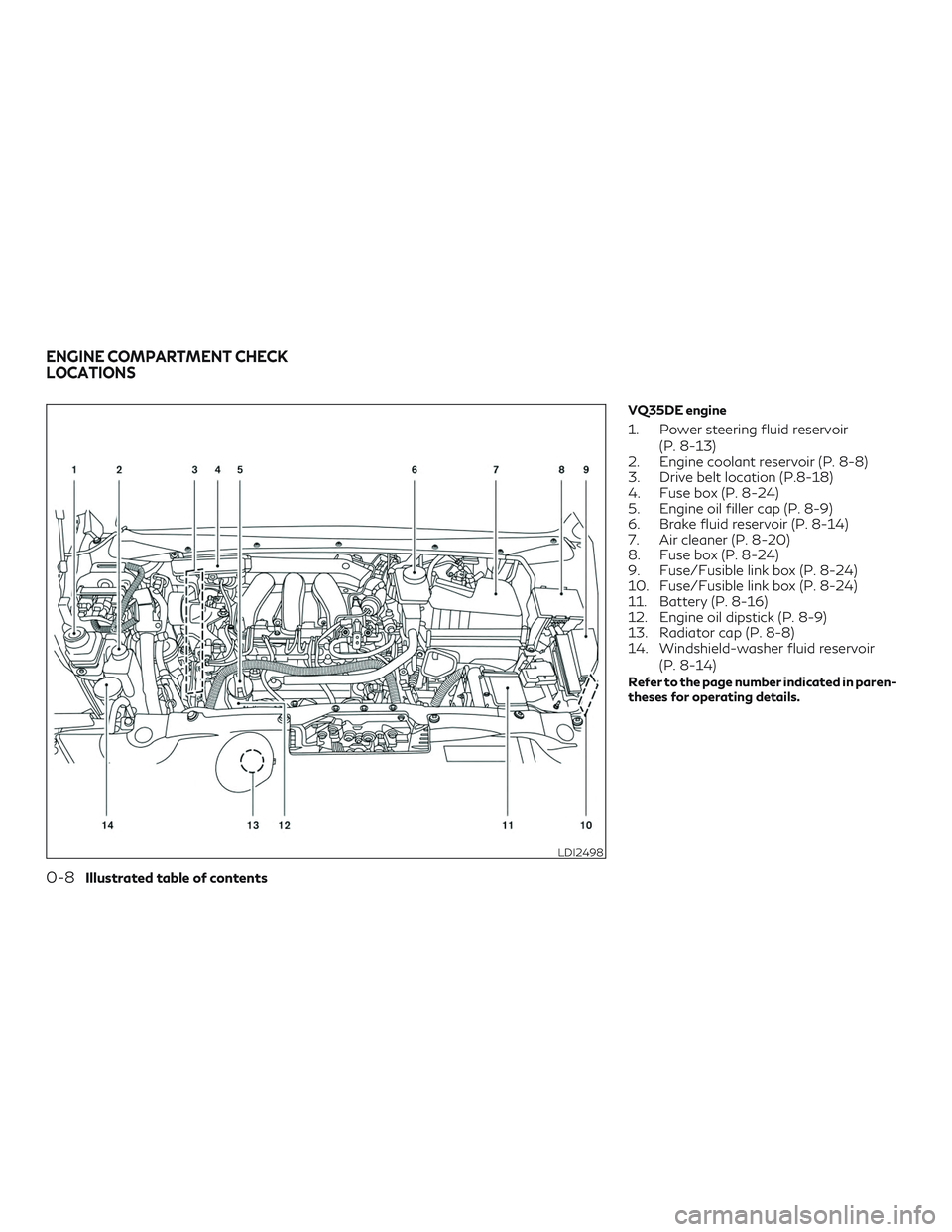

VQ35DE engine
1. Power steering fluid reservoir(P. 8-13)
2. Engine coolant reservoir (P. 8-8)
3. Drive belt location (P.8-18)
4. Fuse box (P. 8-24)
5. Engine oil filler cap (P. 8-9)
6. Brake fluid reservoir (P. 8-14)
7. Air cleaner (P. 8-20)
8. Fuse box (P. 8-24)
9. Fuse/Fusible link box (P. 8-24)
10. Fuse/Fusible link box (P. 8-24)
11. Battery (P. 8-16)
12. Engine oil dipstick (P. 8-9)
13. Radiator cap (P. 8-8)
14. Windshield-washer fluid reservoir
(P. 8-14)
Refer to the page number indicated in paren-
theses for operating details.
LDI2498
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

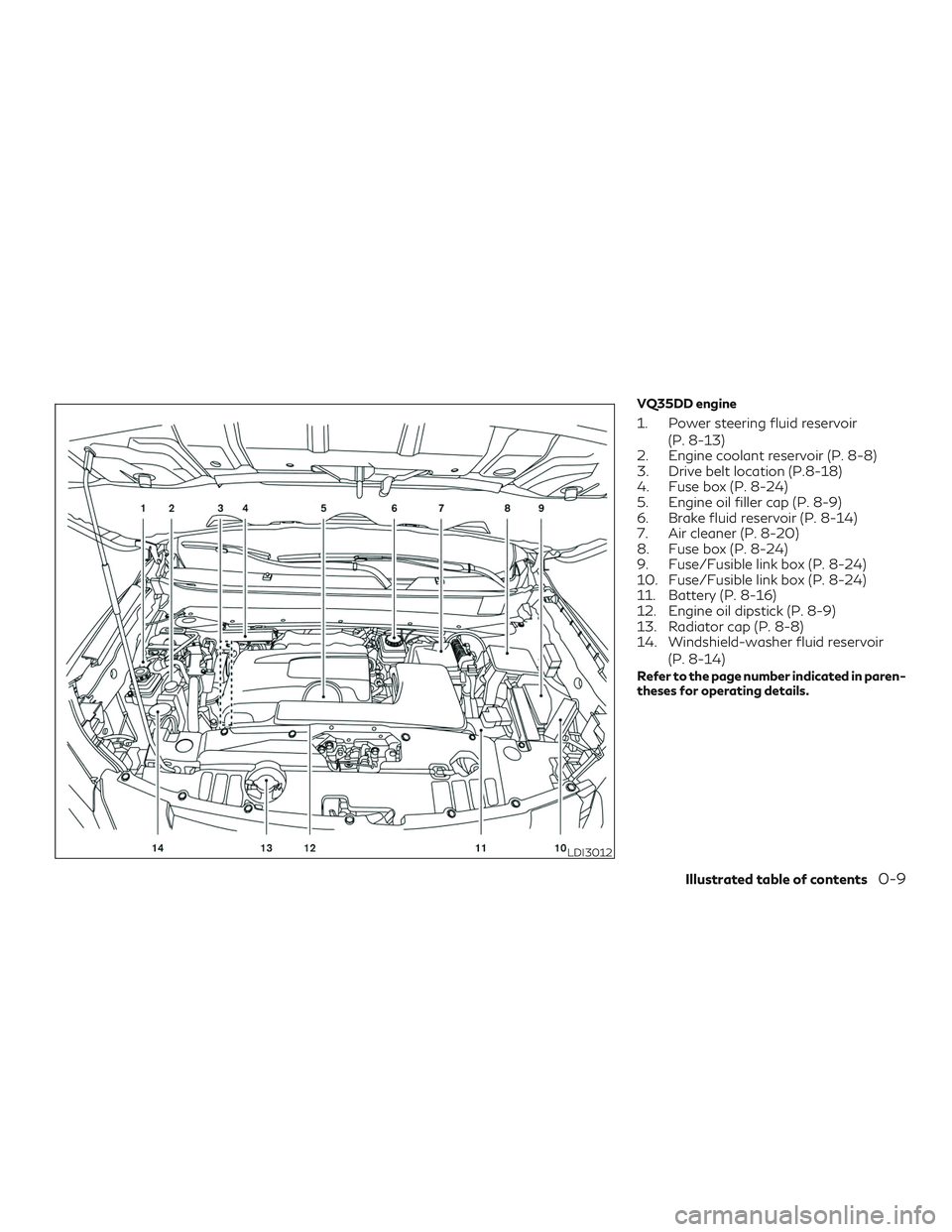

VQ35DD engine
1. Power steering fluid reservoir(P. 8-13)
2. Engine coolant reservoir (P. 8-8)
3. Drive belt location (P.8-18)
4. Fuse box (P. 8-24)
5. Engine oil filler cap (P. 8-9)
6. Brake fluid reservoir (P. 8-14)
7. Air cleaner (P. 8-20)
8. Fuse box (P. 8-24)
9. Fuse/Fusible link box (P. 8-24)
10. Fuse/Fusible link box (P. 8-24)
11. Battery (P. 8-16)
12. Engine oil dipstick (P. 8-9)
13. Radiator cap (P. 8-8)
14. Windshield-washer fluid reservoir
(P. 8-14)
Refer to the page number indicated in paren-
theses for operating details.
LDI3012
Illustrated table of contents0-9

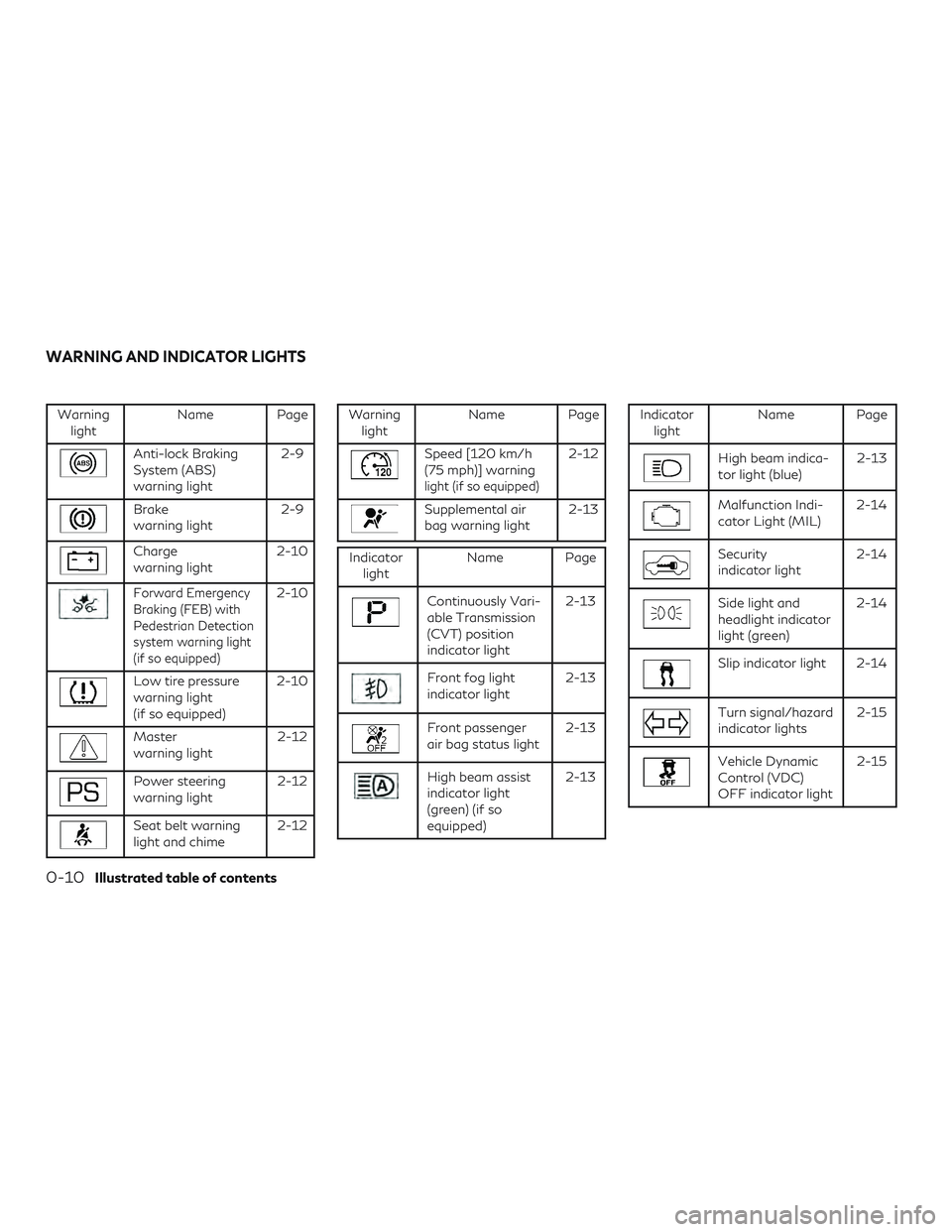

Warninglight Name Page
Anti-lock Braking
System (ABS)
warning light 2-9
Brake
warning light
2-9
Charge
warning light2-10
Forward Emergency
Braking (FEB) with
Pedestrian Detection
system warning light
(if so equipped)2-10
Low tire pressure
warning light
(if so equipped)2-10
Master
warning light
2-12
Power steering
warning light2-12
Seat belt warning
light and chime2-12
Warning
light Name Page
Speed [120 km/h
(75 mph)] warning
light (if so equipped)
2-12
Supplemental air
bag warning light 2-13
Indicator
light Name Page
Continuously Vari-
able Transmission
(CVT) position
indicator light 2-13
Front fog light
indicator light
2-13
Front passenger
air bag status light2-13
High beam assist
indicator light
(green) (if so
equipped)2-13
Indicator
light Name Page
High beam indica-
tor light (blue) 2-13
Malfunction Indi-
cator Light (MIL)2-14
Security
indicator light2-14
Side light and
headlight indicator
light (green)2-14
Slip indicator light 2-14
Turn signal/hazard
indicator lights
2-15
Vehicle Dynamic
Control (VDC)
OFF indicator light2-15
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

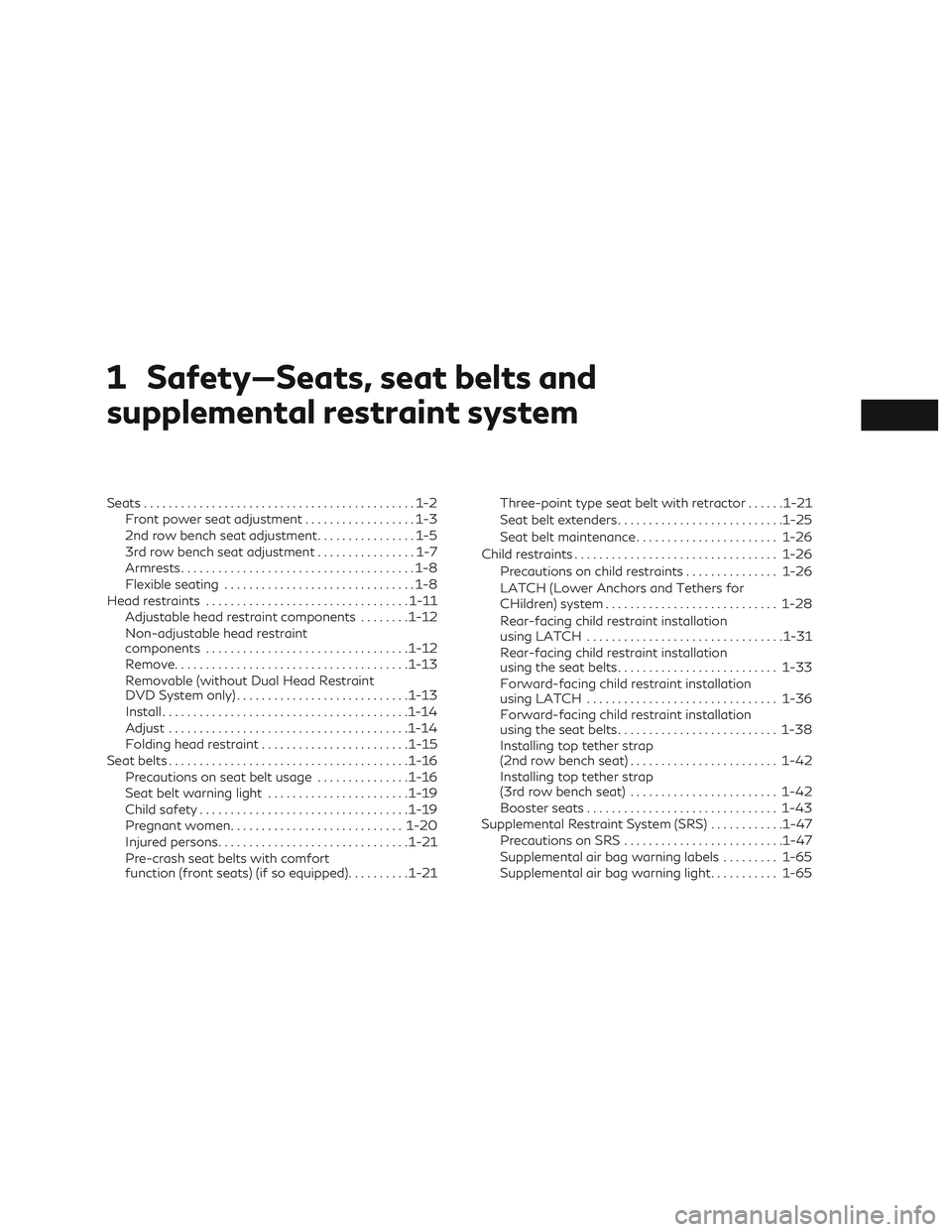

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front power seat adjustment ..................1-3
2nd row bench seat adjustment ................1-5
3rd row bench seat adjustment ................1-7
Armrests ......................................1-8
Flexible seating ...............................1-8
Head restraints ................................. 1-11
Adjustable head restraint components ........1-12
Non-adjustable head restraint
components ................................. 1-12
Remove ...................................... 1-13
Removable (without Dual Head Restraint
DVD System only) ............................ 1-13
Install ........................................ 1-14
Adjust ....................................... 1-14
Folding head restraint ........................ 1-15
Seat belts ....................................... 1-16
Precautions on seat belt usage ...............1-16
Seat belt warning light .......................1-19
Child safety .................................. 1-19
Pregnant women ............................ 1-20
Injured persons ............................... 1-21
Pre-crash seat belts with comfort
function (front seats) (if so equipped) ..........1-21 Three-point type seat belt with retractor
......1-21
Seat belt extenders ........................... 1-25
Seat belt maintenance ....................... 1-26
Child restraints ................................. 1-26
Precautions on child restraints ...............1-26
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-28
Rear-facing child restraint installation
using LATCH ................................ 1-31
Rear-facing child restraint installation
using the seat belts .......................... 1-33
Forward-facing child restraint installation
using LATCH ............................... 1-36
Forward-facing child restraint installation
using the seat belts .......................... 1-38
Installing top tether strap
(2nd row bench seat) ........................ 1-42
Installing top tether strap
(3rd row bench seat) ........................ 1-42
Booster

seats ............................... 1-43
Supplemental Restraint System (SRS) ............1-47
Precautions on SRS .......................... 1-47
Supplemental air bag warning labels .........1-65
Supplemental air bag warning light ...........1-65

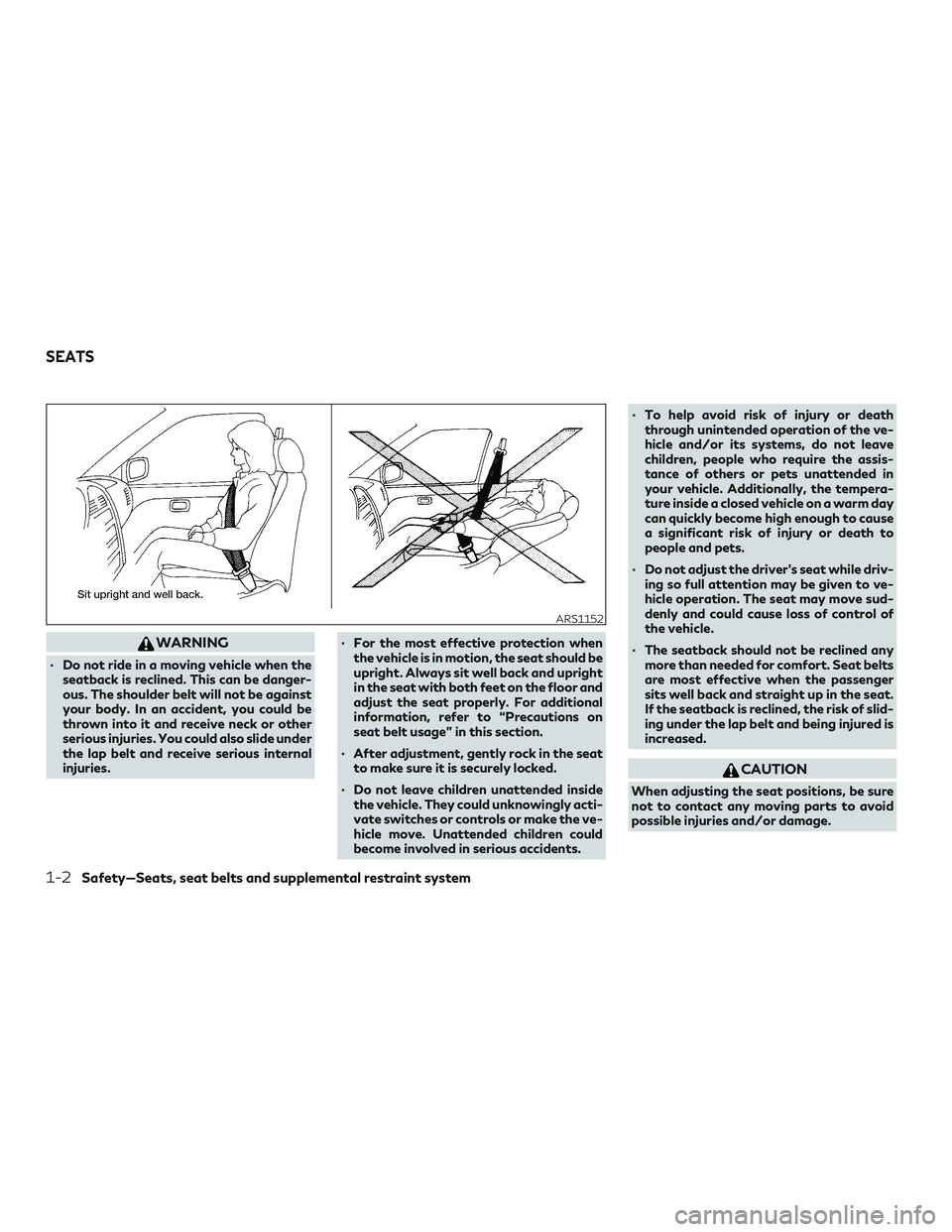

WARNING
∙ Do not ride in a moving vehicle when theseatback is reclined. This can be danger-
ous. The shoulder belt will not be against
your body. In an accident, you could be
thrown into it and receive neck or other
serious injuries. You could also slide under
the lap belt and receive serious internal
injuries. ∙ For the most effective protection when
the vehicle is in motion, the seat should be
upright. Always sit well back and upright
in the seat with both feet on the floor and
adjust the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
∙ After adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not leave children unattended inside the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents. ∙ To help avoid risk of injury or death
through unintended operation of the ve-
hicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm day
can quickly become high enough to cause
a significant risk of injury or death to
people and pets.
∙ Do not adjust the driver’s seat while driv- ing so full attention may be given to ve-
hicle operation. The seat may move sud-
denly and could cause loss of control of
the vehicle.
∙ The seatback should not be reclined any more than needed for comfort. Seat belts
are most effective when the passenger
sits well back and straight up in the seat.
If the seatback is reclined, the risk of slid-
ing under the lap belt and being injured is
increased.
CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

FRONT POWER SEAT
ADJUSTMENT
Operating tips
∙ The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the engine is
off. This will discharge the battery. For additional information, refer to “Auto-
matic drive positioner” in the “Pre-driving
checks and adjustments” section of this
manual.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired po-
sition.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, refer
to “Precautions on seat belt usage” in this
section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park).
LRS2662
Safety—Seats, seat belts and supplemental restraint system1-3
