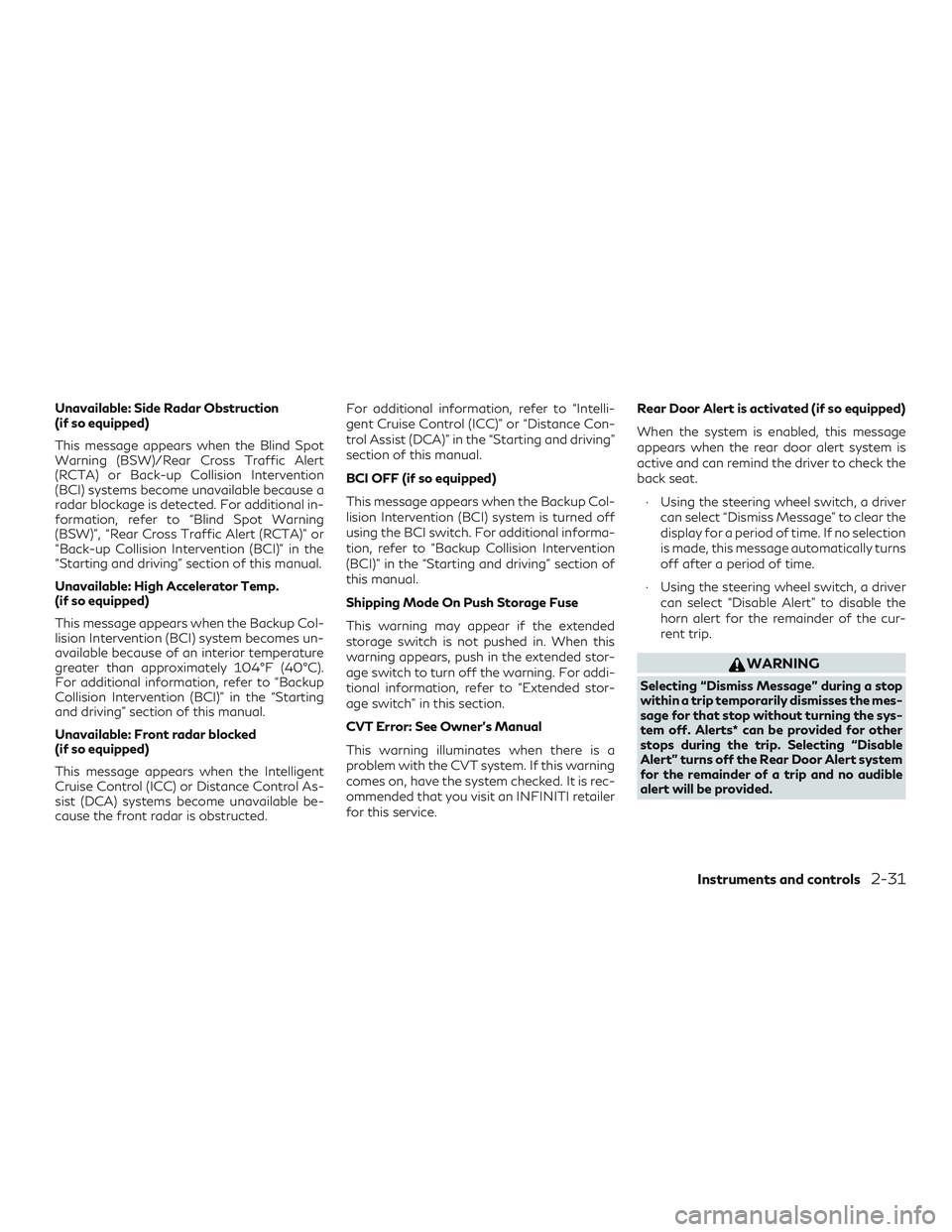

Unavailable: Side Radar Obstruction
(if so equipped)
This message appears when the Blind Spot
Warning (BSW)/Rear Cross Traffic Alert
(RCTA) or Back-up Collision Intervention
(BCI) systems become unavailable because a
radar blockage is detected. For additional in-
formation, refer to “Blind Spot Warning
(BSW)”, “Rear Cross Traffic Alert (RCTA)” or
“Back-up Collision Intervention (BCI)” in the
“Starting and driving” section of this manual.
Unavailable: High Accelerator Temp.
(if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system becomes un-
available because of an interior temperature
greater than approximately 104°F (40°C).
For additional information, refer to “Backup
Collision Intervention (BCI)” in the “Starting
and driving” section of this manual.
Unavailable: Front radar blocked
(if so equipped)
This message appears when the Intelligent
Cruise Control (ICC) or Distance Control As-
sist (DCA) systems become unavailable be-
cause the front radar is obstructed.For additional information, refer to “Intelli-
gent Cruise Control (ICC)” or “Distance Con-
trol Assist (DCA)” in the “Starting and driving”
section of this manual.
BCI OFF (if so equipped)
This message appears when the Backup Col-
lision Intervention (BCI) system is turned off
using the BCI switch. For additional informa-
tion, refer to “Backup Collision Intervention
(BCI)” in the “Starting and driving” section of
this manual.
Shipping Mode On Push Storage Fuse
This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended stor-
age switch to turn off the warning. For addi-
tional information, refer to “Extended stor-
age switch” in this section.
CVT Error: See Owner’s Manual
This warning illuminates when there is a
problem with the CVT system. If this warning
comes on, have the system checked. It is rec-
ommended that you visit an INFINITI retailer
for this service.
Rear Door Alert is activated (if so equipped)
When the system is enabled, this message
appears when the rear door alert system is
active and can remind the driver to check the
back seat.
∙ Using the steering wheel switch, a driver can select “Dismiss Message” to clear the
display for a period of time. If no selection
is made, this message automatically turns
off after a period of time.
∙ Using the steering wheel switch, a driver can select “Disable Alert” to disable the
horn alert for the remainder of the cur-
rent trip.
WARNING
Selecting “Dismiss Message” during a stop
within a trip temporarily dismisses the mes-
sage for that stop without turning the sys-
tem off. Alerts* can be provided for other
stops during the trip. Selecting “Disable
Alert” turns off the Rear Door Alert system
for the remainder of a trip and no audible
alert will be provided.
Instruments and controls2-31

Key fob operation:
4. Confirm that the
indicator light
comes on. The
indicator stays illu-
minated for a period of time indicating
that the system is in the pre-armed
phase.
The
indicator light will blink every
3 seconds once the security system is
armed.
If during the pre-armed phase one of the
following occurs, the system will not
arm:
∙ Any door is unlocked with the me- chanical key
∙ A door is opened with the release but- ton with the Intelligent Key on your
person
∙ The doors are unlocked using the un- lock button on the Intelligent Key
∙ The ignition switch is placed in the ACC or ON position ∙
Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate when all the doors, hood and lift-
gate are locked with the ignition switch
placed in the LOCK position. When plac-
ing the ignition switch in the ACC or ON
position, the system will be released.Vehicle security system activation
The vehicle security system will give the fol-
lowing alarm:
∙ The turn signals blink and the horn sounds intermittently.
∙ The alarm automatically turns off after a period of time. However, the alarm reac-
tivates if the vehicle is tampered with
again. The alarm can be shut off by un-
locking the driver’s door or liftgate with
the key, or by pressing the
button
on the Intelligent Key.
The alarm is activated by:
∙ opening the door or liftgate without us- ing the key or Intelligent Key (even if the
door is unlocked by releasing the door
inside lock switch).
How to stop an activated alarm
The alarm stops only by unlocking the driver’s
door or the liftgate with the key, pressing
the
button on the Intelligent Key, or
pressing the request switch on the driver’s or
passenger’s door with the Intelligent Key in
range of the door handle.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
The INFINITI Vehicle Immobilizer System will
not allow the engine to start without the use
of a registered INFINITI Vehicle Immobilizer
System key.
If the engine fails to start using a registered
INFINITI Vehicle Immobilizer System key (for
example, when interference is caused by an-
other INFINITI Vehicle Immobilizer System
key, an automated toll road device or auto-
matic payment device on the key ring), restart
the engine using the following procedures:
1. Leave the ignition switch in the ON po- sition for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
Instruments and controls2-33

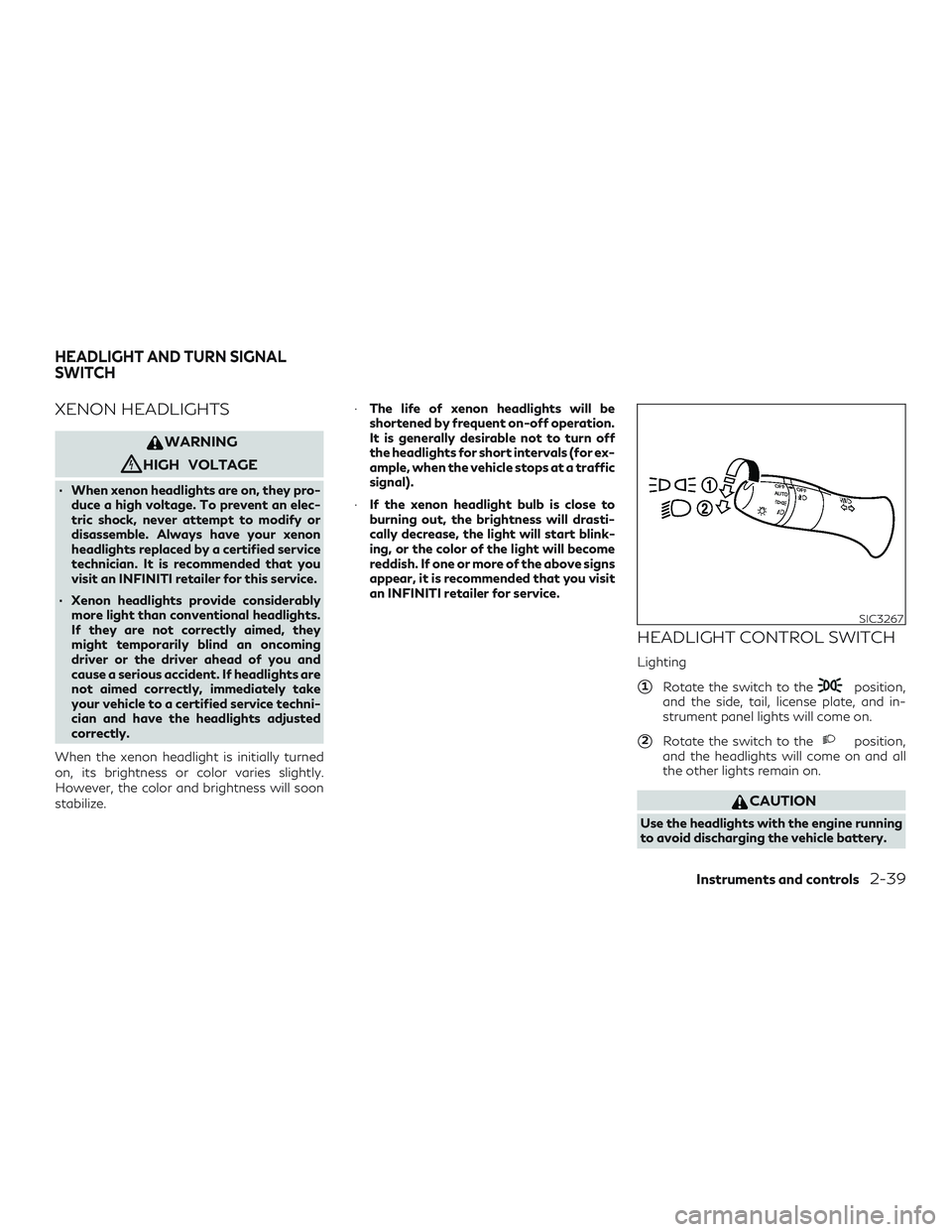

XENON HEADLIGHTS
WARNING
cHIGH VOLTAGE
∙ When xenon headlights are on, they pro-duce a high voltage. To prevent an elec-
tric shock, never attempt to modify or
disassemble. Always have your xenon
headlights replaced by a certified service
technician. It is recommended that you
visit an INFINITI retailer for this service.
∙ Xenon headlights provide considerably more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights are
not aimed correctly, immediately take
your vehicle to a certified service techni-
cian and have the headlights adjusted
correctly.
When the xenon headlight is initially turned
on, its brightness or color varies slightly.
However, the color and brightness will soon
stabilize. ∙
The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for ex-
ample, when the vehicle stops at a traffic
signal).
∙ If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above signs
appear, it is recommended that you visit
an INFINITI retailer for service.
HEADLIGHT CONTROL SWITCH
Lighting
1Rotate the switch to theposition,
and the side, tail, license plate, and in-
strument panel lights will come on.
2Rotate the switch to theposition,
and the headlights will come on and all
the other lights remain on.
CAUTION
Use the headlights with the engine running
to avoid discharging the vehicle battery.
SIC3267
HEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls2-39

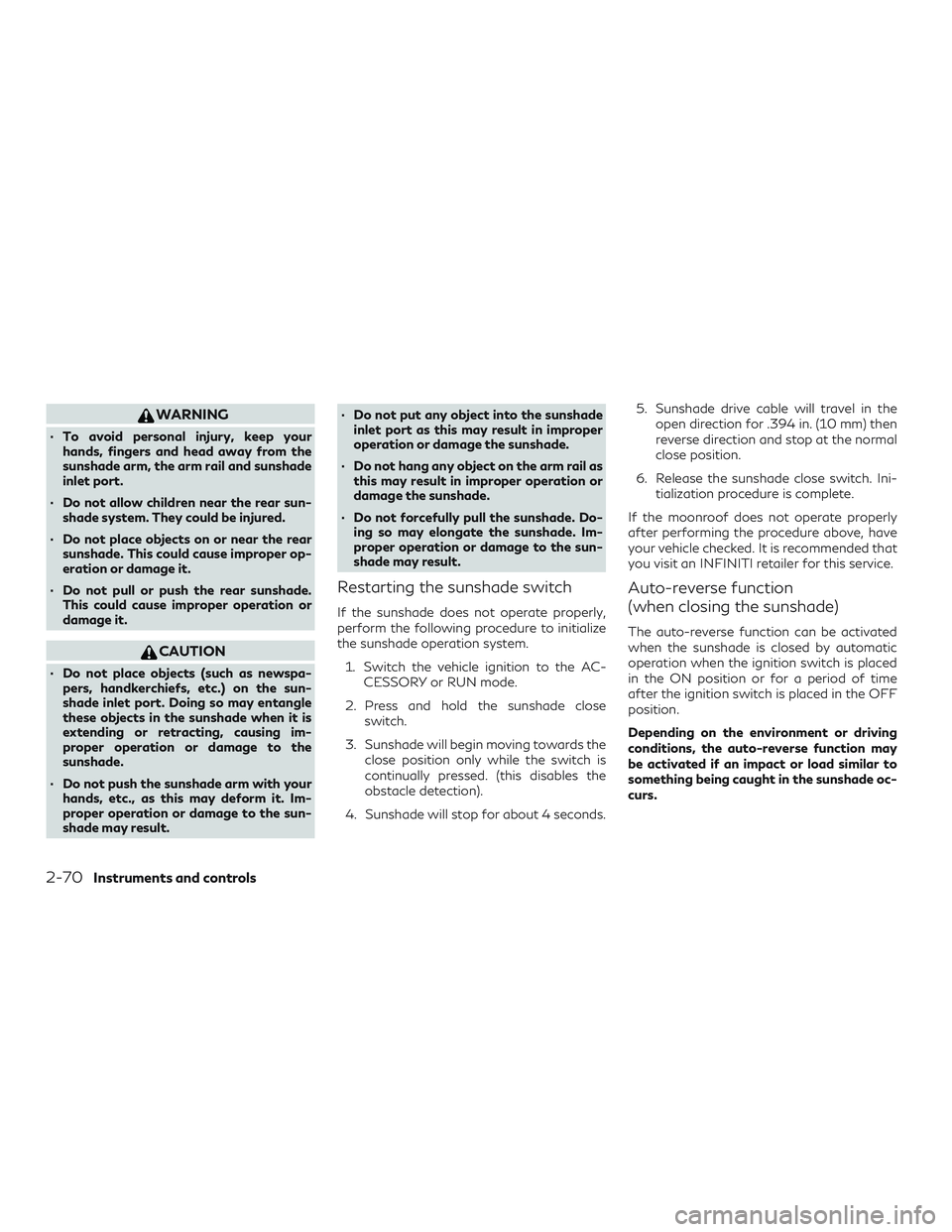

WARNING
∙ To avoid personal injury, keep yourhands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.
∙ Do not allow children near the rear sun- shade system. They could be injured.
∙ Do not place objects on or near the rear sunshade. This could cause improper op-
eration or damage it.
∙ Do not pull or push the rear sunshade. This could cause improper operation or
damage it.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result. ∙ Do not put any object into the sunshade
inlet port as this may result in improper
operation or damage the sunshade.
∙ Do not hang any object on the arm rail as this may result in improper operation or
damage the sunshade.
∙ Do not forcefully pull the sunshade. Do- ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
Restarting the sunshade switch
If the sunshade does not operate properly,
perform the following procedure to initialize
the sunshade operation system.
1. Switch the vehicle ignition to the AC- CESSORY or RUN mode.
2. Press and hold the sunshade close switch.
3. Sunshade will begin moving towards the close position only while the switch is
continually pressed. (this disables the
obstacle detection).
4. Sunshade will stop for about 4 seconds. 5. Sunshade drive cable will travel in the
open direction for .394 in. (10 mm) then
reverse direction and stop at the normal
close position.
6. Release the sunshade close switch. Ini- tialization procedure is complete.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function
(when closing the sunshade)
The auto-reverse function can be activated
when the sunshade is closed by automatic
operation when the ignition switch is placed
in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the sunshade oc-
curs.
2-70Instruments and controls

Depress and hold the brake then push the
push-button ignition switch to the ON posi-
tion before driving. For additional informa-
tion, refer to “Driving the vehicle” in the
“Starting and driving” section of this manual.
EXTENDING ENGINE RUN TIME
The Remote Engine Start feature can be ex-
tended one time by performing the steps
listed in “Remote starting the vehicle” in this
section. Run time will be calculated as fol-
lows:∙ The first 10 minute run time will start when the Remote Engine Start function
is performed.
∙ The second 10 minutes will start immedi- ately when the Remote Engine Start
function is performed again. For ex-
ample, if the engine has been running for
5 minutes, and 10 minutes are added, the
engine will run for a total of 15 minutes.
∙ Extending engine run time will bring you to the two Remote Engine Start limit.
A maximum of two Remote Engine Starts, or
a single start with an extension, are allowed
between ignition cycles. The ignition switch must be cycled to the ON
position and then back to the OFF position
before the Remote Engine Start procedure
can be used again.
CANCELING A REMOTE ENGINE
START
To cancel a Remote Engine Start, perform
one of the following:
∙ Aim the Intelligent Key at the vehicle and press
until the parking lights turn
off.
∙ Turn on the hazard warning flashers.
∙ Cycle the ignition switch ON and then OFF.
∙ The extended engine run time has ex- pired.
∙ The first 10 minute timer has expired.
∙ The engine hood has been opened.
∙ The shift lever is moved out of park.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ The ignition switch is pushed without an Intelligent Key in the vehicle. ∙ The ignition switch is pushed with an In-
telligent Key in the vehicle but the brake
pedal is not depressed.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time.
∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the
button.
∙ The brake is pressed.
∙ The doors are not closed and locked.
Pre-driving checks and adjustments3-21

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
∙
Use only an original equipment type fuel-
filler cap as a replacement. It has a built-in
safety valve needed for proper operation of
the fuel system and emission control sys-
tem. An incorrect cap can result in a serious
malfunction and possible injury. It could
also cause the
Malfunction Indicator
Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.CAUTION
∙ If fuel is spilled on the vehicle body, flushit away with water to avoid paint
damage.
∙ Insert the fuel-filler cap straight into the fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light illu-
minates because the fuel-filler cap is
loose or missing, tighten or install the cap
and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips, have
the vehicle inspected. It is recommended
that you visit an INFINITI retailer for this
service.
∙ For additional information, refer to “Malfunction Indicator Light (MIL)” in
the “Instruments and controls” section of
this manual.
3-30Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available.
To engage the memorized settings, perform
the following: 1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key. 3. Place the ignition switch in the ON posi-
tion. The settings linked to the Intelligent
Key will start.
For additional information on using the Cli-
mate control system, refer to “Heater and air
conditioner (automatic)” in the “Monitor, cli-
mate, audio, phone and voice recognition
systems” section of this manual.
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual or the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions: ∙ When the vehicle speed is above 0 mph (0 km/h) or 4 mph (7km/h) for some
limited functions such as linking a key fob
to the meter when the power source is
turned on from off or during the exit
function.
∙ When any of the memory switches are pushed while the automatic drive posi-
tioner is operating. ∙ When the adjusting switch for the driver’s
seat and steering column is turned on
while the automatic drive positioner is
operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

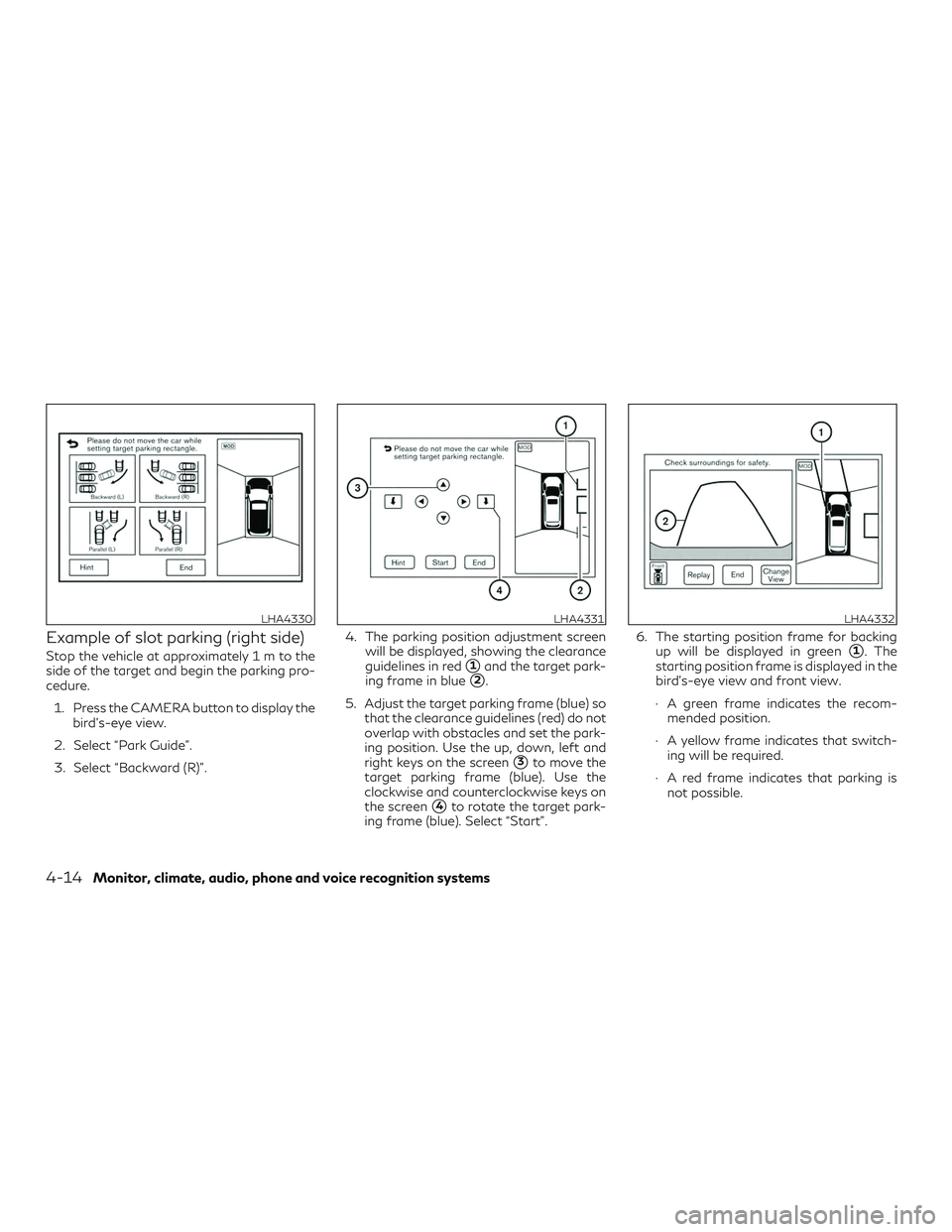

Example of slot parking (right side)
Stop the vehicle at approximately1mtothe
side of the target and begin the parking pro-
cedure.1. Press the CAMERA button to display the bird’s-eye view.
2. Select “Park Guide”.
3. Select “Backward (R)”. 4. The parking position adjustment screen
will be displayed, showing the clearance
guidelines in red1and the target park-
ing frame in blue
2.
5. Adjust the target parking frame (blue) so that the clearance guidelines (red) do not
overlap with obstacles and set the park-
ing position. Use the up, down, left and
right keys on the screen
3to move the
target parking frame (blue). Use the
clockwise and counterclockwise keys on
the screen
4to rotate the target park-
ing frame (blue). Select “Start”. 6. The starting position frame for backing
up will be displayed in green
1. The
starting position frame is displayed in the
bird’s-eye view and front view.
∙ A green frame indicates the recom- mended position.
∙ A yellow frame indicates that switch- ing will be required.
∙ A red frame indicates that parking is not possible.
LHA4330LHA4331LHA4332
4-14Monitor, climate, audio, phone and voice recognition systems

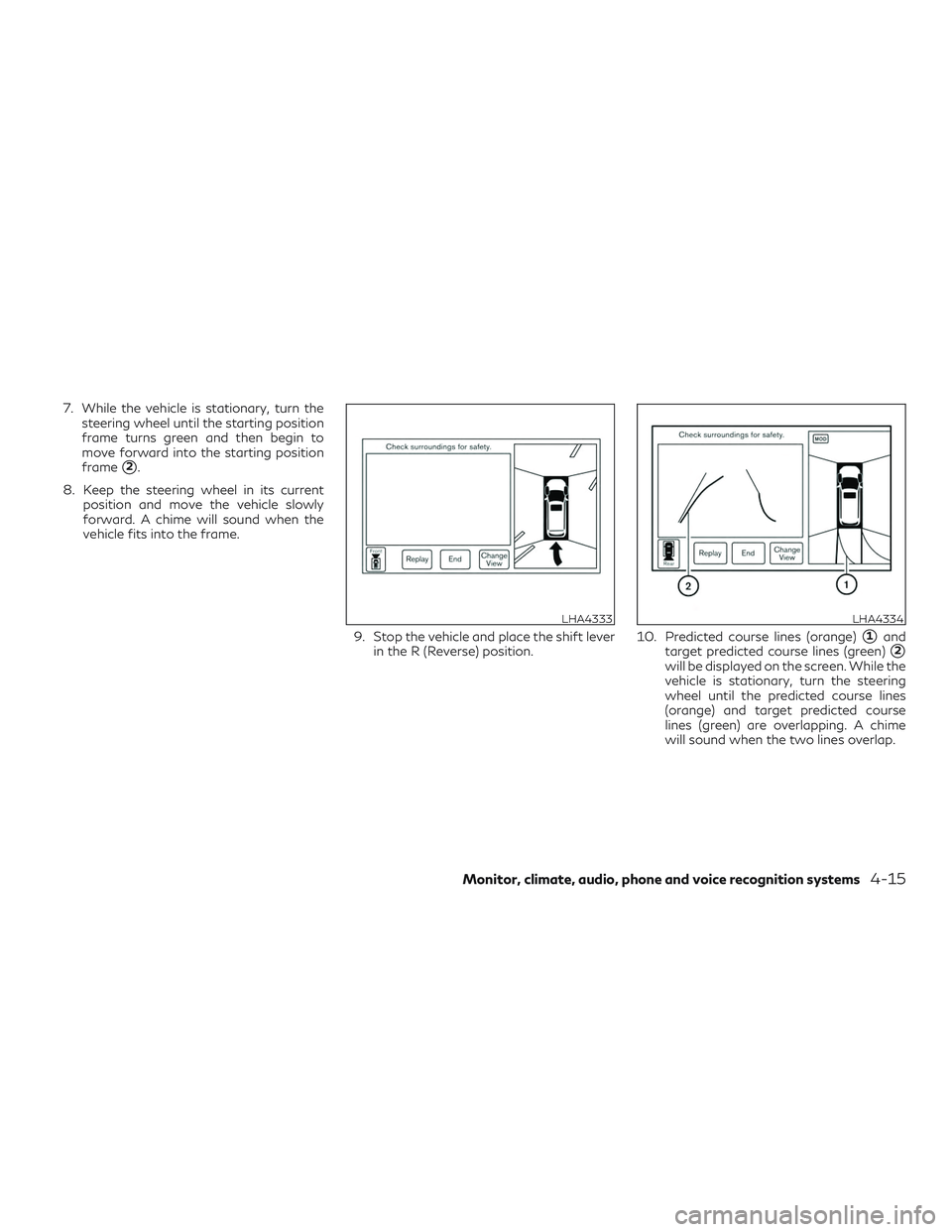

7. While the vehicle is stationary, turn thesteering wheel until the starting position
frame turns green and then begin to
move forward into the starting position
frame
2.
8. Keep the steering wheel in its current position and move the vehicle slowly
forward. A chime will sound when the
vehicle fits into the frame.
9. Stop the vehicle and place the shift leverin the R (Reverse) position. 10. Predicted course lines (orange)
1and
target predicted course lines (green)
2
will be displayed on the screen. While the
vehicle is stationary, turn the steering
wheel until the predicted course lines
(orange) and target predicted course
lines (green) are overlapping. A chime
will sound when the two lines overlap.
LHA4333LHA4334
Monitor, climate, audio, phone and voice recognition systems4-15

WARNING
∙ Do not leave children or adults whowould normally require the assistance of
others alone in your vehicle. Pets should
also not be left alone. They could acciden-
tally injure themselves or others through
inadvertent operation of the vehicle.
Also, on hot, sunny days, temperatures in
a closed vehicle could quickly become
high enough to cause severe or possibly
fatal injuries to people or animals.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (carbon monoxide)
WARNING
∙ Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous. It
can cause unconsciousness or death. ∙ If you suspect that exhaust fumes are en-
tering the vehicle, drive with all windows
fully open, and have the vehicle inspected
immediately.
∙ Do not run the engine in closed spaces such as a garage.
∙ Do not park the vehicle with the engine running for any extended length of time.
∙ Keep the rear vent windows, liftgates, doors and trunk lids (if so equipped)
closed while driving, otherwise exhaust
gases could be drawn into the passenger
compartment. If you must drive with one
of these open, follow these precautions:
1. Open all the windows.
2. Set the
air recirculation button
to off and the fan control dial to high
to circulate the air.
∙ When a vehicle has been stopped in an open area with its engine running for any
significant length of time, turn the venti-
lator on to force outside air into the
vehicle.
THREE-WAY CATALYST
The three-way catalyst is an emission control
device installed in the exhaust system. Ex-
haust gases in the three-way catalyst are
burned at high temperatures to help reduce
pollutants.
WARNING
∙ The exhaust gas and the exhaust systemare very hot. Keep people, animals or
flammable materials away from the ex-
haust system components.
∙ Do not stop or park the vehicle over flam- mable materials such as dry grass, waste
paper or rags. They may ignite and cause
a fire.
CAUTION
∙ Do not use leaded gasoline. Depositsfrom leaded gasoline will seriously reduce
the three-way catalyst’s ability to help
reduce exhaust pollutants.
PRECAUTIONS WHEN STARTING
AND DRIVING
5-4Starting and driving
