Shift lock release
If the battery charge is low or discharged, the
shift lever may not be moved from the P
(Park) position even with the brake pedal de-
pressed and the shift lever button pressed. To
move the shift lever, perform the following
procedure:1. Push the ignition switch to the OFF or LOCK position.
2. Apply the parking brake.
3. Remove the shift lock release cover us- ing a suitable tool. 4. Push down the shift lock release using a
suitable tool.
5. Press the shift lever button and move the shift lever to the N (Neutral) position
while holding down the shift lock release.
The vehicle may be moved to the desired
location. Replace the removed shift lock
release cover after the operation.
If the shift lever cannot be moved out of the P
(Park) position, have the Continuously Vari-
able Transmission system checked as soon as
possible. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
If the shift lever cannot be moved from the
P (Park) position while the engine is running
and the brake pedal is depressed, the stop
lights may not work. Malfunctioning stop
lights could cause an accident injuring your-
self and others.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the ac-
celerator pedal to the floor. This shifts the
transmission down into a lower gear, de-
pending on the vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid tempera-
ture protection mode. If the fluid temperature
becomes too high (for example, when climb-
ing steep grades in high temperatures with
heavy loads, such as when towing a trailer),
engine power and, under some conditions,
vehicle speed will be decreased automatically
to reduce the chance of transmission dam-
age. Vehicle speed can be controlled with the
accelerator pedal, but the engine and vehicle
speed may be limited.
Fail-safe
If the vehicle is driven under extreme condi-
tions, such as excessive wheel spinning and
subsequent hard braking, the fail-safe sys-
tem may be activated. The Malfunction Indi-
cator Light (MIL) may illuminate to indicate
the fail-safe mode is activated. For addi-
tional information, refer to “Malfunction In-
dicator Light (MIL)” in the “Instrument and
controls” section of this manual. This will oc-
cur even if all electrical circuits are function-
ing properly. In this case, place the ignition
switch in the OFF position and wait for
10 seconds. Then turn the switch back to the
ON position. The vehicle should return to its
normal operating condition. If it does not re-
LSD2360
5-22Starting and driving

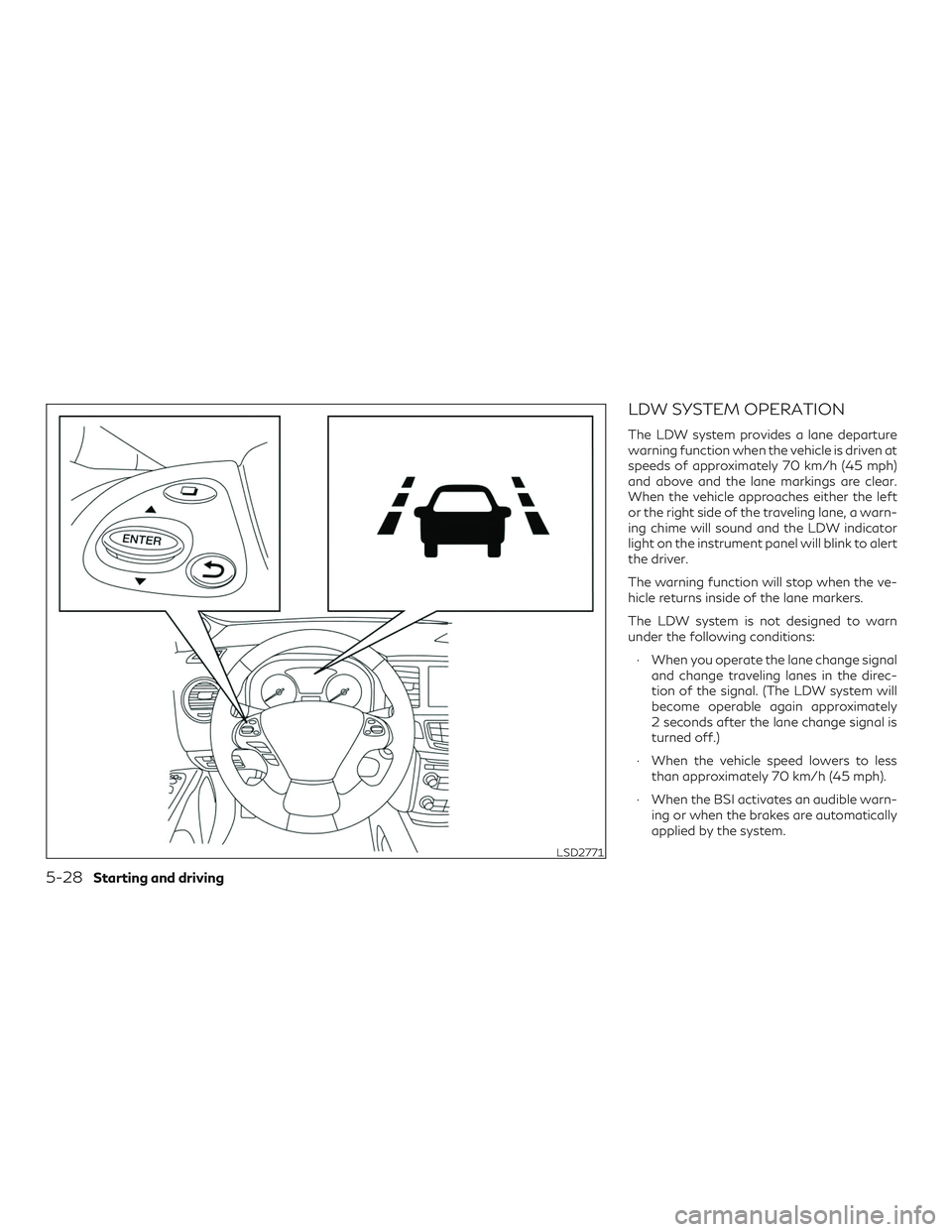

LDW SYSTEM OPERATION
The LDW system provides a lane departure
warning function when the vehicle is driven at
speeds of approximately 70 km/h (45 mph)
and above and the lane markings are clear.
When the vehicle approaches either the left
or the right side of the traveling lane, a warn-
ing chime will sound and the LDW indicator
light on the instrument panel will blink to alert
the driver.
The warning function will stop when the ve-
hicle returns inside of the lane markers.
The LDW system is not designed to warn
under the following conditions:∙ When you operate the lane change signal and change traveling lanes in the direc-
tion of the signal. (The LDW system will
become operable again approximately
2 seconds after the lane change signal is
turned off.)
∙ When the vehicle speed lowers to less than approximately 70 km/h (45 mph).
∙ When the BSI activates an audible warn- ing or when the brakes are automatically
applied by the system.
LSD2771
5-28Starting and driving

HOW TO ENABLE/DISABLE THE
LDW SYSTEM
When the LDW system is enabled in the ve-
hicle information display, the system can be
turned off temporarily by pushing the warn-
ing systems switch. For additional informa-
tion, refer to “Warning systems switch” in the
“Instruments and controls” section of this
manual.
Perform the following steps to enable or dis-
able the LDW system.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance”. Then press the EN-
TER button.
2. Select “Driving Aids” and press the EN- TER button.
3. To set the LDW system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to se-
lect or change an item:
∙ Select “Lane” and press the ENTER button.
– To turn on the warning, use the EN- TER button to check box for “Lane”
LDW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the LDW system. Failure to follow the
warnings and instructions for proper use of
the LDW system could result in serious in-
jury or death.
∙ This system is only a warning device toinform the driver of a potential unin-
tended lane departure. It will not steer
the vehicle or prevent loss of control. It is
the driver’s responsibility to stay alert,
drive safely, keep the vehicle in the trav-
eling lane, and be in control of the vehicle
at all times.
∙ The system will not operate at speeds be- low approximately 70 km/h (45 mph) or
if it cannot detect lane markers. ∙ If the LDW system malfunctions, it will
cancel automatically, and “Malfunction:
See Owner’s Manual” will appear in the
vehicle information display. If “Malfunc-
tion: See Owner’s Manual” appears in the
vehicle information display, pull off the
road to a safe location and stop the ve-
hicle. Place shift lever to the P (Park) po-
sition and the ignition switch to the OFF
position and restart the engine. If “Mal-
function: See Owner’s Manual” contin-
ues to appear in the vehicle information
display, have the system checked. It is
recommended that you visit an INFINITI
retailer for this service.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
∙ Do not use the LDW system under the following conditions as it may not func-
tion properly:
– During bad weather (rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow.
– When driving on winding or uneven roads.
5-30Starting and driving

– When there is a lane closure due toroad repairs.
– When driving in a makeshift or tempo- rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, nonstandard wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
– When you are towing a trailer or other vehicle.
The system may not function properly under
the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where the discontinued lane markers are still detectable.
∙ On roads where there are sharp curves. ∙ On roads where there are sharply con-
trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDW system
could detect these items as lane markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker.
∙ When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow, dirt or object adheres to the windshield in front of the lane
camera unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)SYSTEM TEMPORARILY
UNAVAILABLE
If the vehicle is parked in direct sunlight under
high temperature conditions (over approxi-
mately 40°C [104°F]) and then started, the
LDW system may be deactivated automati-
cally, the warning systems ON indicator on
the switch will flash and the following mes-
sage will appear in the vehicle information
display: “Unavailable: High Cabin Temp.”
When the interior temperature is reduced, the
LDW system will resume operating auto-
matically and the warning systems ON indi-
cator will stop flashing.
Starting and driving5-31

– When driving in a makeshift or tempo-rary lane.
– When driving on roads where the lane width is too narrow.
– When driving without normal tire conditions (for example, tire wear, low
tire pressure, installation of spare tire,
tire chains, non-standard wheels).
– When the vehicle is equipped with nonoriginal brake parts or suspension
parts.
– When you are towing a trailer or other vehicle.
∙ If the LDP system malfunctions, it will cancel automatically. The LDP system
warning light (orange) will illuminate in
the display.
∙ If LDP system warning light (orange) illu- minates in the display, pull off the road to
a safe location and stop the vehicle. Turn
the engine off and restart the engine. If
the LDP system warning light (orange)
continues to illuminate, have the LDP
system checked. It is recommended that
you visit an INFINITI retailer for this
service. ∙ Excessive noise will interfere with the
warning chime sound, and the chime may
not be heard.
The LDP system may or may not operate
properly under the following conditions:
∙ On roads where there are multiple paral- lel lane markers; lane markers that are
faded or not painted clearly; yellow
painted lane markers; non-standard lane
markers; or lane markers covered with
water, dirt, snow, etc.
∙ On roads where discontinued lane mark- ers are still detectable.
∙ On roads where there are sharp curves.
∙ On roads where there are sharply con- trasting objects, such as shadows, snow,
water, wheel ruts, seams or lines remain-
ing after road repairs. (The LDP system
could detect these items as lane
markers.)
∙ On roads where the traveling lane merges or separates.
∙ When the vehicle’s traveling direction does not align with the lane marker. ∙ When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
∙ When rain, snow or dirt adheres to the windshield in front of the lane camera
unit.
∙ When the headlights are not bright due to dirt on the lens or if the aiming is not
adjusted properly.
∙ When strong light enters the lane camera unit. (For example, the light directly
shines on the front of the vehicle at sun-
rise or sunset.)
∙ When a sudden change in brightness oc- curs. (For example, when the vehicle en-
ters or exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is nor-
mal and indicates that the LDP system is
operating properly.
5-36Starting and driving

∙The RCTA system (if so equipped) is in-
tegrated into the BSW system. There is
not a separate selection in the vehicle
information display for the RCTA sys-
tem. When the BSW is disabled, the
RCTA system is also disabled.
∙ When the BSW system is turned on, the
BSW/RCTA indicator (white) in the ve-
hicle information display illuminates.
BSW SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSW system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The BSW system cannot detect all ve-
hicles under all conditions.
∙ The radar sensors may not be able to de- tect and activate BSW when certain ob-
jects are present such as:
– Pedestrian, bicycles, animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles. – Oncoming vehicles.
– Vehicles remaining in the detection
zone when you accelerate from a stop.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle.
– A vehicle approaching rapidly from behind.
– A vehicle which your vehicle overtakes rapidly.
– A vehicle that passes through the de- tection zone quickly.
– When overtaking several vehicles in a row, the vehicles after the first vehicle
may not be detected if they are trav-
eling close together.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away. ∙ The radar sensors are designed to ignore
most stationary objects; however, ob-
jects such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal operation
condition.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build-up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ Excessive noise (for example, audio sys- tem volume, open vehicle window) will
interfere with the chime sound, and it
may not be heard.
5-42Starting and driving

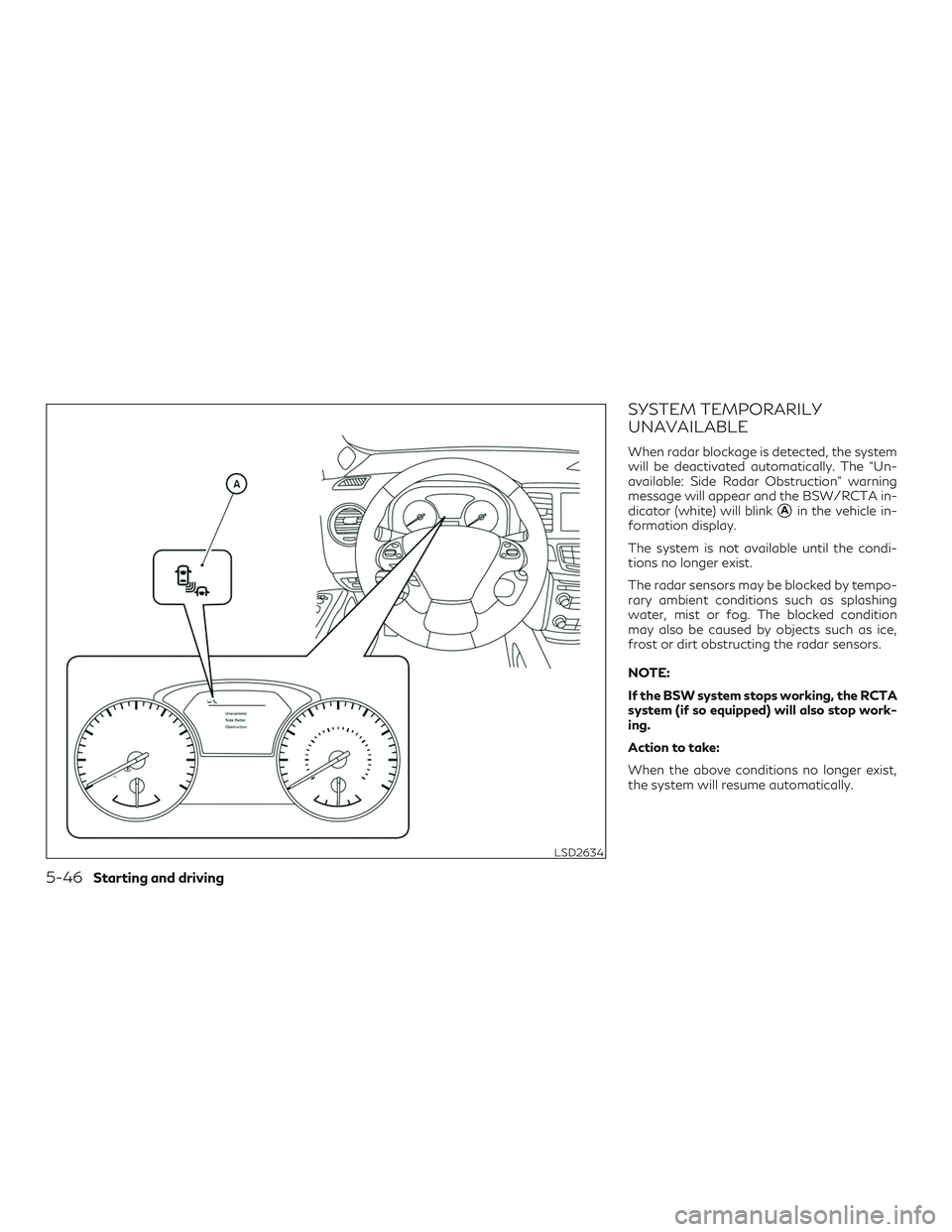

SYSTEM TEMPORARILY
UNAVAILABLE
When radar blockage is detected, the system
will be deactivated automatically. The “Un-
available: Side Radar Obstruction” warning
message will appear and the BSW/RCTA in-
dicator (white) will blink
Ain the vehicle in-
formation display.
The system is not available until the condi-
tions no longer exist.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog. The blocked condition
may also be caused by objects such as ice,
frost or dirt obstructing the radar sensors.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
When the above conditions no longer exist,
the system will resume automatically.
LSD2634
5-46Starting and driving

Malfunction
If the BSW system malfunctions, it will turn
off automatically. The system malfunction
warning message with the BSW/RCTA indi-
cator (orange) will appear in the vehicle infor-
mation display.
NOTE:
If the BSW system stops working, the RCTA
system (if so equipped) will also stop work-
ing.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the en-
gine off and restart the engine. If the mes-
sage continues to appear, have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
SYSTEM MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear
bumper. Always keep the area near the radar
sensors clean.
The radar sensors may be blocked by tempo-
rary ambient conditions such as splashing
water, mist or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing
the radar sensors.
Check for and remove objects obstructing
the area around the radar sensors. Do not attach stickers (including transparent
material), install accessories or apply addi-
tional paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. It is recommended that you
visit an INFINITI retailer if the area around
the radar sensors is damaged due to a colli-
sion.
LSD2221
Starting and driving5-47

BSI SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the BSI system. Failure to operate the ve-
hicle in accordance with these system limi-
tations could result in serious injury or
death.
∙ The radar sensors may not be able to de-tect and activate BSI when certain ob-
jects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles.
– Oncoming vehicles.
– Vehicles remaining in the detection zone when you accelerate from a stop.
For additional information, refer to
“BSI driving situations” in this section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSI driving situ-
ations” in this section. – A vehicle approaching rapidly from
behind. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle which your vehicle overtakes rapidly. For additional information,
refer to “BSI driving situations” in this
section.
– A vehicle that passes through the de- tection zone quickly.
∙ The radar sensors’ detection zone is de- signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an ad-
jacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
∙ The radar sensors are designed to ignore most stationary objects; however, ob-
jects such as guardrails, walls, foliage and
parked vehicles may occasionally be de-
tected. This is a normal driving condition.
∙ Severe weather or road spray conditions may reduce the ability of the radar to de-
tect other vehicles. ∙ The camera may not detect lane markers
in the following situations and the BSI
system may not operate properly.
– On roads where there are multiple parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply con- trasting objects, such as shadows,
snow, water, wheel ruts, seams or
lines remaining after road repairs.
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direction does not align with the lane markers.
– When traveling close to the vehicle in front of you, which obstructs the lane
camera unit detection range.
5-52Starting and driving

NOTE:

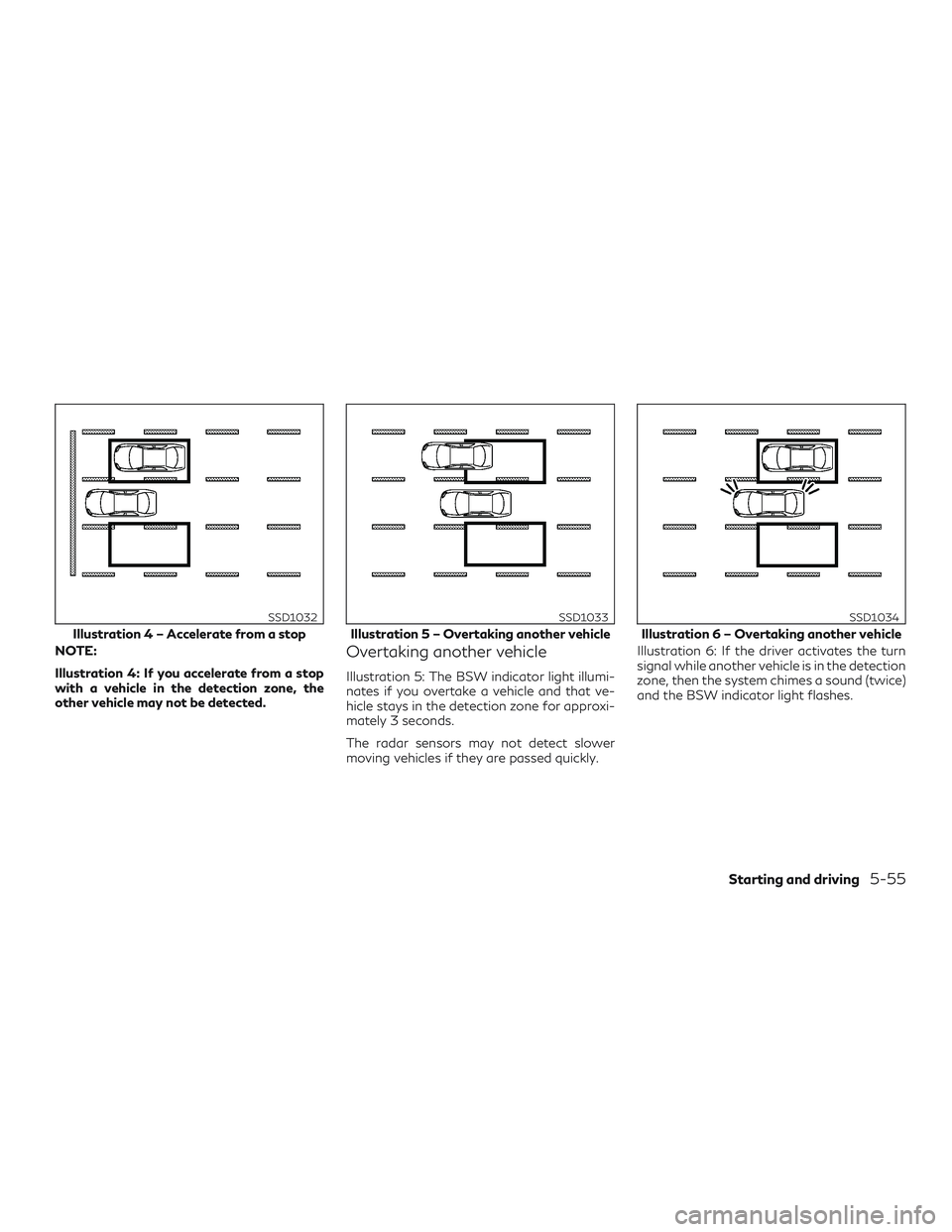

Illustration 4: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.Overtaking another vehicle
Illustration 5: The BSW indicator light illumi-
nates if you overtake a vehicle and that ve-
hicle stays in the detection zone for approxi-
mately 3 seconds.
The radar sensors may not detect slower
moving vehicles if they are passed quickly.Illustration 6: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes a sound (twice)
and the BSW indicator light flashes.
Illustration 4 – Accelerate from a stop
SSD1032
Illustration 5 – Overtaking another vehicle
SSD1033
Illustration 6 – Overtaking another vehicle
SSD1034
Starting and driving5-55
