INFINITI QX60 2018 Owners Manual

second warning to the driver by flashing the
FEB with Pedestrian Detection emergency
warning indicator (red), providing an audible
warning, and then automatically applies
harder braking.
If a risk of a forward impact with a pedestrian
is detected, the FEB with Pedestrian Detec-
tion system will provide a warning to the
driver by flashing the FEB with Pedestrian
Detection emergency warning indicator (red),
provides an audible alert and the system will
apply partial baking. If the driver applies the
brakes quickly and forcefully but the FEB
with Pedestrian Detection system detects
that there is still the possibility of a forward
impact with a pedestrian, the system will au-
tomatically increase the braking force. If the
risk of collision becomes imminent and the
driver does not take action, the FEB with
Pedestrian Detection system automatically
applies harder braking.
NOTE:
The vehicle’s brake lights come on when any
braking is performed by the FEB with Pedes-
trian Detection system.Depending on vehicle speed and distance to
the vehicle or pedestrian ahead, as well as
driving and roadway conditions, the system
may help the driver avoid a forward collision
or may help mitigate the consequences if a
collision should be unavoidable. If the driver is
handling the steering wheel, accelerating or
braking, the FEB with Pedestrian Detection
system will function later or will not function.
The automatic braking will cease under the
following conditions:
∙ When the steering wheel is turned to avoid a collision.
∙ When the accelerator pedal is depressed.
∙ When there is no longer a vehicle or a pedestrian detected ahead.
If the FEB with Pedestrian Detection system
has stopped the vehicle, the vehicle will re-
main at a standstill for approximately 2 sec-
onds before the brakes are released.
5-114Starting and driving

TURNING THE FEB WITH
PEDESTRIAN DETECTION
SYSTEM ON/OFF
Perform the following steps to enable or dis-
able the FEB with Pedestrian Detection sys-
tem.1. Press the
button until “Settings”
displays in the vehicle information dis-
play. Use the
button to select
“Driver Assistance.” Then press the EN-
TER button.
2. Select “Emergency Braking” and press the ENTER button.
3. Select “System” and press the ENTER button.
When the FEB with Pedestrian Detection
system is turned off, the FEB with Pedestrian
Detection system warning light illuminates.
NOTE:
∙ The FEB with Pedestrian Detection sys-
tem will be automatically turned on
when the engine is restarted.
LSD2586
Starting and driving5-115

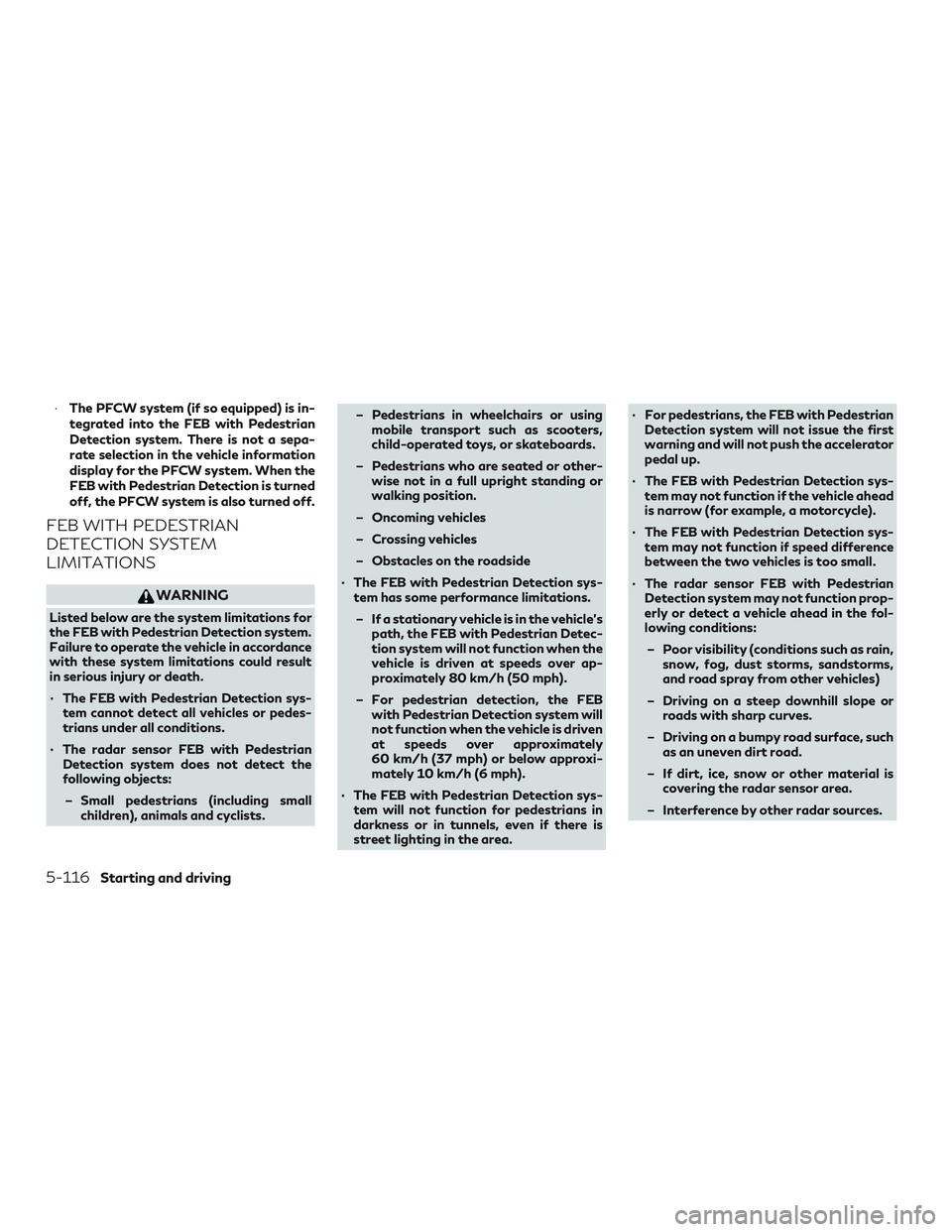

∙The PFCW system (if so equipped) is in-
tegrated into the FEB with Pedestrian
Detection system. There is not a sepa-
rate selection in the vehicle information
display for the PFCW system. When the
FEB with Pedestrian Detection is turned
off, the PFCW system is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM
LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with Pedestrian Detection system.
Failure to operate the vehicle in accordance
with these system limitations could result
in serious injury or death.
∙ The FEB with Pedestrian Detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
∙ The radar sensor FEB with Pedestrian Detection system does not detect the
following objects:
– Small pedestrians (including small children), animals and cyclists. – Pedestrians in wheelchairs or using
mobile transport such as scooters,
child-operated toys, or skateboards.
– Pedestrians who are seated or other- wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles
– Obstacles on the roadside
∙ The FEB with Pedestrian Detection sys- tem has some performance limitations.
– If a stationary vehicle is in the vehicle’s path, the FEB with Pedestrian Detec-
tion system will not function when the
vehicle is driven at speeds over ap-
proximately 80 km/h (50 mph).
– For pedestrian detection, the FEB with Pedestrian Detection system will
not function when the vehicle is driven
at speeds over approximately
60 km/h (37 mph) or below approxi-
mately 10 km/h (6 mph).
∙ The FEB with Pedestrian Detection sys- tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area. ∙ For pedestrians, the FEB with Pedestrian
Detection system will not issue the first
warning and will not push the accelerator
pedal up.
∙ The FEB with Pedestrian Detection sys- tem may not function if the vehicle ahead
is narrow (for example, a motorcycle).
∙ The FEB with Pedestrian Detection sys- tem may not function if speed difference
between the two vehicles is too small.
∙ The radar sensor FEB with Pedestrian Detection system may not function prop-
erly or detect a vehicle ahead in the fol-
lowing conditions:
– Poor visibility (conditions such as rain, snow, fog, dust storms, sandstorms,
and road spray from other vehicles)
– Driving on a steep downhill slope or roads with sharp curves.
– Driving on a bumpy road surface, such as an uneven dirt road.
– If dirt, ice, snow or other material is covering the radar sensor area.
– Interference by other radar sources.
5-116Starting and driving

– The camera area of windshield isfogged up, or covered with dirt, water
drops, ice, snow, etc.
– Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedestrian
to be cast in a shadow, making it diffi-
cult to see.
– A sudden change in brightness occurs. (For example, when the vehicle enters
or exits a tunnel or a shaded area or
lightning flashes.)
– The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to the
background.
– The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories.
∙ The system performance may degrade in the following conditions:
– The vehicle is driven on a slippery road.
– The vehicle is driven on a slope. – Excessively heavy baggage is loaded
in the rear seat or the trunk room of
your vehicle.
∙ The system is designed to automatically check the sensors’ (radar and camera)
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases, the
system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
∙ In some road and traffic conditions, the FEB with Pedestrian Detection system
may unexpectedly apply partial braking.
When acceleration is necessary, depress
the accelerator pedal to override the
system.
∙ Excessive noise will interfere with the warning chime sound, and the chime may
not be heard.
Starting and driving5-117

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with Pe-
destrian Detection system warning light
blinks and the system will be turned off auto-
matically.∙ The radar sensor picks up interference from another radar source.
∙ The camera area of the windshield is misted or frozen.
∙ Strong light is shining from the front.
∙ The cabin temperature is over approxi- mately 40°C (104°F) in direct sunlight.
∙ The camera area of the windshield glass is continuously covered with dirt, etc.
Action to take
When the above conditions no longer exist,
the FEB with Pedestrian Detection system
will resume automatically.
LSD2591
5-118Starting and driving

NOTE:
When the inside of the windshield or camera
area is misted or frozen, it will take a period
of time to remove it after A/C turns ON. If
dirt appears on this area, visit an INFINITI
retailer.
Condition B:
In the following conditions, the FEB with Pe-
destrian Detection system warning light will
illuminate and the system will be turned off
automatically and the “Unavailable: Front
Radar Obstruction” warning message will ap-
pear in the vehicle information display.∙ The sensor area of the front bumper is covered with dirt or is obstructed.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe place, place the shift lever
in the P (Park) position and turn the engine
off. Clean the radar sensor area of the front
bumper or the camera area of the windshield
with a soft cloth, and restart the engine. If the
warning light continues to illuminate, have
the FEB with Pedestrian Detection system
checked. It is recommended that you visit an
INFINITI retailer for this service. NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with Pedestrian Detection system
malfunctions, it will be turned off automati-
cally, a chime will sound, the FEB with Pedes-
trian Detection system warning light (orange)
will illuminate and the warning message
[Malfunction] will appear in the vehicle infor-
mation display.
Action to take
If the warning light (orange) comes on, stop
the vehicle in a safe location, turn the engine
off and restart the engine. If the warning light
continues to illuminate, have the FEB with
Pedestrian Detection system checked. It is
recommended that you visit an INFINITI re-
tailer for this service.
NOTE:
If the FEB with Pedestrian Detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MAINTENANCE
The radar sensorAis located behind the
lower grille of the front bumper. The camera
Bis located on the upper side of the wind-
shield.
To keep the FEB with Pedestrian Detection
system operating properly, be sure to ob-
serve the following:
∙ Always keep sensor areas of the front bumper and windshield clean.
∙ Do not strike or damage the areas around the sensors (ex. Bumper, windshield).
LSD2703
Starting and driving5-119

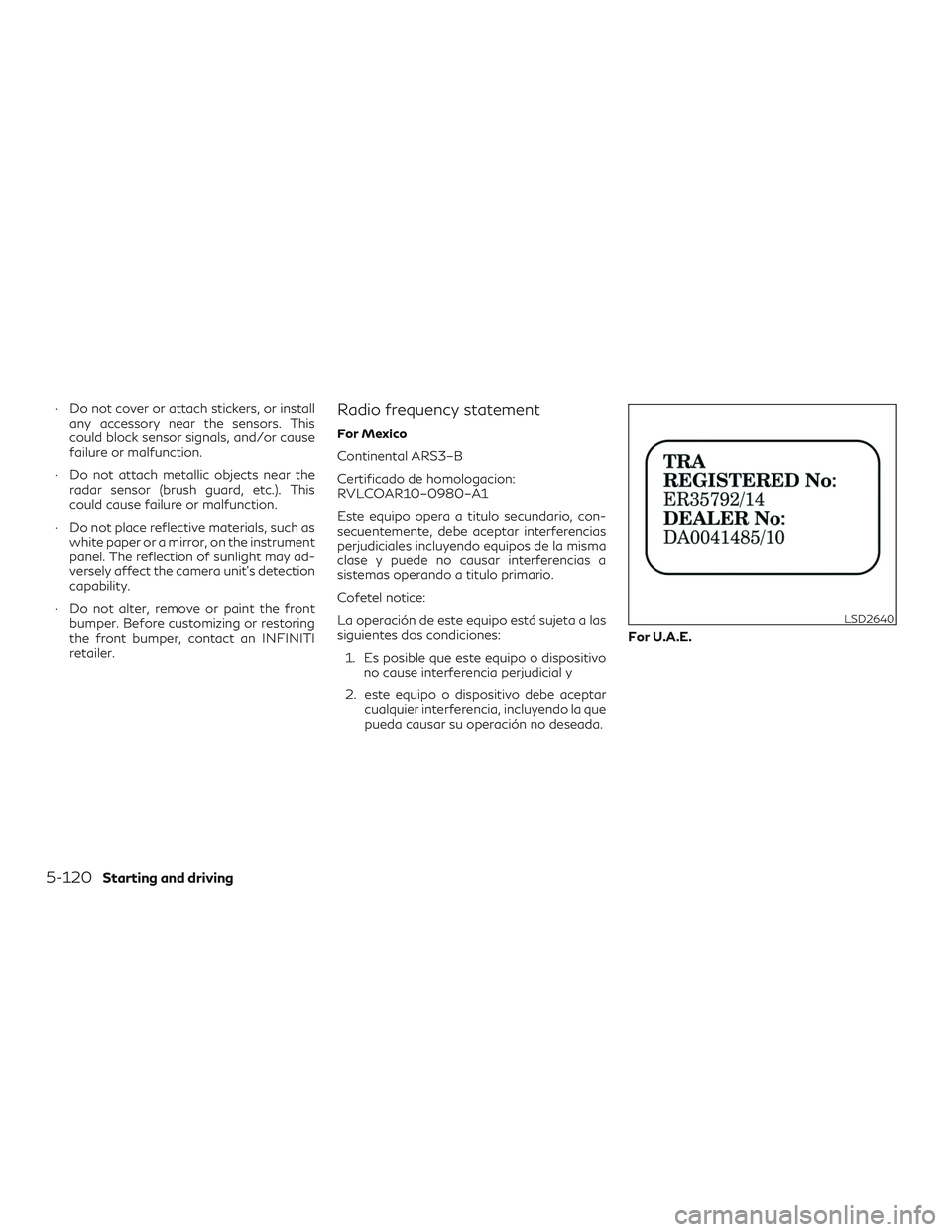

∙ Do not cover or attach stickers, or installany accessory near the sensors. This
could block sensor signals, and/or cause
failure or malfunction.
∙ Do not attach metallic objects near the radar sensor (brush guard, etc.). This
could cause failure or malfunction.
∙ Do not place reflective materials, such as white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s detection
capability.
∙ Do not alter, remove or paint the front bumper. Before customizing or restoring
the front bumper, contact an INFINITI
retailer.Radio frequency statement
For Mexico
Continental ARS3–B
Certificado de homologacion:
RVLCOAR10–0980–A1
Este equipo opera a titulo secundario, con-
secuentemente, debe aceptar interferencias
perjudiciales incluyendo equipos de la misma
clase y puede no causar interferencias a
sistemas operando a titulo primario.
Cofetel notice:
La operación de este equipo está sujeta a las
siguientes dos condiciones:
1. Es posible que este equipo o dispositivo no cause interferencia perjudicial y
2. este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada. For U.A.E.
LSD2640
5-120Starting and driving

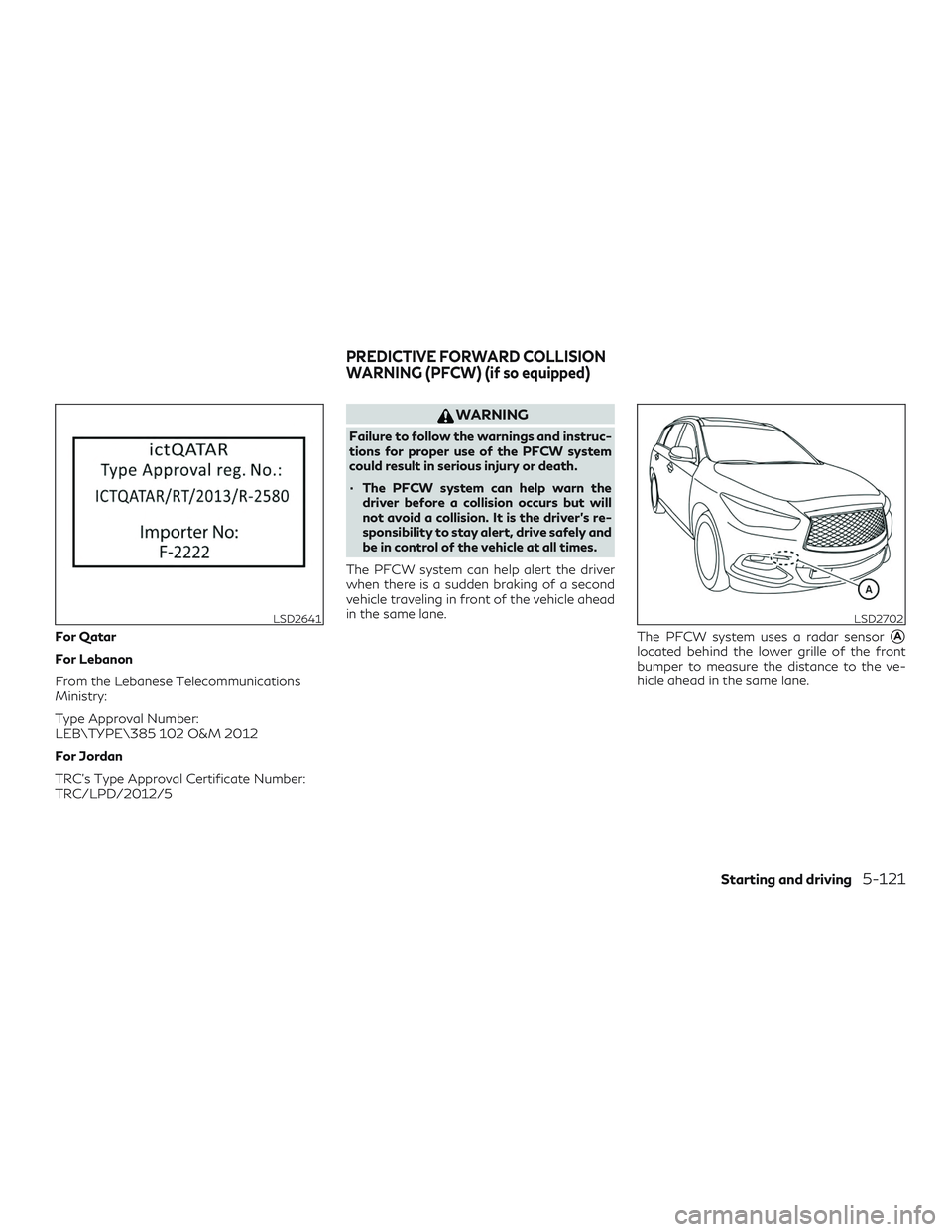

For Qatar
For Lebanon
From the Lebanese Telecommunications
Ministry:
Type Approval Number:
LEB\TYPE\ 102 O&M 2012
For Jordan
TRC’s Type Approval Certificate Number:
TRC/LPD/2012/5
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
∙ The PFCW system can help warn thedriver before a collision occurs but will
not avoid a collision. It is the driver’s re-
sponsibility to stay alert, drive safely and
be in control of the vehicle at all times.
The PFCW system can help alert the driver
when there is a sudden braking of a second
vehicle traveling in front of the vehicle ahead
in the same lane. The PFCW system uses a radar sensor
A
located behind the lower grille of the front
bumper to measure the distance to the ve-
hicle ahead in the same lane.
LSD2641LSD2702
PREDICTIVE FORWARD COLLISION
WARNING (PFCW) (if so equipped)
Starting and driving5-121

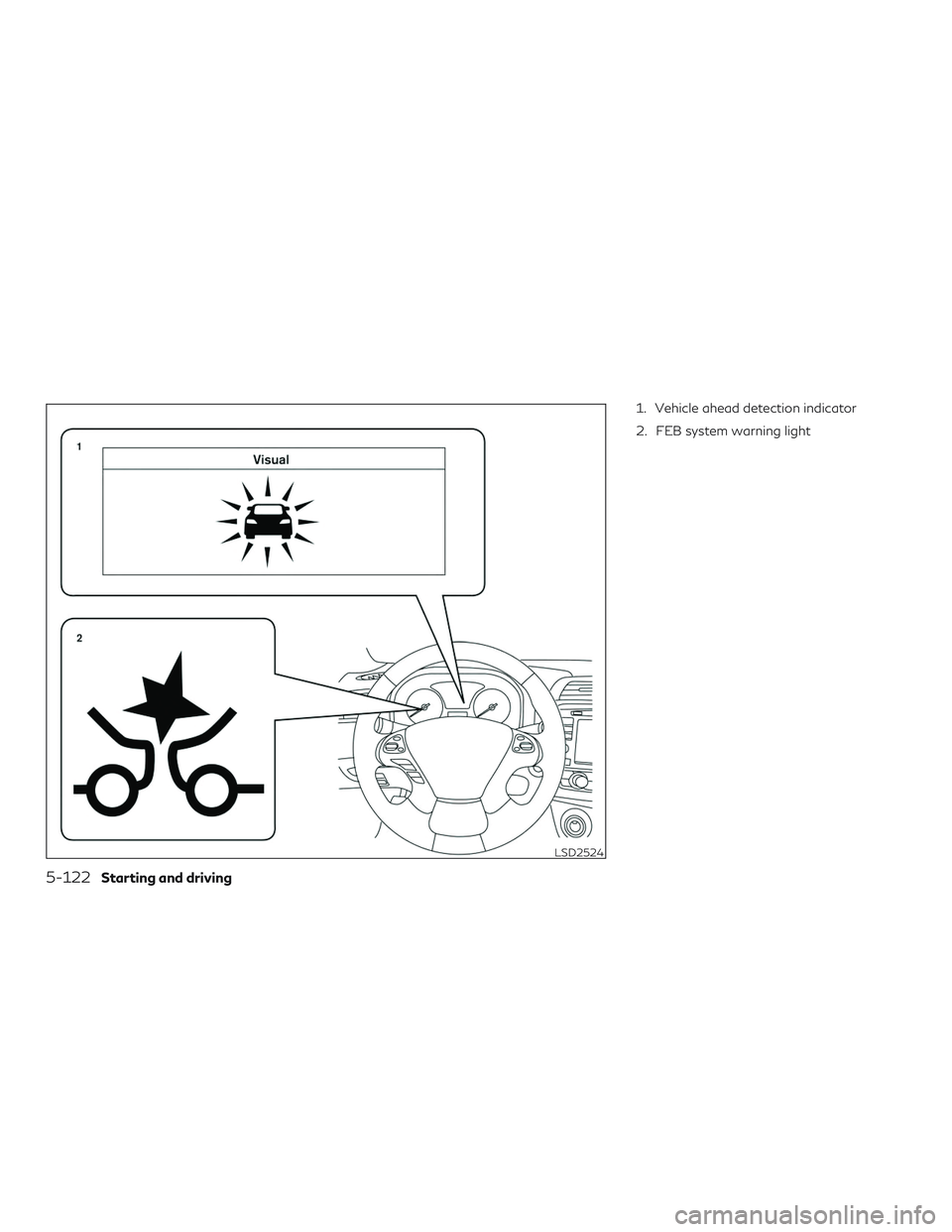

1. Vehicle ahead detection indicator
2. FEB system warning light
LSD2524
5-122Starting and driving

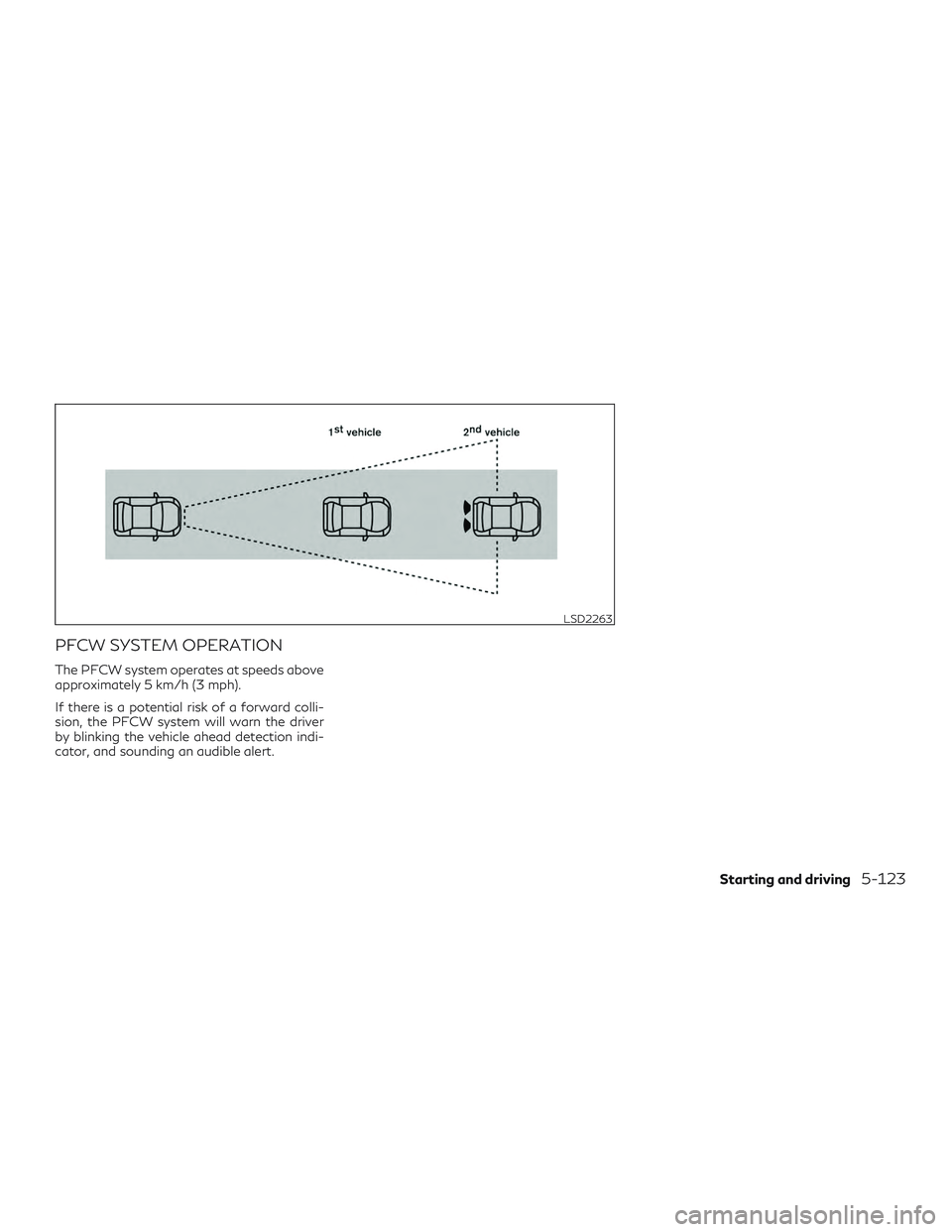

PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 5 km/h (3 mph).
If there is a potential risk of a forward colli-
sion, the PFCW system will warn the driver
by blinking the vehicle ahead detection indi-
cator, and sounding an audible alert.
LSD2263
Starting and driving5-123
