1. Engine hood (P. 3-22)
2. Wiper and washer switch (P. 2-35)
3. Windshield (P. 8-21)
4. Power windows (P. 2-63)
5. Door locks (P. 3-4)INFINITI Intelligent Key (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side view camera (P. 4-3)
7. Tire pressure (P. 8-31) Flat tire (P. 6-3)
Tire chains (P. 8-31)
8. Replacing bulbs (P. 8-28) Headlight and turn signal switch
(P. 2-39)
Daytime running lights system
(P. 2-39)
9. Fog light switch (P. 2-39)
10. Front sonar sensors (P. 5-146)
11. Front camera (P. 4-3)
Refer to the page number indicated in paren-
theses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch(P. 2-35)
2. Liftgate release (P. 3-23) Rearview camera (P.4-3)
3. Rear sonar sensors (P. 5-146)
4 Replacing bulbs (P. 8-28)
5. Fuel-filler cap (P. 3-29) Fuel information (P. 9-2)
Fuel-filler door (P. 3-29)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in paren-
theses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

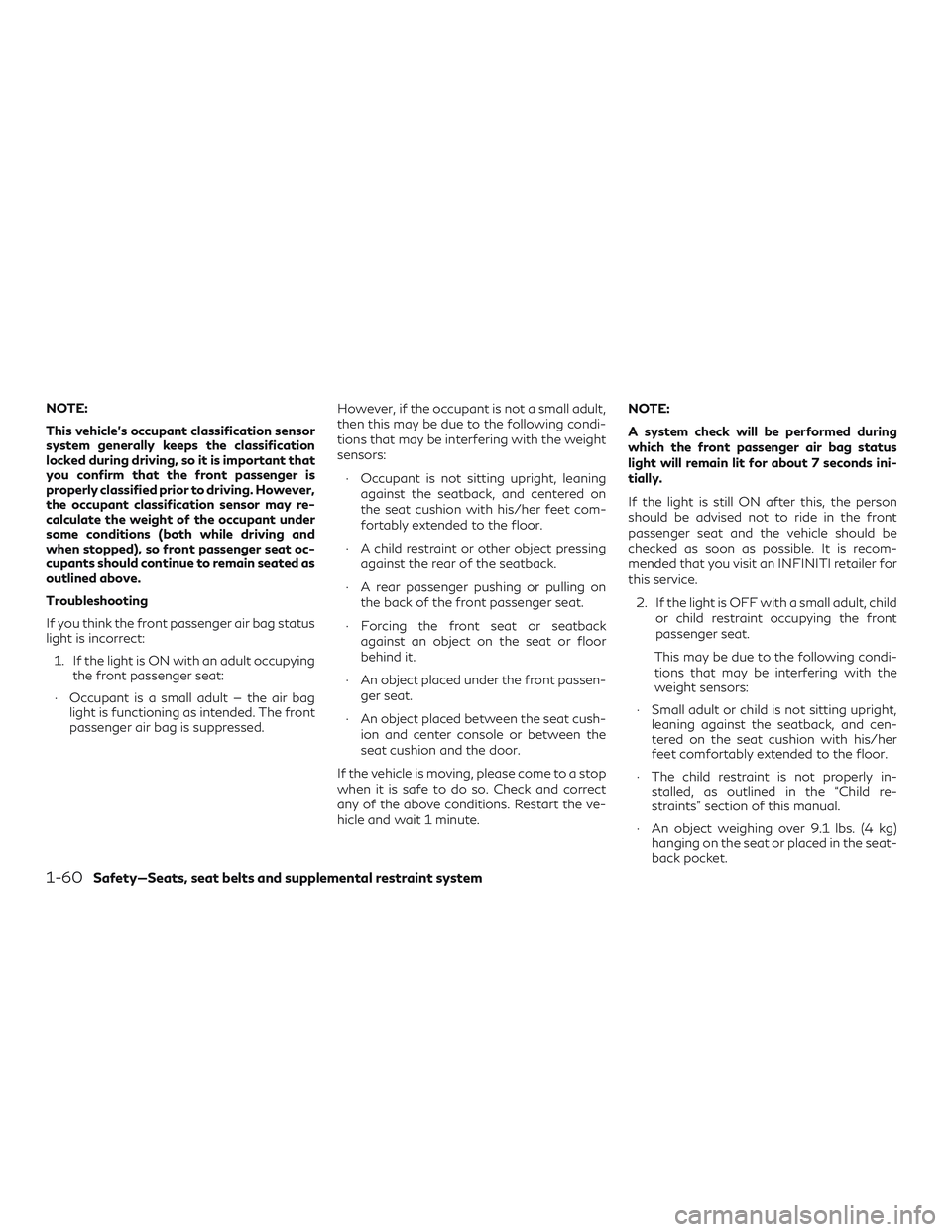

NOTE:
This vehicle’s occupant classification sensor
system generally keeps the classification
locked during driving, so it is important that
you confirm that the front passenger is
properly classified prior to driving. However,
the occupant classification sensor may re-
calculate the weight of the occupant under
some conditions (both while driving and
when stopped), so front passenger seat oc-
cupants should continue to remain seated as
outlined above.
Troubleshooting
If you think the front passenger air bag status
light is incorrect:1. If the light is ON with an adult occupying the front passenger seat:
∙ Occupant is a small adult — the air bag light is functioning as intended. The front
passenger air bag is suppressed. However, if the occupant is not a small adult,
then this may be due to the following condi-
tions that may be interfering with the weight
sensors:
∙ Occupant is not sitting upright, leaning against the seatback, and centered on
the seat cushion with his/her feet com-
fortably extended to the floor.
∙ A child restraint or other object pressing against the rear of the seatback.
∙ A rear passenger pushing or pulling on the back of the front passenger seat.
∙ Forcing the front seat or seatback against an object on the seat or floor
behind it.
∙ An object placed under the front passen- ger seat.
∙ An object placed between the seat cush- ion and center console or between the
seat cushion and the door.
If the vehicle is moving, please come to a stop
when it is safe to do so. Check and correct
any of the above conditions. Restart the ve-
hicle and wait 1 minute. NOTE:
A system check will be performed during
which the front passenger air bag status
light will remain lit for about 7 seconds ini-
tially.
If the light is still ON after this, the person
should be advised not to ride in the front
passenger seat and the vehicle should be
checked as soon as possible. It is recom-
mended that you visit an INFINITI retailer for
this service.
2. If the light is OFF with a small adult, child or child restraint occupying the front
passenger seat.
This may be due to the following condi-
tions that may be interfering with the
weight sensors:
∙ Small adult or child is not sitting upright, leaning against the seatback, and cen-
tered on the seat cushion with his/her
feet comfortably extended to the floor.
∙ The child restraint is not properly in- stalled, as outlined in the “Child re-
straints” section of this manual.
∙ An object weighing over 9.1 lbs. (4 kg) hanging on the seat or placed in the seat-
back pocket.
1-60Safety—Seats, seat belts and supplemental restraint system

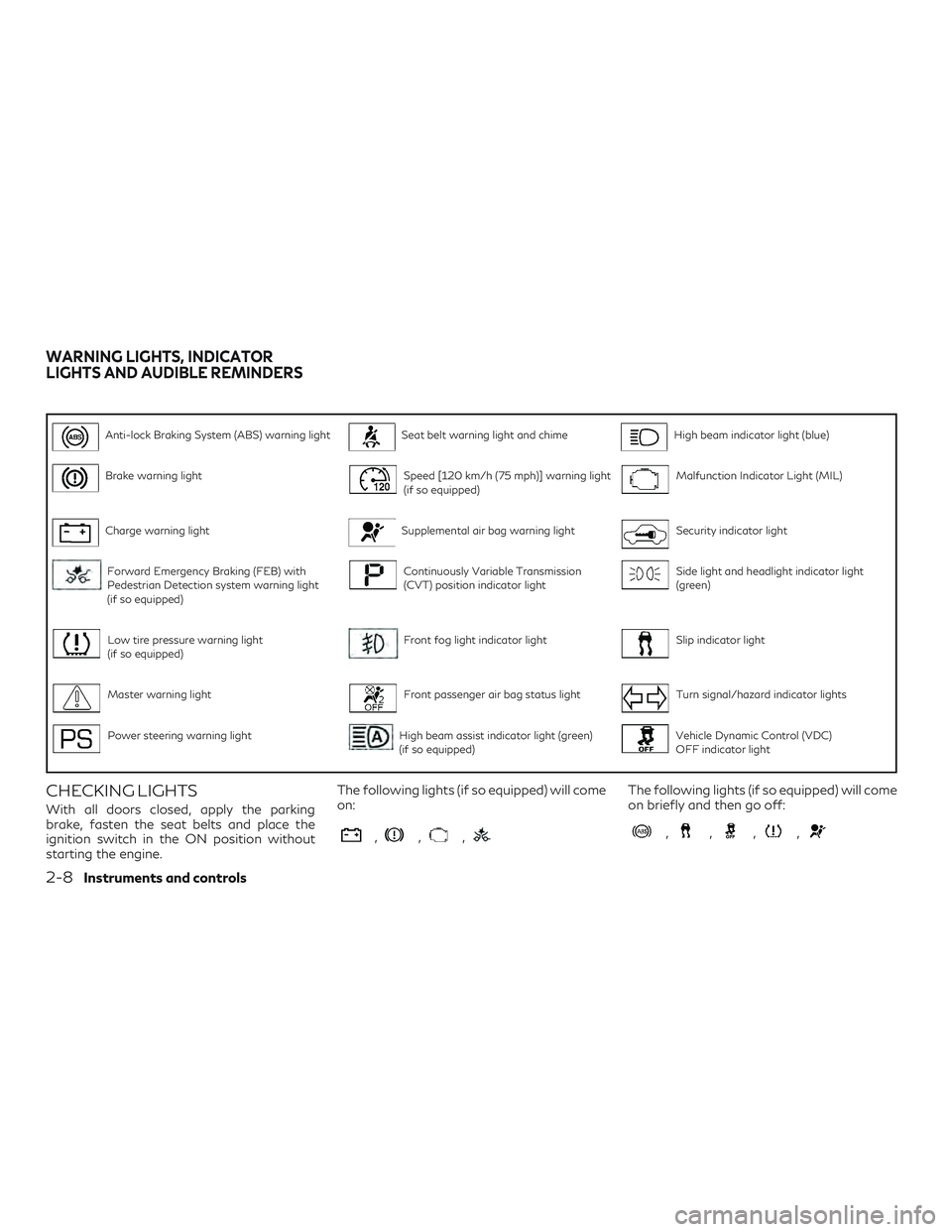

Anti-lock Braking System (ABS) warning lightSeat belt warning light and chimeHigh beam indicator light (blue)
Brake warning lightSpeed [120 km/h (75 mph)] warning light
(if so equipped)Malfunction Indicator Light (MIL)
Charge warning lightSupplemental air bag warning lightSecurity indicator light
Forward Emergency Braking (FEB) with
Pedestrian Detection system warning light
(if so equipped)Continuously Variable Transmission
(CVT) position indicator lightSide light and headlight indicator light
(green)
Low tire pressure warning light
(if so equipped)Front fog light indicator lightSlip indicator light
Master warning lightFront passenger air bag status lightTurn signal/hazard indicator lights
Power steering warning lightHigh beam assist indicator light (green)
(if so equipped)Vehicle Dynamic Control (VDC)
OFF indicator light
CHECKING LIGHTS
With all doors closed, apply the parking
brake, fasten the seat belts and place the
ignition switch in the ON position without
starting the engine.The following lights (if so equipped) will come
on:
,,,
The following lights (if so equipped) will come
on briefly and then go off:
,,,,
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
2-8Instruments and controls

Anti-lock Braking System (ABS)
warning indicator
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking Sys-
tem (ABS) warning light illuminate, it may
indicate the ABS is not functioning properly.
Have the brake system checked, and if nec-
essary, repaired. It is recommended that you
visit an INFINITI retailer for this service.
Avoid high-speed driving and abrupt braking.
For additional information, refer to “Anti-lock
Braking System (ABS) warning light” in this
section.
Charge warning light
If this light comes on while the engine is run-
ning, it may indicate the charging system is
not functioning properly. Turn the engine off
and check the generator belt. If the belt is
loose, broken, missing, or if the light remains
on, have the system checked. It is recom-
mended that you visit an INFINITI retailer for
this service.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Forward EmergencyBraking (FEB) with
Pedestrian Detection
system warning light
(if so equipped)
This light comes on when the ignition switch
is placed in the ON position. It turns off after
the engine is started.
This light illuminates when the FEB with Pe-
destrian Detection system is set to OFF in the
vehicle information display.
If the light illuminates when the FEB with
Pedestrian Detection system is on, it may
indicate that the system is unavailable. For
additional information, refer to “Forward
Emergency Braking (FEB) with Pedestrian
Detection” in the “Starting and driving” sec-
tion of this manual.
Low tire pressure warninglight (if so equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the
tire pressure of all tires except the spare.
The low tire pressure warning light warns of
low tire pressure or indicates that the TPMS
is not functioning properly. After the ignition switch is placed in the ON
position, this light illuminates for about 1 sec-
ond and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate. A
“Tyre Pressure Low - Add Air” warning also
appears in the vehicle information display.
When the low tire pressure warning light il-
luminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the
tire placard located in the driver’s door
opening. The low tire pressure warning light
does not automatically turn off when the
tire pressure is adjusted. After the tire is in-
flated to the recommended pressure, the ve-
hicle must be driven at speeds above
25 km/h (16 mph) to activate the TPMS and
turn off the low tire pressure warning light.
Use a tire pressure gauge to check the tire
pressure.
The “Tyre Pressure Low - Add Air” warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
2-10Instruments and controls

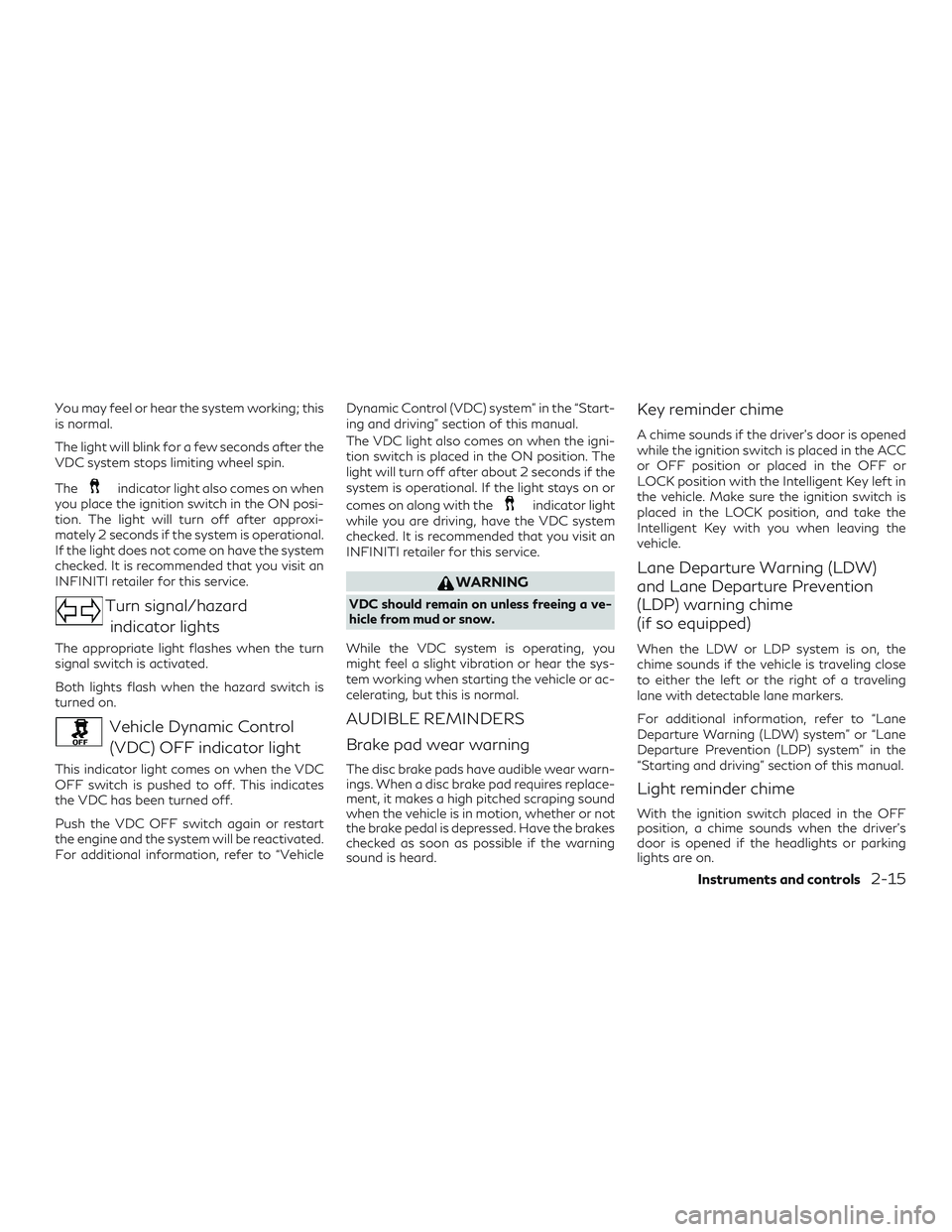

You may feel or hear the system working; this
is normal.
The light will blink for a few seconds after the
VDC system stops limiting wheel spin.
The
indicator light also comes on when
you place the ignition switch in the ON posi-
tion. The light will turn off after approxi-
mately 2 seconds if the system is operational.
If the light does not come on have the system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Turn signal/hazard
indicator lights
The appropriate light flashes when the turn
signal switch is activated.
Both lights flash when the hazard switch is
turned on.
Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC
OFF switch is pushed to off. This indicates
the VDC has been turned off.
Push the VDC OFF switch again or restart
the engine and the system will be reactivated.
For additional information, refer to “Vehicle Dynamic Control (VDC) system” in the “Start-
ing and driving” section of this manual.
The VDC light also comes on when the igni-
tion switch is placed in the ON position. The
light will turn off after about 2 seconds if the
system is operational. If the light stays on or
comes on along with the
indicator light
while you are driving, have the VDC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
WARNING
VDC should remain on unless freeing a ve-
hicle from mud or snow.
While the VDC system is operating, you
might feel a slight vibration or hear the sys-
tem working when starting the vehicle or ac-
celerating, but this is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warn-
ings. When a disc brake pad requires replace-
ment, it makes a high pitched scraping sound
when the vehicle is in motion, whether or not
the brake pedal is depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Key reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC
or OFF position or placed in the OFF or
LOCK position with the Intelligent Key left in
the vehicle. Make sure the ignition switch is
placed in the LOCK position, and take the
Intelligent Key with you when leaving the
vehicle.
Lane Departure Warning (LDW)
and Lane Departure Prevention
(LDP) warning chime
(if so equipped)
When the LDW or LDP system is on, the
chime sounds if the vehicle is traveling close
to either the left or the right of a traveling
lane with detectable lane markers.
For additional information, refer to “Lane
Departure Warning (LDW) system” or “Lane
Departure Prevention (LDP) system” in the
“Starting and driving” section of this manual.
Light reminder chime
With the ignition switch placed in the OFF
position, a chime sounds when the driver’s
door is opened if the headlights or parking
lights are on.
Instruments and controls2-15

Turn the headlight control switch off before
leaving the vehicle.

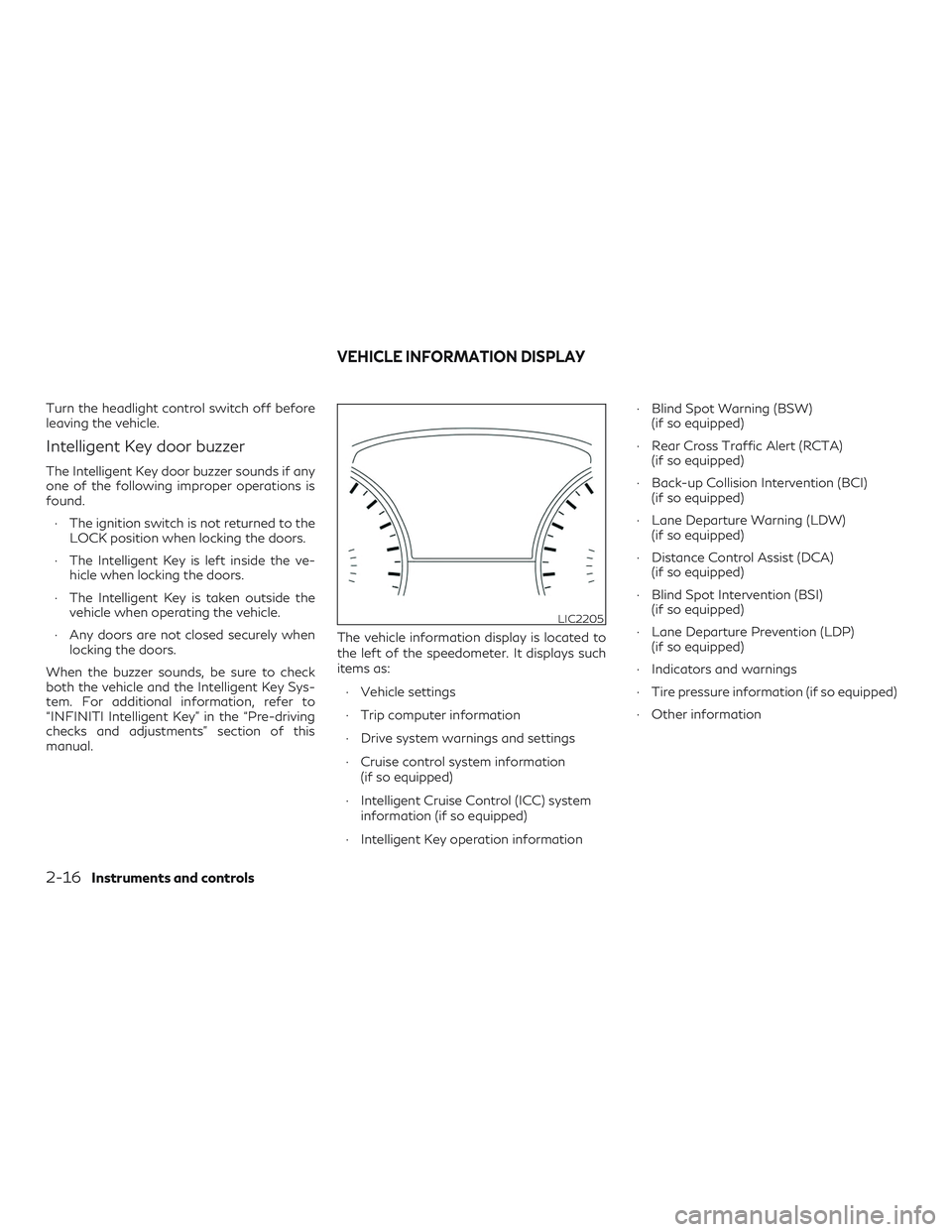

Intelligent Key door buzzer
The Intelligent Key door buzzer sounds if any
one of the following improper operations is
found.∙ The ignition switch is not returned to the LOCK position when locking the doors.
∙ The Intelligent Key is left inside the ve- hicle when locking the doors.
∙ The Intelligent Key is taken outside the vehicle when operating the vehicle.
∙ Any doors are not closed securely when locking the doors.
When the buzzer sounds, be sure to check
both the vehicle and the Intelligent Key Sys-
tem. For additional information, refer to
“INFINITI Intelligent Key” in the “Pre-driving
checks and adjustments” section of this
manual. The vehicle information display is located to
the left of the speedometer. It displays such
items as:
∙ Vehicle settings
∙ Trip computer information
∙ Drive system warnings and settings
∙ Cruise control system information (if so equipped)
∙ Intelligent Cruise Control (ICC) system information (if so equipped)
∙ Intelligent Key operation information ∙ Blind Spot Warning (BSW)
(if so equipped)
∙ Rear Cross Traffic Alert (RCTA) (if so equipped)
∙ Back-up Collision Intervention (BCI) (if so equipped)
∙ Lane Departure Warning (LDW) (if so equipped)
∙ Distance Control Assist (DCA) (if so equipped)
∙ Blind Spot Intervention (BSI) (if so equipped)
∙ Lane Departure Prevention (LDP) (if so equipped)
∙ Indicators and warnings
∙ Tire pressure information (if so equipped)
∙ Other information
LIC2205
VEHICLE INFORMATION DISPLAY
2-16Instruments and controls

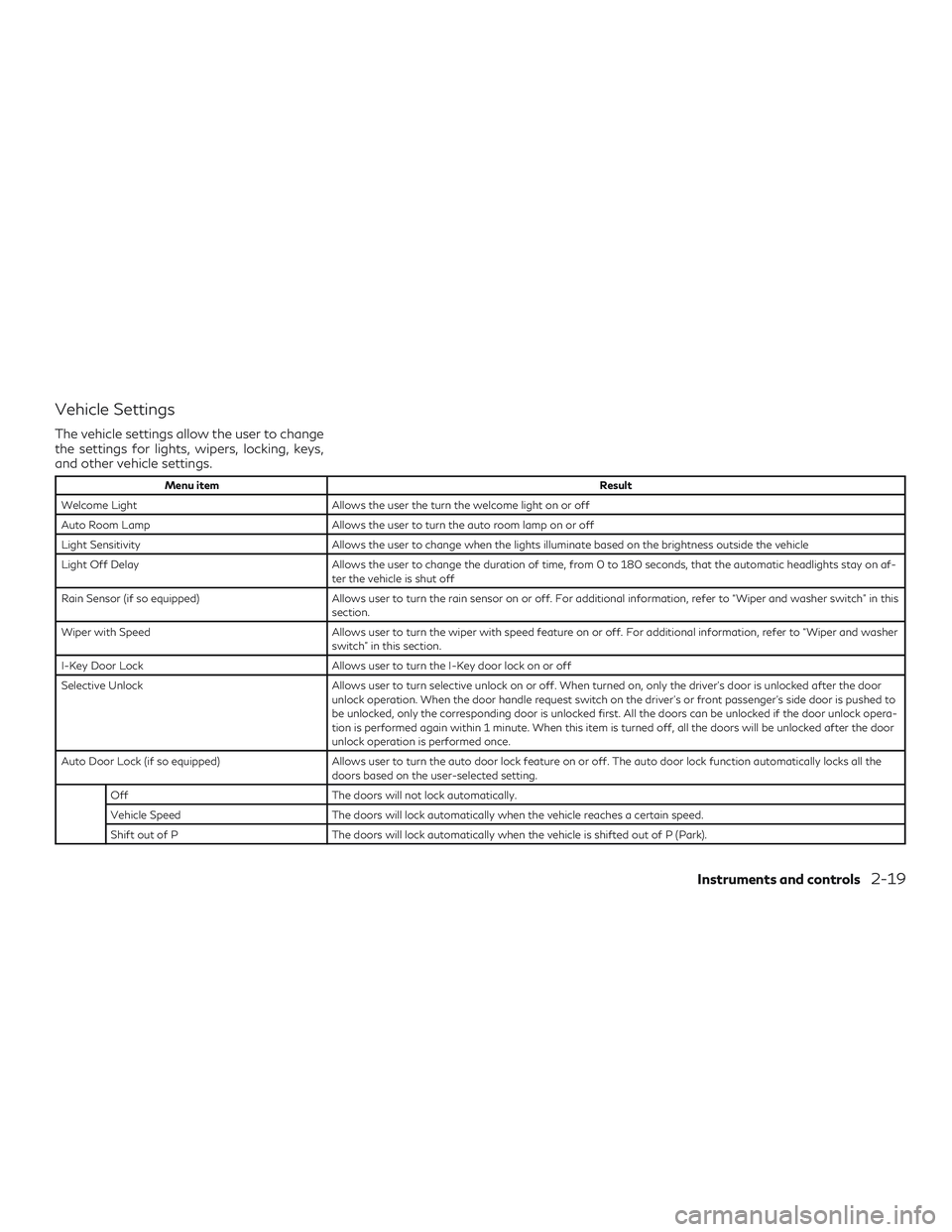

Vehicle Settings
The vehicle settings allow the user to change
the settings for lights, wipers, locking, keys,
and other vehicle settings.
Menu itemResult
Welcome Light Allows the user the turn the welcome light on or off
Auto Room Lamp Allows the user to turn the auto room lamp on or off
Light Sensitivity Allows the user to change when the lights illuminate based on the brightness outside the vehicle
Light Off Delay Allows the user to change the duration of time, from 0 to 180 seconds, that the automatic headlights stay on af- ter the vehicle is shut off
Rain Sensor (if so equipped) Allows user to turn the rain sensor on or off. For additional information, refer to “Wiper and washer switch” in this section.
Wiper with Speed Allows user to turn the wiper with speed feature on or off. For additional information, refer to “Wiper and washer switch” in this section.
I-Key Door Lock Allows user to turn the I-Key door lock on or off
Selective Unlock Allows user to turn selective unlock on or off. When turned on, only the driver’s door is unlocked after the door unlock operation. When the door handle request switch on the driver’s or front passenger’s side door is pushed to
be unlocked, only the corresponding door is unlocked first. All the doors can be unlocked if the door unlock opera-
tion is performed again within 1 minute. When this item is turned off, all the doors will be unlocked after the door
unlock operation is performed once.
Auto Door Lock (if so equipped) Allows user to turn the auto door lock feature on or off. The auto door lock function automatically locks all the doors based on the user-selected setting.
Off The doors will not lock automatically.
Vehicle Speed The doors will lock automatically when the vehicle reaches a certain speed.
Shift out of P The doors will lock automatically when the vehicle is shifted out of P (Park).
Instruments and controls2-19

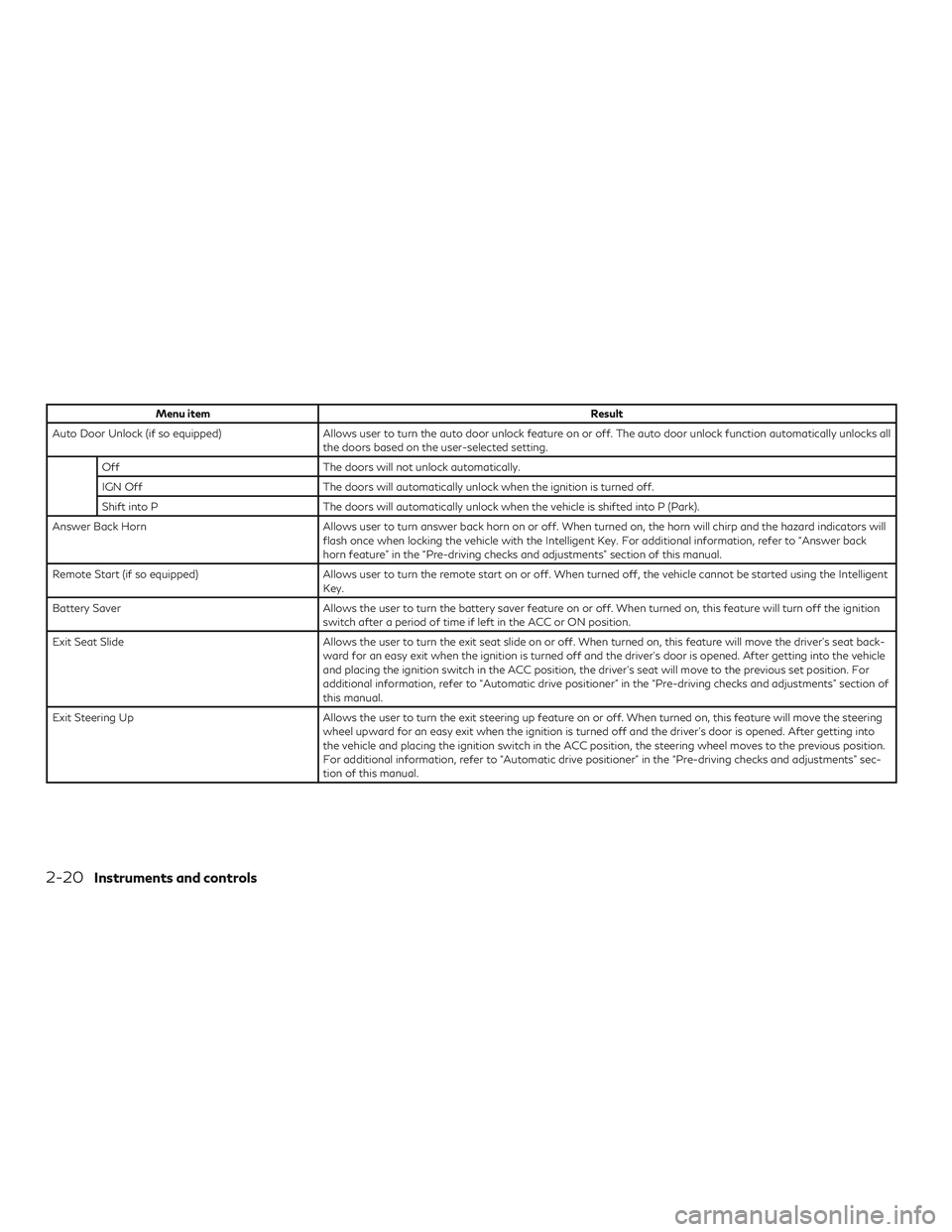

Menu itemResult
Auto Door Unlock (if so equipped) Allows user to turn the auto door unlock feature on or off. The auto door unlock function automatically unlocks all the doors based on the user-selected setting.
Off The doors will not unlock automatically.
IGN Off The doors will automatically unlock when the ignition is turned off.
Shift into P The doors will automatically unlock when the vehicle is shifted into P (Park).
Answer Back Horn Allows user to turn answer back horn on or off. When turned on, the horn will chirp and the hazard indicators will flash once when locking the vehicle with the Intelligent Key. For additional information, refer to “Answer back
horn feature” in the “Pre-driving checks and adjustments” section of this manual.
Remote Start (if so equipped) Allows user to turn the remote start on or off. When turned off, the vehicle cannot be started using the Intelligent Key.
Battery Saver Allows the user to turn the battery saver feature on or off. When turned on, this feature will turn off the ignition switch after a period of time if left in the ACC or ON position.
Exit Seat Slide Allows the user to turn the exit seat slide on or off. When turned on, this feature will move the driver’s seat back- ward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into the vehicle
and placing the ignition switch in the ACC position, the driver’s seat will move to the previous set position. For
additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” section of
this manual.
Exit Steering Up Allows the user to turn the exit steering up feature on or off. When turned on, this feature will move the steering wheel upward for an easy exit when the ignition is turned off and the driver’s door is opened. After getting into
the vehicle and placing the ignition switch in the ACC position, the steering wheel moves to the previous position.
For additional information, refer to “Automatic drive positioner” in the “Pre-driving checks and adjustments” sec-
tion of this manual.
2-20Instruments and controls

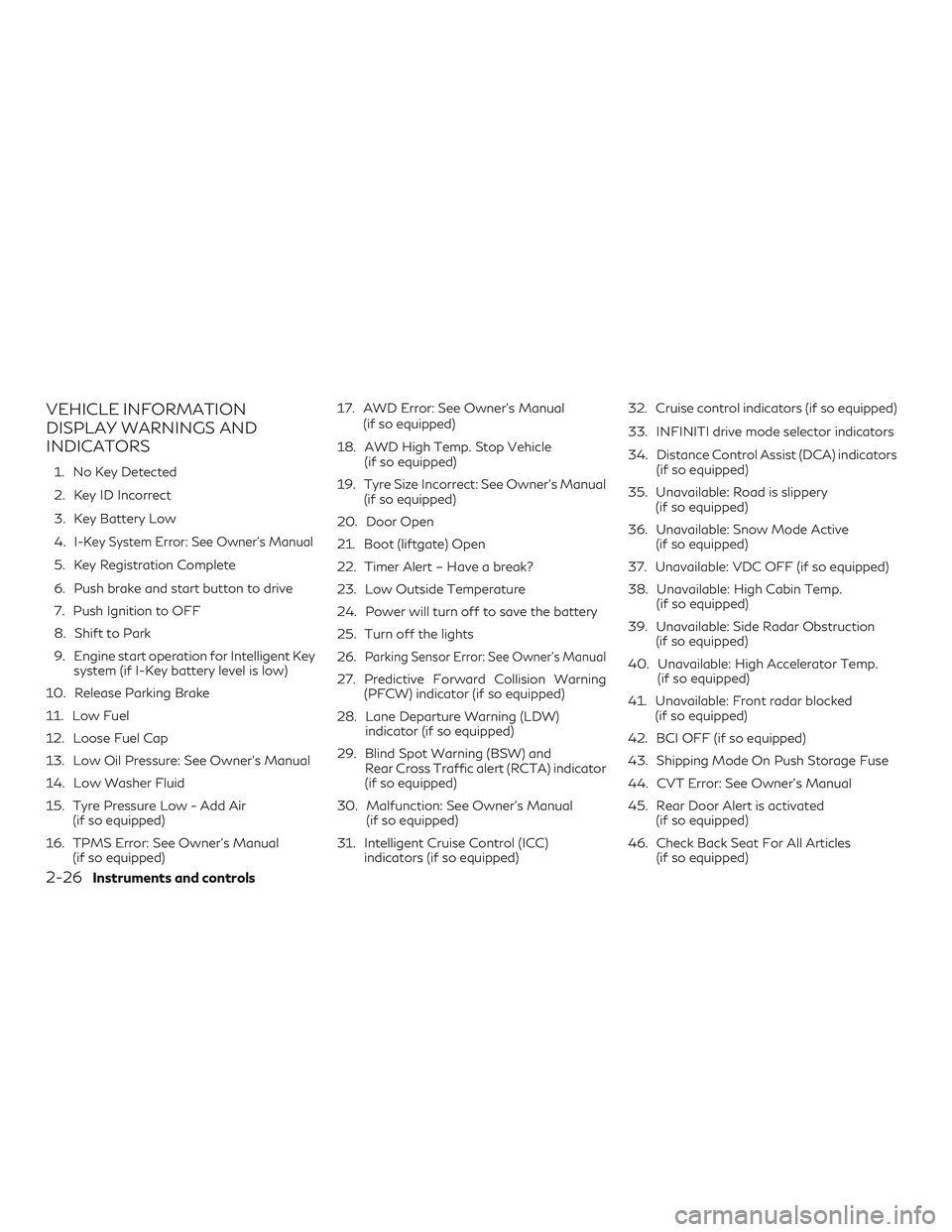

VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4.
I-Key System Error: See Owner’s Manual
5. Key Registration Complete
6. Push brake and start button to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Keysystem (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tyre Pressure Low - Add Air (if so equipped)
16. TPMS Error: See Owner’s Manual (if so equipped) 17. AWD Error: See Owner’s Manual
(if so equipped)
18. AWD High Temp. Stop Vehicle (if so equipped)
19. Tyre Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Boot (liftgate) Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Turn off the lights
26.
Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator (if so equipped)
28. Lane Departure Warning (LDW) indicator (if so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic alert (RCTA) indicator
(if so equipped)
30. Malfunction: See Owner’s Manual (if so equipped)
31. Intelligent Cruise Control (ICC) indicators (if so equipped) 32. Cruise control indicators (if so equipped)
33. INFINITI drive mode selector indicators
34. Distance Control Assist (DCA) indicators
(if so equipped)
35. Unavailable: Road is slippery (if so equipped)
36. Unavailable: Snow Mode Active (if so equipped)
37. Unavailable: VDC OFF (if so equipped)
38. Unavailable: High Cabin Temp. (if so equipped)
39. Unavailable: Side Radar Obstruction (if so equipped)
40. Unavailable: High Accelerator Temp. (if so equipped)
41. Unavailable: Front radar blocked (if so equipped)
42. BCI OFF (if so equipped)
43. Shipping Mode On Push Storage Fuse
44. CVT Error: See Owner’s Manual
45. Rear Door Alert is activated (if so equipped)
46. Check Back Seat For All Articles (if so equipped)
2-26Instruments and controls
