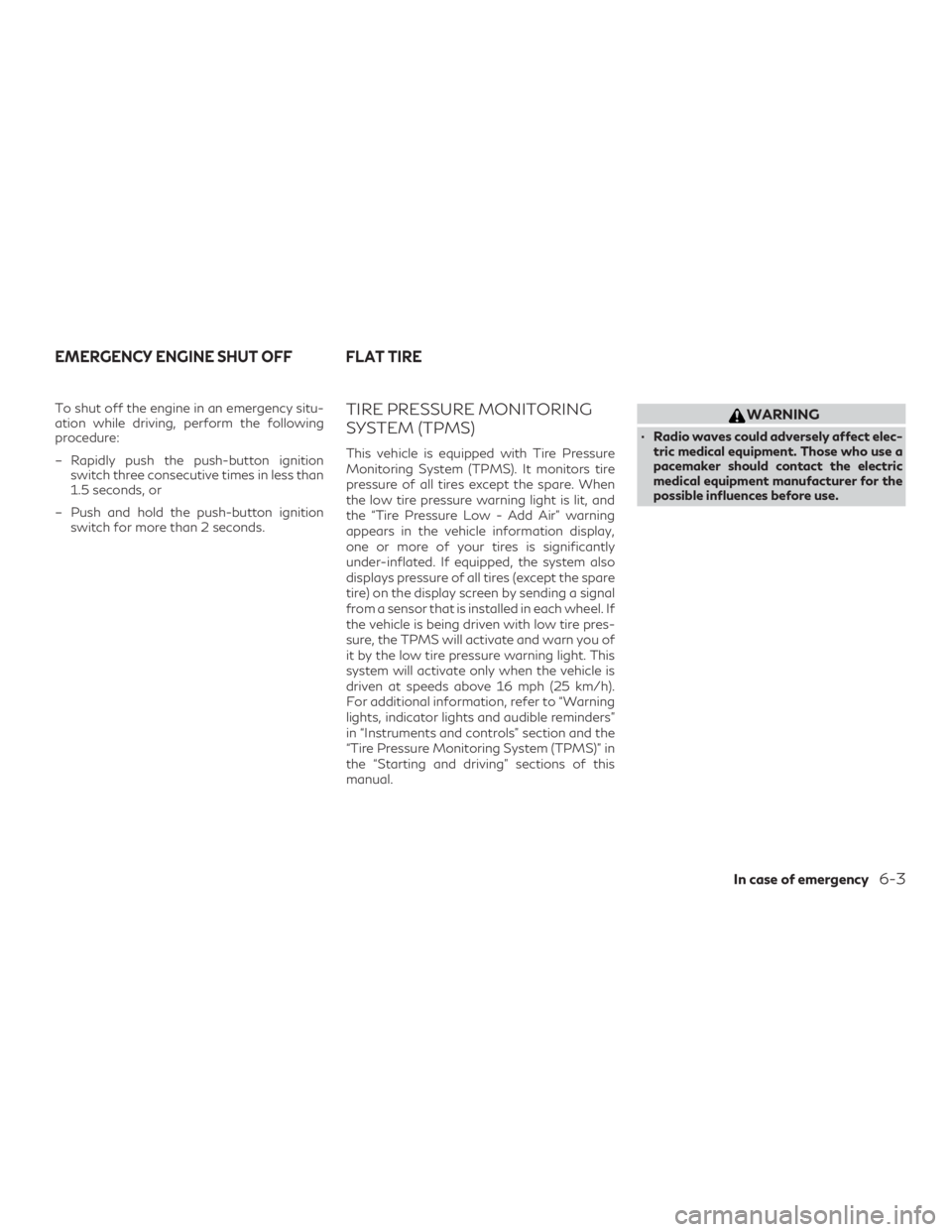

sensor INFINITI QX60 2019 Owners Manual

To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
– Rapidly push the push-button ignitionswitch three consecutive times in less than
1.5 seconds, or
– Push and hold the push-button ignition switch for more than 2 seconds.TIRE PRESSURE MONITORING
SYSTEM (TPMS)
This vehicle is equipped with Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit, and
the “Tire Pressure Low - Add Air” warning
appears in the vehicle information display,
one or more of your tires is significantly
under-inflated. If equipped, the system also
displays pressure of all tires (except the spare
tire) on the display screen by sending a signal
from a sensor that is installed in each wheel. If
the vehicle is being driven with low tire pres-
sure, the TPMS will activate and warn you of
it by the low tire pressure warning light. This
system will activate only when the vehicle is
driven at speeds above 16 mph (25 km/h).
For additional information, refer to “Warning
lights, indicator lights and audible reminders”
in “Instruments and controls” section and the
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” sections of this
manual.
WARNING
∙ Radio waves could adversely affect elec-tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
EMERGENCY ENGINE SHUT OFF FLAT TIRE
In case of emergency6-3

∙ If the low tire pressure warning light illu-minates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage
the tires and increase the likelihood of
tire failure. Serious vehicle damage could
occur and may lead to an accident and
could result in serious personal injury.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label to
turn the low tire pressure warning light
OFF. If the light still illuminates while
driving after adjusting the tire pressure,
a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire, re-
place it with a spare tire as soon as pos-
sible, If no tire is flat and all tires are
properly inflated, have the vehicle
checked. It is recommended that you visit
a INFINITI retailer for this service. ∙ When replacing a wheel without TPMS
such as the spare tire, TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
a INFINITI retailer for these services.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ Do not inject any tire liquid or aerosol tire sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below:
Stopping the vehicle
1. Safely move the vehicle off the road and away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to
P (Park). 4. Turn off the engine.
5. Raise the hood to warn other traffic and
to signal professional road assistance
personnel that you need assistance.
6. Have all passengers get out of the ve- hicle and stand in a safe place, away
from traffic and clear of the vehicle.
WARNING
∙ Make sure the parking brake is securelyapplied and the Continuously Variable
Transmission (CVT) is shifted into
P (Park).
∙ Never change tires when the vehicle is on a slope, ice or slippery areas. This is
hazardous.
∙ Never change tires if oncoming traffic is close to your vehicle. Wait for profes-
sional road assistance.
6-4In case of emergency

play screen by sending a signal from a
sensor that is installed in each wheel.
The TPMS will activate only when the
vehicle is driven at speeds above
16 mph (25 km/h). Also, this system
may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
For additional information, refer to
“Low tire pressure warning light” in the
“Instruments and controls” section,
“Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving”
section and “Flat tire” in the “In case of
emergency” section of this manual.
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on
the F.M.V.S.S./C.M.V.S.S. certifica-
tion label or the Tire and Loading In-
formation label under the “Cold Tire
Pressure” heading. The Tire and Load-
ing Information label is affixed to thedriver side center pillar. Tire pressures
should be checked regularly because:
∙ Most tires naturally lose air over time.
∙ Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a curb
while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or
driven less than 1 mile (1.6 km) at mod-
erate speeds.
TPMS with Tire Inflation Indicator
provides visual and audible signals
outside the vehicle for inflating the
tires to the recommended COLD tire
pressure. For additional information,
refer to “TPMS with Tire Inflation In-
dicator” in the “Starting and driving”
section of this manual.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
∙ Improperly inflated tires can fail suddenly and cause an accident.
∙ The Gross Vehicle Weight Rating (GVWR) is located on the
F.M.V.S.S./C.M.V.S.S. certifica-
tion label. The vehicle weight ca-
pacity is indicated on the Tire and
Loading Information label. Do not
load your vehicle beyond this ca-
pacity. Overloading your vehicle
may result in reduced tire life, un-
safe operating conditions due to
premature tire failure, or unfavor-
able handling characteristics and
could also lead to a serious acci-
dent. Loading beyond the speci-
fied capacity may also result in
failure of other vehicle
components.
∙ Before taking a long trip, or when- ever you heavily load your vehicle,
use a tire pressure gauge to ensure
that the tire pressures are at the
specified level.
8-28
Do-it-yourself

∙ If the wheels are changed for any reason,always replace with wheels which have
the same off-set dimension. Wheels of a
different off-set could cause premature
tire wear, degrade vehicle handling char-
acteristics, affect the VDC system
and/or interference with the brake discs.
Such interference can lead to decreased
braking efficiency and/or early brake
pad wear. For additional information on
wheel off-set dimensions, refer to
“Wheels and tires” in the “Technical and
consumer information” section of this
manual.
∙ When replacing a wheel without the TPMS, such as the spare tire, the TPMS
will not function and the low tire pressure
warning light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you visit
an INFINITI retailer for this service.
∙ Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful when
handling the TPMS sensor. ∙ When replacing the TPMS sensor, the ID
registration may be required. It is recom-
mended that you visit an INFINITI re-
tailer for ID registration.
∙ Do not use a valve stem cap that is not specified by INFINITI. The valve stem cap
may become stuck.
∙ Be sure that the valve stem caps are cor- rectly fitted. Otherwise the valve may be
clogged up with dirt and cause a malfunc-
tion or loss of pressure.
∙ Do not install a damaged or deformed wheel or tire even if it has been repaired.
Such wheels or tires could have structural
damage and could fail without warning.
∙ The use of retread tires is not recommended.
∙ For additional information regarding tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Wheel balance
Unbalanced wheels may affect vehicle han-
dling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required. Wheel balance service should be performed
with the wheels off the vehicle. Spin balanc-
ing the wheels on the vehicle could lead to
mechanical damage.
∙ For additional information regarding
tires, refer to “Important Tire Safety In-
formation” (US) or “Tire Safety Informa-
tion” (Canada) in the Warranty Informa-
tion Booklet.
Care of wheels
∙ Wash the wheels when washing the ve-
hicle to maintain their appearance.
∙ Clean the inner side of the wheels when the wheel is changed or the underside of
the vehicle is washed.
∙ Do not use abrasive cleaners when washing the wheels.
∙ Inspect wheel rims regularly for dents or corrosion. Such damage may cause loss
of pressure or poor seal at the tire bead.
∙ INFINITI recommends waxing the road wheels to protect against road salt in
areas where it is used during winter.
Do-it-yourself8-37

11 Index
2nd row bench seat adjustment.......1-8
A
Air bag (See supplemental restraint
system).....................1-50
Air bag system Front (See supplemental front impact
airbagsystem) ..............1-57
Air bag warning labels ............1-68
Airbagwarninglight.........1-69,2-12
Air bag warning light,
supplemental ..............1-69,2-12
Air cleaner ...................8-16
Air cleaner housing filter ...........8-16
Air conditioner Air conditioner operation ....4-35,4-44
Air conditioner specification label . .10-12
Air conditioner system refrigerant and
oil recommendations ...........10-7
Heater and air conditioner (automatic)
(if so equipped) ..........4-34,4-43
Heater and air conditioner
controls ..............4-35,4-44
Servicing air conditioner .........4-53
Alarm system (See
vehicle security system) ...........2-32
Anchor point locations ............1-33
Antenna ....................4-54
Antifreeze ..................5-144
Anti-lock brake warning light .........2-9
Anti-lock Braking System (ABS) .....5-135Armrests.....................1-8
Around View® Monitor
...........4-11
Audible reminders ...............2-15
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-37, 3-39
Automatic power window switch . . .2-65
Automatic anti-glare inside mirror .....3-34
Automatic door locks .............3-7
Automatic drive positioner .....3-37,3-39
B
Backup Collision Intervention (BCI) ....5-60
Battery................5- 144, 8-12
Charge warning light ...........2-9
Battery replacement .............8-22
INFINITI Intelligent Key .........8-22
Keyfob...................8-22
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-15
Blind Spot Intervention® (BSI) .......5-48
Blind Spot Warning (BSW) .........5-38
Boosterseats.................1-47
Brake Anti-lock Braking System (ABS) . . .5-135
Brakefluid.................8-10
Brakelight(Seestoplight) .......8-25
Brake system ..............5-134
Brakewarninglight ............2-9
Brakewearindicators ......2-15,8-19
Parking brake operation .........5-23 Self-adjusting brakes
..........8-19
Brake Assist ................. 5-136
Brakefluid...................8-10
Brakes .....................8-19
Brake system ................5-134
Break-in schedule ..............5-128
Brightness control Instrument panel .............2-44
Bulb check/instrument panel .........2-8
Bulb replacement ............... 8-25
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended
fuel/lubricants ................10-2
Cargoareastoragebin ...........2-61
Cargolight...................2-72
Cargo (See
vehicle loading information) ........10-13
Car phone or CB radio ............4-54
Check tire pressure ..............
2
-28
Child restraints .....1-26,1-27,1 -28, 1-30
LATCH (Lower Anchors and Tethers
for CHildren) System ...........1-30
Precautions on child
restraints .......1-28, 1-35, 1-41, 1-47
Top tether strap anchor point
locations..................1-33
Child restraint with top tether strap ....1-32
Child safety rear door lock ..........3-7
Chimes, audible reminders ..........2-15

Changing engine oil filter.........8-8
Checking engine oil level ..........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..............10-6
Engine oil viscosity ............10-6
Outside mirrors ................3-35
Overhead sunglasses holder .........2-59
Overheat If your vehicle overheats .........6-13
Owner's manual order form ........10-33
Owner's manual/service manual
orderinformation ..............10-33
P
Parking Parking brake operation .........5-23
Parking/parking on hills .........5-134
Parkingbrake..................5-23
Personal lights .................2-72
Power Power door locks ..............3-6
Power outlet ............2-53,2-55
Power rear windows ...........2-65
Power steering fluid ............8-9
Power steering system .........5-134
Power windows ..............2-63
Rear power windows ...........2-65
Power inverter switch .............2-52
Power outlet ..............2-53,2-55
Power steering ................5-134
Power steering fluid ..............8-9
Precautions Maintenance precautions .........8-2On-pavement and off-road
driving precautions
.............5-8
Precautions on booster
seats..........1-28,1-35,1-41,1-47
Precautions on child
restraints .......1-28,1-35,1-41,1-47
Precautionsonseatbeltusage .....1-17
Precautions on supplemental
restraint system ..............1-50
Precautions when starting
and driving ..............5-4,5-10
Predictive Forward Collision
Warning(PFCW)...............5-117
Push starting ..................6-13
R
Radio Car phone or CB radio ..........4-54
Rainsensor...................2-36
Readiness for inspection maintenance
(I/M)test...................10-32
Rear Cross Traffic Alert (RCTA) .......5-68
Rear Door Alert .........2-31,2-32,2-51
Rear power windows .............2-65
RearView Monitor ...............4-3
Rear window and outside mirror
defroster switch ................2-39
Rear window wiper and washer
switches .....................2-38
Recommended Fluids .............10-2
Recorders Event Data ................10-32
Refrigerant recommendation ........10-7Registering a vehicle in
anothercountry...............10-10
Remote Engine Start
.........3-19,5-18
Reporting safety defects (US only) ....10-31
Roadside assistance program .........6-2
Roof rack ....................2-62
S
Safety Child safety rear door lock .........3-7
C h

ildseatbelts....1-28, 1-35, 1-41, 1-47
Reporting safety defects (US only) . .10-31
Seat adjustment Front power seat adjustment .......1-3
Rear seat adjustment ............1-5
Second row bench seats ..........1-8
Seatback pockets ............... 2-57
Seat belt Childsafety.................1-26
Infantsandsmallchildren.........1-27
Injured Person ...............1-20
Largerchildren...............1-27
Precautionsonseatbeltusage .....1-17
Pregnant women .............1-20
Seat belt extenders ............1-25
Seat belt maintenance ..........1-25
Seat belts ...............1 -17, 7-7
Three-point type with retractor .....1-21
Seat belt extenders ..............1-25
Seat belt warning light ........1-20,2-12
Seats 2nd row bench seat adjustment .....1-8
Adjustment ..................1-2
Armrests ...................1-8
11-5
