INFINITI QX60 2019 Owner's Manual

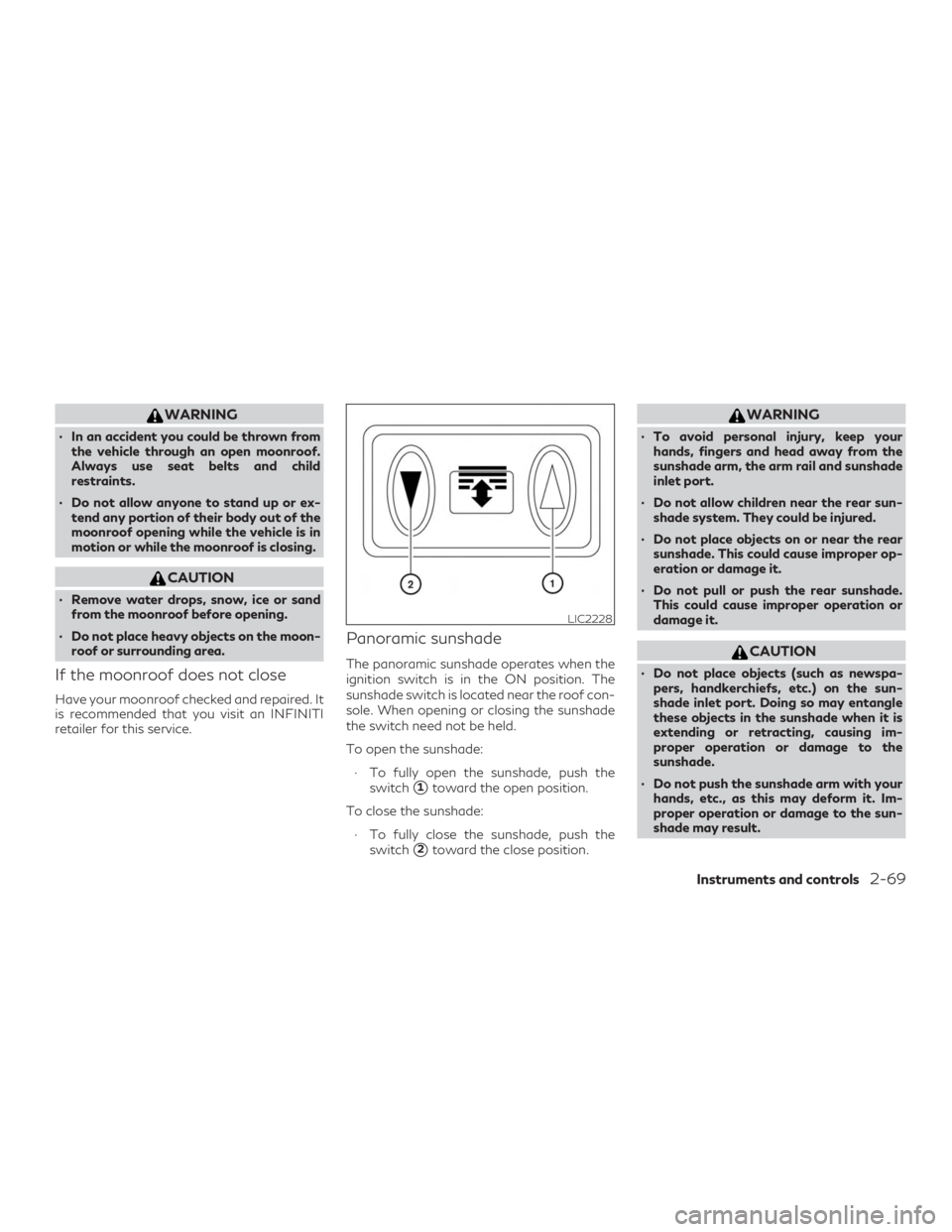

WARNING
∙ In an accident you could be thrown fromthe vehicle through an open moonroof.
Always use seat belts and child
restraints.
∙ Do not allow anyone to stand up or ex- tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.
CAUTION
∙ Remove water drops, snow, ice or sandfrom the moonroof before opening.
∙ Do not place heavy objects on the moon- roof or surrounding area.
If the moonroof does not close
Have your moonroof checked and repaired. It
is recommended that you visit an INFINITI
retailer for this service.
Panoramic sunshade
The panoramic sunshade operates when the
ignition switch is in the ON position. The
sunshade switch is located near the roof con-
sole. When opening or closing the sunshade
the switch need not be held.
To open the sunshade:
∙ To fully open the sunshade, push the switch
1toward the open position.
To close the sunshade: ∙ To fully close the sunshade, push the switch
2toward the close position.
WARNING
∙ To avoid personal injury, keep yourhands, fingers and head away from the
sunshade arm, the arm rail and sunshade
inlet port.
∙ Do not allow children near the rear sun- shade system. They could be injured.
∙ Do not place objects on or near the rear sunshade. This could cause improper op-
eration or damage it.
∙ Do not pull or push the rear sunshade. This could cause improper operation or
damage it.
CAUTION
∙ Do not place objects (such as newspa-pers, handkerchiefs, etc.) on the sun-
shade inlet port. Doing so may entangle
these objects in the sunshade when it is
extending or retracting, causing im-
proper operation or damage to the
sunshade.
∙ Do not push the sunshade arm with your hands, etc., as this may deform it. Im-
proper operation or damage to the sun-
shade may result.
LIC2228
Instruments and controls2-69

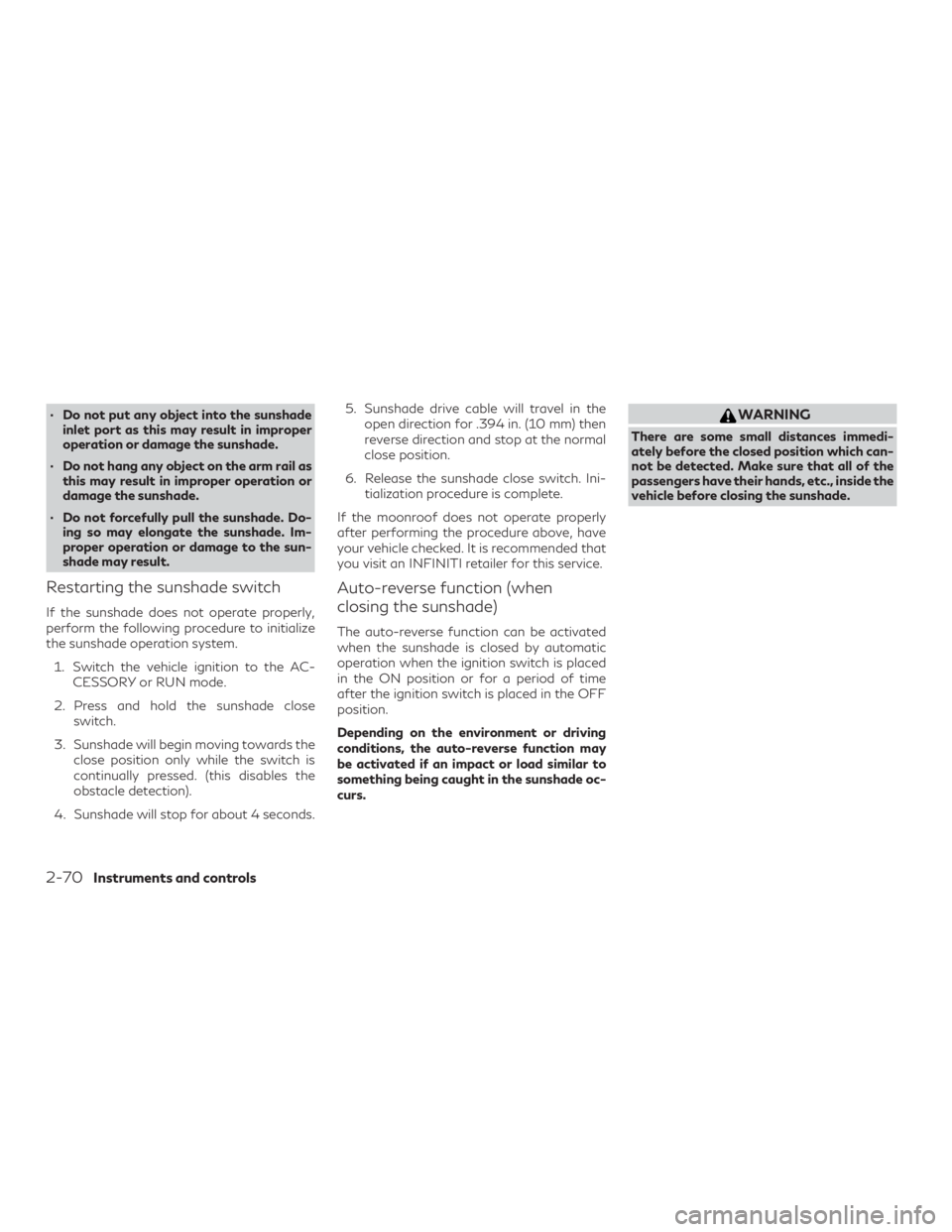

∙ Do not put any object into the sunshadeinlet port as this may result in improper
operation or damage the sunshade.
∙ Do not hang any object on the arm rail as this may result in improper operation or
damage the sunshade.
∙ Do not forcefully pull the sunshade. Do- ing so may elongate the sunshade. Im-
proper operation or damage to the sun-
shade may result.
Restarting the sunshade switch
If the sunshade does not operate properly,
perform the following procedure to initialize
the sunshade operation system.
1. Switch the vehicle ignition to the AC- CESSORY or RUN mode.
2. Press and hold the sunshade close switch.
3. Sunshade will begin moving towards the close position only while the switch is
continually pressed. (this disables the
obstacle detection).
4. Sunshade will stop for about 4 seconds. 5. Sunshade drive cable will travel in the
open direction for .394 in. (10 mm) then
reverse direction and stop at the normal
close position.
6. Release the sunshade close switch. Ini- tialization procedure is complete.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function (when
closing the sunshade)
The auto-reverse function can be activated
when the sunshade is closed by automatic
operation when the ignition switch is placed
in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the sunshade oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all of the
passengers have their hands, etc., inside the
vehicle before closing the sunshade.
2-70Instruments and controls

The interior lights will automatically turn on
and stay on for a period of time when:∙ The doors are unlocked by the Intelligent Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.
∙ The doors and/or liftgate is opened.
∙ The switch is individually pushed.
When the ON switch
1is pushed, the inte-
rior lights illuminate.
When the DOOR/OFF switch
2is pushed,
the interior lights do not illuminate unless
individually pushed. NOTE:
The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
CONSOLE LIGHT
The console light1will turn on whenever
the parking lights or headlights are illumi-
nated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
SIC4357LIC3970
INTERIOR LIGHTS
Instruments and controls2-71

MAP LIGHTS
To turn the map lights on, push the switches.
To turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
PERSONAL LIGHTS
To turn the rear personal lights on, push the
switch. To turn them off, push the switch
again.
CARGO LIGHT
The cargo light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.
1ON: The light is illuminated.
2DOOR: The light illuminates when the
liftgate is opened. The light turns off
when the liftgate is closed.
3OFF: The light does not illuminate re-
gardless of liftgate position or lock sta-
tus.
SIC4356Rear personal lights
LIC1083SIC2063A
2-72Instruments and controls

CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
∙ Will operate most radio frequency de- vices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
∙ Is powered by your vehicle’s battery. No separate batteries are required. If the ve-
hicle’s battery is discharged or is discon-
nected, HomeLink® will retain all pro-
gramming.
When the HomeLink® Universal Transceiver
is programmed, retain the original transmit-
ter for future programming procedures (Ex-
ample: new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink®
Universal Transceiver buttons should be
erased for security purposes. For additional
information, refer to “Programming
HomeLink®” in this section.
WARNING
∙ Do not use the HomeLink® Universal Transceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982.) A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse does
not meet current federal safety stan-
dards. Using a garage door opener with-
out these features increases the risk of
serious injury or death.
∙ During the programming procedure your garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.,
that you are programming.
∙ Your vehicle’s engine should be turned off while programming the HomeLink® Uni-
versal Transceiver. Do not breathe ex-
haust gases; they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.
HOMELINK® UNIVERSAL
TRANSCEIVER
Instruments and controls2-73

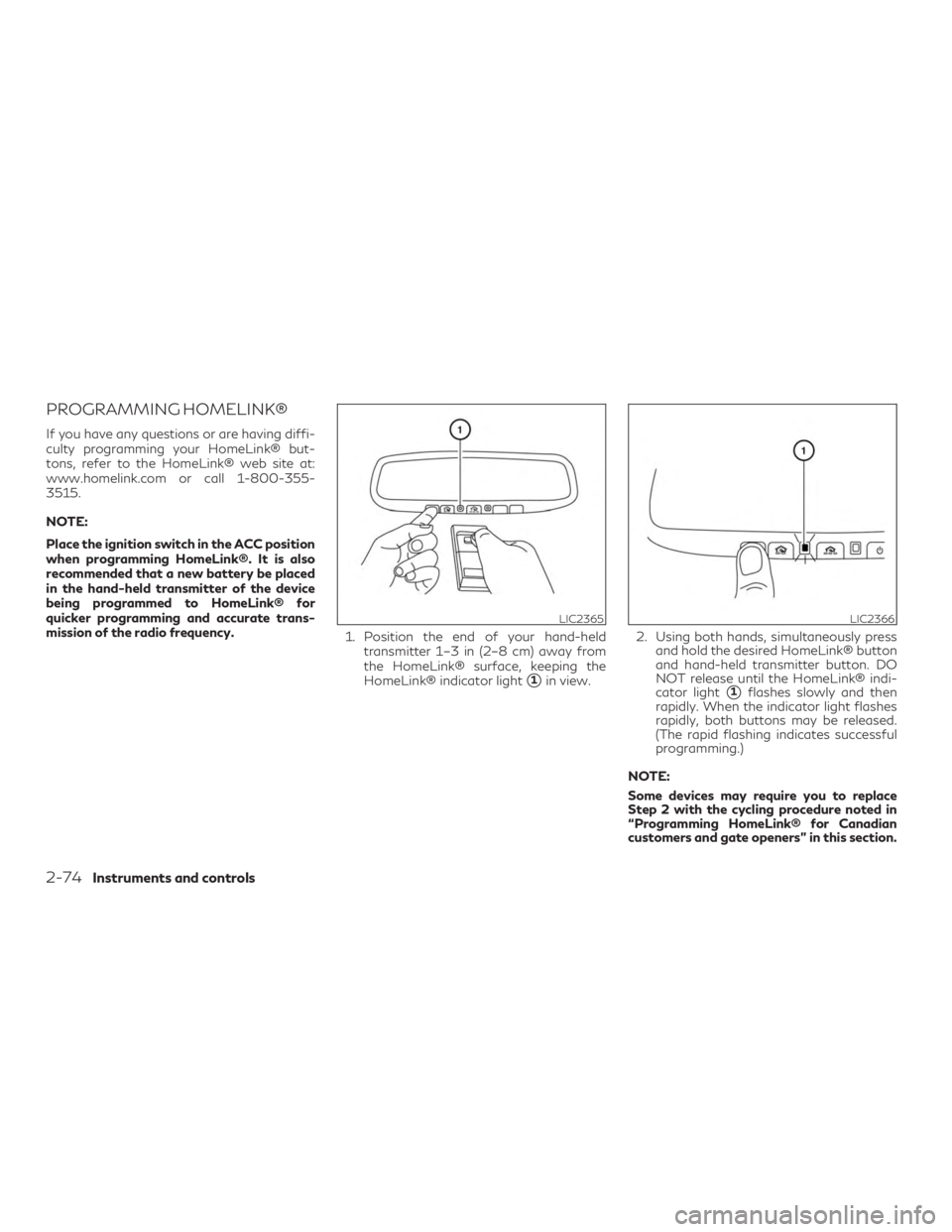

PROGRAMMING HOMELINK®
If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-
3515.
NOTE:
Place the ignition switch in the ACC position
when programming HomeLink®. It is also
recommended that a new battery be placed
in the hand-held transmitter of the device
being programmed to HomeLink® for
quicker programming and accurate trans-
mission of the radio frequency.1. Position the end of your hand-held
transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view. 2. Using both hands, simultaneously press
and hold the desired HomeLink® button
and hand-held transmitter button. DO
NOT release until the HomeLink® indi-
cator light1flashes slowly and then
rapidly. When the indicator light flashes
rapidly, both buttons may be released.
(The rapid flashing indicates successful
programming.)
NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted in
“Programming HomeLink® for Canadian
customers and gate openers” in this section.
LIC2365LIC2366
2-74Instruments and controls

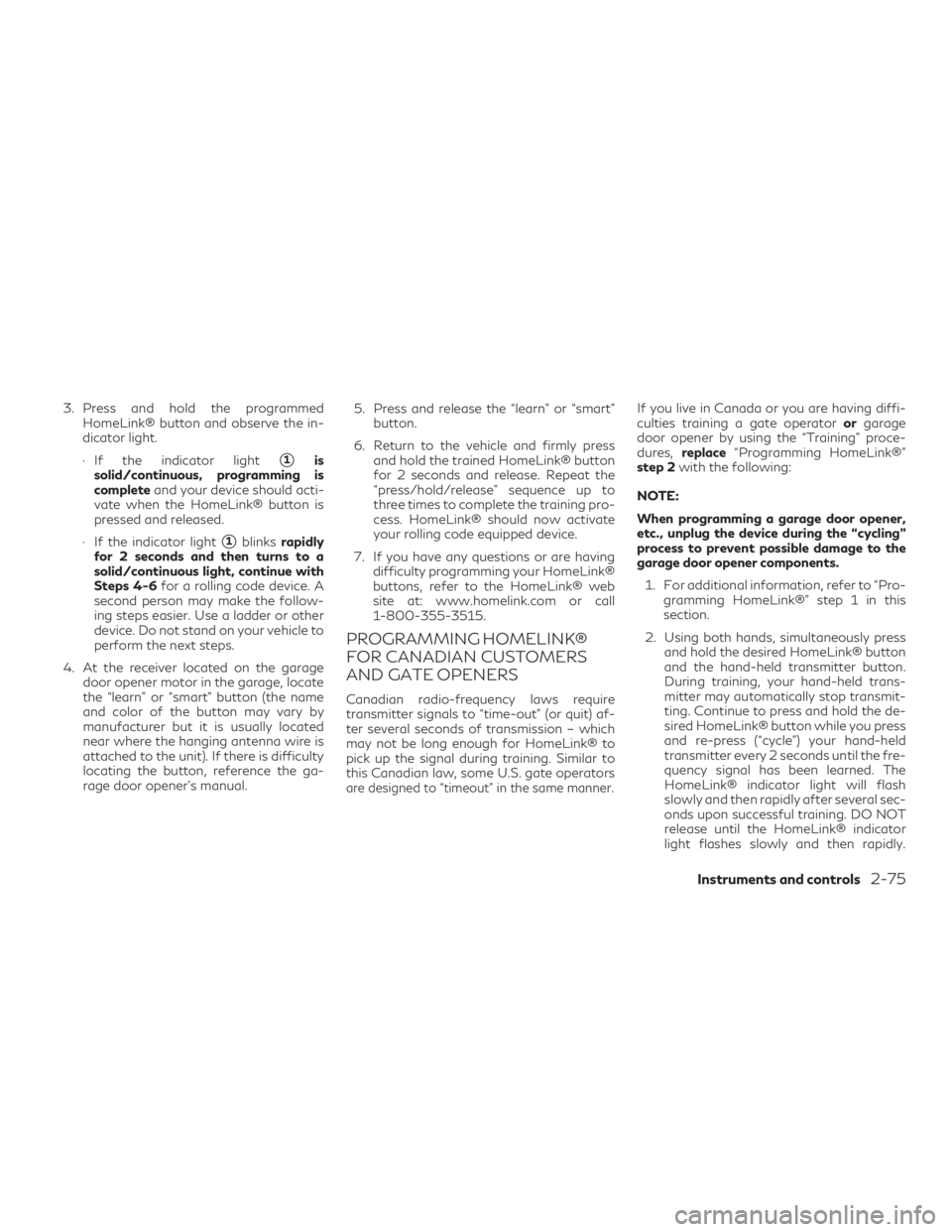

3. Press and hold the programmedHomeLink® button and observe the in-
dicator light.
∙ If the indicator light
1is
solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink® button is
pressed and released.
∙ If the indicator light
1blinks rapidly
for 2 seconds and then turns to a
solid/continuous light, continue with
Steps 4-6 for a rolling code device. A
second person may make the follow-
ing steps easier. Use a ladder or other
device. Do not stand on your vehicle to
perform the next steps.
4. At the receiver located on the garage door opener motor in the garage, locate
the “learn” or “smart” button (the name
and color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire is
attached to the unit). If there is difficulty
locating the button, reference the ga-
rage door opener’s manual. 5. Press and release the “learn” or “smart”
button.
6. Return to the vehicle and firmly press and hold the trained HomeLink® button
for 2 seconds and release. Repeat the
“press/hold/release” sequence up to
three times to complete the training pro-
cess. HomeLink® should now activate
your rolling code equipped device.
7. If you have any questions or are having difficulty programming your HomeLink®
buttons, refer to the HomeLink® web
site at: www.homelink.com or call
1-800-355-3515.
PROGRAMMING HOMELINK®
FOR CANADIAN CUSTOMERS
AND GATE OPENERS
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit) af-
ter several seconds of transmission – which
may not be long enough for HomeLink® to
pick up the signal during training. Similar to
this Canadian law, some U.S. gate operators
are designed to “timeout” in the same manner.
If you live in Canada or you are having diffi-
culties training a gate operator orgarage
door opener by using the “Training” proce-
dures, replace “Programming HomeLink®”
step 2 with the following:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components. 1. For additional information, refer to “Pro- gramming HomeLink®” step 1 in this
section.
2. Using both hands, simultaneously press and hold the desired HomeLink® button
and the hand-held transmitter button.
During training, your hand-held trans-
mitter may automatically stop transmit-
ting. Continue to press and hold the de-
sired HomeLink® button while you press
and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the fre-
quency signal has been learned. The
HomeLink® indicator light will flash
slowly and then rapidly after several sec-
onds upon successful training. DO NOT
release until the HomeLink® indicator
light flashes slowly and then rapidly.
Instruments and controls2-75

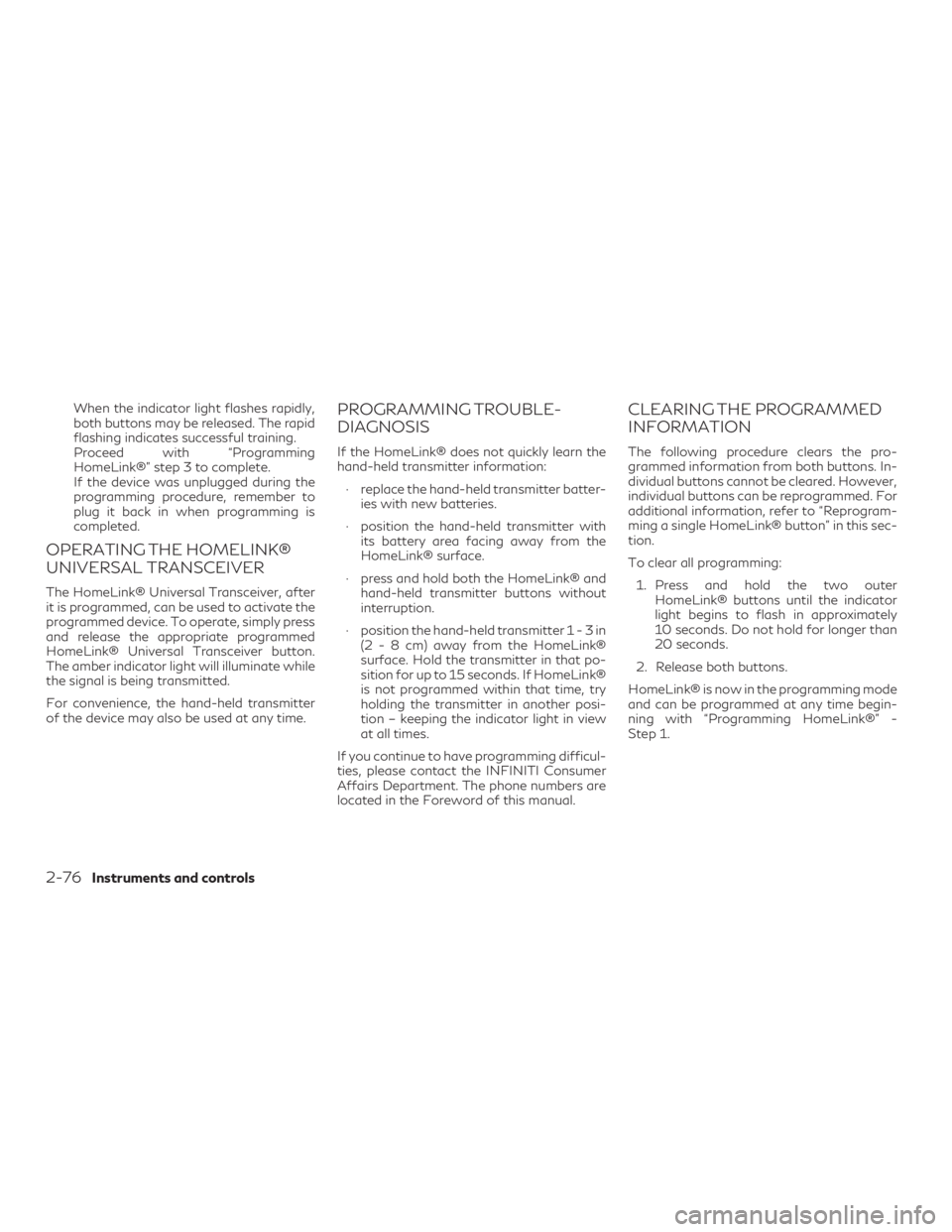

When the indicator light flashes rapidly,
both buttons may be released. The rapid
flashing indicates successful training.
Proceed with “Programming
HomeLink®” step 3 to complete.
If the device was unplugged during the
programming procedure, remember to
plug it back in when programming is
completed.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after
it is programmed, can be used to activate the
programmed device. To operate, simply press
and release the appropriate programmed
HomeLink® Universal Transceiver button.
The amber indicator light will illuminate while
the signal is being transmitted.
For convenience, the hand-held transmitter
of the device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:∙ replace the hand-held transmitter batter- ies with new batteries.
∙ position the hand-held transmitter with its battery area facing away from the
HomeLink® surface.
∙ press and hold both the HomeLink® and hand-held transmitter buttons without
interruption.
∙ position the hand-held transmitter1-3in (2 - 8 cm) away from the HomeLink®
surface. Hold the transmitter in that po-
sition for up to 15 seconds. If HomeLink®
is not programmed within that time, try
holding the transmitter in another posi-
tion – keeping the indicator light in view
at all times.
If you continue to have programming difficul-
ties, please contact the INFINITI Consumer
Affairs Department. The phone numbers are
located in the Foreword of this manual.
CLEARING THE PROGRAMMED
INFORMATION
The following procedure clears the pro-
grammed information from both buttons. In-
dividual buttons cannot be cleared. However,
individual buttons can be reprogrammed. For
additional information, refer to “Reprogram-
ming a single HomeLink® button” in this sec-
tion.
To clear all programming: 1. Press and hold the two outer HomeLink® buttons until the indicator
light begins to flash in approximately
10 seconds. Do not hold for longer than
20 seconds.
2. Release both buttons.
HomeLink® is now in the programming mode
and can be programmed at any time begin-
ning with “Programming HomeLink®” -
Step 1.
2-76Instruments and controls

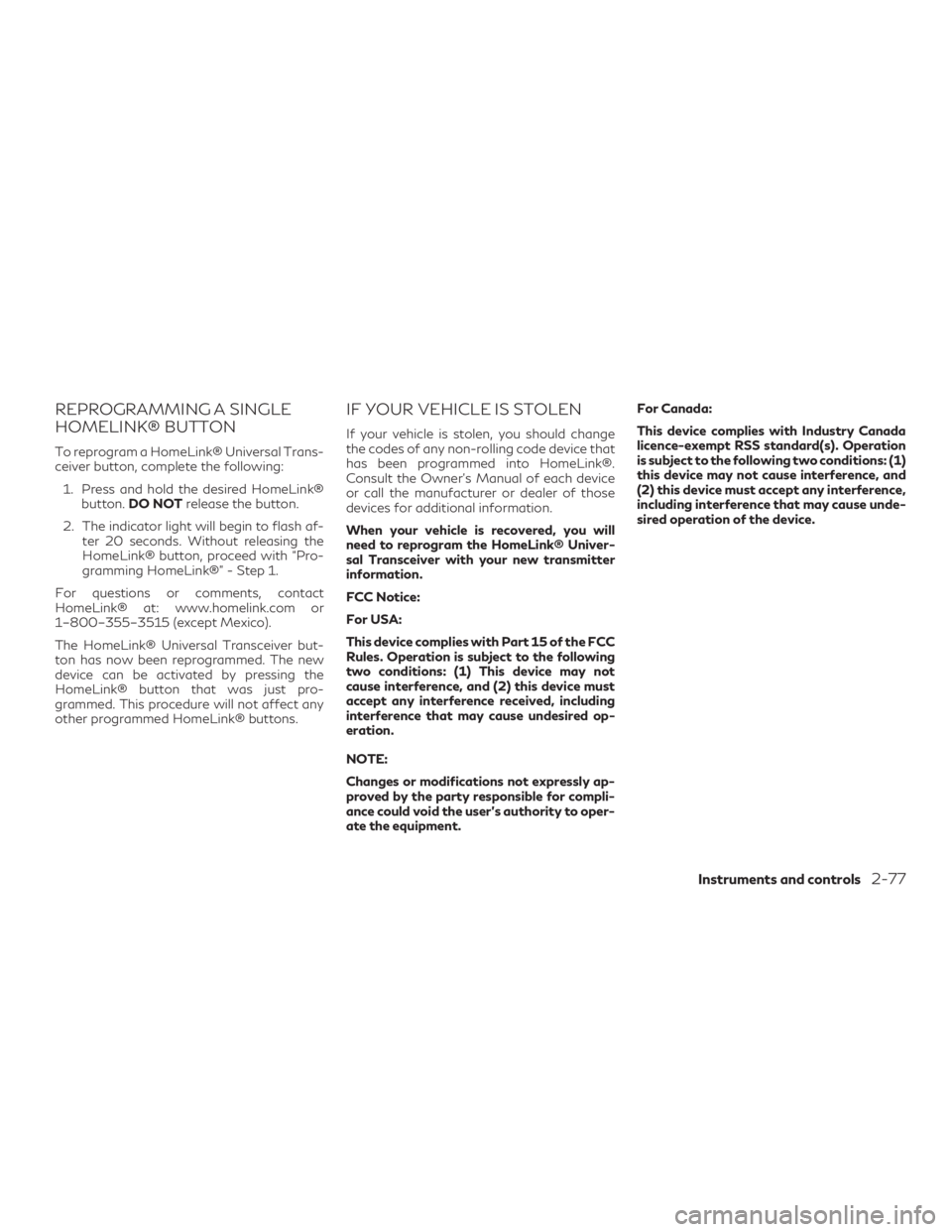

REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:1. Press and hold the desired HomeLink® button. DO NOT release the button.
2. The indicator light will begin to flash af- ter 20 seconds. Without releasing the
HomeLink® button, proceed with “Pro-
gramming HomeLink®” - Step 1.
For questions or comments, contact
HomeLink® at: www.homelink.com or
1–800–355–3515 (except Mexico).
The HomeLink® Universal Transceiver but-
ton has now been reprogrammed. The new
device can be activated by pressing the
HomeLink® button that was just pro-
grammed. This procedure will not affect any
other programmed HomeLink® buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change
the codes of any non-rolling code device that
has been programmed into HomeLink®.
Consult the Owner’s Manual of each device
or call the manufacturer or dealer of those
devices for additional information.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause interference, and (2) this device must
accept any interference received, including
interference that may cause undesired op-
eration.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to oper-
ate the equipment. For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Instruments and controls2-77

MEMO
2-78Instruments and controls
