∙ The first 10 minute timer has expired.
∙ Opening the engine hood.
∙ Shifting the vehicle out of P (Park).
∙ The alarm sounds due to illegal entry intothe vehicle.
∙ Pushing the ignition switch without the Intelligent Key in the vehicle.
∙ Not pressing the brake pedal while press- ing the ignition switch with the Intelligent
Key in the vehicle.
CONDITIONS THE REMOTE
ENGINE START WILL NOT WORK
The Remote Engine Start will not operate if
any of the following conditions are present:
∙ The ignition switch is placed in the ON position.
∙ The hood is not securely closed.
∙ The hazard indicator lights are on.
∙ The engine is still running. The engine must be completely stopped. Wait at
least 6 seconds if the engine goes from
running to off. This is not applicable when
extending engine run time. ∙ The
button is not pressed and held
for at least 2 seconds.
∙ The
button is not pressed and held
within 5 seconds of pressing the lock but-
ton.
∙ The brake is pressed.
∙ The doors are not closed and locked.
∙ The liftgate is open.
∙ The I–Key Indicator Light remains solid is in the vehicle information display.
∙ The alarm sounds due to illegal entry into the vehicle.
∙ Two Remote Engine Starts, or a single Remote Engine Start with an extension,
have already been used.
∙ The vehicle is not in P (Park).
∙ There is a detected registered key already inside of the vehicle.
∙ The Remote Engine Start function has been switched to the OFF position in
Vehicle Settings of the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display” in
the “Instruments and controls” section of
this manual. The Remote Engine Start may display a
warning or indicator in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Pre-driving checks and adjustments3-21

1. Pull the hood lock release handle1lo-
cated below the driver side instrument
panel. The hood will spring up slightly.
2. Push the lever
2at the front of the
hood to the side as illustrated with your
fingertips and raise the hood.
When closing the hood, lower it slowly and
make sure it locks into place.
WARNING
∙ Make sure the hood is completely closed and latched before driving. Failure to do
so could cause the hood to fly open and
result in an accident.
∙ If you see steam or smoke coming from the engine compartment, to avoid injury
do not open the hood.
WARNING
∙ Always be sure the liftgate has beenclosed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
∙ Always be sure that hands and feet are clear of the door frame to avoid injury
while closing the liftgate.
LPD2665
HOOD LIFTGATE
3-22Pre-driving checks and adjustments

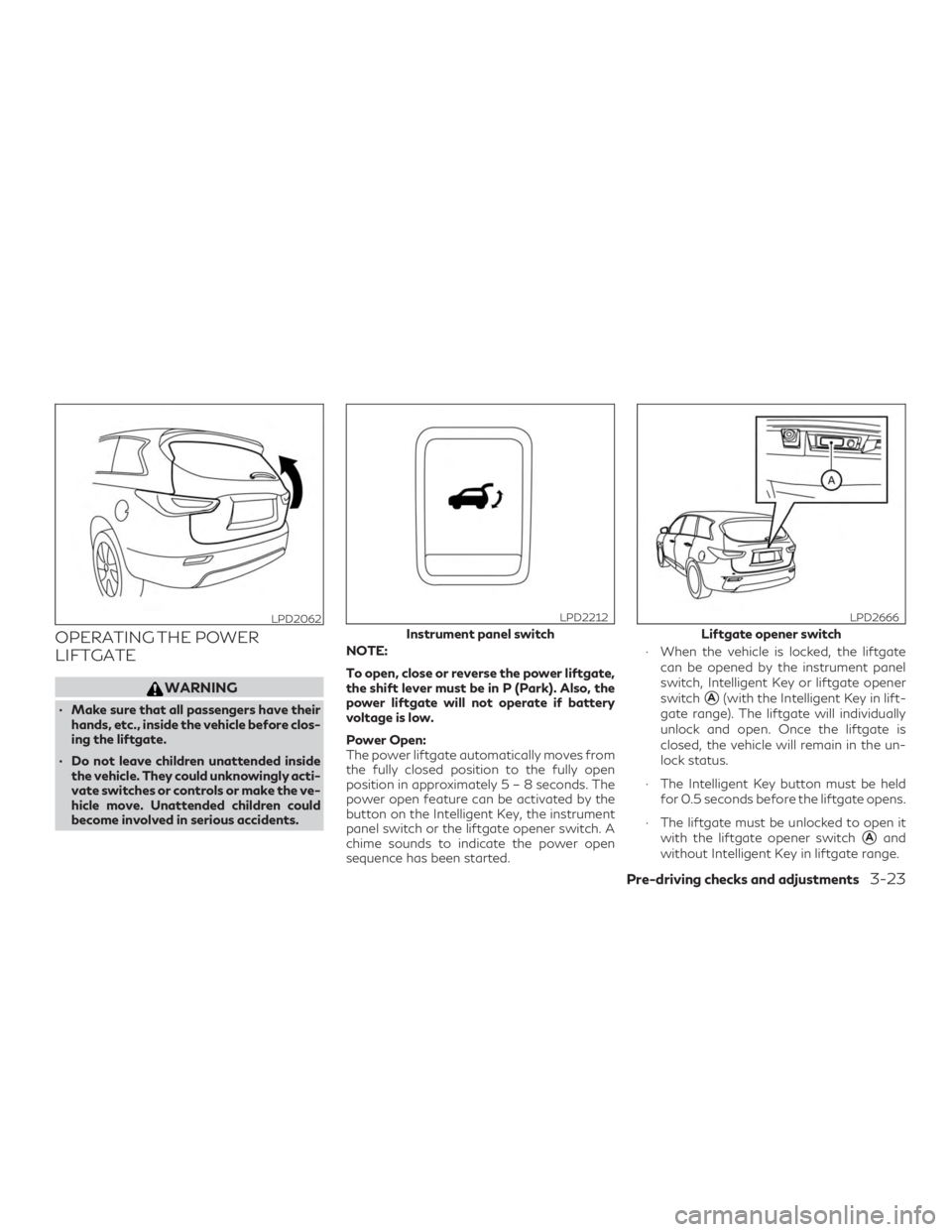

OPERATING THE POWER
LIFTGATE
WARNING
∙ Make sure that all passengers have theirhands, etc., inside the vehicle before clos-
ing the liftgate.
∙ Do not leave children unattended inside the vehicle. They could unknowingly acti-
vate switches or controls or make the ve-
hicle move. Unattended children could
become involved in serious accidents. NOTE:
To open, close or reverse the power liftgate,
the shift lever must be in P (Park). Also, the
power liftgate will not operate if battery
voltage is low.
Power Open:
The power liftgate automatically moves from
the fully closed position to the fully open
position in approximately5–8seconds. The
power open feature can be activated by the
button on the Intelligent Key, the instrument
panel switch or the liftgate opener switch. A
chime sounds to indicate the power open
sequence has been started. ∙ When the vehicle is locked, the liftgate
can be opened by the instrument panel
switch, Intelligent Key or liftgate opener
switchA(with the Intelligent Key in lift-
gate range). The liftgate will individually
unlock and open. Once the liftgate is
closed, the vehicle will remain in the un-
lock status.
∙ The Intelligent Key button must be held for 0.5 seconds before the liftgate opens.
∙ The liftgate must be unlocked to open it with the liftgate opener switch
Aand
without Intelligent Key in liftgate range.
LPD2062
Instrument panel switch
LPD2212
Liftgate opener switch
LPD2666
Pre-driving checks and adjustments3-23

A warning chime will sound if the shift lever is
moved out of P (Park) and the vehicle is be-
ginning to move, during a power open opera-
tion.Power Close:
The power liftgate automatically moves from
the fully open position to the secondary po-
sition. When the liftgate reaches the second-
ary position, the cinching motor engages and
pulls the liftgate to its primary latch position.
Power close takes approximately7–10sec-
onds. The power close feature can be acti-
vated by the button on the Intelligent Key, the
instrument panel switch or the liftgate close
switch
Bon the liftgate. A chime sounds to
indicate the power close sequence has been
started. ∙ If the liftgate opener switch
Ais acti-
vated while the cinching motor is en-
gaged, the cinching motor will disengage
and release the latch.
∙ The Intelligent Key button must be held for 0.5 seconds before the liftgate closes.
Stop - Reverse:
During the open/close movement, the lift-
gate can be stopped if the Intelligent Key,
instrument panel or liftgate switch (
AorB)
is pressed. The liftgate can be reversed if the
Intelligent Key, instrument panel or liftgate
switch (
AorB) is pressed again.
Auto Reverse:
If an obstacle is detected during power open
or power close, a warning chime will sound
and the liftgate will reverse direction and re-
turn to the full open or full close position. If a
second obstacle is detected, the liftgate mo-
tion will stop and the liftgate will enter
manual mode.
A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch
strip during power close, the liftgate will re-
verse direction and return to the full open
position.
Liftgate close switch
LPD2615
3-24Pre-driving checks and adjustments

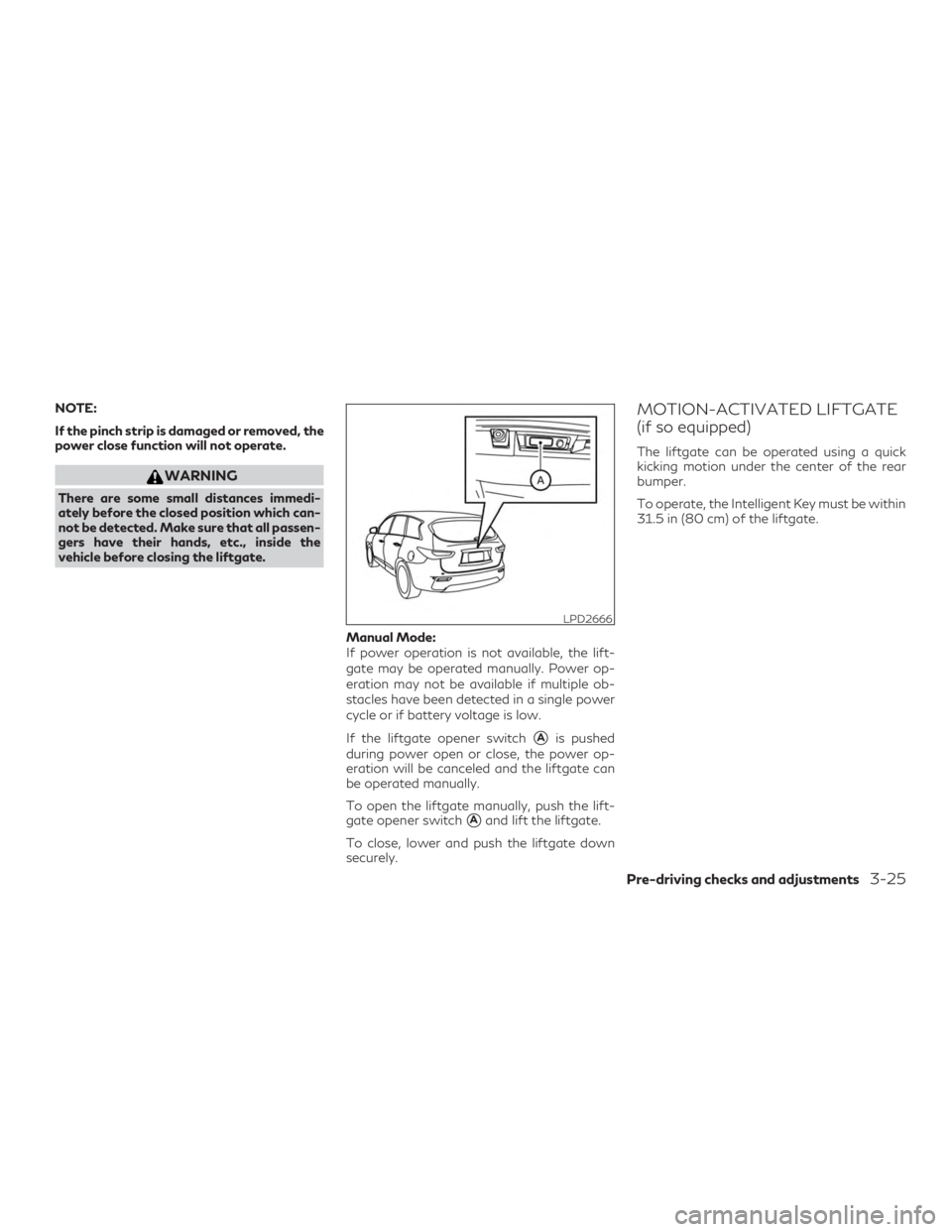

NOTE:
If the pinch strip is damaged or removed, the
power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the liftgate.Manual Mode:
If power operation is not available, the lift-
gate may be operated manually. Power op-
eration may not be available if multiple ob-
stacles have been detected in a single power
cycle or if battery voltage is low.
If the liftgate opener switch
Ais pushed
during power open or close, the power op-
eration will be canceled and the liftgate can
be operated manually.
To open the liftgate manually, push the lift-
gate opener switch
Aand lift the liftgate.
To close, lower and push the liftgate down
securely.
MOTION-ACTIVATED LIFTGATE
(if so equipped)
The liftgate can be operated using a quick
kicking motion under the center of the rear
bumper.
To operate, the Intelligent Key must be within
31.5 in (80 cm) of the liftgate.
LPD2666
Pre-driving checks and adjustments3-25

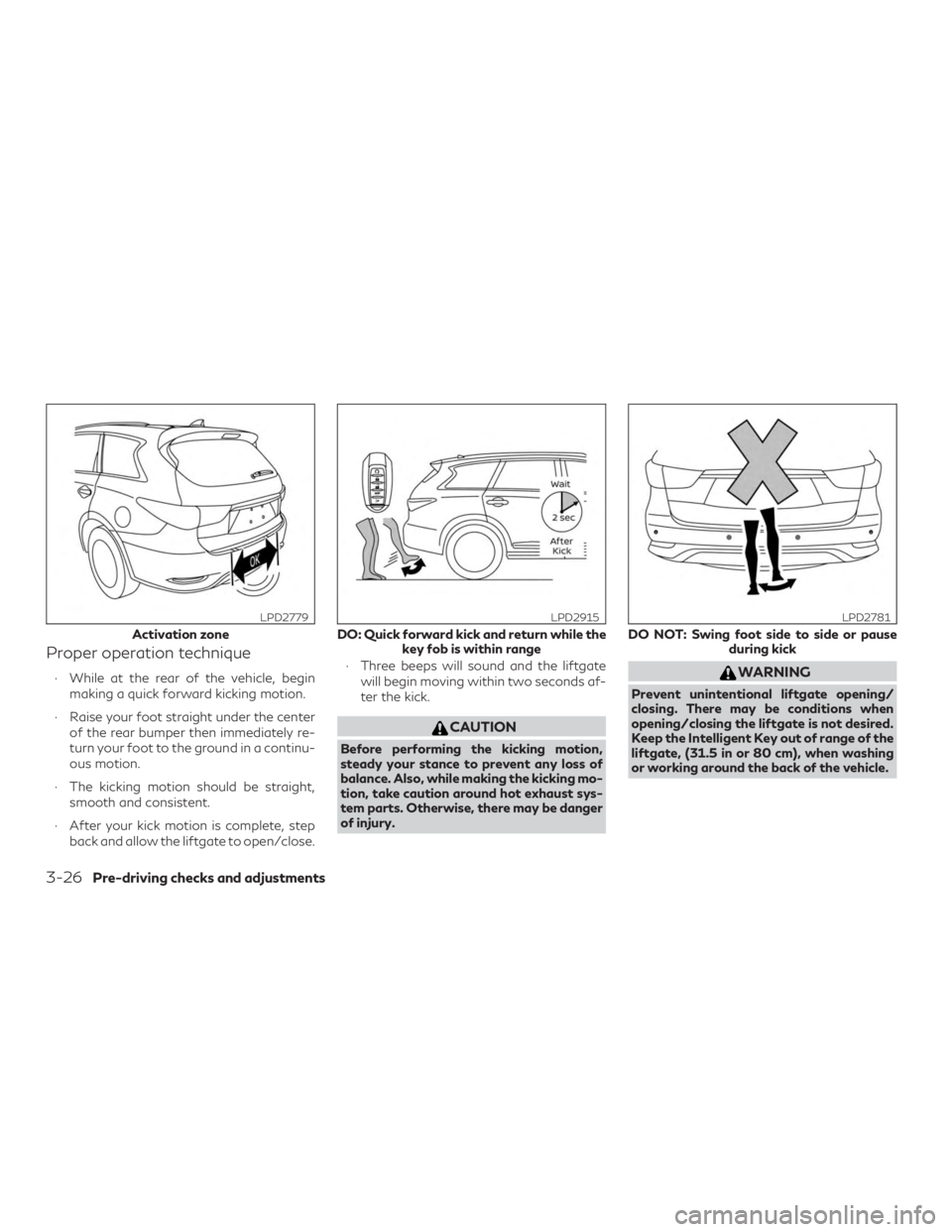

Proper operation technique
∙ While at the rear of the vehicle, beginmaking a quick forward kicking motion.
∙ Raise your foot straight under the center of the rear bumper then immediately re-
turn your foot to the ground in a continu-
ous motion.
∙ The kicking motion should be straight, smooth and consistent.
∙ After your kick motion is complete, step back and allow the liftgate to open/close. ∙ Three beeps will sound and the liftgate
will begin moving within two seconds af-
ter the kick.
CAUTION
Before performing the kicking motion,
steady your stance to prevent any loss of
balance. Also, while making the kicking mo-
tion, take caution around hot exhaust sys-
tem parts. Otherwise, there may be danger
of injury.
WARNING
Prevent unintentional liftgate opening/
closing. There may be conditions when
opening/closing the liftgate is not desired.
Keep the Intelligent Key out of range of the
liftgate, (31.5 in or 80 cm), when washing
or working around the back of the vehicle.
Activation zone
LPD2779
DO: Quick forward kick and return while the key fob is within range
LPD2915
DO NOT: Swing foot side to side or pause during kick
LPD2781
3-26Pre-driving checks and adjustments

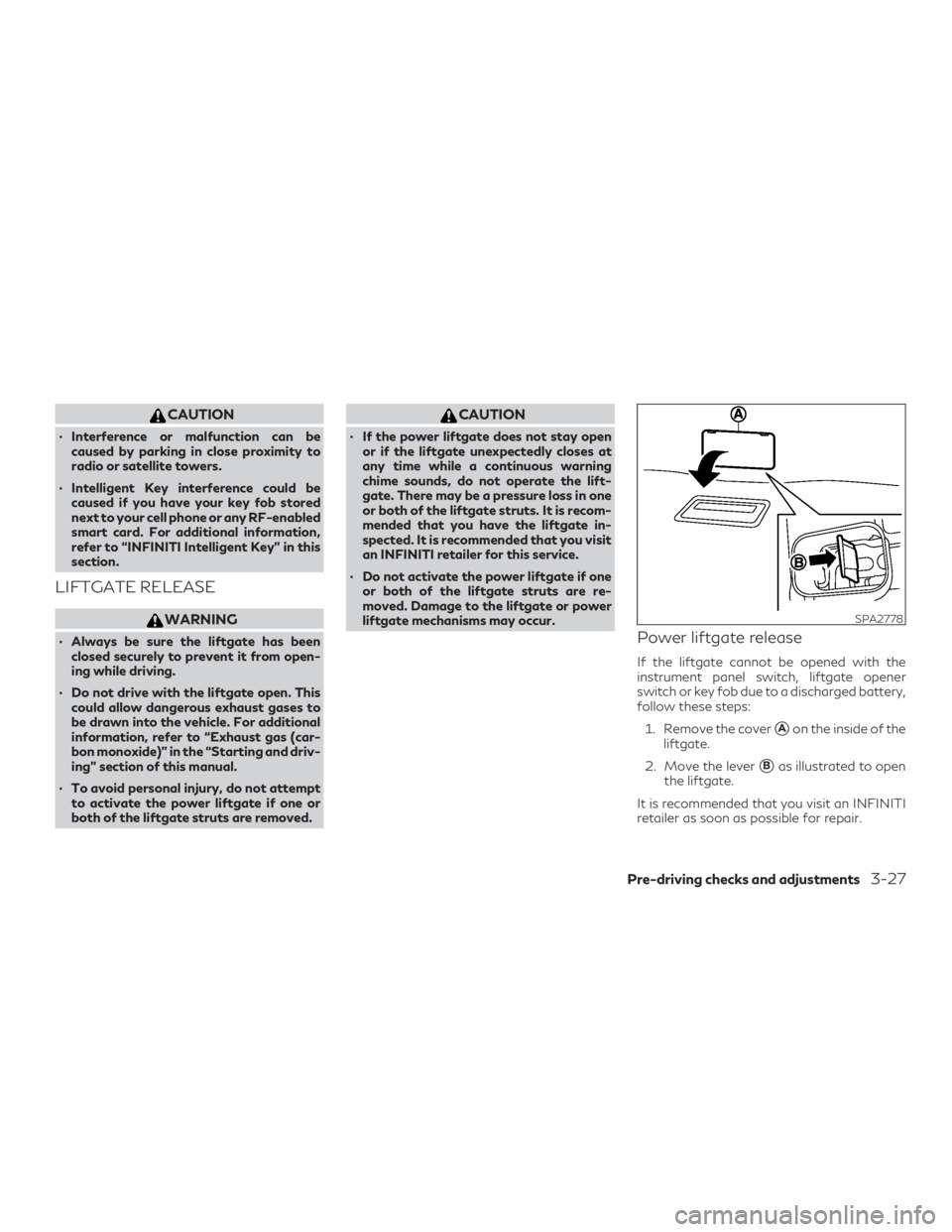

CAUTION
∙ Interference or malfunction can becaused by parking in close proximity to
radio or satellite towers.
∙ Intelligent Key interference could be caused if you have your key fob stored
next to your cell phone or any RF-enabled
smart card. For additional information,
refer to “INFINITI Intelligent Key” in this
section.
LIFTGATE RELEASE
WARNING
∙ Always be sure the liftgate has beenclosed securely to prevent it from open-
ing while driving.
∙ Do not drive with the liftgate open. This could allow dangerous exhaust gases to
be drawn into the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and driv-
ing” section of this manual.
∙ To avoid personal injury, do not attempt to activate the power liftgate if one or
both of the liftgate struts are removed.
CAUTION
∙ If the power liftgate does not stay openor if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in one
or both of the liftgate struts. It is recom-
mended that you have the liftgate in-
spected. It is recommended that you visit
an INFINITI retailer for this service.
∙ Do not activate the power liftgate if one or both of the liftgate struts are re-
moved. Damage to the liftgate or power
liftgate mechanisms may occur.
Power liftgate release
If the liftgate cannot be opened with the
instrument panel switch, liftgate opener
switch or key fob due to a discharged battery,
follow these steps:
1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open
the liftgate.
It is recommended that you visit an INFINITI
retailer as soon as possible for repair.
SPA2778
Pre-driving checks and adjustments3-27

LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific
height (garage mode) by performing the fol-
lowing:1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down and move to the desired height position (the liftgate will
have some resistance when being manu-
ally adjusted). 3. Press and hold the power liftgate close
switch
Blocated on the liftgate for
more than 3 seconds or until two beeps
are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat steps 1-3 for setting the position of
the liftgate.
OPENING THE FUEL-FILLER
DOOR
The fuel-filler door automatically unlocks
when the driver’s door is unlocked.
1. Unlock the fuel-filler door using one of the following operations:
∙ Unlock the driver’s door with the key fob.
∙ Push the power door lock switch to the unlock position.
∙ Push the door handle request switch (with the Intelligent Key in range).
LPD2615WPD0454
FUEL-FILLER DOOR
3-28Pre-driving checks and adjustments

2. To open the fuel-filler door, push theright side of the fuel-filler door to re-
lease.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain conditions.
You could be burned or seriously injured if
it is misused or mishandled. Always stop
the engine and do not smoke or allow
open flames or sparks near the vehicle
when refueling.
∙ Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off au-
tomatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire. ∙ Use only an original equipment type fuel-
filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emission
control system. An incorrect cap can re-
sult in a serious malfunction and possible
injury. It could also cause the
Mal-
function Indicator Light (MIL) to come
on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
∙ Do not fill a portable fuel container in the vehicle or trailer. Static electricity can
cause an explosion of flammable liquid,
vapor or gas in any vehicle or trailer. To
reduce the risk of serious injury or death
when filling portable fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are filling it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
∙ Do not use a fuel containing more than15% ethanol in your vehicle. For addi-
tional information, refer to “Fuel recom-
mendation” in the “Technical and con-
sumer information” section of this
manual.
∙ The Loose Fuel Cap warning message will be displayed if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be dis-
played. Failure to tighten the fuel-filler
cap properly after the Loose Fuel Cap
warning message is displayed may cause
the
Malfunction Indicator Light
(MIL) to illuminate.
Pre-driving checks and adjustments3-29

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning message
The Loose Fuel Cap warning message will be
displayed in the vehicle information display
when the fuel-filler cap is not tightened cor-
rectly after the vehicle has been refueled. It
may take a few driving trips for the message
to be displayed. To turn off the warning, per-
form the following:
1. Remove and install the fuel-filler cap as soon as possible. For additional informa-
tion, refer to “Fuel-filler cap” in this sec-
tion. 2. Tighten the fuel-filler cap until it clicks.
3. Press the
buttonAon the steer-
ing wheel for about 1 second to turn off
the Loose Fuel Cap warning
Bafter
tightening the fuel-filler cap.
LPD2065LPD2066
3-30Pre-driving checks and adjustments
