INFINITI QX60 2019 Owner's Manual

3 Pre-driving checks and adjustments
Keys.............................................3-2
INFINITI Intelligent Key ........................3-2
INFINITI
Vehicle Immobilizer System keys......3-4
Doors ............................................3-5
Locking with key ..............................3-5
Locking with inside lock knob ..................3-6
Locking with power door lock switch ...........3-6
Automatic door locks ..........................3-7
Child safety rear door lock .....................3-7
INFINITI Intelligent Key System ...................3-7
Operating range ..............................3-9
Door locks/unlocks precaution ...............3-10
INFINITI Intelligent Key operation ............3-10
How to use the remote keyless entry
function .................................... 3-13
Warning signals .............................. 3-17
Troubleshooting guide ........................ 3-17
Remote Engine Start (if so equipped) ............3-19
Remote Engine Start operating range ........3-19
Remote starting the vehicle ..................3-20
Extending engine run time ...................3-20
Canceling a Remote Engine Start ............3-20
Conditions the Remote Engine Start will
not work .................................... 3-21Hood
.......................................... 3-22
Liftgate ........................................ 3-22
Operating the power liftgate ................3-23
Motion-Activated Liftgate
(if so equipped) .............................. 3-25
Liftgate release ............................. 3-27
Liftgate position setting .....................3-28
Fuel-filler door ................................. 3-28
Opening the fuel-filler door ..................3-28
Fuel-filler cap ............................... 3-29
Steering wheel ................................. 3-31
Tilt and telescopic operation .................3-31
Sun visors ...................................... 3-32
Vanity mirrors ............................... 3-33
Card holder ................................. 3-34
Mirrors ........................................ 3-34
Automatic anti-glare rearview mirror .........3-34
Outside mirrors ............................. 3-35
Automatic drive

positioner (if so equipped) ......3-37
Memory storage function ....................3-37
Entry/exit function .......................... 3-38
Setting memory function ....................3-39
System operation ........................... 3-39

1. Intelligent Keys (two sets)
2. Mechanical key
3. Key number plate (one plate)
INFINITI INTELLIGENT KEY
Your vehicle can only be driven with the Intel-
ligent Keys which are registered to your vehi-
cle’s Intelligent Key System components and
INFINITI Vehicle Immobilizer System compo-
nents.
Never leave the keys in the vehicle.As many as four Intelligent Keys can be reg-
istered and used with one vehicle. The new
keys must be registered prior to use with the
Intelligent Key System and INFINITI Vehicle
Immobilizer System of your vehicle. It is rec-
ommended that you visit an INFINITI retailer
for this service. Since the registration process
requires erasing all memory in the Intelligent
Key components when registering new keys,
be sure to take all Intelligent Keys that you
have to an INFINITI retailer.
A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle.
If you lose your keys, it is recommended that
you visit an INFINITI retailer for duplicates by
using the key number. INFINITI does not re-
cord key numbers so it is very important to
keep track of your key number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it can be
duplicated without knowing the key number.
Type A (if so equipped)
LPD2848
Type B (if so equipped)
LPD2889
Type C (if so equipped)
WPD0427
KEYS
3-2Pre-driving checks and adjustments

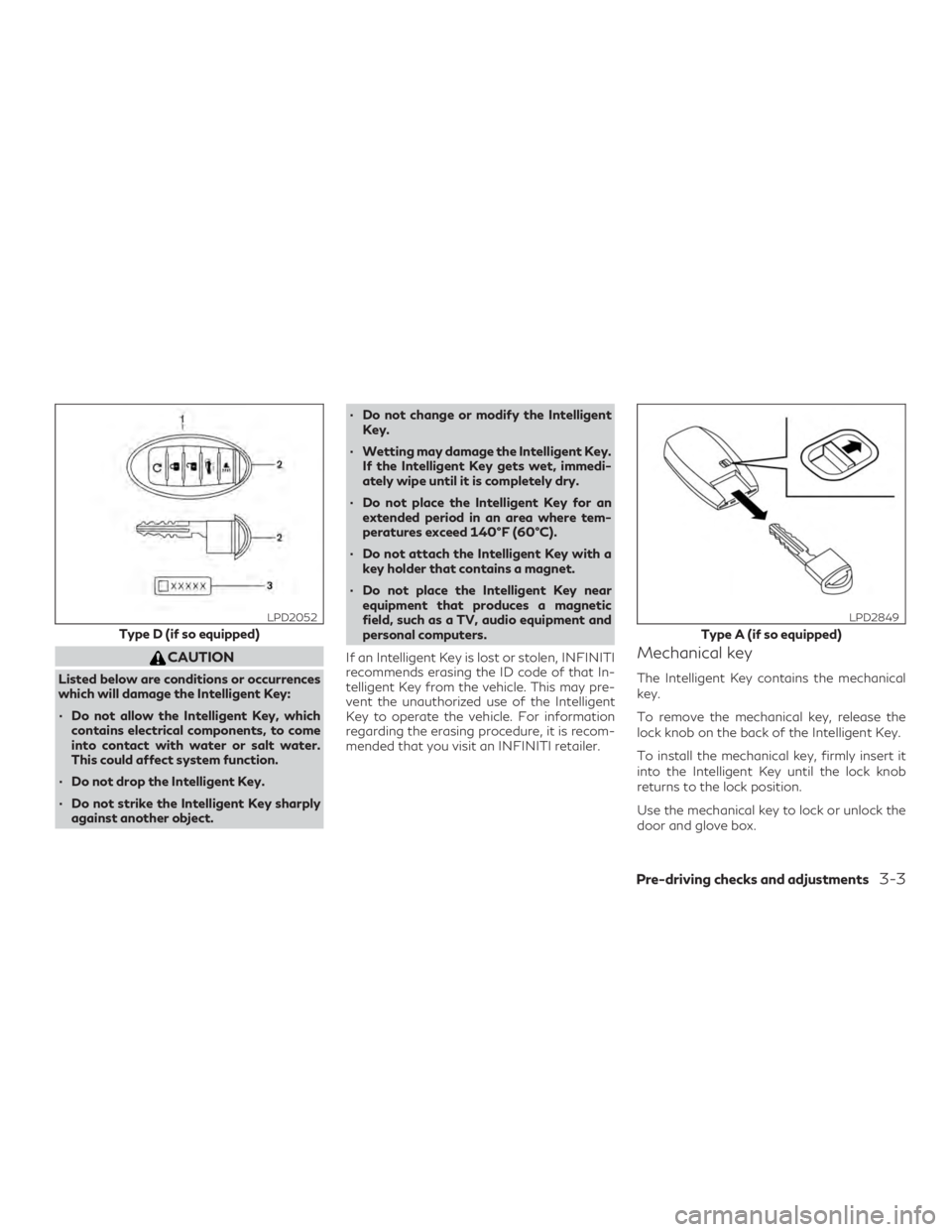

CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, whichcontains electrical components, to come
into contact with water or salt water.
This could affect system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object. ∙ Do not change or modify the Intelligent
Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
∙ Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
Mechanical key
The Intelligent Key contains the mechanical
key.
To remove the mechanical key, release the
lock knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it
into the Intelligent Key until the lock knob
returns to the lock position.
Use the mechanical key to lock or unlock the
door and glove box.
Type D (if so equipped)
LPD2052
Type A (if so equipped)
LPD2849
Pre-driving checks and adjustments3-3

CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
For additional information, refer to “Doors” in
this section and “Storage” in the “Instruments
and controls” section of this manual.
Valet hand-off
When you have to leave a key with a valet,
give them the Intelligent Key itself and keep
the mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedure
below.
1. Remove the mechanical key from the In- telligent Key.
2. Lock the glove box with the mechanical key.
3. Hand the Intelligent Key to the valet and keep the mechanical key with you.
For additional information, refer to “Storage”
in the “Instruments and controls” section of
this manual.
INFINITI VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the
Intelligent Keys which are registered to the
INFINITI Vehicle Immobilizer System compo-
nents in your vehicle.
The mechanical key can be used for all the
locks. Never leave the keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra INFINITI Ve-
hicle Immobilizer System keys. Your existing
key can be duplicated without knowing the
key number. As many as four INFINITI Ve-
hicle Immobilizer System keys can be used
with one vehicle. You should bring all
INFINITI Vehicle Immobilizer System keys
that you have to the INFINITI retailer for
registration. This is because the registration
process will erase the memory of all key
codes previously registered into the INFINITI
Vehicle Immobilizer System. After the regis-
tration process, these components will only
recognize keys coded into the INFINITI Ve-
hicle Immobilizer System during registration.
Any key that is not given to the retailer at the
time of registration will no longer be able to
start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt wa-
ter. This could affect system function.
Type B (if so equipped)
SPA1951
3-4Pre-driving checks and adjustments

When the doors are locked using one of the
following methods, the doors cannot be
opened using the inside or outside door
handles. The doors must be unlocked to open
the doors.
WARNING
∙ Always have the doors locked while driv-ing. Along with the use of seat belts, this
provides greater safety in the event of an
accident by helping to prevent persons
from being thrown from the vehicle. This
also helps keep children and others from
unintentionally opening the doors, and
will help keep out intruders.
∙ Before opening any door, always look for and avoid oncoming traffic.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and or its systems, including entrap-
ment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.

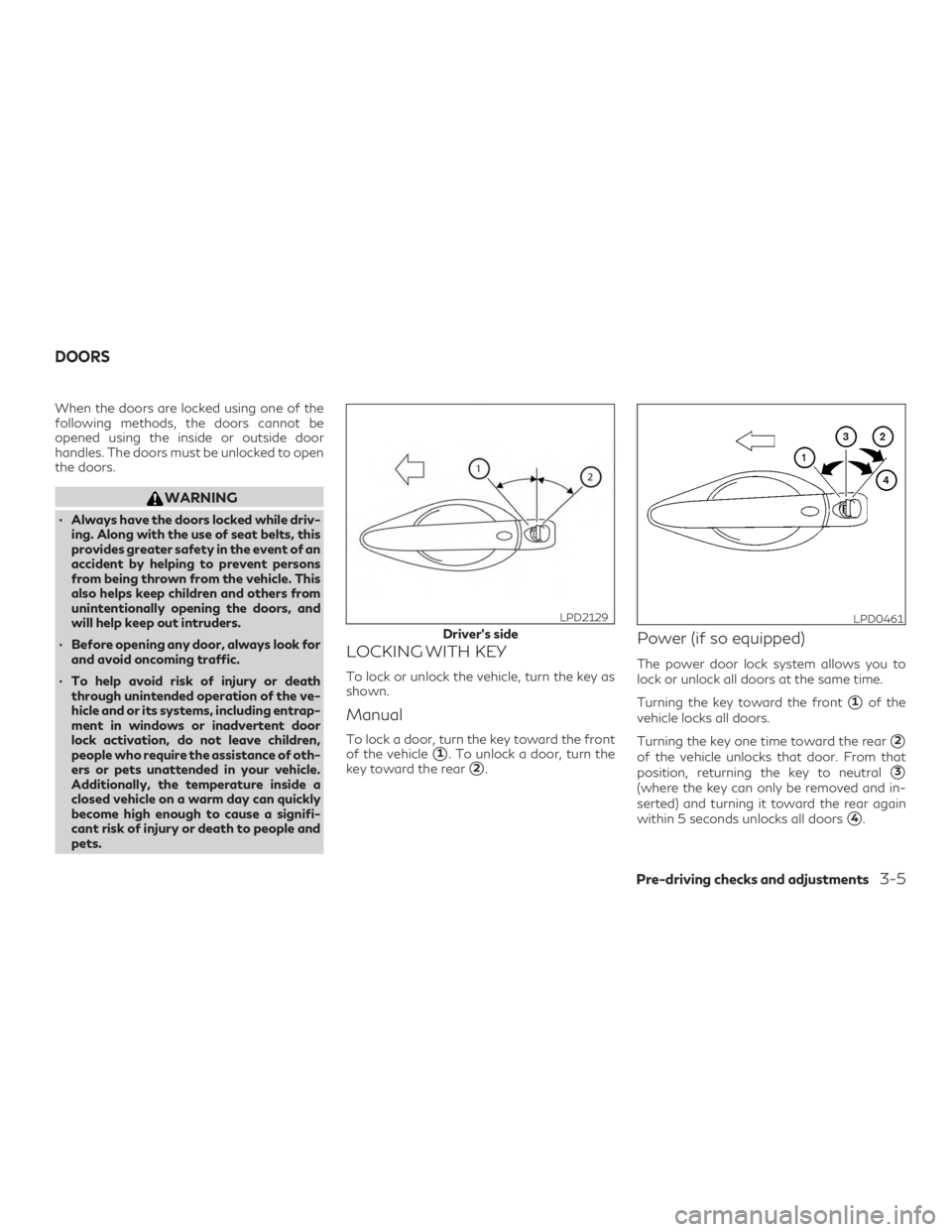

LOCKING WITH KEY
To lock or unlock the vehicle, turn the key as
shown.
Manual
To lock a door, turn the key toward the front
of the vehicle
1. To unlock a door, turn the
key toward the rear
2.
Power (if so equipped)
The power door lock system allows you to
lock or unlock all doors at the same time.
Turning the key toward the front
1of the
vehicle locks all doors.
Turning the key one time toward the rear
2
of the vehicle unlocks that door. From that
position, returning the key to neutral
3
(where the key can only be removed and in-
serted) and turning it toward the rear again
within 5 seconds unlocks all doors
4.
Driver’s side
LPD2129LPD0461
DOORS
Pre-driving checks and adjustments3-5

Opening and closing windows
(if so equipped)
The driver’s door key operation allows you to
open and close windows equipped with au-
tomatic operation at the same time.∙ To open the windows, turn the driver’s door key toward the rear of the vehicle
for longer than 1 second.
∙ To close the windows, turn the driver’s door key toward the front of the vehicle
for longer than 1 second.
Windows stop when the key cylinder is re-
leased.
LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the
inside lock to the lock position
1, then close
the door.
To unlock the door without the key, move the
inside lock knob to the unlock position
2.
LOCKING WITH POWER DOOR
LOCK SWITCH
To lock all the doors without a key, push the
door lock switch (driver’s or front passenger’s
side) to the lock position
1. When locking the
door this way, be certain not to leave the key
inside the vehicle.
To unlock all the doors without a key, push
the door lock switch (driver’s or front passen-
ger’s side) to the unlock position
2.
SPA2726SPA2727
3-6Pre-driving checks and adjustments

Lockout protection
When the power door lock switch is moved to
the lock position and any door is open, all
doors will lock. With the Intelligent Key left in
the vehicle and any door open, all doors will
unlock automatically and chime will sound
after the door is closed.
These functions help prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
∙ All doors lock automatically when the ve-hicle speed reaches 15 mph (24 km/h).
NOTE:
The automatic door unlock function can be
changed using “Vehicle Settings” of the ve-
hicle information display. For additional in-
formation, refer to “Vehicle information dis-
play” in the “Instruments and controls”
section of this manual.
CHILD SAFETY REAR DOOR
LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially
when small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
∙ Radio waves could adversely affect elec- tric medical equipment. Those who use a
pacemaker should contact the electric
medical equipment manufacturer for the
possible influences before use.
∙ The Intelligent Key transmits radio waves when the buttons are pressed. The
FAA advises the radio waves may affect
aircraft navigation and communication
systems. Do not operate the Intelligent
Key while on an airplane. Make sure the
buttons are not operated unintentionally
when the unit is stored for a flight.
The Intelligent Key system can operate all the
door locks using the remote control function
or pushing the request switch on the vehicle
without taking the key out from a pocket or
purse. The operating environment and/or
conditions may affect the Intelligent Key sys-
tem operation.
LPD2374
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

Be sure to read the following before using the
Intelligent Key system.
CAUTION
∙ Be sure to carry the Intelligent Key withyou when operating the vehicle.
∙ Never leave the Intelligent Key in the ve- hicle when you leave the vehicle.
The Intelligent Key is always communicating
with the vehicle as it receives radio waves.
The Intelligent Key system transmits weak
radio waves. Environmental conditions may
interfere with the operation of the Intelligent
Key system under the following operating
conditions: ∙ When operating near a location where strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
∙ When in possession of wireless equip- ment, such as a cellular telephone, trans-
ceiver or a CB radio.
∙ When the Intelligent Key is in contact with or covered by metallic materials.
∙ When any type of radio wave remote control is used nearby. ∙ When the Intelligent Key is placed near an
electric appliance such as a personal
computer.
∙ When the vehicle is parked near a parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key function
or use the mechanical key.
Although the life of the battery varies de-
pending on the operating conditions, the bat-
tery’s life is approximately two years. If the
battery is discharged, replace it with a new
one.
When the Intelligent Key battery is low, an
indicator illuminates in the vehicle informa-
tion display. For additional information, refer
to “Vehicle information display” in the “Instru-
ments and controls” section of this manual.
Since the Intelligent Key is continuously re-
ceiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and per-
sonal computer, the battery life may become
shorter.
For additional information, refer to “Battery
replacement” in the “Do-it-yourself” section
of this manual. As many as four Intelligent Keys can be reg-
istered and used with one vehicle. For infor-
mation about the purchase and use of addi-
tional Intelligent Keys, it is recommended that
you visit an INFINITI retailer.
CAUTION
Listed below are conditions or occurrences
which will damage the Intelligent Key:
∙ Do not allow the Intelligent Key, which
contains electrical components, to come
into contact with water or salt water.
This could affect the system function.
∙ Do not drop the Intelligent Key.
∙ Do not strike the Intelligent Key sharply against another object.
∙ Do not change or modify the Intelligent Key.
∙ Wetting may damage the Intelligent Key. If the Intelligent Key gets wet, immedi-
ately wipe until it is completely dry.
∙ Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C).
∙ Do not attach the Intelligent Key with a key holder that contains a magnet.
3-8Pre-driving checks and adjustments

∙ Do not place the Intelligent Key nearequipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, INFINITI
recommends erasing the ID code of that In-
telligent Key from the vehicle. This may pre-
vent the unauthorized use of the Intelligent
Key to operate the vehicle. For information
regarding the erasing procedure, it is recom-
mended that you visit an INFINITI retailer.
OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the speci-
fied operating range from the request switch
1. When the Intelligent Key battery is dis-
charged or strong radio waves are present
near the operating location, the Intelligent
Key operating range becomes narrower, and
the Intelligent Key may not function properly.
The operating range is within 31.5 in (80 cm)
from each request switch
1.
If the Intelligent Key is too close to the door
glass, handle or rear bumper, the request
switches may not function.
When the Intelligent Key is within the operat-
ing range, it is possible for anyone, even
someone who does not carry the Intelligent
Key, to push the request switch to
lock/unlock the doors.
LPD2850
Pre-driving checks and adjustments3-9

DOOR LOCKS/UNLOCKS
PRECAUTION
∙ Do not push the door handle requestswitch with the Intelligent Key held in
your hand as illustrated. The close dis-
tance to the door handle will cause the
Intelligent Key system to have difficulty
recognizing that the Intelligent Key is
outside the vehicle.
∙ After locking with the door handle re- quest switch, verify the doors are se-
curely locked by testing them. ∙ To prevent the Intelligent Key from being
left inside the vehicle, make sure you
carry the Intelligent Key with you and
then lock the doors.
∙ Do not pull the door handle before push- ing the door handle request switch. The
door will be unlocked but will not open.
Release the door handle once and pull it
again to open the door.
INFINITI INTELLIGENT KEY
OPERATION
You can lock or unlock the doors without
taking the Intelligent Key out of your pocket
or bag.
When you carry the Intelligent Key with you,
you can lock or unlock all doors by pushing
the door handle request switch within the
range of operation.
LPD2851LPD2819
3-10Pre-driving checks and adjustments
