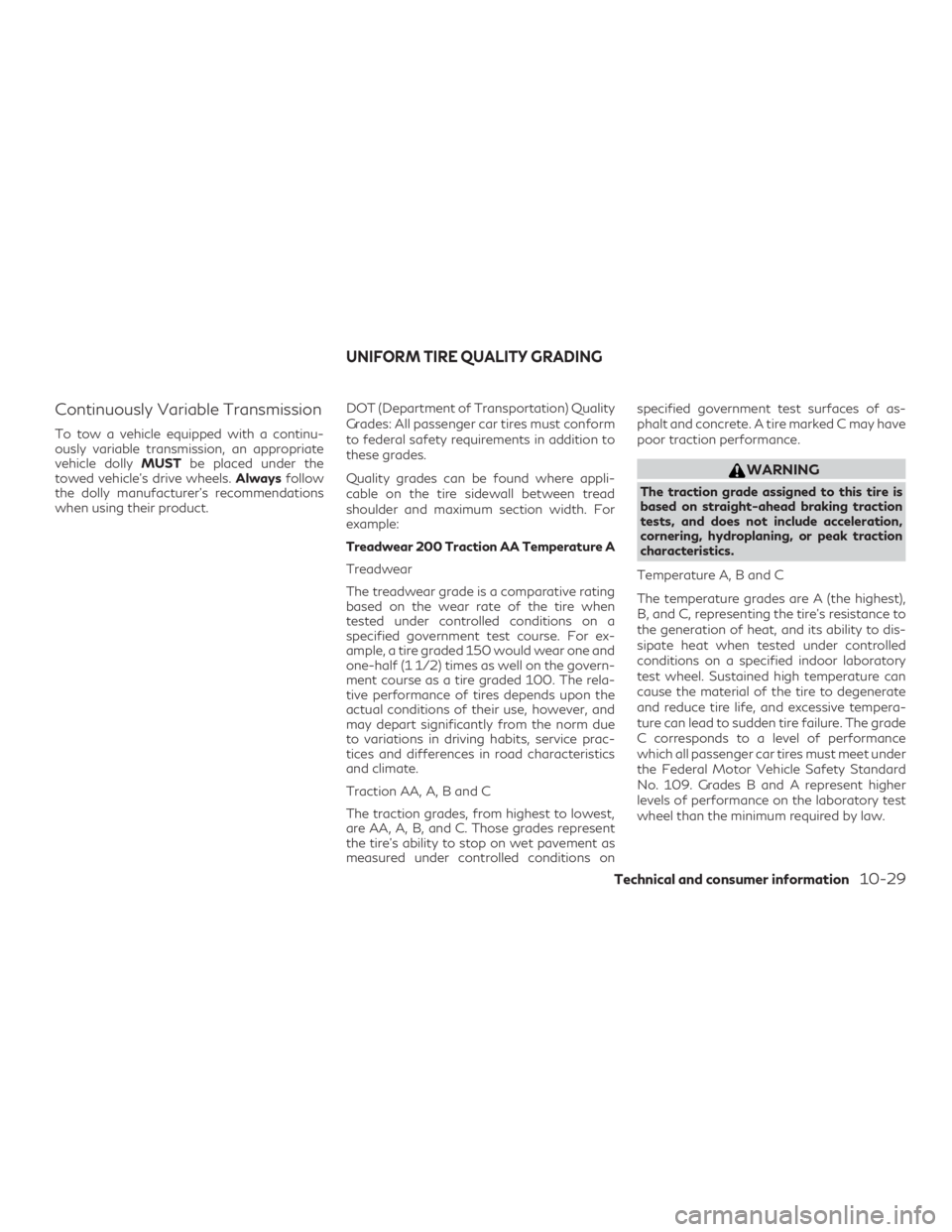

Continuously Variable Transmission
To tow a vehicle equipped with a continu-
ously variable transmission, an appropriate
vehicle dollyMUSTbe placed under the
towed vehicle’s drive wheels. Alwaysfollow
the dolly manufacturer’s recommendations
when using their product. DOT (Department of Transportation) Quality
Grades: All passenger car tires must conform
to federal safety requirements in addition to
these grades.
Quality grades can be found where appli-
cable on the tire sidewall between tread
shoulder and maximum section width. For
example:
Treadwear 200 Traction AA Temperature A
Treadwear
The treadwear grade is a comparative rating
based on the wear rate of the tire when
tested under controlled conditions on a
specified government test course. For ex-
ample, a tire graded 150 would wear one and
one-half (1 1/2) times as well on the govern-
ment course as a tire graded 100. The rela-
tive performance of tires depends upon the
actual conditions of their use, however, and
may depart significantly from the norm due
to variations in driving habits, service prac-
tices and differences in road characteristics
and climate.
Traction AA, A, B and C
The traction grades, from highest to lowest,
are AA, A, B, and C. Those grades represent
the tire’s ability to stop on wet pavement as
measured under controlled conditions onspecified government test surfaces of as-
phalt and concrete. A tire marked C may have
poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
Temperature A, B and C
The temperature grades are A (the highest),
B, and C, representing the tire’s resistance to
the generation of heat, and its ability to dis-
sipate heat when tested under controlled
conditions on a specified indoor laboratory
test wheel. Sustained high temperature can
cause the material of the tire to degenerate
and reduce tire life, and excessive tempera-
ture can lead to sudden tire failure. The grade
C corresponds to a level of performance
which all passenger car tires must meet under
the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher
levels of performance on the laboratory test
wheel than the minimum required by law.
UNIFORM TIRE QUALITY GRADING
Technical and consumer information10-29

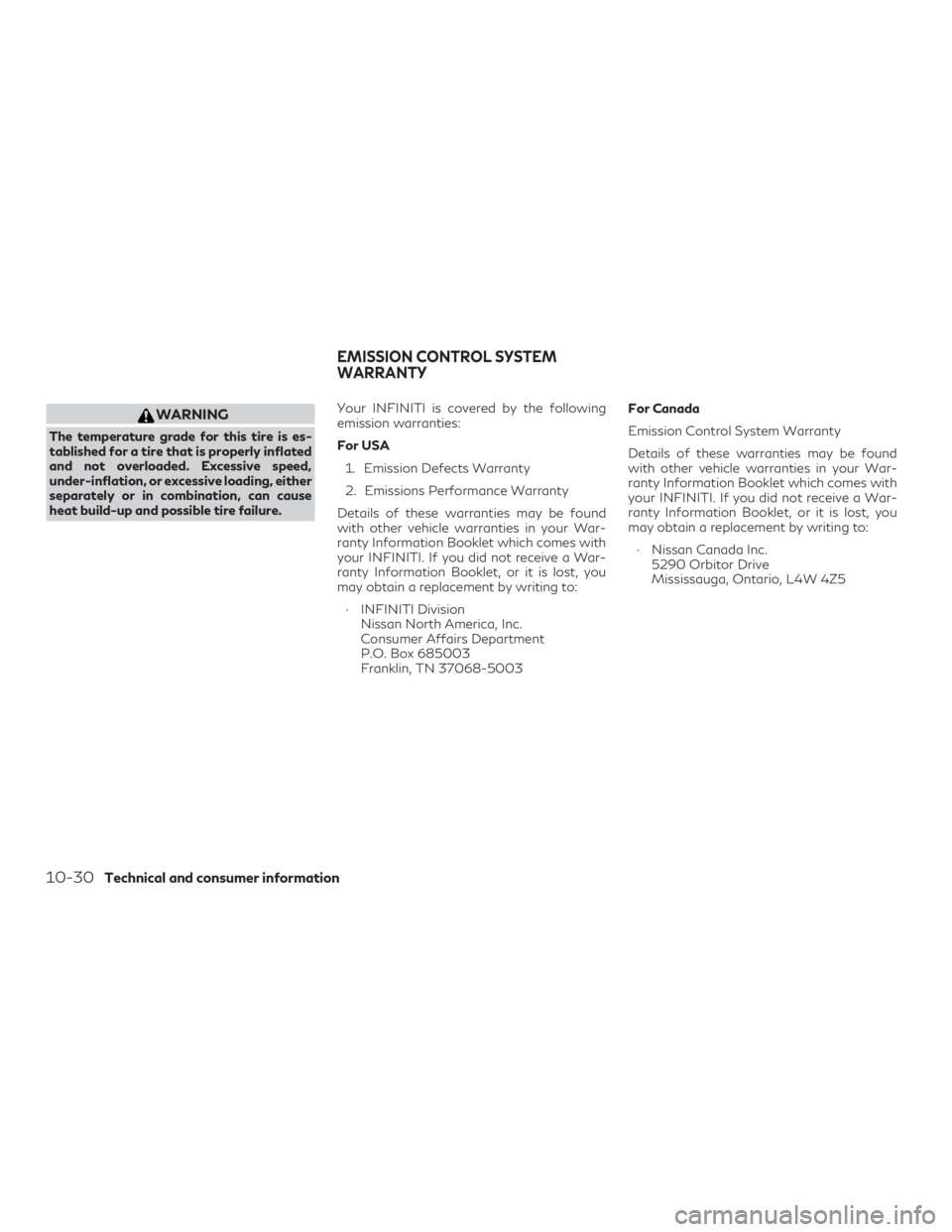

WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly inflated
and not overloaded. Excessive speed,
under-inflation, or excessive loading, either
separately or in combination, can cause
heat build-up and possible tire failure.Your INFINITI is covered by the following
emission warranties:
For USA
1. Emission Defects Warranty
2. Emissions Performance Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to: ∙ INFINITI Division Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003 For Canada
Emission Control System Warranty
Details of these warranties may be found
with other vehicle warranties in your War-
ranty Information Booklet which comes with
your INFINITI. If you did not receive a War-
ranty Information Booklet, or it is lost, you
may obtain a replacement by writing to:
∙ Nissan Canada Inc. 5290 Orbitor Drive
Mississauga, Ontario, L4W 4Z5
EMISSION CONTROL SYSTEM
WARRANTY
10-30Technical and consumer information

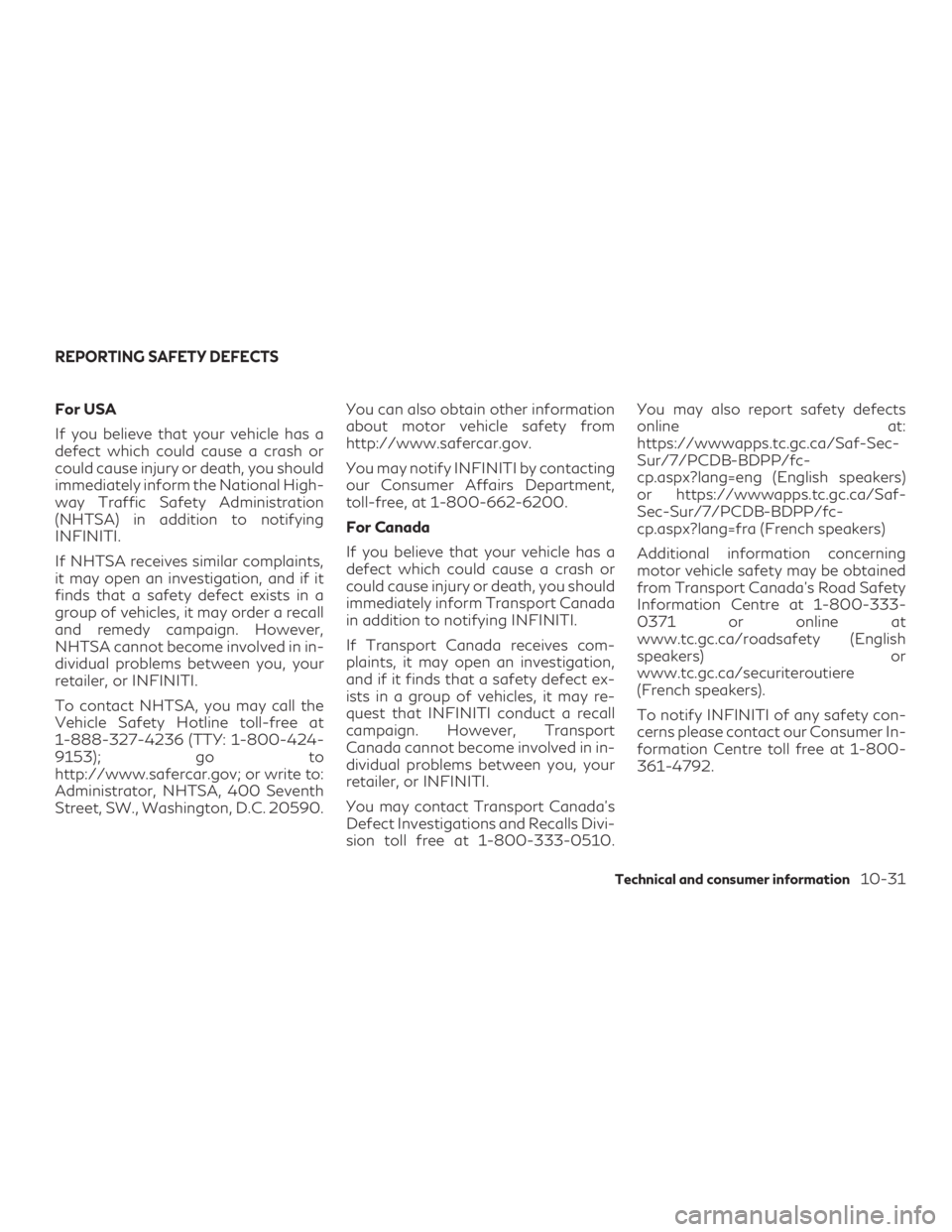

For USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National High-
way Traffic Safety Administration
(NHTSA) in addition to notifying
INFINITI.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in in-
dividual problems between you, your
retailer, or INFINITI.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh
Street, SW., Washington, D.C. 20590.You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.
You may notify INFINITI by contacting
our Consumer Affairs Department,
toll-free, at 1-800-662-6200.
For Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Transport Canada
in addition to notifying INFINITI.
If Transport Canada receives com-
plaints, it may open an investigation,
and if it finds that a safety defect ex-
ists in a group of vehicles, it may re-
quest that INFINITI conduct a recall
campaign. However, Transport
Canada cannot become involved in in-
dividual problems between you, your
retailer, or INFINITI.
You may contact Transport Canada’s
Defect Investigations and Recalls Divi-
sion toll free at 1-800-333-0510.You may also report safety defects
online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=eng (English speakers)
or https://wwwapps.tc.gc.ca/Saf-
Sec-Sur/7/PCDB-BDPP/fc-
cp.aspx?lang=fra (French speakers)
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada’s Road Safety
Information Centre at 1-800-333-
0371 or online at
www.tc.gc.ca/roadsafety (English
speakers) or
www.tc.gc.ca/securiteroutiere
(French speakers).
To notify INFINITI of any safety con-
cerns please contact our Consumer In-
formation Centre toll free at 1-800-
361-4792.
REPORTING SAFETY DEFECTS
Technical and consumer information10-31

WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a two
wheel dynamometer (such as the dyna-
mometers used by some states for emis-
sions testing), or similar equipment. Make
sure you inform the test facility personnel
that your vehicle is equipped with AWD be-
fore it is placed on a dynamometer. Using
the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious ve-
hicle damage or personal injury.
Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready con-
dition” for an Inspection/Maintenance (I/M)
test of the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving pat-
terns. Usually, the ready condition can be
obtained by ordinary usage of the vehicle. If a powertrain system component is repaired
or the battery is disconnected, the vehicle
may be reset to a “not ready” condition. Be-
fore taking the I/M test, check the vehicle’s
inspection/maintenance test readiness con-
dition. Place the ignition switch in the ON
position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on
steady for 20 seconds and then blinks for
10 seconds , the I/M test condition is “not
ready”. If the MIL does not blink after 20 sec-
onds, the I/M test condition is “ready”. It is
recommended that you visit an INFINITI re-
tailer to set the “ready condition” or to pre-
pare the vehicle for testing.
This vehicle is equipped with an EDR. The
main purpose of an EDR is to record, in cer-
tain collision or near collision-like situations,
such as an air bag deployment or hitting a
road obstacle, data that will assist in under-
standing how a vehicle’s systems performed.
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less. The EDR in this vehicle is designed to
record such data as:
∙ How various systems in your vehicle were operating;
∙ Whether or not the driver and passenger safety belts were buckled/fastened;
∙ How far (if at all) the driver was depress- ing the accelerator and/or brake pedal;
and,
∙ How fast the vehicle was traveling.
∙ Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which colli-
sions and injuries occur. NOTE: EDR data are
recorded by your vehicle only if a nontrivial
collision situation occurs; no data are re-
corded by the EDR under normal driving con-
ditions and no personal data (e.g. name, gen-
der, age and collision location) are recorded.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST EVENT DATA RECORDERS (EDR)
10-32Technical and consumer information

However, other parties, such as law enforce-
ment, could combine the EDR data with the
type of personally identifying data routinely
acquired during a collision investigation.
To read data recorded by an EDR, special
equipment is required and access to the ve-
hicle or the EDR is needed. In addition to the
vehicle manufacturer and INFINITI retailer,
other parties, such as law enforcement, that
have the special equipment, can read the in-
formation if they have access to the vehicle or
the EDR. EDR data will only be accessed with
the consent of the vehicle owner or lessee or
as otherwise required or permitted by law.Genuine INFINITI Service Manuals for this
model year and prior can be purchased. A
Genuine INFINITI Service Manual is the best
source of service and repair information for
your vehicle. This manual is the same one
used by the factory-trained technicians
working at INFINITI retailers. Genuine
INFINITI Owner’s Manuals can also be pur-
chased.
For USA
For current pricing and availability of Genuine
INFINITI Service Manuals, contact:
www.infiniti-techinfo.com
For current pricing and availability of Genuine
INFINITI Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine INFINITI
Service Manual or Owner’s Manual, for this
model year and prior, please contact your
nearest INFINITI retailer. For the phone num-
ber and location of an INFINITI retailer in
your area call the INFINITI Satisfaction Cen-
ter at 1-800-361-4792 and a bilingual
INFINITI representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information10-33

MEMO
10-34Technical and consumer information

11 Index
2nd row bench seat adjustment.......1-8
A
Air bag (See supplemental restraint
system).....................1-50
Air bag system Front (See supplemental front impact
airbagsystem) ..............1-57
Air bag warning labels ............1-68
Airbagwarninglight.........1-69,2-12
Air bag warning light,
supplemental ..............1-69,2-12
Air cleaner ...................8-16
Air cleaner housing filter ...........8-16
Air conditioner Air conditioner operation ....4-35,4-44
Air conditioner specification label . .10-12
Air conditioner system refrigerant and
oil recommendations ...........10-7
Heater and air conditioner (automatic)
(if so equipped) ..........4-34,4-43
Heater and air conditioner
controls ..............4-35,4-44
Servicing air conditioner .........4-53
Alarm system (See
vehicle security system) ...........2-32
Anchor point locations ............1-33
Antenna ....................4-54
Antifreeze ..................5-144
Anti-lock brake warning light .........2-9
Anti-lock Braking System (ABS) .....5-135Armrests.....................1-8
Around View® Monitor
...........4-11
Audible reminders ...............2-15
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-37, 3-39
Automatic power window switch . . .2-65
Automatic anti-glare inside mirror .....3-34
Automatic door locks .............3-7
Automatic drive positioner .....3-37,3-39
B
Backup Collision Intervention (BCI) ....5-60
Battery................5- 144, 8-12
Charge warning light ...........2-9
Battery replacement .............8-22
INFINITI Intelligent Key .........8-22
Keyfob...................8-22
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-15
Blind Spot Intervention® (BSI) .......5-48
Blind Spot Warning (BSW) .........5-38
Boosterseats.................1-47
Brake Anti-lock Braking System (ABS) . . .5-135
Brakefluid.................8-10
Brakelight(Seestoplight) .......8-25
Brake system ..............5-134
Brakewarninglight ............2-9
Brakewearindicators ......2-15,8-19
Parking brake operation .........5-23 Self-adjusting brakes
..........8-19
Brake Assist ................. 5-136
Brakefluid...................8-10
Brakes .....................8-19
Brake system ................5-134
Break-in schedule ..............5-128
Brightness control Instrument panel .............2-44
Bulb check/instrument panel .........2-8
Bulb replacement ............... 8-25
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended
fuel/lubricants ................10-2
Cargoareastoragebin ...........2-61
Cargolight...................2-72
Cargo (See
vehicle loading information) ........10-13
Car phone or CB radio ............4-54
Check tire pressure ..............
2
-28
Child restraints .....1-26,1-27,1 -28, 1-30
LATCH (Lower Anchors and Tethers
for CHildren) System ...........1-30
Precautions on child
restraints .......1-28, 1-35, 1-41, 1-47
Top tether strap anchor point
locations..................1-33
Child restraint with top tether strap ....1-32
Child safety rear door lock ..........3-7
Chimes, audible reminders ..........2-15

Cleaning exterior and interior......7-2,7-4
C.M.V.S.S. certification label ........10-11
Cold weather driving ............5-144
Console box ..................2-58
Console light ..................2-71
Continuously Variable
Transmission (CVT) ..............5-18
Continuously Variable Transmission
(CVT) fluid ..................8-9
Driving with Continuously Variable
Transmission (CVT) ............5-18
Controls Heater and air conditioner
controls...............4-35,4-44
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Checking engine coolant level .......8-5
Engine coolant temperature gauge ....2-6
Corrosion protection ..............7-7
Cruisecontrol..............5-76,5-77
Cupholders...................2-60
D
Defroster switch Rear window and outside mirror
defroster switch ..............2-39
Dimensionsandweights...........10-9
Dimmer switch for instrument panel ....2-44
Distance Control Assist (DCA) ........5-98
Door locks ....................3-5
Drivebelt....................8-15
Drive positioner, Automatic .....3-37,3-39Driving
Cold weather driving ..........5-144
Driving with Continuously Variable
Transmission (CVT) ............5-18
Precautions when starting
and driving ..............5-4,5-10
Driving the vehicle ...............5-18
Dual panel moonroof .............2-67
Dual power moonroof ............2-67
E
E-CALL (SOS) SWITCH ...........2-53
Economy - fuel ................5-130
Emergency engine shutoff .......5-15,6-3
Emission control information label ....10-11
Emission control system warranty ....10-30
Engine Before starting the engine ........5-17
Block heater ................5-146
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant ..........8-5
Changing engine oil .............8-7
Changing engine oil filter .........8-8
Checking engine coolant level .......8-5
Checking engine oil level ..........8-6
Engine compartment check locations . .8-3
Engine coolant temperature gauge ....2-6
Engine cooling system ...........8-4
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..............10-6
Engine oil viscosity ............10-6
Engine serial number ..........10-11 Engine specifications
...........10-8
Starting the engine ............5-17
Engine coolant temperature gauge ......2-6
Event Data recorders ............10-32
Exhaust gas (Carbon monoxide) .......5-4
Explanation of

maintenance items ......9-2
Explanation of scheduled maintenance
items........................9-5
Extended storage switch ...........2-55
F
Flashers (See
hazard warning flasher switch) ........6-2
Flat tire ......................6-3
Floor mat positioning aid ............7-5
Fluid Brakefluid .................8-10
Capacities and recommended
fuel/lubricants............... 10-2
Continuously Variable Transmission
(CVT) fluid ..................8-9
Engine coolant ................8-4
Engine oil ...................8-6
Power steering fluid ............8-9
Windshield-washerfluid.........8-11
F.M.V.S.S. certification label ........10-11
Fog light switch ................ 2-45
Forward Emergency Braking (FEB) with
Pedestrian Detection system ....2-10,5-109
Front air bag system (See
supplemental restraint system) .......1-57
Front and rear sonar system ........5-141
Front-door pocket ...............2-56
Front power seat adjustment .........1-3
11-2

Frontseats....................1-2
FuelCapacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-130
Fuel-filler door and cap ..........3-29
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation ...........10-3
Loose fuel cap warning ..........2-28
Fuel efficient driving tips ..........5-128
Fuel-filler door .................3-28
Fuel gauge ....................2-7
Fuses......................8-20
Fusiblelinks...................8-21
G
Garage door opener, HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-76, 2-77
Gascap.....................3-29
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer .................2-6
Trip odometer ................2-5
General maintenance ..............9-2
Glovebox....................2-58
Gloveboxlock.................2-58 H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ...........2-40
Headlights ...................8-24
Head restraints .................1-12
Heated 2nd row seat switches .......2-48
Heated seats ..................2-46
Heated seat switches .............2-47
Heated steering wheel ............2-49
Heater Heater and air conditioner (automatic)
(if so equipped) ...........4-34,4-43
Heater and air conditioner
controls...............4-35,4-44
Heater operation ..........4-36,4-45
Heater and air conditioner
(automatic) ...............4-34,4-43
Hill start assist system ............5-139
HomeLink® Universal Transceiver .2-73, 2-74, 2-75, 2-76, 2-76, 2-77
Hood .......................3-22
Hook Luggage hook ...............2-62
Horn.......................2-46
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-16
Important vehicle information label ....10-11
In-cabin microfilter ..............8-17 Increasing fuel economy
..........5-130
Indicator lights and audible reminders
(See warning/indicator lights and
audiblereminders)......... 2-8, 2-9, 2-13
INFINITI Drive Mode Selector ........5-24
INFINITI Intelligent Key System .....3-2, 3-7
INFINITI InTouch™ Owner's Manual .....4-2
INFINITI Vehicle Immobilizer
System ............... 2-34, 3-4, 5-16
Inside automatic anti-glare mirror .....3-34
Instrument brightness

control ........2-44
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-44
Intelligent All-Wheel Drive (AWD) .....5-130
Intelligent Cruise Control (ICC) .......5-78
Intelligent Key system Key operating range ............3-9
Keyoperation ...............3-10
Mechanical key ...............3-3
Remote keyless entry operation .....3-13
Troubleshooting guide ..........3-17
Warningsignals ..............3-17
Interiorlight...................2-71
ISOFIX child restraints ............1-30
J
Jump starting ..............6-11,8-15
K
Key.........................3-2
Key fob battery replacement ........8-22
11-3

Keyless entryWith Intelligent Key system
(See Intelligent Key system) .......3-13
L
Label Tire and Loading Information label . .10-12
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label ......10-11
Emission control information label . .10-11
Engine serial number ..........10-11
F.M.V.S.S. certification label ......10-11
Tire and Loading Information label . .10-12
Vehicle identification number
(VIN)....................10-10
Vehicle identification number
(VIN)plate ................10-10
Warning labels (for SRS) .........1-68
Lane Departure Warning (LDW) . . .5-27, 5-32
LATCH (Lower Anchors and Tethers
forCHildren)System.............1-30
LED Daytime Running Lights (DRL)
system......................2-44
License plate Installing the license plate ........10-12
Liftgate.....................3-22
Liftgaterelease ................3-27
Light Airbagwarninglight........1-69,2-12
Brakelight(Seestoplight)........8-25
Bulb check/instrument panel .......2-8
Bulb replacement .............8-25 Charge warning light
............2-9
Console light ................2-71
ExteriorandInteriorlights........8-25
Foglights..................8-24
Fog light switch ..............2-45
Headlight and turn signal switch ....2-39
Headlight control switch .........2-40
Headlights .................8-24
Interiorlight.................2-71
Lightbulbs.................8-24
Low tire pressure warning light .....2-10
Low windshield-washer fluid
warninglight................2-28
Passenger air bag and status light . . .1-60
Personal lights ...............2-72
Security indicator light ..........2-14
Warning/indicator lights and
audible reminders .......2-8,2-9,2-13
Lights......................8-24 Maplights..................2-72
Lock Child safety rear door lock .........3-7
Door locks ..................3-5
Gloveboxlock...............2-58
Liftgaterelease ..............3-27
Power door locks ..............3-6
Loose fuel cap warning ............2-28
Lowfuelwarninglight.........2-11,2-28
Low tire pressure warning light .......2-10
Low windshield-washer fluid
warninglight..................2-28
Luggage hook .................2-62
Luggage rack (see roof rack) .........2-62
Luggage (See
vehicle loading information) ........10-13 M
Maintenance Generalmaintenance............9-2
Inside the vehicle ..............9-3
Maintenance precautions .........8-2
Outside the vehicle .............9-2
Seat belt maintenance ..........1-25
Under the hood and vehicle ........9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules .............9-7
Maintenance under severe
operation conditions .............. 9-12
Malfunctionindicatorlight..........2-13
Maplights.................... 2-72
Memory Seat ..............3-37,3-39
Meters and gauges ...............2-4
Instrument brightness control ......2-44
Mirror Automatic anti-glare inside mirror . . .3-34
Outside mirrors .............. 3-35
Vanity mirror ................3-33
Mirrors .....................3-34
Moonroof .............2-66,2-67,7-5
Moving Object

Detection (MOD) ......4-28
O
Octane rating (See fuel octane rating) . . .10-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants............... 10-2
Changing engine oil .............8-7
11-4
