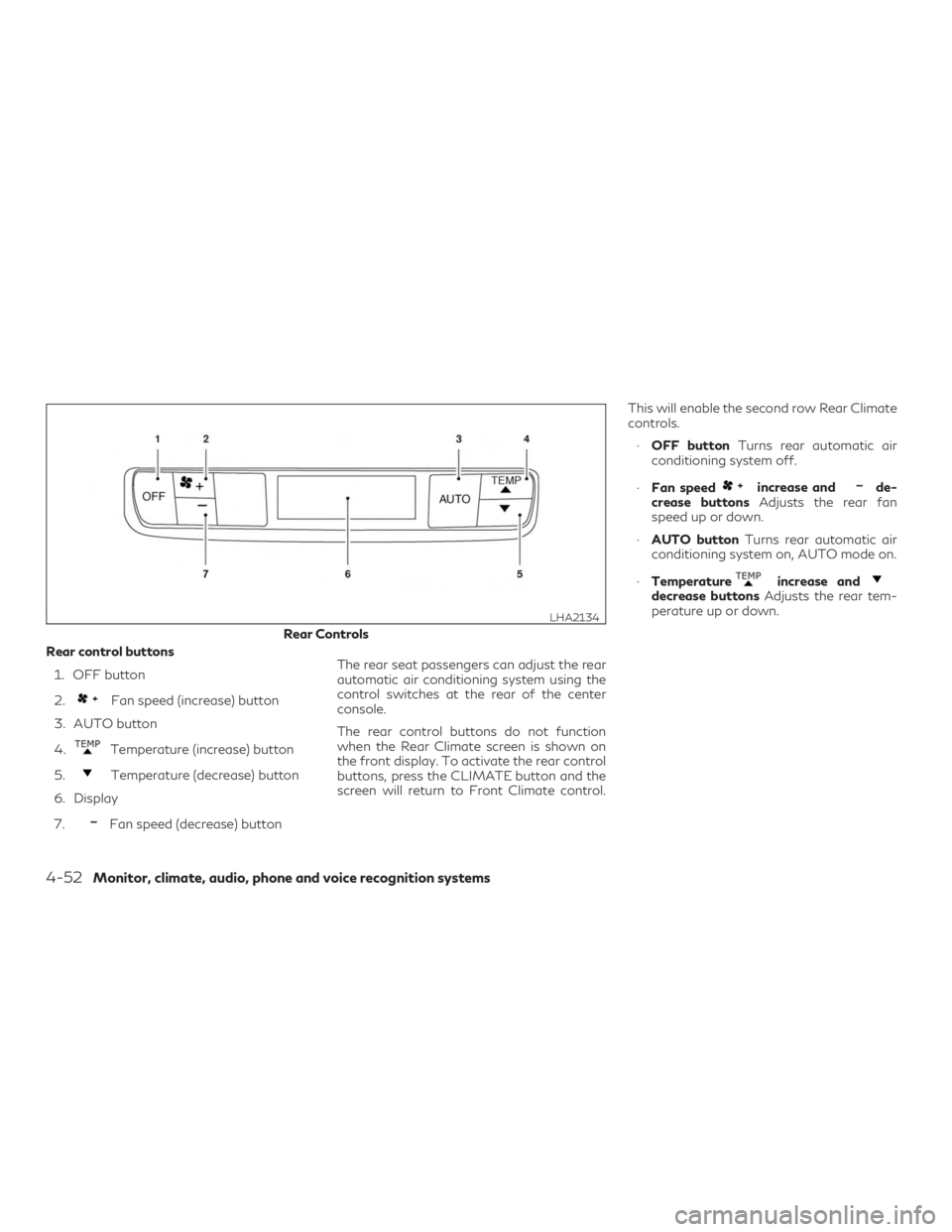

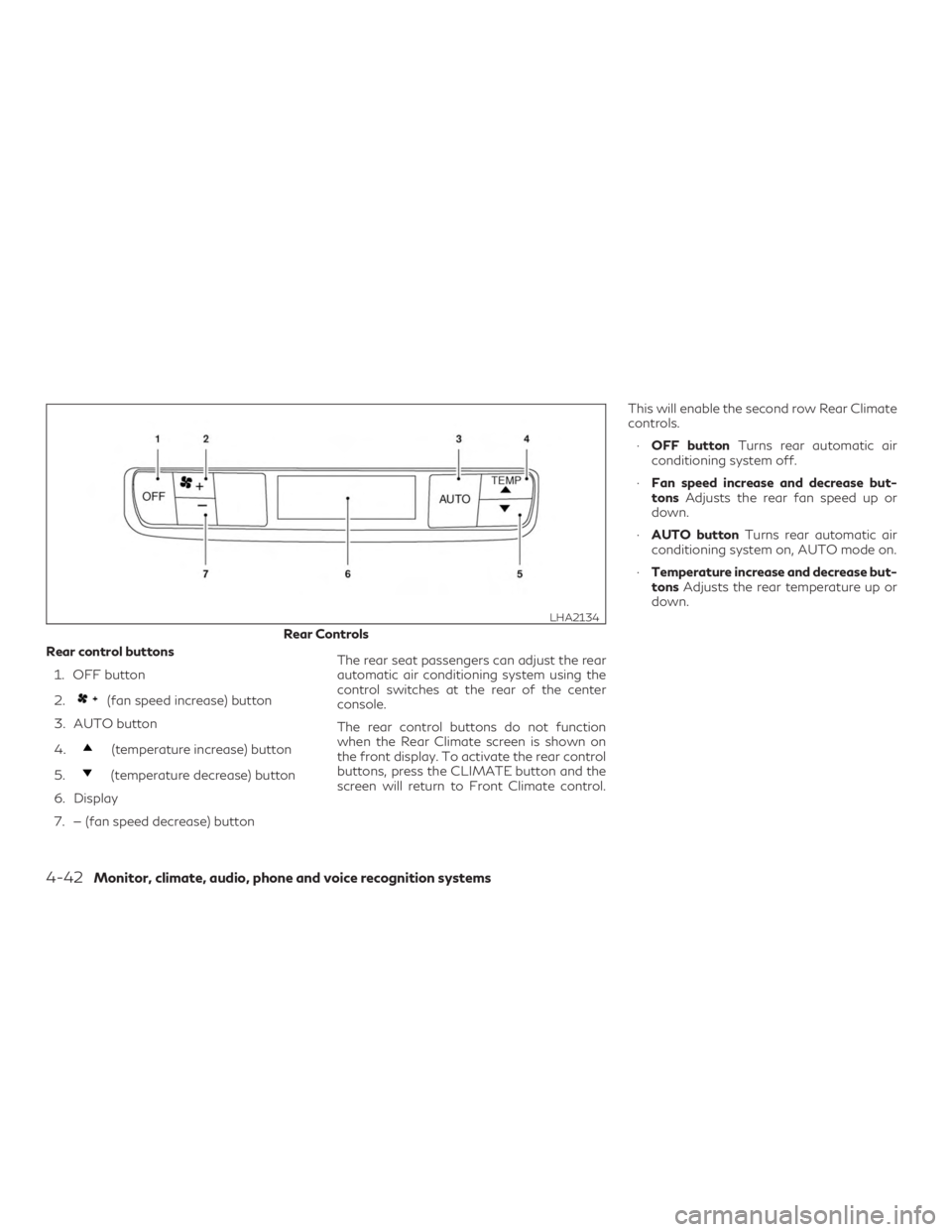

Rear control buttons1. OFF button
2.
(fan speed increase) button
3. AUTO button
4.
(temperature increase) button
5.
(temperature decrease) button
6. Display
7. — (fan speed decrease) button The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches at the rear of the center
console.
The rear control buttons do not function
when the Rear Climate screen is shown on
the front display. To activate the rear control
buttons, press the CLIMATE button and the
screen will return to Front Climate control. This will enable the second row Rear Climate
controls.
∙ OFF button Turns rear automatic air
conditioning system off.
∙ Fan speed increase and decrease but-
tons Adjusts the rear fan speed up or
down.
∙ AUTO button Turns rear automatic air
conditioning system on, AUTO mode on.
∙ Temperature increase and decrease but-
tons Adjusts the rear temperature up or
down.
Rear Controls
LHA2134
4-42Monitor, climate, audio, phone and voice recognition systems

Start the engine and operate the controls to
activate the air conditioner.
NOTE:∙ Odors from inside and outside the ve-
hicle can build up in the air conditioner
unit. Odor can enter the passenger com-
partment through the vents.
∙ When parking, set the heater and air
conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control, and fan speed are also con-
trolled automatically.
1. Press the AUTO button on. (The indica- tor on the button will illuminate and
AUTO will be displayed.) 2. Operate the driver’s side temperature
control buttons.
∙ Adjust the temperature display to about 75°F (24°C) for normal operation.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution, intake air con-
trol, and fan speed are also controlled
automatically.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
3. You can individually set the driver’s and front passenger’s side temperature us-
ing each side’s temperature control but-
tons.
∙ To synchronize the driver’s and front pas- senger’s temperature settings, press the
SYNC button. The SYNC indicator will
illuminate and SYNC text will appear in
the Climate display.
Dehumidified defrosting or
defogging
1. Press thefront defroster button
on. (The indicator light on the button will
come on.)
2. Operate the temperature control but- tons to set the desired temperature.
∙ To quickly remove ice from the outside of the windows, use the
fan speed
control buttons to set the fan speed to
maximum.
∙ As soon as possible after the windshield is clean, press the AUTO button to return
to the automatic mode.
∙ When the
front defroster button is
pressed, the air conditioner will auto-
matically be turned on at outside tem-
peratures above 36°F (2°C). The air recir-
culate mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.
4-44Monitor, climate, audio, phone and voice recognition systems

Remote Engine Start with
Intelligent Climate Control
(if so equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defrosting mode, the rear win-
dow defroster and heated steering wheel (if
so equipped) may be activated automatically.
Voice Recognition logic
(if so equipped)
When the climate control system is on, the
front and rear fan speeds may be automati-
cally lowered so that commands are more
easily recognized. Fan speed can be adjusted
using the fan speed
decrease
and
increase buttons, if desired.
MANUAL OPERATION
Fan speed control buttons
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control
Press thetemperature control buttons
up or down to set the desired temperature.
The temperature can be set within the fol-
lowing range:
∙ For U.S.: 60 to 90ºF (16 to 32ºC)
∙ For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to re-
circulate interior air inside the vehicle.
The
indicator light on the button will
come on.
The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit air recirculation mode, deselect the air recir-
culation button (indicator will turn off) to en-
ter fresh air mode.
Automatic intake air control
In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, press the
air recirculation
button.
Air flow control
Press thebutton to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the center
display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
Synchronize climate settings
Press the SYNC button to synchronize cli-
mate settings. The sync indicator will turn on
and SYNC text will appear in the Climate
display.
Monitor, climate, audio, phone and voice recognition systems4-45

When rear climate is off, pressing SYNC will
synchronize only driver’s and front passen-
ger’s climate settings. When rear climate is
on, pressing SYNC will synchronize driver,
front passenger, and rear temperature and
fan settings.
To change climate settings when SYNC is
active (the SYNC indicator is on):∙ The driver’s side temperature control buttons will control the driver, front pas-
senger, and rear (if rear climate is on)
temperatures.
∙ The fan speed control buttons will con- trol the front and rear climate fan speeds.
∙ The front AUTO (automatic) climate con- trol on-off button will activate the front
and rear climate automatic settings.
To exit SYNC: ∙ To remove the front passenger from SYNC, press the passenger’s side tem-
perature control buttons. The driver and
rear settings remain in SYNC until rear is
removed from SYNC. ∙ To remove the rear from SYNC, change
any of the rear climate settings. The
driver and front passenger settings re-
main in SYNC until the front passenger is
removed from SYNC.
∙ To reactivate SYNC press the SYNC but- ton.
To turn system off
Press the OFF button.
CLIMATE button
Press the CLIMATE button on the control
panel to display the screen for front air con-
ditioner operations.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear
window and outside mirror defroster switch”
in the “Instruments and controls” section of
this manual.
OPERATING TIPS
The sunload sensor, located on the top driv-
er’s side of the instrument panel, helps the
system maintain a constant temperature. Do
not put anything on or around this sensor.
LHA2173
4-46Monitor, climate, audio, phone and voice recognition systems

∙ When the climate system is in automaticoperation and the engine coolant tem-
perature and outside air temperature are
low, the air flow outlet may default to
defroster mode for a maximum of 2 min-
utes 30 seconds. This is not a malfunc-
tion. After the engine coolant tempera-
ture warms up, the air flow outlet will
return to foot mode and operation will
continue normally.
∙ When the outside and interior cabin tem- peratures are moderate to high, the in-
take setting may default to turn off air
recirculation to allow fresh air into the
passenger compartment. You may notice
air flow from the foot mode, bi-level
mode, or side demist vent outlets for a
maximum of 15 seconds. This may occur
when the previous climate setting was
turned off. This is not a malfunction. Af-
ter the initial warm air is expelled, the
intake will return to automatic control,
the air flow outlet will return to previous
settings, and operation will continue nor-
mally. To exit, press any climate control
button. ∙ Keep the moonroof closed while the air
conditioner is in operation.
∙ If you feel that the air flow mode you have selected and the outlets the air is
coming out do not match, select the
mode.
∙ When you change the air flow mode, you may feel air flow from the feet vents for
just a moment. This is not a malfunction.
CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Press the CLIMATE button on the control
panel and turn the display to the Climate
mode.
LHA4927
Monitor, climate, audio, phone and voice recognition systems4-47

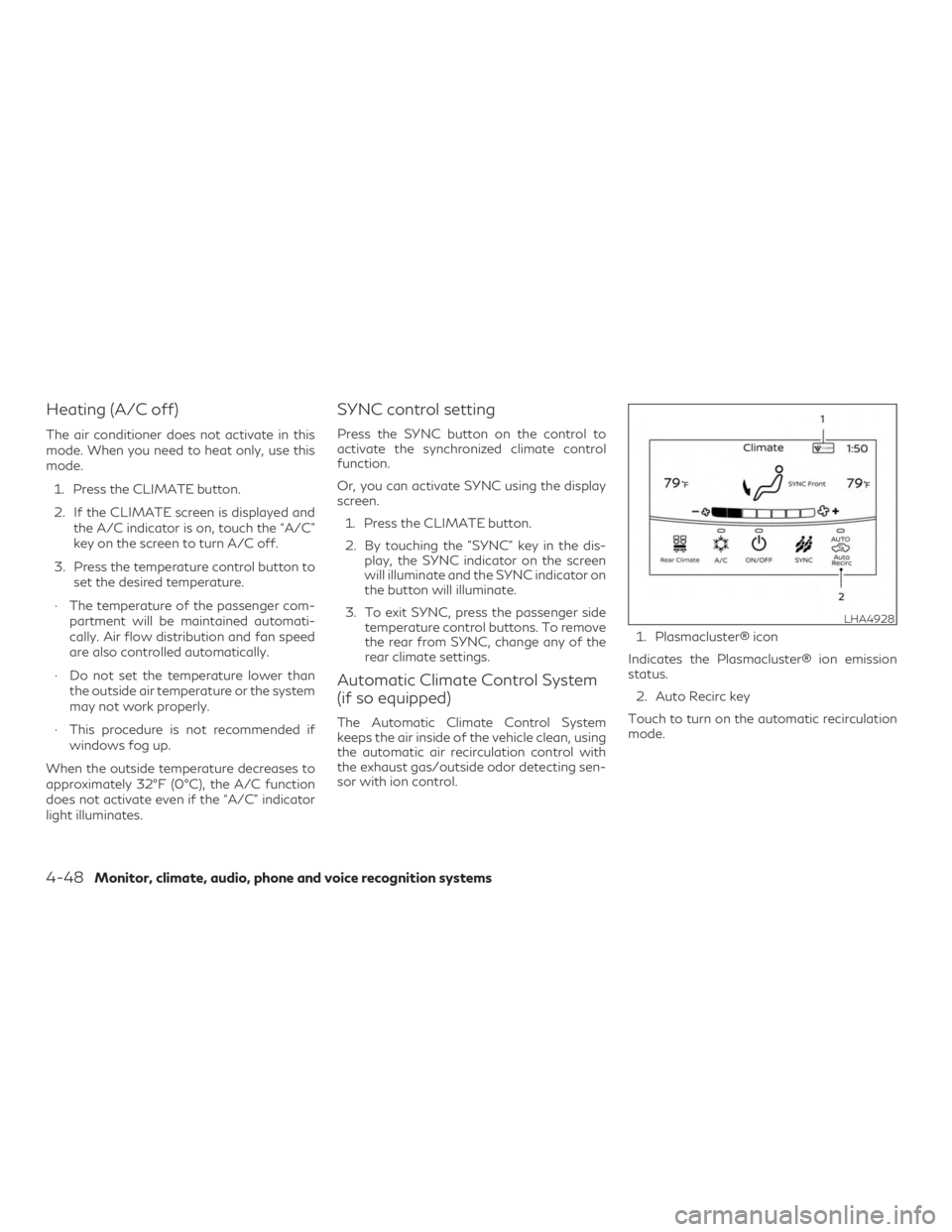

Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Press the CLIMATE button.
2. If the CLIMATE screen is displayed and the A/C indicator is on, touch the “A/C”
key on the screen to turn A/C off.
3. Press the temperature control button to set the desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the “A/C” indicator
light illuminates.
SYNC control setting
Press the SYNC button on the control to
activate the synchronized climate control
function.
Or, you can activate SYNC using the display
screen. 1. Press the CLIMATE button.
2. By touching the "SYNC" key in the dis- play, the SYNC indicator on the screen
will illuminate and the SYNC indicator on
the button will illuminate.
3. To exit SYNC, press the passenger side temperature control buttons. To remove
the rear from SYNC, change any of the
rear climate settings.
Automatic Climate Control System
(if so equipped)
The Automatic Climate Control System
keeps the air inside of the vehicle clean, using
the automatic air recirculation control with
the exhaust gas/outside odor detecting sen-
sor with ion control. 1. Plasmacluster® icon
Indicates the Plasmacluster® ion emission
status. 2. Auto Recirc key
Touch to turn on the automatic recirculation
mode.
LHA4928
4-48Monitor, climate, audio, phone and voice recognition systems

Ion control (if so equipped)
The Automatic Climate Control System unit
generates highly concentrated Plasmaclus-
ter® ions into the air blown from the ventila-
tors to reduce odor absorbed into the interior
trim and to suppress airborne bacteria. The
high-density Plasmacluster®ions also have a
proven skin moisture preserving effect.
The Plasmacluster® icon on the Climate
screen indicates the status of the Plasma-
cluster® ion emission from the system and
changes with the amount of the air flow.
Automatic air recirculation control with the
exhaust gas/outside odor detection sensor
(if so equipped)
The Automatic Climate Control System
comes with an exhaust gas
detection/outside odor sensor. When the au-
tomatic air circulation control is activated, the
sensor detects odors outside the vehicle such
as pulp or chemicals, and exhaust such as
gasoline or diesel. When such odors or gases
are detected the display and the system au-
tomatically change from fresh air mode to the
recirculation mode.When the automatic air recirculation is on, for
the first 5 minutes, the air recirculation mode
is selected to prevent dust, dirt, and pollen
from entering the vehicle and to clean the air
inside of the vehicle.
After 5 minutes, the sensor detects exhaust
gas and automatically alternates between
the air recirculation mode and the fresh air
mode.
The automatic air recirculation mode can be
activated under the following conditions.
∙ The air flow control is not in the front defroster mode (the indicator light on
the
front defroster button is turned
off).
∙ The outside temperature is about 32°F (0°C) or more.
Monitor, climate, audio, phone and voice recognition systems4-49

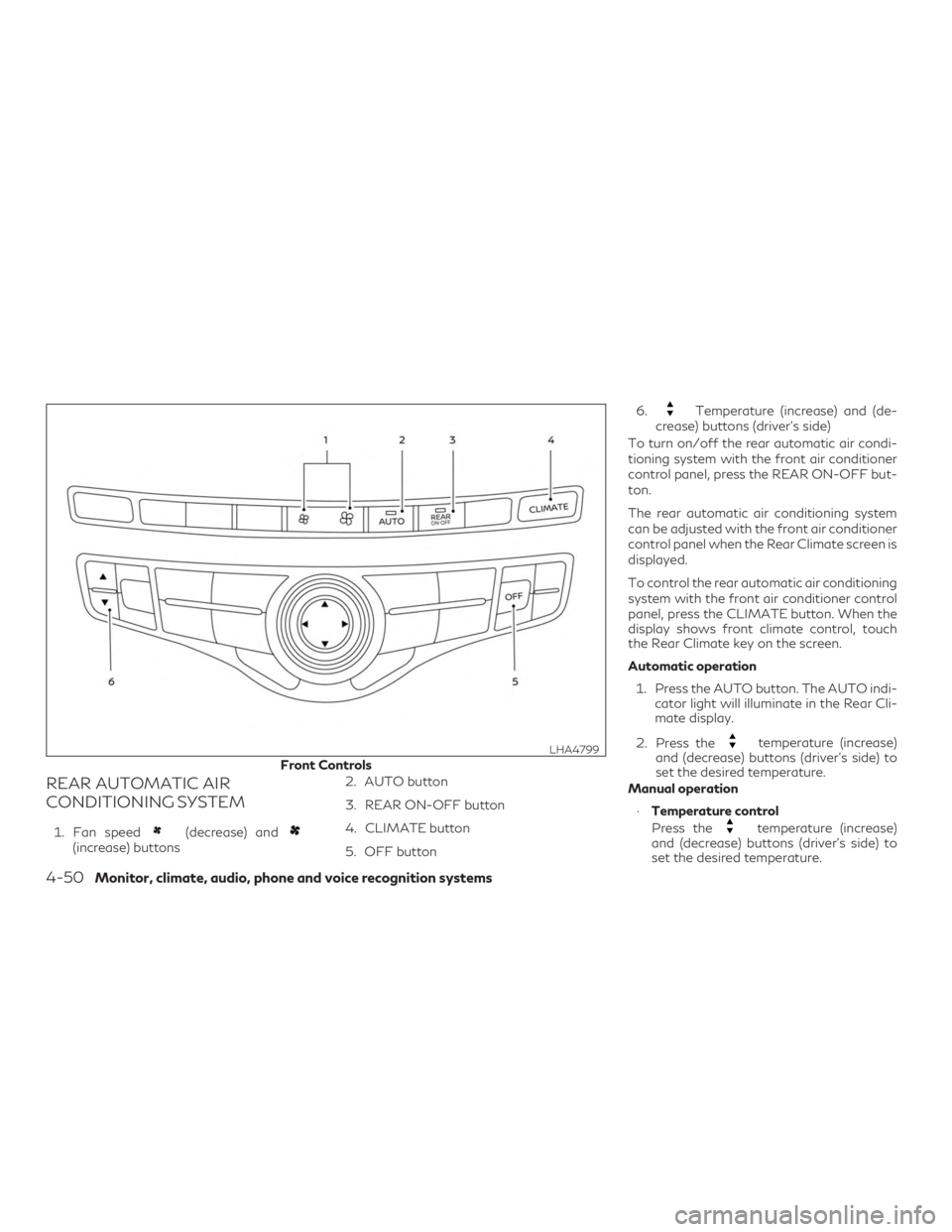

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. Fan speed(decrease) and(increase) buttons2. AUTO button
3. REAR ON-OFF button
4. CLIMATE button
5. OFF button 6.
Temperature (increase) and (de-
crease) buttons (driver’s side)
To turn on/off the rear automatic air condi-
tioning system with the front air conditioner
control panel, press the REAR ON-OFF but-
ton.
The rear automatic air conditioning system
can be adjusted with the front air conditioner
control panel when the Rear Climate screen is
displayed.
To control the rear automatic air conditioning
system with the front air conditioner control
panel, press the CLIMATE button. When the
display shows front climate control, touch
the Rear Climate key on the screen.
Automatic operation
1. Press the AUTO button. The AUTO indi- cator light will illuminate in the Rear Cli-
mate display.
2. Press the
temperature (increase)
and (decrease) buttons (driver’s side) to
set the desired temperature.
Manual operation
∙ Temperature control
Press the
temperature (increase)
and (decrease) buttons (driver’s side) to
set the desired temperature.
Front Controls
LHA4799
4-50Monitor, climate, audio, phone and voice recognition systems

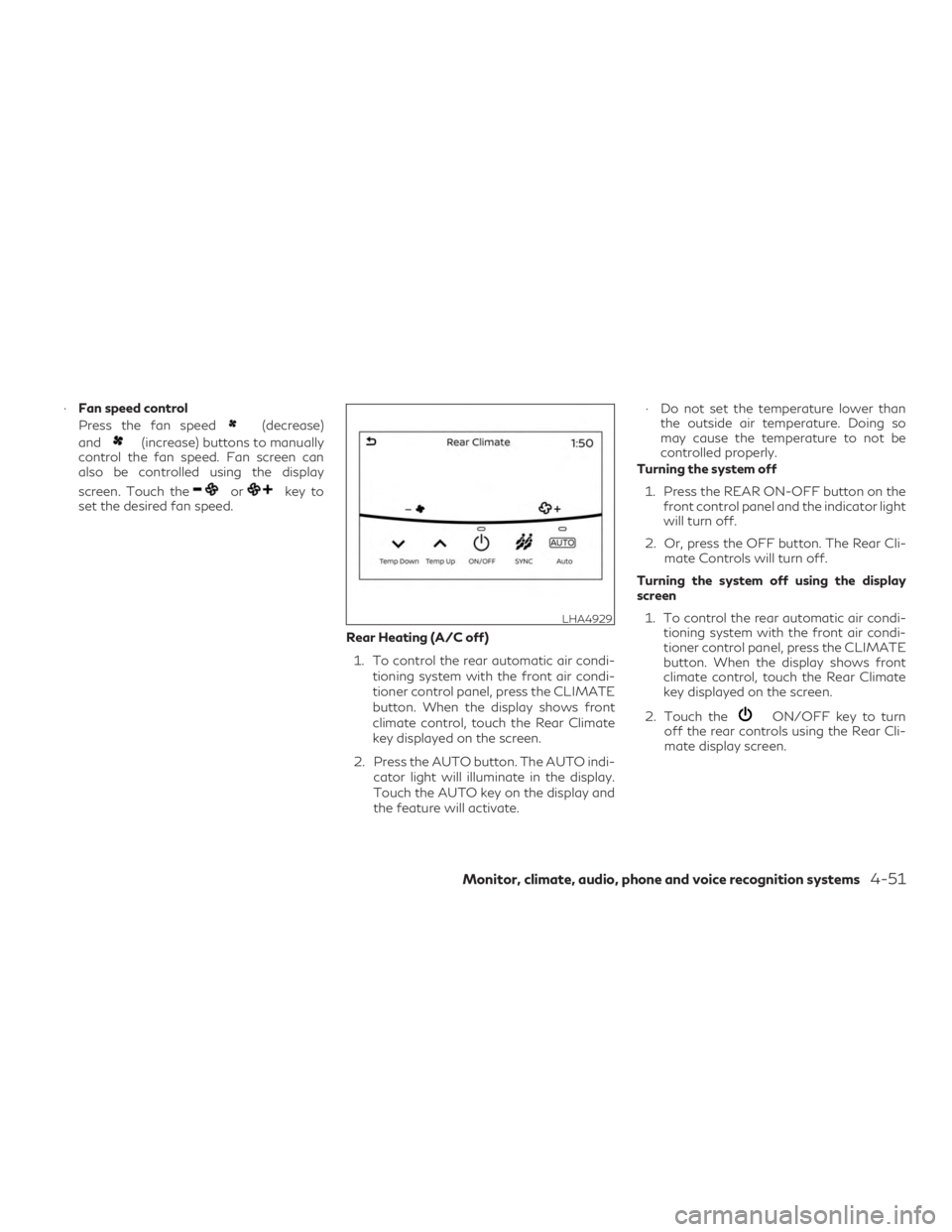

∙Fan speed control
Press the fan speed
(decrease)
and
(increase) buttons to manually
control the fan speed. Fan screen can
also be controlled using the display
screen. Touch the
orkey to
set the desired fan speed.
Rear Heating (A/C off)1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Press the AUTO button. The AUTO indi- cator light will illuminate in the display.
Touch the AUTO key on the display and
the feature will activate. ∙ Do not set the temperature lower than
the outside air temperature. Doing so
may cause the temperature to not be
controlled properly.
Turning the system off
1. Press the REAR ON-OFF button on the front control panel and the indicator light
will turn off.
2. Or, press the OFF button. The Rear Cli- mate Controls will turn off.
Turning the system off using the display
screen 1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Touch the
ON/OFF key to turn
off the rear controls using the Rear Cli-
mate display screen.
LHA4929
Monitor, climate, audio, phone and voice recognition systems4-51

Rear control buttons1. OFF button
2.
Fan speed (increase) button
3. AUTO button
4.
Temperature (increase) button
5.
Temperature (decrease) button
6. Display
7.
Fan speed (decrease) button The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches at the rear of the center
console.
The rear control buttons do not function
when the Rear Climate screen is shown on
the front display. To activate the rear control
buttons, press the CLIMATE button and the
screen will return to Front Climate control. This will enable the second row Rear Climate
controls.
∙ OFF button Turns rear automatic air
conditioning system off.
∙ Fan speed
increase andde-
crease buttons Adjusts the rear fan
speed up or down.
∙ AUTO button Turns rear automatic air
conditioning system on, AUTO mode on.
∙ Temperature
increase anddecrease buttons Adjusts the rear tem-
perature up or down.
Rear Controls
LHA2134
4-52Monitor, climate, audio, phone and voice recognition systems
