display INFINITI QX60 2019 Repair Manual

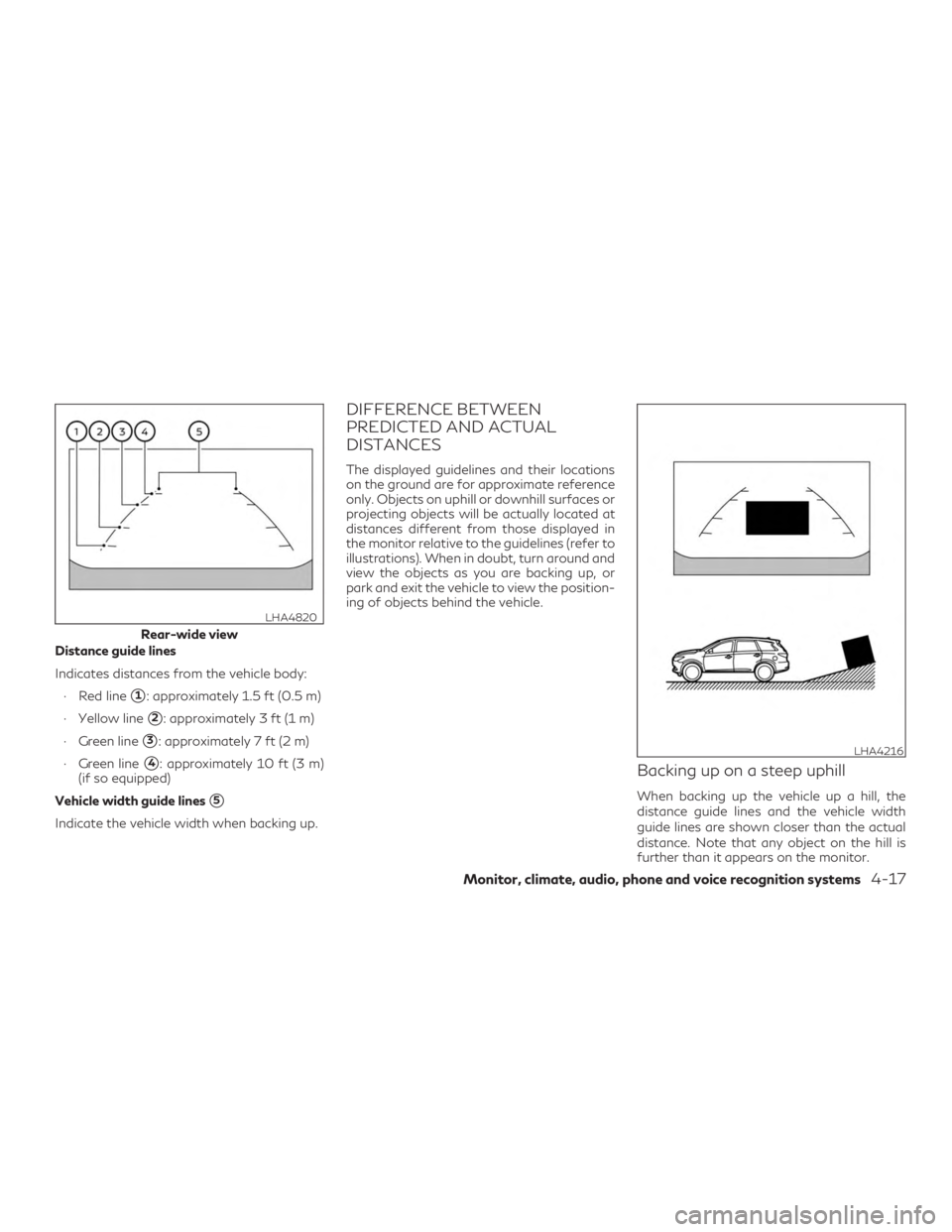

Distance guide lines
Indicates distances from the vehicle body:∙ Red line
1: approximately 1.5 ft (0.5 m)
∙ Yellow line
2: approximately 3 ft (1 m)
∙ Green line
3: approximately 7 ft (2 m)
∙ Green line
4: approximately 10 ft (3 m)
(if so equipped)
Vehicle width guide lines
5
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations
on the ground are for approximate reference
only. Objects on uphill or downhill surfaces or
projecting objects will be actually located at
distances different from those displayed in
the monitor relative to the guidelines (refer to
illustrations). When in doubt, turn around and
view the objects as you are backing up, or
park and exit the vehicle to view the position-
ing of objects behind the vehicle.
Backing up on a steep uphill
When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.
Rear-wide view
LHA4820
LHA4216
Monitor, climate, audio, phone and voice recognition systems4-17

Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width
guide lines are shown farther than the actual
distance. Note that any object on the hill is
closer than it appears on the monitor.
Backing up near a projecting object
The predicted course linesAdo not touch
the object in the display. However, the vehicle
may hit the object if it projects over the actual
backing up course.
Backing up behind a projecting
object
The positionCis shown farther than the
position
Bin the display. However, the po-
sition
Cis actually at the same distance as
the position
A. The vehicle may hit the object
LHA4217LHA1201LHA4218
4-18Monitor, climate, audio, phone and voice recognition systems

when backing up to the positionAif the
object projects over the actual backing up
course.
HOW TO PARK WITH
PREDICTED COURSE LINES
WARNING
∙ If the tires are replaced with different sized tires, the predicted course lines may
be displayed incorrectly.
∙ On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
∙ If the battery is disconnected or becomes discharged, the predicted course lines
may be displayed incorrectly. If this oc-
curs, please perform the following
procedures:
– Turn the steering wheel from lock to lock while the engine is running.
– Drive the vehicle on a straight road for more than 5 minutes.
∙ When the steering wheel is turned with the ignition switch in the ACC position,
the predicted course lines may be dis-
played incorrectly. 1. Visually check that the parking space is
safe before parking your vehicle. 2. The rear view of the vehicle is displayed
on the screen
Awhen the shift lever is
moved to the R (Reverse) position. When
activating the Around View®Monitor,
the guide lines, the icons and the mes-
sages may not be displayed immediately.
LHA1197
Monitor, climate, audio, phone and voice recognition systems4-19

3. Slowly back up the vehicle adjusting thesteering wheel so that the predicted
course lines
Benter the parking space
C. 4. Maneuver the steering wheel to make
the vehicle width guide lines
Dparallel
to the parking space
Cwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking
brake.
HOW TO SWITCH THE DISPLAY
With the ignition switch in the ON position,
press the CAMERA
button or move the
shift lever to the R (Reverse) position to op-
erate the Around View® Monitor.
The Around View® Monitor displays differ-
ent split screen views depending on the posi-
tion of the shift lever. When activating the
Around View®Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. Press the CAMERA
but-
ton to switch between the available views.
If the shift lever is in the R (Reverse) position,
the available views are:
∙ Rear view/bird’s-eye view split screen
∙ Rear view/front-side view split screen
∙ Rear-wide view If the shift lever is in the P (Park) or D (Drive)
position, the available views are:
∙ Front view/bird’s-eye view split screen
∙ Front view/front-side view split screen
∙ Front-wide view
The display will switch from the Around
View® Monitor screen when: ∙ The shift lever is in the D (Drive) position and the vehicle speed increases above
approximately 6 mph (10 km/h)
∙ A different screen is selected.
LHA1198
4-20Monitor, climate, audio, phone and voice recognition systems

AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING but-
ton, select the “Camera/Sonar” key. For ad-
ditional information about the sonar, refer to
“Camera aiding sonar (parking sensor)” in this
section. For information about the Display
screen adjustment, refer to “Adjusting the
screen” in this section.Moving Object Detection (MOD):
When this item is turned to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off), the MOD system is de-
activated.
MOD Volume:
Adjusts the MOD volume between “High”,
“Mid” or “Low” by touching the “+” or “-” key
on the display screen. This feature is only
available when “Moving Object Detection” is
on.Non-viewable Area Reminder:
With this item turned to ON, the non-
viewable area is highlighted in yellow for
seven seconds after the bird’s-eye view is
displayed. It will only be shown the first time
after the ignition switch is placed in the ON
position.
Predicted Course Lines:
When this item is turned to ON, the predicted
course lines are displayed in the front view,
rear view and bird’s-eye view.
Automatic Display with Sonar:
When this item is turned to ON, the camera
view is automatically shown on the display in
the case that the distance to the objects
measured by the sonar is becoming short.
LHA4265LHA4746
Monitor, climate, audio, phone and voice recognition systems4-21

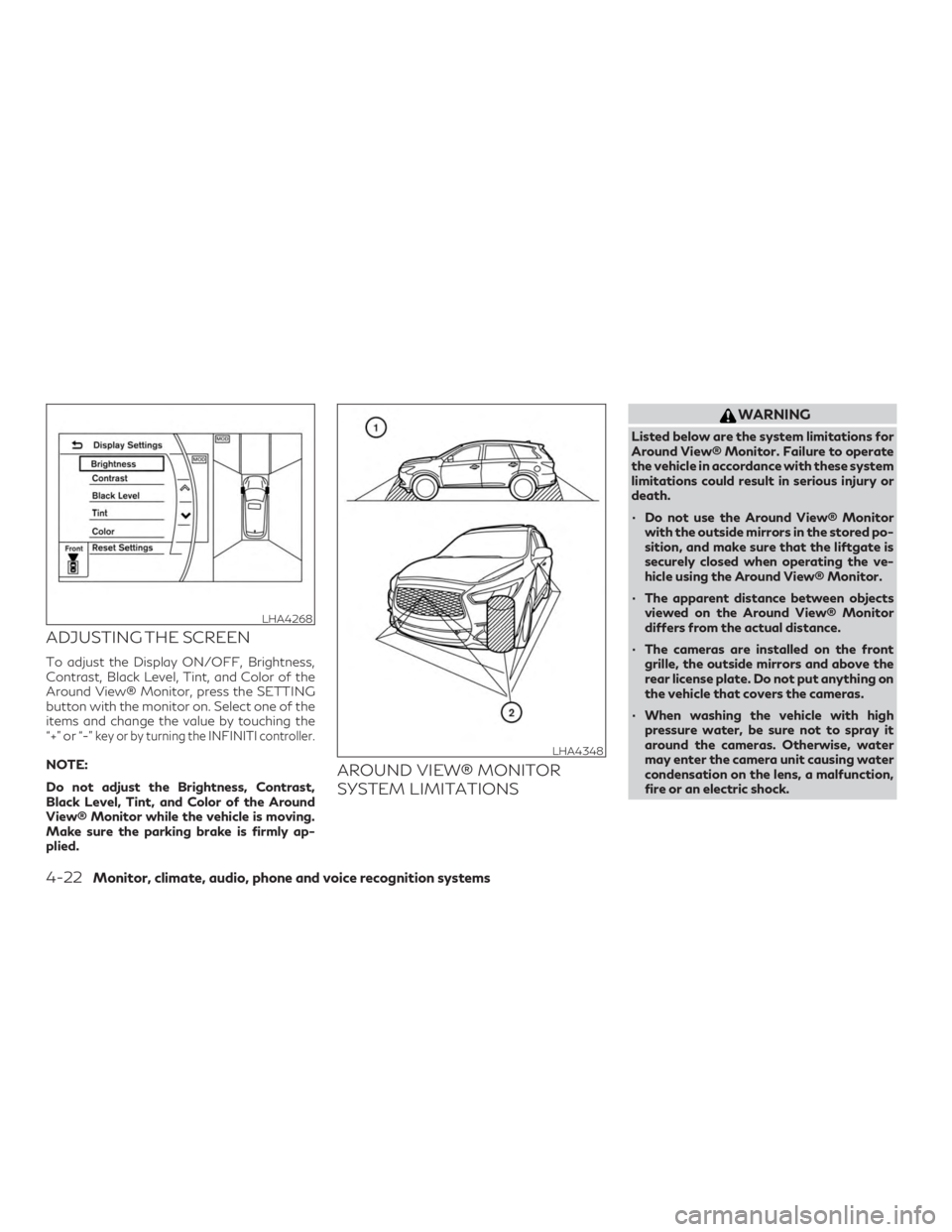

ADJUSTING THE SCREEN
To adjust the Display ON/OFF, Brightness,
Contrast, Black Level, Tint, and Color of the
Around View® Monitor, press the SETTING
button with the monitor on. Select one of the
items and change the value by touching the
“+” or “-”
key or by turning the INFINITI controller.
NOTE:
Do not adjust the Brightness, Contrast,
Black Level, Tint, and Color of the Around
View® Monitor while the vehicle is moving.
Make sure the parking brake is firmly ap-
plied.AROUND VIEW® MONITOR
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
Around View® Monitor. Failure to operate
the vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Do not use the Around View® Monitorwith the outside mirrors in the stored po-
sition, and make sure that the liftgate is
securely closed when operating the ve-
hicle using the Around View® Monitor.
∙ The apparent distance between objects viewed on the Around View® Monitor
differs from the actual distance.
∙ The cameras are installed on the front grille, the outside mirrors and above the
rear license plate. Do not put anything on
the vehicle that covers the cameras.
∙ When washing the vehicle with high pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing water
condensation on the lens, a malfunction,
fire or an electric shock.
LHA4268
LHA4348
4-22Monitor, climate, audio, phone and voice recognition systems

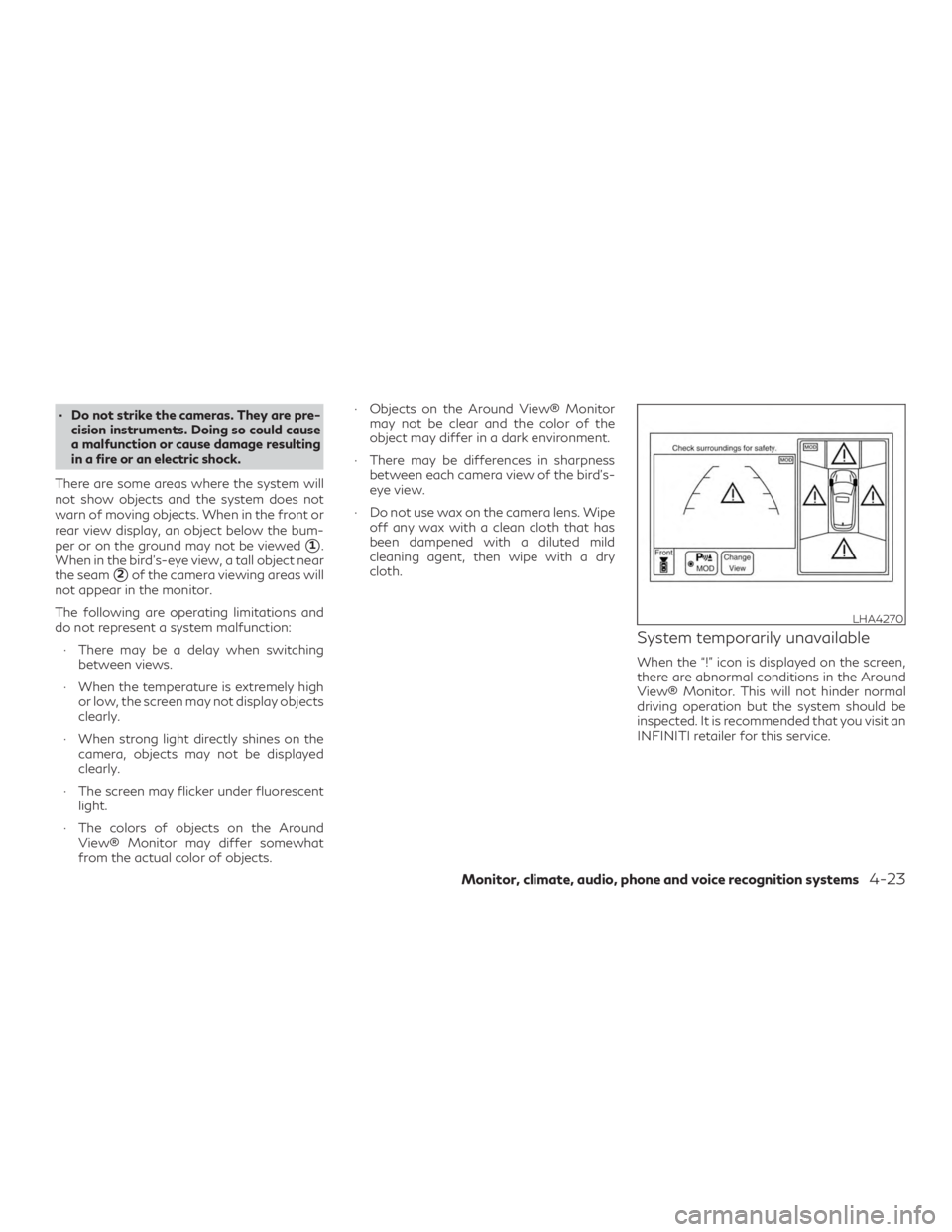

∙ Do not strike the cameras. They are pre-cision instruments. Doing so could cause
a malfunction or cause damage resulting
in a fire or an electric shock.
There are some areas where the system will
not show objects and the system does not
warn of moving objects. When in the front or
rear view display, an object below the bum-
per or on the ground may not be viewed
1.
When in the bird’s-eye view, a tall object near
the seam
2of the camera viewing areas will
not appear in the monitor.
The following are operating limitations and
do not represent a system malfunction:
∙ There may be a delay when switching between views.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly.
∙ When strong light directly shines on the camera, objects may not be displayed
clearly.
∙ The screen may flicker under fluorescent light.
∙ The colors of objects on the Around View® Monitor may differ somewhat
from the actual color of objects. ∙ Objects on the Around View® Monitor
may not be clear and the color of the
object may differ in a dark environment.
∙ There may be differences in sharpness between each camera view of the bird’s-
eye view.
∙ Do not use wax on the camera lens. Wipe off any wax with a clean cloth that has
been dampened with a diluted mild
cleaning agent, then wipe with a dry
cloth.
System temporarily unavailable
When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.
LHA4270
Monitor, climate, audio, phone and voice recognition systems4-23

When the “[X]” icon is displayed on the
screen, the camera image may be receiving
temporary electronic disturbances from sur-
rounding devices. This will not hinder normal
driving operation but the system should be
inspected. It is recommended that you visit an
INFINITI retailer for this service.SYSTEM MAINTENANCE
CAUTION
∙ Do not use alcohol, benzine or thinner toclean the camera. This will cause
discoloration.
∙ Do not damage the cameras as the moni- tor screen may be adversely affected.
If dirt, rain or snow accumulates on any of the
cameras
1, the Around View® Monitor may
not display objects clearly. Clean the camera
by wiping with a cloth dampened with a di-
luted mild cleaning agent and then wiping
with a dry cloth.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar function as
outlined in this section could result in seri-
ous injury or death.
∙ The sonar is a convenience feature. It is not a substitute for proper parking.
∙ This function is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
∙ The driver is always responsible for safety during parking and other
maneuvers.
∙ Always look around and check that it is safe to move before parking.
∙ Read and understand the limitations of the sonar as contained in this section.
The sonar function helps to inform the driver
of large stationary objects around the vehicle
when parking by issuing an audible and visual
alert.
LHA4269LHA4347
CAMERA AIDING SONAR
(parking sensor) (if so equipped)
4-24Monitor, climate, audio, phone and voice recognition systems

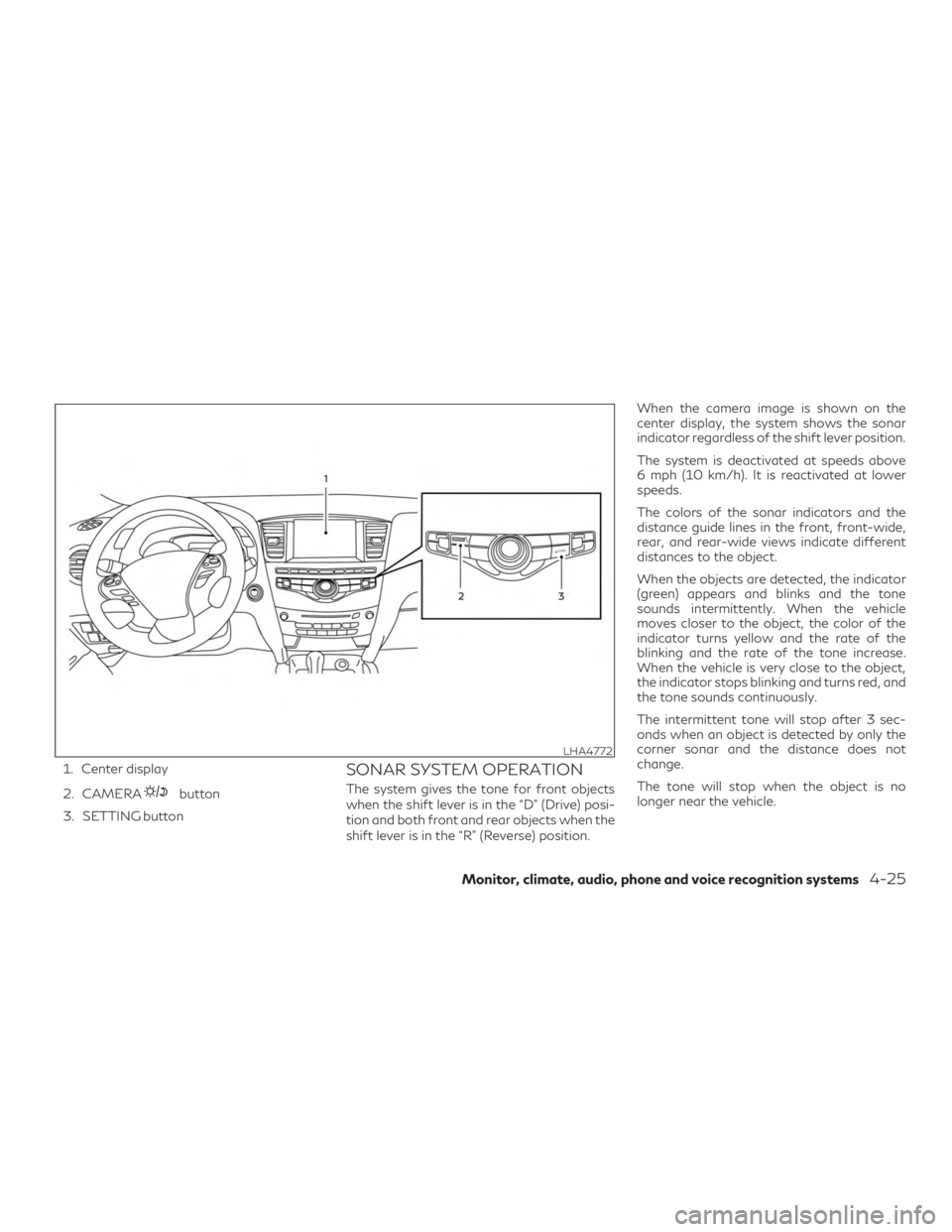

1. Center display
2. CAMERA
button
3. SETTING button
SONAR SYSTEM OPERATION
The system gives the tone for front objects
when the shift lever is in the “D” (Drive) posi-
tion and both front and rear objects when the
shift lever is in the “R” (Reverse) position. When the camera image is shown on the
center display, the system shows the sonar
indicator regardless of the shift lever position.
The system is deactivated at speeds above
6 mph (10 km/h). It is reactivated at lower
speeds.
The colors of the sonar indicators and the
distance guide lines in the front, front-wide,
rear, and rear-wide views indicate different
distances to the object.
When the objects are detected, the indicator
(green) appears and blinks and the tone
sounds intermittently. When the vehicle
moves closer to the object, the color of the
indicator turns yellow and the rate of the
blinking and the rate of the tone increase.
When the vehicle is very close to the object,
the indicator stops blinking and turns red, and
the tone sounds continuously.
The intermittent tone will stop after 3 sec-
onds when an object is detected by only the
corner sonar and the distance does not
change.
The tone will stop when the object is no
longer near the vehicle.
LHA4772
Monitor, climate, audio, phone and voice recognition systems4-25

TURNING ON AND OFF THE
SONAR FUNCTION
When the “” keyAis selected, the indi-
cator
Bwill turn off and the sonar will be
turned off temporarily. The Moving Object
Detection (MOD) system will also be turned
off at the same time. For additional informa-
tion, refer to “Moving Object Detection
(MOD)” in this section. When the “
” key
Ais selected again, the indicator will turn on
and the sonar will turn back on. In the below cases, the sonar will be turned
back on automatically:
∙ When the shift lever is placed in the “R” (Reverse) position.
∙ When the CAMERA
button is
pressed and a screen other than the cam-
era view is shown on the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h). ∙ When the ignition switch is placed in the
OFF position and turned back to the ON
position again. To prevent the sonar sys-
tem from activating altogether, use the
“Sonar” menu. For additional information,
refer to “Sonar function settings” in this
section.
Sonar function settings
To set up the sonar function to your preferred
settings, press the SETTING button, select
the “Camera/Sonar” key and then select the
“Sonar” key on the center display.
Designs and items displayed on the screen
may vary depending on the models.
Sonar: When this item is turned on, the front
and rear sonar is activated. When this item is
turned off (indicator turns off), the front and
rear sonar is deactivated. The amber markers
are displayed at the corners of the vehicle
icon and the sonar icon will disappear from
the “
” key on the Around View® Display.
The next time the ignition switch is placed in
the ON position, “sonar is OFF” is displayed
briefly.
FR sensor only: When this item is turned to
“ON”, only the front sonar sensors are active.
LHA4272LHA4273
4-26Monitor, climate, audio, phone and voice recognition systems
