Interrupt Display:When this item is turned to
“ON” the display screen will interrupt the cur-
rent view in the display to see the surrounding
area of the vehicle.
Sonar Sensitivity: Adjust the sensitivity level
of the sonar higher (right) or lower (left).
Sonar Volume:
Adjust the volume of the buzzer.
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sources such as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.
∙ The system will not detect small objects below the bumper, and may not detect
objects close to the bumper or on the
ground. ∙ The system may not detect the following
objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects.
∙ If your vehicle sustains damage to the bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
Monitor, climate, audio, phone and voice recognition systems4-27

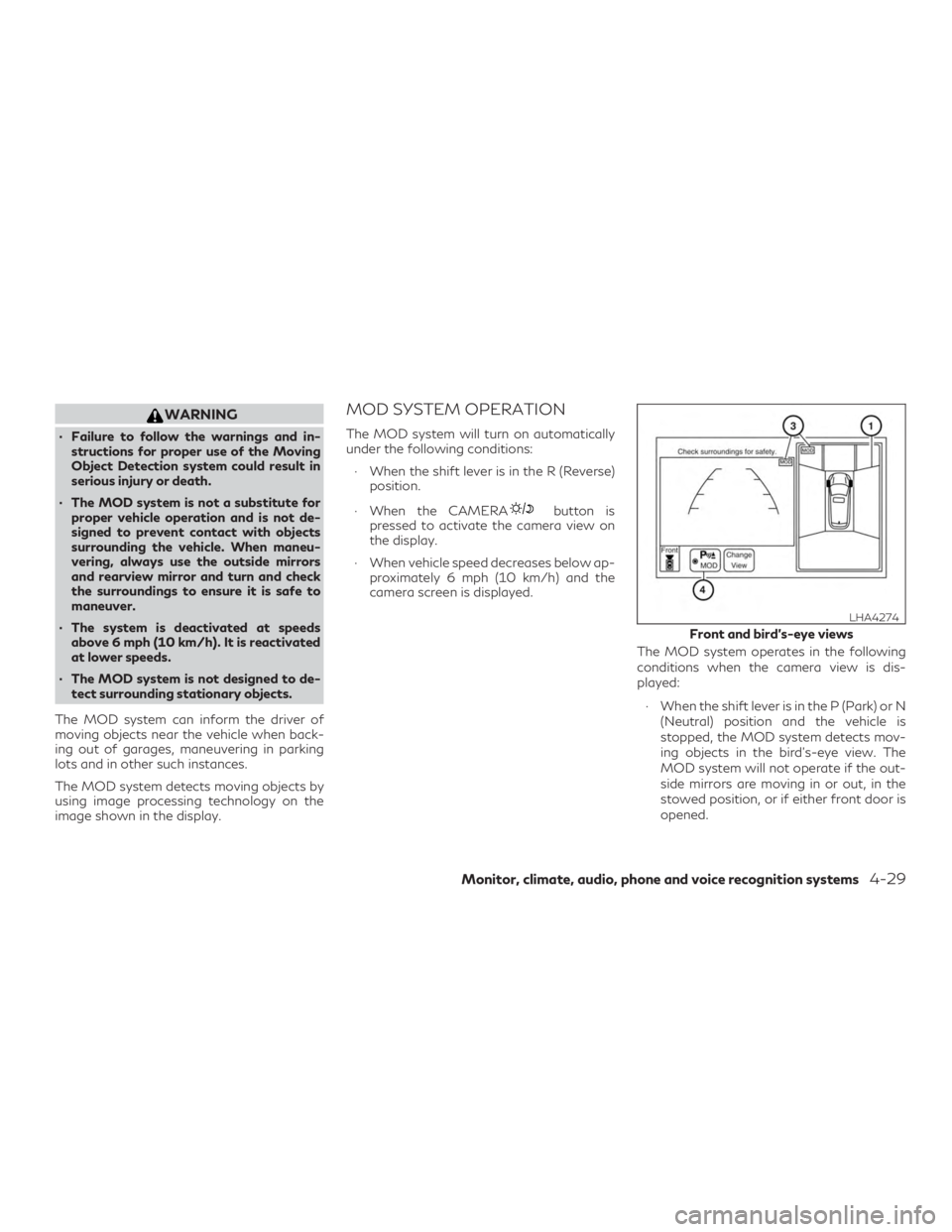

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the Moving
Object Detection system could result in
serious injury or death.
∙ The MOD system is not a substitute for proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirrors
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
∙ The system is deactivated at speeds above 6 mph (10 km/h). It is reactivated
at lower speeds.
∙ The MOD system is not designed to de- tect surrounding stationary objects.
The MOD system can inform the driver of
moving objects near the vehicle when back-
ing out of garages, maneuvering in parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
MOD SYSTEM OPERATION
The MOD system will turn on automatically
under the following conditions: ∙ When the shift lever is in the R (Reverse) position.
∙ When the CAMERA
button is
pressed to activate the camera view on
the display.
∙ When vehicle speed decreases below ap- proximately 6 mph (10 km/h) and the
camera screen is displayed.
The MOD system operates in the following
conditions when the camera view is dis-
played:∙ When the shift lever is in the P (Park) or N (Neutral) position and the vehicle is
stopped, the MOD system detects mov-
ing objects in the bird’s-eye view. The
MOD system will not operate if the out-
side mirrors are moving in or out, in the
stowed position, or if either front door is
opened.
Front and bird’s-eye views
LHA4274
Monitor, climate, audio, phone and voice recognition systems4-29

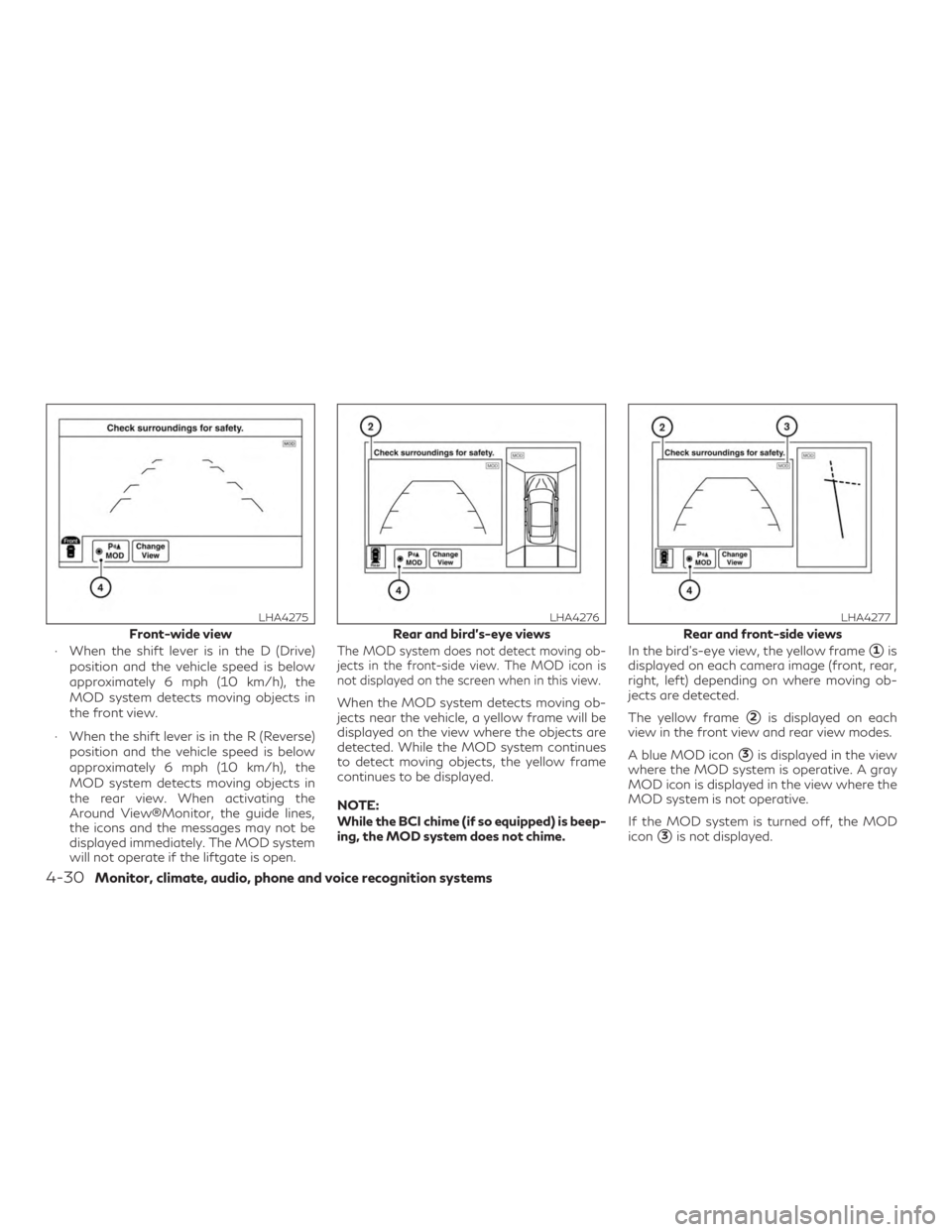

∙ When the shift lever is in the D (Drive)position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the front view.
∙ When the shift lever is in the R (Reverse) position and the vehicle speed is below
approximately 6 mph (10 km/h), the
MOD system detects moving objects in
the rear view. When activating the
Around View®Monitor, the guide lines,
the icons and the messages may not be
displayed immediately. The MOD system
will not operate if the liftgate is open.The MOD system does not detect moving ob-
jects in the front-side view. The MOD icon is
not displayed on the screen when in this view.
When the MOD system detects moving ob-
jects near the vehicle, a yellow frame will be
displayed on the view where the objects are
detected. While the MOD system continues
to detect moving objects, the yellow frame
continues to be displayed.
NOTE:
While the BCI chime (if so equipped) is beep-
ing, the MOD system does not chime. In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving ob-
jects are detected.
The yellow frame
2is displayed on each
view in the front view and rear view modes.
A blue MOD icon
3is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
Front-wide view
LHA4275
Rear and bird’s-eye views
LHA4276
Rear and front-side views
LHA4277
4-30Monitor, climate, audio, phone and voice recognition systems

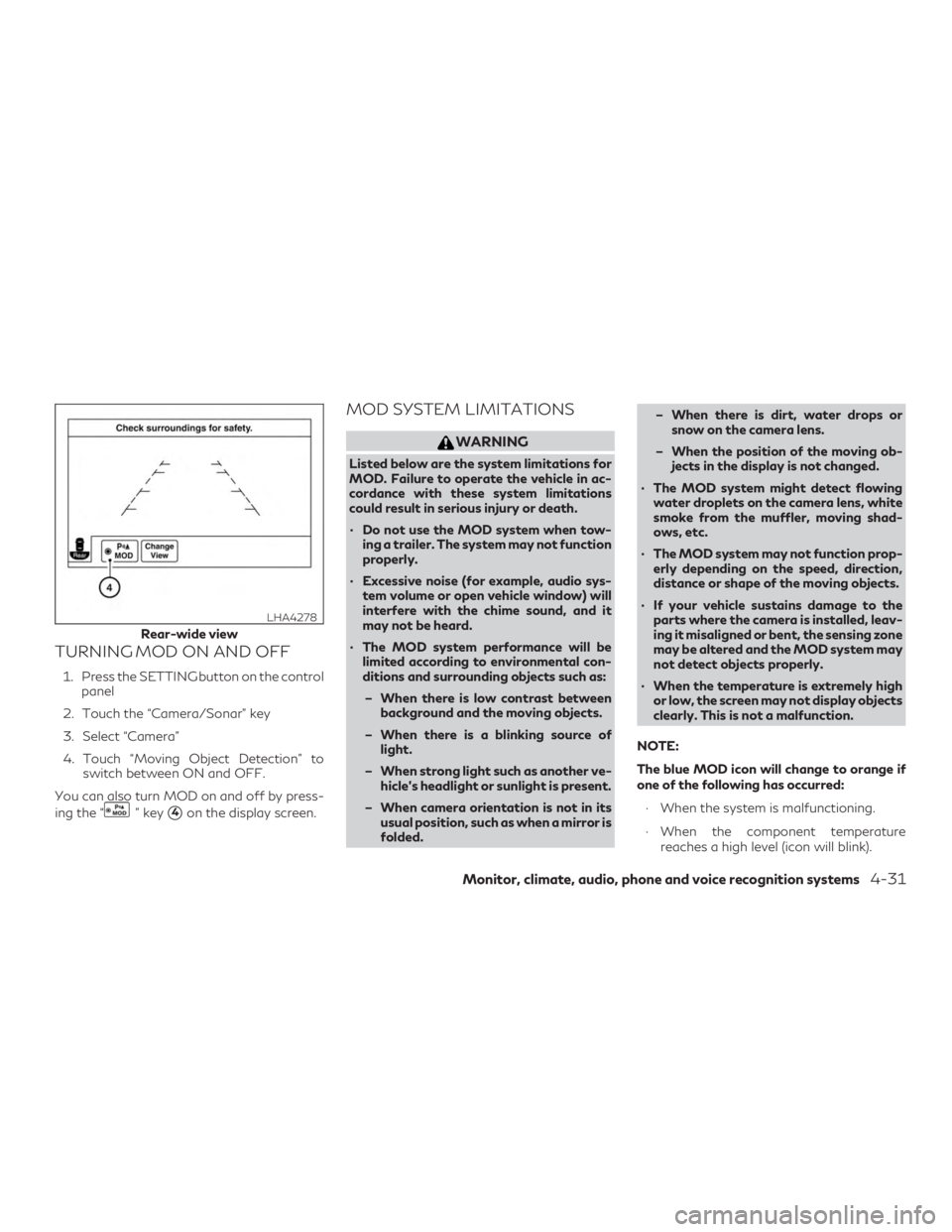

TURNING MOD ON AND OFF
1. Press the SETTING button on the controlpanel
2. Touch the “Camera/Sonar” key
3. Select “Camera”
4. Touch “Moving Object Detection” to switch between ON and OFF.
You can also turn MOD on and off by press-
ing the “
” key4on the display screen.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light.
– When strong light such as another ve- hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded. – When there is dirt, water drops or
snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
∙ The MOD system might detect flowing water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
∙ The MOD system may not function prop- erly depending on the speed, direction,
distance or shape of the moving objects.
∙ If your vehicle sustains damage to the parts where the camera is installed, leav-
ing it misaligned or bent, the sensing zone
may be altered and the MOD system may
not detect objects properly.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly. This is not a malfunction.
NOTE:
The blue MOD icon will change to orange if
one of the following has occurred: ∙ When the system is malfunctioning.
∙ When the component temperature reaches a high level (icon will blink).
Rear-wide view
LHA4278
Monitor, climate, audio, phone and voice recognition systems4-31

Start the engine and operate the controls to
activate the air conditioner.
NOTE:∙ Odors from inside and outside the ve-
hicle can build up in the air conditioner
unit. Odor can enter the passenger com-
partment through the vents.
∙ When parking, set the heater and air
conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.
AUTOMATIC OPERATION
Cooling and/or dehumidified
heating (AUTO)
This mode may be used all year round as the
system automatically works to keep a con-
stant temperature. Air flow distribution, in-
take air control, and fan speed are also con-
trolled automatically.
1. Press the AUTO button on. (The indica- tor on the button will illuminate and
AUTO will be displayed.) 2. Operate the driver’s side temperature
control buttons.
∙ Adjust the temperature display to about 75°F (24°C) for normal operation.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution, intake air con-
trol, and fan speed are also controlled
automatically.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions as
the air is cooled rapidly. This does not
indicate a malfunction.
Dehumidified defrosting or
defogging
1. Press thefront defroster button
on. (The indicator light on the button will
come on.)
2. Operate the temperature control but- tons to set the desired temperature.
∙ To quickly remove ice from the outside of the windows, use the
fan speed
control buttons to set the fan speed to
maximum. ∙ As soon as possible after the windshield
is clean, press the AUTO button to return
to the automatic mode.
∙ When the
front defroster button is
pressed, the air conditioner will auto-
matically be turned on at outside tem-
peratures above 36°F (2°C). The air recir-
culate mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.
Remote Engine Start with
Intelligent Climate Control
(if so equipped)
Vehicles equipped with automatic climate
controls and Remote Engine Start function
may go into automatic heating or cooling
mode when Remote Engine Start is activated
depending on outside and cabin tempera-
tures. During this period, the climate control
display and buttons will be inoperable until
the ignition switch is turned on. In Remote
Engine Start defrosting mode, the rear win-
dow defroster and heated steering wheel (if
so equipped) may be activated automatically.
Monitor, climate, audio, phone and voice recognition systems4-35

Voice Recognition logic
(if so equipped)
When the climate control system is on, the
front and rear fan speeds may be automati-
cally lowered so that commands are more
easily recognized. Fan speed can be adjusted
using the fan speed decrease and increase
buttons, if desired.
MANUAL OPERATION
Fan speed control
Press thefan speed control buttons to
manually control the fan speed.
Press the AUTO button to return to auto-
matic control of the fan speed.
Temperature control
Press the temperature control buttons up or
down to set the desired temperature.
The temperature can be set within the fol-
lowing range:
∙ For U.S.: 60 to 90ºF (16 to 32ºC)
∙ For Canada: 64 to 90ºF (18 to 32ºC)
Air recirculation
Press theair recirculation button to re-
circulate interior air inside the vehicle.
The
indicator light on the button will
come on.
The air recirculation cannot be activated
when the air conditioner is in the
front
defrosting mode.
When the outside temperature exceeds 70°F
(21°C), the air conditioning system may de-
fault to air recirculation mode automatically
to reduce overall power consumption. To exit
air recirculation mode, deselect the air recir-
culation button (indicator will turn off) to en-
ter fresh air mode.
Automatic intake air control
In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, press the
air recirculation
button. To return to the automatic control
mode, press and hold the
air recircula-
tion button for about 2 seconds. The indica-
tor light will flash twice, and then the intake
air will be controlled automatically.
Air flow control
Press thebutton to manually control
air flow. Pressing the button repeatedly will
cycle through the available modes and dis-
play the corresponding icon on the center
display:
— Air flows from center and side
vents.
— Air flows from center and sidevents and foot outlets.
— Air flows mainly from footoutlets.
— Air flows from defroster andfoot outlets.
To turn system off
Press the OFF button.
CLIMATE button
Press the CLIMATE button on the control
panel to display the screen for front air con-
ditioner operations.
Rear window and outside mirror
defroster switch
For additional information, refer to “Rear
window and outside mirror defroster switch”
in the “Instruments and controls” section of
this manual.
4-36Monitor, climate, audio, phone and voice recognition systems

CLIMATE SETTING SCREEN
Climate control settings can be changed on
the screen.
Press the CLIMATE button on the control
panel and turn the display to the Climate
mode.
Heating (A/C off)
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Press the CLIMATE button.
2. If the CLIMATE screen is displayed and the A/C indicator is on, press the soft-
touch A/C button to turn A/C off.
3. Press the temperature control button to set the desired temperature.
∙ The temperature of the passenger com- partment will be maintained automati-
cally. Air flow distribution and fan speed
are also controlled automatically.
∙ Do not set the temperature lower than the outside air temperature or the system
may not work properly.
∙ This procedure is not recommended if windows fog up.
When the outside temperature decreases to
approximately 32°F (0°C), the A/C function
does not activate even if the “A/C” indicator
light illuminates.
Dual control mode setting
Press the DUAL button on the control panel
to activate dual climate control functions.
Or, you can individually set the driver and
front passenger side temperature using each
temperature control button. 1. Press the CLIMATE button.
2. By touching the “DUAL” key, or when the passenger side temperature control but-
ton or manual air control button is
pressed, the “DUAL” indicator on the
screen will illuminate.
3. To turn off the passenger side tempera- ture control, touch the “DUAL” key and
the “DUAL” indicator will turn off.
∙ The Dual control mode cannot be acti- vated when the air conditioner is in the
front defrosting mode.
Advanced Climate Control System
(ACCS) (if so equipped)
The Advanced Climate Control System
(ACCS) keeps the air inside of the vehicle
clean, using the ion control and the automatic
air intake control with exhaust gas detecting
sensor.
LHA4425
4-38Monitor, climate, audio, phone and voice recognition systems

Ion control (if so equipped)
This unit generates highly concentrated Plas-
macluster® ions into the air blown from the
vents and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster® ions auto-
matically.
The amount of Plasmacluster® ions in-
creases according to the amount of air flow.
When the air flow is high,
is displayed
on the screen and when the air flow is low,
the indication in the screen changes to
. Plasmacluster® and Plasmacluster® ion are
registered trademarks of Sharp Corporation.
Exhaust gas/outside odor detection sensor
(if so equipped)
This vehicle may be equipped with an exhaust
gas detection sensor. When the automatic
intake air control is ON, the sensor detects
industry odors such as pulp or chemicals, and
exhaust gas such as gasoline or diesel. When
such odors or gas are detected, the system
automatically changes from the outside air
circulation mode to the recirculation mode.
When the intake air control button is pressed
under the following conditions, the indicator
light on the
button will illuminate and
the exhaust gas detection sensor will turn on.
∙ The air flow control is not in the front defroster mode (the indicator light on
the
front defroster button is turned
off).
∙ The outside temperature is about 32°F (0°C) or more. When the automatic intake air control is ON,
for the first 5 minutes, the recirculation mode
is selected to prevent dust, dirt and pollen
from entering the vehicle and cleans the air
inside of the vehicle with positive and nega-
tive ions that are emitted from the vent.
After the 5 minutes, the sensor detects ex-
haust gas and automatically alternates be-
tween the recirculation mode and outside air
circulation mode.
LHA4305
Monitor, climate, audio, phone and voice recognition systems4-39

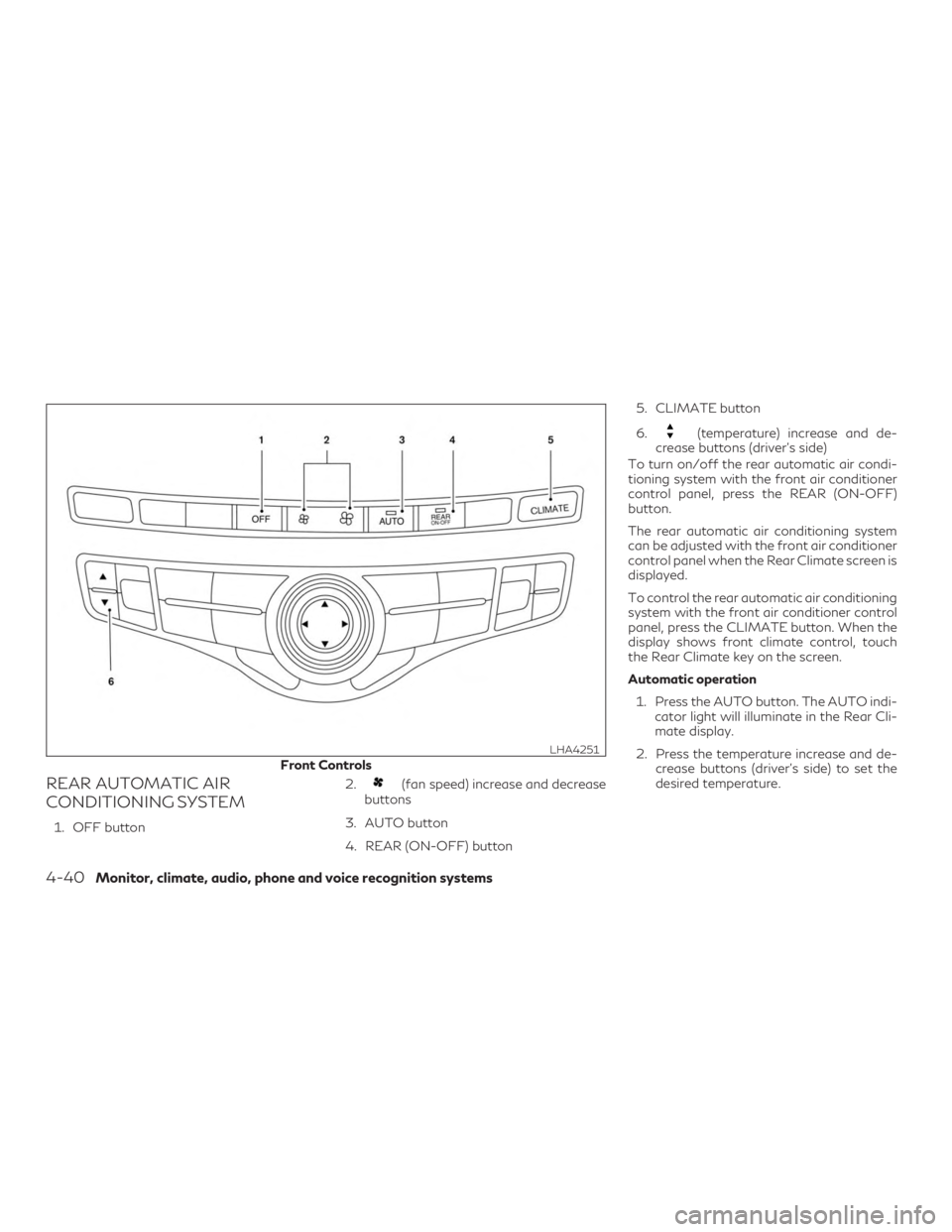

REAR AUTOMATIC AIR
CONDITIONING SYSTEM
1. OFF button2.
(fan speed) increase and decrease
buttons
3. AUTO button
4. REAR (ON-OFF) button 5. CLIMATE button
6.
(temperature) increase and de-
crease buttons (driver’s side)
To turn on/off the rear automatic air condi-
tioning system with the front air conditioner
control panel, press the REAR (ON-OFF)
button.
The rear automatic air conditioning system
can be adjusted with the front air conditioner
control panel when the Rear Climate screen is
displayed.
To control the rear automatic air conditioning
system with the front air conditioner control
panel, press the CLIMATE button. When the
display shows front climate control, touch
the Rear Climate key on the screen.
Automatic operation
1. Press the AUTO button. The AUTO indi- cator light will illuminate in the Rear Cli-
mate display.
2. Press the temperature increase and de- crease buttons (driver’s side) to set the
desired temperature.
Front Controls
LHA4251
4-40Monitor, climate, audio, phone and voice recognition systems

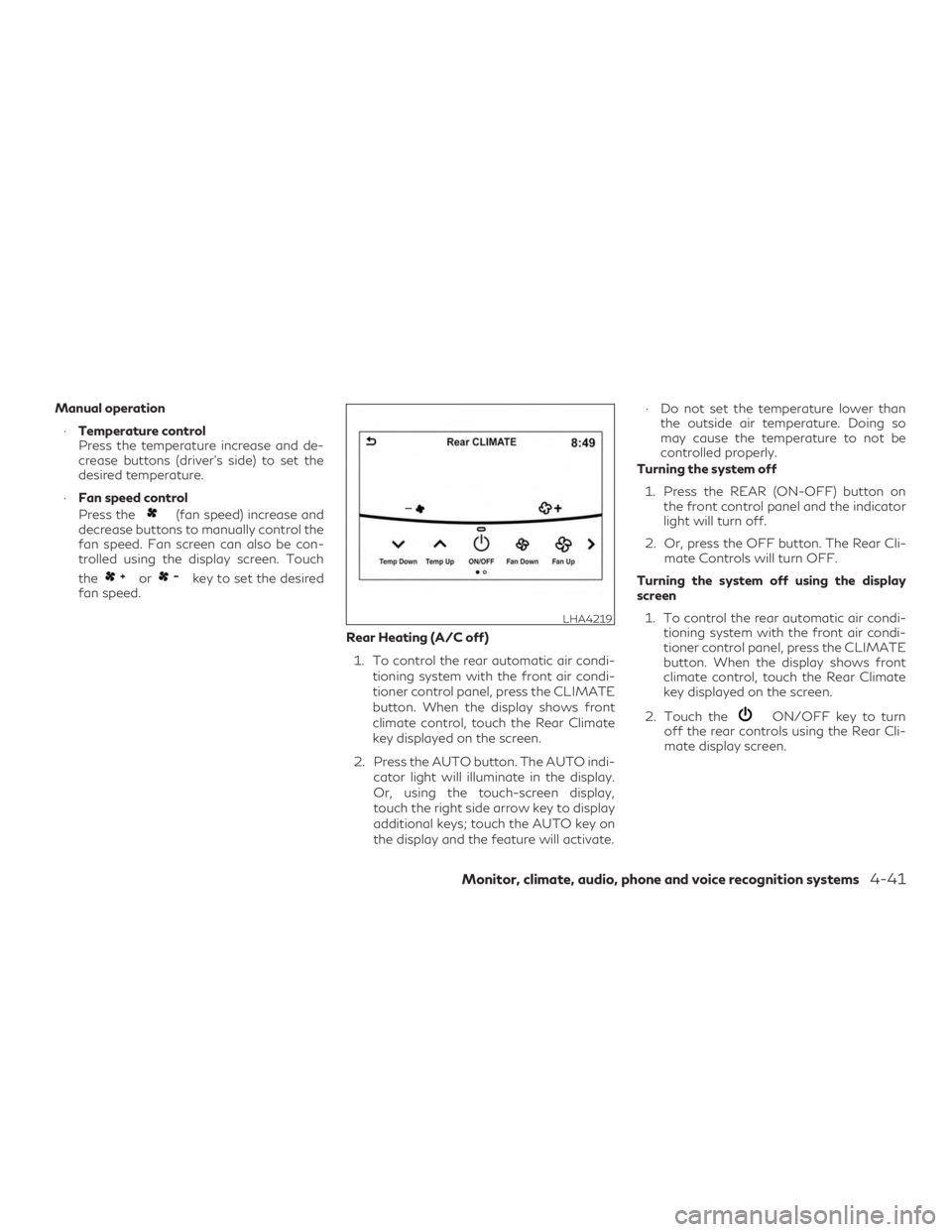

Manual operation∙ Temperature control
Press the temperature increase and de-
crease buttons (driver’s side) to set the
desired temperature.
∙ Fan speed control
Press the
(fan speed) increase and
decrease buttons to manually control the
fan speed. Fan screen can also be con-
trolled using the display screen. Touch
the
orkey to set the desired
fan speed.
Rear Heating (A/C off)1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Press the AUTO button. The AUTO indi- cator light will illuminate in the display.
Or, using the touch-screen display,
touch the right side arrow key to display
additional keys; touch the AUTO key on
the display and the feature will activate. ∙ Do not set the temperature lower than
the outside air temperature. Doing so
may cause the temperature to not be
controlled properly.
Turning the system off
1. Press the REAR (ON-OFF) button on the front control panel and the indicator
light will turn off.
2. Or, press the OFF button. The Rear Cli- mate Controls will turn OFF.
Turning the system off using the display
screen 1. To control the rear automatic air condi- tioning system with the front air condi-
tioner control panel, press the CLIMATE
button. When the display shows front
climate control, touch the Rear Climate
key displayed on the screen.
2. Touch the
ON/OFF key to turn
off the rear controls using the Rear Cli-
mate display screen.
LHA4219
Monitor, climate, audio, phone and voice recognition systems4-41
