Page 16 of 540
VQ35DD engine
1. Power steering fluid reservoir(P. 8-9)
2. Engine coolant reservoir (P. 8-4)
3. Drive belt location (P. 8-15)
4. Fuse box (P. 8-20)
5. Engine oil filler cap (P. 8-6)
6. Brake fluid reservoir (P. 8-10)
7. Air cleaner (P. 8-16)
8. Fuse box (P. 8-20)
9. Fuse/Fusible link box (P. 8-20)
10. Battery (P. 8-12)
11. Engine oil dipstick (P. 8-6)
12. Radiator cap (P. 8-4)
13. Windshield-washer fluid reservoir
(P. 8-11)
Refer to the page number indicated in paren-
theses for operating details.
LDI3238
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents
Page 441 of 540
VQ35DD engine
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box
5. Engine oil filler cap
6. Brake fluid reservoir
7. Air cleaner
8. Fuse box
9. Fuse/Fusible link box
10. Battery
11. Engine oil dipstick
12. Radiator cap
13. Windshield-washer fluid reservoir
NOTE:
Some engine covers removed for clarity.
LDI3238
ENGINE COMPARTMENT CHECK
LOCATIONS
Do-it-yourself8-3
Page 458 of 540
If any electrical equipment does not operate,
check for an open fuse.
Fuses are used in the passenger and engine
compartment. Spare fuses are provided and
can be found in the passenger compartment
fuse box.
When installing a fuse make sure the fuse is
installed in the fuse box securely.ENGINE COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electrical
system or electronic control units or cause a
fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the head- light switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing
the tab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse
block in the passenger compartment.
LDI2385LDI3117
FUSES
8-20Do-it-yourself

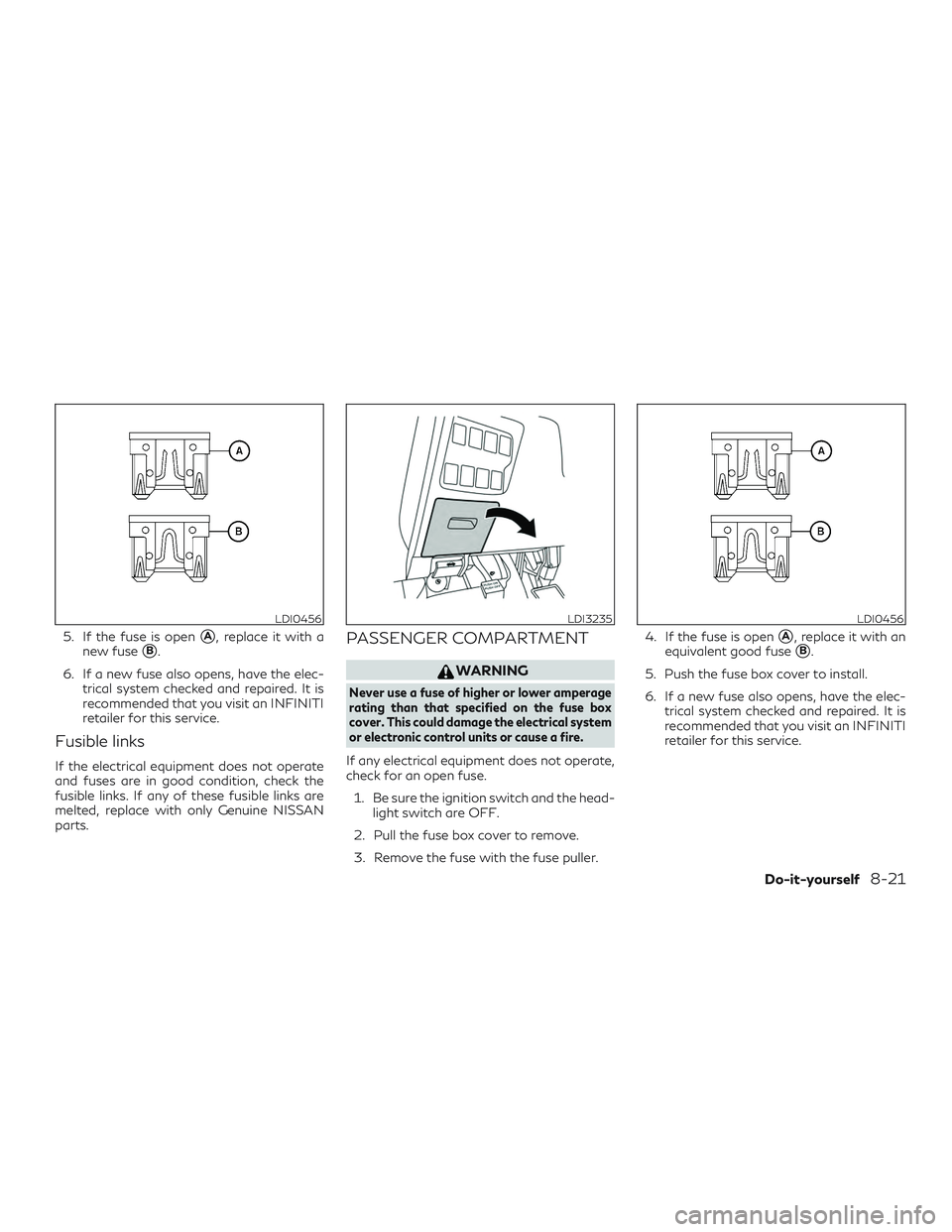

Page 459 of 540
5. If the fuse is openA, replace it with a
new fuse
B.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit an INFINITI
retailer for this service.
Fusible links
If the electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace with only Genuine NISSAN
parts.
PASSENGER COMPARTMENT
WARNING
Never use a fuse of higher or lower amperage
rating than that specified on the fuse box
cover. This could damage the electrical system
or electronic control units or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch and the head- light switch are OFF.
2. Pull the fuse box cover to remove.
3. Remove the fuse with the fuse puller. 4. If the fuse is open
A, replace it with an
equivalent good fuse
B.
5. Push the fuse box cover to install.
6. If a new fuse also opens, have the elec- trical system checked and repaired. It is
recommended that you visit an INFINITI
retailer for this service.
LDI0456LDI3235LDI0456
Do-it-yourself8-21
Page 529 of 540
Frontseats....................1-2
FuelCapacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-130
Fuel-filler door and cap ..........3-29
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation ...........10-3
Loose fuel cap warning ..........2-28
Fuel efficient driving tips ..........5-128
Fuel-filler door .................3-28
Fuel gauge ....................2-7
Fuses......................8-20
Fusiblelinks...................8-21
G
Garage door opener, HomeLink® Universal
Transceiver....2-73,2-74,2-75,2-76,2-76, 2-77
Gascap.....................3-29
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer .................2-6
Trip odometer ................2-5
General maintenance ..............9-2
Glovebox....................2-58
Gloveboxlock.................2-58 H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ...........2-40
Headlights ...................8-24
Head restraints .................1-12
Heated 2nd row seat switches .......2-48
Heated seats ..................2-46
Heated seat switches .............2-47
Heated steering wheel ............2-49
Heater Heater and air conditioner (automatic)
(if so equipped) ...........4-34,4-43
Heater and air conditioner
controls...............4-35,4-44
Heater operation ..........4-36,4-45
Heater and air conditioner
(automatic) ...............4-34,4-43
Hill start assist system ............5-139
HomeLink® Universal Transceiver .2-73, 2-74, 2-75, 2-76, 2-76, 2-77
Hood .......................3-22
Hook Luggage hook ...............2-62
Horn.......................2-46
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-16
Important vehicle information label ....10-11
In-cabin microfilter ..............8-17 Increasing fuel economy
..........5-130
Indicator lights and audible reminders
(See warning/indicator lights and
audiblereminders)......... 2-8, 2-9, 2-13
INFINITI Drive Mode Selector ........5-24
INFINITI Intelligent Key System .....3-2, 3-7
INFINITI InTouch™ Owner's Manual .....4-2
INFINITI Vehicle Immobilizer
System ............... 2-34, 3-4, 5-16
Inside automatic anti-glare mirror .....3-34
Instrument brightness
control ........2-44
Instrument panel .............0-6,2-2
Instrument panel dimmer switch ......2-44
Intelligent All-Wheel Drive (AWD) .....5-130
Intelligent Cruise Control (ICC) .......5-78
Intelligent Key system Key operating range ............3-9
Keyoperation ...............3-10
Mechanical key ...............3-3
Remote keyless entry operation .....3-13
Troubleshooting guide ..........3-17
Warningsignals ..............3-17
Interiorlight...................2-71
ISOFIX child restraints ............1-30
J
Jump starting ..............6-11,8-15
K
Key.........................3-2
Key fob battery replacement ........8-22
11-3
