OUTSIDE MIRRORS
The outside mirror remote control will oper-
ate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the left or
right mirror. Adjust each mirror to the desired
position using the large switch
2. Move the
small switch
1to the center (neutral) posi-
tion to prevent accidentally moving the mir-
ror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
∙ Do not adjust the mirrors while driving. You could lose control of your vehicle and
cause an accident.
Power folding outside mirrors
CAUTION
∙ Do not touch the mirrors while they aremoving. Your hand may be pinched, and
the mirror may malfunction.
∙ Do not drive with the mirrors stored. You will be unable to see behind the vehicle.
Push the switch
2to open the mirrors or the
switch
1to close the mirrors.
LPD2269LPD2303
Pre-driving checks and adjustments3-35

If one of the mirrors are manually operated or
bumped, the mirror body can become loose
at the pivot point. To correct electronic mirror
operation, cycle the mirrors by pushing the
switch
1until completely closed, then push
the switch
2until the mirrors are in the open
position.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both
outside mirror surfaces downward to provide
better rear visibility close to the vehicle when
the mirror control switch is in either the L or R
position.
The mirrors automatically return to their
original position when you shift out of R (Re-
verse).
The outside mirror surfaces will return to
their original position when one of the fol-
lowing conditions has occurred:
∙ The shift lever is moved to any position other than R (Reverse).
∙ The outside mirror control switch is set to the neutral or center position.
∙ The ignition switch is placed in the OFF position. NOTE:
If the outside mirror control switch is in the
center position, the mirror surface will NOT
turn downward when the shift lever is
moved to R (Reverse).
For additional information, refer to “Auto-
matic drive positioner” in this section.
Automatic anti-glare outside mirror
(if so equipped)
The outside mirror will automatically dim dur-
ing nighttime conditions to reduce the glare
from the headlights of trailing vehicles. The
automatic anti-glare feature operates only
when the ignition switch is placed in the ON
position.
The automatic anti-glare feature will be on
when starting the vehicle. The indicator light
on the automatic anti-glare rearview mirror
will illuminate when the automatic anti-glare
feature is operating.
For additional information, refer to “Auto-
matic anti-glare rearview mirror” in this sec-
tion.
Heated mirrors
The outside mirrors can be heated to defrost,
defog, or de-ice for improved visibility. For
additional information, refer to “Rear win-
dow and outside mirror defroster switch” in
the “Instruments and controls” section of this
manual.
3-36Pre-driving checks and adjustments

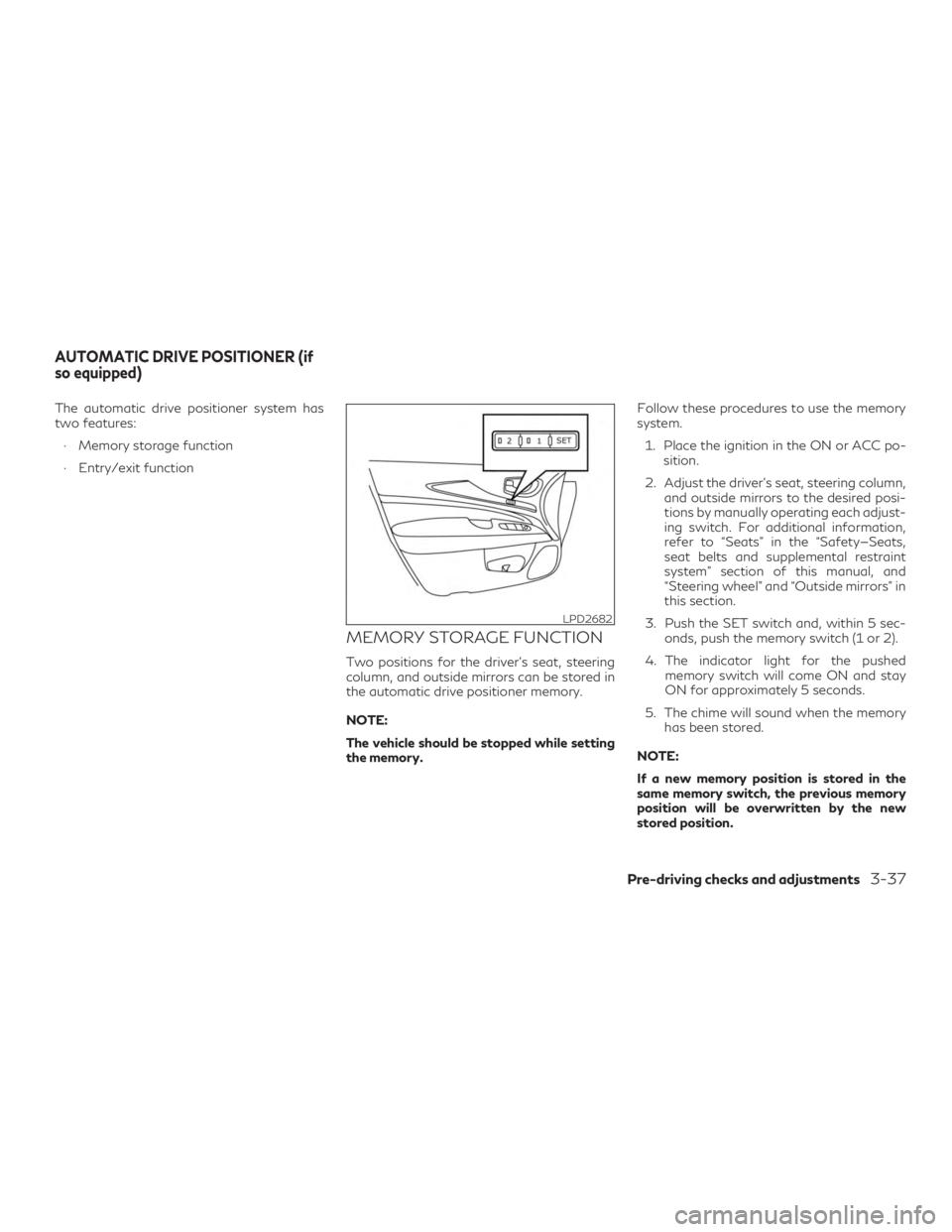

The automatic drive positioner system has
two features:∙ Memory storage function
∙ Entry/exit function
MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering
column, and outside mirrors can be stored in
the automatic drive positioner memory.
NOTE:
The vehicle should be stopped while setting
the memory. Follow these procedures to use the memory
system.
1. Place the ignition in the ON or ACC po- sition.
2. Adjust the driver’s seat, steering column, and outside mirrors to the desired posi-
tions by manually operating each adjust-
ing switch. For additional information,
refer to “Seats” in the “Safety—Seats,
seat belts and supplemental restraint
system” section of this manual, and
“Steering wheel” and “Outside mirrors” in
this section.
3. Push the SET switch and, within 5 sec- onds, push the memory switch (1 or 2).
4. The indicator light for the pushed memory switch will come ON and stay
ON for approximately 5 seconds.
5. The chime will sound when the memory has been stored.
NOTE:
If a new memory position is stored in the
same memory switch, the previous memory
position will be overwritten by the new
stored position.
LPD2682
AUTOMATIC DRIVE POSITIONER (if
so equipped)
Pre-driving checks and adjustments3-37

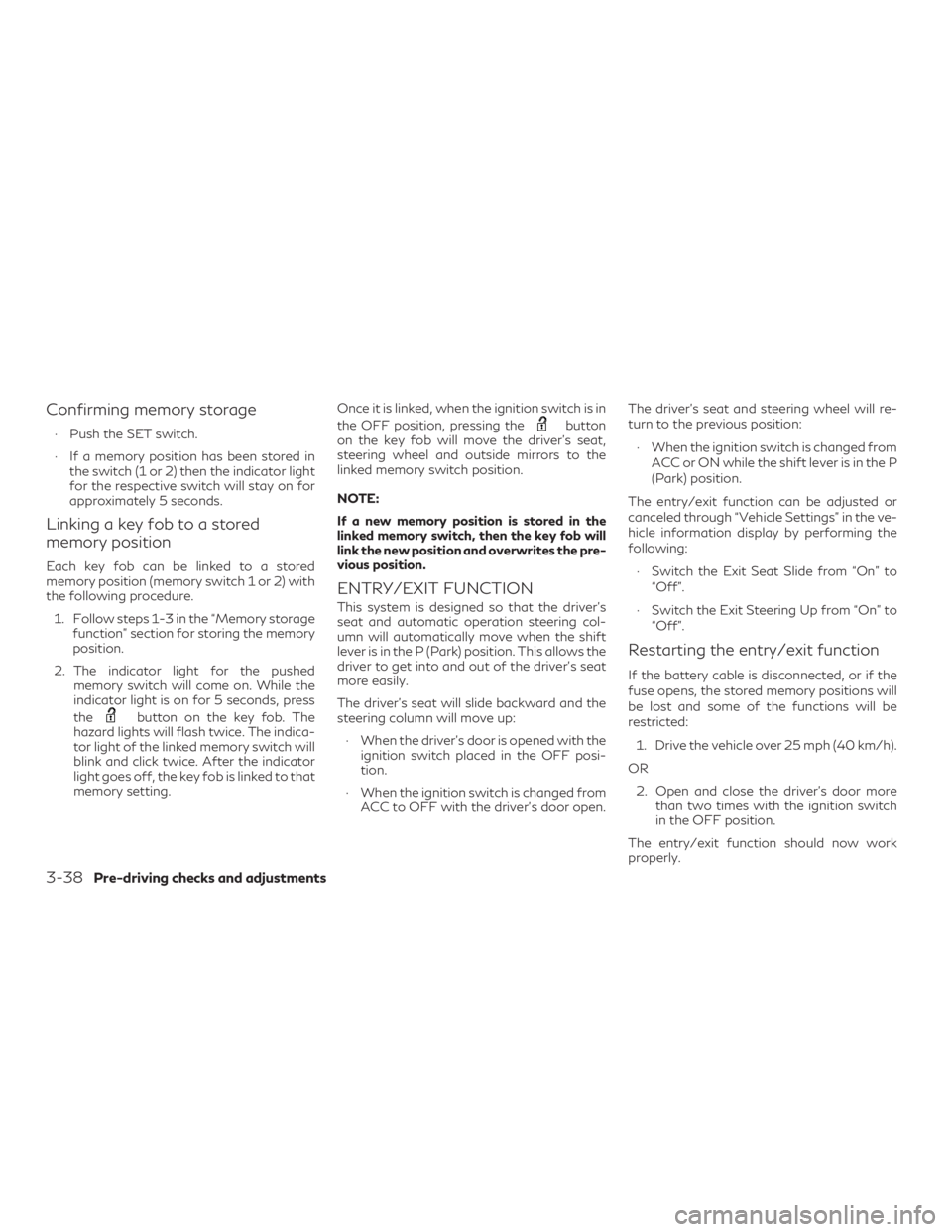

Confirming memory storage
∙ Push the SET switch.
∙ If a memory position has been stored inthe switch (1 or 2) then the indicator light
for the respective switch will stay on for
approximately 5 seconds.
Linking a key fob to a stored
memory position
Each key fob can be linked to a stored
memory position (memory switch 1 or 2) with
the following procedure.
1. Follow steps 1-3 in the “Memory storage function” section for storing the memory
position.
2. The indicator light for the pushed memory switch will come on. While the
indicator light is on for 5 seconds, press
the
button on the key fob. The
hazard lights will flash twice. The indica-
tor light of the linked memory switch will
blink and click twice. After the indicator
light goes off, the key fob is linked to that
memory setting. Once it is linked, when the ignition switch is in
the OFF position, pressing the
button
on the key fob will move the driver’s seat,
steering wheel and outside mirrors to the
linked memory switch position.
NOTE:
If a new memory position is stored in the
linked memory switch, then the key fob will
link the new position and overwrites the pre-
vious position.
ENTRY/EXIT FUNCTION
This system is designed so that the driver’s
seat and automatic operation steering col-
umn will automatically move when the shift
lever is in the P (Park) position. This allows the
driver to get into and out of the driver’s seat
more easily.
The driver’s seat will slide backward and the
steering column will move up:
∙ When the driver’s door is opened with the ignition switch placed in the OFF posi-
tion.
∙ When the ignition switch is changed from ACC to OFF with the driver’s door open. The driver’s seat and steering wheel will re-
turn to the previous position:
∙ When the ignition switch is changed from ACC or ON while the shift lever is in the P
(Park) position.
The entry/exit function can be adjusted or
canceled through “Vehicle Settings” in the ve-
hicle information display by performing the
following: ∙ Switch the Exit Seat Slide from “On” to “Off”.
∙ Switch the Exit Steering Up from “On” to “Off”.
Restarting the entry/exit function
If the battery cable is disconnected, or if the
fuse opens, the stored memory positions will
be lost and some of the functions will be
restricted:
1. Drive the vehicle over 25 mph (40 km/h).
OR 2. Open and close the driver’s door more than two times with the ignition switch
in the OFF position.
The entry/exit function should now work
properly.
3-38Pre-driving checks and adjustments

SETTING MEMORY FUNCTION
The position of the following settings can be
linked to the Intelligent Key and the memo-
rized settings can be available for each Intel-
ligent Key.∙ Climate control system
∙ Navigation system (if so equipped)
∙ Audio system
To use the memory function, set the climate,
navigation and audio systems to the driver’s
preferred settings. Lock the doors with the
Intelligent Key. Each Intelligent Key may be
set with the driver’s individual preferences.
When a new Intelligent Key is used, “Connec-
tion with the key has been done” will be dis-
played on the vehicle information display and
the memorized settings are available. To engage the memorized settings, perform
the following:
1. Carry the Intelligent Key that is linked to the memorized settings.
2. Unlock the doors by pushing the driver’s door handle request switch or the
button on the Intelligent Key.
3. Place the ignition switch in the ON posi- tion. The settings linked to the Intelligent
Key will start. .
For additional information, refer to the
INFINITI InTouch™ Owner’s Manual in the
“Monitor, climate, audio, phone and voice
recognition systems” section of this manual.
SYSTEM OPERATION
The automatic drive positioner system will
not work or will stop operating under the
following conditions:
∙ When the vehicle speed is above 4 mph (7 km/h). ∙ When any of the memory switches are
pushed while the automatic drive posi-
tioner is operating.
∙ When the switch for the driver’s seat and steering column is pushed while the au-
tomatic drive positioner is operating.
∙ When the seat has already been moved to the memorized position.
∙ When no seat position is stored in the memory switch.
∙ When the shift lever is moved from P (Park) to any other position.
Pre-driving checks and adjustments3-39

MEMO
3-40Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
INFINITI InTouchTMOwner’s Manual.............4-2
RearView Monitor (if so equipped) ................4-3
RearView Monitor system operation ...........4-4
How to read the displayed lines ................4-5
Difference between predicted and actual
distances .....................................4-5
How to park with predicted course lines ........4-7
Adjusting the screen ...........................4-9
How to turn on and off predicted course
lines ..........................................4-9
RearView Monitor system limitations ..........4-9
System maintenance ........................ 4-10
Around View® Monitor (if so equipped) ..........4-11
Around View® Monitor system operation ....4-12
Difference between predicted and actual
distances .................................... 4-17
How to park with predicted course lines ......4-18
How to switch the display ...................4-20
Around View® Monitor settings .............4-20
Adjusting the screen ......................... 4-21
Around View® Monitor system
limitations .................................. 4-22
System maintenance ........................ 4-24Camera aiding sonar (parking sensor)
(if so equipped)
................................. 4-24
Sonar system operation .....................4-25
Turning on and off the sonar function ........4-26
Sonar system limitations .....................4-27
System maintenance ........................ 4-27
Moving Object Detection (MOD)
(if so equipped) ................................. 4-28
MOD system operation ......................4-29
Turning MOD on and off ....................4-31
MOD system limitations .....................4-31
System maintenance ........................ 4-32
Vents .......................................... 4-33
Heater and air conditioner (automatic) ..........4-34
Automatic operation ........................ 4-35
Manual operation ........................... 4-36
Operating tips ............................... 4-37
CLIMATE setting screen .....................4-38
Rear automatic

air conditioning system ......4-41
Servicing air conditioner ........................ 4-44
USB/iPod® charging ports .....................4-44
Antenna ....................................... 4-45
Car phone or CB radio .......................... 4-45

Refer to the separate INFINITI InTouchTM
Owner’s Manual that includes the following
information.∙ INFINITI InTouch
TMServices
∙ Navigation system (if so equipped)
∙ Audio system
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice recognition
∙ General system information
INFINITI INTOUCHTMOWNER’S
MANUAL
4-2Monitor, climate, audio, phone and voice recognition systems

1.OFF button
LHA4728
REARVIEW MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-3

WARNING
∙ Failure to follow the warnings and in-structions for proper use of the RearView
Monitor system could result in serious in-
jury or death.
∙ RearView Monitor is a convenience fea- ture and is not a substitute for proper
backing. Always turn and look out the
windows and check mirrors to be sure
that it is safe to move before operating
the vehicle. Always back up slowly.
∙ The system is designed as an aid to the driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
∙ The distance guide line and the vehicle width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the front of the
camera. The RearView Monitor system automatically
shows a rear view of the vehicle when the
shift lever is shifted into the R (Reverse) posi-
tion. When activating the RearView Monitor,
the guide lines, the icons and the messages
may not be displayed immediately. The radio
can still be heard while the RearView Monitor
is active.
To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion to operate the RearView Monitor. When
activating the RearView Monitor, the guide
lines, the icons and the messages may not be
displayed immediately.
LHA4293
4-4Monitor, climate, audio, phone and voice recognition systems
