Lower half
Pull up on the passenger’s side latch to open
the lower half of the console box. A power
outlet is located inside the console box and
there is storage for compact discs.
OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push1and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
∙ Do not use for anything other than sunglasses.
∙ Do not leave sunglasses in the sunglasses holder while parking in direct sunlight.
The heat may damage the sunglasses.
LIC0702SIC4344
Instruments and controls2-59

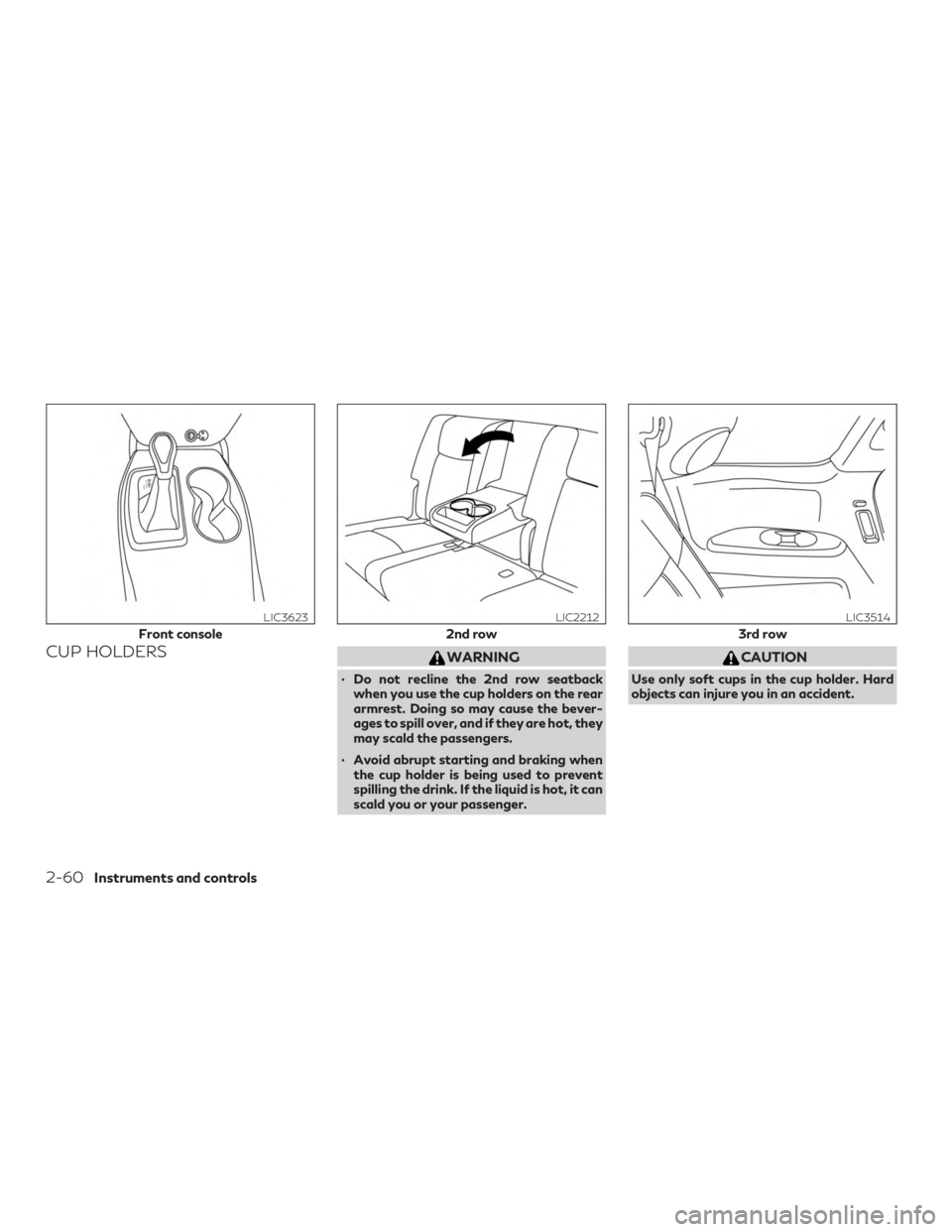

CUP HOLDERSWARNING
∙ Do not recline the 2nd row seatbackwhen you use the cup holders on the rear
armrest. Doing so may cause the bever-
ages to spill over, and if they are hot, they
may scald the passengers.
∙ Avoid abrupt starting and braking when the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it can
scald you or your passenger.
CAUTION
Use only soft cups in the cup holder. Hard
objects can injure you in an accident.
Front console
LIC3623
2nd row
LIC2212
3rd row
LIC3514
2-60Instruments and controls

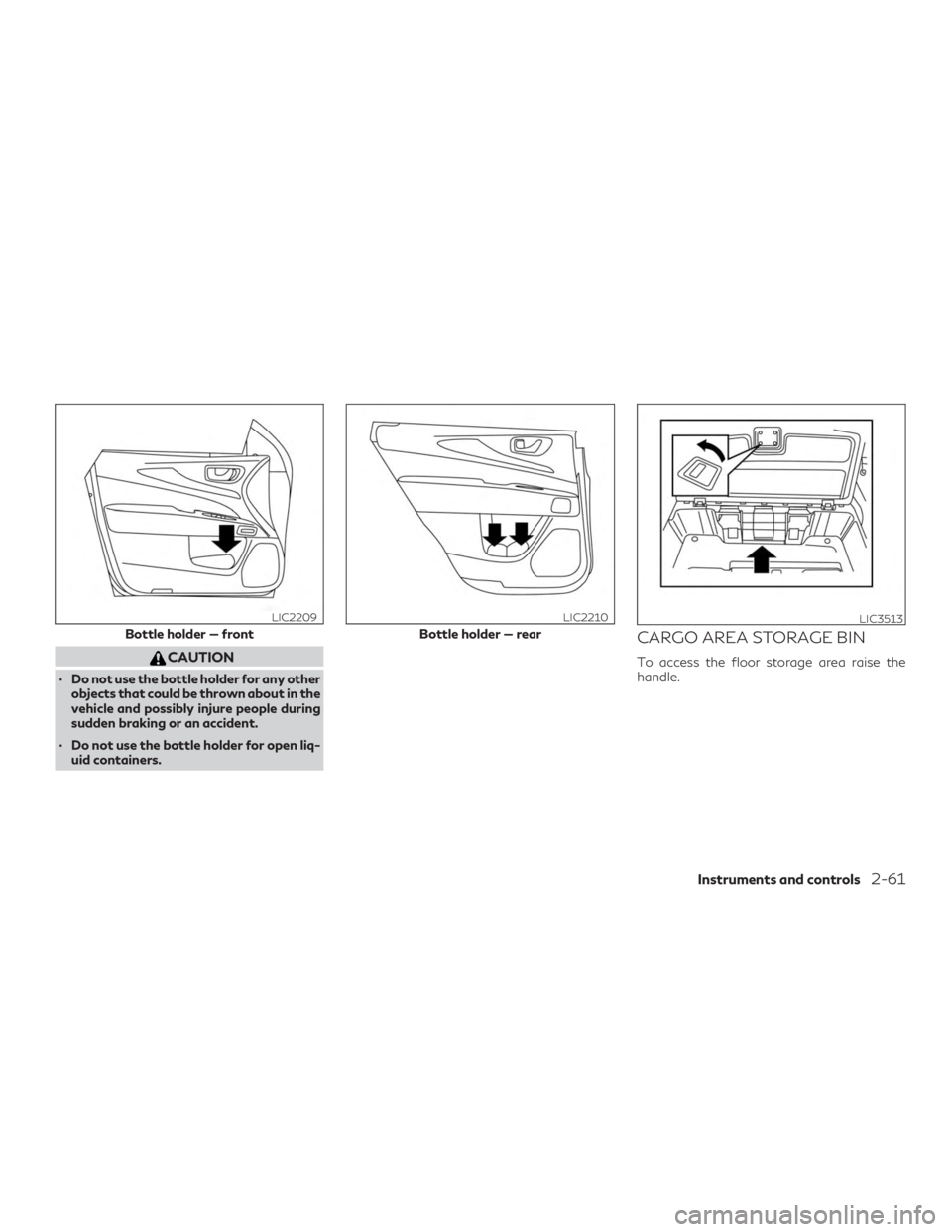

CAUTION
∙ Do not use the bottle holder for any otherobjects that could be thrown about in the
vehicle and possibly injure people during
sudden braking or an accident.
∙ Do not use the bottle holder for open liq- uid containers.
CARGO AREA STORAGE BIN
To access the floor storage area raise the
handle.
Bottle holder — front
LIC2209
Bottle holder — rear
LIC2210LIC3513
Instruments and controls2-61

LUGGAGE HOOKS
When securing items using luggage hooks
located on the side finisher do not apply a
load over more than 6.5 lbs. (29 N) to a single
hook.
The luggage hooks that are located on the
floor should have loads less than 110 lbs.
(490 N) to a single hook.
The luggage hooks can be used to secure
cargo with ropes or other types of straps.
WARNING
∙ Properly secure all cargo with ropes orstraps to help prevent it from sliding or
shifting. Do not place cargo higher than
the seatbacks. In a sudden stop or colli-
sion, unsecured cargo could cause per-
sonal injury.
∙ Use suitable ropes and hooks to secure cargo.
∙ Never allow anyone to ride in the luggage area. It is extremely dangerous to ride in a
cargo area inside of a vehicle. In a colli-
sion, people riding in these areas are more
likely to be seriously injured or killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped with
seats and seat belts.
∙ The child restraint top tether strap may be damaged by contact with items in the
cargo area. Secure any items in the cargo
area. Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
ROOF RACK (if so equipped)
WARNING
∙ Always install the crossbars onto theroof side rails before loading cargo of any
kind. Loading cargo directly onto the
roof side rails or the vehicle’s roof may
cause vehicle damage.
∙ Roof rack cross bars should be evenly distributed.
∙ Do not exceed maximum roof rack cross- bars load capacity and always distribute
the load uniformly.
LIC3684LIC4202
2-62Instruments and controls

∙ Heavy loading of the crossbars has thepotential to affect the vehicle stability
and handling during sudden or unusual
handling maneuvers.
∙ Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. In a sudden stop or collision, un-
secured cargo could cause personal
injury.
∙ Drive extra carefully when the vehicle is loaded at or near the cargo carrying ca-
pacity, especially if the significant por-
tion of that load is carried on the
crossbars.
CAUTION
∙ Use care when placing or removing itemsfrom the roof rack. If you cannot com-
fortably lift the items onto the roof rack
from the ground, use a ladder or a stool.
Do not apply any load directly to the roof side
rails
A. CrossbarsBmust be installed be-
fore applying load/cargo/luggage to the
roof of the vehicle. Genuine NISSAN/INFINITI accessory cross-
bars may be available through a
NISSAN/INFINITI dealer/retailer. It is rec-
ommended that you visit a
NISSAN/INFINITI dealer/retailer for addi-
tional information.
The service load capacity for the roof side
rails is 165 lbs. (74 kg.), however do not ex-
ceed the crossbars load capacity.
Be careful that your vehicle does not exceed
the Gross Vehicle Weight Rating (GVWR) or
its Gross Axle Weight Rating (GAWR front
and rear).
For additional information regarding GVWR
and GAWR, refer to:
∙ F.M.V.S.S. or C.M.V.S.S. certification la- bel (located on the driver’s door pillar).
POWER WINDOWS
WARNING
∙ Make sure that all passengers have theirhands, etc., inside the vehicle while it is in
motion and before closing the windows.
Use the window lock switch to prevent
unexpected use of the power windows.
∙ To help avoid risk of injury or death through unintended operation of the ve-
hicle and/or its systems, including en-
trapment in windows or inadvertent door
lock activation, do not leave children,
people who require the assistance of oth-
ers or pets unattended in your vehicle.
Additionally, the temperature inside a
closed vehicle on a warm day can quickly
become high enough to cause a signifi-
cant risk of injury or death to people and
pets.
The power windows operate when the igni-
tion switch is placed in the ON position or for
a period of time after the ignition switch is
placed in the OFF position. If the driver’s or
passenger’s door is opened during this period
of time, the power to the windows is can-
celed.
WINDOWS
Instruments and controls2-63

1. Driver side automatic switch
2. Front passenger side automaticswitch
3. Left rear passenger automatic
switch
4. Right rear passenger automatic
switch
5. Window lock button
Driver’s side power window switch
The driver’s side control panel is equipped
with switches to open or close the front and
rear passenger windows.
The window can be partially opened by push-
ing the switch
Adown lightly until the de-
sired window position is reached. To close
the window partially, pull the switch
Bup
until the desired window position is reached.
Locking passengers’ windows
When the window lock buttonCis de-
pressed, only the driver’s side window can be
opened or closed. Press it again to cancel the
window lock function.
Front passenger’s power window
switch
The passenger’s window switch operates
only the corresponding passenger’s window.
To open the window partially, push the
switch down lightly until the desired window
position is reached. To close the window par-
tially, pull the switch up until the desired win-
dow position is reached.
SIC4352SIC4353
2-64Instruments and controls

Rear power window switch
The rear power window switches open or
close only the corresponding windows. To
partially open the window, push the switch
down lightly until the desired window posi-
tion is reached. To partially close the window,
pull the switch up lightly until the desired
window position is reached.
Automatic operation
To fully open a window equipped with auto-
matic operation, push the window switch
down to the second detent and release it; it
need not be held. The window automatically
opens all the way. To stop the window, lift
the switch up while the window is opening.
To fully close a window equipped with auto-
matic operation, pull the switch up to the
second detent and release it; it need not be
held. To stop the window, push the switch
down while the window is closing.
Auto-reverse function
The auto-reverse function can be activated
when a window is closed by automatic op-
eration.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the window.
If the vehicle’s battery is disconnected, re-
placed, or jump started, the power window
auto-reverse function may not operate prop-
erly. If this occurs, it is recommended that you
visit an INFINITI retailer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught
in a window equipped with automatic opera-
tion as it is closing, the window will be imme-
diately lowered.
LIC0410LIC0410
Instruments and controls2-65

POWER MOONROOF
The moonroof will only operate when the
ignition switch is placed in the ON position.
The power moonroof is operational for a pe-
riod of time, even if the ignition switch is
placed in the ACC or OFF position. If the
driver’s door or the front passenger’s door is
opened during this period of time, the power
to the moonroof is canceled.
Sliding the moonroof
To fully open or close the moonroof, push the
switch to the open
2or close1position
and release it; it need not be held. The roof
will automatically open or close all the way. To stop the roof, push the switch once more
while it is opening or closing.
Tilting the moonroof
To tilt up, first close the moonroof, then push
the switch to the tilt up position
1and re-
lease it; it need not be held. To tilt down the
moonroof, push the switch to the tilt down
position
2.
Resetting the moonroof switch
If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system:
1. Place the ignition switch in the ON posi- tion.
2. Push and hold the moonroof tilt switch forward until the moonroof stops.
3. Release the moonroof switch.
4. Push and hold the tilt up switch within 6 seconds.
5. The roof glass will Tilt-Down, Slide- Close, Slide-Open, Slide-Close, Tilt-Up,
Tilt-Down.
6. Release the switch; initialization is com- plete if the moonroof operates normally. If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function (when
closing or tilting down the
moonroof)
The auto-reverse function can be activated
when the moonroof is closed or tilted down
by automatic operation when the ignition
switch is placed in the ON position or for a
period of time after the ignition switch is
placed in the OFF position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof.
LIC2313
MOONROOF (if so equipped)
2-66Instruments and controls

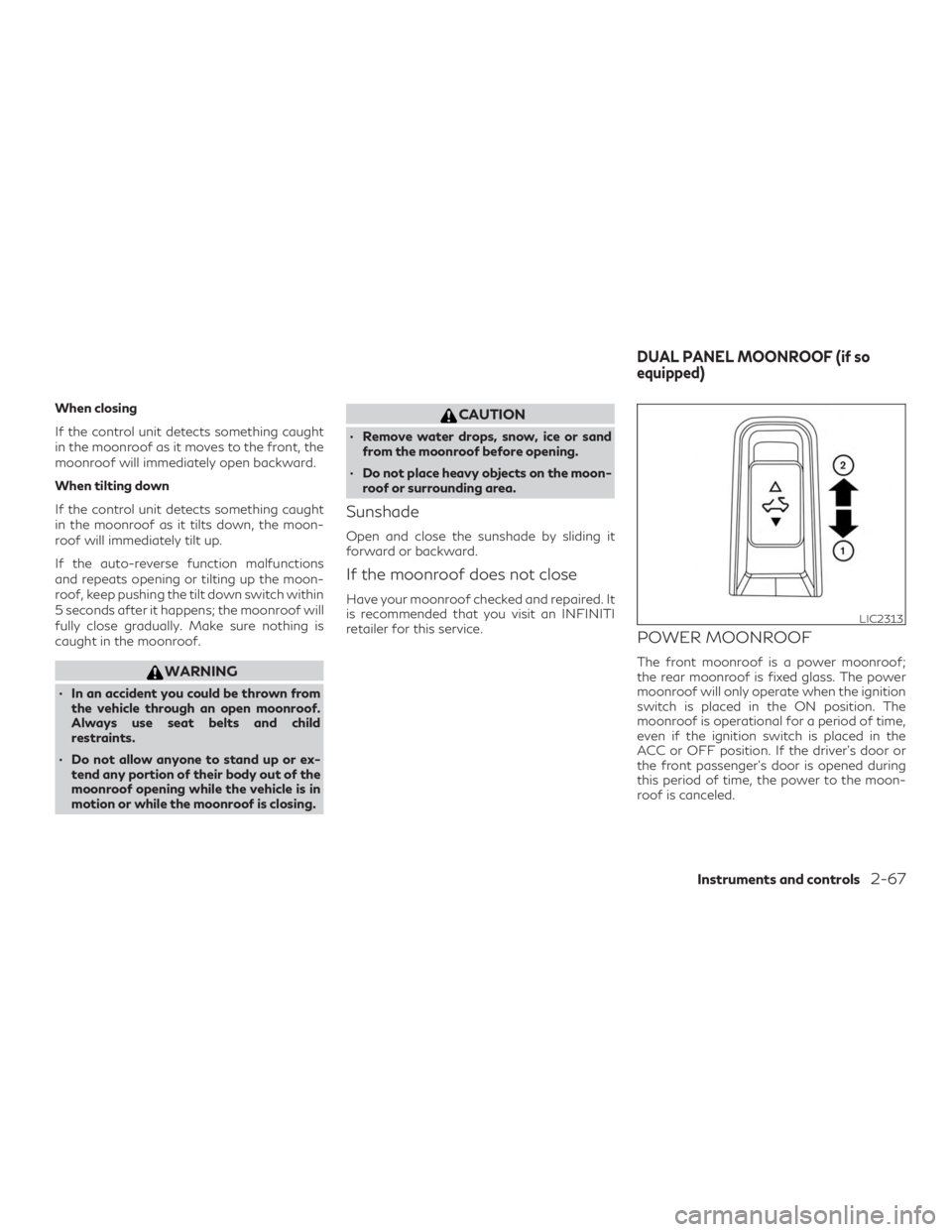

When closing
If the control unit detects something caught
in the moonroof as it moves to the front, the
moonroof will immediately open backward.
When tilting down
If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.
If the auto-reverse function malfunctions
and repeats opening or tilting up the moon-
roof, keep pushing the tilt down switch within
5 seconds after it happens; the moonroof will
fully close gradually. Make sure nothing is
caught in the moonroof.
WARNING
∙ In an accident you could be thrown fromthe vehicle through an open moonroof.
Always use seat belts and child
restraints.
∙ Do not allow anyone to stand up or ex- tend any portion of their body out of the
moonroof opening while the vehicle is in
motion or while the moonroof is closing.
CAUTION
∙ Remove water drops, snow, ice or sandfrom the moonroof before opening.
∙ Do not place heavy objects on the moon- roof or surrounding area.
Sunshade
Open and close the sunshade by sliding it
forward or backward.
If the moonroof does not close
Have your moonroof checked and repaired. It
is recommended that you visit an INFINITI
retailer for this service.
POWER MOONROOF
The front moonroof is a power moonroof;
the rear moonroof is fixed glass. The power
moonroof will only operate when the ignition
switch is placed in the ON position. The
moonroof is operational for a period of time,
even if the ignition switch is placed in the
ACC or OFF position. If the driver’s door or
the front passenger’s door is opened during
this period of time, the power to the moon-
roof is canceled.
LIC2313
DUAL PANEL MOONROOF (if so
equipped)
Instruments and controls2-67

Sliding the moonroof
To slide the moonroof:∙ To fully open the moonroof, push the switch toward the open position
2. The
sunshade and the moonroof will open.
∙ To fully close the moonroof, push the switch toward the close position
1.The
moonroof will close but the sunshade will
remain open.
∙ To open or close the moonroof part way, release the switch while the moonroof is
sliding open or closed. The moonroof will
stop at the desired position.
Tilting the moonroof
To tilt up, first close the moonroof, then push
the switch to the tilt up position
1and re-
lease it; it need not be held. To tilt down the
moonroof, push the switch to the tilt down
position
2.
Resetting the moonroof switch
If the moonroof does not operate properly,
perform the following procedure to initialize
the moonroof operation system:
1. Place the ignition switch in the ON posi- tion. 2. Push and hold the moonroof tilt switch
forward until the moonroof stops.
3. Release the moonroof switch.
4. Push and hold the tilt up switch within 6 seconds.
5. The roof glass will Tilt-Down, Slide- Close, Slide-Open, Slide-Close, Tilt-Up,
Tilt-Down.
6. Release the switch; initialization is com- plete if the moonroof operates normally.
If the moonroof does not operate properly
after performing the procedure above, have
your vehicle checked. It is recommended that
you visit an INFINITI retailer for this service.
Auto-reverse function (when
closing or tilting down the
moonroof)
The auto-reverse function can be activated
when the moonroof is closed or tilted down
by automatic operation when the ignition
switch is placed in the ON position or for a
period of time after the ignition switch is
placed in the OFF position. Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all passen-
gers have their hands, etc., inside the
vehicle before closing the moonroof.
When closing
If the control unit detects something caught
in the moonroof as it moves to the front, the
moonroof will immediately open backward.
When tilting down
If the control unit detects something caught
in the moonroof as it tilts down, the moon-
roof will immediately tilt up.
If the auto-reverse function malfunctions
and repeats opening or tilting up the moon-
roof, keep pushing the tilt down switch within
5 seconds after it happens; the moonroof will
fully close gradually. Make sure nothing is
caught in the moonroof.
2-68Instruments and controls
