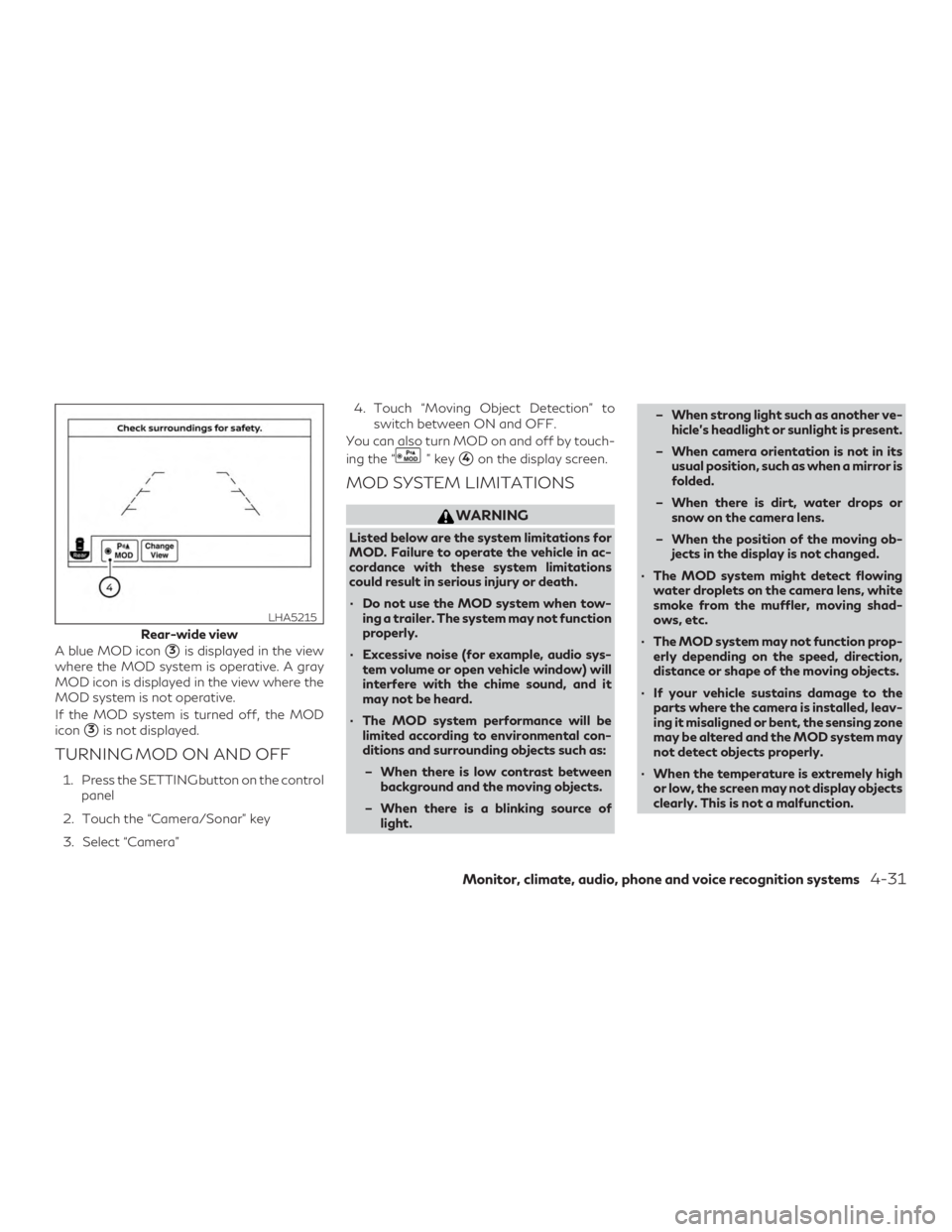

A blue MOD icon3is displayed in the view
where the MOD system is operative. A gray
MOD icon is displayed in the view where the
MOD system is not operative.
If the MOD system is turned off, the MOD
icon
3is not displayed.
TURNING MOD ON AND OFF
1. Press the SETTING button on the control panel
2. Touch the “Camera/Sonar” key
3. Select “Camera” 4. Touch “Moving Object Detection” to
switch between ON and OFF.
You can also turn MOD on and off by touch-
ing the “
” key4on the display screen.
MOD SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
MOD. Failure to operate the vehicle in ac-
cordance with these system limitations
could result in serious injury or death.
∙ Do not use the MOD system when tow- ing a trailer. The system may not function
properly.
∙ Excessive noise (for example, audio sys- tem volume or open vehicle window) will
interfere with the chime sound, and it
may not be heard.
∙ The MOD system performance will be limited according to environmental con-
ditions and surrounding objects such as:
– When there is low contrast between background and the moving objects.
– When there is a blinking source of light. – When strong light such as another ve-
hicle’s headlight or sunlight is present.
– When camera orientation is not in its usual position, such as when a mirror is
folded.
– When there is dirt, water drops or snow on the camera lens.
– When the position of the moving ob- jects in the display is not changed.
∙ The MOD system might detect flowing water droplets on the camera lens, white
smoke from the muffler, moving shad-
ows, etc.
∙ The MOD system may not function prop- erly depending on the speed, direction,
distance or shape of the moving objects.
∙ If your vehicle sustains damage to the parts where the camera is installed, leav-
ing it misaligned or bent, the sensing zone
may be altered and the MOD system may
not detect objects properly.
∙ When the temperature is extremely high or low, the screen may not display objects
clearly. This is not a malfunction.
Rear-wide view
LHA5215
Monitor, climate, audio, phone and voice recognition systems4-31

∙ Always secure items in the trailer to pre-vent load shift while driving.
∙ Keep the cargo load as low as possible in the trailer to keep the trailer center of
gravity low.
∙ Load the trailer so approximately 60% of the trailer load is in the front half and
40% is in the back half. Also make sure
the load is balanced side to side.
∙ Check your hitch, trailer tire pressure, ve- hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
∙ Be certain your rearview mirrors conform to all federal, state or local regulations. If
not, install any mirrors required for tow-
ing before driving the vehicle.
∙ Determine the overall height of the ve- hicle and trailer so the required clearance
is known.Trailer towing tips
In order to gain skill and an understanding of
the vehicle’s behavior, you should practice
turning, stopping and backing up in an area
which is free from traffic. Steering stability
and braking performance will be somewhat
different than under normal driving condi-
tions.
∙ Always secure items in the trailer to pre- vent load shift while driving.
∙ Lock the trailer hitch coupler with a pin or lock to prevent the coupler from inadver-
tently becoming unlatched.
∙ Avoid abrupt starts, acceleration or stops.
∙ Avoid sharp turns or lane changes.
∙ Always drive your vehicle at a moderate speed.
∙ When backing up, hold the bottom of the steering wheel with one hand. Move your
hand in the direction in which you want
the trailer to go. Make small corrections
and back up slowly. If possible, have
someone guide you when you are back-
ing up. Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift selector to the P
(Park) position before blocking the wheels
and applying the parking brake, transmis-
sion damage could occur.
1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer
wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the
blocks absorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park).
6. Turn off the engine.
To drive away: 1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake.
Technical and consumer information10-27

11 Index
2nd row bench seat adjustment.......1-8
A
Air bag (See supplemental restraint
system).....................1-50
Air bag system Front (See supplemental front impact
airbagsystem) ..............1-57
Air bag warning labels ............1-68
Airbagwarninglight.........1-69,2-12
Air bag warning light,
supplemental ..............1-69,2-12
Air cleaner ...................8-16
Air cleaner housing filter ...........8-16
Air conditioner Air conditioner operation ........4-35
Air conditioner specification label . .10-12
Air conditioner system refrigerant
and oil recommendations ........10-7
Heater and air conditioner (automatic)
(if so equipped) ..............4-34
Heater and air conditioner controls . .4-35
Servicing air conditioner .........4-44
Alarm system (See vehicle
security system) ................2-32
Anchor point locations ............1-33
Antenna ....................4-45
Antifreeze ..................5-147
Anti-lock brake warning light .........2-9
Anti-lock Braking System (ABS) .....5-138
Armrests.....................1-8 Around View® Monitor
...........4-11
Audible reminders ...............2-15
Autolight switch ...............2-40
Automatic Automatic drive positioner . . .3-37, 3-39
Automatic power window switch . . .2-65
Automatic anti-glare inside mirror .....3-33
Automatic door locks .............3-6
Automatic drive positioner .....3-37,3-39
B
Backup Collision Intervention (BCI) ....5-60
Battery ................5- 147, 8-13
Charge warning light ...........2-9
Battery replacement .............8-22
INFINITI Intelligent Key .........8-22
Keyfob...................8-22
Before starting the engine ..........5-17
Belt (See drive belt) ..............8-15
Blind Spot Intervention® (BSI) .......5-48
Blind Spot Warning (BSW) .........5-38
Boosterseats.................1-47
Brake Anti-lock Braking System (ABS) . . .5-138
Brakefluid.................8-11
Brakelight(Seestoplight) .......8-24
Brake system ..............5-138
Brakewarninglight ............2-9
Brakewearindicators ......2-15,8-19
Parking brake operation .........5-23
Self-adjusting brakes ..........8-19 Brake Assist
.................5-139
Brakefluid...................8-11
Brakes .....................8-19
Brake system ................5-138
Break-in schedule ..............5-131
Brightness control Instrument panel .............2-44
Bulb check/instrument panel .........2-8
Bulb replacement ............... 8-24
C
Camera Aiding Sonar (parking sensor) . .4-24
Capacities and recommended fuel/
lubricants ...................10-2
Cargoareastoragebin ...........2-61
Cargolight...................2-72
Cargo (See vehicle loading
information).................10-13
Car phone or CB radio ............4-45
Check tire pressure ..............2-28
Child restraints .....1-26,1-26,1 -28, 1-30
LATCH (Lower

Anchors and Tethers
for CHildren) System ...........1-30
Precautions on child
restraints .......1-29,1-36,1 -42, 1-47
Top tether strap anchor point
locations..................1-33
Child restraint with top tether strap . . . .1-33
Child safety rear door lock ..........3-7
Chimes, audible reminders ..........2-15
Cleaning exterior and interior ......7-2, 7-4

Changing engine oil filter..........8-6
Checking engine oil level ..........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation ..............10-6
Engine oil viscosity ............10-7
Outside mirrors ................3-35
Overhead sunglasses holder .........2-59
Overheat If your vehicle overheats .........6-13
Owner's manual order form ........10-34
Owner's manual/service manual
orderinformation..............10-34
P
Parking Parking brake operation .........5-23
Parking/parking on hills .........5-136
Parkingbrake..................5-23
Personal lights .................2-72
Power Power door locks ..............3-6
Power outlet ............2-53,2-55
Power rear windows ...........2-65
Power steering fluid ............8-10
Power steering system .........5-137
Power windows ..............2-63
Rear power windows ...........2-65
Power inverter switch .............2-52
Power outlet ..............2-53,2-55
Power steering ................5-137
Power steering fluid ..............8-10
Precautions Maintenance precautions .........8-2On-pavement and off-road driving
precautions
..................5-9
Precautions on booster
seats..........1-29,1-36,1-42,1-47
Precautions on child
restraints .......1-29,1-36,1-42,1-47
Precautionsonseatbeltusage .....1-17
Precautions on supplemental
restraint system ..............1-50
Precautions when starting
and driving ..............5-4,5-11
Predictive Forward Collision
Warning(PFCW)...............5-119
Push starting ..................6-13
R
Radio Car phone or CB radio ..........4-45
Rainsensor...................2-37
Readiness for inspection maintenance
(I/M)test...................10-32
Rear Cross Traffic Alert (RCTA) .......5-69
Rear Door Alert .........2-31,2-32,2-51
Rear power windows .............2-65
RearView Monitor ...............4-3
Rear window and outside mirror
defroster switch ................2-39
Rear window wiper and washer
switches .....................2-38
Recommended Fluids .............10-2
Recorders Event Data ................10-33
Refrigerant recommendation ........10-7Registering a vehicle in
anothercountry...............10-10
Remote Engine Start
.........3-19,5-18
Reporting safety defects (US only) ....10-31
Roadside assistance program .........6-2
Roof rack ....................2-62
S
Safety Child safety rear door lock .........3-7
C h

ildseatbelts....1-29,1-36, 1-42, 1-47
Reporting safety defects (US only) . .10-31
Seat adjustment Front power seat adjustment .......1-3
Rear seat adjustment ............1-5
Second row bench seats ..........1-8
Seatback pockets ............... 2-57
Seat belt Childsafety.................1-26
Infantsandsmallchildren ........1-26
Injured Person ...............1-20
Largerchildren...............1-27
Precautionsonseatbeltusage .....1-17
Pregnant women .............1-20
Seat belt extenders ............1-25
Seat belt maintenance ..........1-25
Seat belts ...............1 -17, 7-7
Three-point type with retractor .....1-21
Seat belt extenders ..............1-25
Seat belt warning light ........1-20,2-12
Seats 2nd row bench seat adjustment .....1-8
Adjustment ..................1-2
Armrests ...................1-8
