∙ Severe weather or road spray conditionsmay reduce the ability of the radar to de-
tect other vehicles.
∙ The camera may not detect lane markers in the following situations and the BSI
system may not operate properly.
– On roads where there are multiple parallel lane markers; lane markers
that are faded or not painted clearly;
yellow painted lane markers; non-
standard lane markers; lane markers
covered with water, dirt, snow, etc.
– On roads where discontinued lane markers are still detectable.
– On roads where there are sharp curves.
– On roads where there are sharply con- trasting objects, such as shadows,
snow, water, wheel ruts, seams or
lines remaining after road repairs.
– On roads where the traveling lane merges or separates.
– When the vehicle’s traveling direction does not align with the lane markers. – When traveling close to the vehicle in
front of you, which obstructs the lane
camera unit detection range.
– When rain, snow or dirt adheres to the windshield in front of a lane camera
unit.
– When the headlights are not bright due to dirt on the lens or if aiming is
not adjusted properly.
– When strong light enters a lane cam- era unit. (For example: light directly
shines on the front of the vehicle at
sunrise or sunset.)
– When a sudden change in brightness occurs. (For example: when the vehicle
enters or exits a tunnel or under a
bridge.)
∙ Do not use the BSI system under the fol- lowing conditions because the system
may not function properly.
– During bad weather (for example: rain, fog, snow, etc.).
– When driving on slippery roads, such as on ice or snow, etc.
– When driving on winding or uneven roads. – When there is a lane closure due to
road repairs.
– When driving in a makeshift lane.
– When driving on roads where the lane width is too narrow.
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, nonstandard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BSI systems when towing a trailer.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
Starting and driving5-53

– IllustrationD: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ The sonar sensors detect stationary ob- jects behind the vehicle. The sonar sensor
may not detect:
– Small or moving objects
– Wedge-shaped objects
– Objects close to the bumper (less than approximately 1 ft [30 cm]) – Thin objects such as rope, wire and
chain, etc.
∙ The brake engagement by the BCI system is not as effective on a slope as it is on flat
ground. When on a steep slope the sys-
tem may not function properly.
∙ Do not use the BCI system under the fol- lowing conditions because the system
may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BCI system when towing a trailer.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the ve-
hicle information display, a chime will sound
and the BCI system will be turned off auto-
matically:
∙ “Unavailable: High Accelerator Temp.”: If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then
started, the BCI system may be deacti-
vated automatically and the “Unavailable:
High Accelerator Temp” message will ap-
pear in the vehicle information display for
a period of time.
When the interior temperature is re-
duced, turn off the BCI system and turn it
on again.
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
When the blockage is removed, turn off
the BCI system and turn it on again.
Starting and driving5-67

– IllustrationC: When the vehicle is
parked on inclined ground.
– Illustration
D: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/snow/dirt build-up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard. NOTE:
In the case of several vehicles approaching in
a row (Illustration 1) or in the opposite direc-
tion (Illustration 2), a chime may not be
sounded by the RCTA system after the first
vehicle passes the sensors.
Illustration 1
LSD2043
Illustration 2
LSD2044
Starting and driving5-75

Action to take
When the conditions listed above are no lon-
ger present, turn the system off using the
CRUISE ON/OFF switch. Turn the ICC sys-
tem back on to use the system.
Condition B
When the radar sensor area of the front
bumper is covered with dirt or is obstructed,
the ICC system will automatically be can-
celed. If the sensor area is covered with ice, a
transparent or translucent vinyl bag, etc., the
ICC system may not detect vehicles ahead. In
these instances, the ICC system may not can-
cel and may not be able to maintain the se-
lected following distance from the vehicle
ahead. Be sure to check and clean the sensor
area.
The system warning light (orange) will illumi-
nate and the “Unavailable: Front Radar Ob-
struction” warning message will appear in the
vehicle information display.Action to take
If the warning light (orange) comes on, park
the vehicle in a safe location and turn the
engine off. Check to see if the radar sensor
window is blocked. If the radar sensor win-
dow is blocked, remove the blocking material.
Restart the engine. If the warning light con-
tinues to illuminate, have the ICC system
checked. It is recommended that you visit an
INFINITI retailer for this service.
Condition C
When the ICC system is not operating prop-
erly, a chime sounds and the system warning
light (orange) will come on.Action to take
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart
the engine, resume driving and set the ICC
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the ve-
hicle is still drivable under normal conditions,
have the vehicle checked. It is recommended
that you visit an INFINITI retailer for this
service.
LSD2797LSD2175
5-98Starting and driving

3.Use Air Conditioning (A/C) at Higher
Vehicle Speeds
∙ Below 40 mph (64 km/h), it is more efficient to open windows to cool the
vehicle due to reduced engine load.
∙ Above 40 mph (64 km/h), it is more efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
∙ Recirculating the cool air in the cabin when the A/C is on reduces cooling
load.
4. Drive at Economical Speeds and Dis-
tances
∙ Observing the speed limit and not ex- ceeding 60 mph (97 km/h) (where le-
gally allowed) can improve fuel effi-
ciency due to reduced aerodynamic
drag.
∙ Maintaining a safe following distance behind other vehicles reduces unnec-
essary braking.
∙ Safely monitoring traffic to anticipate changes in speed permits reduced
braking and smooth acceleration
changes.
∙ Select a gear range suitable to road conditions. 5.
Use Cruise Control
∙ Using cruise control during highway driving helps maintain a steady speed.
∙ Cruise control is particularly effective in providing fuel savings when driving
on flat terrains.
6. Plan for the Shortest Route
∙ Utilize a map or navigation system to determine the best route to save time.
7. Avoid Idling
∙ Shutting off your engine when safe for stops exceeding 30–60 seconds saves
fuel and reduces emissions.
8. Buy an Automated Pass for Toll Roads
∙ Automated passes permit drivers to use special lanes to maintain cruising
speed through the toll and avoid stop-
ping and starting.
9. Winter Warm Up
∙ Limit idling time to minimize impact to fuel economy.
∙ Vehicles typically need no more than 30 seconds of idling at start-up to ef-
fectively circulate the engine oil before
driving. ∙ Your vehicle will reach its ideal operat-
ing temperature more quickly while
driving versus idling.
10. Keeping your Vehicle Cool
∙ Park your vehicle in a covered parking area or in the shade whenever pos-
sible.
∙ When entering a hot vehicle, opening the windows will help to reduce the
inside temperature faster, resulting in
reduced demand on your A/C system.
5-132Starting and driving

When the vehicle is stopped on a hill, the hill
start assist system automatically keeps the
brakes applied to help prevent the vehicle
from rolling backward in the time it takes the
driver to release the brake pedal and apply
the accelerator.
The hill start assist system will operate auto-
matically under the following conditions:∙ The transmission is shifted to a forward or reverse gear.
∙ The vehicle is stopped completely on a hill by applying the brake. The maximum
holding time is 2 seconds. After 2 sec-
onds the vehicle will begin to roll back and
the hill start assist system will stop oper-
ating completely.
The hill start assist system will not operate
when the shift lever is placed in the N (Neu-
tral) or P (Park) position or on a flat and level
road. The sonar system sounds a tone to inform the
driver of obstacles near the bumper.
When the sonar system is turned on, the
sonar view will automatically appear in the
center display when the camera is activated.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar system
could result in serious injury or death.
∙ The sonar system is not a replacement for
proper driving procedures and is not de-
signed to prevent contact with vehicles
or objects. ∙ The driver is always responsible for
safety during parking and other maneu-
vers. Always look around and check that
it is safe to do so before parking.
∙ This function is designed as an aid to the driver in detecting large stationary ob-
jects to help avoid damaging the vehicle.
If your vehicle sustains damage to the bum-
per fascia, leaving it misaligned or bent, the
sensing zone may be altered causing inaccu-
rate measurement of obstacles or false
alarm.
CAUTION
∙ Excessive noise (such as audio system volume or an open vehicle window) will
interfere with the tone and it may not be
heard.
∙ Keep the sonar sensors (located on the bumper fascias) free from snow, ice and
large accumulations of dirt. Do not clean
the sensors with sharp objects. If the sen-
sors are covered, the accuracy of the so-
nar function will be diminished.
LSD2135
FRONT AND REAR SONAR SYSTEM
(if so equipped)
Starting and driving5-143

DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For additional information, refer to
“Changing engine coolant” in the “Do-it-
yourself” section of this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry
pavement. However, the performance of
these tires will be substantially reduced
in snowy and icy conditions. If you oper-
ate your vehicle on snowy or icy roads,
INFINITI recommends the use of MUD &
SNOW or ALL SEASON TIRES on all
four wheels. It is recommended that you
visit an INFINITI retailer for the tire type,
size, speed rating and availability infor-
mation.
2. For additional traction on icy roads, studded tires may be used. However,
some U.S. states and Canadian prov-
inces prohibit their use. Check local,
state and provincial laws before install-
ing studded tires. Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires.
3. Tire chains may be used. For additional information, refer to “Tire chains” in the
“Do-it-yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
∙ A scraper and stiff-bristled brush to re- move ice and snow from the windows
and wiper blades.
∙ A sturdy, flat board to be placed under the jack to give it firm support.
∙ A shovel to dig the vehicle out of snow- drifts.
∙ Extra washer fluid to refill the windshield-washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
∙ Wet ice (32°F, 0°C and freezing rain),very cold snow or ice can be slick and very
hard to drive on. The vehicle will have
much less traction or “grip” under these
conditions. Try to avoid driving on wet
ice until the road is salted or sanded.
∙ Whatever the condition, drive with cau- tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even more
traction.
∙ Allow more stopping distance under these conditions. Braking should be
started sooner than on dry pavement.
∙ Allow greater following distances on slippery roads.
∙ Watch for slippery spots (glare ice). These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
∙ Do not use the cruise control on slippery roads.
5-148Starting and driving

CAUTION
∙ Continuously Variable Transmission(CVT) models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
∙ Do not push start this vehicle. The three- way catalyst may be damaged.
WARNING
∙ Do not continue to drive if your vehicleoverheats. Doing so could cause engine
damage or a vehicle fire.
∙ To avoid the danger of being scalded, never remove the radiator or coolant res-
ervoir cap while the engine is still hot.
When the radiator or coolant reservoir
cap is removed, pressurized hot water
will spurt out, possibly causing serious
injury.
∙ Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading),
or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps. 1. Move the vehicle safely off the road, apply the parking brake and move the
shift lever to P (Park).
Do not stop the engine.
2. Turn off the air conditioner. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the ra-
diator before opening the hood. (If
steam or coolant is escaping, turn off the
engine.) Do not open the hood further
until no steam or coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
5. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing, the water pump belt is missing or
loose, or the cooling fan does not run,
stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or the
engine cooling fan. The engine cooling fan
can start at any time.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
In case of emergency6-13

Machine compounding or aggressive polish-
ing on a base coat/clear coat paint finish may
dull the finish or leave swirl marks.
REMOVING SPOTS
Remove tar and oil spots, industrial dust, in-
sects, and tree sap as quickly as possible from
the surface of the paint to avoid lasting dam-
age or staining. Special cleaning products are
available at an INFINITI retailer or any auto-
motive accessory store. It is recommended
that you visit an INFINITI retailer for these
products.
UNDERBODY
In areas where road salt is used in winter, it is
necessary to clean the underbody regularly in
order to prevent dirt and salt from building up
and causing the acceleration of corrosion on
the underbody and suspension. Before the
winter period and again in the spring, the
underseal must be checked and, if necessary,
re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for
glass to become coated with a film after the
vehicle is parked in the hot sun. Glass cleaner
and a soft cloth will easily remove this film.
CAUTION
When cleaning the inside of the windows,
do not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
ALUMINUM ALLOY WHEELS
Wash the wheels regularly with a sponge
dampened in a mild soap solution, especially
during winter months in areas where road
salt is used. If not removed, road salt can
discolor the wheels.
CAUTION
Follow the directions below to avoid stain-
ing or discoloring the wheels:
∙ Do not use a cleaner that uses strong acidor alkali contents to clean the wheels.
∙ Do not apply wheel cleaners to the wheels when they are hot. The wheel
temperature should be the same as ambi-
ent temperature.
∙ Rinse the wheel to completely remove the cleaner within 15 minutes after the
cleaner is applied.
CHROME PARTS
Clean all chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGS
INFINITI does not recommend the use of tire
dressings. Tire manufacturers apply a coating
to the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires,
it may react with the coating and form a
compound. This compound may come off the
tire while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
∙ Use a water-based tire dressing. The coating on the tire dissolves more easily
than with an oil-based tire dressing.
∙ Apply a light coat of tire dressing to help prevent it from entering the tire
tread/grooves (where it would be diffi-
cult to remove).
∙ Wipe off excess tire dressing using a dry towel. Make sure the tire dressing is com-
pletely removed from the tire
tread/grooves.
∙ Allow the tire dressing to dry as recom- mended by tire dressing manufacturer.
Appearance and care7-3

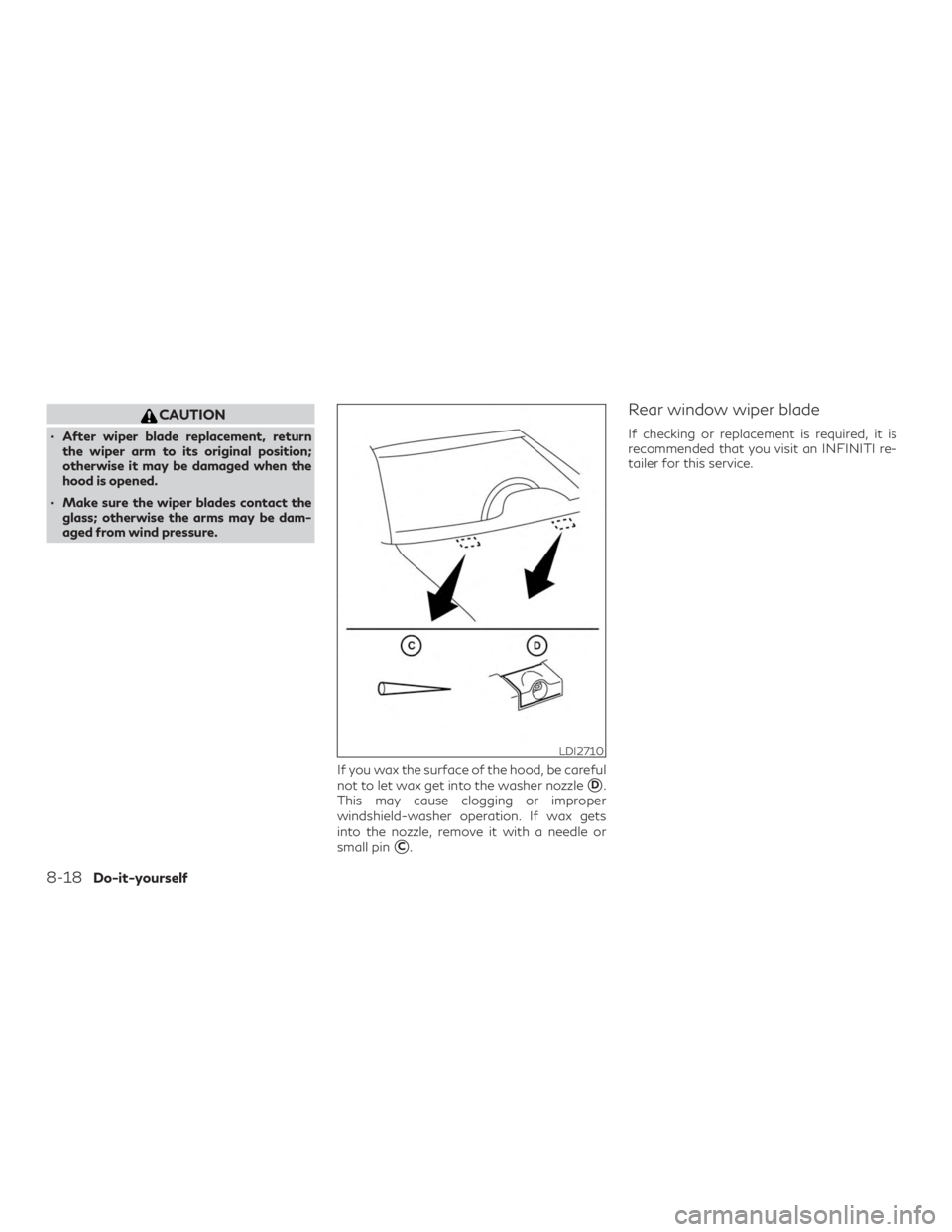

CAUTION
∙ After wiper blade replacement, returnthe wiper arm to its original position;
otherwise it may be damaged when the
hood is opened.
∙ Make sure the wiper blades contact the glass; otherwise the arms may be dam-
aged from wind pressure.
If you wax the surface of the hood, be careful
not to let wax get into the washer nozzle
D.
This may cause clogging or improper
windshield-washer operation. If wax gets
into the nozzle, remove it with a needle or
small pin
C.
Rear window wiper blade
If checking or replacement is required, it is
recommended that you visit an INFINITI re-
tailer for this service.
LDI2710
8-18Do-it-yourself
