Page 118 of 532
VEHICLE INFORMATION
DISPLAY WARNINGS AND
INDICATORS
1. No Key Detected
2. Key ID Incorrect
3. Key Battery Low
4. I-Key System Error: See Owner’sManual
5. Key Registration Complete
6. Push brake and start switch to drive
7. Push Ignition to OFF
8. Shift to Park
9. Engine start operation for Intelligent Key system (if I-Key battery level is low)
10. Release Parking Brake
11. Low Fuel
12. Loose Fuel Cap
13. Low Oil Pressure: See Owner’s Manual
14. Low Washer Fluid
15. Tire Pressure Low - Add Air
16. TPMS Error: See Owner’s Manual 17. AWD Error: See Owner’s Manual (if so
equipped)
18. AWD High Temp. Stop vehicle (if so equipped)
19. Tire Size Incorrect: See Owner’s Manual (if so equipped)
20. Door Open
21. Liftgate Open
22. Timer Alert – Have a break?
23. Low Outside Temperature
24. Power will turn off to save the battery
25. Reminder: Turn OFF headlights
26. Parking Sensor Error: See Owner’s Manual
27. Predictive Forward Collision Warning (PFCW) indicator
28. Lane Departure Warning (LDW)/Lane Departure Prevention (LDP) indicator (if
so equipped)
29. Blind Spot Warning (BSW) and Rear Cross Traffic Alert (RCTA) (if so
equipped) indicator
30. Malfunction: See Owner’s Manual (if so equipped) 31. Intelligent Cruise Control (ICC) indica-
tors (if so equipped)
32. Cruise control indicators (if so equipped)
33. INFINITI Drive Mode Selector indicators
34. Unavailable: Road is slippery (if so equipped)
35. Unavailable: Snow Mode Active (if so equipped)
36. Unavailable: VDC OFF (if so equipped)
37. Unavailable: High Cabin Temp. (if so equipped)
38. Unavailable: Side Radar Obstruction (if so equipped)
39. Unavailable: High Accelerator Temp. (if so equipped)
40. Unavailable: Front Radar Obstruction (if so equipped)
41. BCI OFF (if so equipped)
42. Shipping Mode On Push Storage Fuse
43. CVT Error: See Owner’s Manual
44. Rear Door Alert is activated
45. Check Back Seat For All Articles
2-26Instruments and controls
Page 135 of 532
Ambient image sensor maintenance
The ambient image sensor
1for the High
Beam Assist system is located in front of the
inside mirror. To maintain the proper opera-
tion of the High Beam Assist system and
prevent a system malfunction, be sure to ob-
serve the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans- parent material) or install an accessory
near the ambient image sensor. ∙ Do not strike or damage the areas around
the ambient image sensor. Do not touch
the sensor lens that is located on the
ambient image sensor.
If the ambient image sensor is damaged due
to an accident, it is recommended that you
visit an INFINITI retailer.
Battery saver system
If the ignition switch is placed in the OFF
position while the headlight switch is in
the
orposition, the headlights
will turn off after a period of time.
NOTE:
The Battery Saver system may be disabled.
For additional information, refer to “Vehicle
information display” in this section.
CAUTION
Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.
LED DAYTIME RUNNING LIGHTS
(DRL) SYSTEM
The LED portion of the headlights automati-
cally illuminate at 100% intensity when the
engine is started and the parking brake re-
leased. The LED Daytime Running Lights
(DRL) system operates with the headlight
switch in the OFF position. When you turn
the headlight switch to the
position for
full illumination, the LED lights switch from
LED DRL system to the park function.
If the parking brake is applied before the
engine is started, the LED DRL system does
not illuminate. The LED DRL system illumi-
nates when the parking brake is released. The
LED DRL system will remain on until the
ignition switch is placed in the OFF position.
It is necessary at dusk to turn the headlight
switch on for interior controls and switches
to illuminate, as those remain off while the
switch is in the OFF position.
WARNING
When the LED DRL system is active, tail
lights on your vehicle are not on. It is neces-
sary at dusk to turn on your headlights.
Failure to do so could cause an accident in-
juring yourself and others.
LSD3164
Instruments and controls2-43
Page 230 of 532
to the parking spaceCwhile referring
to the predicted course lines.
5. When the vehicle is parked in the space completely, move the shift lever to the P
(Park) position and apply the parking
brake.
HOW TO SWITCH THE DISPLAY
With the ignition switch in the ON position,
press the CAMERA
button or move the
shift lever to the R (Reverse) position to op-
erate the Around View® Monitor.
The Around View® Monitor displays differ-
ent split screen views depending on the posi-
tion of the shift lever. When activating the
Around View®Monitor, the guide lines, the
icons and the messages may not be displayed
immediately. Press the CAMERA
but-
ton to switch between the available views.
If the shift lever is in the R (Reverse) position,
the available views are:
∙ Rear view/bird’s-eye view split screen
∙ Rear view/front-side view split screen
∙ Rear-wide view If the shift lever is in the P (Park) or D (Drive)
position, the available views are:
∙ Front view/bird’s-eye view split screen
∙ Front view/front-side view split screen
∙ Front-wide view
The display will switch from the Around
View® Monitor screen when: ∙ The shift lever is in the D (Drive) position and the vehicle speed increases above
approximately 6 mph (10 km/h)
∙ A different screen is selected.
AROUND VIEW® MONITOR
SETTINGS
To set up the Around View® Monitor to your
preferred settings, press the SETTING but-
ton, select the “Camera/Sonar” key. For ad-
ditional information about the sonar, refer to
“Camera aiding sonar (parking sensor)” in this
section. For information about the Display
screen adjustment, refer to “Adjusting the
screen” in this section.
LHA4265
4-20Monitor, climate, audio, phone and voice recognition systems
Page 237 of 532
SONAR SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the sonar function. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death.
∙ Inclement weather or ultrasonic sourcessuch as an automatic car wash, a truck’s
compressed-air brakes or a pneumatic
drill may affect the function of the sys-
tem, including reduced performance or a
false activation.
∙ The system is not designed to prevent contact with small or moving objects.
∙ The system will not detect small objects below the bumper, and may not detect
objects close to the bumper or on the
ground.
∙ The system may not detect the following objects:
– Fluffy objects such as snow, cloth, cotton, grass or wool.
– Thin objects such as rope, wire or chain.
– Wedge-shaped objects. ∙ If your vehicle sustains damage to the
bumper fascia, leaving it misaligned or
bent, the sensing zone may be altered
causing inaccurate measurement of ob-
jects or false alarms.
CAUTION
Excessive noise (such as audio system vol-
ume or an open vehicle window) will inter-
fere with the tone and it may not be heard.
System temporarily unavailable
When the amber markers are displayed at the
corners of the vehicle icon and the function
cannot be activated from the Camera setting
menu (the setting items are grayed out), the
sonar system may be malfunctioning.
SYSTEM MAINTENANCE
CAUTION
Keep the surface of the sonar sensors (lo-
cated on the front and rear bumper fascia)
free from accumulations of snow, ice and
dirt. Do not scratch the surface of the sonar
sensors when cleaning. If the sensors are
covered, the accuracy of the sonar function
will be diminished.
Monitor, climate, audio, phone and voice recognition systems4-27
Page 264 of 532
FCC Notice:
For USA:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) this de-
vice must accept any interference received,
including interference that may cause unde-
sired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s author-
ity to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device
TPMS with Tire Inflation Indicator
When adding air to an under-inflated tire, the
TPMS with Tire Inflation Indicator provides
visual and audible signals outside the vehicle
to help you inflate the tires to the recom-
mended COLD tire pressure.Vehicle set-up:
1. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shift lever in the P (Park) position.
3. Place the ignition switch in the ON posi- tion. Do not start the engine.
Operation: 1. Add air to the tire.
2. After a few seconds, the hazard indica- tors will start flashing.
3. When the designated pressure is reached, the horn beeps once and the
hazard indicators stop flashing.
4. Perform the above steps for each tire. ∙ If the tire is over-inflated more thanapproximately 4 psi (30 kPa), the horn
beeps and the hazard indicators flash
three times. To correct the pressure,
push the core of the valve stem on the
tire briefly to release pressure. When
the pressure reaches the designated
pressure, the horn beeps once. ∙ If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates
that the TPMS with Tire Inflation Indi-
cator is not operating.
∙ The TPMS will not activate the TPMS with Tire Inflation Indicator under the
following conditions:
– If there is interference from an exter- nal device or transmitter.
– The air pressure from the inflation de- vice is not sufficient to inflate the tire.
– There is a malfunction in the TPMS.
– There is a malfunction in the horn or hazard indicators.
– The identification code of the tire pressure sensor is not registered to
the system.
– The battery of the tire pressure sensor is low.
∙
If the TPMS with Tire Inflation Indicator
does not operate due to TPMS interfer-
ence, move the vehicle about 3 ft (1 m)
backward or forward and try again.
If the TPMS with Tire Inflation Indicator is
not working, use a tire pressure gauge.
5-8Starting and driving
Page 306 of 532

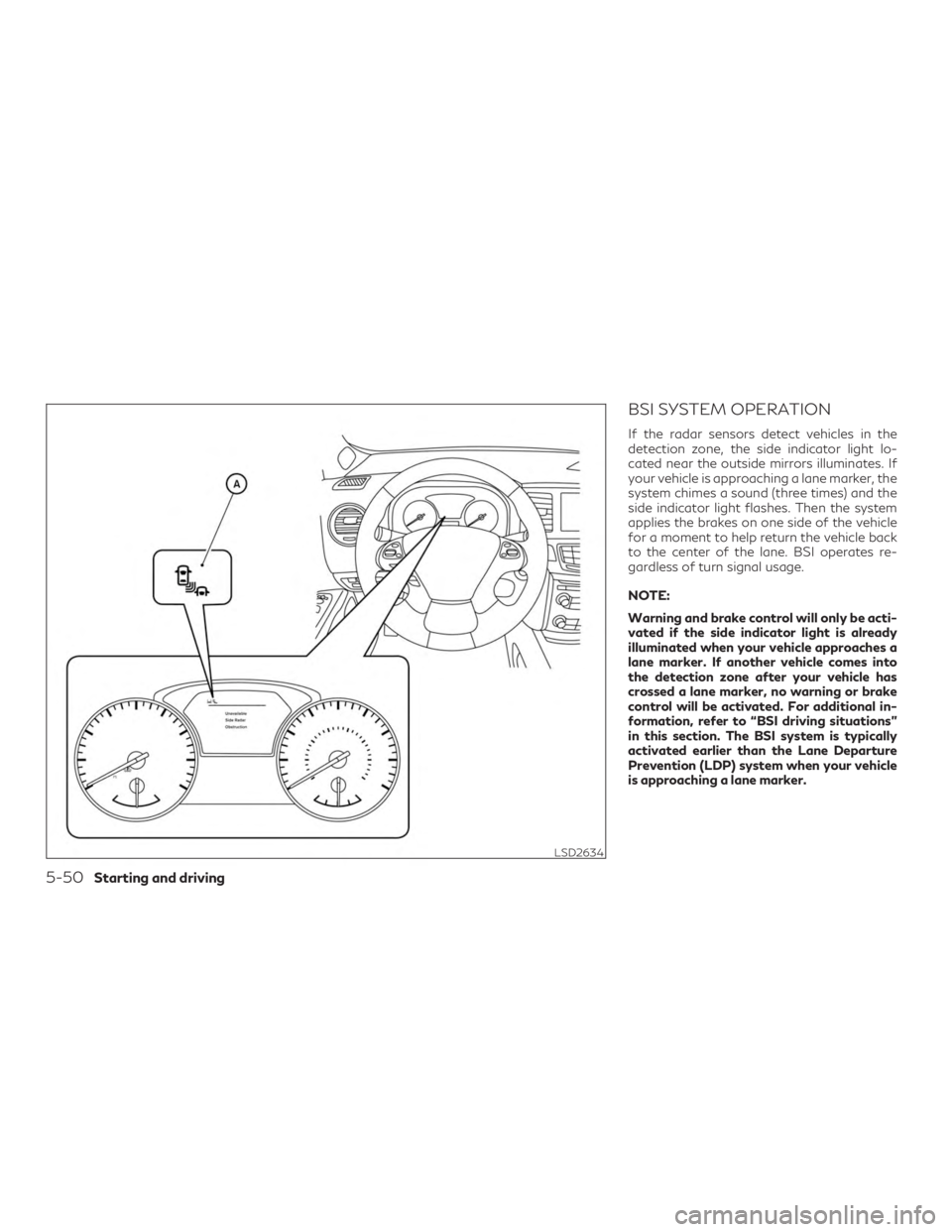

BSI SYSTEM OPERATION
If the radar sensors detect vehicles in the
detection zone, the side indicator light lo-
cated near the outside mirrors illuminates. If
your vehicle is approaching a lane marker, the
system chimes a sound (three times) and the
side indicator light flashes. Then the system
applies the brakes on one side of the vehicle
for a moment to help return the vehicle back
to the center of the lane. BSI operates re-
gardless of turn signal usage.
NOTE:
Warning and brake control will only be acti-
vated if the side indicator light is already
illuminated when your vehicle approaches a
lane marker. If another vehicle comes into
the detection zone after your vehicle has
crossed a lane marker, no warning or brake
control will be activated. For additional in-
formation, refer to “BSI driving situations”
in this section. The BSI system is typically
activated earlier than the Lane Departure
Prevention (LDP) system when your vehicle
is approaching a lane marker.
LSD2634
5-50Starting and driving
Page 313 of 532
Entering from the side
Illustration 9: The side indicator light illumi-
nates if a vehicle enters the detection zone
from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed as
your vehicle when it enters the detection
zone.Illustration 10: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the side indicator light flashes and
a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the side
indicator light will flash but no chime will
sound when another vehicle is detected.
Illustration 11: If the BSI system is on and
your vehicle approaches the lane marker
while another vehicle is in the detection zone,
the side indicator light flashes and a chime
will sound three times. Then, the BSI system
slightly applies the brakes on the appropriate
side to help return the vehicle back to the
center of the driving lane.
Illustration 9 – Entering from the side
LSD2050
Illustration 10 – Entering from the side
SSD1038
Illustration 11 – Entering from the side
SSD1094
Starting and driving5-57
Page 317 of 532
The BCI system uses radar sensors1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle and sonar sen-
sors
2to detect objects in the rear.
The radar sensors
1detect an approaching
vehicle from up to approximately 49 ft (15 m)
away. The sonar sensors
2detect stationary
objects behind the vehicle up to approxi-
mately 4.9 ft (1.5 m)
3. If the radar detects a vehicle approaching
from the side or the sonar detects close sta-
tionary objects behind the vehicle, the system
gives visual and audible warnings. If the driver
does not apply the brakes, the system auto-
matically applies the brake for a moment
when the vehicle is moving backwards. After
the automatic brake application, the driver
must depress the brake pedal to maintain
brake pressure. If the driver’s foot is on the
accelerator pedal, the system pushes the ac-
celerator upward before applying the brake.
If you continue to press the accelerator, the
system will not engage the brake.
LSD2026LSD2042
Starting and driving5-61
Page 319 of 532
If the radar detects an approaching vehicle
from the side, the system chimes a sound
(single beep), the side BSW/RCTA indicator
light on the side of the approaching vehicle
flashes and a yellow rectangular frame ap-
pears in the display
A.NOTE:
∙ In the case of several vehicles approach-
ing in a row (Illustration 1) or in the op-
posite direction (Illustration 2), a chime
may not be sounded by the BCI system
after the first vehicle passes the sensors.
∙
The sonar system chime indicating there is
an object behind the vehicle has a higher
priority than the BCI chime (single beep)
indicating an approaching vehicle. If the
sonar system detects an object behind the
vehicle and the BCI system detects an ap-
proaching vehicle at the same time the fol-
lowing indicators are provided:
– The sonar system chime sounds
– The side BSW/RCTA indicator light
on the side of the approaching vehicle
flashes and
– A yellow rectangular frame appears
in the display
If an approaching vehicle or object behind the
vehicle is detected when your vehicle is back-
ing up, a red frame will appear in the display
Aand the system will chime three times.
Then, the brakes will be applied momentarily.
LSD2709
Illustration 1
LSD2043
Illustration 2
LSD2044
Starting and driving5-63
Page 323 of 532
– IllustrationD: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration
E: When the angle
formed by your vehicle and approach-
ing vehicle is small.
∙ The following conditions may reduce the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/dirt build up on the vehicle
∙ Do not attach stickers (including trans- parent material), install accessories or
apply additional paint near the radar sen-
sors. These conditions may reduce the
ability of the radar to detect other
vehicles.
∙ The sonar sensors detect stationary ob- jects behind the vehicle. The sonar sensor
may not detect:
– Small or moving objects
– Wedge-shaped objects
– Objects close to the bumper (less than approximately 1 ft [30 cm]) – Thin objects such as rope, wire and
chain, etc.
∙ The brake engagement by the BCI system is not as effective on a slope as it is on flat
ground. When on a steep slope the sys-
tem may not function properly.
∙ Do not use the BCI system under the fol- lowing conditions because the system
may not function properly:
– When driving with a tire that is not within normal tire conditions (e.g., tire
wear, low tire pressure, installation of
spare tire, tire chains, non-standard
wheels).
– When the vehicle is equipped with non-original brake parts or suspen-
sion parts.
∙ Do not use the BCI system when towing a trailer.
∙ Excessive noise (e.g., audio system vol- ume, open vehicle window) will interfere
with the chime sound, and it may not be
heard.
SYSTEM TEMPORARILY NOT
AVAILABLE
If the following messages appear on the ve-
hicle information display, a chime will sound
and the BCI system will be turned off auto-
matically:
∙ “Unavailable: High Accelerator Temp.”: If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F [40°C]) and then
started, the BCI system may be deacti-
vated automatically and the “Unavailable:
High Accelerator Temp” message will ap-
pear in the vehicle information display for
a period of time.
When the interior temperature is re-
duced, turn off the BCI system and turn it
on again.
∙ “Unavailable: Side Radar Obstruction”: When side radar blockage is detected.
When the blockage is removed, turn off
the BCI system and turn it on again.
Starting and driving5-67
