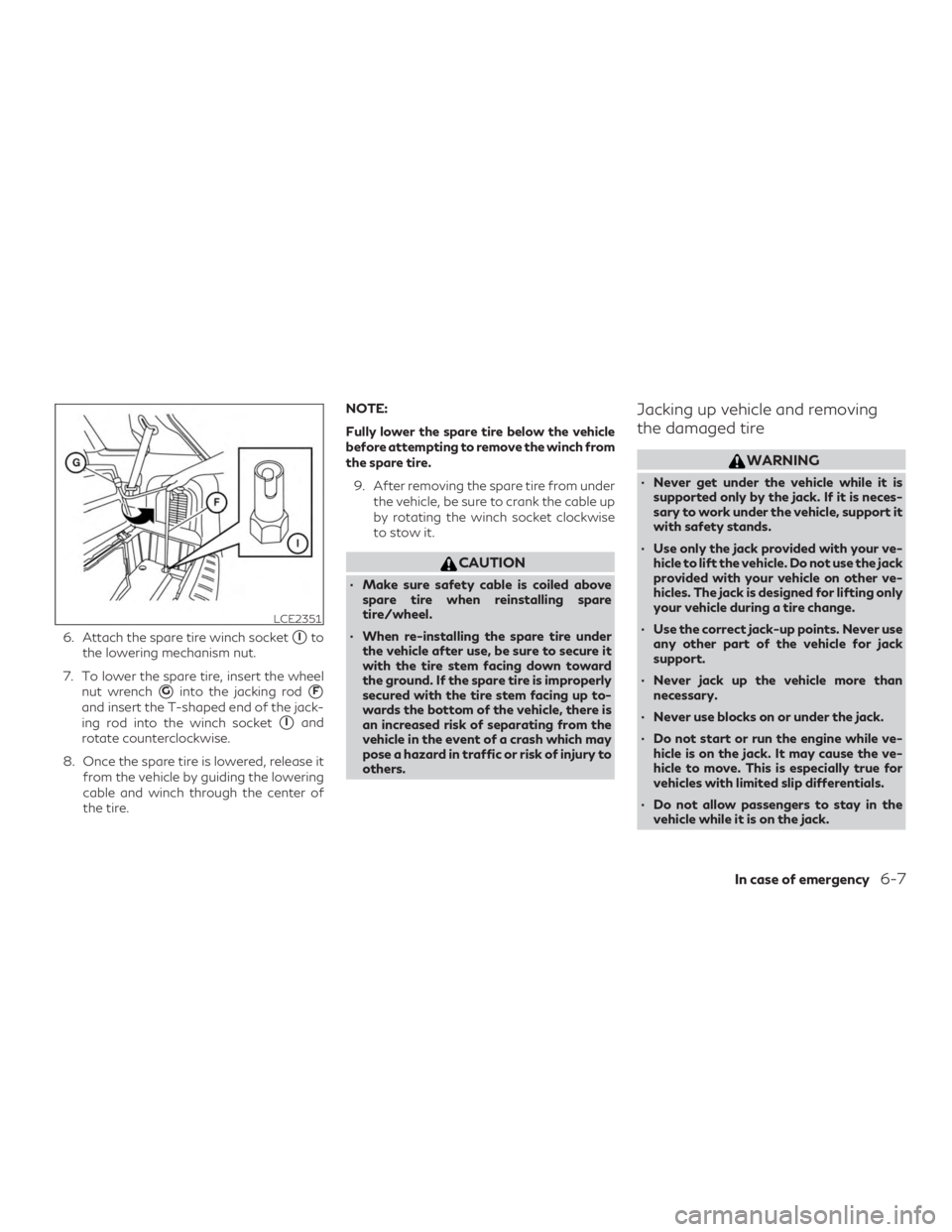

6. Attach the spare tire winch socketIto
the lowering mechanism nut.
7. To lower the spare tire, insert the wheel nut wrench
Ginto the jacking rodF
and insert the T-shaped end of the jack-
ing rod into the winch socket
Iand
rotate counterclockwise.
8. Once the spare tire is lowered, release it from the vehicle by guiding the lowering
cable and winch through the center of
the tire. NOTE:
Fully lower the spare tire below the vehicle
before attempting to remove the winch from
the spare tire.
9. After removing the spare tire from under the vehicle, be sure to crank the cable up
by rotating the winch socket clockwise
to stow it.
CAUTION
∙ Make sure safety cable is coiled abovespare tire when reinstalling spare
tire/wheel.
∙ When re-installing the spare tire under the vehicle after use, be sure to secure it
with the tire stem facing down toward
the ground. If the spare tire is improperly
secured with the tire stem facing up to-
wards the bottom of the vehicle, there is
an increased risk of separating from the
vehicle in the event of a crash which may
pose a hazard in traffic or risk of injury to
others.
Jacking up vehicle and removing
the damaged tire
WARNING
∙ Never get under the vehicle while it issupported only by the jack. If it is neces-
sary to work under the vehicle, support it
with safety stands.
∙ Use only the jack provided with your ve- hicle to lift the vehicle. Do not use the jack
provided with your vehicle on other ve-
hicles. The jack is designed for lifting only
your vehicle during a tire change.
∙ Use the correct jack-up points. Never use any other part of the vehicle for jack
support.
∙ Never jack up the vehicle more than necessary.
∙ Never use blocks on or under the jack.
∙ Do not start or run the engine while ve- hicle is on the jack. It may cause the ve-
hicle to move. This is especially true for
vehicles with limited slip differentials.
∙ Do not allow passengers to stay in the vehicle while it is on the jack.
LCE2351
In case of emergency6-7

1. Loosen each wheel nut one or two turnsby turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the
ground.
2. Place the jack directly under the jack-up point so the top of the jack contacts the
vehicle at the jack-up point. The jack-up
points are indicated by stamped arrows
on the side of the frame.
The jack should be used on firm and level
ground.
3. Install the assembled jacking rod into thejack.
4. To lift the vehicle, securely hold the jack lever and rod. Carefully raise the vehicle
until the tire clears the ground. NOTE:
If the lug nut wrench/jack handle contacts
the ground while raising the vehicle, disas-
semble the lug nut wrench from the jack ex-
tension rod, rotate it 90 degrees and reas-
semble.
5. Remove the wheel nuts and then remove the tire.
LCE0087
LCE2043
In case of emergency6-9
