odometer INFINITI QX60 2020 Owners Manual

INFINITI CARES...
Both INFINITI and your INFINITI retailer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your
INFINITI retailer are our primary concerns. Your INFINITI retailer is always available to assist you with all your automobile sales and service
needs.
However, if there is something that your
INFINITI retailer cannot assist you with or
you would like to provide INFINITI directly
with comments or questions, please contact
our (INFINITI’s) Consumer Affairs Depart-
ment using our toll-free number:
For U.S. customers1-800-662-6200
For Canadian customers 1-800-361-4792 The Consumer Affairs Department will ask
for the following information:
– Your name, address, and telephone num-
ber
– Vehicle identification number (on dash panel)
– Date of purchase
– Current odometer reading
– Your INFINITI retailer’s name
– Your comments or questions
OR You can write to INFINITI with the informa-
tion on the left at:
For U.S. customers
INFINITI Division
Nissan North America, Inc. Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers INFINITI Division
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
information.centre@nissancanada. com
If you prefer, visit us at:
www.infinitiUSA.com (for U.S. customers)
or
www.infiniti.ca (for Canadian customers)
We appreciate your interest in INFINITI and thank you for buying a quality INFINITI vehicle.
INFINITI CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel.................................2-2
Meters and gauges ...............................2-4
Speedometer and odometer ...................2-4
Tachometer ...................................2-6
Engine coolant temperature gauge .............2-6
Fuel gauge ....................................2-7
Distance To Empty (DTE) ......................2-7
Warning lights, indicator lights and audible
reminders ........................................2-8
Checking lights ................................2-8
Warning lights ................................2-9
Indicator lights .............................. 2-13
Audible reminders ............................ 2-15
Vehicle information display .....................2-16
How to use the vehicle information
display ....................................... 2-17
Startup display ............................... 2-17
Resetting the trip computer ...................2-17
Settings ...................................... 2-17
Vehicle information display warnings and
indicators ................................... 2-26
Security systems ............................... 2-32
Vehicle security system ......................2-32
INFINITI Vehicle Immobilizer System .........2-34 Wiper and washer switch
.......................2-35
Switch operation ............................ 2-35
Rain-sensing auto wiper system
(if so equipped) .............................. 2-37
Rear switch operation ....................... 2-38
Rear window and outside mirror defroster
switch ......................................... 2-39
Headlight and turn signal switch ................2-39
Headlight control switch .....................2-39
LED Daytime Running Lights (DRL)
system ...................................... 2-43
Instrument brightness control ................2-44
Turn signal switch ........................... 2-44
Fog light switch ............................. 2-45
Horn ........................................... 2-45
Climate controlled seat switches
(if so equipped) ................................. 2-45
Heated seat switches (if so equipped) ...........2-46
Heated 2nd

row seat switches (if so equipped) . . 2-47
Heated steering wheel switch Type A
(if so equipped) ................................. 2-48
Heated steering wheel Type B (if so equipped). . . 2-49
Warning systems switch (if so equipped) ........2-50
Vehicle Dynamic Control (VDC) OFF switch ......2-51

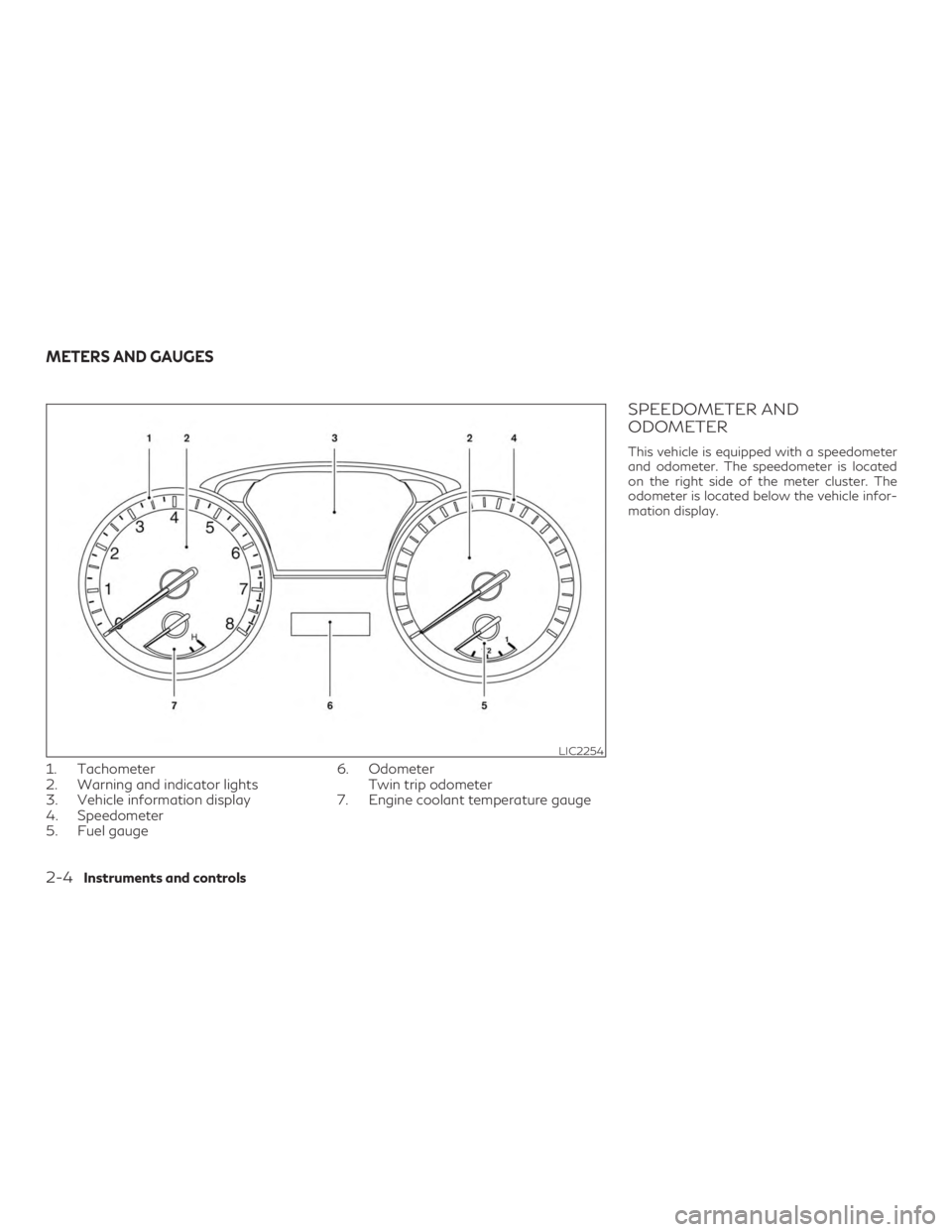

1. Tachometer
2. Warning and indicator lights
3. Vehicle information display
4. Speedometer
5. Fuel gauge6. Odometer
Twin trip odometer
7. Engine coolant temperature gauge
SPEEDOMETER AND
ODOMETER
This vehicle is equipped with a speedometer
and odometer. The speedometer is located
on the right side of the meter cluster. The
odometer is located below the vehicle infor-
mation display.
LIC2254
METERS AND GAUGES
2-4Instruments and controls

Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer1and the twin trip odometer
2are displayed below the vehicle informa-
tion display when the ignition switch is placed
in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance
of individual trips. Changing the display
Push the TRIP RESET switch
3on the right
of the combination meter to change the dis-
play as follows:
Trip
→ Trip→Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
3for more
than 1 second resets the currently displayed
trip odometer to zero.
Average fuel economy and distance to empty
information is also available. For additional
information, refer to “Vehicle information
display” in this section.
LIC2218LIC2234
Instruments and controls2-5

To help ensure smooth, safe and economical
driving, INFINITI provides two maintenance
schedules that may be used, depending upon
the conditions in which you usually drive.
These schedules contain both distance and
time intervals, up to 120,000 miles
(192,000 km)/96 months. For most people,
the odometer reading will indicate when ser-
vice is needed. However, if you drive very
little, your vehicle should be serviced at the
regular time intervals shown in the schedule.
After 120,000 miles
(192,000 km)/96 months, continue mainte-
nance at the same mileage/time intervals.ADDITIONAL MAINTENANCE
ITEMS FOR SEVERE OPERATING
CONDITIONS
Additional maintenance items for severe op-
erating conditionsshould be performed on
vehicles that are driven under especially de-
manding conditions. Additional maintenance
items should be performed if you primarily
operate your vehicle under the following con-
ditions:
∙ Repeated short trips of less than 5 miles (8 km).
∙ Repeated short trips of less than 10 miles (16 km) with outside temperatures re-
maining below freezing. ∙ Operating in hot weather in stop-and-go
“rush hour” traffic.
∙ Extensive idling and/or low speed driving for long distances, such as police, taxi or
door-to-door delivery use.
∙ Driving in dusty conditions.
∙ Driving on rough, muddy or salt spread roads.
∙ Towing a trailer, using a camper or using a car-top carrier.
MAINTENANCE SCHEDULES
Maintenance and schedules9-7

Frontseats....................1-2
FuelCapacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-133
Fuel-filler door and cap ..........3-29
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation ...........10-4
Loose fuel cap warning ..........2-28
Fuel efficient driving tips ..........5-131
Fuel-filler door .................3-28
Fuel gauge ....................2-7
Fuses ......................8-19
Fusiblelinks ..................8-20
G
Garage door opener, HomeLink®
UniversalTransceiver.....2-73,2-74,2-75, 2-76, 2-76, 2-77
Gascap.....................3-29
Gauge Engine coolant temperature gauge ....2-6
Fuel gauge ..................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer .................2-6
Trip odometer ................2-5
General maintenance ..............9-2
Glovebox....................2-58
Gloveboxlock.................2-58 H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-39
Headlight control switch ...........2-39
Headlights ...................8-24
Head restraints .................1-12
Heated 2nd row seat switches .......2-47
Heated seat switches .............2-46
Heated steering wheel switch ....2-48,2-49
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-34
Heater and air conditioner controls . . .4-35
Heater operation .............4-36
Heater and air conditioner (automatic). . .4-34
Hill start assist system ............5-142
HomeLink® Universal
Transceiver...........2-73,2-74,2-75, 2-76, 2-76, 2-77
Hood .......................3-22
Hook Luggage hook ...............2-62
Horn.......................2-45
I
Ignition switch Push-button ignition switch .......5-13
Immobilizer system ..............5-17
Important vehicle information label ....10-11
In-cabin microfilter ..............8-16
Increasing fuel economy ..........5-133Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)
..............2-8,2-9,2-13
INFINITI Drive Mode Selector ........5-24
INFINITI Intelligent Key System .....3-2, 3-7
INFINITI InTouch™ Owner's Manual .....4-2
INFINITI Vehicle Immobilizer
System ...............2-34,3-4,5-17
Inside automatic anti-glare mirror .....3-33
Instrument brightness control ........2-44
Instrument panel .............0-6,2-2
Instrument panel

dimmer switch ......2-44
Intelligent All-Wheel Drive (AWD) .....5-133
Intelligent Cruise Control (ICC) .......5-80
Intelligent Key system Key operating range ............3-9
Keyoperation ...............3-10
Mechanical key ...............3-3
Remote keyless entry operation .....3-13
Troubleshooting guide ..........3-16
Warningsignals ..............3-16
Interiorlight...................2-71
ISOFIX child restraints ............1-30
J
Jump starting ..............6-11, 8-14
K
Key.........................3-2
Key fob battery replacement ........8-22
11-3

Keyless entryWith Intelligent Key system (See
Intelligent Key system) ..........3-13
L
Label Tire and Loading Information label . .10-12
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label ......10-11
Emission control information label . .10-11
Engine serial number ..........10-11
F.M.V.S.S. certification label ......10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate....................10-10
Warning labels (for SRS) .........1-68
Lane Departure Warning (LDW) . . .5-27, 5-32
LATCH (Lower Anchors and Tethers
forCHildren)System.............1-30
LED Daytime Running Lights (DRL)
system......................2-43
License plate Installing the license plate ........10-12
Liftgate.....................3-22
Liftgaterelease ................3-27
Light Airbagwarninglight........1-69,2-12
Brakelight(Seestoplight)........8-24
Bulb check/instrument panel .......2-8
Bulb replacement .............8-24
Charge warning light ............2-9
Console light ................2-71 ExteriorandInteriorlights........8-24
Foglights..................8-24
Fog light switch
..............2-45
Headlight and turn signal switch ....2-39
Headlight control switch .........2-39
Headlights .................8-24
Interiorlight.................2-71
Lightbulbs.................8-24
Low tire pressure warning light .....2-10
Low windshield-washer fluid
warninglight................2-28
Passenger air bag and status light . . .1-60
Personal lights ...............2-72
Security indicator light ..........2-14
Warning/indicator lights and audible
reminders ............2-8,2-9,2-13
Lights......................8-24 Maplights..................2-72
Lock Child safety rear door lock .........3-7
Door locks ..................3-5
Gloveboxlock...............2-58
Liftgaterelease ..............3-27
Power door locks ..............3-6
Loose fuel cap warning ............2-28
Lowfuelwarninglight.........2-11,2-28
Low tire pressure warning light .......2-10
Low windshield-washer fluid
warninglight..................2-28
Luggage hook .................2-62
Luggage rack (see roof rack) .........2-62
Luggage (See vehicle loading
information)..................10-13 M
Maintenance Generalmaintenance............9-2
Inside the vehicle ..............9-3
Maintenance precautions .........8-2
Outside the vehicle .............9-2
Seat belt maintenance ..........1-25
Under the hood and vehicle ........9-4
Maintenance log ................9-11
Maintenance requirements ..........9-2
Maintenance schedules .............9-7
Maintenance under severe operation
conditions....................9-10
Malfunctionindicatorlight..........2-13
Maplights.................... 2-72
Memory Seat ..............3-37,3-39
Meters and gauges ...............2-4
Instrument brightness control ......2-44
Mirror Automatic anti-glare inside mirror . . .3-33
Outside mirrors .............. 3-35
Vanity mirror ................3-33
Mirrors .....................3-33
Moonroof .............2-66, 2-67, 7-4
Moving Object Detection (MOD) ......
4
-28
O
Octane rating (See fuel octane rating) . . .10-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants............... 10-2
Changing engine oil .............8-6
11-4

Automatic drive positioner....3-37,3-39
Frontseats..................1-2
Seats/floor mats ..............7-5,7-6
Security indicator light ............2-14
Security system (INFINITI vehicle immobilizer system),
engine start ..........2-34,3-4,5-17
Security systems Vehicle security system ..........2-32
Self-adjusting brakes .............8-19
Service manual order form .........10-34
Servicing air conditioner ...........4-44
Spark plug replacement ............8-15
Spark plugs ...................8-15
Specifications .................10-8
Speedometer ...................2-5
Speedometer and odometer ..........2-4
SRS warning label ...............1-68
Stability control ...............5-140
Standard maintenance ..........9-8,9-8
Starting Before starting the engine ........5-17
Jump starting ............6-11,8-14
Precautions when starting
anddriving ..............5-4,5-11
Push starting ................6-13
Starting the engine ............5-17
Starting the engine ..............5-17
Startupdisplay.................2-17
Steering Power steering fluid ............8-10
Power steering system .........5-137
Steering wheel .................3-31
Stoplight....................8-24 Storage.....................2-56
Storagebin...................2-61
Storagetray ..................2-57
Sunglasses case
................2-59
Sunglasses holder ...............2-59
Sunroof ..................2-67,7-4
Sunroof (see Moonroof) ...........2-66
Sun visors ....................3-32
Supplemental air bag warning labels ....1-68
Supplemental air bag warning
light....................1-69,2-12
Supplemental front impact air bag
system......................1-57
Supplemental restraint system Informationandwarninglabels.....1-68
Precautions on supplemental
restraint system ..............1-50
Supplemental restraint system
(Supplemental air bag system) ........1-50
Switch Autolight switch ..............2-40
Automatic power window switch ....2-65
Fog light switch ..............2-45
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-39
Headlight control switch .........2-39
Instrument brightness control ......2-44
Power door lock switch ..........3-6
Power inverter switch ...........2-52
Rear window and outside mirror
defroster switch ..............2-39
Rear window wiper and washer
switches ...................2-38
Turn signal switch .............2-44 T
Tachometer ...................2-6
Temperature gauge Engine coolant temperature gauge ....2
-6
Theft (INFINITI vehicle immobilizer system),
engine start ..........2-34, 3-4, 5-17
Three-way catalyst ...............5-4
Tire Flat tire ....................6-3
Spare tire ...............6-5,8-38
Tire and Loading Information label . .10-12
Tire chains ................. 8-34
Tirepressure............ 8-26, 8-26
Tirerotation ................8-35
Types of tires ................8-33
Uniform tire quality grading ......10-30
Wheels and tires .............. 8-26
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-10
Tire Pressure Monitoring System
(TPMS) ......................5-5
Top tether strap child restraint .......1-33
Towing 4-wheel drive models ...........6-16
Flattowing................10-29
Towing load/specification .......10-21
Towtrucktowing............. 6-14
Trailertowing...............10-17
Towing a trailer ................10-17
11-6

TransceiverHomeLink® Universal
Transceiver.........2-73,2-74,2-75, 2-76, 2-76, 2-77
Transmission Continuously Variable Transmission
(CVT) fluid .................8-10
Driving with Continuously Variable
Transmission (CVT) ............5-19
Travel (See registering a vehicle in
another country) ...............10-10
Trip odometer ..................2-5
Turn signal switch ...............2-44
U
Uniform tire quality grading ........10-30
USB/iPod® Charging Ports .........4-44
V
Vanity mirror ..................3-33
Vehicle dimensions and weights ......10-9
Vehicle Dynamic Control (VDC) OFF
switch......................2-51
Vehicle Dynamic Control (VDC)
system.....................5-140
Vehicle identification ............10-10
Vehicle identification number (VIN) ....10-10
Vehicle identification number (VIN)
(Chassis number) ...............10-10
Vehicle identification number (VIN)
plate......................10-10
Vehicle immobilizer system ..........5-17Vehicle information display
..........2-16
Vehicle loading information ........10-13
Vehicle recovery ............6-16,6-17
Vehicle security system ............2-32
(INFINITI vehicle immobilizer system),
engine start ..........2-34,3-4,5-17
Vents ......................4-33
Visors......................3-32
W
Warning Airbagwarninglight........1-69,2-12
Anti-lock brake warning light .......2-9
Batterychargewarninglight .......2-9
Brakewarninglight.............2-9
Hazard warning flasher switch ......6-2
Loose fuel cap warning ..........2-28
Lowfuelwarninglight.......2-11,2-28
Low tire pressure warning light .....2-10
Low windshield-washer fluid
warninglight................2-28
Passenger air bag and status light . . .1-60
Seat belt warning light ......1-20,2-12
Supplemental air bag
warninglight ............1-69,2-12
Vehicle security system ..........2-32
Warning/indicator lights and audible
reminders ............2-8,2-9,2-13
Warning labels (for SRS) .........1-68
Warning/indicator lights and audible
reminders ..............2-8,2-9,2-13
Audible reminders .......2-8,2-9,2-13
Indicatorlights.........2-8,2-9,2-13
Warninglights.........2-8,2-9,2-13 Warninglights...........
2-8, 2-9, 2-13
Warning lights, indicator lights and
audible reminders ................2-8
Warning systems switch ...........2-50
Washer switch Rear window wiper and washer
switches................... 2-38
Weights (See dimensions and weights) . .10-9
Wheels and tires ................ 8-26
Wheel/tire size .................10-9
When traveling or registering in
anothercountry...............10-10
Windows .................... 2-63
Locking passengers' windows ......2-64
Power rear windows ...........2-65
Power windows ..............2-63
Rear power windows ...........2-65
Windshield-washerfluid...........8-11
Windshieldwiperblades...........8-17
Wiper Rear window wiper and washer
switches................... 2-38
Wiperblades................8-17
Wiper and washer switch ..........2-35
11-7
