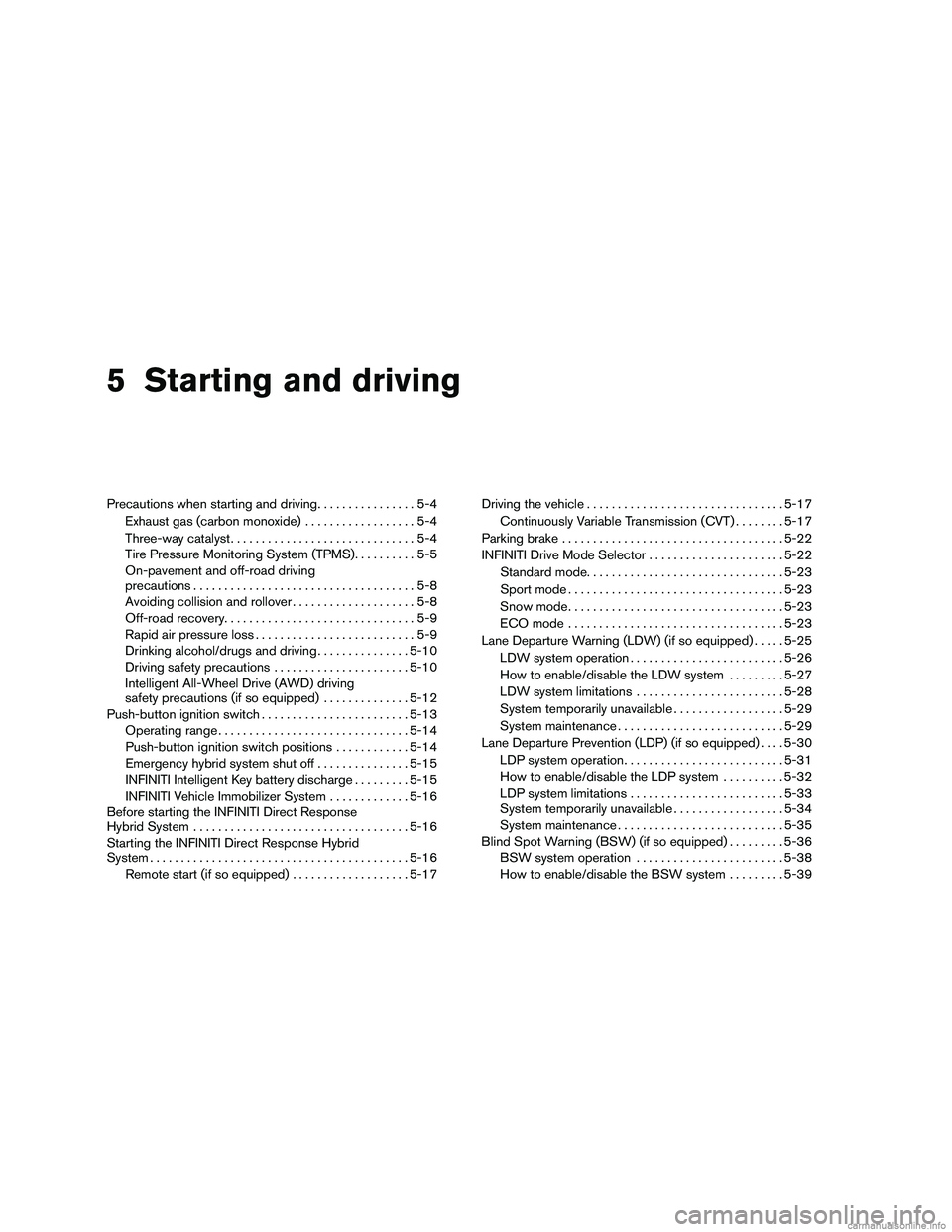

5 Starting and driving
Precautions when starting and driving................5-4
Exhaust gas (carbon monoxide) ..................5-4
Three-way catalyst ..............................5-4
Tire Pressure Monitoring System (TPMS) ..........5-5
On-pavement and off-road driving
precautions ....................................5-8
Avoiding collision and rollover . . ..................5-8
Off-road recovery ...............................5-9
Rapid air pressure loss ..........................5-9
Drinking alcohol/drugs and driving ...............5-10
Driving safety precautions ......................5-10
Intelligent All-Wheel Drive (AWD) driving
safety precautions (if so equipped) ..............5-12
Push-button ignition switch ........................5-13
Operating range ............................... 5-14
Push-button ignition switch positions . . . .........5-14
Emergency hybrid system shut off ...............5-15
INFINITI Intelligent Key battery discharge .........5-15
INFINITI Vehicle Immobilizer System .............5-16
Before starting the INFINITI Direct Response
Hybrid System ................................... 5-16
Starting the INFINITI Direct Response Hybrid
System .......................................... 5-16
Remote start (if so equipped) ...................5-17Driving the vehicle
................................ 5-17
Continuously Variable Transmission (CVT) ........5-17
Parking brake .................................... 5-22
INFINITI Drive Mode Selector ......................5-22
Standard mode ................................ 5-23
Sport mode ................................... 5-23
Snow mode ................................... 5-23
ECO mode ................................... 5-23
Lane Departure Warning (LDW) (if so equipped) .....5-25
LDW system operation ......................... 5-26
How to enable/disable the LDW system .........5-27
LDW system limitations ........................ 5-28
System temporarily unavailable ..................5-29
System maintenance ........................... 5-29
Lane Departure Prevention (LDP) (if so equipped) ....5-30
LDP system operation .......................... 5-31
How toenable/disable

the LDP system..........5-32
LDP system limitations ......................... 5-33
System temporarily unavailable ..................5-34
System maintenance ........................... 5-35
Blind Spot Warning (BSW) (if so equipped) .........5-36
BSW system operation ........................ 5-38
How to enable/disable the BSW system .........5-39

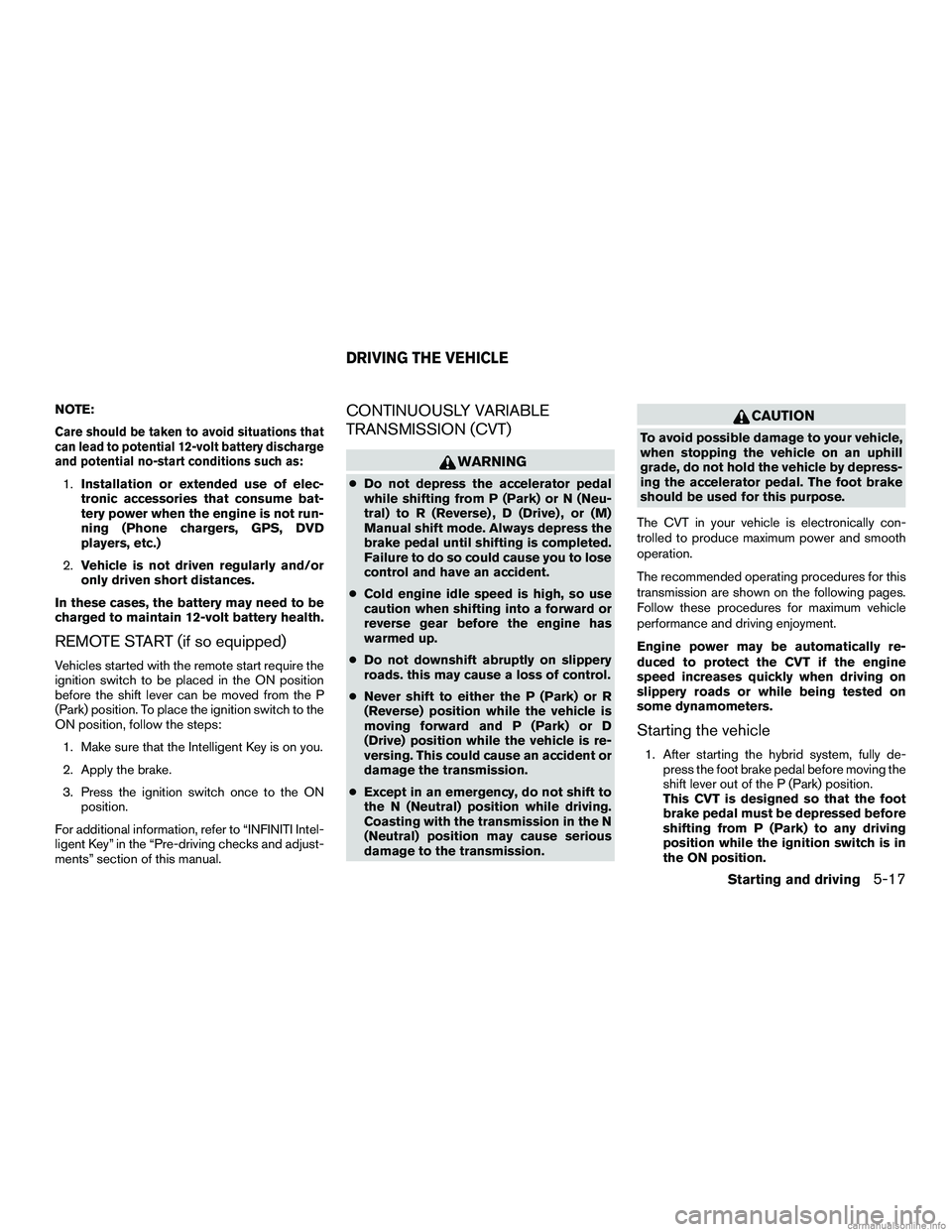

NOTE:
Care should be taken to avoid situations that
can lead to potential 12-volt battery discharge
and potential no-start conditions such as:
1.Installation or extended use of elec-
tronic accessories that consume bat-
tery power when the engine is not run-
ning (Phone chargers, GPS, DVD
players, etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain 12-volt battery health.
REMOTE START (if so equipped)
Vehicles started with the remote start require the
ignition switch to be placed in the ON position
before the shift lever can be moved from the P
(Park) position. To place the ignition switch to the
ON position, follow the steps: 1. Make sure that the Intelligent Key is on you.
2. Apply the brake.
3. Press the ignition switch once to the ON position.
For additional information, refer to “INFINITI Intel-
ligent Key” in the “Pre-driving checks and adjust-
ments” section of this manual.
CONTINUOUSLY VARIABLE
TRANSMISSION (CVT)
WARNING
● Do not depress the accelerator pedal
while shifting from P (Park) or N (Neu-
tral) to R (Reverse) , D (Drive) , or (M)
Manual shift mode. Always depress the
brake pedal until shifting is completed.
Failure to do so could cause you to lose
control and have an accident.
● Cold engine idle speed is high, so use
caution when shifting into a forward or
reverse gear before the engine has
warmed up.
● Do not downshift abruptly on slippery
roads. this may cause a loss of control.
● Never shift to either the P (Park) or R
(Reverse) position while the vehicle is
moving forward and P (Park) or D
(Drive) position while the vehicle is re-
versing. This could cause an accident or
damage the transmission.
● Except in an emergency, do not shift to
the N (Neutral) position while driving.
Coasting with the transmission in the N
(Neutral) position may cause serious
damage to the transmission.
CAUTION
To avoid possible damage to your vehicle,
when stopping the vehicle on an uphill
grade, do not hold the vehicle by depress-
ing the accelerator pedal. The foot brake
should be used for this purpose.
The CVT in your vehicle is electronically con-
trolled to produce maximum power and smooth
operation.
The recommended operating procedures for this
transmission are shown on the following pages.
Follow these procedures for maximum vehicle
performance and driving enjoyment.
Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.
Starting the vehicle
1. After starting the hybrid system, fully de- press the foot brake pedal before moving the
shift lever out of the P (Park) position.
This CVT is designed so that the foot
brake pedal must be depressed before
shifting from P (Park) to any driving
position while the ignition switch is in
the ON position.
DRIVING THE VEHICLE
Starting and driving5-17

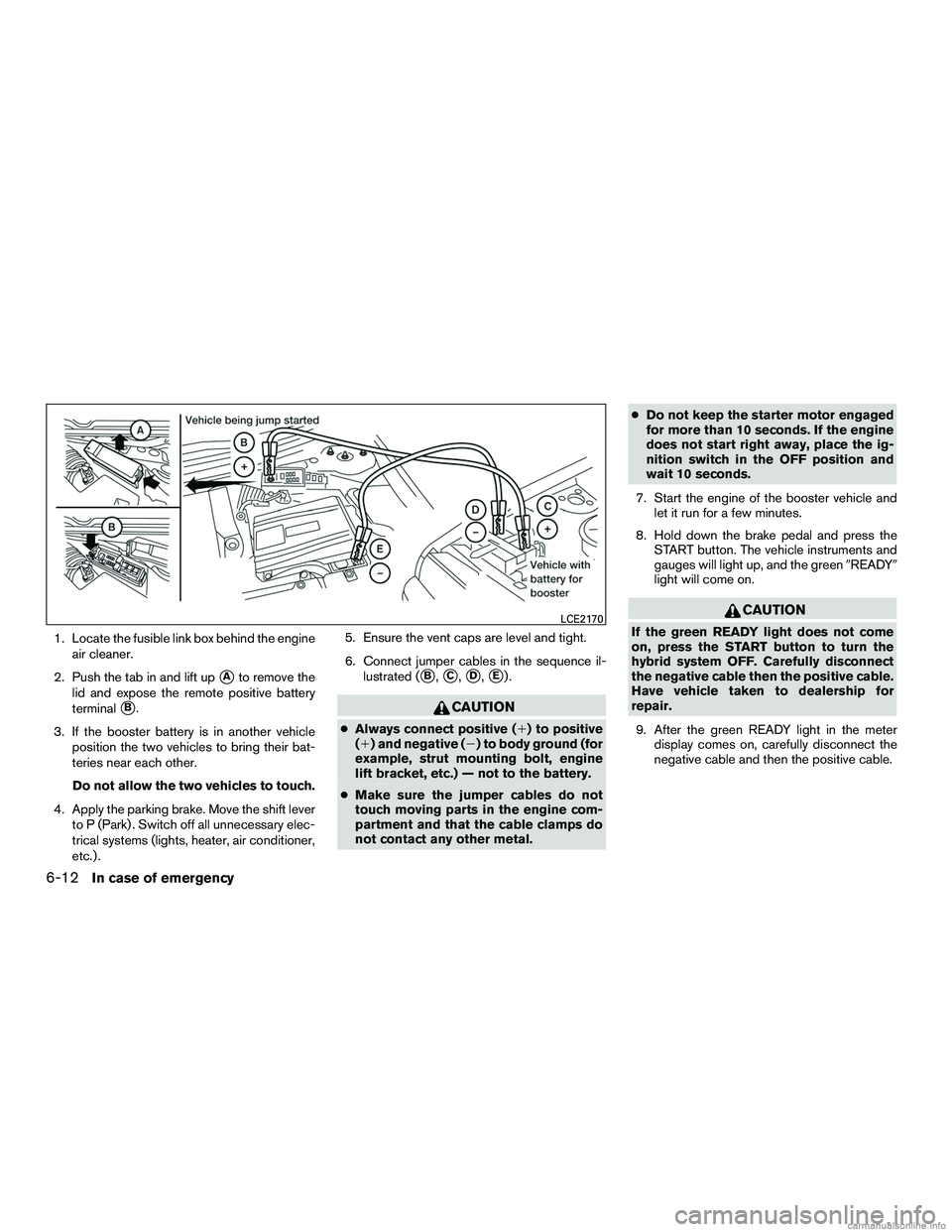

1. Locate the fusible link box behind the engineair cleaner.
2. Push the tab in and lift up
Ato remove the
lid and expose the remote positive battery
terminal
B.
3. If the booster battery is in another vehicle position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
4. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 5. Ensure the vent caps are level and tight.
6. Connect jumper cables in the sequence il-
lustrated (
B,C,D,E).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal. ●
Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 10 seconds.
7. Start the engine of the booster vehicle and let it run for a few minutes.
8. Hold down the brake pedal and press the START button. The vehicle instruments and
gauges will light up, and the green READY
light will come on.
CAUTION
If the green READY light does not come
on, press the START button to turn the
hybrid system OFF. Carefully disconnect
the negative cable then the positive cable.
Have vehicle taken to dealership for
repair.
9. After the green READY light in the meter display comes on, carefully disconnect the
negative cable and then the positive cable.LCE2170
6-12In case of emergency

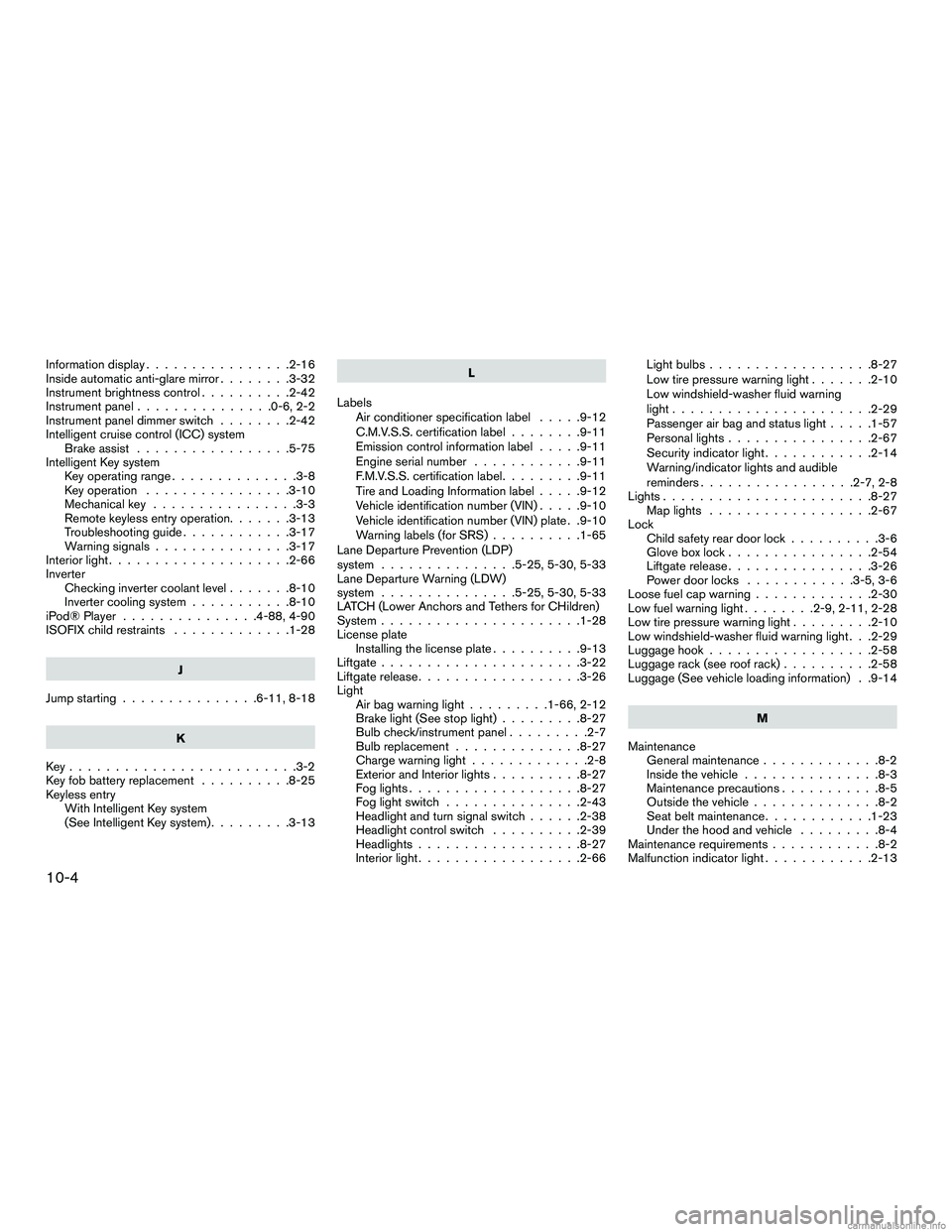

Information display................2-16
Inside automatic anti-glare mirror ........3-32
Instrument brightness control ..........2-42
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-42
Intelligent cruise control (ICC) system Brake assist .................5-75
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-66
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ...........8-10
iPod® Player ...............4-88, 4-90
ISOFIX child restraints .............1-28
J
Jump starting ...............6-11, 8-18
K
Key.........................3-2
Key fob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13 L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-65
Lane Departure Prevention (LDP)
system ...............5-25, 5-30, 5-33
Lane Departure Warning (LDW)
system ...............5-25, 5-30, 5-33
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28
License plate
Installing the

license plate..........9-13
Liftgate ......................3-22
Liftgate release ..................3-26
Light Air bag warning light .........1-66, 2-12
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-27
Charge warning light .............2-8
Exterior and Interior lights ..........8-27
Fog lights ...................8-27
Fog light switch ...............2-43
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Headlights ..................8-27
Interior light ..................2-66 Light bulbs
..................8-27
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ......................2-29
Passenger air bag and status light .....1-57
Personal lights ................2-67
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .................2-7, 2-8
Lights .......................8-27
Map lights ..................2-67
Lock Child safety rear door lock ..........3-6
Glove box lock ................2-54
Liftgate release ................3-26
Power door locks ............3-5, 3-6
Loose fuel cap warning .............2-30
Low fuel warning light ........2-9, 2-11, 2-28
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-29
Luggage hook ..................2-58
Luggage rack (see

roof rack) ..........2-58
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
10-4

Map lights....................2-67
Map pocket ....................2-52
Memory Seat ...................3-34
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Automatic anti-glare inside mirror ......3-32
Outside mirrors ...............3-32
Vanity mirror .................3-31
Mirrors ......................3-32
Moonroof ..................2-62, 7-5
Moving Object Detection (MOD) ........4-44
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-11
Engine oil ...................8-11
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
One shot call ..............4-115, 4-128
Outside mirrors .................3-32
Owner’s manual order form ...........9-33
Owner’s manual/service manual order
information ....................9-33 P
Parking Parking brake operation ...........5-22
Parking/parking on hills ..........5-135
Parking brake ...................5-22
Personal lights ..................2-67
Phone, Bluetooth® hands-free
system .................4-112, 4-126
Power Power door locks ............3-5, 3-6
Power outlet ..............2-49, 2-50
Power rear windows .............2-61
Power steering fluid ............ .8-15
P ower steering

system ...........5-135
Power windows ...............2-59
Rear power windows ............2-61
Power inverter switch ..............2-48
Power meter ....................2-6
Power outlet ................2-49, 2-50
Power steering .................5-135
Power steering fluid ...............8-15
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats ...........1-27, 1-34, 1-39, 1-45
Precautions on child
restraints .........1-27, 1-34, 1-39, 1-45
Precautions on seat belt usage .......1-15
Precautions on supplemental restraint
system ....................1-48
Precautions when starting and driving . . . .5-4 Predictive Forward Collision Warning
(PFCW)
.....................5-118
Push starting ...................6-13
R
Radio Car phone or CB radio ...........4-111
FM/AM/SAT radio with compact disc (CD)
player .....................4-72
Steering wheel audio control switch . . . .4-98
Rain sensor ....................2-36
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear Cross Traffic Alert (RCTA) ........5-65
Rear power windows ..............2-61
RearView Monitor ................4-24
Rear window defroster switch .........2-38
Rear window wiper and washer switches . . .2-37
Recommended Fluids ...............9-2
Recorders Event Data ..................9-32
Refrigerant recommendation ...........9-7
Registering a vehicle in another country . . . .9-10
Remote Start ...............3-19, 5-17
Reporting safety defects (US only) .......9-30
Roof rack .....................2-58
S
Safety Child safety rear

door lock ..........3-6
Child seat belts .....1-27, 1-34, 1-39, 1-45
Reporting safety defects (US only) .....9-30
10-5
