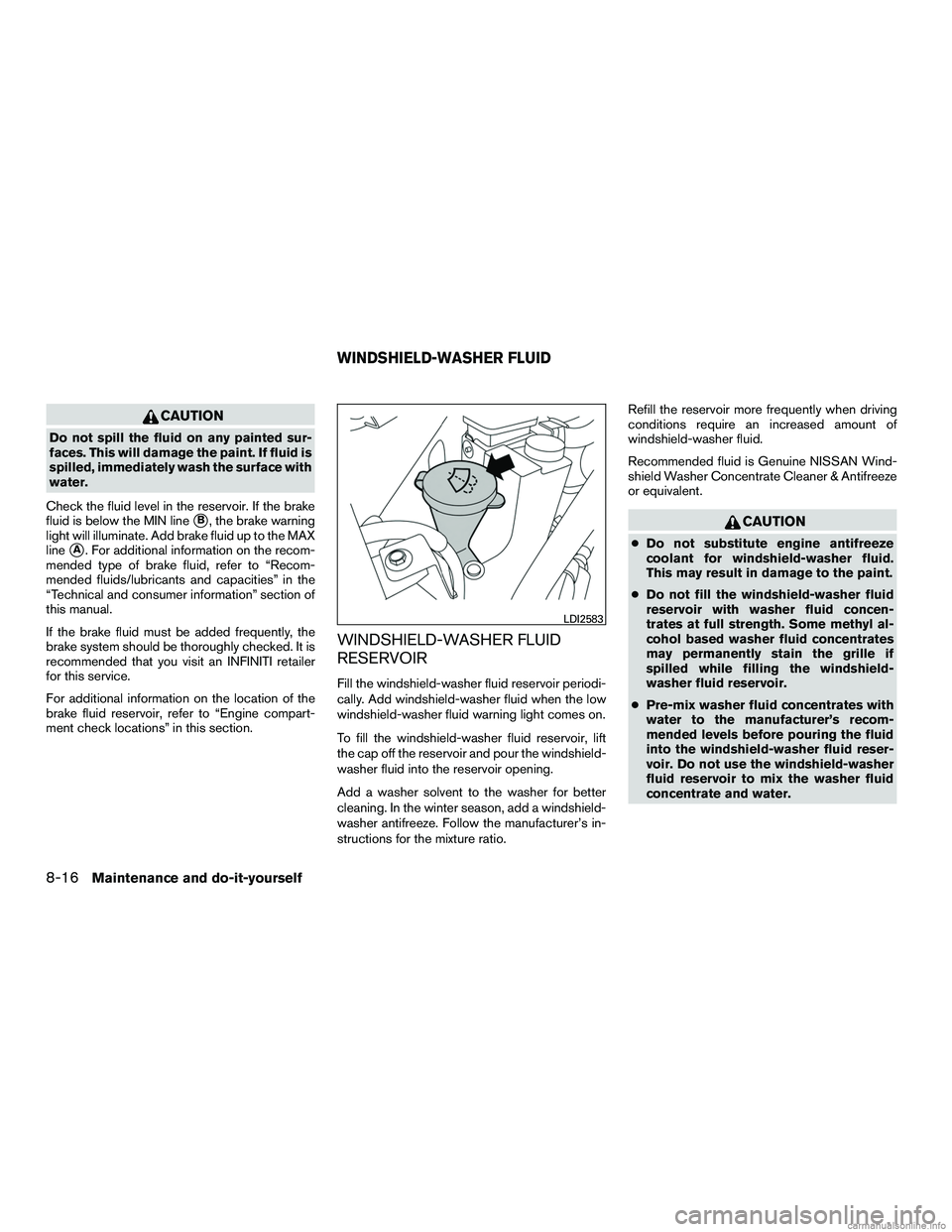

CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid is
spilled, immediately wash the surface with
water.
Check the fluid level in the reservoir. If the brake
fluid is below the MIN line
B, the brake warning
light will illuminate. Add brake fluid up to the MAX
line
A. For additional information on the recom-
mended type of brake fluid, refer to “Recom-
mended fluids/lubricants and capacities” in the
“Technical and consumer information” section of
this manual.
If the brake fluid must be added frequently, the
brake system should be thoroughly checked. It is
recommended that you visit an INFINITI retailer
for this service.
For additional information on the location of the
brake fluid reservoir, refer to “Engine compart-
ment check locations” in this section.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir periodi-
cally. Add windshield-washer fluid when the low
windshield-washer fluid warning light comes on.
To fill the windshield-washer fluid reservoir, lift
the cap off the reservoir and pour the windshield-
washer fluid into the reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield-
washer antifreeze. Follow the manufacturer’s in-
structions for the mixture ratio. Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
CAUTION
●
Do not substitute engine antifreeze
coolant for windshield-washer fluid.
This may result in damage to the paint.
● Do not fill the windshield-washer fluid
reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer fluid reservoir.
● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
LDI2583
WINDSHIELD-WASHER FLUID
8-16Maintenance and do-it-yourself

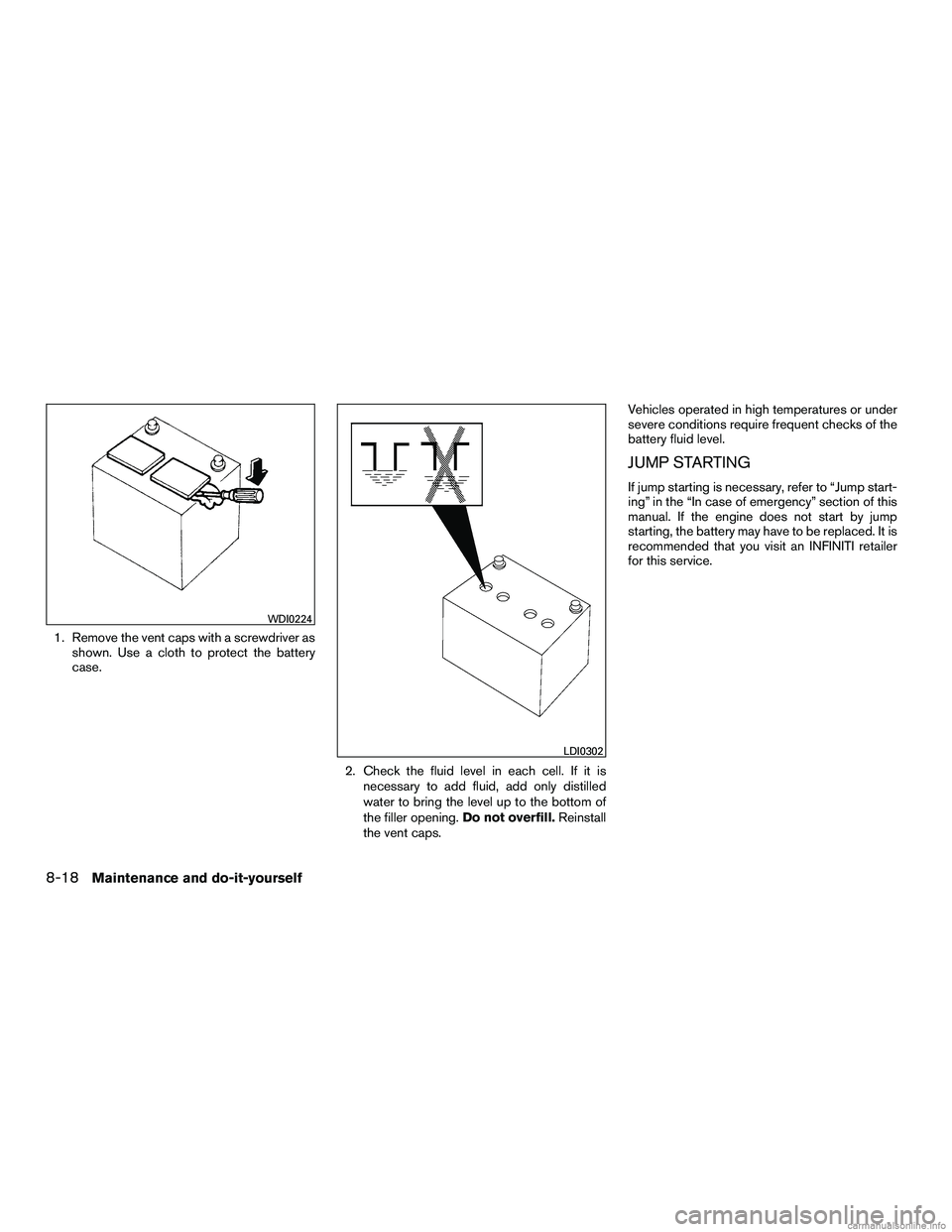

1. Remove the vent caps with a screwdriver asshown. Use a cloth to protect the battery
case.
2. Check the fluid level in each cell. If it isnecessary to add fluid, add only distilled
water to bring the level up to the bottom of
the filler opening. Do not overfill.Reinstall
the vent caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced. It is
recommended that you visit an INFINITI retailer
for this service.
WDI0224
LDI0302
8-18Maintenance and do-it-yourself

1. Super charger pulley
2. Idler pulley
3. Water pump pulley
4 Air conditioner compressor pulley
5. Drive belt automatic tensioner pulley
6. Crankshaft pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.1. Visually inspect the belt for signs of unusual
wear, cuts, fraying or looseness. If the belt is
in poor condition or is loose, have it replaced
or adjusted. It is recommended that you visit
an INFINITI retailer for this service.
2. Have the belt checked regularly for condi- tion and tension in accordance with the
maintenance schedule found in your
“INFINITI Service and Maintenance Guide”.
REPLACING SPARK PLUGS
Iridium-tipped spark plugs
It is not necessary to replace iridium-tippedA
spark plugs as frequently as conventional type
spark plugs because they last much longer. Fol-
low the maintenance log shown in the “INFINITI
Service and Maintenance Guide”. Do not service
iridium-tipped spark plugs by cleaning or regap-
ping.
● Always replace spark plugs with rec-
ommended or equivalent ones.
LDI2493SDI1895
DRIVE BELT SPARK PLUGS
Maintenance and do-it-yourself8-19

Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light to
moderate stops is normal and does not affect the
function or performance of the brake system.
Proper brake inspection intervals should
be followed.For additional information regard-
ing brake inspections, refer to the appropriate
maintenance schedule information in the
“INFINITI Service and Maintenance Guide”.

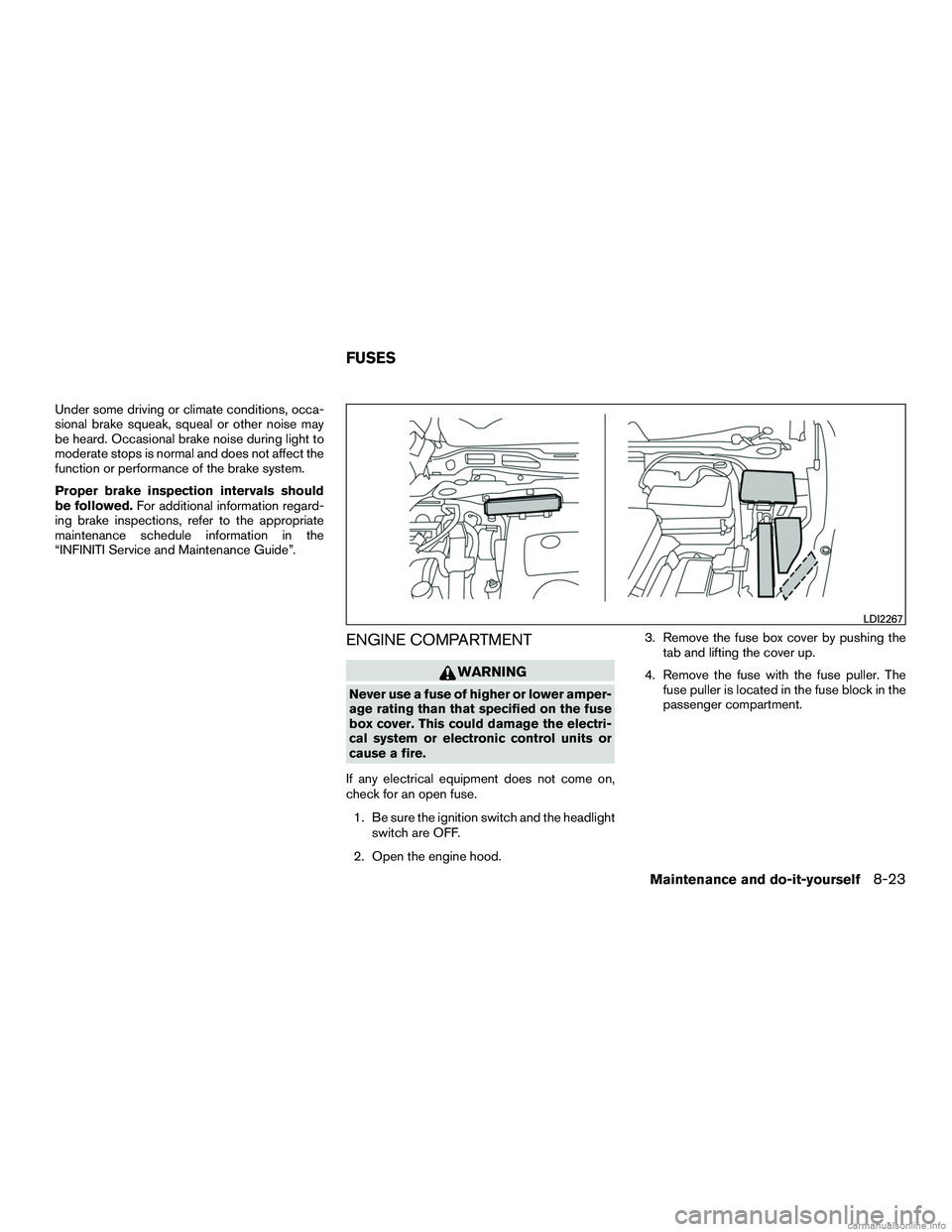

ENGINE COMPARTMENT
WARNING
Never use a fuse of higher or lower amper-
age rating than that specified on the fuse
box cover. This could damage the electri-
cal system or electronic control units or
cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse block in the
passenger compartment.
LDI2267
FUSES
Maintenance and do-it-yourself8-23

Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked. It is rec-
ommended that you visit an INFINITI retailer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.

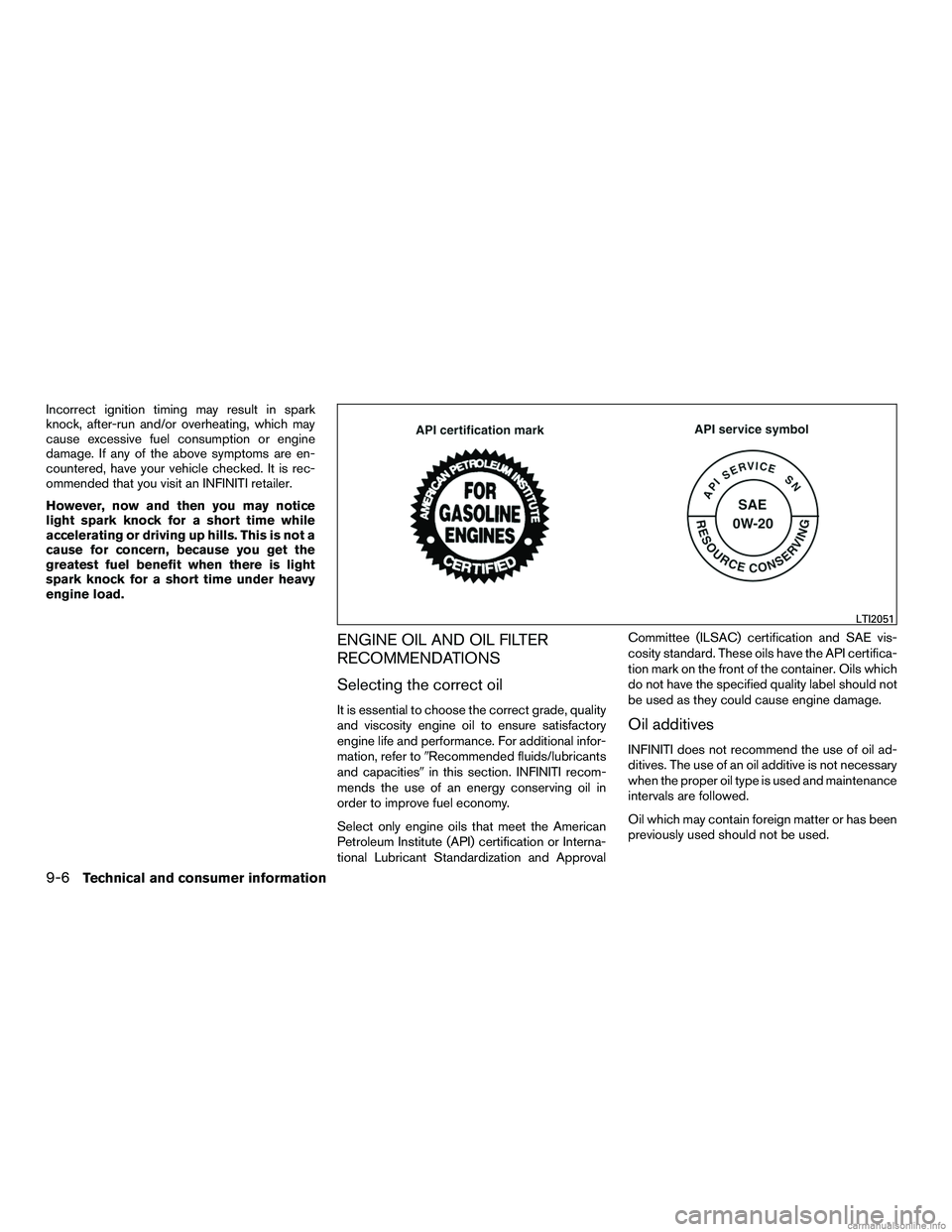

ENGINE OIL AND OIL FILTER
RECOMMENDATIONS
Selecting the correct oil
It is essential to choose the correct grade, quality
and viscosity engine oil to ensure satisfactory
engine life and performance. For additional infor-
mation, refer toRecommended fluids/lubricants
and capacities in this section. INFINITI recom-
mends the use of an energy conserving oil in
order to improve fuel economy.
Select only engine oils that meet the American
Petroleum Institute (API) certification or Interna-
tional Lubricant Standardization and Approval Committee (ILSAC) certification and SAE vis-
cosity standard. These oils have the API certifica-
tion mark on the front of the container. Oils which
do not have the specified quality label should not
be used as they could cause engine damage.Oil additives
INFINITI does not recommend the use of oil ad-
ditives. The use of an oil additive is not necessary
when the proper oil type is used and maintenance
intervals are followed.
Oil which may contain foreign matter or has been
previously used should not be used.
LTI2051
9-6Technical and consumer information

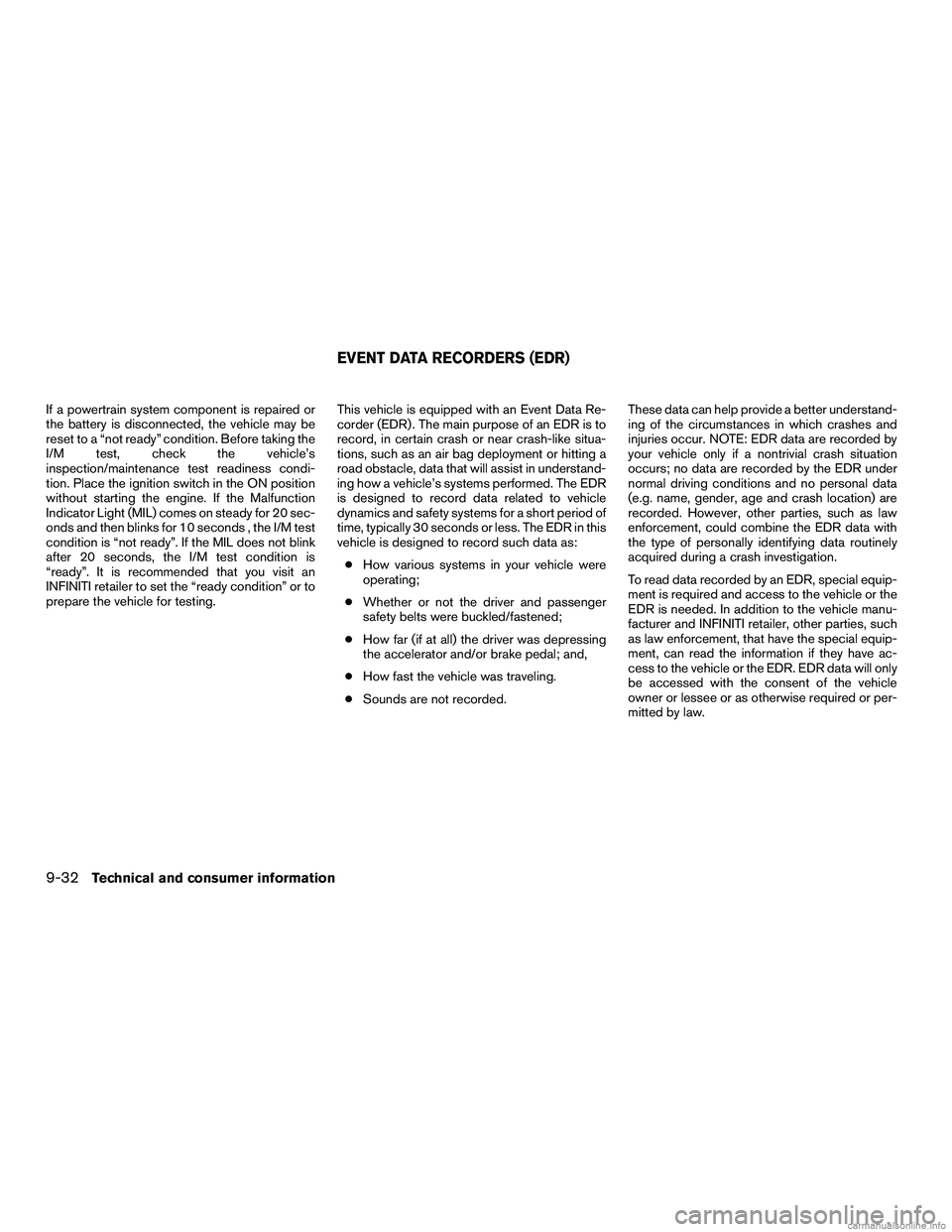

If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. It is recommended that you visit an
INFINITI retailer to set the “ready condition” or to
prepare the vehicle for testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and INFINITI retailer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
EVENT DATA RECORDERS (EDR)
9-32Technical and consumer information

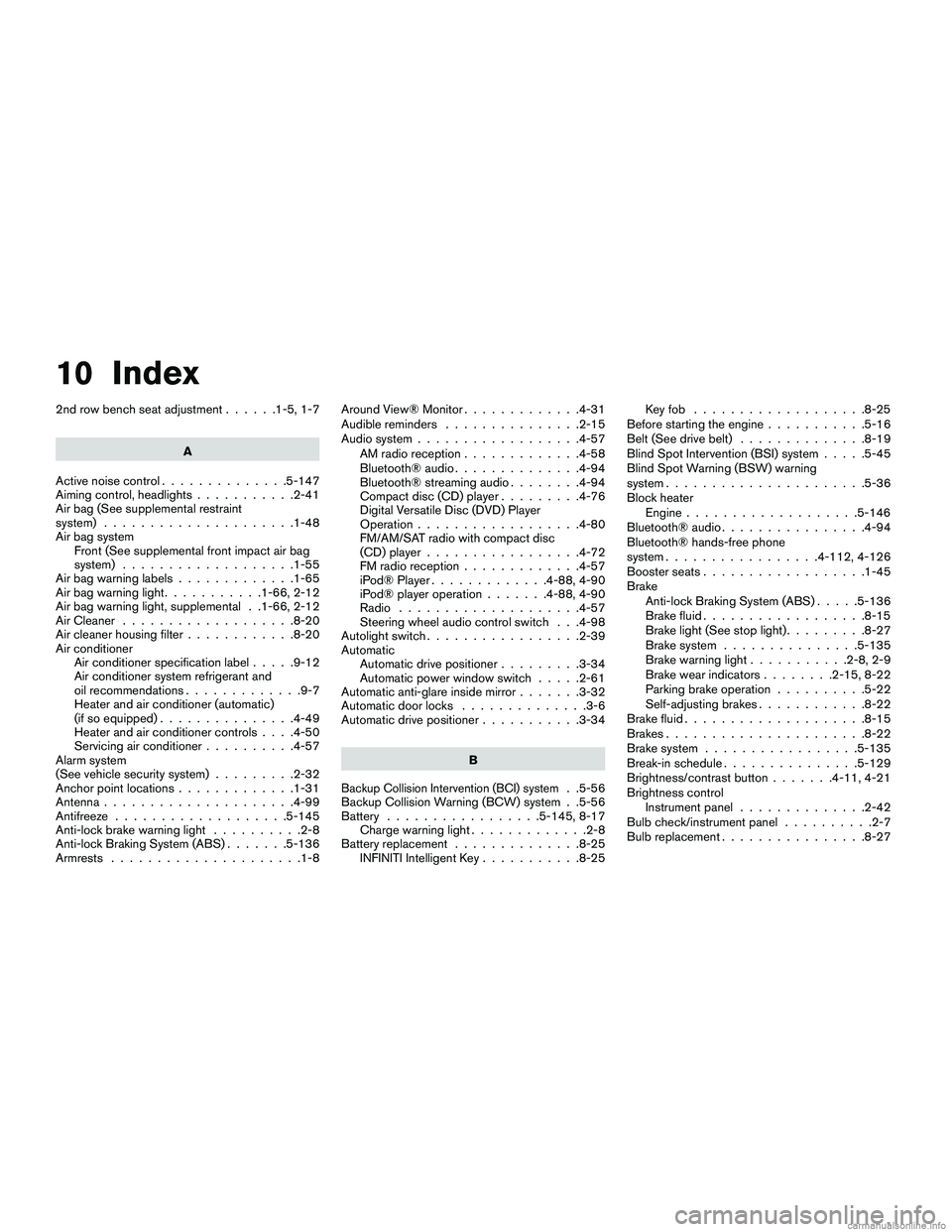

10 Index
2nd row bench seat adjustment......1-5, 1-7
A
Active noise control ..............5-147
Aiming control, headlights ...........2-41
Air bag (See supplemental restraint
system) .....................1-48
Air bag system Front (See supplemental front impact air bag
system) ...................1-55
Air bag warning labels .............1-65
Air bag warning light ...........1-66, 2-12
Air bag warning light, supplemental . .1-66, 2-12
Air Cleaner ...................8-20
Air cleaner housing filter ............8-20
Air conditioner Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-49
Heater and air conditioner controls . . . .4-50
Servicing air conditioner ..........4-57
Alarm system
(See vehicle security system) .........2-32
Anchor point locations .............1-31
Antenna .....................4-99
Antifreeze ...................5-145
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) .......5-136
Armrests .....................1-8 Around View® Monitor
.............4-31
Audible reminders ...............2-15
Audio system ..................4-57
AM radio reception .............4-58
Bluetooth® audio ..............4-94
Bluetooth® streaming audio ........4-94
Compact disc (CD) player .........4-76
Digital Versatile Disc (DVD) Player
Operation ..................4-80
FM/AM/SAT radio with compact disc
(CD) player .................4-72
FM radio reception .............4-57
iPod® Player .............4-88, 4-90
iPod® player operation .......4-88, 4-90
Radio ....................4-57
Steering wheelaudio

control switch . . .4-98
Autolight switch .................2-39
Automatic Automatic drive positioner .........3-34
Automatic power window switch .....2-61
Automatic anti-glare inside mirror .......3-32
Automatic door locks ..............3-6
Automatic drive positioner ...........3-34
B
Backup Collision Intervention (BCI) system. .5-56
Backup Collision Warning (BCW) system . .5-56
Battery .................5-145, 8-17
Charge warning light .............2-8
Battery replacement ..............8-25
INFINITI Intelligent Key ...........8-25 Keyfob ...................8-25
Before starting the engine ...........5-16
Belt (See drive belt) ..............8-19
Blind Spot Intervention (BSI) system .....5-45
Blind Spot Warning (BSW) warning
system ......................5-36
Block heater Engine ...................5-146
Bluetooth® audio ................4-94
Bluetooth® hands-free phone
system .................4-112, 4-126
Booster seats ..................1-45
Brake Anti-lock Braking System (ABS) .....5-136
Brake fluid ..................8-15
Brake light (See stop light) .........8-27
Brake system ...............5-135
Brake warning light ...........2-8, 2-9
Brake wear indicators ........2-15, 8-22
Parking brake operation ..........5-22
Self-adjusting brakes ............8-22
Brake fluid ....................8-15
Brakes ......................8-22
Brake system .................5-135
Break-in schedule ...............5-129
Brightness/contrast button .......4-11, 4-21
Brightness control Instrument panel ..............2-42
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-27

C
Capacities and recommended fuel/lubricants . .9-2
Cargo area storage bin .............2-57
Cargo light ....................2-68
Cargo (See vehicle loading information) . . . .9-14
Car phone or CB radio .............4-111
CD care and cleaning ..............4-97
CD player (See audio system) .........4-76
Check tire pressure ...............2-29
Child restraints .......1-24, 1-24, 1-26, 1-28
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-28
Precautions on child
restraints .........1-27, 1-34, 1-39, 1-45
Top tether strap anchor point locations . .1-31
Child restraint with top tether strap .......1-31
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-15
Cleaning exterior and interior ........7-2, 7-4
Clock setting
(models with Navigation System) ........4-19
Clock setting
(models without Navigation System) ......4-10
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-145
Compact disc (CD) player ...........4-76
Console box ...................2-54
Continuously Variable Transmission (CVT) . . .5-17 Continuously Variable Transmission (CVT)
fluid ......................8-14
Driving with Continuously Variable
Transmission (CVT) .............5-17
Control panel buttons ..............4-12
Brightness/contrast button ......4-11, 4-21 Enter button
...............4-4, 4-12
Without navigation system ..........4-4
Controls Audio controls (steering wheel) .......4-98
Heater and air conditioner controls .....4-50
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Checking engine coolant level ........8-9
Checking inverter coolant level .......8-10
Corrosion protection .............. .7-7
Cruise

control ...............5-73, 5-74
Cup holders ...................2-55
D
Daytime running light system (Canada only) . .2-41
Defroster switch Rear window defroster switch .......2-38
Digital Versatile Disc (DVD) player .......4-80
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-42
Display ......................2-16
Display controls
(see control panel buttons) ........4-4, 4-12
Distance Control Assist (DCA) system .....5-95
Doors ........................3-4
Drive belt .....................8-19
Drive positioner, Automatic ...........3-34
Driving Cold weather driving ............5-145
Driving with Continuously Variable
Transmission (CVT) .............5-17
Precautions when starting and driving . . . .5-4 Driving the vehicle
................5-17
Dual head restraint DVD system ........4-99
Dual power moonroof ...........2-64, 2-64
E
Economy - fuel .................5-131
Emission control information label .......9-11
Emission control system warranty .......9-30
Engine Before starting the engine ..........5-16
Block heater ................5-146
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-9
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine coolant level ........8-9
Checking engine oil level ..........8-11
Engine compartment check locations . . . .8-7
Engine cooling system ............8-8
Engine oil ...................8-11
Engine oil and

oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-16
Enter button .................4-4, 4-12
Event Data recorders ..............9-32
Exhaust gas (Carbon monoxide) .........5-4
Explanation of maintenance items ........8-2
Extended storage switch ............2-51
10-2

Information display................2-16
Inside automatic anti-glare mirror ........3-32
Instrument brightness control ..........2-42
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-42
Intelligent cruise control (ICC) system Brake assist .................5-75
Intelligent Key system Key operating range ..............3-8
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation .......3-13
Troubleshooting guide ............3-17
Warning signals ...............3-17
Interior light ....................2-66
Inverter Checking inverter coolant level .......8-10
Inverter cooling system ...........8-10
iPod® Player ...............4-88, 4-90
ISOFIX child restraints .............1-28
J
Jump starting ...............6-11, 8-18
K
Key.........................3-2
Key fob battery replacement ..........8-25
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13 L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-65
Lane Departure Prevention (LDP)
system ...............5-25, 5-30, 5-33
Lane Departure Warning (LDW)
system ...............5-25, 5-30, 5-33
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28
License plate
Installing the

license plate..........9-13
Liftgate ......................3-22
Liftgate release ..................3-26
Light Air bag warning light .........1-66, 2-12
Brake light (See stop light) .........8-27
Bulb check/instrument panel .........2-7
Bulb replacement ..............8-27
Charge warning light .............2-8
Exterior and Interior lights ..........8-27
Fog lights ...................8-27
Fog light switch ...............2-43
Headlight and turn signal switch ......2-38
Headlight control switch ..........2-39
Headlights ..................8-27
Interior light ..................2-66 Light bulbs
..................8-27
Low tire pressure warning light .......2-10
Low windshield-washer fluid warning
light ......................2-29
Passenger air bag and status light .....1-57
Personal lights ................2-67
Security indicator light ............2-14
Warning/indicator lights and audible
reminders .................2-7, 2-8
Lights .......................8-27
Map lights ..................2-67
Lock Child safety rear door lock ..........3-6
Glove box lock ................2-54
Liftgate release ................3-26
Power door locks ............3-5, 3-6
Loose fuel cap warning .............2-30
Low fuel warning light ........2-9, 2-11, 2-28
Low tire pressure warning light .........2-10
Low windshield-washer fluid warning light . . .2-29
Luggage hook ..................2-58
Luggage rack (see

roof rack) ..........2-58
Luggage (See vehicle loading information) . .9-14
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-13
10-4

Map lights....................2-67
Map pocket ....................2-52
Memory Seat ...................3-34
Meters and gauges ................2-4
Instrument brightness control ........2-42
Mirror Automatic anti-glare inside mirror ......3-32
Outside mirrors ...............3-32
Vanity mirror .................3-31
Mirrors ......................3-32
Moonroof ..................2-62, 7-5
Moving Object Detection (MOD) ........4-44
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-11
Engine oil ...................8-11
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
One shot call ..............4-115, 4-128
Outside mirrors .................3-32
Owner’s manual order form ...........9-33
Owner’s manual/service manual order
information ....................9-33 P
Parking Parking brake operation ...........5-22
Parking/parking on hills ..........5-135
Parking brake ...................5-22
Personal lights ..................2-67
Phone, Bluetooth® hands-free
system .................4-112, 4-126
Power Power door locks ............3-5, 3-6
Power outlet ..............2-49, 2-50
Power rear windows .............2-61
Power steering fluid ............ .8-15
P ower steering

system ...........5-135
Power windows ...............2-59
Rear power windows ............2-61
Power inverter switch ..............2-48
Power meter ....................2-6
Power outlet ................2-49, 2-50
Power steering .................5-135
Power steering fluid ...............8-15
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-8
Precautions on booster
seats ...........1-27, 1-34, 1-39, 1-45
Precautions on child
restraints .........1-27, 1-34, 1-39, 1-45
Precautions on seat belt usage .......1-15
Precautions on supplemental restraint
system ....................1-48
Precautions when starting and driving . . . .5-4 Predictive Forward Collision Warning
(PFCW)
.....................5-118
Push starting ...................6-13
R
Radio Car phone or CB radio ...........4-111
FM/AM/SAT radio with compact disc (CD)
player .....................4-72
Steering wheel audio control switch . . . .4-98
Rain sensor ....................2-36
Readiness for inspection maintenance (I/M)
test ........................9-31
Rear Cross Traffic Alert (RCTA) ........5-65
Rear power windows ..............2-61
RearView Monitor ................4-24
Rear window defroster switch .........2-38
Rear window wiper and washer switches . . .2-37
Recommended Fluids ...............9-2
Recorders Event Data ..................9-32
Refrigerant recommendation ...........9-7
Registering a vehicle in another country . . . .9-10
Remote Start ...............3-19, 5-17
Reporting safety defects (US only) .......9-30
Roof rack .....................2-58
S
Safety Child safety rear

door lock ..........3-6
Child seat belts .....1-27, 1-34, 1-39, 1-45
Reporting safety defects (US only) .....9-30
10-5
