service indicator INFINITI QX60 HYBRID 2016 Quick Reference Guide

4
essential information
Loose Fuel Cap and Fuel-filler Door
LOOSE FUEL CAP
A LOOSE FUEL CAP warning message will appear
in the vehicle information display
1 when the
fuel-filler cap is not tightened correctly.
To tighten, turn the cap clockwise until a single click
is heard.
The warning message will extinguish when the
vehicle detects the fuel-filler cap is properly
tightened and the reset button
2 on the steering wheel is pressed for about 1 second.
If the cap is not properly tightened, the Malfunction Indicator Light may illuminate.
FUEL-FILLER DOOR
The fuel-filler door is located on the driver’s side of
the vehicle.
The fuel-filler door automatically locks or unlocks
when the driver’s door is locked or unlocked.
To open the fuel-filler door, push the right side of
the fuel-filler door and release.
For more information, refer to the “Instruments and controls (section 2)” and the “Pre-driving checks and adjustments
(section 3)” of your Owner’s Manual.
1
4. When the designated tire pressure is reached, the horn will beep once an\
d the hazard
warning flashers will stop flashing.
5. Repeat this procedure for any additional under-inflated tires.
After tire pressures are adjusted, drive the vehicle at speeds above 16 \
mph (25 km/h). The
Tire Pressure Low - Add Air warning message and low tire pressure warning light
2
will extinguish.
When the low tire pressure warning light 2 flashes for approximately 1 minute and
then remains on, the TPMS is not functioning properly. Have the system c\
hecked. It is
recommended you visit an INFINITI retailer for this service.
Tire pressure rises and falls depending on the heat caused by the vehicl\
e’s operation and
the outside temperature. Low outside temperature can lower the temperatu\
re of the air
inside the tire, which can cause a lower tire inflation pressure. This m\
ay cause the low tire
pressure warning light
2 to illuminate. If the warning light illuminates, check the tire
pressure in your tires.
• Check the tire pressure (including the spare tire) often and always pr\
ior to long
distance trips.
The Tire and Loading Information label contains valuable information. Pl\
ease refer to the
“Technical and consumer information (section 9)” of your Owner’\
s Manual for the location
of the Tire and Loading Information label.
For more information, refer to the “Instruments and controls (section 2)”, the “Starting and driving (section 5)” and the
“Maintenance and do-it-yourself (section 8)” of your Owner’s Manual.
2

20
FM/AM/SiriusXM®* Satellite Radio with CD/DVD Player (if so equipped)
1 ON•OFF BUTTON/VOL (volume) CONTROL KNOB
Press the ON•OFF button to turn the system on or off.
Turn the VOL (volume) control knob right or left to increase or decrease the volum\
e.
2 AUDIO BUTTON/TUNE/FOLDER KNOB
Press the AUDIO button to access the audio “Settings” screen.
To manually tune the radio, turn the TUNE/FOLDER knob left or right.
*SiriusXM® Satellite Radio is only available on vehicles equipped with an optional\
satellite radio subscription service.

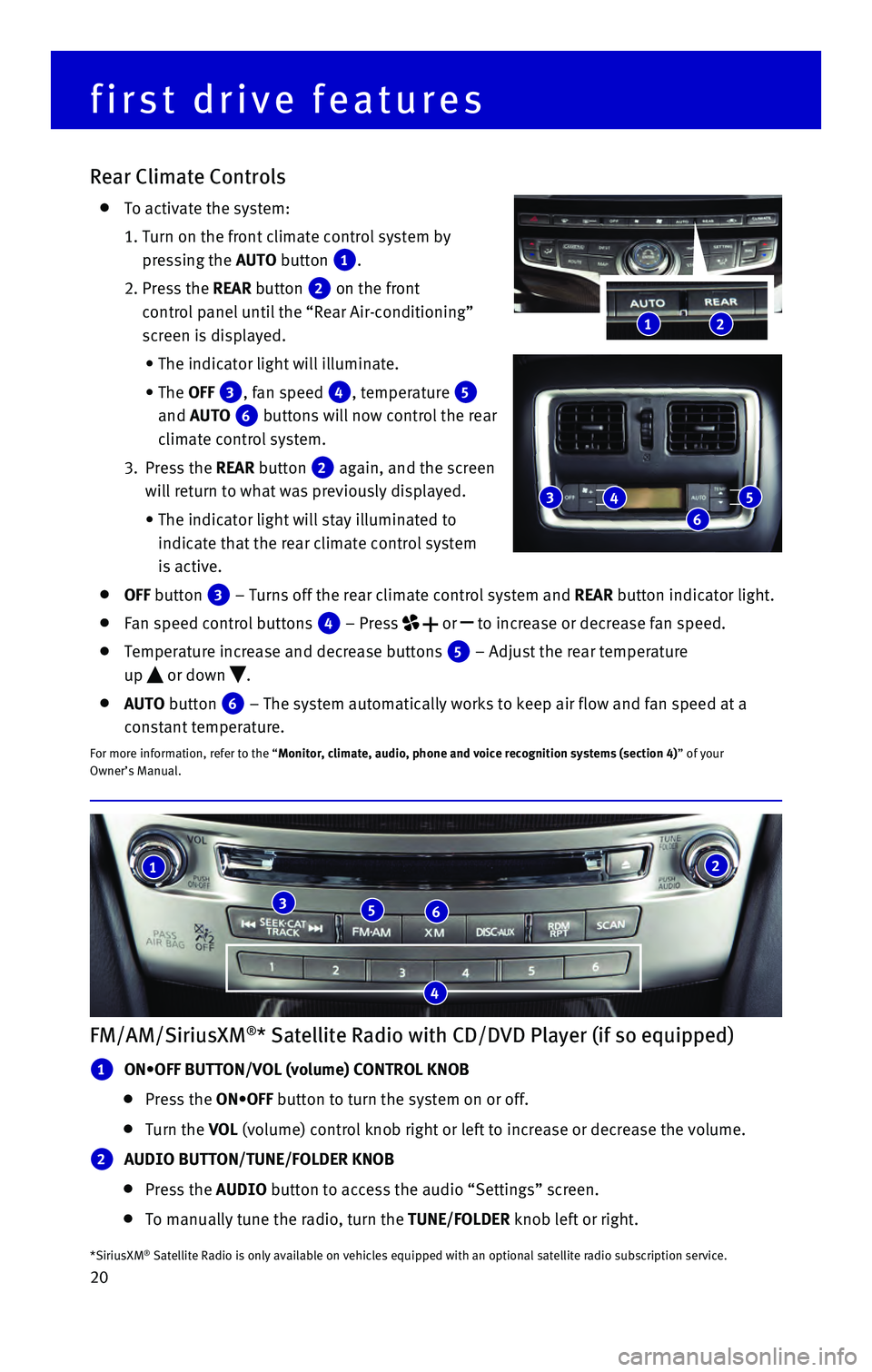

Rear Climate Controls
To activate the system:
1. Turn on the front climate control system by
pressing the AUTO button
1.
2. Press the REAR button 2 on the front
control panel until the “Rear Air-conditioning”
screen is displayed.
• The indicator light will illuminate.
• The OFF 3, fan speed 4, temperature 5
and AUTO
6 buttons will now control the rear
climate control system.
3. Press the REAR

button
2 again, and the screen
will return to what was previously displayed.
• The indicator light will stay illuminated to
indicate that the rear climate control system
is active.
OFF button 3 – Turns off the rear climate control system and REAR button indicator light.
Fan speed control buttons 4 – Press or to increase or decrease fan speed.
Temperature increase and decrease buttons 5 – Adjust the rear temperature
up
or down .
AUTO button 6 – The system automatically works to keep air flow and fan speed at a\

constant temperature.
For more information, refer to the “Monitor, climate, audio, phone and voice recognition systems (section 4\
) ” of your
Owner’s Manual.
