INFINITI QX60 HYBRID 2017 First Responder´s

2. Basic High-Voltage System and 12-Volt System Information
2-1
Battery Information
The QX60 HYBRID utilizes two batteries in order to supply both high and low voltage.
2-1.1 12-Volt Battery • The QX60 HYBRID contains a conventional lead-acid12-volt battery.
• The 12-volt battery is located in the front of the vehicle on the left side of the engine compartment.
• The 12-volt battery is charged by the high-voltage battery through the DC/DC converter. : Vehicle front
2-1.2
High-Voltage Battery
• The QX60 HYBRID contains a high-voltage battery.
• The high-voltage battery is mounted in the cargo area under the 3rd row seating, enclosed in a metal case
and concealed by trim cover.
• The high-voltage battery stores approximately 144 volts DC.
• A vent hose is provided to exhaust gasses outside the vehicle if necessary.
• Air vents (A) are located on the cargo area trim panels for battery cooling.
The high-voltage battery supplies power to the following: • High-voltage harnesses
• DC/DC converter
• Traction motor inverter
• Traction motor AAYIA0300ZZ
AAYIA0301ZZ
AAYIA0264ZZ
FRG–11

2-2 High-Voltage-Related and 12-Volt-Related Component Locations and
Descriptions
=
NOTE:
Components with white number in black background are high-voltage components. AAYIA0490ZZ
FRG–12

No. Component
LocationDescription
DC/DC
Converter Cargo area floor(mounted right of
high-voltage battery) The DC/DC converter reduces the voltage of
the high-voltage battery to provide power to
the 12-volt battery in order to operate the vehi-
cle’s electric components (headlights, audio
system, etc.) .
Service Plug Cargo area floor
(inside storage bin
behind access door) This is used to disable the high-voltage system.
High-Voltage
Battery Cargo area floor
(under 3rd row
seating floor trim) The high-voltage battery stores and outputs
DC power (Maximum voltage 144V) needed to
propel the vehicle.
Traction Motor Engine compart-
ment (built-into the
transmission) Converts three-phase alternating current (AC)
power to drive power (torque) which propels
the vehicle.
Traction Motor
Inverter Engine compart-
ment (front driver
side) Converts the DC power stored in the high-
voltage battery to three-phase AC power and
controls motor torque (revolution) by regulating
the motor current. The inverter has a built in
high-voltage capacitor.
12-Volt Battery Front of the vehicle
on the left side of
the engine compart-
ment A lead-acid battery that supplies power to the
low voltage devices.
High-Voltage
Harness
Cargo area (on high-
voltage battery) ,
under floor, engine
compartmentOrange-colored power cables carry high DC
voltage between each of the high-voltage com-
ponents.
2-3 High-Voltage Battery Pack Specifications High-Voltage Battery Specifications
High-voltage

battery voltage 144V
Number of high-voltage battery modules in the pack 3 modules (40 cells)
High-voltage battery module voltage 48V each
High-voltage battery dimensions 36.31 x 22.07 x 6.52 in. (922.3 x 560.5 x
165.6 mm)
High-voltage battery weight 62.4 lbs (28.3 kg)
FRG–13

2-4 High-Voltage Safety Measures
Circuit insulation
The high-voltage positive (+) and negative (-) circuits are insulated
from the metal chassis.
Reducing the risk of electrocution The high-voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high-voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high-voltage electrical shock.
Identification The high-voltage components are labeled “WARNING” similar to the
label shown below. All high-voltage harnesses are coated in orange.
2-4.1 Warning Label AAYIA0010ZZ
FRG–14

2-5 High-Voltage Safety System
The
high-voltage safety system is intended to help keep vehicle occupants and emergency responders safe
from high-voltage electricity. • A high-voltage fuse provides short circuit protection inside the high-voltage battery.
• The high-voltage safety system is insulated from the metal chassis.
•
Positive and negative high-voltage power cables are connected to the high-voltage battery and are
controlled by normally open system main relays (SMR1 and SMR2) . When the vehicle is shut off, the
relays stop electrical flow from leaving the high-voltage battery. However, it can take approximately ten
(10) minutes for the high-voltage capacitor to fully discharge. • The high-voltage system and high-voltage capacitor may remain powered for up to
approximately
10 minutes after the vehicle is shut off. Appropriate Personal Protective
Equipment (PPE) must always be worn when touching or working on high-voltage
components to avoid risk of electrical shock and severe personal injury or death.
• The high-voltage battery retains high-voltage at all times. Appropriate PPE must
always
be worn when touching or working on high-voltage components to avoid risk
of electrical shock and severe personal injury or death. AAYIA0166GB
FRG–15

• A ground fault monitor continuously monitors for high-voltage leakage to the metal chassis while the
vehicle is running. If a malfunction is detected, the HPCM (hybrid powertrain control module) will
illuminate the hybrid system warning lamp in the instrument cluster.
•

The high-voltage battery relays (SMR1 and SMR2) will automatically open to stop the electrical flow
in a front, side or certain rear collisions that are sufficient enough to activate the supplemental
restraint system (SRS) .
2-6 High-Voltage Circuit Shut-Off System
This vehicle is equipped with a system to shut off the current from the high-voltage battery by the following
methods: Service plug
Positioned in the right rear area of the high-voltage battery, this plug shuts off
the
output of high-voltage when manually removed.
System main relays
(located in the high-
voltage battery) Controlled by the ignition switch, these relays are powered by the 12-volt
system and shut off high-voltage from the high-voltage battery.
Emergency shut-off
system In the case of a collision (front and side collisions in which the air bags are
deployed, certain rear collisions) or certain system malfunctions this system
is designed to shut off the high-voltage from the high-voltage battery.
2-7 Preventing Electrical Shock 1. If it is necessary to touch any of the high-voltage harnesses or components, always wearappropriate Personal Protective Equipment (PPE) [refer to 3-1 Preparation Items (FRG–18)].
Shut

off the high-voltage system by referring to 3-3.1 High-Voltage System Shut-Down
Procedure

(FRG–21) .
2.

To avoid the risk of electrocution, NEVER touch the inside of the high-voltage battery with bare
hands after shutting off the high-voltage system. The high-voltage battery maintains charge even
though the high-voltage system is shut down. PPE must always be worn when touching or
working on high-voltage components.
3. Cover damaged high-voltage components with insulated tape.
2-8 Emergency Medical Equipment
The high voltage system should not interfere with emergency medical equipment which must be used in or
near the vehicle at an accident scene.
FRG–16

3. Emergency Response Steps
• Failure to properly shut down the high-voltage electrical system before the
Emergency Response Procedures are performed will result in serious injury or death
from electrical shock. To prevent serious injury or death, NEVER touch high-voltage
harnesses or components without always wearing appropriate Personal Protective
Equipment (PPE) . PPE must always be worn when touching or working on high-
voltage components.
• If it is necessary to touch any of the high-voltage harnesses or components you
must
always wear appropriate PPE to avoid electrical shock. PPE must always be worn
when touching or working on high-voltage components. Shut down the high-voltage
system by following the steps outlined in 3-3.1 High-Voltage System Shut-Down
Procedure

(FRG–21) . Wait approximately ten (10) minutes for complete discharge of
the

high-voltage capacitor after the high-voltage system has been shut down. • NEVER assume the QX60 HYBRID is shut OFF simply because it is quiet.
•

If the READY indicator is ON the high-voltage system is active.
•

If possible, be sure to check the READY indicator on the instrument cluster and
verify

that the READY indicator is OFF and the high-voltage system is stopped.
FRG–17

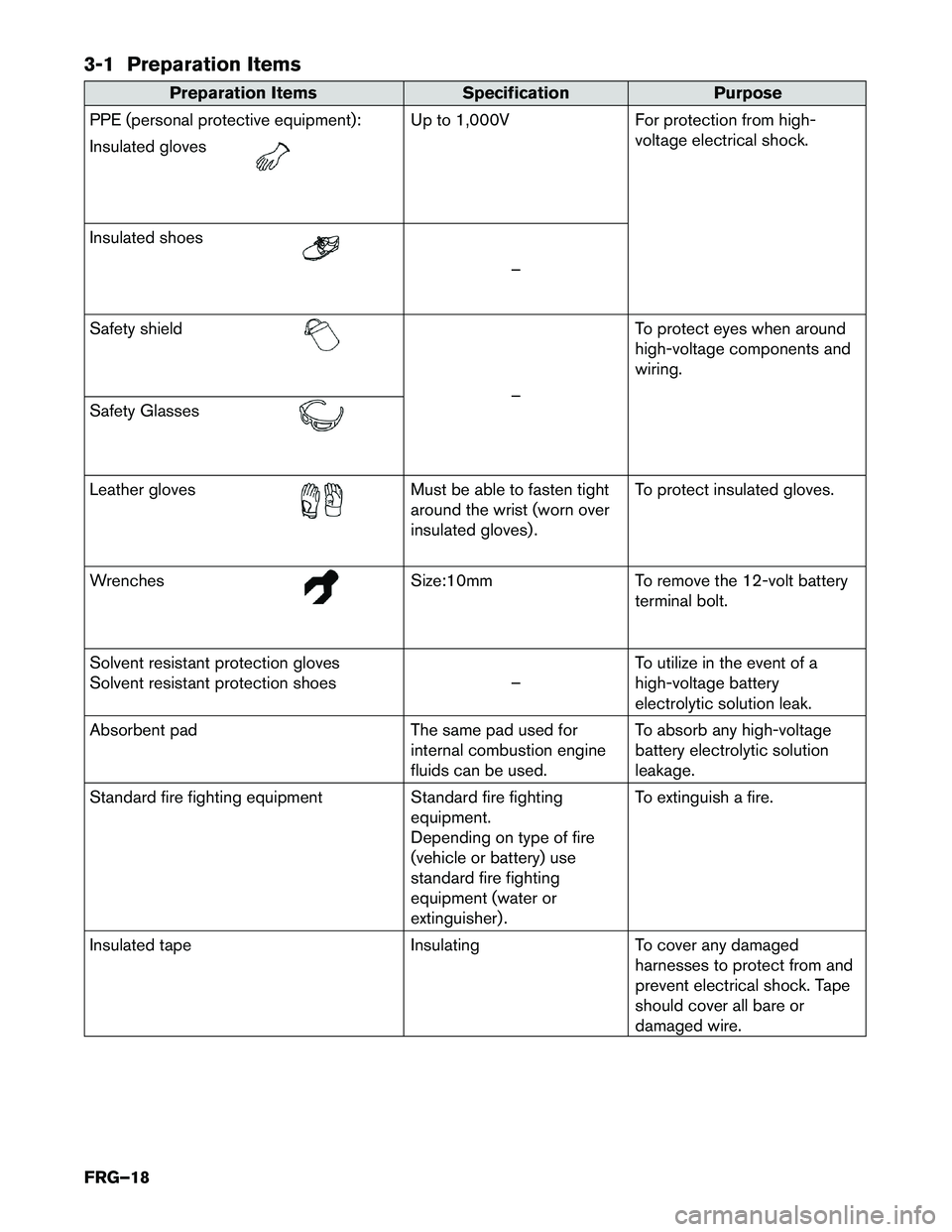

3-1 Preparation Items
Preparation Items
SpecificationPurpose
PPE
(personal protective equipment): Up to 1,000V For protection from high-
voltage electrical shock.
Insulated gloves Insulated shoes
–
Safety

shield –
T
o protect eyes when around
high-voltage components and
wiring.
Safety Glasses Leather gloves Must be able to fasten tight
around

the wrist (worn over
insulated gloves) . To protect insulated gloves.
Wrenches Size:10mm
To remove the 12-volt battery
terminal
bolt.
Solvent resistant protection gloves
Solvent resistant protection shoes –To utilize in the event of a
high-voltage battery
electrolytic solution leak.
Absorbent pad The same pad used for
internal combustion engine
fluids can be used. To absorb any high-voltage
battery electrolytic solution
leakage.
Standard fire fighting equipment Standard fire fighting
equipment.
Depending on type of fire
(vehicle or battery) use
standard fire fighting
equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape InsulatingTo cover any damaged
harnesses to protect from and
prevent electrical shock. Tape
should cover all bare or
damaged wire.
FRG–18

3-1.1 Personal Protective Equipment (PPE) Protective Wear Control
Perform
an inspection of the Personal Protective Equipment (PPE) items before beginning work. Do not use
any damaged PPE items.
3-1.2 Daily Inspection
This inspection is performed before and after use. The responder who will be using the items should perform
the inspection and check for deterioration and damage.
• Insulated rubber gloves should be inspected for scratches, holes and tears. (Visual check and air leakage test)
• Insulated safety boots should be inspected for holes, damage, nails, metal pieces, wear or other problems on the soles. (Visual check)
• Insulated rubber sheet should be inspected for tears. (Visual check)
3-1.3 Insulated Tools
When performing work at locations where high-voltage is applied (such as terminals) , use insulated tools
meeting 1,000V/300A specifications.
FRG–19

3-2 Vehicle Immobilization and StabilizationIf possible, immobilize the vehicle by turning the 12-volt system OFF and stabilize it with a wheel chock(s) .
Stabilize the vehicle with cribbing, by removing air from the tires, or utilize the Lift Airbag Equipment for rescue.
To avoid electrical shock, do not put the Lift Airbag Equipment for rescue and wheel
chock(s)
under the high-voltage components and harnesses. =
3-3 How to Handle a Damaged Vehicle at an Accident Scene
NO

TE:
If any air bags have deployed in the following 3 situations, the high-voltage (HV) system has
been designed to automatically shut off at the time of deployment.
The Infiniti QX60 HYBRID high-voltage system incorporates capacitors which are energized whenever the
high-voltage system is on. If the high-voltage system is shut down (either through one of the built-in
automatic mechanisms or manually through one of the procedures explained in this FRG) , the capacitors
will begin to gradually discharge. Complete discharge requires approximately 10 minutes after
high-voltage system shut down. It is within this period of time that responders must be most cautious. AAYIA0486ZZ
FRG–20
