4Audio source indicator
Indicates which of the two USB memory
devices is selected.
5Album artwork
An image of the CD cover is displayed when
available.
6“USB1” key/“USB2” key
Touch to switch to the other connected USB
memory device.
7Track number
This indicates the track number and the total
number of tracks.
8“” key/“” key
Touch to play or pause the track.
9USB menu
USB menu items are displayed. Touch an
icon to display the list or to change the
setting.
● “Folder/Track” key
● “Artists” key
● “Albums” key
● “Previous List” key
● “Scan” key
● “Play Mode” key
10Play mode indicator
This indicates the current play mode. Touch
to change the play mode.
Mode Screen display
All Track Repeat
All
1 Folder Repeat
1 Folder
1 Track Repeat
1 Track
All Random
All
1 Folder Random
1 Folder
11Folder number
This indicates the folder, artist or album num-
ber and the total number of folders/lists.
USB memory device player operation
Activation and playing
USB memory device mode can also be activated
from the audio source list and the audio source
bar by the touch panel operation or by pushing
the MEDIA button. For additional information,
refer to “Selecting audio source” and “Main audio
buttons” in this section.
To play the USB memory device, touch the
“
” key and, to pause the USB memory,
touch the “
” key on the USB operation
screen. Selecting play list
Select a play list by touching an icon on the USB
menu.
● Folder/Track (List)
● Artist (List)
● Album (List)
● Previous (List)
Skipping tracks/folders
Push the SEEK•CAT•TRACK button to skip to
the next or previous track.
To skip to the next or previous folder, turn the
TUNE/FOLDER AUDIO button.
Fast-forwarding/rewinding
Push and hold the SEEK•CAT•TRACK button to
fast-forward the track. Release the SEEK•CAT•
TRACK button to play the track at normal speed.
Scanning
Touch the “Scan” key on the display or push the
SCAN button to scan the tracks in the USB
memory device. While scanning, the USB
memory device will play the first 10 seconds of
each track and move on to the next track. Touch-
ing the “Scan” key again within the 10 seconds
will stop scanning.
4-82Monitor, climate, audio, phone and voice recognition systems

Changing play mode
Touch the “Play Mode” key on the display to
select the play mode.
Only one of the two connected USB memory
devices can be operated by the voice recognition
system.
iPod® PLAYER
Connecting iPod®
WARNING
Do not connect, disconnect or operate the
iPod® while driving. Doing so can be a
distraction. If distracted, you could lose
control of your vehicle and cause an acci-
dent or serious injury.
CAUTION
●Do not force the iPod® device into the
USB port. Inserting the iPod® cable
tilted or upside down into the port may
damage the port. Make sure that the
iPod® cable is connected correctly to
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the iPod®
cable out of the port. This could damage
the port and the cover. ●
Do not leave the iPod® cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
Two USB (iPod®) connection ports are located
on the center console box. For additional infor-
mation, refer to “USB/iPod® connection port” in
this section.
The battery of the iPod® will be charged while
the device is connected to the vehicle if the
iPod® supports USB connection charging.
Depending on the model and firmware version of
the iPod®, the display on the iPod® shows a
INFINITI or Accessory Attached screen when the
connection is completed. When the iPod® is
connected to the vehicle, the iPod® music library
can only be operated using the vehicle audio
controls.
Compatibility:
Made for ● iPod touch® (5th generation)
● iPod touch® (4th generation)
● iPod touch® (3rd generation)
● iPod touch® (2nd generation) ●
iPod touch® (1st generation)
● iPod touch®
● iPod® with video
● iPod classic®
● iPod nano® (7th generation)
● iPod nano® (6th generation)
● iPod nano® (5th generation)
● iPod nano® (4th generation)
● iPod nano® (3rd generation)
● iPod nano® (2nd generation)
● iPod nano® (1st generation)
● iPhone® 5S
● iPhone® 5
● iPhone® 4S
● iPhone® 4
● iPhone® 3GS
● iPhone® 3G
● iPhone®
The iPod touch® may not respond quickly with
the system in some cases.
Make sure that the iPod® firmware is updated.
Monitor, climate, audio, phone and voice recognition systems4-83

4Track information
Track information such as the song title, art-
ist name and album name is displayed.
5Audio source indicator
This indicates that the iPod® is currently
selected.
6Album artwork
An image of the album artwork is displayed
when available.
7Track number
This indicates the current track number and
the total number of tracks.
8Shuffle mode indicator
Touch to change the shuffle mode.
Mode Screen display
Shuffle albums
Albums
All songs
Songs
Shuffle Off
Off
9“” key/ “” key
Touch to play or pause the track.
10iPod® menu
● “Previous List” key
● “Playlists” key
● “Artists” key ●
“Songs” key
● “Albums” key
● “Genres” key
● “Composers” key
● “Podcasts” key
● “Audiobooks” key
● “Shuffle” key
● “Repeat” key
11Repeat mode indicator
Touch to change the repeat mode.
Mode Screen display
All Track Repeat
All
1 Track Repeat
1 Track
Repeat Off
Off
iPod® player operation
Activation and playing
Inserting the iPod® cable into the connection
port will activate the iPod® mode.
iPod® can also be selected from the audio
sources list and the source bar by touch panel
operation or by pushing the MEDIA button. For
additional information, refer to “Selecting audio
source” and “Main audio buttons” in this section. To play and pause the iPod®, touch the
“
/” key.
Selecting search method
A list of search methods is displayed in the
iPod®menu. Touch and select an item to play the
iPod® in your preferred settings.
Fast-forwarding/rewinding
Push and hold the SEEK•CAT•TRACK button to
fast-forward the song. Release the SEEK•CAT•
TRACK button to play the song at normal speed.
Changing play mode
Touch “Shuffle” key or “Repeat” key from the
iPod® menu to select the play mode. Pushing the
RDM RPT button can also change the play mode.
Skipping songs:
Push the SEEK•CAT•TRACK button to skip to
the next or previous song.
Even when iPod®s or iPhone®s are inserted into
both of the two USB connection ports, the sys-
tem recognizes only one of the connected
iPod®s or iPhone®s at a time.
Monitor, climate, audio, phone and voice recognition systems4-85

DIGITAL VERSATILE DISC (DVD)
PLAYER (if so equipped)
Touch screen display
1Title/chapter number:
This indicates the DVD title/chapter number
currently selected.
2Play time:
The play time of the track is displayed.
3DVD operation menu:
DVD menu items are displayed. Touch a key
to operate the DVD.
● “Play/Pause” key ●
“Stop” key
● “Skip <<” key
● “Skip >>” key
● “
” key
● “CM <<” key
● “CM >>” key
● “Top Menu” key
● “Title List” key
● “Title Menu” key
● “10 Key Search” key
● “Select No.” key
● “Previous Title” key
● “Next Title” key
● “Default Position” key
● “Display Settings” key
● “Play Mode” key
4Play mode indicator
This indicates the current play mode.
Mode Screen display
1 Disc Repeat
Disc
1 Chapter Repeat
1 Chapter
● The DVD menu list will appear when the
screen is touched while a movie is play-
ing.
● The availability of the DVD menu items
depend on the type of DVD.
5“Select Rear Source” key
The select rear source screen is displayed.
For additional information, refer to “Control-
ling the rear system on the front display” in
this section.
DVD player operation
Precautions
● Use DVDs with the region code “ALL” or the
code applicable to the DVD player. (The
region code is displayed as a small symbol
printed on the top of the DVD) . This vehicle-
installed DVD player can only play DVDs
with the applicable region code.
● Images cannot be displayed when the igni-
tion switch is in the ON position.
JVH1506M
Monitor, climate, audio, phone and voice recognition systems4-89

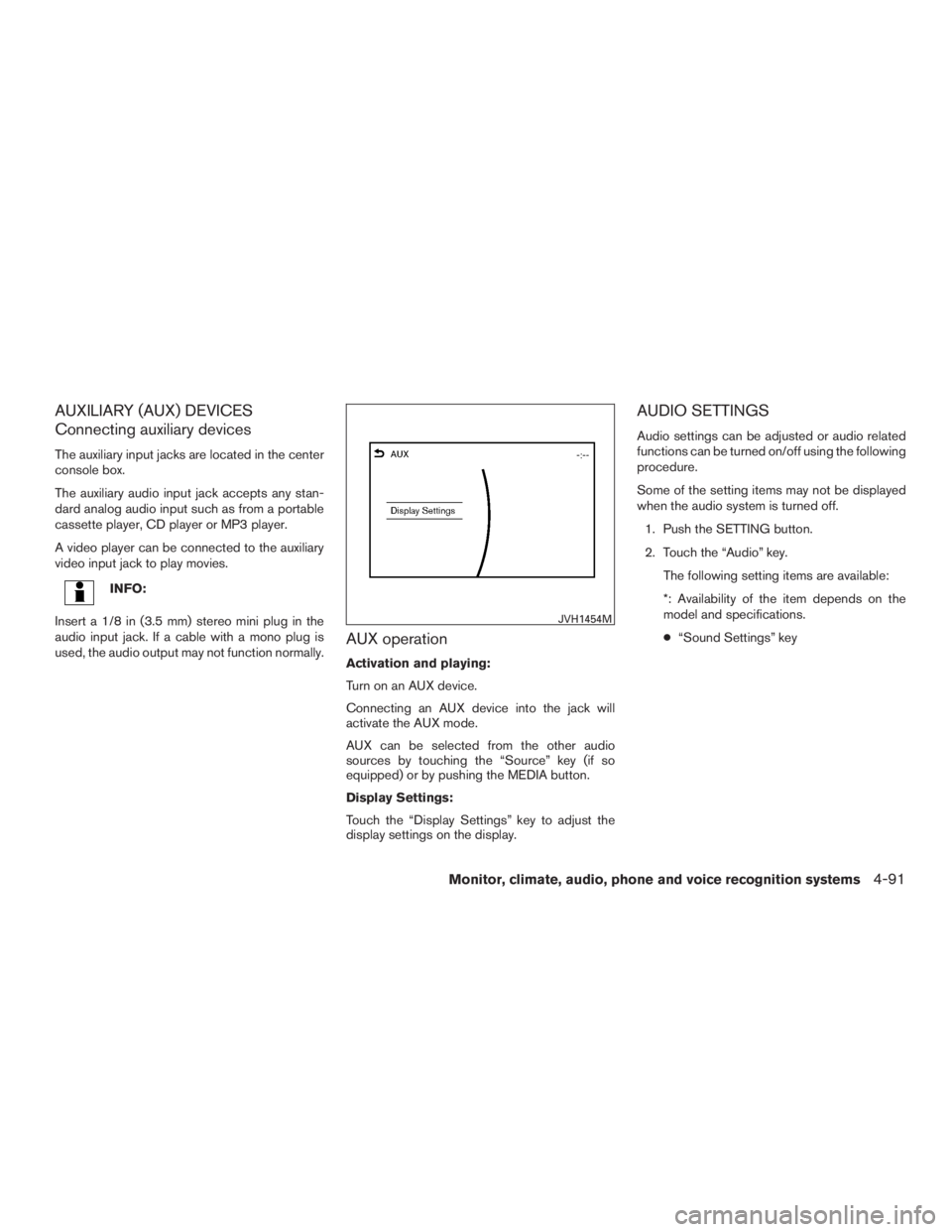

AUXILIARY (AUX) DEVICES
Connecting auxiliary devices
The auxiliary input jacks are located in the center
console box.
The auxiliary audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette player, CD player or MP3 player.
A video player can be connected to the auxiliary
video input jack to play movies.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
AUX operation
Activation and playing:
Turn on an AUX device.
Connecting an AUX device into the jack will
activate the AUX mode.
AUX can be selected from the other audio
sources by touching the “Source” key (if so
equipped) or by pushing the MEDIA button.
Display Settings:
Touch the “Display Settings” key to adjust the
display settings on the display.
AUDIO SETTINGS
Audio settings can be adjusted or audio related
functions can be turned on/off using the following
procedure.
Some of the setting items may not be displayed
when the audio system is turned off. 1. Push the SETTING button.
2. Touch the “Audio” key. The following setting items are available:
*: Availability of the item depends on the
model and specifications.
●“Sound Settings” key
JVH1454M
Monitor, climate, audio, phone and voice recognition systems4-91

CAUTION
●Do not attempt to use the system in
extremely high or low temperature con-
ditions [below -4°F (-20°C) or above
158°F (70°C)].
● To avoid draining the vehicle battery
(12V battery) , do not operate the system
for more that 15 minutes without start-
ing the hybrid system.
The front display is designed not to show
images during driving, as the driver’s at-
tention must be given to vehicle operation
for safety. Sounds are still audible. To
show images on the front display, stop the
vehicle in a safe location, move the shift
lever to the “P” (Park) position and apply
the parking brake.
PRECAUTIONS
Start the hybrid system when using the MES.
WARNING
The driver must not attempt to operate the
MES or wear the headphones while the
vehicle is in motion so that full attention
may be given to vehicle operation. Park the vehicle in a safe location and
apply the parking break to view the im-
ages on the front center display screen
using the DVD player.
CAUTION
●
Only operate the (MES) while the hybrid
system is running. Operating the MES
for extended periods of time with the
hybrid system turned off can discharge
the vehicle battery (12V battery) .
● Do not allow the system to get wet.
Excessive moisture such as spilled liq-
uids may cause the system to
malfunction.
●
While playing VIDEO-CD media, this DVD
player does not guarantee complete
functionality of all VIDEO-CD formats.
TECHNICAL INFORMATION
USB media support
Supported USB media
USB 1.1 Low Speed (1.5 Mbps) , Full
Speed (12 Mbps)
USB 2.0 Low Speed (1.5 Mbs) , Full
Speed (12 Mbps) , High
Speed (480 Mps)
Mass Storage Support
The Mobile Entertainment System recognizes the
connected USB media as a mass storage device.
Supported file systems and partition
The first partition of the following file systems are
supported.
● NTFS
● FAT32
● FAT16
● HFS+
Supported folder structure
Folders 1,000 folders maximum
Files 10, 000 files maximum
Pass length 3072 characters
Full name length 232 characters
Folder levels 11 levels maximum (when
route is regarded as level 0)
4-96Monitor, climate, audio, phone and voice recognition systems

●To adjust the volume of the person’s voice to
be louder or quieter, push the —/+switch on
the steering wheel or turn the VOL/ON •
OFF knob on the audio main button, while
talking on the phone.
● Touch the “Mute” key if you do not want your
voice to be heard by the person on the other
end of the line.
Bluetooth® settings
The Bluetooth® settings can be set in detail
according to the user’s preference.
1. Press the SETTING button.
2. Touch the “Bluetooth” key.
3. Touch the preferred item.● “Bluetooth” key
Turns the Bluetooth® connection to the ve-
hicle on/off.
● “Connect Device” key
Touch this item to connect to the
Bluetooth® device. You can also delete a
registered device and display information for
the registered device. ●
“Select Phone” key
Registered Bluetooth® Hands-Free
Phones are shown on the list. Select a de-
vice from the list to disconnect or connect a
Bluetooth® device.
● “Select Audio Device” key
Registered Bluetooth® audio players are
shown on the list. Select a device from the
list to disconnect or connect a Bluetooth®
device.
● “Vehicle Bluetooth Device Info” key
The registered device name and the PIN
code can be changed.
HANDS-FREE TEXT MESSAGING
ASSISTANT
WARNING
Use the text messaging feature after park-
ing your vehicle in a safe location. If you
have to use the feature while driving, ex-
ercise extreme caution at all times so full
attention may be given to vehicle
operation.
CAUTION
This feature is disabled if the connected
device does not support the Message Ac-
cess Profile (MAP) . For additional infor-
mation, refer to the owner’s manual for
your phone.
Laws in some jurisdictions may restrict the use of
“Text-to-Speech”. Check local regulations before
using this feature.
The text messaging assistant system allows the
sending and receiving of the text messages
through the vehicle interface.
Depending on the device that is connected to the
vehicle, some of the items may not be displayed.
4-122Monitor, climate, audio, phone and voice recognition systems

Compact Disc (CD) player
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down. Insert a CD with the label side facing up.
Moisture has accumulated inside the unit. Wait until the moisture evaporates (approximately 1 hour) .
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. Wipe off any dirt from the disc.
Scratched discs cannot be recovered. Replace the disc.
Depending on the condition in which they are stored, discs
may become unreadable due to deterioration (for example,
keeping the discs in the passenger compartment, etc.) . Replace the disc with a deterioration-free disc. Do not use a
deteriorated disc. The label surface of a disc may crack or
chip, and the layer of the label surface may eventually peel off.
Compressed audio files cannot be played back. If both music CD files (CD-DA data) and compressed audio files (MP3 data, etc.) are mixed on one disc, the compressed
audio files cannot be played back. Prepare a disc that contains compressed audio files only.
The files are not named using characters that are compliant
with the specifications. Use the character codes and the number of characters that
are compliant with the specifications for the folder names and
file names. In addition, always use “.MP3”, “.WMA”, “.mp3” or
“.wma” file extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is recom-
mended that unnecessary folders or any files other than com-
pressed audio files should not be recorded on a disc.
The sound quality is poor. The disc is dirty. Wipe off any dirt from the disc.
No sounds are played although the CD play time is
displayed. The system is playing the first track of a mix mode disc. (Mix
mode is a format in which data except music is recorded on
the first track and music data is recorded on one other than
the first track in a session.) Play music data in other tracks.
Music cuts off or skips. The combination of writing software and hardware might not
match; or the writing speed, writing depth, writing width, etc.
might not match the specifications. Create a disc using different writing speed settings, etc.
The system skips the selected track and moves to
the next track. A non-MP3/WMA file has been given an extension of “.MP3”,
“.WMA”, “.mp3” or “.wma”. Prepare MP3/WMA files.
Some of the file cannot be played due to copyright protection. Prepare playable files.
The tracks do not play back in the desired order. The folder locations on the disc are changed by the writing software while the files are written on the disc. Check the settings of the writing software and create a new
disc.
Monitor, climate, audio, phone and voice recognition systems4-153

iPod® player
SymptomPossible cause Possible solution
The system does not recognize an iPod®. The connector cable is not correctly connected or the
iPod® does not correctly operate. Connect the connector cable again. If the system does not
recognize the iPod® after performing the procedure above,
reset the iPod®.
The iPod® that is connected is not compatible with the
system. Check the iPod® model and firmware versions available for
the system.
The USB extension cable is not correctly connected. Do not use a USB extension cable.
The cable is rapidly connected to or disconnected from the
USB connector. Slowly connect or disconnect the USB cable.
An iPod® cannot be operated. The iPod® is connected to the in-vehicle audio system
while headsets, etc. are connected to the iPod®. Remove all equipment from the iPod® after disconnecting
the iPod® from the system, and then connect it to the sys-
tem again.
The iPod® is not operating normally. Disconnect and re-connect the iPod® to the in-vehicle
audio system.
The system plays back an album/track that includes par-
ticular album art. Disconnect the iPod® from the in-vehicle audio system
and then reset the iPod®. Disable the album art and then
re-connect the iPod® to the system.
An iPod® does not respond. There are too many tracks in a category. Decrease the number of tracks in a category (less than
3,000 tracks) .
The shuffle function is turned on. Turn off the shuffle function if many tracks are stored on
the iPod.
Music cannot be played back. The connector is not connected to the iPod®. Firmly connect the connector until it clicks.
Music stops playing. The sound cuts off due to vibration resulting from the
iPod® being in an unstable location. Place the iPod® in a stable location where it does not roll
over.
The sound is distorted. The EQ (equalizer) function of the iPod® is turned on. Turn off the EQ (equalizer) function.
The iPod® battery requires more time than usual to
charge. Charging the iPod® battery may take longer while the
iPod® is playing. If the iPod® requires charging, it is recommended to stop
playback.
4-154Monitor, climate, audio, phone and voice recognition systems

Bluetooth® streaming audio
SymptomPossible cause Possible solution
Registration cannot be performed. The Bluetooth® audio device is not compatible with the
in-vehicle audio system. Check the owner’s manual for the Bluetooth® audio
device.
The PIN code is incorrect. Check the PIN code for the Bluetooth® audio device that
is to be registered.
Check that the PIN code for the Bluetooth® audio device
is consistent with that for the in-vehicle audio system.
Another Bluetooth® device is used in the vehicle. Turn off the other Bluetooth® device and wait until regis-
tration is completed.
Music cannot be played. The Bluetooth® audio device is not compatible with the
in-vehicle audio system. Check the owner’s manual for the Bluetooth® audio
device.
The system is not in the Bluetooth® audio mode. Press the “AUDIO” button to select the Bluetooth® audio
mode.
The Bluetooth® adapter is turned off. Turn on the Bluetooth® adapter when it is used for a
Bluetooth® audio device.
Music stops playing. The Bluetooth® audio device is not compatible with the
in-vehicle audio system. Visit www.infinitiusa.com/bluetooth/ to search for a recom-
mended Bluetooth® audio device.
A cellular phone is connected. This is not a malfunction.
The sound may cut off when a Bluetooth® audio device is
operated. Press the “AUDIO” button to select the Bluetooth® audio
mode, and then operate the device on the vehicle’s display
screen.
Audio operation cannot be performed. A Bluetooth® audio device that does not support audio
operations is in use. This is not a malfunction.
Refer to the owner’s manual for the Bluetooth® audio
device.
An error occurs when connecting to a Bluetooth® audio
profile. Turn the power source of the Bluetooth® audio player off
and on, and then resume connection with the system.
4-156Monitor, climate, audio, phone and voice recognition systems
