If the risk of a collision becomes imminent and the
driver does not take action, the FEB with pedes-
trian detection system issues the second warning
to the driver by flashing the FEB with pedestrian
detection emergency warning indicator (red) ,
providing an audible warning, and then automati-
cally applies harder braking.
If a risk of a forward impact with a pedestrian is
detected, the FEB with pedestrian detection sys-
tem will provide a warning to the driver by flashing
the FEB with pedestrian detection emergency
warning indicator (red) , provides an audible alert
and the system will apply partial baking. If the
driver applies the brakes quickly and forcefully
but the FEB with pedestrian detection system
detects that there is still the possibility of a for-
ward impact with a pedestrian, the system will
automatically increase the braking force. If the
risk of collision becomes imminent and the driver
does not take action, the FEB with pedestrian
detection system automatically applies harder
braking.
NOTE:
The vehicle’s brake lights come on when
any braking is performed by the FEB with
pedestrian detection system.Depending on vehicle speed and distance to the
vehicle or pedestrian ahead, as well as driving
and roadway conditions, the system may help the
driver avoid a forward collision or may help miti-
gate the consequences if a collision should be
unavoidable. If the driver is handling the steering
wheel, accelerating or braking, the FEB with pe-
destrian detection system will function later or
will not function.
The automatic braking will cease under the fol-
lowing conditions:
● When the steering wheel is turned to avoid a
collision.
● When the accelerator pedal is depressed.
● When there is no longer a vehicle or a pe-
destrian detected ahead.
If the FEB with pedestrian detection system has
stopped the vehicle, the vehicle will remain at a
standstill for approximately 2 seconds before the
brakes are released.
5-110Starting and driving

TURNING THE FEB WITH
PEDESTRIAN DETECTION SYSTEM
ON/OFF
Perform the following steps to enable or disable
the FEB with pedestrian detection system.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press ENTER button. Use the
button to select “Driver Assistance”. Then
press the ENTER button.
2. Select “Emergency Braking” and press the ENTER button.
3. Select “System” and press the ENTER but- ton.
When the FEB with pedestrian detection system
is turned off, the FEB with pedestrian detection
system warning light illuminates.
NOTE:
● The FEB with pedestrian detection system
will be automatically turned on when the
hybrid system is restarted.
LSD2586
Starting and driving5-111

●The PFCW system (if so equipped) is inte-
grated into the FEB with pedestrian detec-
tion system. There is not a separate selec-
tion in the vehicle information display for the
PFCW system. When the FEB with pedes-
trian detection is turned off, the PFCW sys-
tem is also turned off.
FEB WITH PEDESTRIAN
DETECTION SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations for
the FEB with pedestrian detection system.
Failure to operate the vehicle in accor-
dance with these system limitations could
result in serious injury or death.
● The FEB with pedestrian detection sys-
tem cannot detect all vehicles or pedes-
trians under all conditions.
● The radar sensor FEB with pedestrian
detection system does not detect the
following objects:
– Small pedestrians (including small children) , animals and cyclists.
– Pedestrians in wheelchairs or using mobile transport such as scooters,
child-operated toys, or skateboards. – Pedestrians who are seated or other-
wise not in a full upright standing or
walking position.
– Oncoming vehicles
– Crossing vehicles
– Obstacles on the roadside
● The FEB with pedestrian detection sys-
tem has some performance limitations.
– If a stationary vehicle is in the vehi- cle’s path, the FEB with pedestrian
detection system will not function
when the vehicle is driven at speeds
over approximately 50 mph
(80 km/h).
– For pedestrian detection, the FEB with pedestrian detection system will
not function when the vehicle is
driven at speeds over approximately
37 mph (60 km/h) or below approxi-
mately 6 mph (10km/h) .
● The FEB with pedestrian detection sys-
tem will not function for pedestrians in
darkness or in tunnels, even if there is
street lighting in the area. ●
For pedestrians, the FEB with pedes-
trian detection system will not issue the
first warning and will not push the ac-
celerator pedal up.
● The FEB with pedestrian detection sys-
tem may not function if the vehicle
ahead is narrow (for example a
motorcycle) .
● The FEB with pedestrian detection sys-
tem may not function if speed differ-
ence between the two vehicles is too
small.
● The radar sensor FEB with pedestrian
detection system may not function
properly or detect a vehicle ahead in the
following conditions:
o Poor visibility (conditions such as rain, snow, fog, dust storms, sand-
storms, and road spray from other
vehicles)
o Driving on a steep downhill slope or roads with sharp curves.
o Driving on a bumpy road surface, such as an uneven dirt road.
o If dirt, ice, snow or other material is covering the radar sensor area.
5-112Starting and driving

o Interference by other radar sources.
o The camera area of windshield isfogged up, or covered with dirt, water
drops, ice, snow, etc.
o Strong light (for example, sunlight or high beams from oncoming vehicles)
enters the front camera. Strong light
causes the area around the pedes-
trian to be cast in a shadow, making
it difficult to see.
o A sudden change in brightness oc- curs. (For example, when the vehicle
enters or exits a tunnel or a shaded
area or lightning flashes.)
o The poor contrast of a person to the background, such as having clothing
color or pattern which is similar to
the background.
o The pedestrian’s profile is partially obscured or unidentifiable due to the
pedestrian transporting luggage,
wearing bulky or very loose-fitting
clothing or accessories.
● The system performance may degrade
in the following conditions:
o The vehicle is driven on a slippery road. o The vehicle is driven on a slope.
o Excessively heavy baggage is loaded
in the rear seat or the trunk room of
your vehicle.
● The system is designed to automatically
check the sensor (radar and camera)’s
functionality, within certain limitations.
The system may not detect blockage of
sensor areas covered by ice, snow or
stickers, for example. In these cases,
the system may not be able to warn the
driver properly. Be sure that you check,
clean and clear sensor areas regularly.
● In some road and traffic conditions, the
FEB with pedestrian detection system
may unexpectedly apply partial braking.
When acceleration is necessary, de-
press the accelerator pedal to override
the system.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
Starting and driving5-113

SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
In the following conditions, the FEB with pedes-
trian detection system warning light blinks and
the system will be turned off automatically.● The radar sensor picks up interference from
another radar source.
● The camera area of windshield is misted or
frozen.
● Strong light is shining from the front.
● The cabin temperature is over approximately
104°F [40°C] in direct sunlight.
● The camera area of windshield glass is con-
tinuously covered with dirt, etc.
LSD2613
5-114Starting and driving

Action to take
When the above conditions no longer exist, the
FEB with pedestrian detection system will re-
sume automatically.
NOTE:
When the inside of the windshield on cam-
era area is misted or frozen, it will take a
period of time to remove it after A/C turns
ON. If dirt appears on this area, visit an
INFINITI retailer.
Condition B:
In the following conditions, the FEB system warn-
ing light will illuminate and the system will be
turned off automatically and the “Front radar ob-
struction” warning message will appear in the
vehicle information display.● The sensor area of the front bumper is cov-
ered with dirt or is obstructed. Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe place, place the shift lever in the
P (Park) position and turn the hybrid system off.
Clean the radar sensor area of front bumper or
the camera area of windshield with a soft cloth,
and restart the hybrid system. If the warning light
continues to illuminate, have the FEB system
checked. It is recommended that you visit an
INFINITI retailer for this service.
NOTE:
If the FEB with pedestrian detection system
stops working, the PFCW system (if so
equipped) will also stop working.
SYSTEM MALFUNCTION
If the FEB with pedestrian detection system mal-
functions, it will be turned off automatically, a
chime will sound, the FEB system warning light
(orange) will illuminate and the warning message
[Malfunction] will appear in the vehicle informa-
tion display. Action to take
If the warning light (orange) comes on, stop the
vehicle in a safe location, turn the hybrid system
off and restart the hybrid system. If the warning
light continues to illuminate, have the FEB with
pedestrian detection system checked. It is rec-
ommended that you visit an INFINITI retailer for
this service.
NOTE:
If the FEB with pedestrian detection system
stops working, the PFCW system (if so
equipped) will also stop working.
Starting and driving5-115

SYSTEM MAINTENANCE
The radar sensorAis located behind the lower
grille of the front bumper. The camera
Bis
located on the upper side of the windshield.
To keep the FEB with pedestrian detection sys-
tem operating properly, be sure to observe the
following:
● Always keep sensor areas of the front bum-
per and windshield clean.
● Do not strike or damage the areas around
the sensors (ex. Bumper, windshield) . ●
Do not cover or attach stickers, or install any
accessory near the sensors. This could
block sensor signals, and/or cause failure or
malfunction.
● Do not attach metallic objects near the radar
sensor (brush guard, etc.) . This could cause
failure or malfunction.
● Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit’s detection
capability.
● Do not alter, remove or paint the front bum-
per. Before customizing or restoring the
front bumper, contact an INFINITI retailer.
Radio frequency statement
For USA
FCC ID: OAYARS3–B
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation. FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
For Canada
IC: 4135A-ARS3B
This device complies with Industry Canada
license-exempt RSS standard(s) . Operation is
subject to the following two conditions: (1) This
device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation
of the device.
Droit applicable : Canada 310
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils ra-
dio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes: (1) L’appareil
ne doit pas produire de brouillage, et (2)
l’utilisateur de l’appareil doit accepter tout brouil-
lage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonction-
nement.
LSD2703
5-116Starting and driving

WARNING
Failure to follow the warnings and instruc-
tions for proper use of the PFCW system
could result in serious injury or death.
●The PFCW system can help warn the
driver before a collision occurs but will
not avoid a collision. It is the driver’s
responsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
The PFCW system can help alert the driver when
there is a sudden braking of a second vehicle
traveling in front of the vehicle ahead in the same
lane. The PFCW system uses a radar sensor
Alo-
cated behind the lower grille of the front bumper
to measure the distance to the vehicle ahead in
the same lane.
LSD2702
PREDICTIVE FORWARD COLLISION
WARNING (PFCW) (if so equipped)
Starting and driving5-117

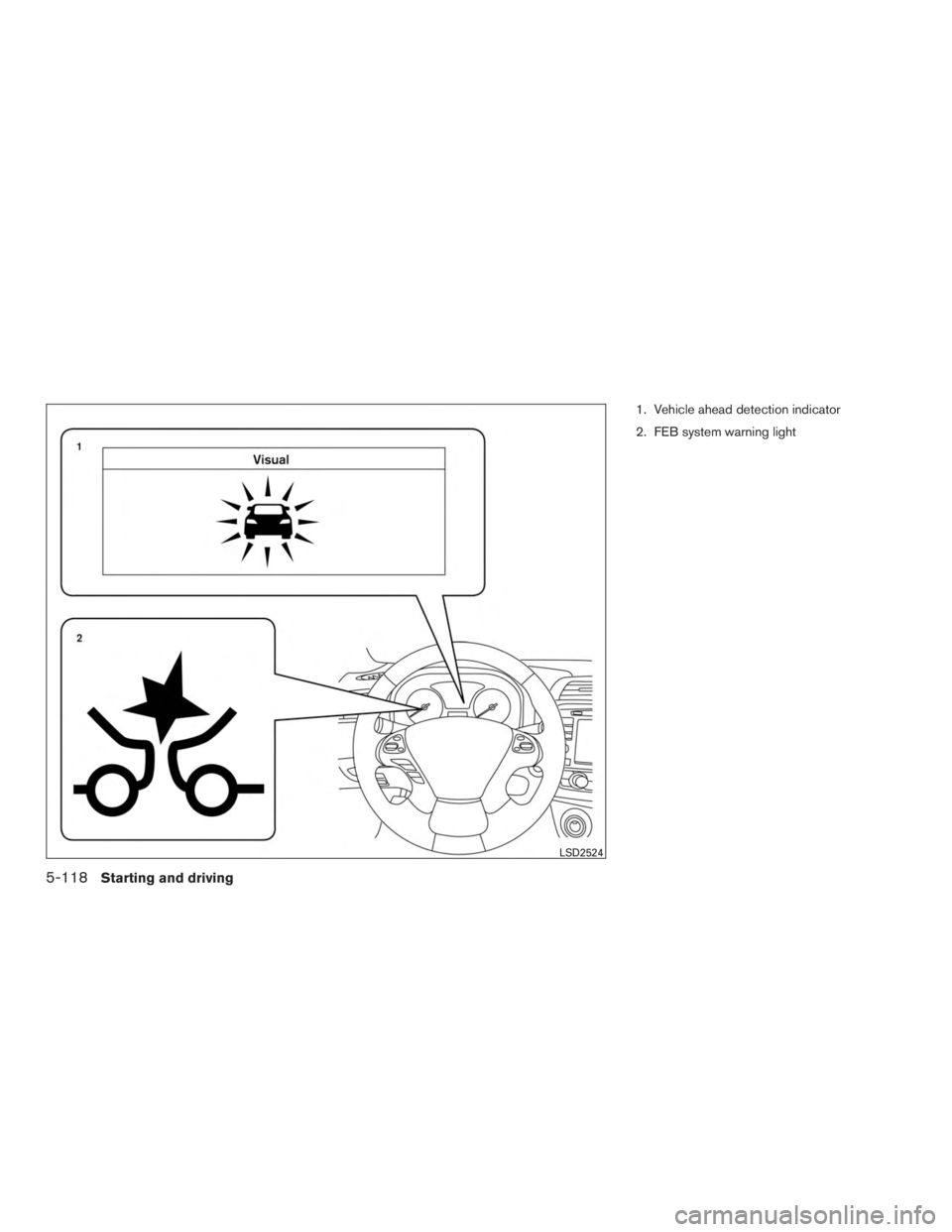

1. Vehicle ahead detection indicator
2. FEB system warning light
LSD2524
5-118Starting and driving

PFCW SYSTEM OPERATION
The PFCW system operates at speeds above
approximately 3 mph (5 km/h).
If there is a potential risk of a forward collision, the
PFCW system will warn the driver by blinking the
vehicle ahead detection indicator, and sounding
an audible alert.
LSD2263
Starting and driving5-119
