homelink INFINITI QX70 2016 Quick Reference Guide

Please see your Owner’s Manual for important safety information
and system operation limitations.
• A cellular telephone should not be used for any purpose while driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)”, the “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
table of contents
new system features Around View® Monitor (AVM) with Moving Object Detection (MOD) (if so equipped) ................................................2 Garage Mode System............................................3
essential information Tire Pressure Monitoring System (TPMS) ............................4 Loose Fuel Cap.................................................4 Fuel-filler Door .................................................5 Front Armrest/Center Console Storage Box ..........................5 Clock Set/Adjustment ...........................................5
first drive features INFINITI Intelligent Key System...................................6 Power Liftgate..................................................7 Power Seat Adjustments .........................................7 Automatic Drive Positioner (if so equipped) .........................8 Outside Mirror Control Switch.....................................8 Starting/Stopping the Engine .....................................9 Headlight Control Switch.........................................9 Wiper and Washer Switch .......................................10 Heater and Air Conditioner (automatic) ............................11 AM/FM/SiriusXM® Satellite Radio with CD/DVD Player (with Navigation System – if so equipped) .........................13 USB (Universal Serial Bus) Connection Port and iPod® Interface........14 Conventional (Fixed Speed) Cruise Control .........................14 Intelligent Cruise Control (ICC) (if so equipped).....................15 Power Outlets.................................................16
system guide Trip Computer ................................................17 Bluetooth® Hands-free Phone System .............................18 System Operating Tips .......................................18 Bluetooth® System with Navigation (if so equipped) .................19 Bluetooth® System without Navigation (if so equipped) ..............20 Bluetooth® Streaming Audio with Navigation (if so equipped) .........22 DVD Player (if so equipped)......................................22 Navigation System (if so equipped) ...............................23 HomeLink® Universal Transceiver.................................25
To view detailed
instructional videos, go to
www.infinitiownersinfo.mobi/2016/qx70 or snap this barcode with an
appropriate barcode reader.
Additional information about your vehicle is also available in your Owne\
r’s
Manual, Navigation System Owner’s Manual and at www.InfinitiUSA.com.

25

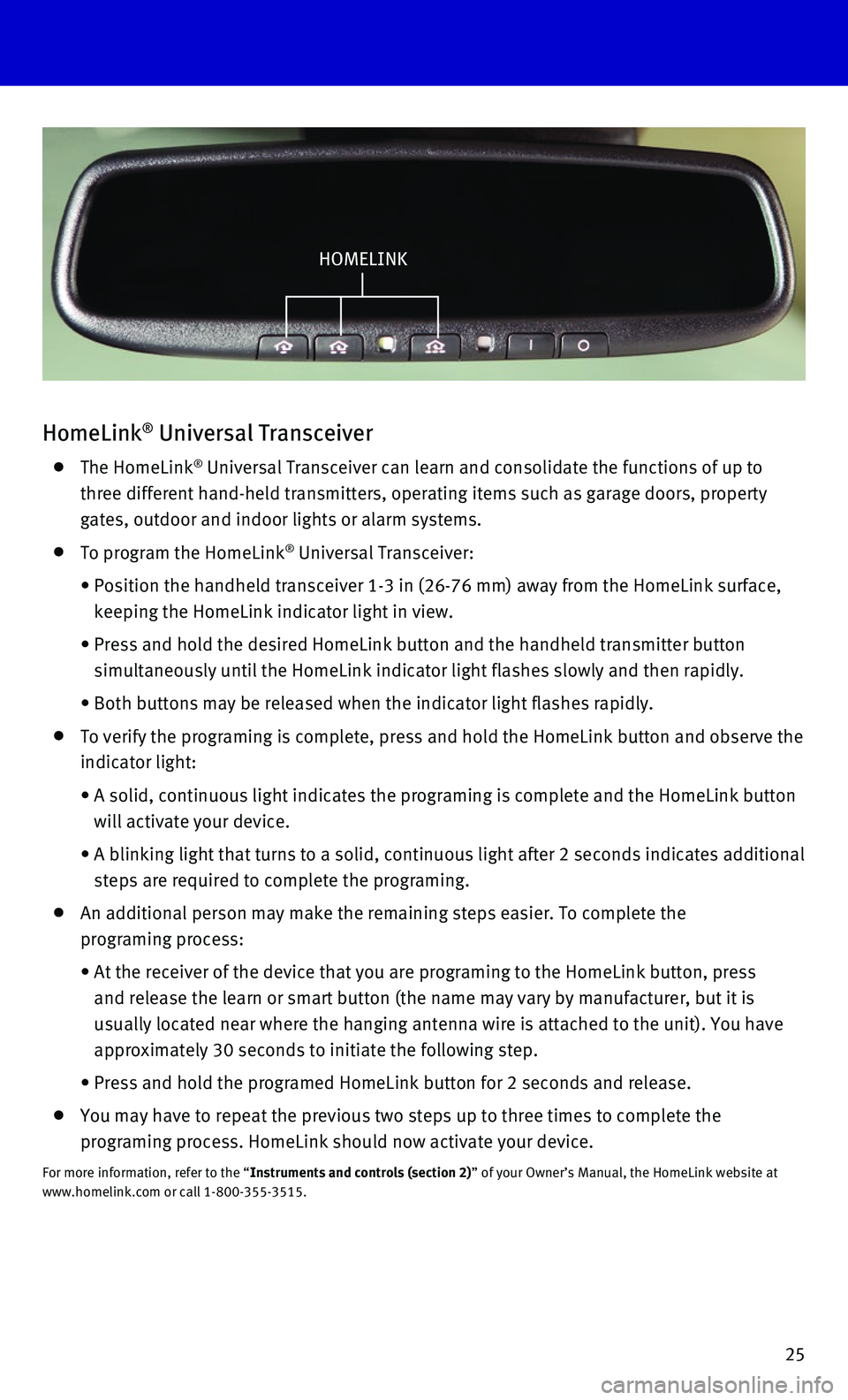

HOMELINK
HomeLink® Universal Transceiver
The HomeLink® Universal Transceiver can learn and consolidate the functions of up to \
three different hand-held transmitters, operating items such as garage d\
oors, property
gates, outdoor and indoor lights or alarm systems.
To program the HomeLink® Universal Transceiver:
• Position the handheld transceiver 1-3 in (26-76 mm) away from the Home\
Link surface,
keeping the HomeLink indicator light in view.
• Press and hold the desired HomeLink button and the handheld transmitter \
button
simultaneously until the HomeLink indicator light flashes slowly and the\
n rapidly.
• Both buttons may be released when the indicator light flashes rapidly.
To verify the programing is complete, press and hold the HomeLink button\
and observe the
indicator light:
• A solid, continuous light indicates the programing is complete and the H\
omeLink button
will activate your device.
• A blinking light that turns to a solid, continuous light after 2 seconds\
indicates additional
steps are required to complete the programing.
An additional person may make the remaining steps easier. To complete th\
e
programing process:
• At the receiver of the device that you are programing to the HomeLink bu\
tton, press
and release the learn or smart button (the name may vary by manufacture\
r, but it is
usually located near where the hanging antenna wire is attached to the u\
nit). You have
approximately 30 seconds to initiate the following step.
• Press and hold the programed HomeLink button for 2 seconds and release.
You may have to repeat the previous two steps up to three times to compl\
ete the
programing process. HomeLink should now activate your device.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual, the HomeLink website at
www.homelink.com or call 1-800-355-3515.
