1. Hood (P.3-20)
2. Windshield wiper and washer—Switch operation (P.2-34)
— Rain-sensing auto wiper system
(P.2-35)
— Wiper blade replacement (P.8-20) —
Window washer fluid (P.8-15)
3. Moonroof (P.2-63)
4. Power windows (P.2-61)
5. Roof rack (P.2-60)
6. Corner sensors —Around View Monitor (P.4-21) 7. Towing hook (P.6-18)
8. Front view camera (P.4-21)
9. Center sensors*
—Around View Monitor (P.4-21)
10. Fog light (P.2-44)
11. Headlight washers* (P.2-42)
12. Headlight and turn signal (P.2-38) —Bulb replacement (P.8-28)
— Adaptive Front lighting System
(AFS)* (P.2-41)
13. Tires —Wheel and tires (P.8-31, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
14. Outside mirrors (P.3-30) —Side view camera (P.4-21)
— Welcome light (P.2-65)
15. Side turn signal lights (bulb replace- ment) (P.8-28)
16. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system*
(P.3-15)
— Remote engine start* (P.3-17)
Illustrated table of contents0-3
EXTERIOR FRONT

JVC0409X
1. Fuel-filler door (P.3-25)—Fuel recommendation (P.9-4)
2. Antenna (P.4-82)
3. Rear combination light (bulb replace- ment) (P.8-28)
4. Rear window defroster (P.2-37) 5. Satellite antenna (P.4-47)
6. Rear view camera (P.4-21)
7. High-mounted stop light (bulb repla-
cement) (P.8-28)
8. Lift gate (P.3-20) —Intelligent Key system (P.3-7) 9. Rear window wiper and washer
—Switch operation (P.2-36)
— Window washer fluid (P.8-15)
10. Spare tire (under the vehicle) (P.6-3)
11. Corner sensors —Around View Monitor (P.4-21)
12. Towing hook (P.6-18)
13. Trailer hitch (P.9-22)
14. Center sensors* —Around View Monitor (P.4-21)
*: if so equipped
Illustrated table of contents0-5
EXTERIOR REAR

0-8Illustrated table of contents
JVC0444X
1. Power lift gate switch* (P.3-20)
2. Instrument brightness control switch(P.2-43)
3. TRIP/RESET switch for twin trip od- ometer (P.2-7)
4. Headlight, fog light and turn signal switch
—
Headlight (P.2-38)
— Turn signal (P.2-43)
— Fog light (P.2-44)
5. Steering-wheel-mounted controls (left side) —
Audio control steering switch
(P.4-81)
— Hands-Free Phone System switch
(P.4-98)
6. Trip computer switch (P.2-28)
7. Wiper and washer switch (P.2-34)
8. Steering-wheel-mounted controls (right side)
—Cruise control system* (P.5-54)
— Intelligent Cruise Control (ICC) sys-
tem* (P.5-56)
9. Dynamic driver assistance switch* —Lane Departure Prevention (LDP)
system* (P.5-21)
— Distance Control Assist (DCA) sys-
tem* (P.5-78)
— Blind Spot Intervention system*
(P.5-31)
10. Shift lever (P.5-16)
11. Four-Wheel Drive (4WD) shift switch* (P.5-100)/SNOW mode switch
(P.2-49)/TOW MODE switch (P.2-49)/
Vehicle Dynamic Control (VDC) OFF
switch (P.5-115)
12. Headlight aiming control* (P.2-41)
13. Power lift gate main switch (P.3-20)
COCKPIT

Warninglight Name
Page
Anti-lock Braking System (ABS)
warning light 2-12
Automatic Transmission (AT)
check warning light2-12
Automatic Transmission (AT) oil
temperature warning light
2-12
Automatic Transmission (AT)
park warning light2-12
Blind Spot Warning (BSW)/
Blind Spot Intervention (BSI)
system warning light (orange)*2-13
Brake warning light
2-13
Charge warning light2-14
Distance Control Assist (DCA)
system warning light (orange)* 2-14
Engine oil pressure warning
light2-14
Four-Wheel Drive (4WD) warn-
ing light (4WD models)
2-14
Intelligent Cruise Control (ICC)
system warning light (orange)*2-15
Intelligent Key warning light 2-15
Lane departure warning light
(orange)*2-15Warning
light Name Page
Low tire pressure warning light 2-15
Master warning light
2-17
Preview Function warning light
(orange)* 2-17
Seat belt warning light 2-17
Supplemental air bag warning
light2-17
Vehicle Dynamic Control (VDC)
warning light2-18
Indicator light Name
Page
Adaptive Front lighting System
(AFS) indicator light* 2-18
Automatic Transmission (AT)
position indicator light
2-19
Blind Spot Intervention (BSI) ON
indicator light (green)*2-19
Check suspension indicator
light
2-19
Cruise indicator light*
2-19
Exterior light indicator2-19
Front passenger air bag status
light2-19
High beam indicator light
2-19Indicator
light Name
Page
Intelligent Brake Assist (IBA) off
indicator light* 2-19
Lane Departure Prevention
(LDP) ON indicator light (green)*
2-20
Malfunction Indicator Light
(MIL)2-20
Security indicator light 2-21
SNOW mode indicator light 2-21
TOW mode indicator light 2-21
Turn signal/hazard indicator
lights
2-21
Vehicle Dynamic Control (VDC)
off indicator light2-21
*: if so equipped
Illustrated table of contents0-13
WARNING AND INDICATOR LIGHTS

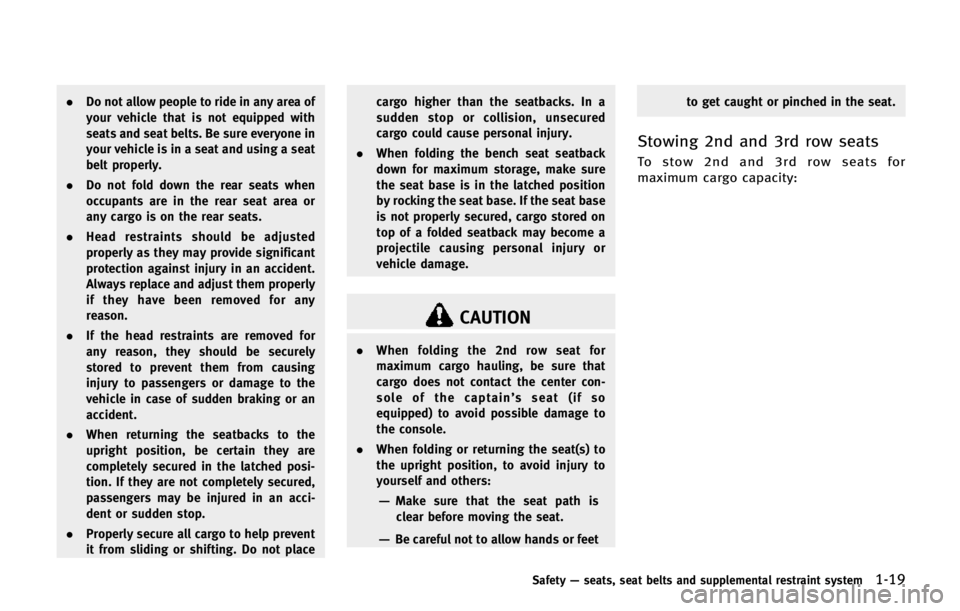

.Do not allow people to ride in any area of
your vehicle that is not equipped with
seats and seat belts. Be sure everyone in
your vehicle is in a seat and using a seat
belt properly.
. Do not fold down the rear seats when
occupants are in the rear seat area or
any cargo is on the rear seats.
. Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Always replace and adjust them properly
if they have been removed for any
reason.
. If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to the
vehicle in case of sudden braking or an
accident.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help prevent
it from sliding or shifting. Do not place cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.
. When folding the bench seat seatback
down for maximum storage, make sure
the seat base is in the latched position
by rocking the seat base. If the seat base
is not properly secured, cargo stored on
top of a folded seatback may become a
projectile causing personal injury or
vehicle damage.
CAUTION
.When folding the 2nd row seat for
maximum cargo hauling, be sure that
cargo does not contact the center con-
sole of the captain’ s seat (if so
equipped) to avoid possible damage to
the console.
. When folding or returning the seat(s) to
the upright position, to avoid injury to
yourself and others:
—Make sure that the seat path is
clear before moving the seat.
—Be careful not to allow hands or feet to get caught or pinched in the seat.
Stowing 2nd and 3rd row seats
To stow 2nd and 3rd row seats for
maximum cargo capacity:
Safety
—seats, seat belts and supplemental restraint system1-19

1-26Safety—seats, seat belts and supplemental restraint system
SSS0292
Fastening the seat belts
1. Adjust the seat. (See “Seats”earlier in
this section.)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the
buckle until you hear and feel the latch
engage.
.The retractor is designed to lockduring a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.
.If the seat belt cannot be pulled
from its fully retracted position, firmly pull the belt and release it.
Then smoothly pull the belt out of
the retractor.
SSS0290
3. Position the lap belt portion
low and
snug on the hips as shown.
4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be
sure the shoulder belt is routed over
your shoulder and across your chest.
The three-point type seat belts have two
modes of operation:
. Emergency Locking Retractor (ELR)
. Automatic Locking Retractor (ALR)
The Emergency Locking Retractor (ELR)
mode allows the seat belt to extend and
retract to allow the driver and passengers
some freedom of movement in the seat.

SSS1077
Stowing 3rd row center seat belt:
When folding down the 3rd row seat, the
3rd center seat belt can be retracted into a
stowed position.
1. Hold the connector tongue
*1so that
the seat belt does not retract suddenly
when the tongue is released from the
connector buckle. Release the connec-
tor tongue by inserting a suitable tool
such as key
*Ainto the connector
buckle.
2. Store the seat belt tongue into the tongue holder
*Bfirst*2.
3. Store the connector tongue into the retractor base
*3.
WARNING
Do not unfasten the 3rd center seat belt
connector except when folding down the 3rd
seat.
SSS1078
Safety —seats, seat belts and supplemental restraint system1-29

1-54Safety—seats, seat belts and supplemental restraint system
LRS0454
Front passenger position
3. The booster seat should be positioned
on the vehicle seat so that it is stable.
If necessary, adjust or remove the head
restraint or headrest to obtain the
correct booster seat fit. If the head
restraint or headrest is removed, store
it in a secure place. Be sure to reinstall
the head restraint or headrest when
the booster seat is removed. See“Head
restraints” earlier in this section or
“Headrest” earlier in this section for
head restraint or headrest adjustment,
removal and installation information.
If the seating position does not have an adjustable head restraint or a headrest
and it is interfering with the proper
booster seat fit, try another seating
position or a different booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be
sure to follow the booster seat manu-
facturer’s instructions for adjusting the
seat belt routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up
extra slack. Be sure the shoulder belt is
positioned across the top, middle por-
tion of the child’s shoulder. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
6. Follow the warnings, cautions and instructions for properly fastening a
seat belt shown in “Seat belts”earlier
in this section.
SSS1099
7. If the booster seat is installed in the
front passenger seat, push the ignition
switch to the ON position. The front
passenger air bag status light
may
or may not illuminate depending on the
size of the child and the type of booster
seat used. See “Front passenger air
bag and status light” later in this
section.

1-66Safety—seats, seat belts and supplemental restraint system
. Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensors. This can also affect the
operation of the air bag system and
result in serious personal injury.
. Immediately after inflation, several front
air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
. No unauthorized changes should be
made to any components or wiring of
the supplemental air bag system. This is
to prevent accidental inflation of the
supplemental air bag or damage to the
supplemental air bag system.
. Do not make unauthorized changes to
your vehicle’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the front
air bag system.
. Tampering with the air bag system may
result in serious personal injury. Tamper-
ing includes changes to the steering
wheel and the instrument panel assem-
bly by placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim material around the air bag system.
. Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury.
. Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material, such
as seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensors.
. No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.
. Work on and around the front air bag
system should be done by an INFINITI
retailer. Installation of electrical equip- ment should also be done by an INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on
the air bag system.
. A cracked windshield should be replaced
immediately by a qualified repair facility.
A cracked windshield could affect the
function of the supplemental air bag
system.
* The SRS wiring harness connectors
are yellow and orange for easy
identification.
When selling your vehicle, we request that
you inform the buyer about the front air
bag system and guide the buyer to the
appropriate sections in this Owner’s Man-
ual.

2 Instruments and controls
Cockpit ................................................................ 2-3
Instrument panel ................................................. 2-5
Meters and gauges .............................................. 2-6Speedometer and odometer ............................ 2-7
Tachometer...................................................... 2-8
Engine coolant temperature gauge .................. 2-8
Fuel gauge ...................................................... 2-9
Engine oil pressure gauge ............................... 2-9
Voltmeter ...................................................... 2-10
Meter/ring illumination and needle sweep .... 2-10
Warning/indicator lights and
audible reminders ............................................. 2-11 Checking bulbs.............................................. 2-12
Warning lights ............................................... 2-12
Indicator lights .............................................. 2-18
Audible reminders ......................................... 2-21
Dot matrix liquid crystal display ........................ 2-22 Operational indicators ................................... 2-24
Maintenance indicators ................................. 2-27
Trip computer ................................................ 2-28
Security systems ............................................... 2-31 Vehicle Security System ................................ 2-31
INFINITI Vehicle Immobilizer System .............. 2-32 Windshield wiper and washer switch................. 2-34
Washer operation ........................................ 2-35
Rain-sensing auto wiper system................... 2-35
Rear window wiper and washer switch .............. 2-36
Rear window and outside mirror
defroster switch ................................................ 2-37 Rear window and outside mirror defroster ... 2-37
Headlight and turn signal switch ....................... 2-38 Xenon headlights......................................... 2-38
Headlight switch .......................................... 2-38
Headlight washer (if so equipped) ............... 2-42
Instrument brightness control ...................... 2-43
Turn signal switch........................................ 2-43
Fog light switch ........................................... 2-44
Heated steering wheel ...................................... 2-44
Horn ................................................................. 2-45
Heated seats (if so equipped) ........................... 2-45 Front............................................................ 2-46
Rear............................................................. 2-46
Climate controlled seats (if so equipped) .......... 2-47
Warning systems switch (if so equipped) .......... 2-48
SNOW mode switch........................................... 2-49
Tow mode switch .............................................. 2-49>
