torque ISUZU AXIOM 2002 Service Repair Manual

4C±32
DRIVE SHAFT SYSTEM
401RW053
401RW052
4. Remove bolt, nut and washer (Front axle side).
5. Remove bolt, nut and washer (Transfer side).
6. Remove front propeller shaft.
NOTE: When removing, installing or carring the front
propeller shaft, be sure to wrap a piece of cloth around the
part of the boot with which fittings may interfere so that the
boot can be protected. The boot may be damaged if
bending force is applied to the constant velocity joint of
the shaft.
401RW051
Installation
NOTE: Never install the shaft assembly backwards.
Completely remove the black paint from the connecting
surface of flange coupling on each end of propeller shaft.
Clean so that no foreign matter will be caught in between.
1. Align the mark which was applied at removal. Install
front propeller shaft and tighten the bolts to the
specified torque.
Torque: 63 N´m (46 lb ft)
2. Install the exhaust and transfer protectors.
Constant Velocity Joint
NOTE: L J a n d B J constant velocity joints are
unremovable types. Check the joint for play and the boot
for damage, wear, and leak of grease. If abnormality is
found, replace propeller shaft as an assembly.

4C±35 DRIVE SHAFT SYSTEM
Main Data and Specifications
General Specifications
Engine6VE1(3.5 L)
TransmissionA/T with TOD
ConstructionHollow steel tube with constant velocty joints.
Outside diameter40.0 mm (1.57 in)
Length597 mm (23.50 in)
Torque Specifications
401R200005

4C±36
DRIVE SHAFT SYSTEM
Rear Propeller Shaft
Rear Propeller Shaft and Associated Parts
401R200002
Legend
(1) Bolt, Nut and Washer (Transfer Side)(2) Rear Propeller Shaft
(3) Bolt, Nut and Washer (Rear Axle Side)
Removal
1. Raise the vehicle on a hoist.
NOTE: Apply alignment marks on the flange at the rear
propeller shaft both front and rear side.
2. Remove transfer side bolt, nut and washer (except
spline yoke type).
3. Remove rear axle side bolt, nut and washer.
4. Remove rear propeller shaft.
NOTE: Plug the hole of the transmission rear end to
prevent oil leakage (spline yoke type only).
Installation
NOTE: Never install the shaft assembly backwards.
Never insert bar between yoke lugs when tightening or re-
moving bolts.
Completely remove the dust or foreign matter from the
connecting surface of flange coupling on each end of the
propeller shaft.
1. Align the mark which is applied at removal.
2. Install rear propeller shaft and tighten the bolts to the
specified torque.
Torque: 63 N´m(46 lb ft)

4C±43 DRIVE SHAFT SYSTEM
Main Data and Specifications
General Specifications
2WD Model4WD Model
Engine6VD16VD1
TransmissionA/TA/T
Type (See illustration)12
Length
between two spiders center)1323.0mm
(52.09in)1030.0mm
(40.55in)
Universal joint typeCardan type
Torque Specifications
401R200007

4C±44
DRIVE SHAFT SYSTEM
AXIOM (Vehicles Produced After Aug./1/2001)
DRIVE SHAFT SYSTEM
CONTENTS
Service Precaution 4C±44. . . . . . . . . . . . . . . . . . . . . .
General Description 4C±45. . . . . . . . . . . . . . . . . . . . .
Diagnosis 4C±45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Hub and Disc (2WD Model) 4C±46. . . . . . . . .
Disassembled View 4C±46. . . . . . . . . . . . . . . . . . . .
Disassembly 4C±46. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 4C±47. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 4C±48. . . . . . . . . . . . . . . . . . . . . . . . . .
Front Hub and Disc (4WD Model) 4C±49. . . . . . . . .
Disassembled View 4C±49. . . . . . . . . . . . . . . . . . . .
Disassembly 4C±49. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection 4C±50. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reassembly 4C±51. . . . . . . . . . . . . . . . . . . . . . . . . .
Front Drive Shaft Joint 4C±52. . . . . . . . . . . . . . . . . . .
Front Drive Shaft Joints Replacement 4C±52. . . .
Front Axle Drive Shaft 4C±53. . . . . . . . . . . . . . . . . . .
Front Axle Drive Shaft and Associated
Parts 4C±53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 4C±54. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection And Repair 4C±55. . . . . . . . . . . . . . . . . .
Bushing Replacement 4C±55. . . . . . . . . . . . . . . . . .
Reassembly 4C±55. . . . . . . . . . . . . . . . . . . . . . . . . .
Shift On The Fly System 4C±59. . . . . . . . . . . . . . . . .
Shift On The Fly System and Associated
Parts 4C±59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 4C±59. . . . . . . . . . . . . . . . . . . . . . . . . .
Inspection And Repair 4C±61. . . . . . . . . . . . . . . . . .
Reassembly 4C±63. . . . . . . . . . . . . . . . . . . . . . . . . . Main Data and Specifications 4C±66. . . . . . . . . . .
Special Tools 4C±68. . . . . . . . . . . . . . . . . . . . . . . . . .
Propeller Shaft 4C±69. . . . . . . . . . . . . . . . . . . . . . . . . .
General Description 4C±69. . . . . . . . . . . . . . . . . . . . .
Universal Joint 4C±70. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnosis of Propeller Shaft and Universal
Joint 4C±71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Propeller Shaft 4C±72. . . . . . . . . . . . . . . . . . . . .
Front Propeller Shaft and Associated Parts 4C±72
Removal 4C±72. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4C±72. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembly 4C±73. . . . . . . . . . . . . . . . . . . . . . . . . .
Universal Joint Disassembly 4C±74. . . . . . . . . . . .
Inspection and Repair 4C±75. . . . . . . . . . . . . . . . . .
Universal Joint Reassembly 4C±76. . . . . . . . . . . . .
Reassembly 4C±77. . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 4C±78. . . . . . . . . . . . .
Rear Propeller Shaft 4C±79. . . . . . . . . . . . . . . . . . . . .
Rear Propeller Shaft and Associated Parts 4C±79
Removal 4C±79. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 4C±79. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Slip Joint Disassembly 4C±80. . . . . . . . . . . . . . . . .
Universal Joint Disassembly 4C±81. . . . . . . . . . . .
Inspection 4C±83. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Universal Joint Reassembly 4C±84. . . . . . . . . . . . .
Slip Joint Reassembly 4C±85. . . . . . . . . . . . . . . . . .
Main Data and Specifications 4C±86. . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM(SRS). REFER TO THE
SRS
COMPONENT AND WIRING LOCATION VIEW
IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE
SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS. CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED , do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

4C±48
DRIVE SHAFT SYSTEM
Reassembly
1. Install wheel pin.
411RS005

Place hub on a wood workbench or a block of wood
approx. 6º by 6º to protect the wheel stud ends and
threads.

Install wheel stud, using a hammer.
NOTE: Be sure wheel stud is started squarely and seats
completely.
2. Install the hub unit bearing to the knuckle.
Tighten the bolts to the specified torque.
Hub unit bearing bolt
Torque: 103+10 N´m (10.5 + 1 kg´m)
If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.
3. Install the ABS sensor connector.
4. Install the disc rotor.
5. Install the brake caliper to the bracket.
Refer to
Front disc caliper assembly in Section 5C of this
Manual.

4C±51 DRIVE SHAFT SYSTEM
Reassembly
1. Install the wheel pin.

Place hub on a wood workbench or a block of wood
approx. 6º by 6º to protect the wheel stud ends and
threads.

Install the wheel stud, using a hammer.
NOTE: Be sure wheel stud is started squarely and seats
completely.
411RS005
2. Install the ABS rotor sensor to the hub unit bearing.
Tighten the bolts to the specified torque.
ABS rotor sensor bolt
Torque: 18.7+5 N´m (1.9+0.5 kg´m)
3. Install the hub unit bearing to the knuckle. Tighten the
bolts to the specified torque.
Hub unit bearing bolt
Torque: 103+10 N´m (10.5+1 kg´m)
If there is rust on the bearing and knuckle contact
surfaces, use sandpaper to remove it before installation.
Take care not to push the front drive shaft and oil seal out
of position.
4. Hand tighten the front drive shaft nuts.
Use new nuts.
5. Install the disc rotor.
6. Install the brake caliper to the bracket.
Refer to
Front disc caliper assembly in Section 5C of this
Manual.7. Tighten the front drive shaft nuts to the specified
torque.
Front drive shaft nut
Torque: 245+19.6 N´m (25+2 kg´m)
411R200005
8. Caulk the front drive shaft nuts.
The caulking must be free of cracks.
411R200006

4C±52
DRIVE SHAFT SYSTEM
Front Drive Shaft Joint
Front Drive Shaft Joints
Replacement

Refer to Front Drive Axle Assembly Replacement in
this section, and refer to
Front Hub and Disc Overhaul
in Suspension section.
Front Hub Bearing Preload Check
Check the hub bearing preload at the wheel pin.
New bearing and New oil seal:
24.5 N (4.4 ± 5.5 lb)
Used bearing and New oil seal:
11.8± 17.7 N(2.6 ± 4.0 lb)
Inspection Of Shift On The Fly System
Gear Oil
412RY00008
1. Open filler plug and make sure that the oil is up to the
plug port.
If the oil is short, replenish with gear oil GL±5 grade.
2. Tighten the filler plug to the specified torque.
Torque: 78 N´m (58 lb in)

4C±55 DRIVE SHAFT SYSTEM

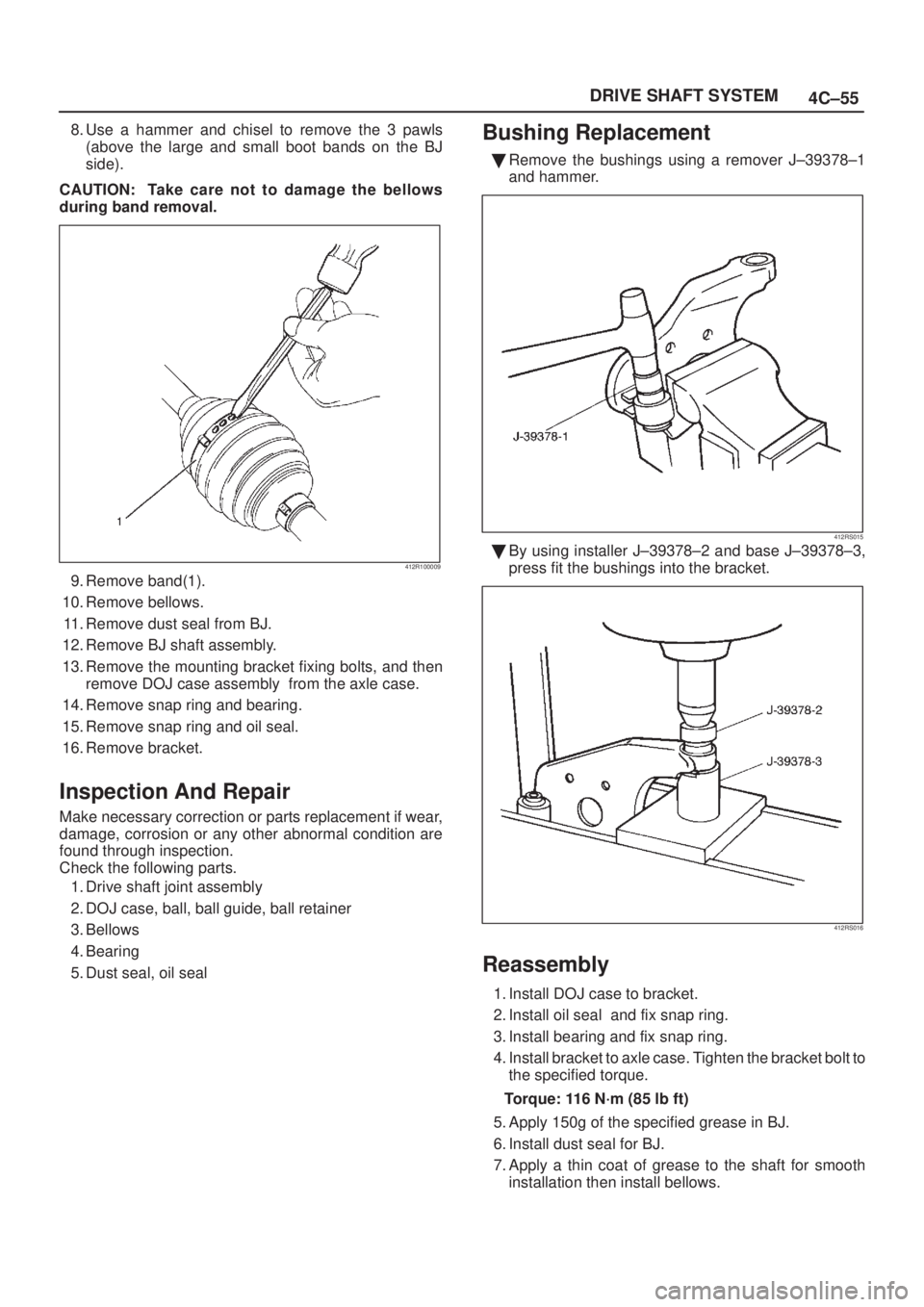

8. Use a hammer and chisel to remove the 3 pawls
(above the large and small boot bands on the BJ
side).
CAUTION: Take care not to damage the bellows
during band removal.
412R100009
9. Remove band(1).
10. Remove bellows.
11. Remove dust seal from BJ.
12. Remove BJ shaft assembly.
13. Remove the mounting bracket fixing bolts, and then
remove DOJ case assembly from the axle case.
14. Remove snap ring and bearing.
15. Remove snap ring and oil seal.
16. Remove bracket.
Inspection And Repair
Make necessary correction or parts replacement if wear,
damage, corrosion or any other abnormal condition are
found through inspection.
Check the following parts.
1. Drive shaft joint assembly
2. DOJ case, ball, ball guide, ball retainer
3. Bellows
4. Bearing
5. Dust seal, oil seal
Bushing Replacement

Remove the bushings using a remover J±39378±1
and hammer.
412RS015

By using installer J±39378±2 and base J±39378±3,
press fit the bushings into the bracket.
412RS016
Reassembly
1. Install DOJ case to bracket.
2. Install oil seal and fix snap ring.
3. Install bearing and fix snap ring.
4. Install bracket to axle case. Tighten the bracket bolt to
the specified torque.
Torque: 116 N´m (85 lb ft)
5. Apply 150g of the specified grease in BJ.
6. Install dust seal for BJ.
7. Apply a thin coat of grease to the shaft for smooth
installation then install bellows.

4C±64
DRIVE SHAFT SYSTEM
2. Install a new needle bearing into inner shaft by using a
Installer J±41694 and grip J±8092.
412RS051
3. Place a new snap ring(internal) in inner shaft.
Install a new inner shaft bearing into the inner shaft.
412RS044
4. Install snap ring(external).
NOTE: Be careful not to damage the inner shaft.
5. Clean the housing contact surface of the front axle
case and insert inner shaft assembly into the front
axle case.
NOTE: Be careful not to damage seal.
6. Install snap ring internal in the groove of front axle
case.NOTE: Be sure to install the snap ring properly.
412RW017
7. Apply differential gear oil to clutch gear, then install
clutch gear.
8. Apply differential gear oil to sleeve, then install
sleeve.
9. Clean contact surface with the front axle and actuator
mounting surface. Apply liquid gasket to the contact
surface on the front axle case, then install in the
housing.
412RW023
10. Tighten bolts to specified torque.
Torque: 75N´m(55 lb ft)
11. Clean the actuator contact surface with the housing
then Install and tighten shift position switch to the
specified torque.
Torque: 39N´m (29 lb ft)
