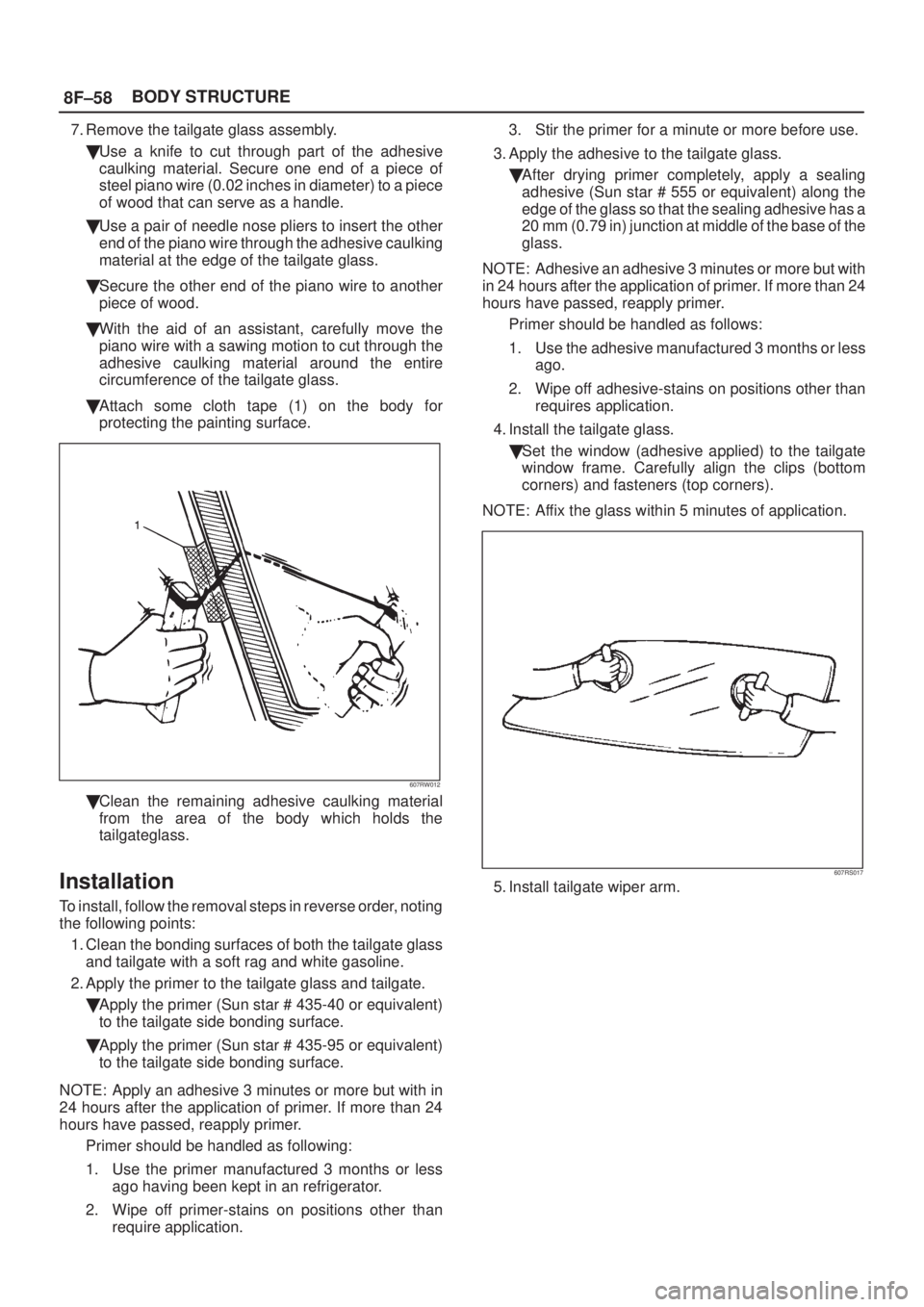

7. Remove the tailgate glass assembly.

Use a knife to cut through part of the adhesive
caulking material. Secure one end of a piece of
steel piano wire (0.02 inches in diameter) to a piece
of wood that can serve as a handle.

Use a pair of needle nose pliers to insert the other
end of the piano wire through the adhesive caulking
material at the edge of the tailgate glass.

Secure the other end of the piano wire to another
piece of wood.

With the aid of an assistant, carefully move the
piano wire with a sawing motion to cut through the
adhesive caulking material around the entire
circumference of the tailgate glass.

Attach some cloth tape (1) on the body for
protecting the painting surface.
607RW012

Clean the remaining adhesive caulking material
from the area of the body which holds the
tailgateglass.
Installation
To install, follow the removal steps in reverse order, noting
the following points:
1. Clean the bonding surfaces of both the tailgate glass
and tailgate with a soft rag and white gasoline.
2. Apply the primer to the tailgate glass and tailgate.

Apply the primer (Sun star # 435-40 or equivalent)
to the tailgate side bonding surface.

Apply the primer (Sun star # 435-95 or equivalent)
to the tailgate side bonding surface.
NOTE: Apply an adhesive 3 minutes or more but with in
24 hours after the application of primer. If more than 24
hours have passed, reapply primer.
Primer should be handled as following:
1. Use the primer manufactured 3 months or less
ago having been kept in an refrigerator.
2. Wipe off primer-stains on positions other than
require application.3. Stir the primer for a minute or more before use.
3. Apply the adhesive to the tailgate glass.

After drying primer completely, apply a sealing
adhesive (Sun star # 555 or equivalent) along the
edge of the glass so that the sealing adhesive has a
20 mm (0.79 in) junction at middle of the base of the
glass.
NOTE: Adhesive an adhesive 3 minutes or more but with
in 24 hours after the application of primer. If more than 24
hours have passed, reapply primer.
Primer should be handled as follows:
1. Use the adhesive manufactured 3 months or less
ago.
2. Wipe off adhesive-stains on positions other than
requires application.
4. Install the tailgate glass.

Set the window (adhesive applied) to the tailgate
window frame. Carefully align the clips (bottom
corners) and fasteners (top corners).
NOTE: Affix the glass within 5 minutes of application.
607RS017
5. Install tailgate wiper arm.

SECURITY AND LOCKS8H±1
AXIOM
BODY AND ACCESSORIES
SECURITY AND LOCKS
CONTENTS
Service Precaution 8H±1. . . . . . . . . . . . . . . . . . . . . .
Front Door Lock Assembly 8H±2. . . . . . . . . . . . . . .
Front Door Lock Assembly and Associated
Parts 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Outside Handle 8H±5. . . . . . . . . . . . . . . . . . . .
Front Outside Handle and Associated Parts 8H±5
Removal 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Lock Assembly 8H±6. . . . . . . . . . . . . . . .
Rear Door Lock Assembly and Associated
Parts 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Outside Handle 8H±9. . . . . . . . . . . . . . . . . . . .
Rear Outside Handle and Associated Parts 8H±9
Removal 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Lock and Outside Handle 8H±10. . . . . . . . .
Tailgate Lock, Outside Handle and
Associated Parts 8H±10. . . . . . . . . . . . . . . . . . . . . . Removal 8H±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Coding 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Styles 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Lock System 8H±13. . . . . . . . . . . . . . . .
General Description 8H±13. . . . . . . . . . . . . . . . . . . .
Door Lock Key Switch 8H±13. . . . . . . . . . . . . . . . . .
Front Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Rear Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Tailgate Lock Actuator 8H±13. . . . . . . . . . . . . . . . . .
Anti-Theft System 8H±14. . . . . . . . . . . . . . . . . . . . . . .
General Description 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft & Keyless Entry Controller 8H±14. . . .
Anti±Theft Indicator 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft Horn 8H±14. . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Switch 8H±15. . . . . . . . . . . . . . . . . . .
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement 8H±15. . . . . . . . . .
Keyless Entry System 8H±16. . . . . . . . . . . . . . . . . . . .
ID Code Registration 8H±16. . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8H±19. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

8H±10SECURITY AND LOCKS

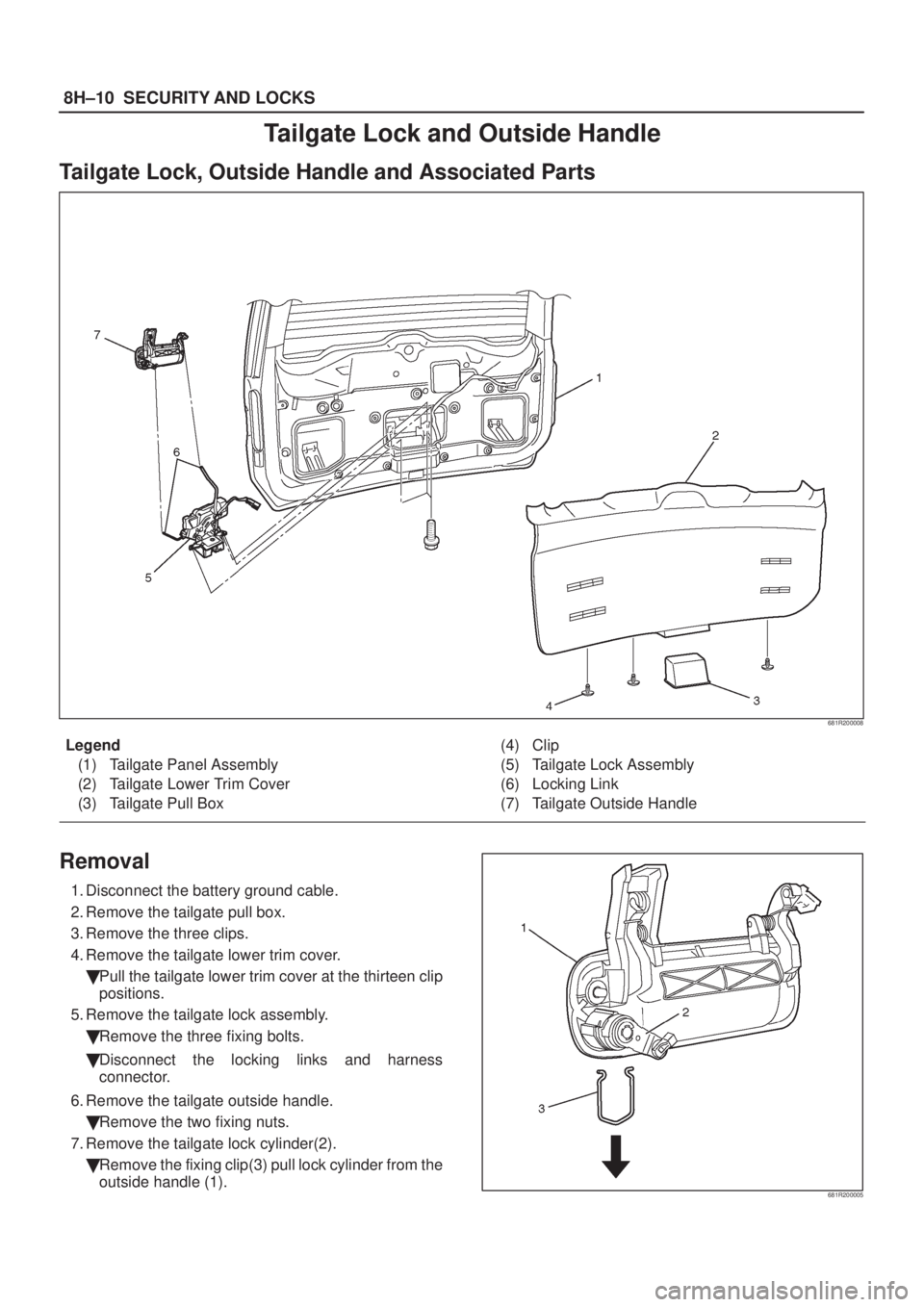

Tailgate Lock and Outside Handle
Tailgate Lock, Outside Handle and Associated Parts
681R200008
Legend
(1) Tailgate Panel Assembly
(2) Tailgate Lower Trim Cover
(3) Tailgate Pull Box(4) Clip
(5) Tailgate Lock Assembly
(6) Locking Link
(7) Tailgate Outside Handle
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate pull box.
3. Remove the three clips.
4. Remove the tailgate lower trim cover.

Pull the tailgate lower trim cover at the thirteen clip
positions.
5. Remove the tailgate lock assembly.

Remove the three fixing bolts.

Disconnect the locking links and harness
connector.
6. Remove the tailgate outside handle.

Remove the two fixing nuts.
7. Remove the tailgate lock cylinder(2).

Remove the fixing clip(3) pull lock cylinder from the
outside handle (1).
681R200005

SECURITY AND LOCKS8H±11
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Check for smooth outside handle and lock cylinder
operation.
2. Tighten the tailgate lock assembly fixing bolts to the
specified torque.
Torque 7 N´m (61 Ib in)
3. Tighten the tailgate outside handle fixing nuts to the
specified torque.
Torque 7 N´m (61 Ib in)

8H±12SECURITY AND LOCKS
Key
Key Coding
730RX001
Legend
(1) Key (Actual size)
(2) Key Code Tag(3) Position
(4) Level
One key is used for the ignition, door, and tailgate lock
cylinders. The keys are cut on both edges to make them
reversible.
Key identification is obtained from the five character key
code stamped on the key code tag. From this key code,
the key code cutting combination can be determined from
a code list (available to owners of key cutting equipment
from suppliers).
If key codes are not available from records or tags, the
key code can be obtained from the right hand door lock
cylinder (if lock has not been replaced). Lock cylinders
supplied by the factory as service parts are unmarked.
If the original key is available, the key code cutting
combination can be determined by laying the key on the
diagram shown in the figure.Key Styles
730RX002
Legend
(1) Blank Key Style ªAº
(2) Blank Key Style ªBº
The keys come in styles A or B depending on the key code
cutting combination. When the first position in the
combination is a 1, 2 or 3, Style A is used. When the first
position is a 4, Style B (factory pre-cut key) is used.

SECURITY AND LOCKS8H±13
Power Door Lock System
General Description
The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch.
The front door lock switch±LH is always provided with the
battery voltage.
The key or the inside lock button on both driver's and front
passenger's door can activate the lock mechanism of all
the doors (including the tailgate).
When the driver's door lock switch or the front
passenger's door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch±LH to activate the actuator to lock
and unlock the doors.
Door Lock Key Switch
Removal and Installation

Refer to the Front Door Lock Assembly removal and
installation steps in this section.
Front Door Lock Actuator
Removal and Installation

Refer to the Front Door Lock Assembly removal and
installation steps in this section.
Rear Door Lock Actuator
Removal and Installation

Refer to the Rear Door Lock Assembly removal and
installation steps in this section.
Tailgate Lock Actuator
Removal and Installation

Refer to the Tailgate Lock Assembly removal and
installation steps in this section.

8H±14SECURITY AND LOCKS
Anti-Theft System
General Description
The circuit consists of the starter switch, anti±theft &
keyless entry controller, anti±theft horn, front door and
tailgate key switch (detect and tamper) switch, door lock
actuator for each door, engine hood switch, clutch start
switch (M/T), ANTI±THEFT indicator light and mode
switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights will start flashing, the horn
sounds, and the starter circuit is disabled. (However, the
engine hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from ªOFFº to ªACCº by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.
Anti±Theft & Keyless Entry Control-
ler
Removal
1. Disconnect the battery ground cable.
2. Remove the glove box from the instrument panel
assembly (1).

Refer to
the Instrument Panel Assembly in Body
Structure section.
3. Remove the anti±theft & keyless entry controller (2).

Disconnect the connector.

Remove two fixing screws.
826RW007
Installation
To install, follow the removal steps in the reverse order.
Anti±Theft Indicator
Removal and Installation
Refer to GPS in Entertainment section.
Anti±Theft Horn
Removal
1. Disconnect the battery ground cable.
2. Remove the anti±theft horn (1).

Disconnect the connector.

Remove a fixing bolt.
828RW001
Installation
To install, follow the removal steps in the reverse order.

EXTERIOR/INTERIOR TRIM8J±9
Interior Trim Panels
Interior Trim Panels and Associated Parts
643R200003
Legend
(1) Assist Grip (Front & Rear)
(2) Door Finisher (Front & Rear)
(3) Upper Quarter Pillar Trim Cover
(4) Upper Rear Pillar Trim Cover
(5) Rear Roof Trim Cover
(6) Tailgate Weather Strip
(7) Multi Hook(8) Rear End Floor Trim Cover
(9) Lower Quarter Trim Cover
(10) Sill Plate (Front & Rear)
(11) Lower Center Pillar Trim Cover
(12) Upper Center Pillar Trim Cover
(13) Dash Side Trim Cover
(14) Front Pillar Trim Cover
Removal
1. Disconnect the battery ground cable.
2. Remove the sill plates (Front & Rear).
3. Remove the dash side trim cover.
4. Remove the lower center pillar trim cover.

Remove the lower anchor bolt cover and lower
anchor bolt from the front seat belt.

Pry the trim cover with the clips from the body panel.
5. Remove the door finishers (Front & Rear).

8J±10EXTERIOR/INTERIOR TRIM
6. Remove the upper center pillar trim cover.

Remove the cover (1) and screw.

Remove the shoulder anchor cap (2) and upper
anchor bolt (3) from the front seat belt.

Pry the trim cover with the clip from the body panel.
760R200006
7. Remove the front pillar trim cover.

Ply the trim cover with the clips from the body panel.
8. Remove the tailgate weather strip.
9. Remove the rear end floor trim cover.

Remove the four screw cover and nine fixing
screws.
10. Remove the rear roof trim cover.

Pry the trim cover with the clips from the body panel.
11. Remove the tonneau cover assembly (1).
643R200001
12. Remove the multi hooks.

While raising the notch of the hook with the
screwdriver, pull out the hook by turning 180
.
643R200004
13. Remove the lower quarter trim cover (1).

Remove the lower anchor bolt cover (4) and the
lower anchor bolt (3) from the rear seat belt.

Pull the trim cover at the five clip positions (2).

Disconnect the accessory socket connectors (LH
side).
643R200006
14. Remove the upper quarter pillar trim cover (1).

Remove the cover and screw, pull the trim cover at
the two clip positions (2).

Remove the shoulder anchor cap (4) and upper
anchor bolt (3) from the rear seat belt.

8J±20EXTERIOR/INTERIOR TRIM
Power Door Mirror System
General Description
The system consists of the starter switch, door mirror
switch, rear defogger/mirror defogger switch and door
mirrors on both sides.
When the door mirror switch is operated with the starter
switch at either ªACCº or ªONº position, the motor in the
door mirror (on either side) rotates to allow the horizontal
and vertical adjustment of mirror angles.
When the rear defogger/mirror defogger switch is turned
ªONº with the starter switch ªONº, the heater of the left
and right mirrors and the tailgate glass are activated.
Door Mirror Switch
Removal
1. Disconnect the battery ground cable.
2. Remove the instrument panel lower cover (2).
Refer to the
Instrument Panel Assembly in Body
Structure section.
3. Remove the door mirror switch (1).
825RW094
Rear Defogger/Mirror Defogger Switch
Refer to the Rear Defogger/Mirror switch removal and
installation steps in Lighting System section.
Door Mirrors
Refer to Door Mirror Assembly in this section.
