SECURITY AND LOCKS8H±5
Front Outside Handle
Front Outside Handle and Associated Parts
635R200008
Legend
(1) Door Mirror Cover
(2) Power Window Switch
(3) Door Trim Panel
(4) Inside Lock Bracket
(5) Inside Handle(6) Pull Box
(7) Pull Box Bracket
(8) Waterproof Sheet
(9) Door Lock Assembly
(10) Door Locking Cylinder
(11) Outside Handle
Removal
1. Disconnect the battery ground cable.
2. Remove the door trim panel.

Refer to
Front Door Lock Assembly in this section.
3. Remove the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
4. Disconnect the locking links and remove the outside
handle.
5. Remove the fixing clip to remove the door lock
cylinder.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Be sure to install the door lock cylinder at a specified
angle to the outside handle.
2. Check for smooth outside handle and lock cylinder
operation.
3. Tighten the outside handle fixing bolts to the specified
torque.
Torque 7 N´m (61 Ib in)

8H±6SECURITY AND LOCKS

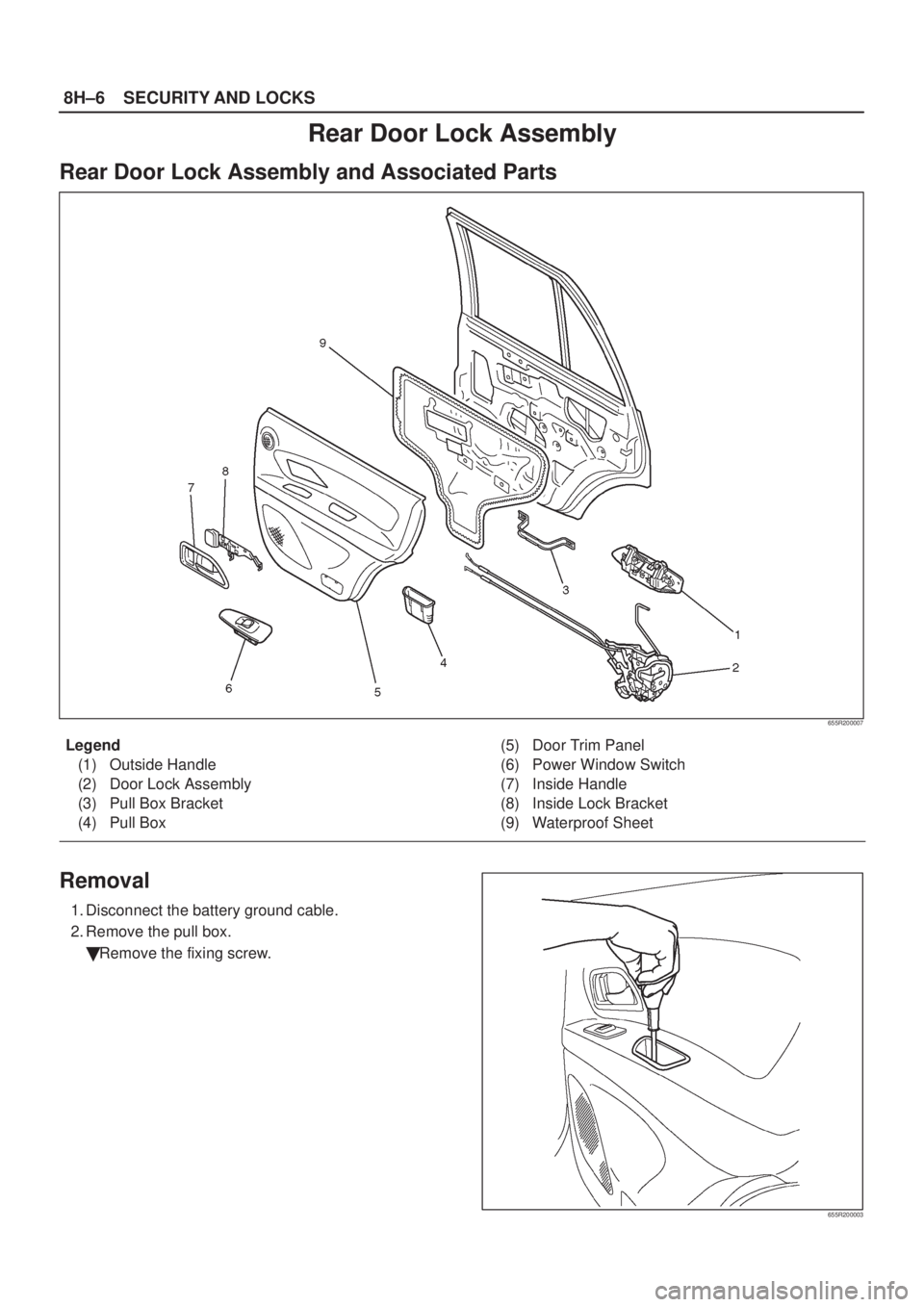

Rear Door Lock Assembly
Rear Door Lock Assembly and Associated Parts
655R200007
Legend
(1) Outside Handle
(2) Door Lock Assembly
(3) Pull Box Bracket
(4) Pull Box(5) Door Trim Panel
(6) Power Window Switch
(7) Inside Handle
(8) Inside Lock Bracket
(9) Waterproof Sheet
Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.

Remove the fixing screw.
655R200003

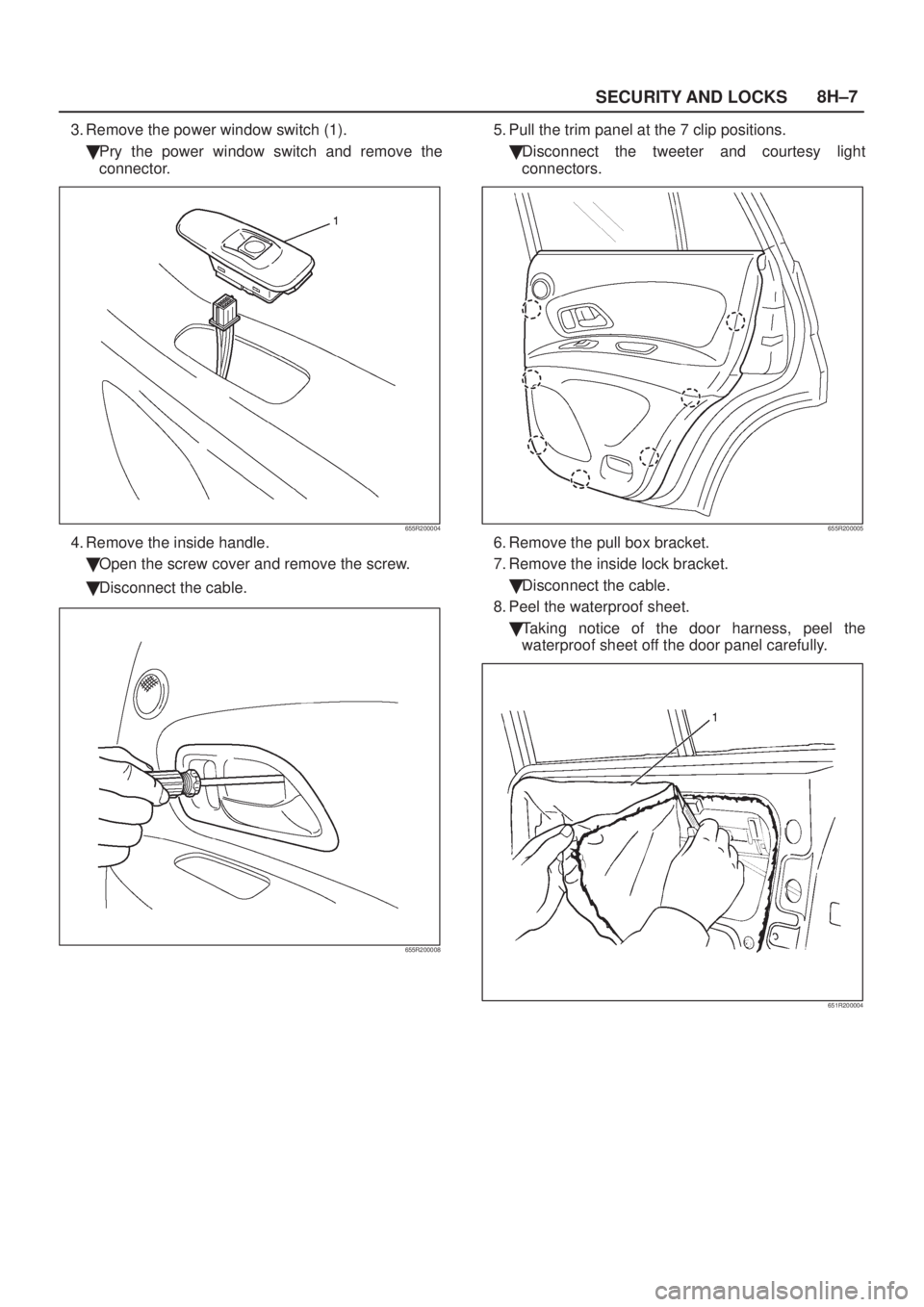

SECURITY AND LOCKS8H±7
3. Remove the power window switch (1).

Pry the power window switch and remove the
connector.
655R200004
4. Remove the inside handle.

Open the screw cover and remove the screw.

Disconnect the cable.
655R200008
5. Pull the trim panel at the 7 clip positions.

Disconnect the tweeter and courtesy light
connectors.
655R200005
6. Remove the pull box bracket.
7. Remove the inside lock bracket.

Disconnect the cable.
8. Peel the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
651R200004

SECURITY AND LOCKS8H±9
Rear Outside Handle
Rear Outside Handle and Associated Parts
655R200007
Legend
(1) Outside Handle
(2) Door Lock Assembly
(3) Pull Box Bracket
(4) Pull Box(5) Door Trim Panel
(6) Power Window Switch
(7) Inside Handle
(8) Inside Lock Bracket
(9) Waterproof Sheet
Removal
1. Disconnect the battery ground cable.
2. Remove the door trim panel.

Refer to
Rear Door Lock Assembly in this section.
3. Peel the waterproof sheet.

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.
4. Disconnect the locking link and remove fixing bolts to
remove the outside handle.
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Check that the outside handle operates smoothly.
2. Tighten the outside handle fixing bolts to the specified
torque.
Torque 7 N´m (61 Ib in)

SECURITY AND LOCKS8H±13
Power Door Lock System
General Description
The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch.
The front door lock switch±LH is always provided with the
battery voltage.
The key or the inside lock button on both driver's and front
passenger's door can activate the lock mechanism of all
the doors (including the tailgate).
When the driver's door lock switch or the front
passenger's door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch±LH to activate the actuator to lock
and unlock the doors.
Door Lock Key Switch
Removal and Installation

Refer to the Front Door Lock Assembly removal and
installation steps in this section.
Front Door Lock Actuator
Removal and Installation

Refer to the Front Door Lock Assembly removal and
installation steps in this section.
Rear Door Lock Actuator
Removal and Installation

Refer to the Rear Door Lock Assembly removal and
installation steps in this section.
Tailgate Lock Actuator
Removal and Installation

Refer to the Tailgate Lock Assembly removal and
installation steps in this section.

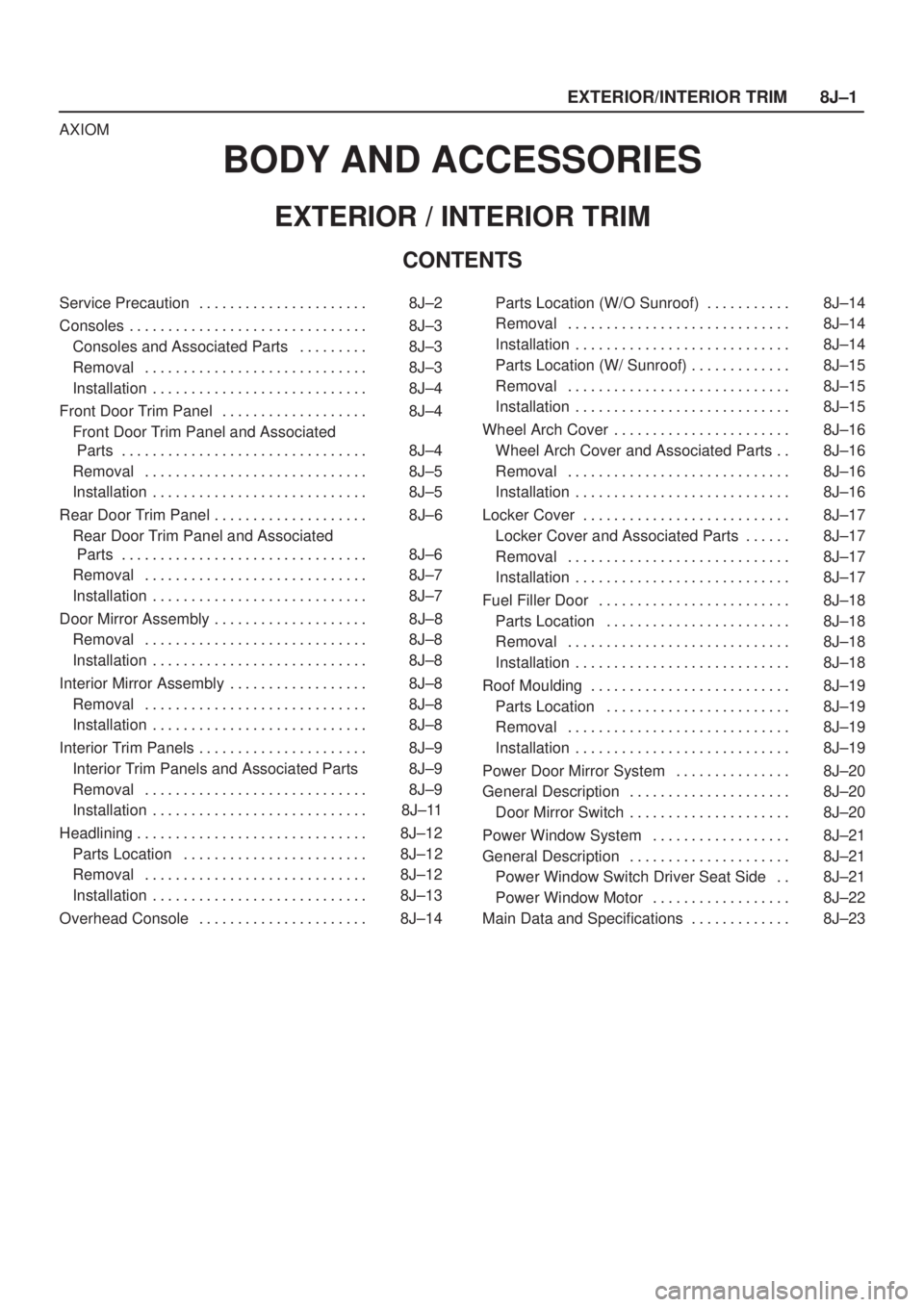

EXTERIOR/INTERIOR TRIM8J±1
AXIOM
BODY AND ACCESSORIES
EXTERIOR / INTERIOR TRIM
CONTENTS
Service Precaution 8J±2. . . . . . . . . . . . . . . . . . . . . .
Consoles 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Consoles and Associated Parts 8J±3. . . . . . . . .
Removal 8J±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Door Trim Panel 8J±4. . . . . . . . . . . . . . . . . . .
Front Door Trim Panel and Associated
Parts 8J±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel 8J±6. . . . . . . . . . . . . . . . . . . .
Rear Door Trim Panel and Associated
Parts 8J±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Mirror Assembly 8J±8. . . . . . . . . . . . . . . . . . . .
Removal 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Mirror Assembly 8J±8. . . . . . . . . . . . . . . . . .
Removal 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Trim Panels 8J±9. . . . . . . . . . . . . . . . . . . . . .
Interior Trim Panels and Associated Parts 8J±9
Removal 8J±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlining 8J±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±12. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±13. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead Console 8J±14. . . . . . . . . . . . . . . . . . . . . . Parts Location (W/O Sunroof) 8J±14. . . . . . . . . . .
Removal 8J±14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±14. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location (W/ Sunroof) 8J±15. . . . . . . . . . . . .
Removal 8J±15. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±15. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheel Arch Cover 8J±16. . . . . . . . . . . . . . . . . . . . . . .
Wheel Arch Cover and Associated Parts 8J±16. .
Removal 8J±16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±16. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Locker Cover 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . .
Locker Cover and Associated Parts 8J±17. . . . . .
Removal 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±17. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Filler Door 8J±18. . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±18. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±18. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof Moulding 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . .
Parts Location 8J±19. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8J±19. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Mirror System 8J±20. . . . . . . . . . . . . . .
General Description 8J±20. . . . . . . . . . . . . . . . . . . . .
Door Mirror Switch 8J±20. . . . . . . . . . . . . . . . . . . . .
Power Window System 8J±21. . . . . . . . . . . . . . . . . .
General Description 8J±21. . . . . . . . . . . . . . . . . . . . .
Power Window Switch Driver Seat Side 8J±21. .
Power Window Motor 8J±22. . . . . . . . . . . . . . . . . .
Main Data and Specifications 8J±23. . . . . . . . . . . . .

8J±4EXTERIOR/INTERIOR TRIM
7. Remove the CD changer.

Remove the four fixing bolts and the connector.Installation
To install, follow the removal steps in the reverse order.
Front Door Trim Panel
Front Door Trim Panel and Associated Parts
635R200012
Legend
(1) Glass
(2) Glass Run
(3) Door Mirror Assembly
(4) Door Mirror Cover
(5) Tweeter
(6) Speaker Spacer
(7) Speaker Assembly
(8) Inner Waist Seal
(9) Door Trim Panel
(10) Power Window Switch
(11) Inside Lock Bracket(12) Inside Handle
(13) Pull Box
(14) Courtesy Light
(15) Pull Box Bracket
(16) Waterproof Sheet
(17) Front Door Panel
(18) Door Lock Assembly
(19) Door Lock Cylinder
(20) Outside Handle
(21) Power Window Regulator
(22) Outer Waist Seal

EXTERIOR/INTERIOR TRIM8J±5
Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.

Remove the one fixing screw.
635R200004
3. Remove the power window switch (1).

Pry the power window switch out and disconnect
the switch connector.
635R200002
4. Remove the inside handle.

Open the screw cover (1) and remove the screw.

Disconnect the cable.
635R200003
5. Remove the door mirror cover.
6. Remove the door trim panel.

Remove the trim panel with the eight clips (1) from
the door panel.
635R200005

Disconnect the tweeter and courtesy light
connectors.
7. Remove the inner waist seal.
8. Remove the courtesy light.
9. Remove the tweeter.
Installation
To install, follow the removal steps in the reverse order.

8J±6EXTERIOR/INTERIOR TRIM
Rear Door Trim Panel
Rear Door Trim Panel and Associated Parts
655R200009
Legend
(1) Glass Run
(2) Glass
(3) Division Bar
(4) Fix Window Glass
(5) Power Window Regulator
(6) Outside Handle
(7) Door Lock Assembly
(8) Pull Box Bracket
(9) Speaker Spacer
(10) Speaker(11) Pull Box
(12) Door Trim Panel
(13) Courtesy Light
(14) Power Window Switch
(15) Inside Handle
(16) Inside Lock Bracket
(17) Inner Waist Seal
(18) Tweeter
(19) Waterproof Sheet
(20) Outer Waist Seal
(21) Rear Door Panel

EXTERIOR/INTERIOR TRIM8J±7
Removal
1. Disconnect the battery ground cable.
2. Remove the pull box.

Remove the fixing screw.
655R200003
3. Remove the power window switch.

Pry the power window switch (1) and remove the
connector.
655R200004
4. Remove the inside handle.

Open the screw cover and remove the screw.

Disconnect the cable.
655R200008
5. Remove the door trim panel.

Remove the trim panel with the seven clips from the
door panel.
655R200005

Disconnect the tweeter and the courtesy light
connectors.
6. Remove the inner waist seal.
7. Remove the tweeter.
8. Remove the courtesy light.
Installation
To install, follow the removal steps in the reverse order.
