EXTERIOR/INTERIOR TRIM8J±21

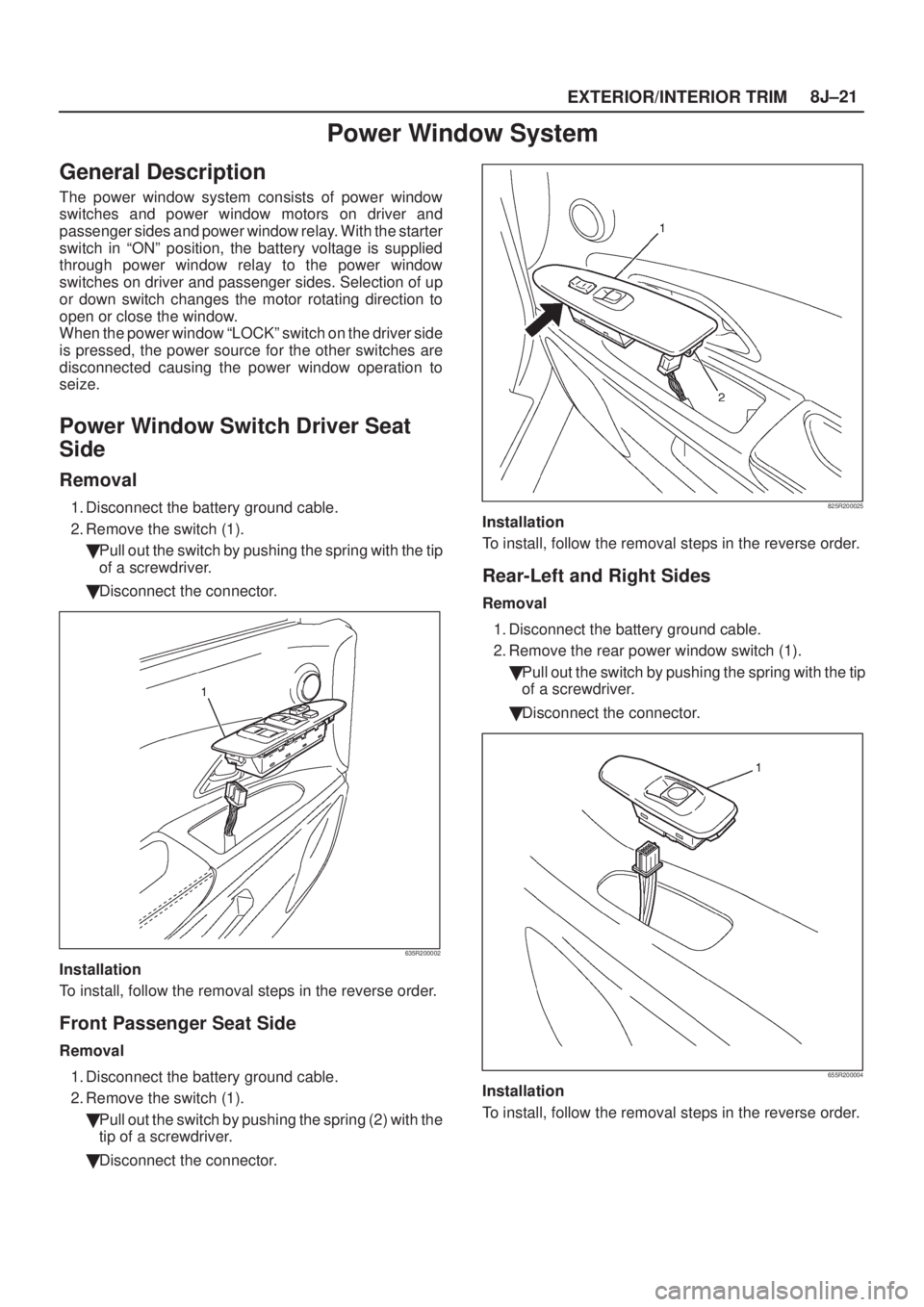

Power Window System
General Description
The power window system consists of power window
switches and power window motors on driver and
passenger sides and power window relay. With the starter
switch in ªONº position, the battery voltage is supplied
through power window relay to the power window
switches on driver and passenger sides. Selection of up
or down switch changes the motor rotating direction to
open or close the window.
When the power window ªLOCKº switch on the driver side
is pressed, the power source for the other switches are
disconnected causing the power window operation to
seize.
Power Window Switch Driver Seat
Side
Removal
1. Disconnect the battery ground cable.
2. Remove the switch (1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.
635R200002
Installation
To install, follow the removal steps in the reverse order.
Front Passenger Seat Side
Removal
1. Disconnect the battery ground cable.
2. Remove the switch (1).

Pull out the switch by pushing the spring (2) with the
tip of a screwdriver.

Disconnect the connector.
825R200025
Installation
To install, follow the removal steps in the reverse order.
Rear-Left and Right Sides
Removal
1. Disconnect the battery ground cable.
2. Remove the rear power window switch (1).

Pull out the switch by pushing the spring with the tip
of a screwdriver.

Disconnect the connector.
655R200004
Installation
To install, follow the removal steps in the reverse order.

8J±22EXTERIOR/INTERIOR TRIM

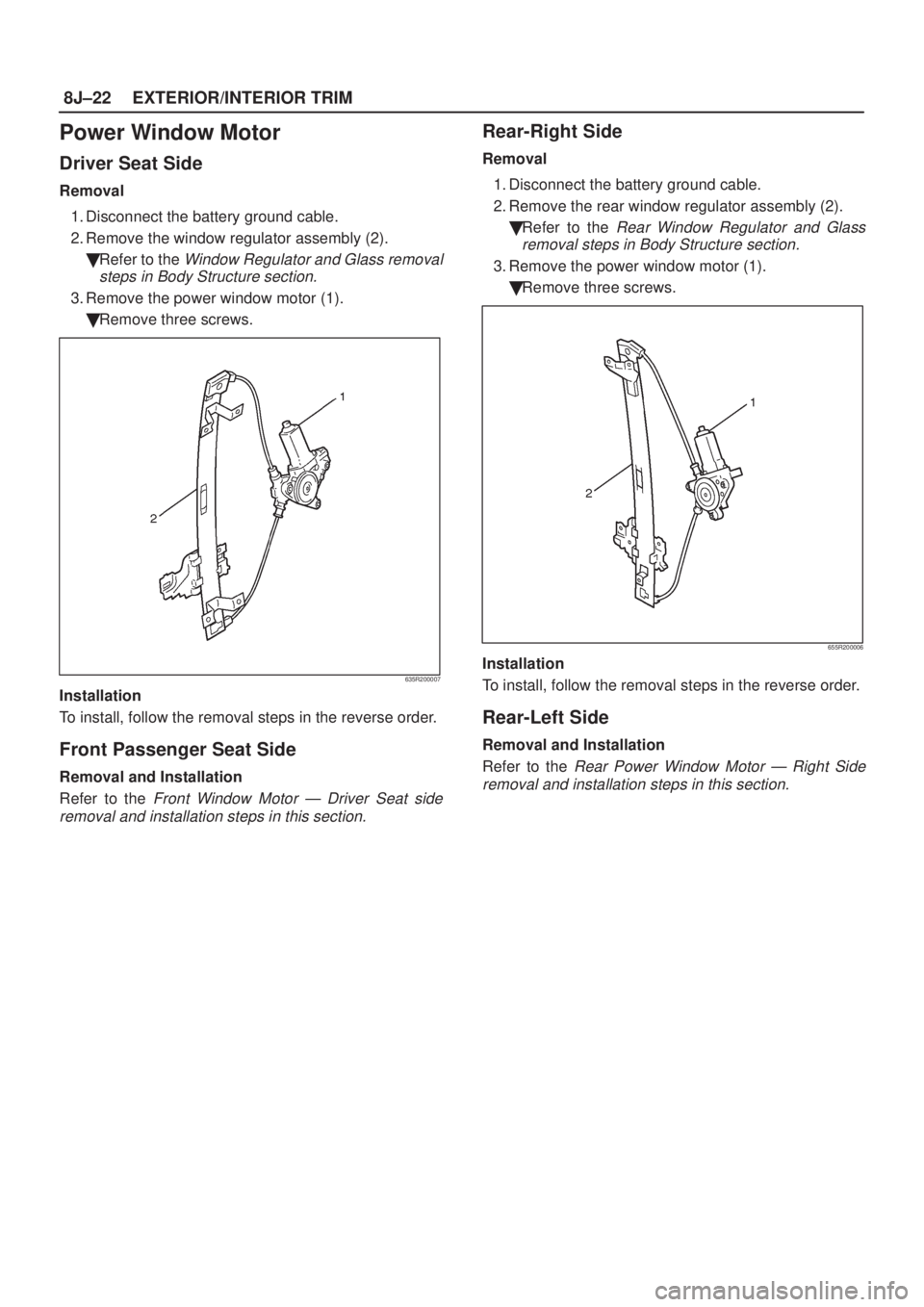

Power Window Motor
Driver Seat Side
Removal
1. Disconnect the battery ground cable.
2. Remove the window regulator assembly (2).

Refer to the
Window Regulator and Glass removal
steps in Body Structure section.
3. Remove the power window motor (1).

Remove three screws.
635R200007
Installation
To install, follow the removal steps in the reverse order.
Front Passenger Seat Side
Removal and Installation
Refer to the
Front Window Motor Ð Driver Seat side
removal and installation steps in this section.
Rear-Right Side
Removal
1. Disconnect the battery ground cable.
2. Remove the rear window regulator assembly (2).

Refer to the
Rear Window Regulator and Glass
removal steps in Body Structure section.
3. Remove the power window motor (1).

Remove three screws.
655R200006
Installation
To install, follow the removal steps in the reverse order.
Rear-Left Side
Removal and Installation
Refer to the
Rear Power Window Motor Ð Right Side
removal and installation steps in this section.

SUPPLEMENTAL RESTRAINT SYSTEM9J±17
DEPLOYMENT WIRES SHOULD ALWAYS BE THE
FINAL STEP IN THE AIR BAG ASSEMBLY
DEPLOYMENT PROCEDURE. FAILURE TO FOLLOW
PROCEDURES IN THE ORDER LISTED COULD
RESULT IN PERSONAL INJURY.
23. Verify that the inside of the vehicle and the area
surrounding the vehicle are clear of all people and
loose or flammable objects.
24. Stretch the driver and passenger deployment
harness to their full length.
25. Completely cover windshield area and front door
window openings with a drop cloth, blanket or similar
item. This reduces the possibility of injury due to
possible fragmentation of the vehicle's glass or
interior.
26. Notify all people in the immediate area that you intend
to deploy the air bags. The deployment will be
accompanied by a substantial noise which may
startle the uninformed.
27. Separate the two ends of the driver deployment
harness wires.
WARNING: DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT. CONNECTING THE
DEPLOYMENT WIRES TO THE POWER SOURCE
SHOULD ALWAYS BE THE FINAL STEP IN THE AIR
BAG ASSEMBLY DEPLOYMENT PROCEDURE.
FAILURE TO FOLLOW PROCEDURES IN THE
ORDER LISTED COULD RESULT IN PERSONAL
INJURY.
NOTE: W h e n t h e a i r b a g deploys, the rapid gas
expansion will create a substantial noise. Notify all
people in the immediate area that you intend to deploy the
air bags.
28. Connect the driver deployment harness wires to a
power source to immediately deploy the driver air bag
assembly. Recommended application: 12 volts
minimum, 2 amps minimum. A vehicle battery is
suggested.
29. Separate the two ends of the passenger deployment
harness wires.
WARNING: DEPLOYMENT WIRES SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A POWER SOURCE IS
CONNECTED TO IT. CONNECTING THE
DEPLOYMENT WIRES TO THE POWER SOURCE
SHOULD ALWAYS BE THE FINAL STEP IN THE AIR
BAG ASSEMBLY DEPLOYMENT PROCEDURE.
FAILURE TO FOLLOW PROCEDURES IN THE
ORDER LISTED COULD RESULT IN PERSONAL
INJURY.30. Connect the passenger deployment harness wires to
a power source to immediately deploy the passenger
air bag assembly. Recommended application: 12
volts minimum, 2 amps minimum. A vehicle battery is
suggested. Put on a pair of shop gloves and safety
gasses to protect your hands and eyes from possible
irritation and heat when handling the deployed air bag
assembly. After an air bag assembly has been
deployed, the surface of the air bag may contain a
powdery residue. This powder consists primarily of
cornstarch (used to lubricate the bag as it inflates)
and by products of the chemical reaction. Sodium
hydroxide dust (similar to lye soap) is produced as a
by product of the deployment reaction. The sodium
hydroxide then quickly reacts with atmospheric
moisture and is converted to sodium carbonate and
sodium bicarbonate (baking soda). Therefore, it is
unlikely that sodium hydroxide will be present after
deployment.
WARNING: S A F E T Y P R ECAUTIONS MUST BE
OBSERVED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE
METAL SURFACES OF THE AIR BAG ASSEMBLY
WILL BE VERY HOT. ALLOW THE AIR BAG
ASSEMBLY TO COOL BEFORE HANDLING ANY
METAL PORTION OF IT. DO NOT PLACE THE HOT
DEPLOYED AIR BAG ASSEMBLY NEAR ANY
FLAMMABLE OBJECTS. FAILURE TO FOLLOW
PROCEDURES COULD RESULT IN FIRE OR
PERSONAL INJURY.
After an air bag assembly has been deployed, the
metal canister and surrounding areas of the air bag
assembly will be very hot. Do not touch the metal
areas of the air bag assembly for about 30 minutes
after deployment. If the deployed air bag assembly
must be moved before it is cool, wear gloves and
handle by the air bag or trim cover.
31. Short the driver deployment harness wires by twisting
together one end from each. Repeat this procedure
for the passenger deployment harness.
32. Carefully remove drop cloth from vehicle and clean off
any fragments or discard drop cloth entirely.
33. Disconnect driver deployment harness and
passenger deployment harness from vehicle and
discard.
34. In the unlikely event that either or both of the air bag
assemblies did not deploy after following these
procedures, proceed immediately with Steps 36
through 37. If the air bag assembly deployed, proceed
to step 35.
35. With both air bags deployed, the vehicle may be
scrapped in the same manner as a non±SRS
equipped vehicle.
NOTE: The remaining steps are to be followed in the
unlikely event that the air bag assembly did not deploy
after following these procedures.
36. Remove the undeployed air bag assembly (s) from
the vehicle. For driver air bag assembly refer to in the
ªPassenger Air Bag Assembly Removalº in this
section 9J±28.
WARNING: W H E N S T O R I N G A L I V E A I R B A G
ASSEMBLY OR WHEN LEAVING A LIVE AIR BAG
