6E±277
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0336 ± 58X Reference Signal Circuit

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Attempt to start the engine.
Does the engine start?
ÐGo to Step 3
Go to ªEngine
Cranks But
Will Not Runº
chart
31. Review and record Failure Records information.
2. Clear DTC P0336.
3. Start the engine and idle for 1 minute.
4. Observe DTCs.
Is DTC P0336 set?
ÐGo to Step 4
Refer to
Diagnostic
Aids
41. Disconnect the PCM and CKP sensor.
2. Check for an open or a short to ground in the 58X
reference circuit between the CKP sensor
connector and the PCM harness connector.
3. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 5
51. Reconnect the PCM and CKP sensor.
2. Connect a DVM to measure voltage on the 58X
reference circuit at the PCM connector.
3. Observe the voltage while cranking the engine.
Is the voltage near the specified value?
2.5 VGo to Step 8Go to Step 6
6Check the connections at the CKP sensor and replace
the terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 7
7Replace the CKP sensor. Use caution to avoid any hot
oil that may drip out.
Is the action complete?
ÐVerify repairÐ
8Check connections at the PCM and replace the
terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 9
9Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±278
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0337 CKP Sensor Circuit Low Frequency
060R200066
Circuit Description
The 58X reference signal is produced by the crankshaft
position (CKP) sensor. During one crankshaft revolution,
58 crankshaft reference pulses will be produced. The
powertrain control module (PCM) uses the 58X reference
signal to calculate engine RPM and crankshaft position.
The PCM constantly monitors the number of pulses on
the 58X reference circuit. If the PCM does not receive
pulses on the 58X reference circuit, DTC P0337 will set.
Conditions for Setting the DTC

Engine cranking.

Crankshaft position (CKP) sensor signal is not present
between two cam pulses.

CKP reference pulse is not detected within 8 CMP
pulses.
Action Taken When the DTC Sets

The PCM will illuminate the malfunction indicator lamp
(MIL) after the second consecutive trip in which the
fault is detected.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0337 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

DTC P0337 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.

6E±279
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Aids
An intermittent may be caused by a poor connection,
rubbed-through wire insulation or a wire broken inside the
insulation. Check for:

Poor connection ± Inspect the PCM harness and
connectors for improper mating, broken locks,
improperly formed or damaged terminals, and poor
terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, disconnectthe PCM, turn the ignition on and observe a voltmeter
connected to the 58X reference circuit at the PCM
harness connector while moving connectors and
wiring harnesses related to the PCM. A change in
voltage will indicate the location of the fault.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.
DTC P0337 ± CKP Sensor Circuit Low Frequency

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Attempt to start the engine.
Does the engine start?
ÐGo to Step 3Go to Chart 3
31. Review and record Failure Records information.
2. Clear DTC P0337.
3. Start the engine and idle for 1 minute.
4. Observe DTCs.
Is DTC P0337 set?
ÐGo to Step 4
Refer to
Diagnostic
Aid
41. Disconnect the CKP sensor.
2. Ignition ªONº.
3. Using a DVM, verify that 5 V reference and ground
are being supplied at the sensor connector (PCM
side).
Are 4-6 volts and ground available at the sensor?
ÐGo to Step 7Go to Step 5
51. Ignition ªONº.
2. With a DVM, backprobe the PCM connector 5 V
reference and ground connections.
Are 5 V reference and ground available at the PCM?
ÐGo to Step 6Go to Step 11
6Check 5 V reference or ground between the CKP
sensor and PCM and repair the open circuit, short to
ground or short to voltage.
Is the action complete?
ÐVerify repairÐ
71. Ignition ªOFFº.
2. Disconnect the PCM and CKP sensor.
3. Check for an open or a short to ground in the 58X
reference circuit between the CKP sensor
connector and the PCM harness connector.
4. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 8
81. Reconnect the PCM and CKP sensor.
2. Connect a DVM to measure voltage on the 58X
reference circuit at the PCM connector.
3. Observe the voltage while cranking the engine.
Is the voltage near the specified value?
2.5 VGo to Step 11Go to Step 9
9Check the connections at the CKP sensor and replace
the terminals if necessary.
Did any terminals require replacement?
ÐVerify repairGo to Step 10

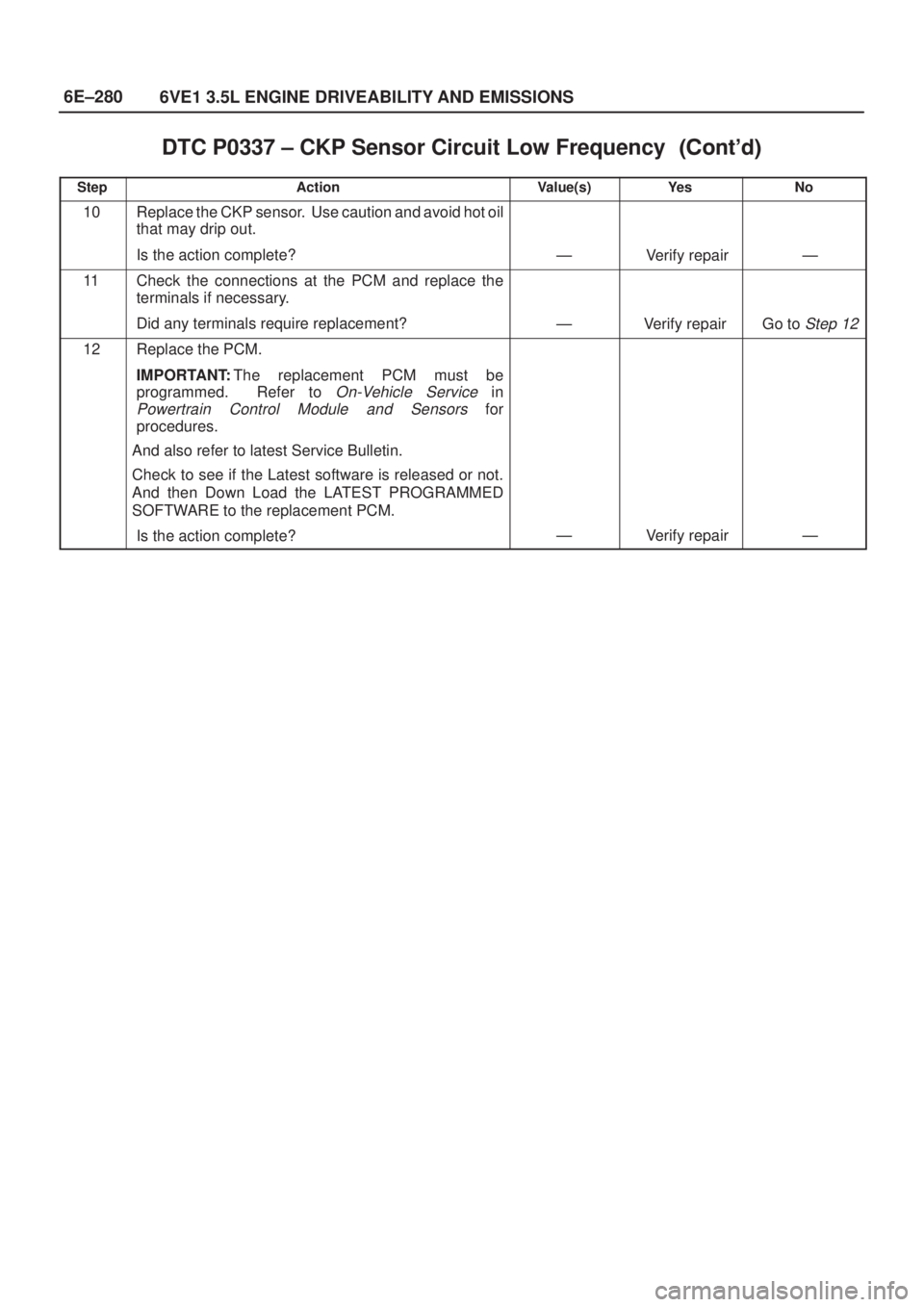

6E±280
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0337 ± CKP Sensor Circuit Low Frequency


StepNo Ye s Value(s) Action
10Replace the CKP sensor. Use caution and avoid hot oil
that may drip out.
Is the action complete?
ÐVerify repairÐ
11Check the connections at the PCM and replace the
terminals if necessary.
Did any terminals require replacement?
ÐVerify repair Go to Step 12
12Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±283
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0351 ± Ignition 1 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 1.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±286
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0352 ± Ignition 2 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 2.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±289
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0353 ± Ignition 3 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 3.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±292
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0354 ± Ignition 4 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 4.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open in ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±295
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0355 ± Ignition 5 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 5.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±298
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0356 ± Ignition 6 Control Circuit


StepNo Ye s Value(s) Action
11Check for an open ignition control circuit 6.
Was the ignition control circuit open?
ÐGo to Step 12Go to Step 13
12Repair the open ignition control circuit.
Is the action complete?
ÐVerify repairÐ
13Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
