ISUZU AXIOM 2002 Service Repair Manual

5A±2BRAKE CONTROL SYSTEM
Chart B-13 FR Isolation Solenoid Coil Failure
(DTC 43 (Flash out) / C0241, C0243
(Serial communications)) 5A±44. . . . . . . . . . . . . . .
Chart B-14 FR Dump Solenoid Coil Failure
(DTC 44(Flash out) / C0242, C0244
(Serial communications)) 5A±44. . . . . . . . . . . . . . .
Chart B-15 Rear Isolation Solenoid Coil
Failure (DTC 45 (Flash out) / C0251, C0253
(Serial communications)) 5A±44. . . . . . . . . . . . . . .
Chart B-16 Rear Dump Solenoid Coil Failure
(DTC 46 (Flash out) / C0252, C0254
(Serial communications)) 5A±45. . . . . . . . . . . . . . .
Chart B-17 FL Speed Sensor Open or Shorted
(DTC 51 (Flash out) / C0225
(Serial communications)) 5A±45. . . . . . . . . . . . . . .
Chart B-18 FR Speed Sensor Open or Shorted
(DTC 52 (Flash out) / C0221
(Serial communications)) 5A±46. . . . . . . . . . . . . . .
Chart B-19 Rear Speed Sensor Open or
Shorted (DTC 53 (Flash out) / C0235
(Serial communications)) 5A±47. . . . . . . . . . . . . . .
Chart B-20 FL Speed Sensor Missing Signal
(DTC 61 (Flash out) / C0226, C0227
(Serial communications)) 5A±48. . . . . . . . . . . . . . . Chart B-21 FR Speed Sensor Missing Signal
(DTC 62 (Flash out) / C0222, C0223
(Serial communications)) 5A±49. . . . . . . . . . . . . . .
Chart B-22 Rear Speed Sensor Missing Signal
(DTC 63 (Flash out) / C0236, C0237
(Serial communications)) 5A±50. . . . . . . . . . . . . . .
Chart B-23 Simultaneous Drop-out of Front
Speed Sensor Signal (DTC 64 (Flash out) /
C0229 (Serial communications)) 5A±51. . . . . . . .
Chart B-24 Wheel Speed Input Abnormality
(DTC 65 (Flash out) / C0238 (Serial
communications)) 5A±52. . . . . . . . . . . . . . . . . . . . .
Unit Inspection Procedure 5A±53. . . . . . . . . . . . . . . .
Chart C-1-1 FL Sensor Output Inspection
Procedure 5A±53. . . . . . . . . . . . . . . . . . . . . . . . . . .
Chart C-1-2 FR Sensor Output Inspection
Procedure 5A±54. . . . . . . . . . . . . . . . . . . . . . . . . . .
Chart C-1-3 Rear Sensor Output Inspection
Procedure 5A±54. . . . . . . . . . . . . . . . . . . . . . . . . . .
Chart TC-1 Sensor Output Inspection
Procedure 5A±55. . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tools 5A±56. . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

5A±3
BRAKE CONTROL SYSTEM
General Description
The Anti-lock Brake System (ABS) works on all four
wheels. A combination of wheel speed sensor and
Electronic Hydraulic Control Unit (EHCU) can determine
when a wheel is about to stop turning and adjust brake
pressure to maintain best braking.
This system helps the driver maintain greater control of
the vehicle under heavy braking conditions.
NOTE: The Electronic Hydraulic Control Unit (EHCU)
comprises the Hydraulic Unit (H/U) and the coil Integrated
Module.
C05RW004
Legend
(1) Electronic Line
(2) Hydraulic Line
(3) Hydraulic Unit (H/U)(4) Coil Integrated Module
(5) Front Wheel Speed Sensor
(6) Rear Wheel Speed Sensor
(7) Proportioning and Bypass (P&B) Valve

5A±4BRAKE CONTROL SYSTEM
Functional Description
Hydraulic Unit (H/U)
Solenoid Valve
C05RW012
Legend
(1) Isolation Valve
(2) Dump valve

5A±5
BRAKE CONTROL SYSTEM
Normal Braking
During normal (non anti-lock) braking, the solenoid valves
has current flow. The dump valve is closed and the
isolation valve is opened due to spring force.
Brake fluid travels through the centre of the isolation valve
(normally open) around the dump valve (normally closed)
then to the brake pistons.
C05RW010
Legend
(1) Brake
(2) Master Cylinder

5A±6BRAKE CONTROL SYSTEM
Pressure Isolation (Pressure Maintain)
The electro-hydraulic control unit is activated when the
brakes are applied.
If the information from the wheel speed sensors indicates
excessive wheel deceleration (imminent lockup), the first
step in the anti-lock sequence is to isolate the brake
pressure being applied by the brake pedal.
The microprocessor in the coil integrated module sends a
voltage to the coil to energize and close the isolation
valve. This prevents any additional fluid pressure applied
by the brake pedal from reaching the wheel. With the
isolation valves closed, unnecessary increase in the
brake pressure is prevented.
C05RW011
Legend
(1) Brake
(2) Master Cylinder

5A±7
BRAKE CONTROL SYSTEM

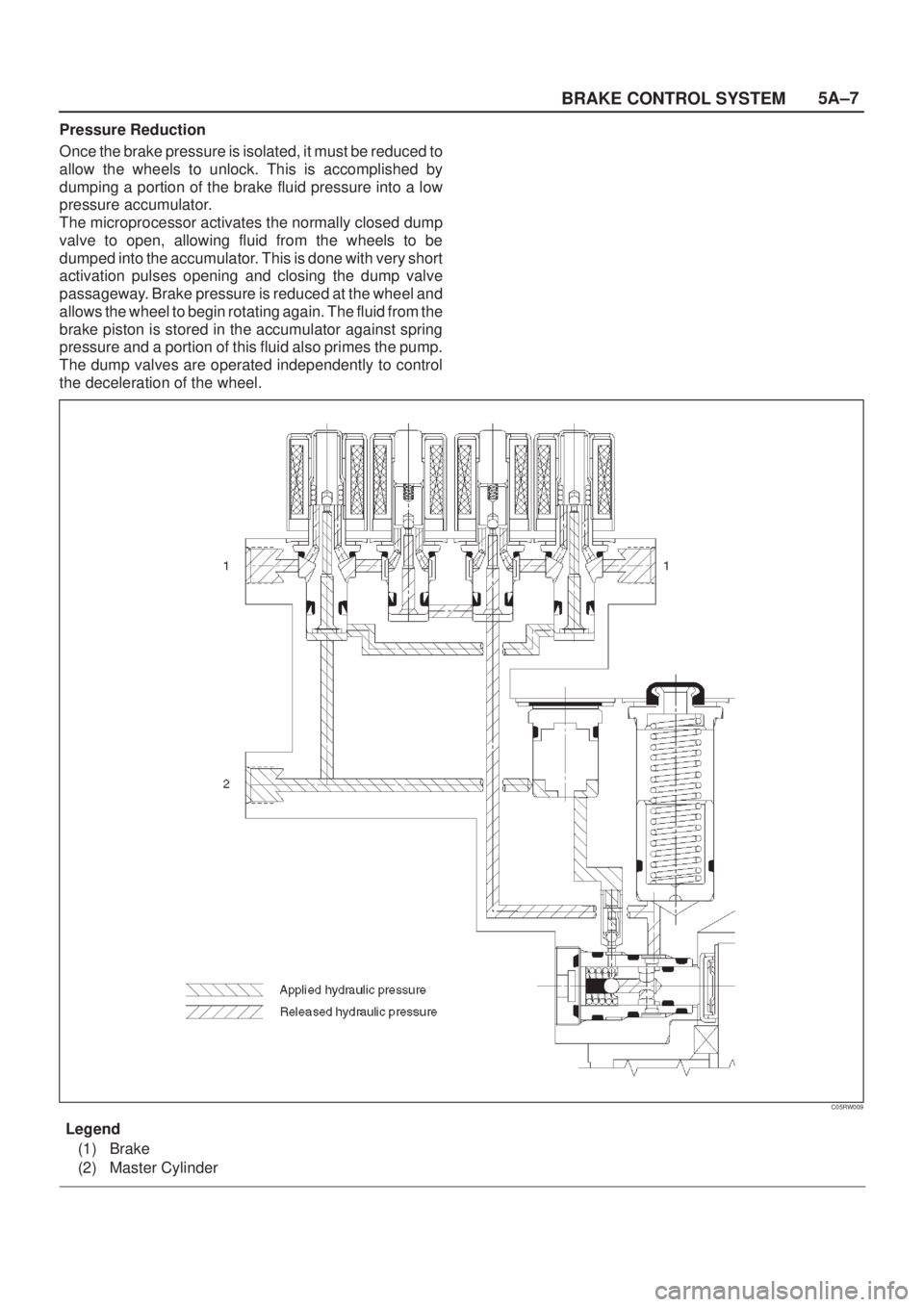

Pressure Reduction
Once the brake pressure is isolated, it must be reduced to
allow the wheels to unlock. This is accomplished by
dumping a portion of the brake fluid pressure into a low
pressure accumulator.
The microprocessor activates the normally closed dump
valve to open, allowing fluid from the wheels to be
dumped into the accumulator. This is done with very short
activation pulses opening and closing the dump valve
passageway. Brake pressure is reduced at the wheel and
allows the wheel to begin rotating again. The fluid from the
brake piston is stored in the accumulator against spring
pressure and a portion of this fluid also primes the pump.
The dump valves are operated independently to control
the deceleration of the wheel.
C05RW009
Legend
(1) Brake
(2) Master Cylinder

5A±8BRAKE CONTROL SYSTEM
Pressure Increase (Re-apply)
The re-apply sequence is initiated to achieve optimum
braking. The isolation valve is momentarily opened to
allow master cylinder and pump pressure to reach the
brakes. This controlled pressure rise continues until the
wheel is at optimum brake output or until the brake
pressure is brought up to the master cylinder output
pressure.
If more pressure is required, more fluid is drawn from the
master cylinder and applied to the brakes. The driver may
feel slight pedal pulsations, or pedal drop, this is normal
and expected.As fluid is re-applied to the brakes, the wheel speed will
reduce. If the wheels approach imminent lockup again,
the module will isolate, dump and re-apply again. This
cycle occurs in millisecond intervals, allowing several
cycles to occur each second. It is a much faster and more
controlled way of ªpumping the pedalº.
C05RW014
Legend
(1) Brake
(2) Master Cylinder

5A±9
BRAKE CONTROL SYSTEM
Brake Release
At the end of the anti-lock stop, when the brake pedal is
released, the pump will remain running for a short time to
help drain any fluid from the accumulators. As this fluid
returns into the system, the spring forces the piston back
to its original position.
The isolation valve opens and fluid may return to the
master cylinder. Conventional braking is then resumed.
C05RW013
Legend
(1) Brake
(2) Master Cylinder

5A±10BRAKE CONTROL SYSTEM
System Components
Electronic Hydraulic Control Unit (EHCU), three Wheel
Speed Sensors, Warning Light, and G-sensor.
Electronic Hydraulic Control Unit (EHCU)
The EHCU consists of ABS control circuits, fault detector,
and a fail-safe. The signal received from each sensor
activates the hydraulic unit accordingly and cancels the
ABS to return to normal braking if a malfunction occurs in
the ABS system.
The EHCU has a self-diagnosing function which can
indicate faulty circuits during diagnosis.
The EHCU is mounted on the engine compartment rear
right side. It consists of a Motor, Plunger Pump, Solenoid
Valves.
Solenoid Valves: Reduces or holds the caliper fluid
pressure for each front disc brake or both rear disc brakes
according to the signal sent from the EHCU.
Reservoir: Temporarily holds the brake fluid that returns
from the front and rear disc brake caliper so that pressure
of front disc brake caliper can be reduced smoothly.
Plunger Pump: Feeds the brake fluid held in the reservoir
to the master cylinder.
Motor: Drives the pump according to the signal from
EHCU.
Check Valve: Controls the brake fluid flow.
ABS Warning Light
821R200015Vehicles equipped with the Anti-lock Brake System have
an amber ªABSº warning light in the instrument panel.
The ªABSº warning light will illuminate if a malfunction in
the Anti-lock Brake System is detected by the Electronic
Hydraulic Control Unit (EHCU).In case of an electronic
malfunction, the EHCU will turn ªONº the ªABSº warning
light and disable the Anti-lock braking function.
The ªABSº light will turn ªONº for approximately three
seconds after the ignition switch is turned to the ªONº
position.If the ªABSº light stays ªONº after the ignition switch is
turned to the ªONº position, or comes ªONº and stays
ªONº while driving, the Anti-lock Brake System should be
inspected for a malfunction according to the diagnosis
procedure.
Wheel Speed Sensor
It consists of a sensor and a rotor. The sensor is attached
to the knuckle on the front wheels and to the rear axle
case on the rear differential.
The front sensor rotor is attached to the each brake rotor
by bolts.
The rear rotor is press-fit in the differential case.
The magnetic flux generated from electrodes magnetized
by a magnet in the sensor varies due to rotation of the
rotor, and the electromagnetic induction generates
alternating voltage in the coil. This voltage draws a ªsine
curveº with the frequency proportional to rotor speed and
it allows detection of wheel speed.
G-Sensor
The G-sensor installed inside the EHCU detects the
vehicle deceleration speed and sends a signal to the
EHCU. In 4WD operation, all four wheels may be
decelerated in almost the same phase, since all wheels
are connected mechanically.
This tendency is noticeable particularly on roads with low
friction coefficient, and the ABS control is adversely
affected.
The G-sensor judges whether the friction coefficient of
road surface is low or high, and changes the EHCU's
operating system to ensure ABS control.
Normal and Anti-lock Braking
Under normal driving conditions, the Anti-lock Brake
System functions the same as a standard power assisted
brake system. However, with the detection of wheel
lock-up, a slight bump or kick-back will be felt in the brake
pedal. This pedal ªbumpº will be followed by a series of
short pedal pulsations which occurs in rapid succession.
The brake pedal pulsation will continue until there is no
longer a need for the anti-lock function or until the vehicle
is stopped. A slight ticking or popping noise may be heard
during brake applications when the Anti-lock features is
being used.
When the Anti-lock feature is being used, the brake pedal
may rise even as the brakes are being applied. This is
also normal. Maintaining a constant force on the pedal
will provide the shortest stopping distance.
Brake Pedal Travel
Vehicles equipped with the Anti-lock Brake System may
be stopped by applying normal force to the brake pedal.
Although there is no need to push the pedal beyond the
point where it stops or holds the vehicle, by applying more
force the pedal will continue to travel toward the floor.
This extra brake pedal travel is normal.

5A±11
BRAKE CONTROL SYSTEM
Acronyms and Abbreviations
Several acronyms and abbreviations are commonly used
throughout this section:
ABS
Anti-lock Brake System
CIM
Coil Integrated Module
CKT
Circuit
DLC
Data Link Connector
EHCU
Electronic Hydraulic Control Unit
FL
Front Left
FR
Front Right
GEN
Generator
H/U
Hydraulic Unit
MV
Millivolts
RR
Rear
RPS
Revolution per Second
VDC
DC Volts
VA C
AC Volts
W/L
Warning Light
WSS
Wheel Speed Sensor
General Diagnosis
General Information
ABS troubles can be classified into two types, those
which can be detected by the ABS warning light and those
which can be detected as a vehicle abnormality by the
driver.
In either case, locate the fault in accordance with the
ªBASIC DIAGNOSTIC FLOWCHARTº and repair.
Please refer to
Section 5C for the diagnosis of
mechanical troubles such as brake noise, brake judder
(brake pedal or vehicle vibration felt when braking),
uneven braking, and parking brake trouble.
ABS Service Precautions
Required Tools and Items:

Box Wrench

Brake Fluid

Special ToolSome diagnosis procedures in this section require the
installation of a special tool.
J-39200 High Impedance Multimeter
When circuit measurements are requested, use a circuit
tester with high impedance.
Computer System Service Precautions
The Anti-lock Brake System interfaces directly with the
Electronic Hydraulic Control Unit (EHCU) which is a
control computer that is similar in some regards to the
Powertrain Control Module. These modules are designed
to withstand normal current draws associated with
vehicle operation. However, care must be taken to avoid
overloading any of the EHCU circuits. In testing for opens
or shorts, do not ground or apply voltage to any of the
circuits unless instructed to do so by the appropriate
diagnostic procedure. These circuits should only be
tested with a high impedance multimeter (J-39200) or
special tools as described in this section. Power should
never be removed or applied to any control module with
the ignition in the ªONº position.
Before removing or connecting battery cables, fuses or
connectors, always turn the ignition switch to the ªOFFº
position.
General Service Precautions
The following are general precautions which should be
observed when servicing and diagnosing the Anti-lock
Brake System and/or other vehicle systems. Failure to
observe these precautions may result in Anti-lock Brake
System damage.

If welding work is to be performed on the vehicle using
an electric arc welder, the EHCU and valve block
connectors should be disconnected before the
welding operation begins.

The EHCU and valve block connectors should never
be connected or disconnected with the ignition ªONº .

If only the rear wheels are rotated using jacks or drum
tester, the system will diagnose a speed sensor
malfunction and the ªABSº warning light will
illuminate. But actually no trouble exists. After
inspection stop the engine once and re-start it, then
make sure that the ªABSº warning light does not
illuminate.
If the battery has been discharged
The engine may stall if the battery has been completely
discharged and the engine is started via jumper cables.
This is because the Anti-lock Brake System (ABS)
requires a large quantity of electricity. In this case, wait
until the battery is recharged, or set the ABS to a
non-operative state by removing the fuse for the ABS
(50A). After the battery has been recharged, stop the
engine and install the ABS fuse. Start the engine again,
and confirm that the ABS warning light does not light.
Note on Intermittents
As with virtually any electronic system, it is difficult to
identify an intermittent failure. In such a case duplicating
the system malfunction during a test drive or a good
description of vehicle behavior from the customer may be
helpful in locating a ªmost likelyº failed component or
