ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-371 CIRCUIT DIAGRAM 4JA1-L RTW48AXF028601

Page 1033 of 4264

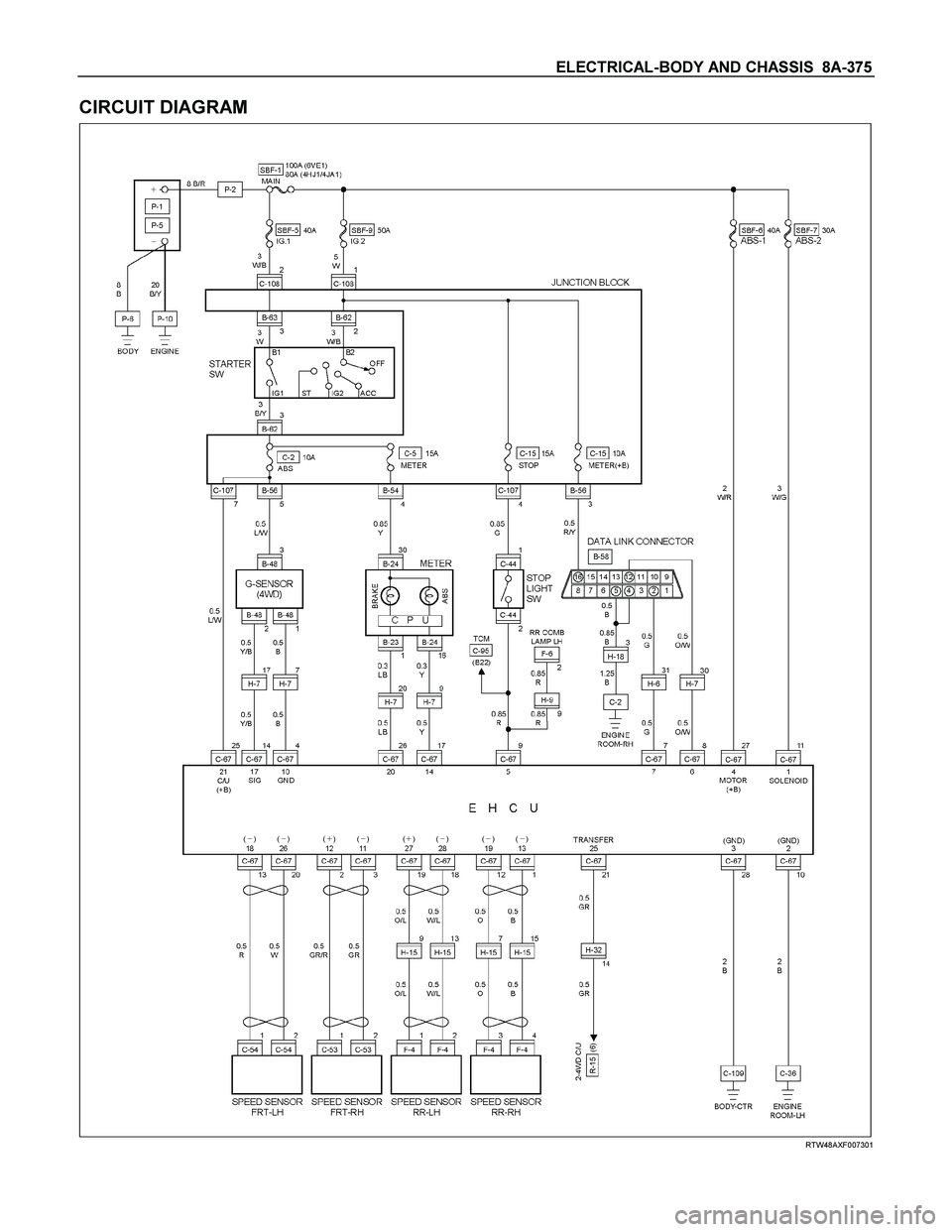

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-375 CIRCUIT DIAGRAM RTW48AXF007301

Page 1039 of 4264

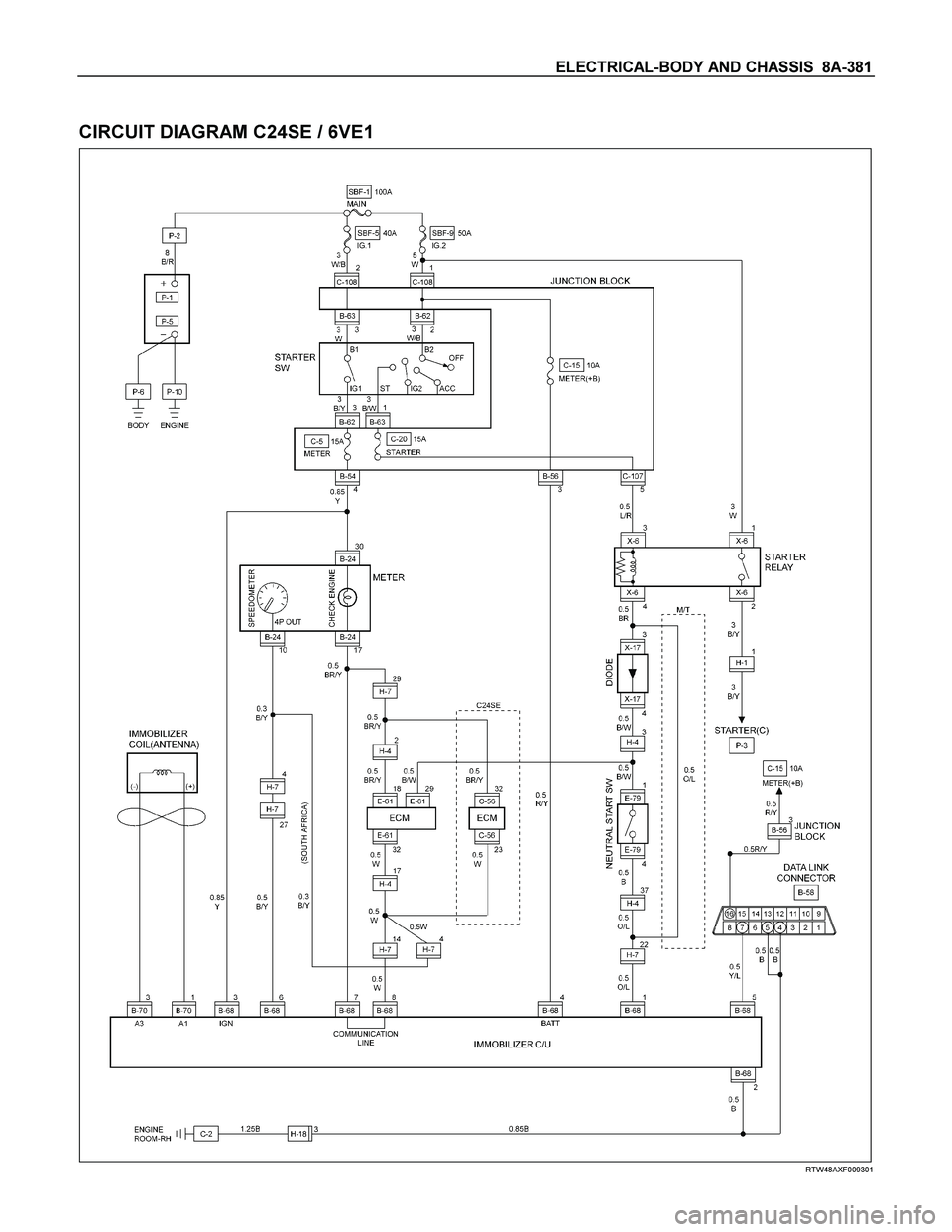

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-381 CIRCUIT DIAGRAM C24SE / 6VE1 RTW48AXF009301

Page 1040 of 4264

ISUZU TF SERIES 2004 Workshop Manual 8A-382 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1-TC / 4JH1-TC (RHD) RTW48AXF031501

Page 1041 of 4264

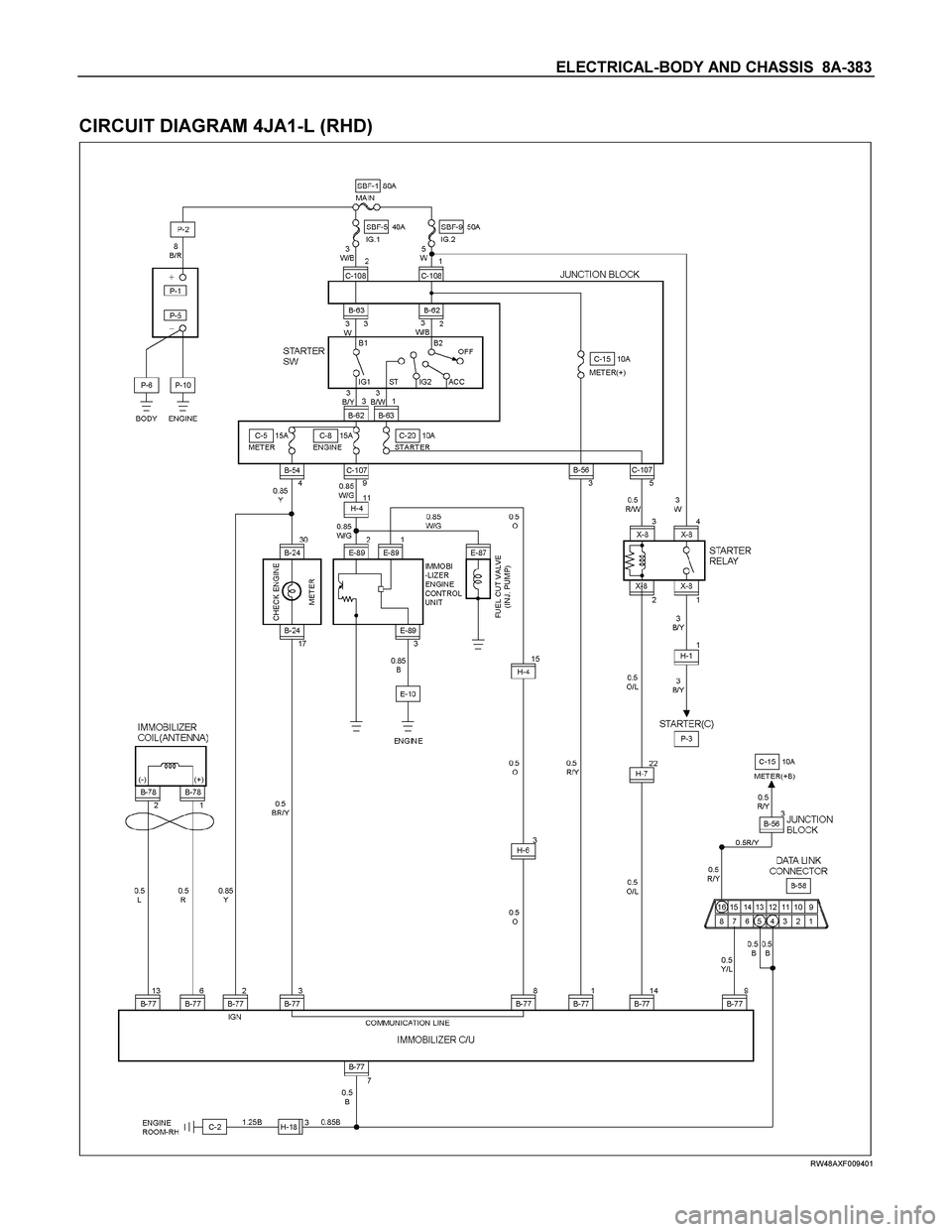

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-383 CIRCUIT DIAGRAM 4JA1-L (RHD) RW48AXF009401

Page 1042 of 4264

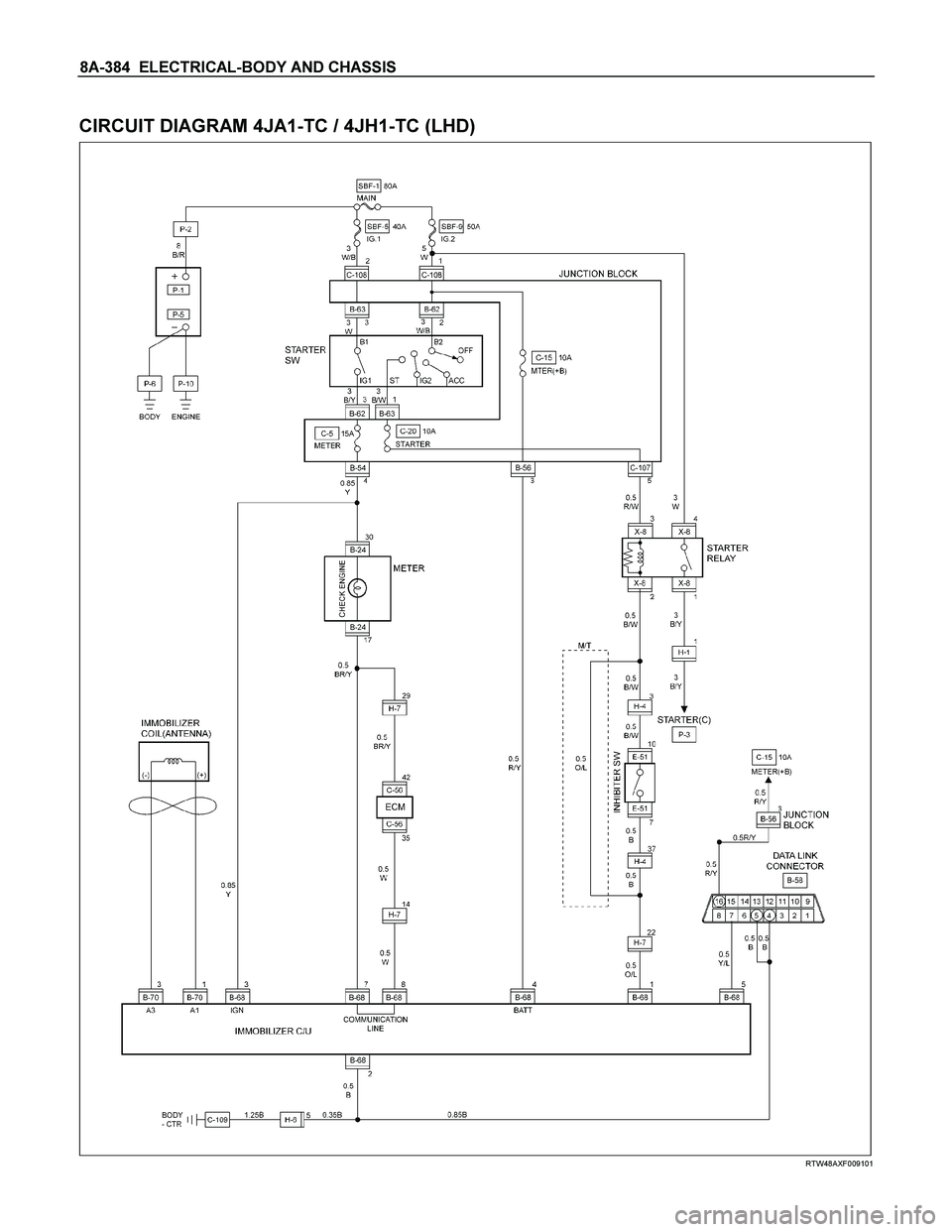

ISUZU TF SERIES 2004 Workshop Manual 8A-384 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JA1-TC / 4JH1-TC (LHD) RTW48AXF009101

Page 1045 of 4264

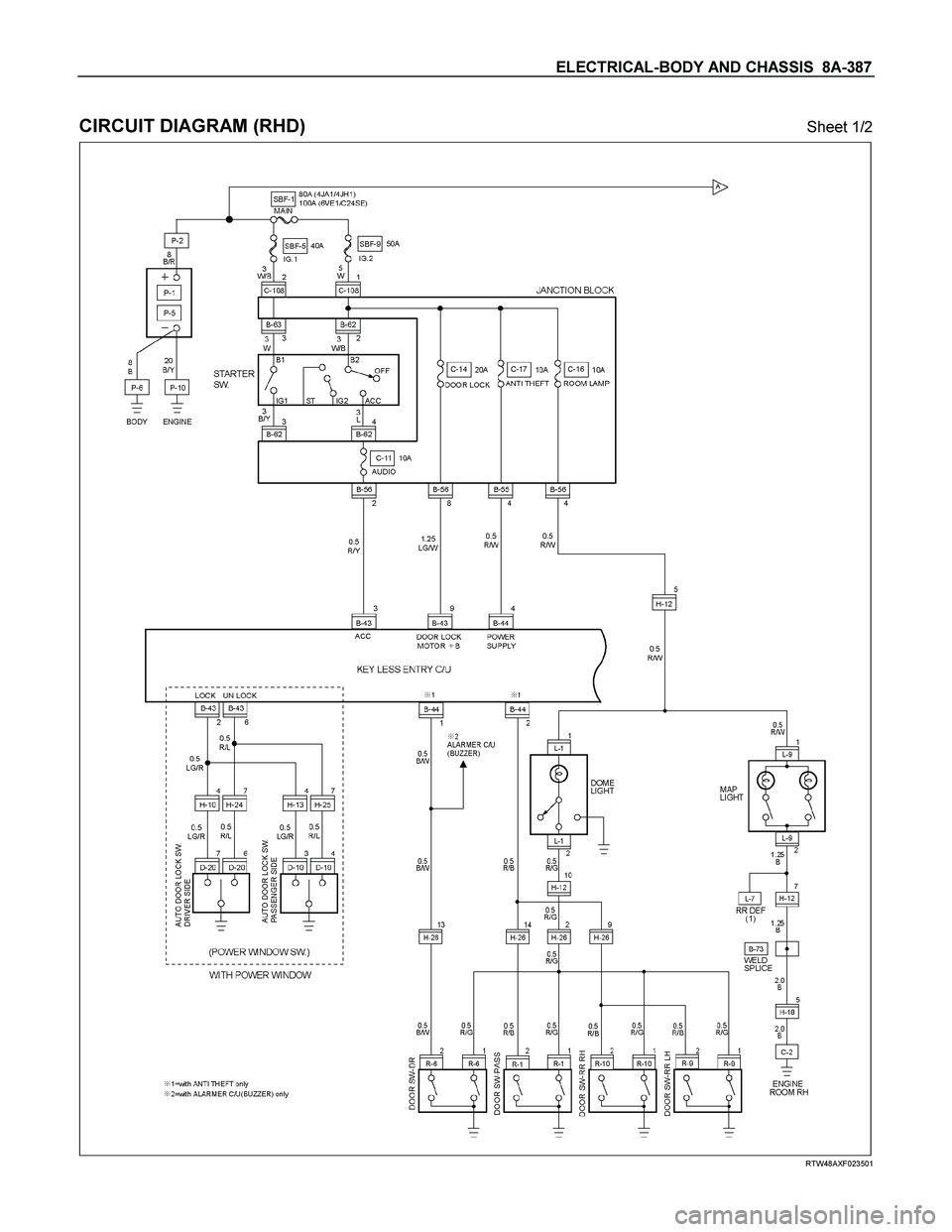

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-387 CIRCUIT DIAGRAM (RHD) Sheet 1/2 RTW48AXF023501

Page 1046 of 4264

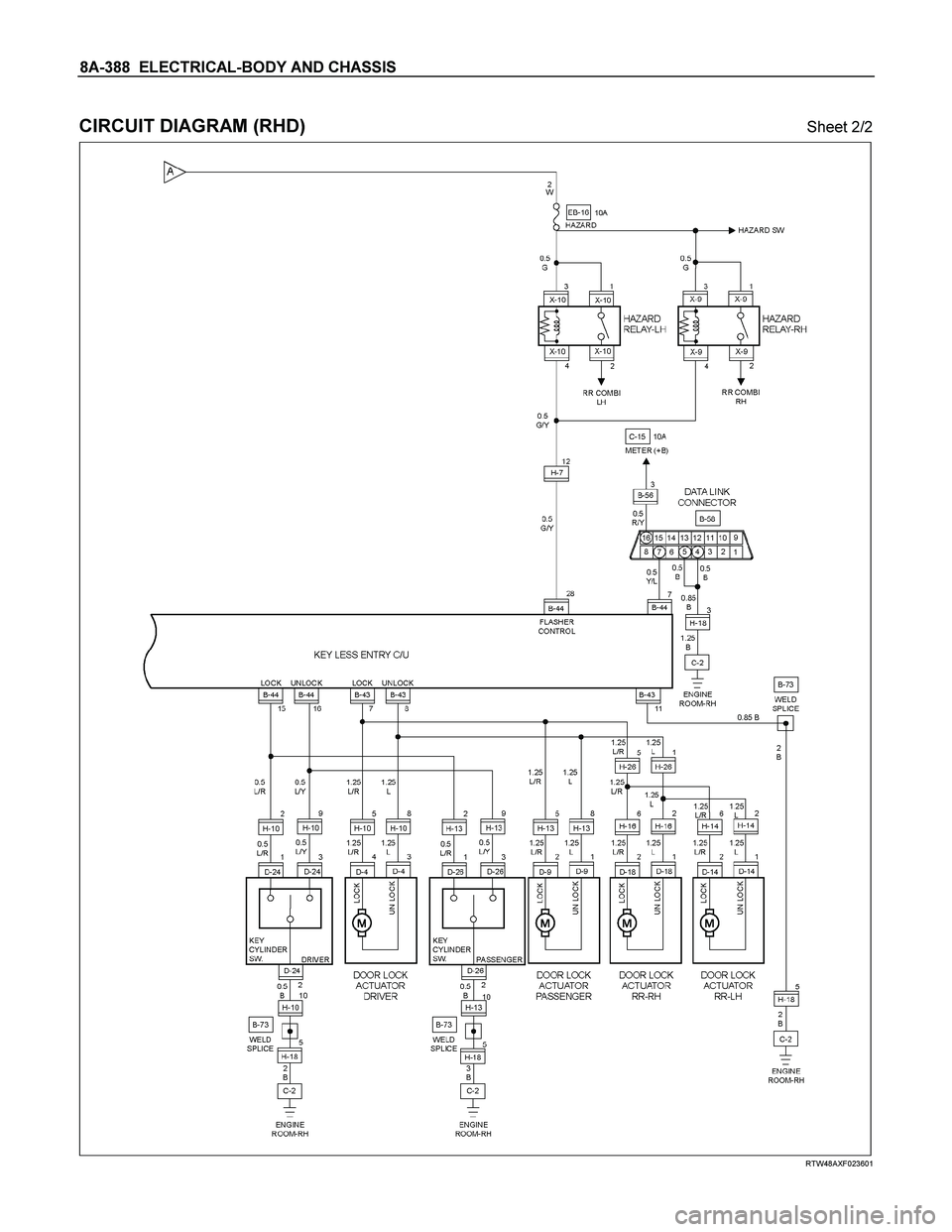

ISUZU TF SERIES 2004 Workshop Manual 8A-388 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM (RHD) Sheet 2/2 RTW48AXF023601

Page 1047 of 4264

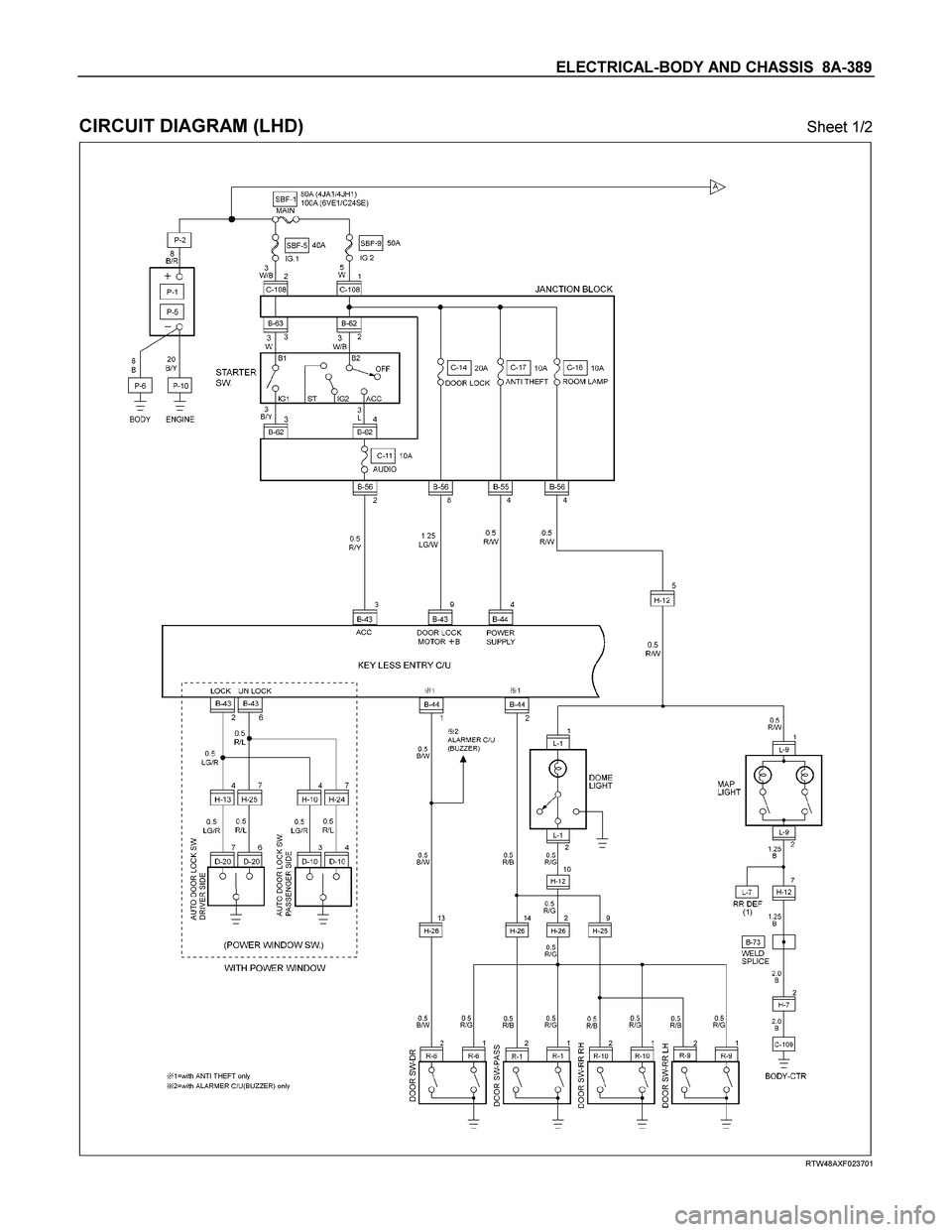

ISUZU TF SERIES 2004 Workshop Manual ELECTRICAL-BODY AND CHASSIS 8A-389 CIRCUIT DIAGRAM (LHD) Sheet 1/2 RTW48AXF023701

Page 1048 of 4264

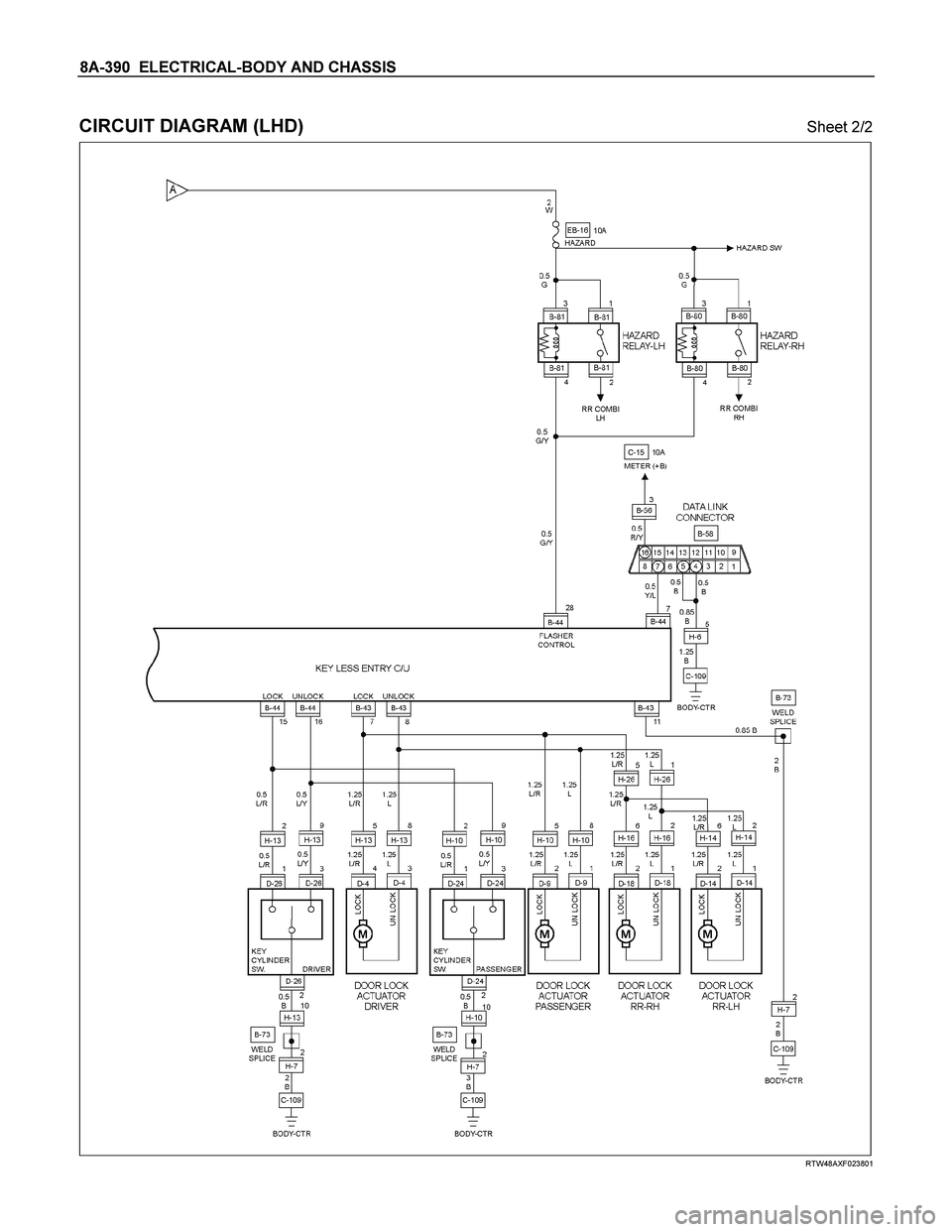

ISUZU TF SERIES 2004 Workshop Manual 8A-390 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM (LHD) Sheet 2/2 RTW48AXF023801
