reverse ISUZU TF SERIES 2004 Workshop Manual

7A1-12 CONSTRUCTION AND FUNCTION



Figure 14. Basic Construction of Low Clutch
and High Clutch Figure 15. Basic Construction of Reverse Clutch

Figure 16. Construction of Low Clutch Figure 17. Construction of High Clutch

Figure 18. Construction of Reverse Clutch

CONSTRUCTION AND FUNCTION 7A1-13

2-4 Brake and Low & Reverse Brake (Multi-Plate Brake)

The multi-plate brake is composed of drive plates and driven plates. By applying the oil pressure onto
the end surface of the plates, the clutch is engaged or disengaged. The oil pressure is adjusted with the
control valve according to the signal from the TCM.

All brakes use dish plates to prevent uncontrolled operation of the clutches when engaged, causing a
shock.

The solenoid in the control valve is driven based on the speed change signal from TCM and moves the
shift valve, thereby engaging the drive plate and driven plate through the piston of each clutch.

Resultantly, rotation of each element of the planetary gear unit is fixed.

When the oil pressure is removed, the piston returns to the original position by the force of the return
spring.




Figure 19. Construction of 2-4 Brake
Figure 20. Construction of Low & Reverse Brake

Low One-way Clutch

The low one-way clutch employs the sprag which locks the counterclockwise rotation of the front planetary
carrier and rear internal gear.

The one-way clutch outer race is fitted with the low clutch drum and the inner race with the transmission
case.

The outer race rotates freely clockwise but, when it attempts to rotate counterclockwise, the sprag
functions to lock the outer race.

When the vehicle is traveling in 1st gear in the D, 3 or 2range, the low one-way clutch locks the rear
internal gear via the low clutch. It is left free in the 2nd, 3rd or 4th gear position.


Figure 21. Construction of Low One-way Clutch

CONSTRUCTION AND FUNCTION 7A1-15

Line Pressure Solenoid

The line pressure solenoid is turned ON or OFF according to the signal from the TCM. It switches the
line pressure between high and low pressure.

While no power is supplied, the solenoid supplies high pressure.

Shift Solenoid

The shift solenoid is of the duty cycle type which are turned ON or OFF at 50Hz. The ratio of the ON and
OFF time can be freely controlled in the range of 0 - 100%.

While no power is supplied, the solenoid supplies output pressure.

The low clutch solenoid adjusts the low clutch pressure, the high clutch solenoid the high clutch pressure,
the 2-4 brake solenoid the 2-4 brake pressure and the low & reverse brake solenoid the low & reverse
brake pressure respectively.

Lock-up Solenoid

The lock-up solenoid is of the duty cycle type which is turned ON or OFF at 50Hz. The ratio of ON and
OFF time can be freely controlled in the range of 0-100%.

While no power is supplied, the solenoid drains the output pressure.




Figure 23. Shift Solenoid Figure 24. Lock-up Solenoid

Figure 25. Location of Solenoid

7A1-16 CONSTRUCTION AND FUNCTION
Control Valve Fail-safe Function

To prevent interlocking due to engagement of more than three clutches and brakes at the same time, the
2-4 brake fail-safe valve A and B, and the low & reverse brake fail-safe valve A and B are provided.

When oil pressure is generated in the high clutch and the low clutch, the 2-4 brake solenoid is turned ON
to drain the oil pressure applied to the 2-4 brake.

When oil pressure is generated in the high clutch or 2-4 brake, the low & reverse brake solenoid is turned
ON to drain the oil pressure applied to the low & reverse brake.



Oil Pressure Switch

The oil pressure switch detects the oil pressure supply condition to the clutch and brake and sends the
detection result to the TCM.

The oil pressure switch is turned ON when the oil pressure reaches the switch working pressure and
turned OFF when the pressure decreases below the specified value.

The high clutch oil pressure switch detects the high clutch oil pressure, 2-4 brake oil pressure switch the
2-4 brake oil pressure, and the low & reverse brake oil pressure switch the low & reverse brake oil
pressure respectively.




Figure 27. Oil Pressure Switch Figure 28. Location of Oil Pressure Switch

7A1-18 CONSTRUCTION AND FUNCTION
Terminal Assembly
Pin No. Connected to Connected TCMPin No.
6 Line Pressure Solenoid B23
12 Low & Reverse Brake Oil Pressure Switch B12
5 Low & Reverse Brake Duty Solenoid B6
11 Ground Return B22
4 Lock-up Duty Solenoid B17
10 High Clutch Duty Solenoid B8
3 Low Clutch Duty Solenoid B9
9 2-4 Brake Duty Solenoid B7
2 Oil Thermo Sensor B4
8 Oil Thermo Sensor Ground B14
1 High Clutch Oil Pressure Switch B20
7 2-4 Brake Oil Pressure Switch B1


123456
891011127

Terminal Assembly Inhibitor Switch
Figure 31. Pin Assignment Figure 32. Location of Terminal Assembly

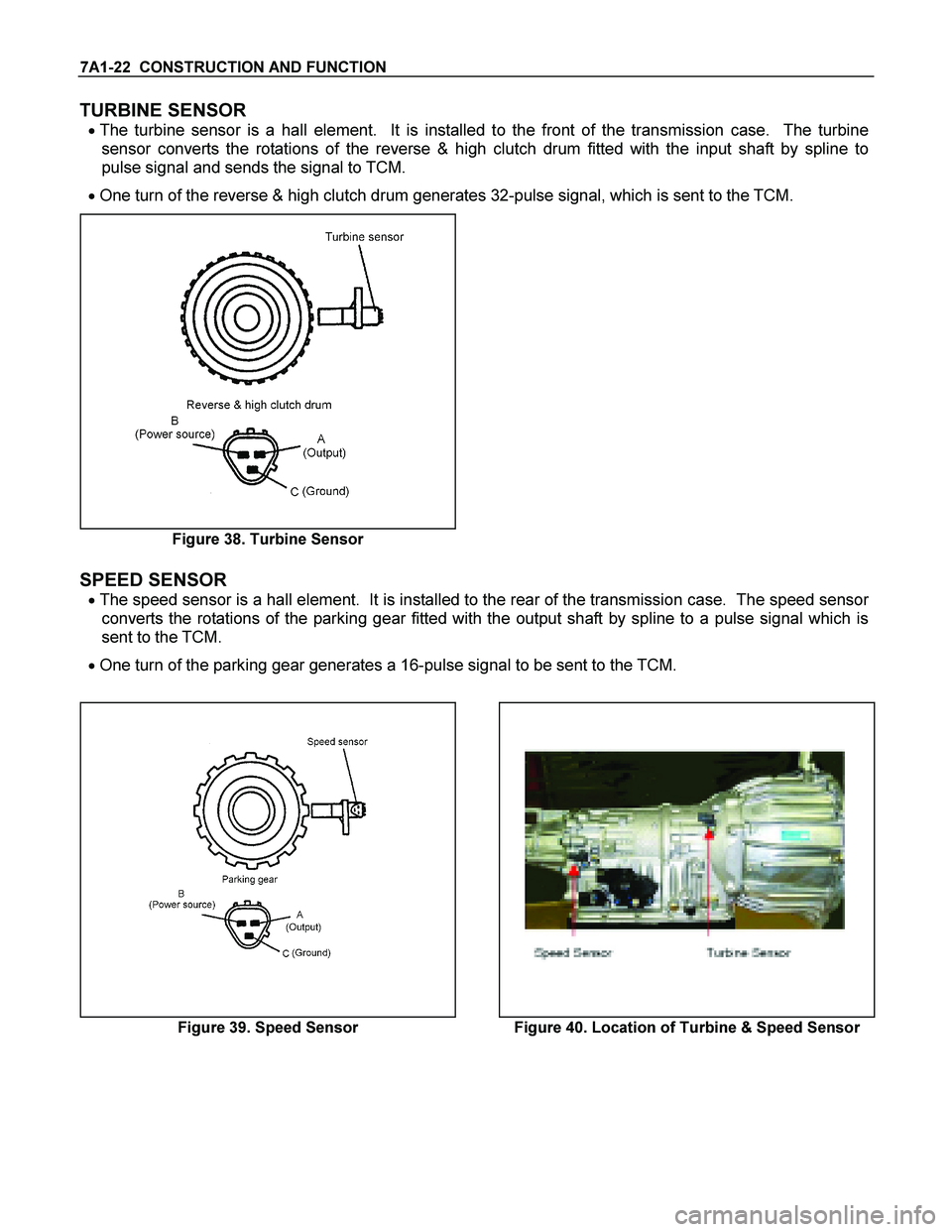

7A1-22 CONSTRUCTION AND FUNCTION
TURBINE SENSOR

The turbine sensor is a hall element. It is installed to the front of the transmission case. The turbine
sensor converts the rotations of the reverse & high clutch drum fitted with the input shaft by spline to
pulse signal and sends the signal to TCM.

One turn of the reverse & high clutch drum generates 32-pulse signal, which is sent to the TCM.


Figure 38. Turbine Sensor

SPEED SENSOR

The speed sensor is a hall element. It is installed to the rear of the transmission case. The speed sensor
converts the rotations of the parking gear fitted with the output shaft by spline to a pulse signal which is
sent to the TCM.

One turn of the parking gear generates a 16-pulse signal to be sent to the TCM.


Figure 39. Speed Sensor Figure 40. Location of Turbine & Speed Sensor

CONSTRUCTION AND FUNCTION 7A1-25
TRANSMISSION CONTROL MODULE (TCM)

The TCM is fitted side of brake pedal by means of two stud bolts.

The TCM judges necessary line pressure, gear shifting point and lock-up operation based on electrical
signals from switches and sensors and sends appropriate signals to solenoids.
























































 

Connect to White Connector Connect to Grey Connector


Figure 49. Pin Assignment

Pin No. Pin Assignment Pin No.Pin Assignment
B1 2-4 Brake Oil Pressure Switch A1 V BATT (Battery Back-up Power Supply)
B2 2 Range Switch A2 P Range Switch
B3 Turbine Sensor A3 Brake Switch
B4 ATF Thermo Sensor A4 3rd Start Indicator Lamp
B5 Ground A5 K-Line Signal (Tech 2 Serial Communication)
B6 Low & Reverse Brake Duty Solenoid A6 No Connection
B7 2-4 Brake Duty Solenoid A7 Engine Speed Sensor
B8 High Clutch Duty Solenoid A8 No Connection
B9 Low Clutch Duty Solenoid A9 No Connection
B10 N Range Switch A10 Vehicle Speed Sensor Out (2WD Only)
B11 D Range Switch A11 3rd START Select Switch
B12 Low & Reverse Brake Oil Pressure Switch A12 4L Mode Switch (4WD Only)
B13 Vehicle Speed Sensor A13 No Connection
B14 ATF Thermo Sensor Ground A14 No Connection
B15 Ground A15 No Connection
B16 No Connection A16 Throttle Position Sensor
B17 Lock-up Duty Solenoid A17 3 Range Switch
B18 Vign
Ignition Power Supply) A18 DIAG Switch (Test Switch)
B19 R Range Switch A19 A/T OIL TEMP Indicator Lamp
B20 High Clutch Oil Pressure Switch A20 CHECK TRANS Indicator Lamp
B21 L Range Switch A21 POWER DRIVE Indicator Lamp
B22 Ground (Shift Solenoid) A22 No Connection
B23 Line Pressure Solenoid A23 No Connection
B24 Vign (Ignition Power Supply) A24 POWER DRIVE Select Switch

CONSTRUCTION AND FUNCTION 7A1-29
CONTROL ITEM, INPUT AND OUTPUT

Control item


Item

Line
pressure
control
Gear
shift
control
Shift
pattern
selection
Lock-up
controlDirect
electronic
shift
control
(DECS)
Learning
control
Fail-safe
function
Self-
diagnosis
function
Speed sensor
Turbine sensor
Engine speed sensor
Brake switch

Inhibitor switch
Mode select switch

4L switch (4WD Only)

ATF thermo sensor
High clutch oil pressure switch

2-4 brake oil pressure switch

Low & Reverse brake oil pressure
switch
Input
Throttle position sensor
Line pressure solenoid
Low clutch solenoid

High clutch solenoid

2-4 brake solenoid

Low & Reverse brake solenoid

Lock-up solenoid

Shift pattern indicator lamp

ATF temperature indicator lamp

Output
Check trans indicator lamp

CONSTRUCTION AND FUNCTION 7A1-31


Figure 51. Lock-up Control

DIRECT ELECTRIC SHIFT CONTROL (DESC)
Feature

Based on the each switch signals (low & reverse brake pressure, 2-4 brake pressure & high clutch
pressure) and sensors signals (turbine sensor, speed sensor, engine speed signal & throttle position
signal), duty cycle type solenoid adjusts the clutch pressure to match the engine load and vehicle
traveling condition. By this result, controlling the engagement and disengagement of the clutch and brake
pressure is directly and accurately controlled via TCM, which is not realized in previous accumulator type.
Operation

Instead of the previous system (on/off type of shift solenoid and shift valve), the combination of duty cycle
type solenoid and amplifier (Amp) valve are used to adjust the clutch pressure to match the engine load
and vehicle traveling condition based on the signal from the TCM, and the pressure switch provided in the
oil passage of the control valve transmits the oil pressure condition at that time to TCM, thus controlling
the engagement and disengagement of the clutch and brake directly and finely.

When the gear is shifted from the 2nd to 3rd, 3rd to 4th (O/D), 4th (O/D) to 3rd and 3rd to 2nd, the clutch
pressure on the engagement side and that on the disengagement side are simultaneously controlled.
As a result, engine racing or clutch drag is prevented securing smooth and quick speed change response

7A1-34 CONSTRUCTION AND FUNCTION
MAJOR INPUT/OUTPUT COMPONENT AND THEIR FUNCTIONS
Speed sensor Detects output shaft revolution and sends rpm signal to TCM.
Turbine sensor Detects input shaft revolution and sends rpm signal to TCM.
Engine speed sensor Inputs engine revolution from engine control computer.
Brake switch Detects brake pedal operated by the driver and sends signal to
TCM.
Inhibitor switch Detects select lever position and sends signal to TCM.
Mode select switch Detects "Power Drive" or "3rd Start" selected by the driver and
sends signal to TCM.
4L switch (4WD Only) Inputs 4L mode from transfer control computer.
ATF thermo sensor Detects ATF temperature and sends signal to TCM.
High clutch oil pressure switch Detects high clutch supply oil pressure and sends signal to
TCM.
2-4 brake oil pressure switch Detects 2-4 brake supply oil pressure and sends signal to
TCM.
Low & Reverse brake oil pressure switch Detects low & reverse brake supply oil pressure and signal to
TCM.
Throttle position sensor Inputs throttle opening angle from engine control computer.
Input
TCM Judges necessary line pressure, gear shifting point and lock-up
operation based on electrical signals from switches and
sensors and sends appropriate signals to solenoids.
Line pressure solenoid Regulates oil pump delivery pressure to the appropriate line
pressure for current driving condition based on signal from
TCM.
Low clutch solenoid Selects appropriate gear shifting position for current driving
condition and regulates low clutch supply oil pressure based on
signal from TCM.
High clutch solenoid Selects appropriate gear shifting position for current driving
condition and regulates high clutch supply oil pressure based
on signal from TCM.
2-4 brake solenoid Selects appropriate gear shifting position for current driving
condition and regulates 2-4 brake supply oil pressure based on
signal from TCM.
Low & Reverse brake solenoid Selects appropriate gear shifting position for current driving
condition and regulates low & reverse brake supply oil
pressure based on signal from TCM.
Lock-up solenoid Regulates lock-up pressure to appropriate level for current
driving conditions based on signal from TCM.
Mode indicator lamp Indicates POWER DRIVE or 3rd START switch position.
Speed meter signal (2WD Only) Outputs vehicle speed to speed meter.
A/T OIL TEMP indicator lamp Indicates A/T OIL TEMP indicator lamp in case of high
temperature.
Output
CHECK TRANS indicator lamp Indicates CHECK TRANS indicator lamp in case of
malfunction.
