Tcm ISUZU TF SERIES 2004 Workshop Manual

DIAGNOSIS (JR405E) 7A2-77
Step Action Yes No
6 Is the quantity of ATF correct?
Go to Step 7
Correct the quantity of
ATF.
Go to Step 9
7 Connect the Tech 2 and test the solenoids of respective
solenoids for low & reverse brake, 2-4 brake, high clutch and
low clutch. Is operation sound heard from each solenoid?
Go to Step 8
Replace the solenoid
that does not generate
the operation sound.
Go to Step 9
8 Check the line pressure during the idling and at the engine stall
speed. Is the line pressure correct?
Go to Step 10
Either control valve, oil
pump or power train
parts (clutch, brake)
will be faulty. Replace
or overhaul the
transmission unit.
Go to step 10
9 Run the vehicle, and is the gear shifted from 1st to 4th
correctly?
Go to Step 10
Either control valve, oil
pump or power train
parts (clutch, brake)
will be faulty. Replace
or overhaul the
transmission unit.
Go to step 10
10 Clear the DTC from the memory and perform the work after
repair. Is the same DTC code outputted again in the
subsequent DTC check?
Replace the TCM Go to Step 11
11 Are the other DTCs outputted?
Go to Other DTC
Section Action is completed

7A2-78 DIAGNOSIS (JR405E)
DTC P1750 (Flash Code 51) Low & Reverse Brake Fail-safe Valve Failure

Low & Reverse Brake Fail Valve (B)Control Valve Upper Body
Low & Reverse Brake Fail Valve (A)Control Valve Lower Body

Setting Condition:

When the oil pressure generated and low & reverse brake pressure switch operates off/on twice, the TCM
detected an operation failure of the low & reverse brake fail-safe valve in D, 3, 2, L range.

Fail Safe:

When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is
inhibited.

After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd.

Possible Cause:

Stick of low & reverse brake fail-safe valve.

Low & reverse brake pressure switch does not turn on.

Short circuit to ground of harness low & reverse brake pressure switch.

Poor connection of each connector of harness in low & reverse brake pressure switch.

DIAGNOSIS (JR405E) 7A2-79

Step Action Yes No
1 Turn the key switch on and check the DTC. Is only the DTC for
low & reverse brake fail-safe valve failure outputted?
Go to Step 2
Go to Other DTC
Section
2 Clear the DTC from the memory. Turn the key switch off once,
and then start the engine. Does the CHECK TRANS blink
when the D range is selected and about 10 seconds elapsed?
Go to Other DTC
Section Go to Step 3
3 Run the vehicle, shift the gear from 1st to 4th, stop the vehicle,
and again shift the gear from 1st to 4th. Does the CHECK
TRANS blink at this time?
Go to Step 4
The low & reverse
brake fail-safe valve
may be faulty
temporarily.
Go to step 5
4 Turn the key switch on and check the DTC. Is only the DTC for
the low & reverse brake fail-safe valve failure outputted?
Repair or replace the
control valve.
Go to Step 5
Go to Other DTC
Section
5 Clear the DTC from the memory and perform the work after
repair. Is the same DTC code outputted again in the
subsequent DTC check?
Replace the TCM Go to Step 6
6 Are the other DTCs outputted?
Go to Other DTC
Section Action is completed

7A2-80 DIAGNOSIS (JR405E)
DTC P1755 (Flash Code 52) 2-4 Brake Fail-safe Valve Failure

Control Valve Upper Body2-4 Brake Fail Valve (B)
Control Valve Lower Body2- 4 Br ake Fai l Val ve ( A)

Setting Condition:

When the oil pressure generated and 2-4 brake pressure switch operates off/on twice, the TCM detected an
operation failure of the low & reverse brake fail-safe valve in D, 3, 2, L range.

Fail Safe:

When the vehicle is running, the gear position selected at the trouble detection is held and the lock-up is
inhibited.

After the vehicle stopped, all solenoid operations stop (OFF) and the gear is fixed to the 3rd.

Possible Cause:

Stick of 2-4 brake fail-safe valve.

2-4 brake pressure switch does not turn on.

Short to ground of harness 2-4 brake pressure switch.

Faulty fitting of each connector of harness in 2-4 brake pressure switch.

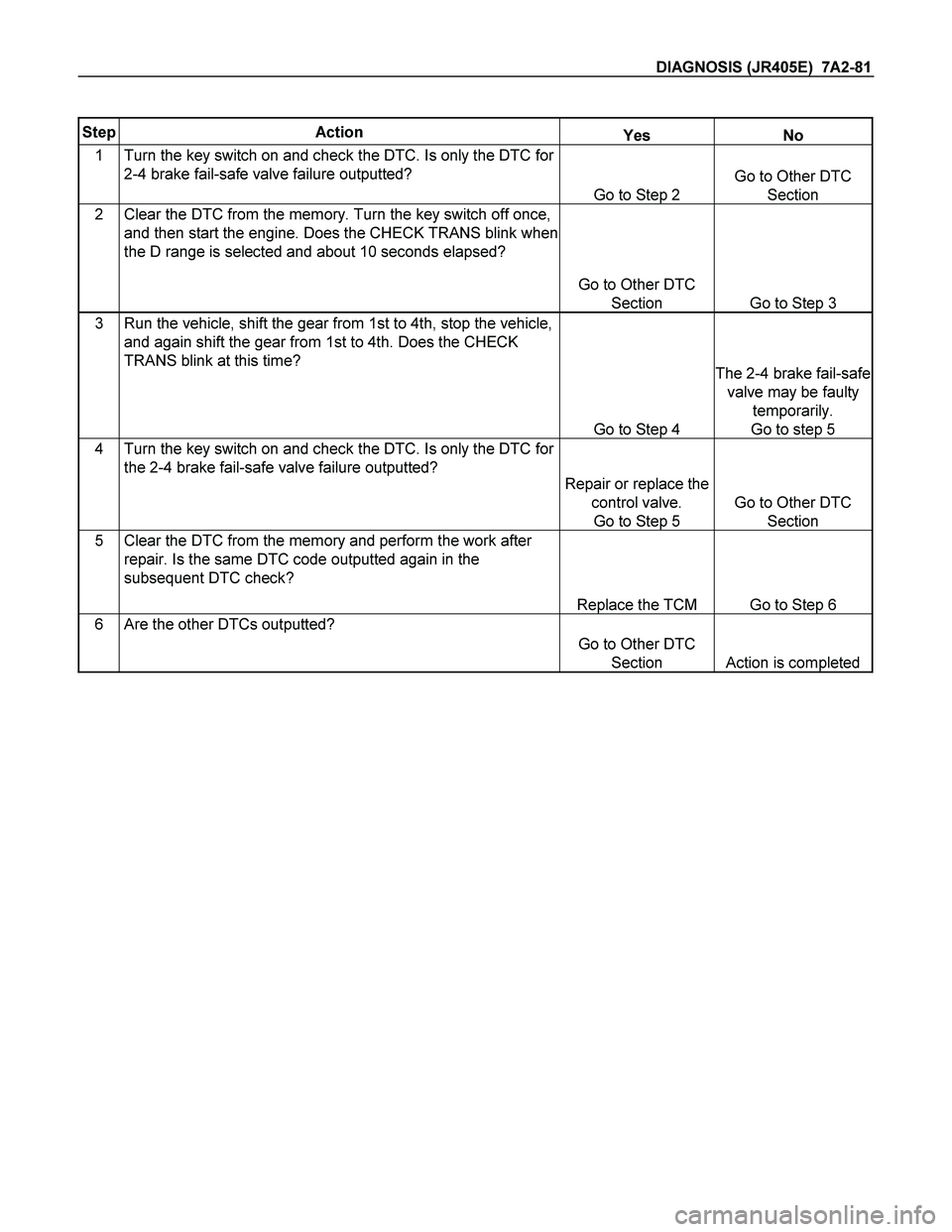

DIAGNOSIS (JR405E) 7A2-81

Step Action Yes No
1 Turn the key switch on and check the DTC. Is only the DTC for
2-4 brake fail-safe valve failure outputted?
Go to Step 2
Go to Other DTC
Section
2 Clear the DTC from the memory. Turn the key switch off once,
and then start the engine. Does the CHECK TRANS blink when
the D range is selected and about 10 seconds elapsed?
Go to Other DTC
Section Go to Step 3
3 Run the vehicle, shift the gear from 1st to 4th, stop the vehicle,
and again shift the gear from 1st to 4th. Does the CHECK
TRANS blink at this time?
Go to Step 4
The 2-4 brake fail-safe
valve may be faulty
temporarily.
Go to step 5
4 Turn the key switch on and check the DTC. Is only the DTC for
the 2-4 brake fail-safe valve failure outputted?
Repair or replace the
control valve.
Go to Step 5
Go to Other DTC
Section
5 Clear the DTC from the memory and perform the work after
repair. Is the same DTC code outputted again in the
subsequent DTC check?
Replace the TCM Go to Step 6
6 Are the other DTCs outputted?
Go to Other DTC
Section Action is completed

7A2-82 DIAGNOSIS (JR405E)
DTC P0602 Programming Error

Setting Condition:

When reprogramming operation is stopped under Service Programming System (SPS).

When non programmed TCM (blank TCM) is used without Service Programming System (SPS).

Fail Safe:

Lock-up is inhibited.

All solenoid operations stop (OFF) and the gear is fixed to the 3rd.

Possible Cause:

Low battery voltage while Service Programming System (SPS) is operated.

No programmed TCM (blank TCM) is used.

Recover DTC:
Reprogram the TCM using with Service Programming System (SPS).

DIAGNOSIS (JR405E) 7A2-93
No. A1: Vehicle Does Not Run in D, 3, 2, L and R Range

Description:

Vehicle does not run though the accelerator pedal is stepped on.

Diagnosis Hints:

Some trouble in the AT main unit is supposed (since the vehicle can run even if the TCM is defective). However,
since the trouble of the main unit may be originated from the sensor system or output system, these systems
should be also checked to prevent reproduce of the trouble.

Possible Cause:

Slip of clutch (low clutch, low one-way clutch, reverse clutch, low & reverse brake).
If slip of clutch is caused, a DTC (gear ratio error) is stored.

Shortage or faulty quality of ATF.

Dropped line pressure.

Trouble in control valve body (faulty operation, sticking, clogged oil passage).

Disordered select cable (select indicator light indicates D, 3, 2, L or R but the hydraulic system is not in the D, 3,
2, L, or R range).

Faulty torque generated.

Trouble in the torque converter (faulty operation, sticking), insufficient engine output.

Malfunction of parking mechanism.

Step Action Yes No
1 Dislocation or disordered of select lever.
Does the vehicle move when the brake is released in a
position other than the P range and the vehicle is pushed?

Go to Step 2

Adjust the select cable.
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is low,
replenish up to the
specified level.

Go to Step 4
If ATF is extremely
black and
contaminated and
smells burnt, slip of the
clutch is supposed.
Overhaul the AT unit.
4 Is the stall revolution correct in all range? Refer the STALL
TEST section in this manual.
Go to Step 5
Repair the defect or
replace.
5 Is the line pressure correct? Refer the LINE PRESSURE
TEST section in this manual. Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.

7A2-94 DIAGNOSIS (JR405E)
No. A2: Vehicle Does Not Run in R Range

Description:

Vehicle does not run in R range only.

It runs correctly in D, 3, 2, and L ranges.

Diagnosis Hints:

Some trouble in the AT main unit is supposed (since the vehicle can run even if the TCM is defective). However,
since the trouble of the main unit may be originated from the sensor system or output system, these systems
should be also checked to prevent reproduce of the trouble.

Possible Cause:

Slip of clutch (reverse clutch, low & reverse brake).
If slip of clutch is caused, a DTC (gear ratio error) is stored.

Shortage or faulty quality of ATF.

Dropped line pressure.

Trouble in control valve body (faulty operation, sticking, clogged oil passage).

Disordered select cable (select indicator light indicates R but the hydraulic system is not in the R range).

Faulty torque generated.

Trouble in the torque converter (faulty operation, sticking), insufficient engine output.

Malfunction of parking mechanism.

Step Action Yes No
1 Dislocation or disordered of select lever.
Does the vehicle move when the brake is released in a
position other than the P range and the vehicle is pushed?

Go to Step 2

Adjust the select cable.
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is low,
replenish up to the
specified level.

Go to Step 4

If ATF is extremely
black and
contaminated and
smells burnt, slip of the
clutch is supposed.
Overhaul the AT unit.
4 Is the stall revolution correct in R range? Refer the STALL
TEST section in this manual.
Go to Step 5
Repair the defect or
replace.
5 Is the line pressure correct? Refer the LINE PRESSURE
TEST section in this manual. Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.

DIAGNOSIS (JR405E) 7A2-95
No. A3: Vehicle Does Not Run in D, 3, 2 and L Range

Description:

Vehicle does not run in D, 3, 2 and L range only.

It runs correctly in R ranges.

Diagnosis Hints:

Some trouble in the AT main unit is supposed (since the vehicle can run even if the TCM is defective). However,
since the trouble of the main unit may be originated from the sensor system or output system, these systems
should be also checked to prevent reproduce of the trouble.

Possible Cause:

Slip of clutch (low clutch and low one-way clutch).
If slip of clutch is caused, a DTC (gear ratio error) is stored.

Shortage or faulty quality of ATF.

Dropped line pressure.

Trouble in control valve body (faulty operation, sticking, clogged oil passage).

Disordered select cable (select indicator light indicates D, 3, 2 and L but the hydraulic system is not in the D, 3, 2
and L range).

Faulty torque generated.

Trouble in the torque converter (faulty operation, sticking), insufficient engine output.

Malfunction of parking mechanism.

Step Action Yes No
1 Dislocation or disordered of select lever.
Does the vehicle move when the brake is released in a
position other than the P range and the vehicle is pushed?

Go to Step 2

Adjust the select cable.
2 Are any DTCs stored?
Go to DTC Chart Go to Step 3
3 Are the quantity, contamination and smell normal?
If the ATF level is low,
replenish up to the
specified level.

Go to Step 4

If ATF is extremely
black and
contaminated and
smells burnt, slip of the
clutch is supposed.
Overhaul the AT unit.
4 Is the stall revolution correct in D, 3, 2 and L range? Refer
the STALL TEST section in this manual.
Go to Step 5
Repair the defect or
replace.
5 Is the line pressure correct? Refer the LINE PRESSURE
TEST section in this manual. Trouble in the AT
assembly or control
valve.
Repair the defect or
replace.

DIAGNOSIS (JR405E) 7A2-97
No. B2: Poor Acceleration at Starting

Description:

Starting acceleration is poor.

Diagnosis Hints:

In addition to the low engine output, faulty gear shifting of AT or fixing at the 3rd position may be possible.
Therefore, in case of such a trouble that "maximum speed is low, and acceleration is poor", it should be cleared
up whether the trouble is originated from the engine system of AT system by a running test, inspection of stall
revolution, etc.

Possible Cause:

Clogged air cleaner, out of injection timing, dropped compression pressure, etc.

Fixing at 3rd position (fail-safe activated).
Since the gear is fixed at the 3rd position because of the fail-safe function, a trouble that "Maximum
speed is low, and acceleration is poor" is resulted. In this case, the DTC is memorized.
When TCM stops operation because of faulty TCM ground, the gear is fixed at the 3rd position because
of a mechanical reason. In this case, no DTC is memorized.

Disordered inhibitor switch.

Incorrect properties of throttle opening signal (serial communication) of throttle position sensor.
Throttle opening signal (serial communication) of the throttle position sensor does not change in
proportion to the throttle opening. In this case, fixing at the high or low gear results in such a trouble
that "Maximum Speed is Low and Acceleration is Poor".

Slip of clutch (low clutch, high clutch).

If slip of clutch is caused, a DTC (gear ratio error) is stored.

Dropped line pressure.

Trouble in the torque converter system (faulty operation).

Step Action Yes No
1 Test Drive.
Is the gear smoothly shifted in the order of 1st to 2nd, 2nd to 3rd,
3rd to 4th gear and lock up?

Clogged air cleaner,
out of injection
timing, dropped
compression
pressure, etc.

Go to Step 2
2 Gear ratio trouble diagnosis.
Travel in the following sequence for about 7 seconds or more in
each range: Start in the L range (1st) to 2 range (2nd) to 3 range
(3rd) to D range (4th) (to detect the gear ratio trouble exactly, this
process should be carried out)
Go to Step 3 Go to Step 3
3 Are any DTCs stored?
Go to DTC Chart Go to Step 4
