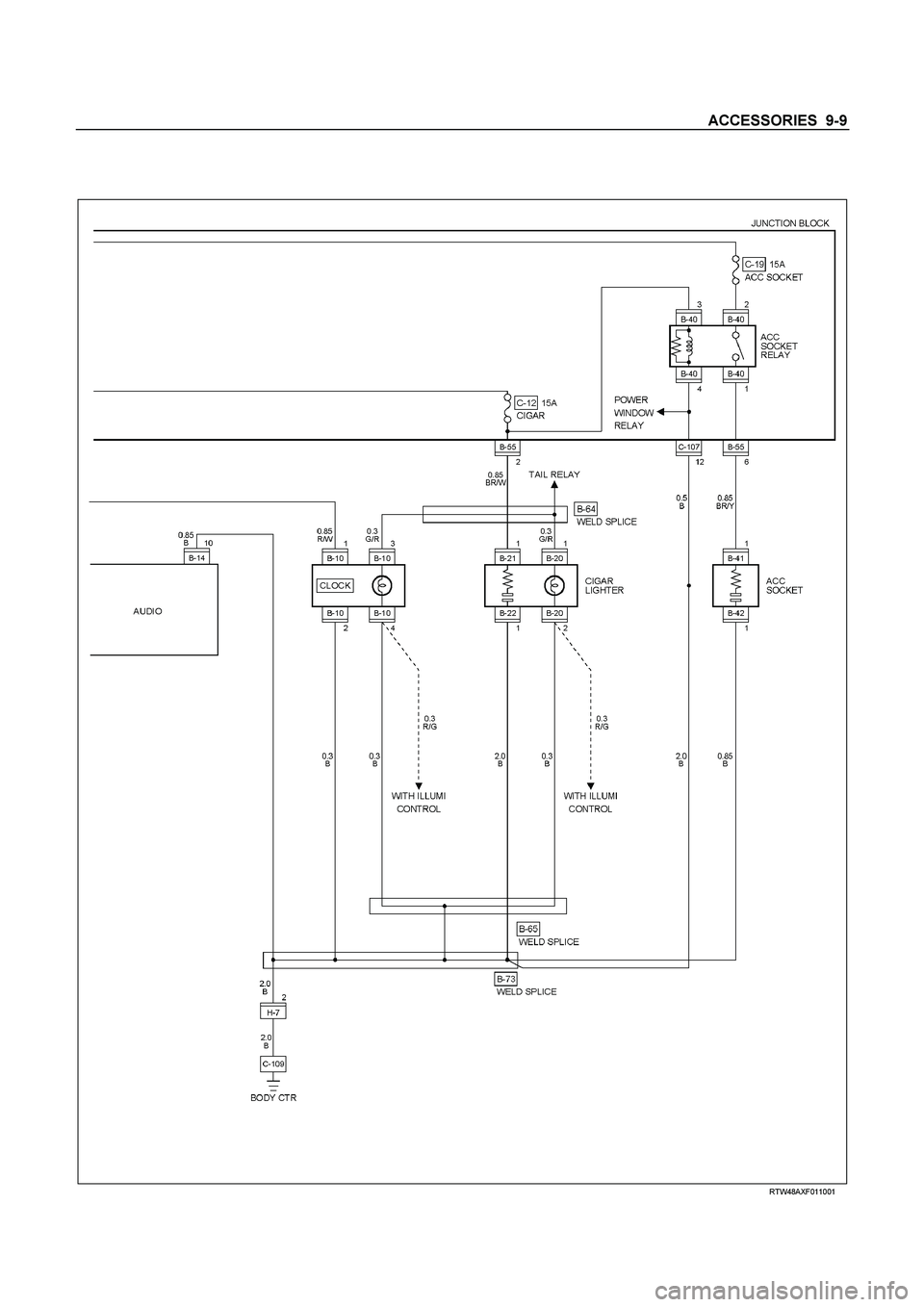

ISUZU TF SERIES 2004 User Guide ACCESSORIES  9-9




 RTW48AXF011001

Page 12 of 4264

ISUZU TF SERIES 2004 User Guide 9-10  ACCESSORIES

CONNECTOR LIST
No. Connector face  No. Connector face
B-10
White
Clock B-56
WhiteJ/B I4
B-14
Gray
Audio B-62
WhiteIgnition switch
B-20
White
Cigar lighter illumination

Page 13 of 4264

ISUZU TF SERIES 2004 User Guide ACCESSORIES  9-11


No. Connector face  No. Connector face
D-13
Black
Rear speaker -LH H-25
BlackINST  Front door -LH
D-17
Black
Rear speaker -RH H-27
BlackINST
 Rear body
D-19
White

Page 14 of 4264

ISUZU TF SERIES 2004 User Guide 9-12  ACCESSORIES

RADIO
    REMOVAL AND INSTALLATION




 RTW48AMF000201




Removal
1.  Remove the ash try
2.  Remove the HVAC control
3.  Remove the 2 crews unit on the HVAC
4.

Page 15 of 4264

ISUZU TF SERIES 2004 User Guide ACCESSORIES  9-13

FRONT SPEAKER
    REMOVAL AND INSTALLATION


Removal
1.  Remove the Door Trim Panel

  Refer to section 10 “FRONT DOOR ASSEMBLY”fo
r
door trim panel removal steps.

Page 16 of 4264

ISUZU TF SERIES 2004 User Guide 9-14  ACCESSORIES

TWEETER
    REMOVAL AND INSTALLATION
 RTW390SH000101


Removal
1.  Remove the Door Trim Panel

  Refer to section 10 “FRONT DOOR ASSEMBLY”fo
r
door trim panel remova

Page 17 of 4264

ISUZU TF SERIES 2004 User Guide ACCESSORIES  9-15

REAR SPEAKER (EXTEND CAB)
    REMOVAL AND INSTALLATION


Removal
1.  Remove the Speaker Grille

  Pull the grille to release the locks.
2.  Remove the Rear Speaker


Page 18 of 4264

ISUZU TF SERIES 2004 User Guide 9-16  ACCESSORIES

REAR SPEAKER (CREW CAB)
    REMOVAL AND INSTALLATION
 RTW390MH000101


Removal
1.  Remove the Rear Door Trim Panel

  Refer to section 10 “REAR DOOR ASSEMBLY”for doo

Page 19 of 4264

ISUZU TF SERIES 2004 User Guide ACCESSORIES  9-17

CLOCK
    REMOVAL AND INSTALLATION


Removal
1.  Remove the center cluster ASM
2.  Disconnect the connector.
3.  Remove the clock.


Installation
To install, follow t

Page 20 of 4264

ISUZU TF SERIES 2004 User Guide 9-18  ACCESSORIES

ANTENNA
    REMOVAL AND INSTALLATION


Removal
1.  Remove the antenna screw 1.
2.  Disconnect the feeder cable
3  connector
.
3.  Remove the antenna cable
2 .
4.  Pull
