7B1-54 MANUAL TRANSMISSION

TROUBLESHOOTING
1. ABNORMAL NOISE

1) NOISY IN NEUTRAL

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper gear
oil NG
Mainshaft splines
Synchronizer clutch hub
splinesReplace the main shaft and
the synchronizer clutch hub
Replace the gear(s)
Replace the flywheel pilot
Worn splines
Worn or scuffed gear tooth
contact surfaces
Flywheel pilot bearingWorn flywheel pilot bearing
Bearings (Mainshaft,
countershaft, and transfer
shaft)
Gears (Mainshaft,
countershaft, reverse idler
gear and transfer gears)
Replace the bearing(s)Worn or broken bearing(s)
OK
NG NG NG NG OK
OK
OK
Gear oil
TransmissionRealign the transmissionTransmission misalignment OK
NG

MANUAL TRANSMISSION 7B1-111

TROUBLESHOOTING
1. ABNORMAL NOISE

1) NOISY IN NEUTRAL

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper gear
oil NG
Mainshaft splines
Synchronizer clutch hub
splinesReplace the main shaft and
the synchronizer clutch hub
Replace the gear(s)
Replace the flywheel pilot
Worn splines
Worn or scuffed gear tooth
contact surfaces
Flywheel pilot bearingWorn flywheel pilot bearing
Bearings (Mainshaft,
countershaft, and transfer
shaft)
Gears (Mainshaft,
countershaft, reverse idler
gear and transfer gears)
Replace the bearing(s)Worn or broken bearing(s)
OK
NG NG NG NG OK
OK
OK
Gear oil
TransmissionRealign the transmissionTransmission misalignment OK
NG

3A-2 FRONT ALIGNMENT

Front End Alignment Inspection and
Adjustment
General Description
“Front End Alignment” refers to the angular
relationshipbetween the front wheels, the front suspension
attachingparts and the ground.
Proper front end alignment must be maintained in order
toinsure efficient steering, good directional stability and
toprevent abnormal tire wear.
The most important factors of front end alignment arewheel
toe-in, wheel camber and axle caster.



Camber:
This illustration shows view from the front of the vehicle.
Camber is the vertical tilting inward or outward of the front
wheels. When the wheels tilt outward at the top, the camber is
positive (+). When the wheels tilt inward at the top, the camber
is negative (-). The amount of tilt measured in degrees from
the vertical is called the camber angle (1). If camber is extreme
or unequal between the wheels, improper steering and
excessive tire wear will result. Negative camber causes wear
on the inside of the tire, while positive camber causes wear to
the outside.

Caster:
This illustration shows view from the side of the vehicle.
Caster (1) is the vertical tilting of the wheel axis either
forward or backward (when viewed from the side of the
vehicle). A backward tilt is positive (+) and a forward tilt is
negative (-). On the short and long arm type suspension
you cannot see a caster angle without a special instrument, but
if you look straight down from the top of the upper control arm
to the ground, the ball joints do not line up (fore and aft) when
a caster angle other than 0 degree is present. With a positive
angle, the lower ball joint would be slightly ahead (toward the
front of the vehicle) of the upper ball joint center line.


Toe-in:
This illustration shows view from the top of the vehicle.
Toe-in is the measured amount the front wheels are turned in.
The actual amount of toe-in is normally a fraction of a degree.
Toe-in is measured from the center of the tire treads or from
the inside of the tires. The purpose of toe-in is to insure parallel
rolling of the front wheels and to offset any small deflections of
the wheel support system which occurs when the vehicle is
rolling forward. Incorrect toe-in results in excessive toe-in and
unstable steering. Toe-in is the last alignment to be set in
the front end alignment procedure.

FRONT ALIGNMENT 3A-3

Inspection
Before making any adjustments affecting caster, camber or
toe-in, the following front end inspection should be made.
1. Inspect the tires for proper inflation pressure. Refer to
Main Data and Specifications in Wheel and Tire System
section.
2. Make sure that the vehicle is unlade condition (Withno
passenger or loading).
3. Make sure that the spare tire is installed at the normal
position.
4. Inspect the front wheel bearings for proper adjustment.
Refer to Front Hub and Disc Overhaul in Suspension
section.
5. Inspect the ball joints and tie rod ends. If excessive
looseness is noted, correct before adjusting. Refer to
Steering Linkage in this section.
6. Inspect the wheel and tires for run-out. Refer to Wheel
Replacement in Wheel and Tire System section.
7. Inspect the trim height. If not within specifications, the
correction must be made before adjusting caster.
8. Inspect the steering unit for looseness at the frame.
9. Inspect shock absorbers for leaks or any noticeable noise.
Refer to Shock Absorber in Suspension section.
10. Inspect the control arms or stabilizer bar attachment fo
r
looseness. Refer to Suspension section.
11. Inspect the front end alignment using alignment equipment.
Follow the manufacturer’s instructions.
12. Park the vehicle on a level surface.

3A-8 FRONT ALIGNMENT




Toe-in Adjustment
Measurement should be taken with the vehicle on a surface
plate.
If a surface plate is not available, toe-in should be checked
with the vehicle parked on a level floor.
1. Set front wheels to straight ahead position.
2. Align the toe-in gauge with center height of each wheel a
t
front end.
3.
Apply center marks to each wheel, then take measurement
of distance A between the center marks on each wheel.
4. Slowly move the vehicle rearward until the center marks
reach the rear end position.
5. Take measurement of distance B between the cente
r
marks at rear end.
The toe-in can be calculated with next formula.
Toe-in = B - A
Toe-in mm (in)

4

2
(Except high ride suspension) 0
2 (0
0.08)





To adjust the toe-in angle, loosen the lock nuts (2) on the tie
rod (1) and turn the tie rod. Turn both rods the same amount,
to keep the steering wheel centered.
Lock Nut Torque N
m (kgf
m/lb
ft)
986.0 (10.00.6 / 72.34.3)

RTW330SH000101

Trim Height
Trim Height : at Curb Weight (Reference Data)
Trim height (Z) = A - B
Front mm (in)

Z
105(4.13)

FRONT ALIGNMENT 3A-9

RTW340SH001301-X

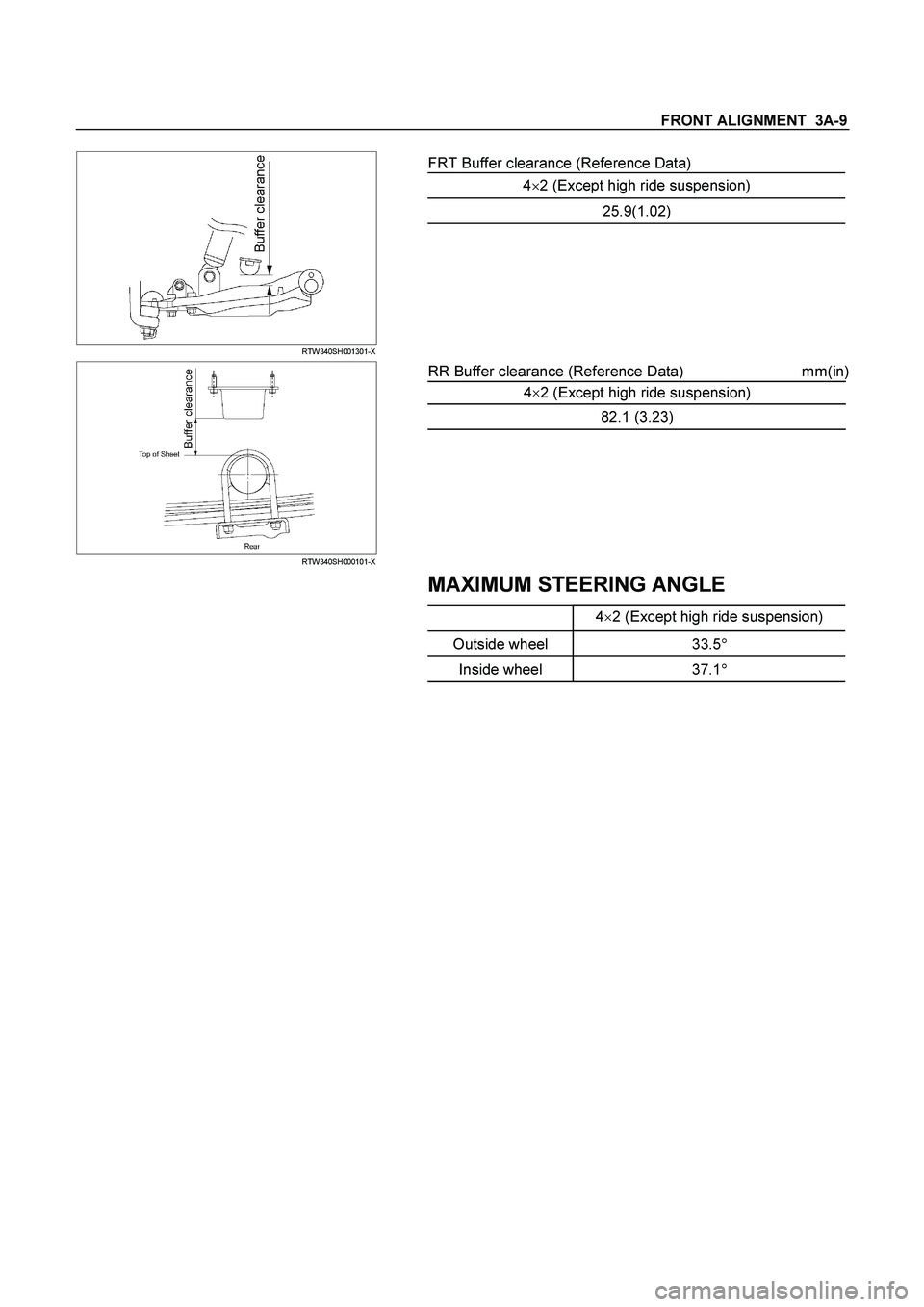

FRT Buffer clearance (Reference Data)

4
2 (Except high ride suspension)
25.9(1.02)


RTW340SH000101-X

RR Buffer clearance (Reference Data) mm(in)

4

2 (Except high ride suspension)
82.1 (3.23)



MAXIMUM STEERING ANGLE

4

2 (Except high ride suspension)
Outside wheel 33.5

Inside wheel 37.1

3A-12 FRONT ALIGNMENT




Toe-in Adjustment
Measurement should be taken with the vehicle on a surface
plate.
If a surface plate is not available, toe-in should be checked
with the vehicle parked on a level floor.
1. Set front wheels to straight ahead position.
2. Align the toe-in gauge with center height of each wheel a
t
front end.
3.
Apply center marks to each wheel, then take measurement
of distance A between the center marks on each wheel.
4. Slowly move the vehicle rearward until the center marks
reach the rear end position.
5. Take measurement of distance B between the cente
r
marks at rear end.
The toe-in can be calculated with next formula.
Toe-in = B - A
Toe-in mm (in)

4
2 (High ride suspension)
4
4 02 (00.08)






To adjust the toe-in angle, loosen the lock nuts (2) on the tie
rod (1) and turn the tie rod. Turn both rods the same amount,
to keep the steering wheel centered.
Lock Nut Torque N
m (kgf
m/lb
ft)
986.0 (10.00.6 / 72.34.3)

RTW330SH000201

Trim Height
Trim Height : at Curb Weight
Trim height (Z) = A - B
mm (in)

Z
140
5 (5.51)

POWER-ASSISTED STEERING SYSTEM 3B-1

STEERING
POWER-ASSISTED STEERING SYSTEM
TABLE OF CONTENTS
PAGE
General Description ......................................................................................................... 3B – 4
Power Steering System Test ........................................................................................... 3B – 7
Maintenance ..................................................................................................................... 3B – 8
Fluid Level ........................................................................................................................ 3B – 8
Bleeding The Power Steering System............................................................................ 3B – 8
Bleeding Procedure ......................................................................................................... 3B – 8
Flushing The Power Steering System ............................................................................ 3B – 8
Steering Wheel Free Play Inspection ............................................................................. 3B – 9
Front End Alignment Inspection and Adjustment ......................................................... 3B – 9
Special Tools .................................................................................................................... 3B – 10
Power Steering Unit ......................................................................................................... 3B – 11
Power Steering Unit and Associated Parts ............................................................... 3B – 11
Removal ....................................................................................................................... 3B – 11
Installation ................................................................................................................... 3B – 12
Power Steering Unit Disassembled View .................................................................. 3B – 13
Disassembly ................................................................................................................ 3B – 13
Inspection and Repair ................................................................................................. 3B – 13
Reassembly ................................................................................................................. 3B – 14
Main Data and Specifications ..................................................................................... 3B – 14
Special Tools ............................................................................................................... 3B – 15
Power Steering Pump and Associated Parts (4JH1-TC, 4JA1-TC, 4JA1-L) ............ 3B – 16
Removal ....................................................................................................................... 3B – 16
Installation ................................................................................................................... 3B – 16
Power Steering Pump Disassembled View .............................................................. 3B – 17
Disassembly ................................................................................................................ 3B – 18
Inspection and Repair ................................................................................................. 3B – 18
Reassembly ................................................................................................................. 3B – 19
Main Data and Specifications ..................................................................................... 3B – 19

POWER-ASSISTED STEERING SYSTEM 3B-9

4. Install all the lines and hoses. Fill the system with
new power steering fluid and bleed the system as
described in Bleeding The Power Steering System.
Operate the engine for about 15 minutes.
Remove the pump return line at the pump inlet and
plug the connection on the pump. While refilling the
reservoir, check the draining fluid for contamination.
If foreign material is still evident, replace all lines,
disassemble and clean or replace the powe
r
steering system components. Do not re-use any
drained power steering fluid.

Steering Wheel Free Play Inspection
060R300016
1. With the tires in the straight-ahead position, check
the amount of steering wheel play by turning the
wheel in both directions until the tires begin to move.
NOTE: The wheel free play should be checked with the
engine running.
Free play: 0 - 30 mm (0 - 1.18 in)
2.
Also check the steering wheel for play and
looseness in the mount by moving it back and forth
and sideways. When test driving, check for hard
steering, steering shimmy and tendency to pull to
one side.

Front End Alignment Inspection and
Adjustment
Toe-in Adjustment
Toe-in: Refer to Section 3A FRONT ALIGNMENT
1. To adjust the toe-in angle, loosen the lock nuts (2)
on the tie rod (1) and turn the tie rod. Turn both rods
the same amount, to keep the steering wheel
centered .
This illustration is based on the RHD model.
431R30006
2. Tighten the lock nut to the specified torque.
Torque:
92 - 104 N




m (9.4 - 10.6 kg




m/68 - 77 lb ft)

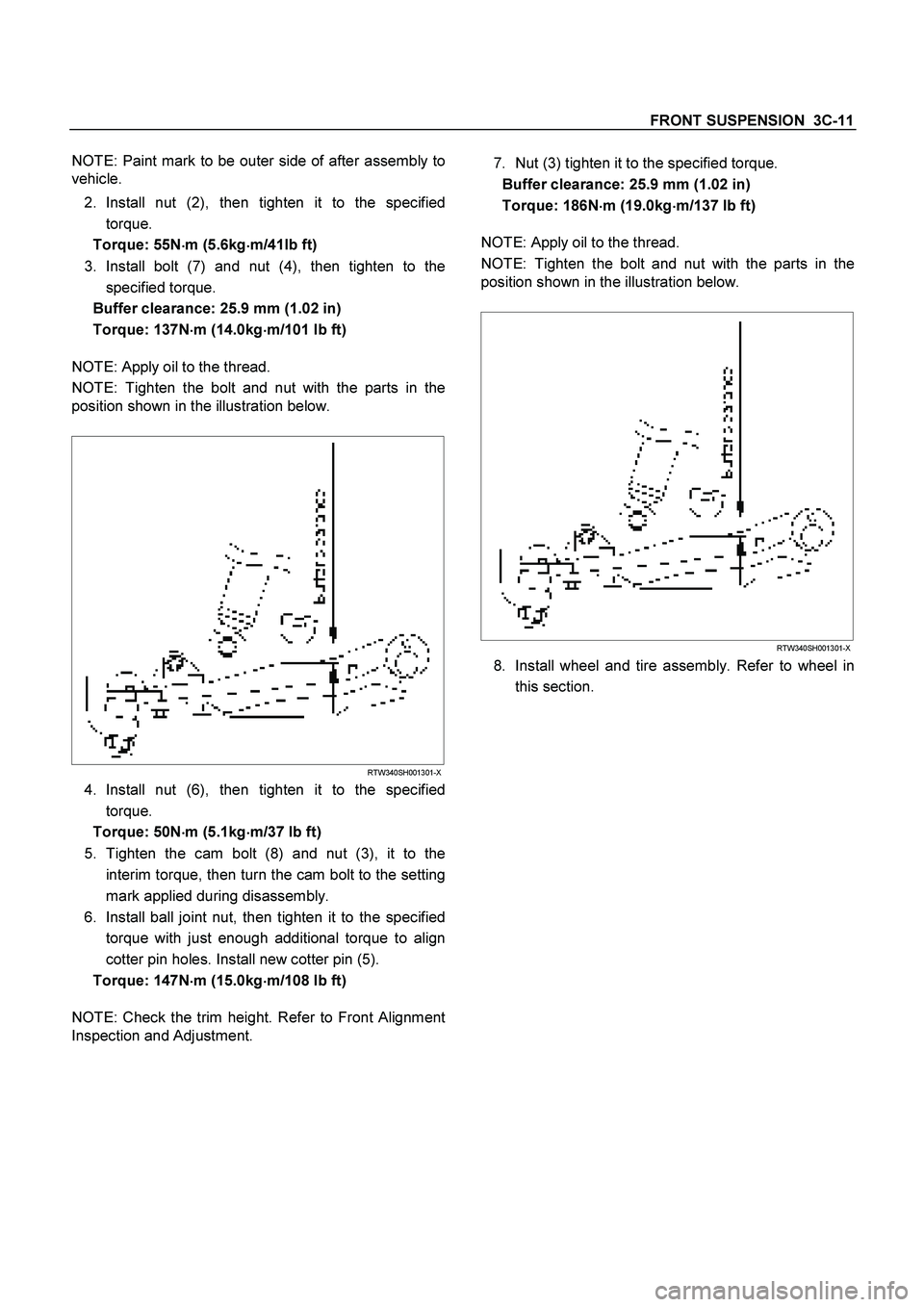

FRONT SUSPENSION 3C-11

NOTE: Paint mark to be outer side of after assembly to
vehicle.
2. Install nut (2), then tighten it to the specified
torque.
Torque: 55N





m (5.6kg





m/41lb ft)
3. Install bolt (7) and nut (4), then tighten to the
specified torque.
Buffer clearance: 25.9 mm (1.02 in)
Torque: 137N




m (14.0kg




m/101 lb ft)


NOTE: Apply oil to the thread.
NOTE: Tighten the bolt and nut with the parts in the
position shown in the illustration below.




RTW340SH001301-X
4. Install nut (6), then tighten it to the specified
torque.
Torque: 50N




m (5.1kg




m/37 lb ft)
5. Tighten the cam bolt (8) and nut (3), it to the
interim torque, then turn the cam bolt to the setting
mark applied during disassembly.
6. Install ball joint nut, then tighten it to the specified
torque with just enough additional torque to align
cotter pin holes. Install new cotter pin (5).
Torque: 147N




m (15.0kg




m/108 lb ft)


NOTE: Check the trim height. Refer to Front Alignment
Inspection and Adjustment.

7. Nut (3) tighten it to the specified torque.
Buffer clearance: 25.9 mm (1.02 in)
Torque: 186N




m (19.0kg




m/137 lb ft)


NOTE: Apply oil to the thread.
NOTE: Tighten the bolt and nut with the parts in the
position shown in the illustration below.





RTW340SH001301-X
8. Install wheel and tire assembly. Refer to wheel in
this section.
