SHIFT ON THE FLY SYSTEM 4C2-9


RTW440SH000601








RTW440SH000801
Dimension Check
Measure illustration sized A, B, and C
Limit mm (in)

A 64.3 (2.53)
B 6.7 (0.26)
C 6.7 (0.26)













RTW440SH000701




REASSEMBLY
15. Oil seal
Install the new oil seal which has been immersed in
differential gear oil, by using an oil seal installer.
Installer 5-8840-2407-0 (J-41693)
Grip 5-8840-0007-0 (J-8092)
























412RS051



14. Needle Bearing
Force a new needle bearing into inner shaft by using a
special tool.
Installer : 5-8840-2408-0 (J-41694)
Grip : 5-8840-0007-0 (J-8092)

5A-28 BRAKE CONTROL SYSTEM

Isolation Valve Test
Purpose: The purpose of this test is to detect brake
pipe and valve line harness wire for wrong connections
and valve trouble.
This test will help you confirm the result of your repair
service including the removal/reinstallation of brake
pipe, valve line harness and valve.
Test conditions: The ignition key is in the “ON” position
with the four wheels lifted up. The brake pedal is
stepped on, released and stepped on again with the
parking brake released.
Test procedure:
1. Connect Tech 2 with the vehicle, and select
Actuaor Test from the menus.
2. Select a Solenoid Valve Test Menu from the
Actuaor Test Menus.

060L300002
3. Select Isolation Valve from the Valve Select Menus.
4. Step on the brake pedal.
5. Release the brake pedal.
6. Make sure that the Isolation Valve “ON” aimed at by
Tech 2 and the wheel locked position are the same.
If different, check brake pipe, valve line harness
wiring and H/UNIT. Repair is needed if abnormality
is found.
7. Conduct Step 2 through Step 5 above on all the
four wheels.

060L300002
CAUTION: When conducting this test, please
observe the following cautions.

1. Do not start the engine.
2. Lift up the vehicle at a level floor.





Secure a clearance from the floor surface
enough to allow the lifted tire to rotate.
3. Maintain the lift up.
4. Wipe the floor surface to remove water and oil
so that the surface may become unslippery.
5. Do not load the vehicle.





When lifting up the vehicle, be sure to
observe the lifting up points. Refer to
vehicle lifting points in 0A section.

BRAKE CONTROL SYSTEM 5A-29

Dump Valve Test
Purpose: The purpose of this test is to detect brake
pipe and valve line harness wire for wrong connections
and valve trouble.
This test will help you confirm the result of your repai
r
service including the removal/reinstallation of brake
pipe, valve line harness and valve.
Test conditions: The ignition key is in the “ON” position
with the four wheels lifted up. The brake pedal is
stepped on, released and stepped on again with the
parking brake released.
Test procedure:
1. Connect Tech 2 with the vehicle, and select
Actuator Test Function from the menus.
2. Select a Solenoid Valve Test Menu from the
Actuator Test Menus.

060L300002
3. Select Dump Valve from the Valve Select Meuns.
4. Step on the brake pedal.
5. Make sure that the Dump Valve “ON” aimed at by
Tech 2 and the wheel released position are the
same. If different, check brake pipe, valve line
harness wiring and H/UNIT. Repair is needed if
abnormality is found.
6. Conduct Step 2 through Step 5 above on all the
four wheels.

060L300002
CAUTION: When conducting this test, please
observe the following cautions.

1. Do not start the engine.
2. Lift up the vehicle at a level floor.





Secure a clearance from the floor surface
enough to allow the lifted tire to rotate.
3. Maintain the lift up.
4. Wipe the floor surface to remove water and oil
so that the surface may become unslippery.
5. Do not load the vehicle.





When lifting up the vehicle, be sure to
observe the lifting up points. Refer to
vehicle lifting points in 0A section.

ANTI-LOCK BRAKE SYSTEM 5B-17

A03R300003
Legend


1.
Bench Press Fitting

2.
Steel Plate (25-30 mm thickness)


3.
Axle Shaft

4.
Sensor Rotor

Inspection and Repair
Make all necessary adjustments, repairs or part
replacement.


Check damage or powdered iron sticking to the
sensor rotor.


Check play in the sensor rotor.


Check a broken tooth or indentation in the senso
r
rotor.
NOTE: If replacement is required remove the sensor
rotor from the axle shaft assembly with brake. (Refer to
the section Rear Axle).


Discard the used sensor rotor.

(Snapring, Oil seal and Bearing)

Installation
1. Install the sensor rotor and assemble it into the axle
shaft assembly with back plate. (Refer to the section
Rear Axle)

5C-24 BRAKES

RTW35CSH000201
3) Rear wheel cylinder fluid pressure measurement
Step on the brake pedal until the fluid pressure of the
front wheel cylinder gets to 9.8Mpa (100kg/cm
2), and
check the rear wheel cylinder fluid pressure. (Read the
value of the front wheel cylinder fluid pressure 2
seconds after the measurement. When measuring the
L.S.V fluid pressure, keep the brake pedal pressed
down without stepping it down twice or releasing it.)
Rear Wheel Cylinder Fluid Pressure MPa (kg/cm
2)

2WD 6.77
0.83 (69.0
8.5)
2WD (With High Ride
Suspension), 4WD 6.77

0.83 (69.0

8.5)

RTW35CSH000401
2. Oil Pressure Adjustment
1) LSPV spring length adjustment
Loosen the adjust nut of the LSPV spring joint, and
adjust the length of the LSPV spring.
When the oil pressure is insufficient, turn the adjust nu
t
clockwise to extend the span “A”. When the oil pressure
is too high, turn the adjust nut counterclockwise to
reduce the span “A”.


2) After adjustment, tighten the lock nut securely.
Lock Nut Torque N
m (kg
m/lb in)
11-20 (1.1-2.0/95-174)

BRAKES 5C-25


Filling Master Cylinder Reservoir
CAUTION :
Use only specified brake fluid. Do not use any fluid which
contains a petroleum base. Do not use a container which
has been used for petroleum based fluids or a container
which is wet with water. Petroleum based fluid will cause
swelling and distortion of rubber parts in the hydraulic
brake system. Water mixed with brake fluid lowers the
fluid boiling point. Keep all fluid containers capped to
prevent contamination.
Always fill the master cylinder reservoir when the engine
is cold.
Never allow the brake fluid to come in contact with the
painted surfaces.
The master cylinder reservoir must be kept properly filled
to ensure adequate reserve and to prevent air and
moisture from entering the hydraulic system. However,
because of expansion due to heat absorbed from the
brakes and the engine, the reservoir must not be
overfilled. Thoroughly clean reservoir cap before removal
to avoid getting dirt into reservoir. Add fluid as required to
bring level to the “MAX” mark on the reservoir tank. Use
“DOT 3” Hydraulic Brake Fluid.

Leakage of Brake Fluid
With engine idling, set shift lever in the neutral position and
continue to depress brake pedal at a constant pedal
application force.
Should the pedal stroke become deeper gradually, leakage
from the hydraulic pressure system is possible.
Make sure by visual check that there is no leak.




BLEEDING OF THE BRAKE HYDRAULIC
CIRCUIT
If air enters the bake lines, it will cause poor brake action.
Therefore, bleeding should be performed if the brakes have
been used with the level of brake fluid in the reservoir
excessively low or if brake pipes have been disconnected in
the course of brake servicing.
Bleeding operation calls for co-operative action of 2 persons.

Set the parking brake firmly while bleeding.

Perform bleeding operation with ENGINE RUNNING, to
prevent damage to push rod seal.

Make sure exhaust is suitably ventilated.

Bleed the hydraulic system with the fluid reservoir filled to
the specified level.

Bleed the system starting with the rear wheel cylinde
r
farthest from the master cylinder.

5C-62 BRAKES
360r300003
5. Vacuum Hose
The check valve (2) is built-in to the vacuum hose.
When installing the vacuum hose make sure that the arrow on
the hose is facing the engine (1).
Note :

Do not apply oil to the vacuum hose.



Installation direction is very important. The booster will no
t
operate if the vacuum hose is installed in the wrong
direction.


4JA1-T/4JA1-TC/4JH1-TC LHD model (with 2nd Battery)


RTW45CLF000101

CLUTCH 7C-29
201RS011
Release Bearing (6VE1)
1. Visually check the release bearing for excessive play, noise
and breakage.
2. If any of these conditions are discovered, the release
bearing must be replaced.

201RW010-X

3. When replacing the release bearing (3), replace both the
wedge collar (2) and wire ring (1) at the same time.
201RS013
Wedge Collar
1. Visually check the surfaces of the wedge collar making
contact with the release bearing for excessive wear and
damage.
2. Replace any exhibiting excessive wear or damage.
201RS014
Shift Fork
1. Visually check the surfaces of the shift fork making contact
with the release bearing for excessive wear and damage.
2. Remove any minor stepping or abrasion from shift fork with
an oil stone.
3. Replace any exhibiting excessive wear or damage.


Release Bearing (4J, C24SE)
1. Visually inspect the surfaces of the release bearing making
contact with the shift fork for excessive wear and damage.
Replace any exhibiting excessive wear or damage.
2. Apply multi-purpose type grease (NLGI No.2 or No.3) to
contact surface between the release bearing and the shift
fork. (Do not apply grease to the sleeve inner face.)

7C-30 CLUTCH


Shift Fork
1. Visually inspect the surfaces of the shift fork making contact
with the release bearing for excessive wear and damage.
2. Remove any minor stepping or abrasion from the release
bearing with an oil stone.
Replace any exhibiting excessive wear or damage.
3. Apply multi-purpose type grease (NLGI No.2 or No.3) to
area.



DRIVEN PLATE ASSEMBLY
1. Visually inspect the torsion spring
1 for looseness,
breakage, and weakening.
If any of these conditions are discovered, the driven plate
assembly must be replaced.



2. Visually inspect the facing surfaces
2 for cracking and
excessive scorching.

Visually inspect the facing surfaces for the presence of oil
or grease.
If any of these conditions are discovered, the facing mus
t
be cleaned or replaced.



3. Check that the driven plate moves smoothly on the
transmission top gear shaft spline.
Minor ridges on the top gear shaft spline may be removed
with an oil stone.



Driven Plate Warpage
1. Insert the clutch pilot aligner into the driven plate splined
hub.
The clutch pilot aligner must be held perfectly horizontal.
Clutch Pilot Aligner : 5-8525-3001-0
2. Set a dial indicator to the driven plate outside
circumference.
3. Slowly turn the driven plate.
Read the dial indicator as you turn the driven plate.
If the measured value exceeds the specified limit, the driven
plate assembly and/or the facing must be replaced.
Driven Plate Warpage mm(in)
Standard Limit
0.7 (0.028) 1.0 (0.039)

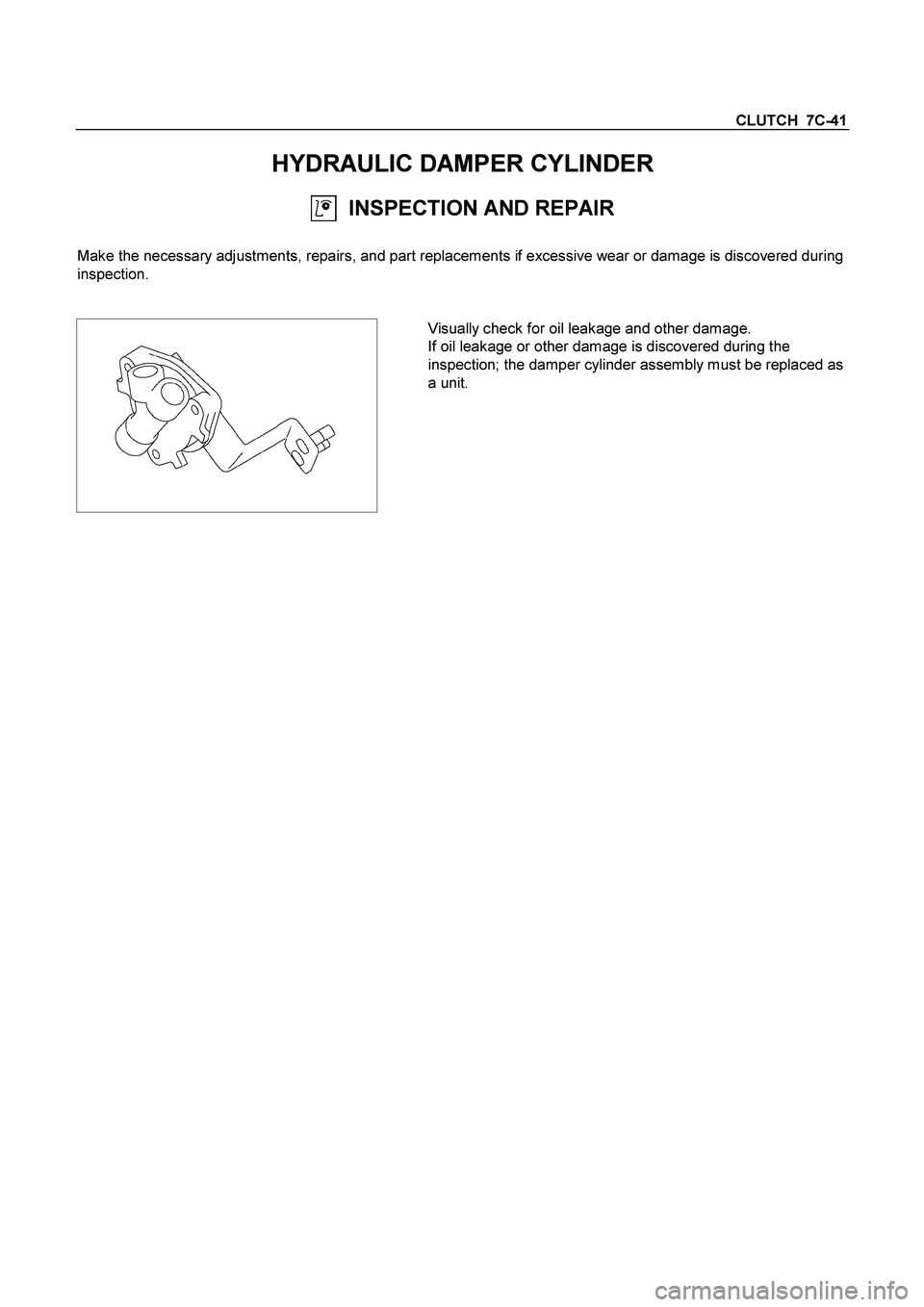

CLUTCH 7C-41
HYDRAULIC DAMPER CYLINDER
INSPECTION AND REPAIR

Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during
inspection.




Visually check for oil leakage and other damage.
If oil leakage or other damage is discovered during the
inspection; the damper cylinder assembly must be replaced as
a unit.
