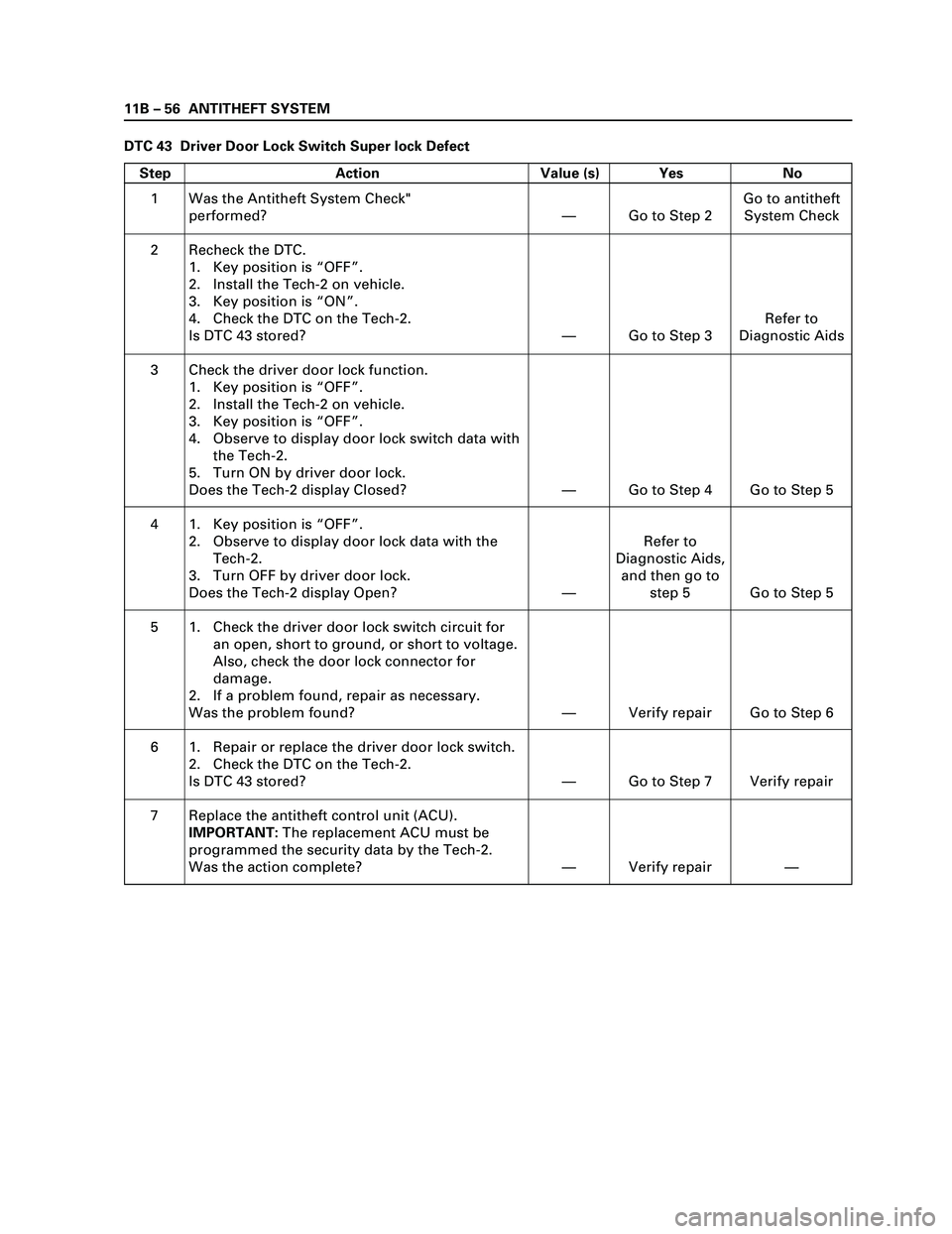

11B – 56 ANTITHEFT SYSTEM
DTC 43 Driver Door Lock Switch Super lock Defect
Step Action Value (s) Yes No
1
2
3
4
5
6
7Was the Antitheft System Check"
performed?
Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 43 stored?
Check the driver door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with
the Tech-2.
5. Turn ON by driver door lock.
Does the Tech-2 display Closed?
1. Key position is “OFF”.
2. Observe to display door lock data with the
Tech-2.
3. Turn OFF by driver door lock.
Does the Tech-2 display Open?
1. Check the driver door lock switch circuit for
an open, short to ground, or short to voltage.
Also, check the door lock connector for
damage.
2. If a problem found, repair as necessary.
Was the problem found?
1. Repair or replace the driver door lock switch.
2. Check the DTC on the Tech-2.
Is DTC 43 stored?
Replace the antitheft control unit (ACU).
IMPORTANT:The replacement ACU must be
programmed the security data by the Tech-2.
Was the action complete?—
—
—
—
—
—
—Go to Step 2
Go to Step 3
Go to Step 4
Refer to
Diagnostic Aids,
and then go to
step 5
Verify repair
Go to Step 7
Verify repairGo to antitheft
System Check
Refer to
Diagnostic Aids
Go to Step 5
Go to Step 5
Go to Step 6
Verify repair
—

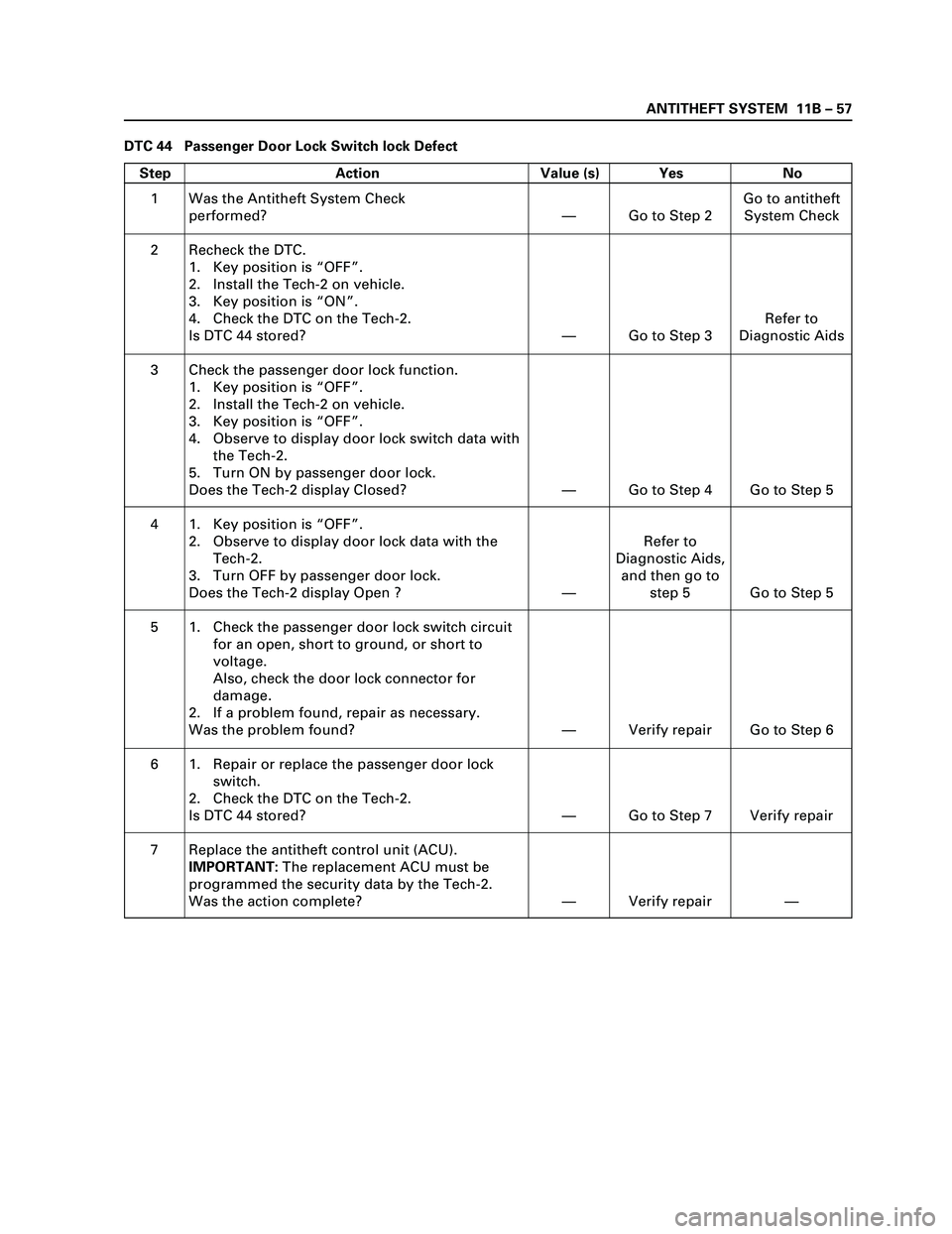

ANTITHEFT SYSTEM 11B – 57
DTC 44 Passenger Door Lock Switch lock Defect
Step Action Value (s) Yes No
1
2
3
4
5
6
7Was the Antitheft System Check
performed?
Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 44 stored?
Check the passenger door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with
the Tech-2.
5. Turn ON by passenger door lock.
Does the Tech-2 display Closed?
1. Key position is “OFF”.
2. Observe to display door lock data with the
Tech-2.
3. Turn OFF by passenger door lock.
Does the Tech-2 display Open ?
1. Check the passenger door lock switch circuit
for an open, short to ground, or short to
voltage.
Also, check the door lock connector for
damage.
2. If a problem found, repair as necessary.
Was the problem found?
1. Repair or replace the passenger door lock
switch.
2. Check the DTC on the Tech-2.
Is DTC 44 stored?
Replace the antitheft control unit (ACU).
IMPORTANT:The replacement ACU must be
programmed the security data by the Tech-2.
Was the action complete?—
—
—
—
—
—
—Go to Step 2
Go to Step 3
Go to Step 4
Refer to
Diagnostic Aids,
and then go to
step 5
Verify repair
Go to Step 7
Verify repairGo to antitheft
System Check
Refer to
Diagnostic Aids
Go to Step 5
Go to Step 5
Go to Step 6
Verify repair
—

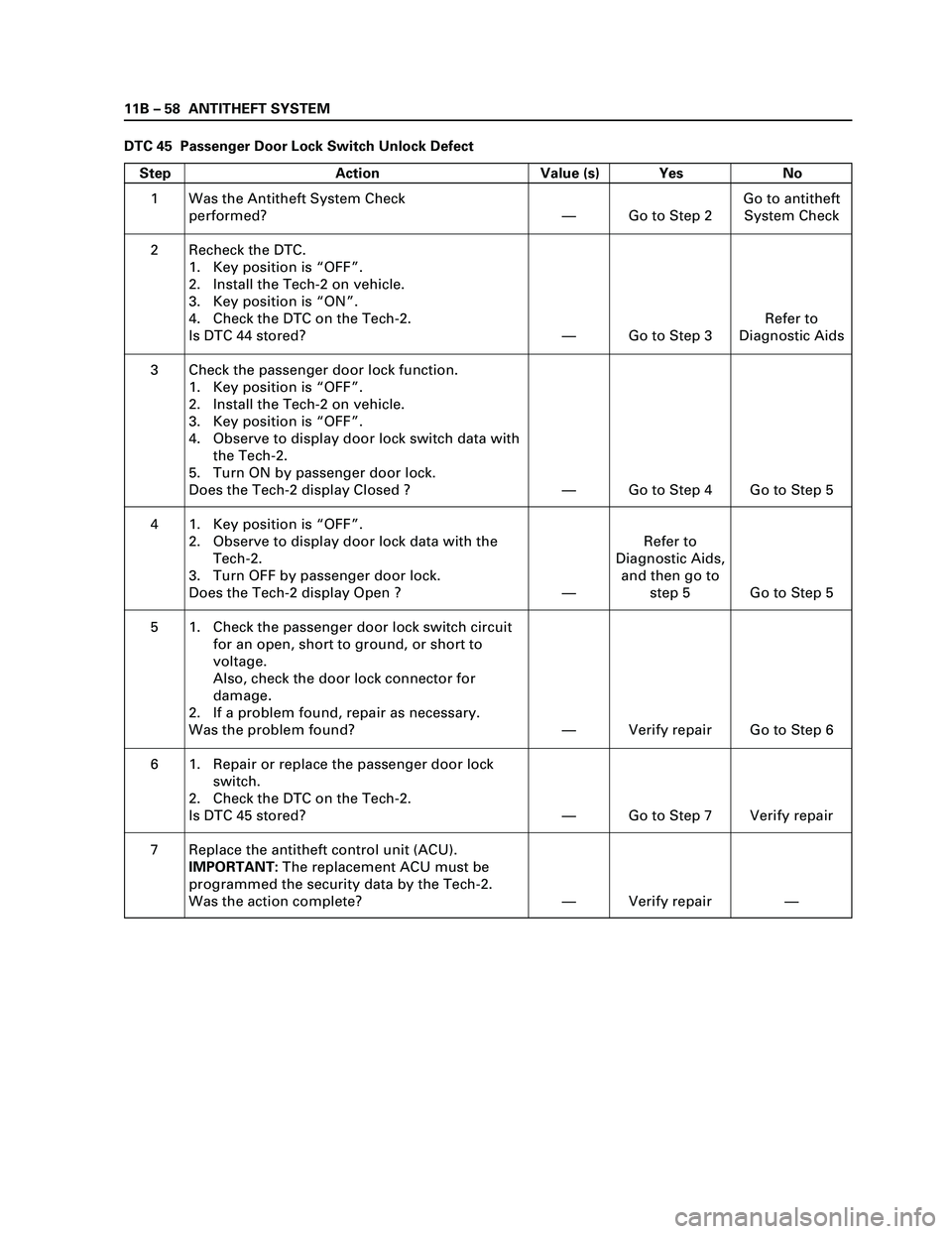

11B – 58 ANTITHEFT SYSTEM
DTC 45 Passenger Door Lock Switch Unlock Defect
Step Action Value (s) Yes No
1
2
3
4
5
6
7Was the Antitheft System Check
performed?
Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 44 stored?
Check the passenger door lock function.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “OFF”.
4. Observe to display door lock switch data with
the Tech-2.
5. Turn ON by passenger door lock.
Does the Tech-2 display Closed ?
1. Key position is “OFF”.
2. Observe to display door lock data with the
Tech-2.
3. Turn OFF by passenger door lock.
Does the Tech-2 display Open ?
1. Check the passenger door lock switch circuit
for an open, short to ground, or short to
voltage.
Also, check the door lock connector for
damage.
2. If a problem found, repair as necessary.
Was the problem found?
1. Repair or replace the passenger door lock
switch.
2. Check the DTC on the Tech-2.
Is DTC 45 stored?
Replace the antitheft control unit (ACU).
IMPORTANT:The replacement ACU must be
programmed the security data by the Tech-2.
Was the action complete?—
—
—
—
—
—
—Go to Step 2
Go to Step 3
Go to Step 4
Refer to
Diagnostic Aids,
and then go to
step 5
Verify repair
Go to Step 7
Verify repairGo to antitheft
System Check
Refer to
Diagnostic Aids
Go to Step 5
Go to Step 5
Go to Step 6
Verify repair
—

ANTITHEFT SYSTEM 11B – 59
DTC 47 Battery Voltage For Door Lock Actuators Is Missing
Step Action Value (s) Yes No
1
2
3
4
5
6
7Was the Antitheft System Check
performed?
Recheck the DTC.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Check the DTC on the Tech-2.
Is DTC 47 stored?
Check the antilock system voltage.
1. Key position is “OFF”.
2. Install the Tech-2 on vehicle.
3. Key position is “ON”.
4. Observe to display system voltage data with
the Tech-2.
Is the voltage near the specified value ?
1. Key position is “OFF”.
2. Check the battery voltage.
3. If a problem found, repair as necessary.
(Chage battery)
Was the problem found?
Check the door lock motor output voltage.
1. Key position is “OFF”.
2. Connect a digital volt meter to measure
voltage.
between ACU terminal 7 and body ground.
3. Key position is “ON”.
4. Observe to display voltage with the DVM.
5. Door lock ON.
Is the voltage near the specified value ?
1. Check the door lock motor circuit for an open,
short to ground, or short to voltage.
Also, check the door lock motor connector for
damage.
2. If a problem found, repair as necessary.
Was the problem found?
Replace the antitheft control unit (ACU).
IMPORTANT:The replacement ACU must be
programmed the security data by the Tech-2.
Was the action complete?—
—
12V
—
12V
—
—Go to Step 2
Go to Step 3
Go to Step 5
Verify repair
Go to Step 6
Verify repair
Verify repairGo to antitheft
System Check
Refer to
Diagnostic Aids
Go to Step 4
Refer to
Diagnostic Aids
Go to Step 7
—
—
