WIRING SYSTEM 8D – 429

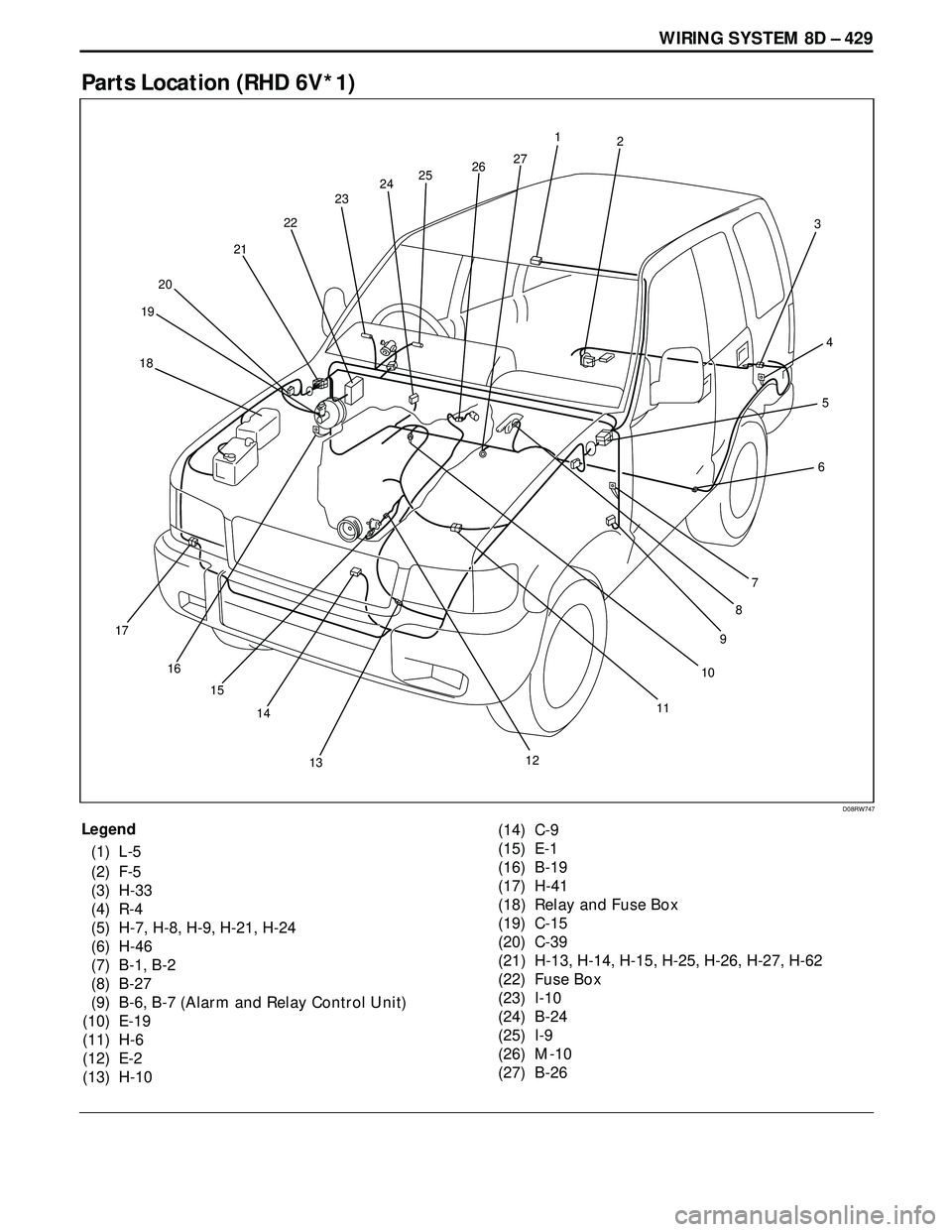

Parts Location (RHD 6V*1)
Legend
(1) L-5
(2) F-5
(3) H-33
(4) R-4
(5) H-7, H-8, H-9, H-21, H-24
(6) H-46
(7) B-1, B-2
(8) B-27
(9) B-6, B-7 (Alarm and Relay Control Unit)
(10) E-19
(11) H-6
(12) E-2
(13) H-10(14) C-9
(15) E-1
(16) B-19
(17) H-41
(18) Relay and Fuse Box
(19) C-15
(20) C-39
(21) H-13, H-14, H-15, H-25, H-26, H-27, H-62
(22) Fuse Box
(23) I-10
(24) B-24
(25) I-9
(26) M-10
(27) B-26
D08RW747
18192021222324
2526
16
15
14
1312119
1087654 3 2 1
17
27

8D – 430 WIRING SYSTEM
Parts Location (RHD 4JG2)
Legend
(1) L-5
(2) F-5
(3) H-33
(4) R-4
(5) H-7, H-9, H-21, H-24
(6) H-46
(7) B-1
(8) B-6, B-7 (Alarm and Relay Control Unit)
(9) C-16
(10) H-4, H-5
(11) C-67
(12) E-2
(13) C-9(14) E-36
(15) E-19
(16) B-19
(17) C-68
(18) H-41, H-42
(19) Relay and Fuse Box
(20) C-15
(21) C-39
(22) H-13, H-15, H-16, H-25, H-26, H-27, H-62
(23) Fuse Box
(24) I-10
(25) I-9
(26) E-44
(27) B-27
D08RW748
192021222324
2527
26
17
16
15
14
1198
107654 3 2 1
18
1312

WIRING SYSTEM 8D – 443
Parts Location (LHD W/O T.O.D 6V*1)
Legend
(1) L-5
(2) I-10
(3) I-9
(4) F-5
(5) H-7, H-8, H-9, H-24, H-25, H-26, H-62
(6) H-46
(7) B-26
(8) B-62
(9) Fuse Box
(10) C-15
(11) B-18
(12) C-16
(13) H-33(14) H-6
(15) E-2
(16) H-10
(17) E-1
(18) C-9
(19) E-19
(20) B-6, B-7 (Alarm and Relay Control Unit)
(21) H-42
(22) Relay and Fuse Box
(23) B-1, B-2
(24) H-16, H-21, H-48
(25) C-39
(26) M-10
(27) B-27
D08RW930
123
4
5
6
7
8
9
10
11
12
13
141516
1718
19
20
21
22
23
24
25
26
27

8D – 444 WIRING SYSTEM
Parts Location (LHD 4JG2)
Legend
(1) L-5
(2) I-10
(3) I-9
(4) F-5
(5) B-27
(6) C-15
(7) H-33
(8) R-4
(9) H-7, H-9, H-24, H-25, H-62
(10) B-26
(11) C-16
(12) H-46
(13) Fuse Box
(14) B-18(15) C-68
(16) B-62
(17) H-4, H-5
(18) C-67
(19) E-36
(20) C-9
(21) E-19
(22) B-6, B-7 (Alarm and Relay Control Unit)
(23) B-1, B-2
(24) Relay and Fuse Box
(25) C-39
(26) H-12, H-14, H-16, H-21, H-48
(27) E-2
(28) E-20
D08RW897
123
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2021
22
23
24
25
26
27
28

WIRING SYSTEM 8D Ð 467
Parts Location (RHD)
Legend
(1) I-10
(2) I-9
(3) C-93
(4) H-7, H-8, H-9, H-24
(5) Mode Switch(6) H-5
(7) H-10, H-11, H-53
(8) E-30
(9) H-41
(10) Relay and Fuse Box
(11) Fuse Box
D08RWA10
5
3
4
67
9
10
11
12
8

8D Ð 470 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) I-10
(2) I-9
(3) H-8, H-9, H-24
(4) Fuse Box
(5) C-16
(6) C-93(7) H-5
(8) M-25
(9) H-10, H-11, H-53
(10) E-30
(11) H-42
(12) Relay and Fuse Box
D08RWA09
2 1
3
4
5
6
8 9 1112
7
10

8D – 474 WIRING SYSTEM
Parts Location (RHD 6VD1)
Legend
(1) I-23
(2) I-18
(3) Blower Resistor (I-41)
(4) Electronic Thermostat (I-42)
(5) H-50
(6) R-3
(7) H-7, H-20, H-24
(8) H-31
(9) B-1
(10) Blower Motor (B-5)(11) X-4
(12) E-3
(13) C-25
(14) H-51
(15) B-19
(16) C-75
(17) H-41, H-42
(18) Relay and Fuse Box (X-5, X-6, X-7, X-19)
(19) C-39
(20) H-13, H-14, H-15, H-16, H-24
(21) Fuse Box (B-36)
D08RWA15
6 5
7
8
9
10
11121314
1617
18
19
20
21
123
4
15

WIRING SYSTEM 8D – 477
Parts Location (LHD 6VD1)
Legend
(1) Blower Resistor (B-3)
(2) Electronic Thermostat (B-4)
(3) I-23
(4) I-18
(5) H-50
(6) R-3
(7) H-9, H-24
(8) Fuse Box (B-36)
(9) H-31
(10) B-19
(11) H-6
(12) C-25
(13) E-3
(14) H-51(15) P-10
(16) Blower Motor (B-5)
(17) B-2
(18) P-7
(19) P-6
(20) C-75
(21) H-41, H-42
(22) P-5
(23) P-1
(24) P-2
(25) C-39
(26) Relay and Fuse Box (X-5, X-6, X-7, X-19)
(27) H-12, H-14, H-16, H-20, H-26, H-48
(28) B-11
D08RWA14
5
6
7
8
9
10
11 1328
16 17
141518192021
12
22
23
24
25
27
1
2
3
4
26

8D – 480 WIRING SYSTEM
Parts Location (RHD 4JG2)
Legend
(1) I-18
(2) I-23
(3) C-16
(4) H-7, H-20, H-24
(5) H-50
(6) R-3
(7) B-1
(8) H-31
(9) Electronic Thermostat (I-42)
(10) Blower Motor (B-5)
(11) Blower Resistor (I-41)
(12) C-69
(13) H-5
(14) C-25(15) E-3
(16) P-10
(17) P-7
(18) H-41, H-42
(19) C-75
(20) P-6
(21) P-1
(22) P-5
(23) P-2
(24) Relay and Fuse Box (X-5, X-6, X-19)
(25) B-19
(26) C-39
(27) Fuse Box (B-36)
(28) H-12, H-13, H-14, H-16, H-26
D08RWA29
12
34
5
6
7
8
9
10
11
121314151617
19
20
21
22
2324
25
26
18
27
28

WIRING SYSTEM 8D – 483
Parts Location (LHD 4JG2)
Legend
(1) I-18
(2) I-23
(3) B-11
(4) H-7, H-9, H-26
(5) H-50
(6) R-3
(7) H-31
(8) B-19
(9) Fuse Box (B-36)
(10) C-16
(11) C-69
(12) H-5
(13) H-51
(14) C-25(15) Electronic Thermostat (B-4)
(16) Blower Resistor (B-3)
(17) Blower Motor (B-5)
(18) E-3
(19) P-10
(20) P-7
(21) P-6
(22) H-41, H-42
(23) C-75
(24) P-1
(25) P-5
(26) P-2
(27) Relay and Fuse Box (X-5, X-6, X-19)
(28) C-39
(29) H-12, H-14, H-16, H-20, H-48
D08RWA28
123
4
5
6
7
8
9
10
11
12131418192021
23
24
25
26
2728
29
22
15
16
17
