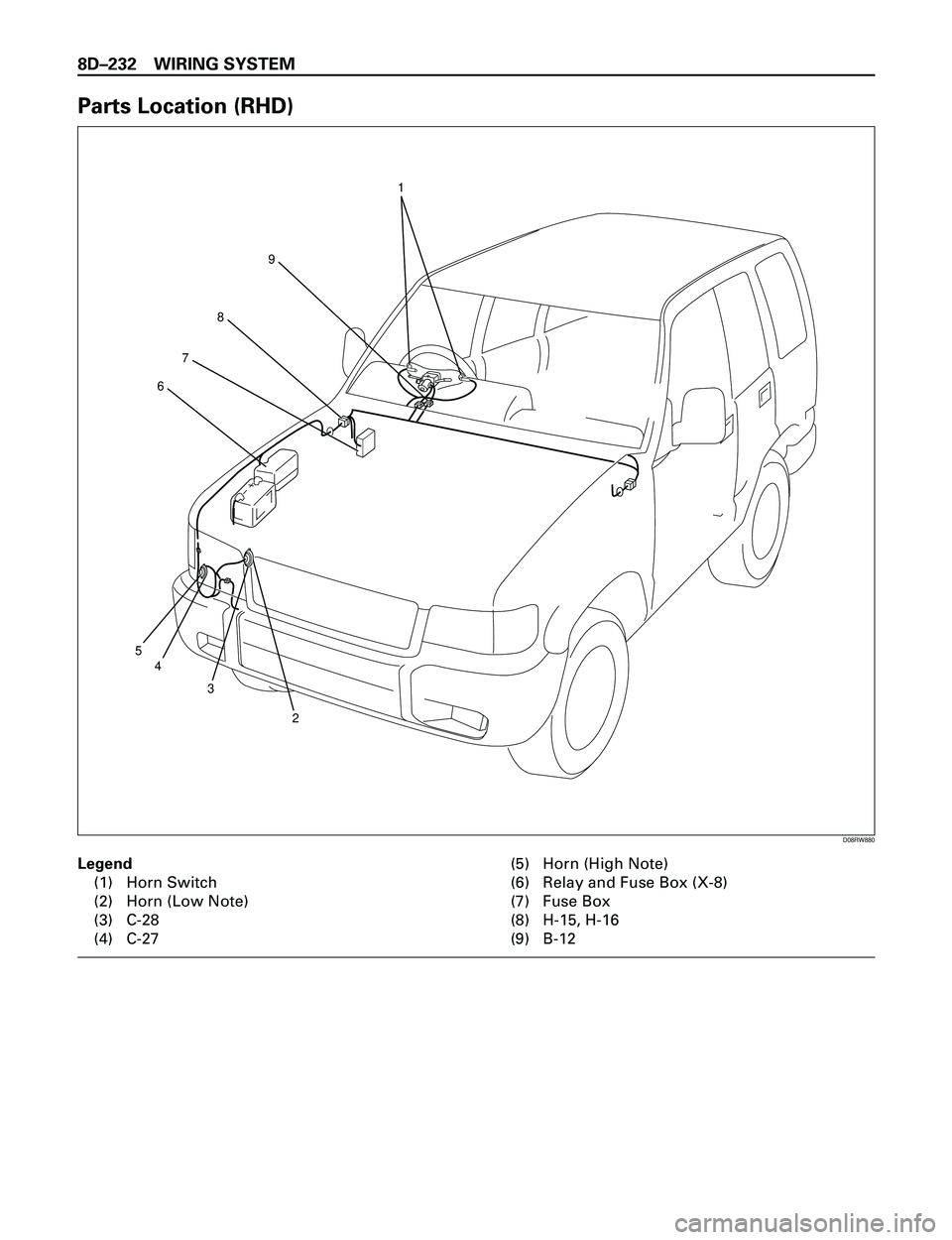

8DÐ232 WIRING SYSTEM
Parts Location (RHD)
Legend
(1) Horn Switch
(2) Horn (Low Note)
(3) C-28
(4) C-27(5) Horn (High Note)
(6) Relay and Fuse Box (X-8)
(7) Fuse Box
(8) H-15, H-16
(9) B-12
54
6
7
8
9
1
3
2
D08RW880

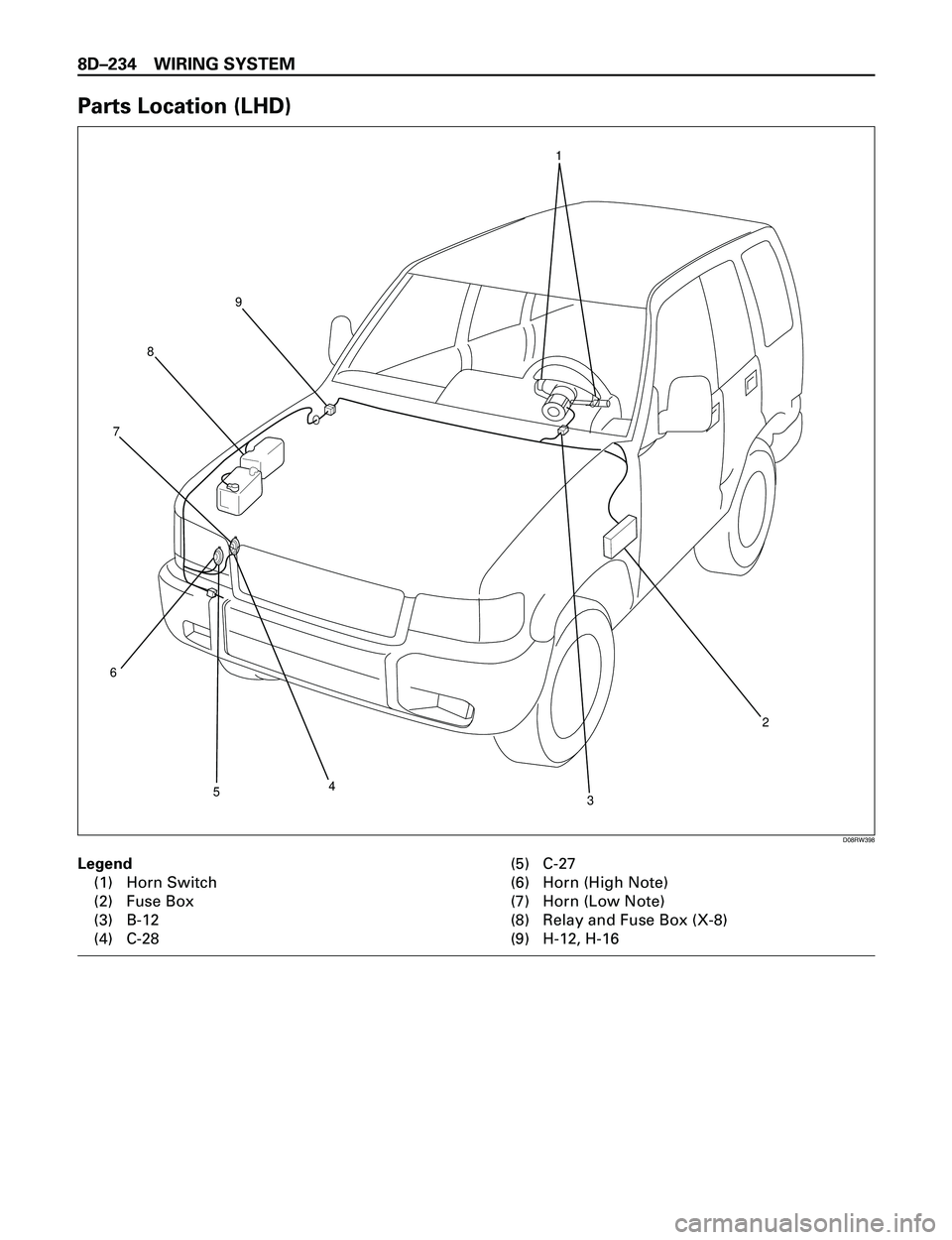

8DÐ234 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) Horn Switch
(2) Fuse Box
(3) B-12
(4) C-28(5) C-27
(6) Horn (High Note)
(7) Horn (Low Note)
(8) Relay and Fuse Box (X-8)
(9) H-12, H-16
1
9
8
7
6
54
32
D08RW398

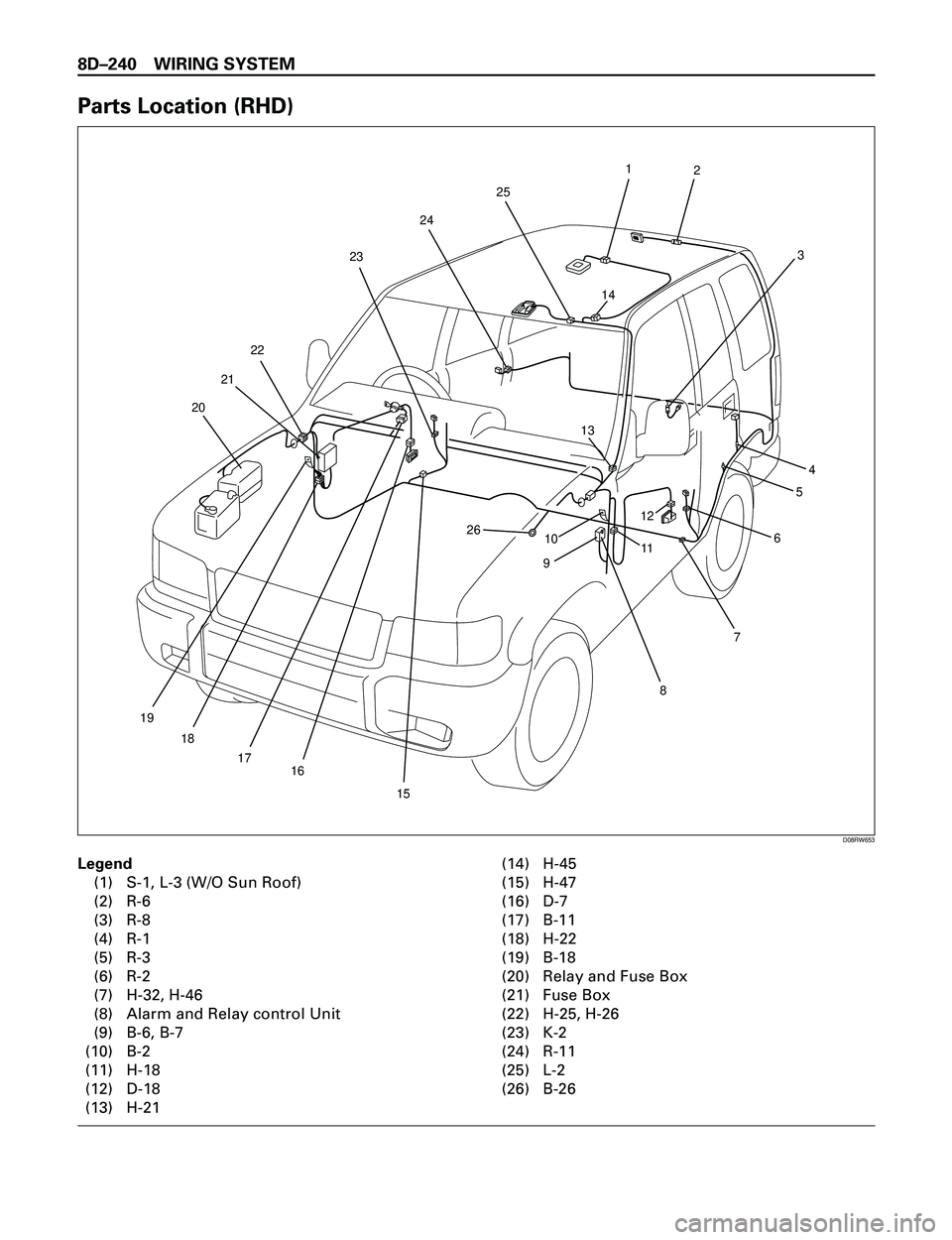

8DÐ240 WIRING SYSTEM
Parts Location (RHD)
Legend
(1) S-1, L-3 (W/O Sun Roof)
(2) R-6
(3) R-8
(4) R-1
(5) R-3
(6) R-2
(7) H-32, H-46
(8) Alarm and Relay control Unit
(9) B-6, B-7
(10) B-2
(11) H-18
(12) D-18
(13) H-21(14) H-45
(15) H-47
(16) D-7
(17) B-11
(18) H-22
(19) B-18
(20) Relay and Fuse Box
(21) Fuse Box
(22) H-25, H-26
(23) K-2
(24) R-11
(25) L-2
(26) B-26
2
3
4
5
6
7
8
911
15
1617
18
19
20
21
22
23
24
25
12
1026
1314
1
D08RW653

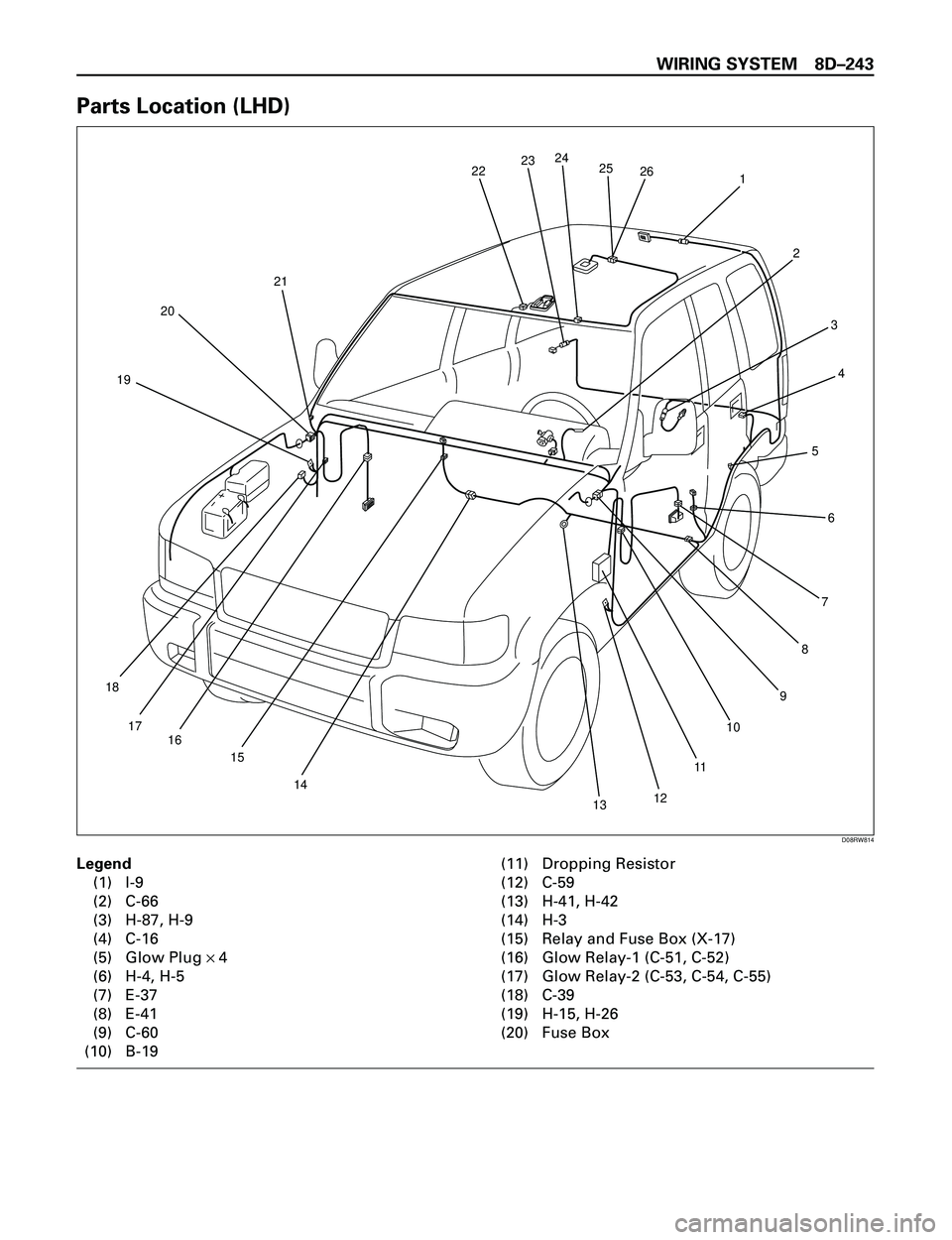

WIRING SYSTEM 8DÐ243
Parts Location (LHD)
Legend
(1) I-9
(2) C-66
(3) H-87, H-9
(4) C-16
(5) Glow Plug ´ 4
(6) H-4, H-5
(7) E-37
(8) E-41
(9) C-60
(10) B-19(11) Dropping Resistor
(12) C-59
(13) H-41, H-42
(14) H-3
(15) Relay and Fuse Box (X-17)
(16) Glow Relay-1 (C-51, C-52)
(17) Glow Relay-2 (C-53, C-54, C-55)
(18) C-39
(19) H-15, H-26
(20) Fuse Box
14 15 16 17 18192021222324
25
26
1
2
3
4
5
6
7
8
9
10
11
12
13
D08RW814

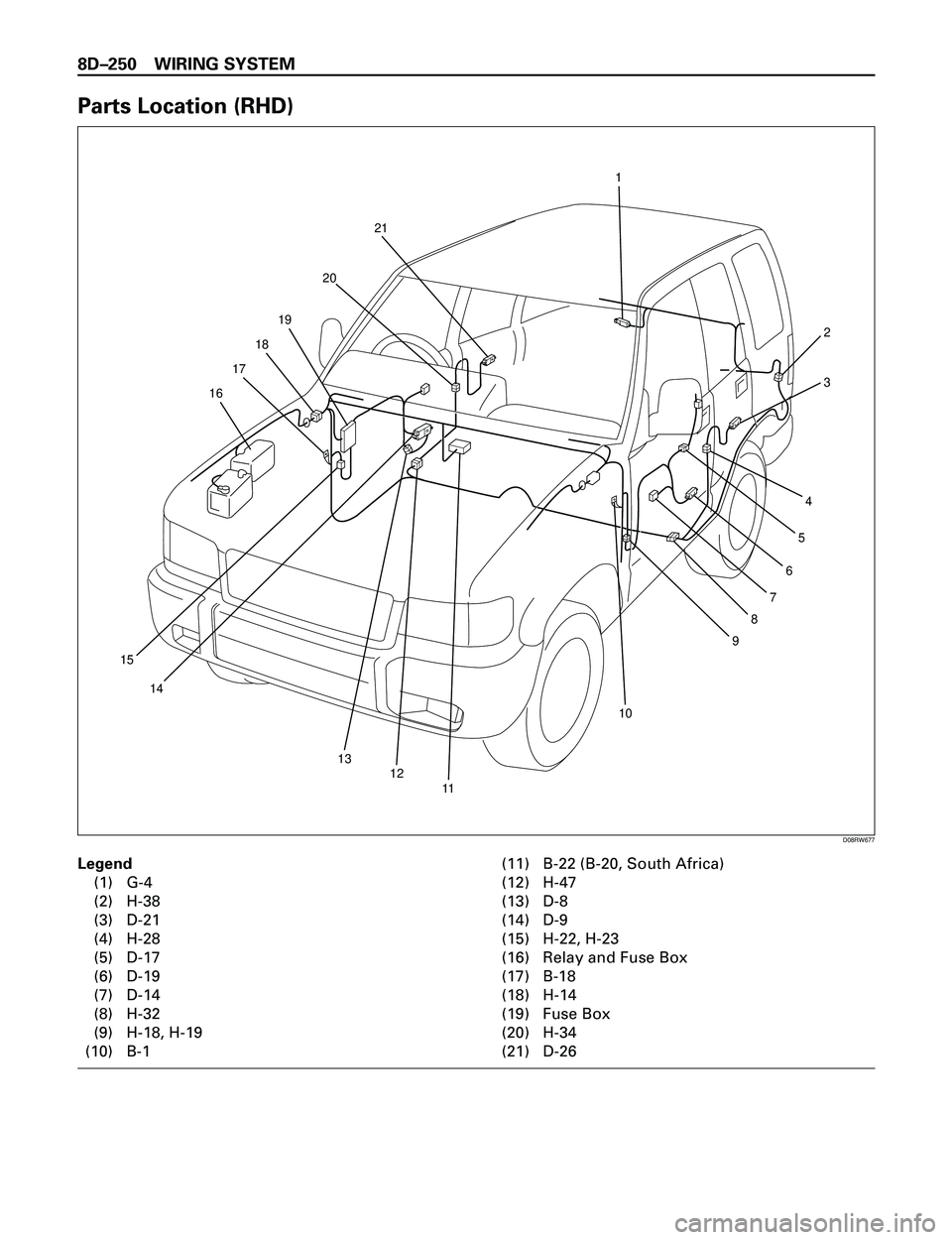

8DÐ250 WIRING SYSTEM
Parts Location (RHD)
Legend
(1) G-4
(2) H-38
(3) D-21
(4) H-28
(5) D-17
(6) D-19
(7) D-14
(8) H-32
(9) H-18, H-19
(10) B-1(11) B-22 (B-20, South Africa)
(12) H-47
(13) D-8
(14) D-9
(15) H-22, H-23
(16) Relay and Fuse Box
(17) B-18
(18) H-14
(19) Fuse Box
(20) H-34
(21) D-26
1
2
3
4
5
6
7
8
9
10
111213
14
15
16
17
18
19
20
21
D08RW677

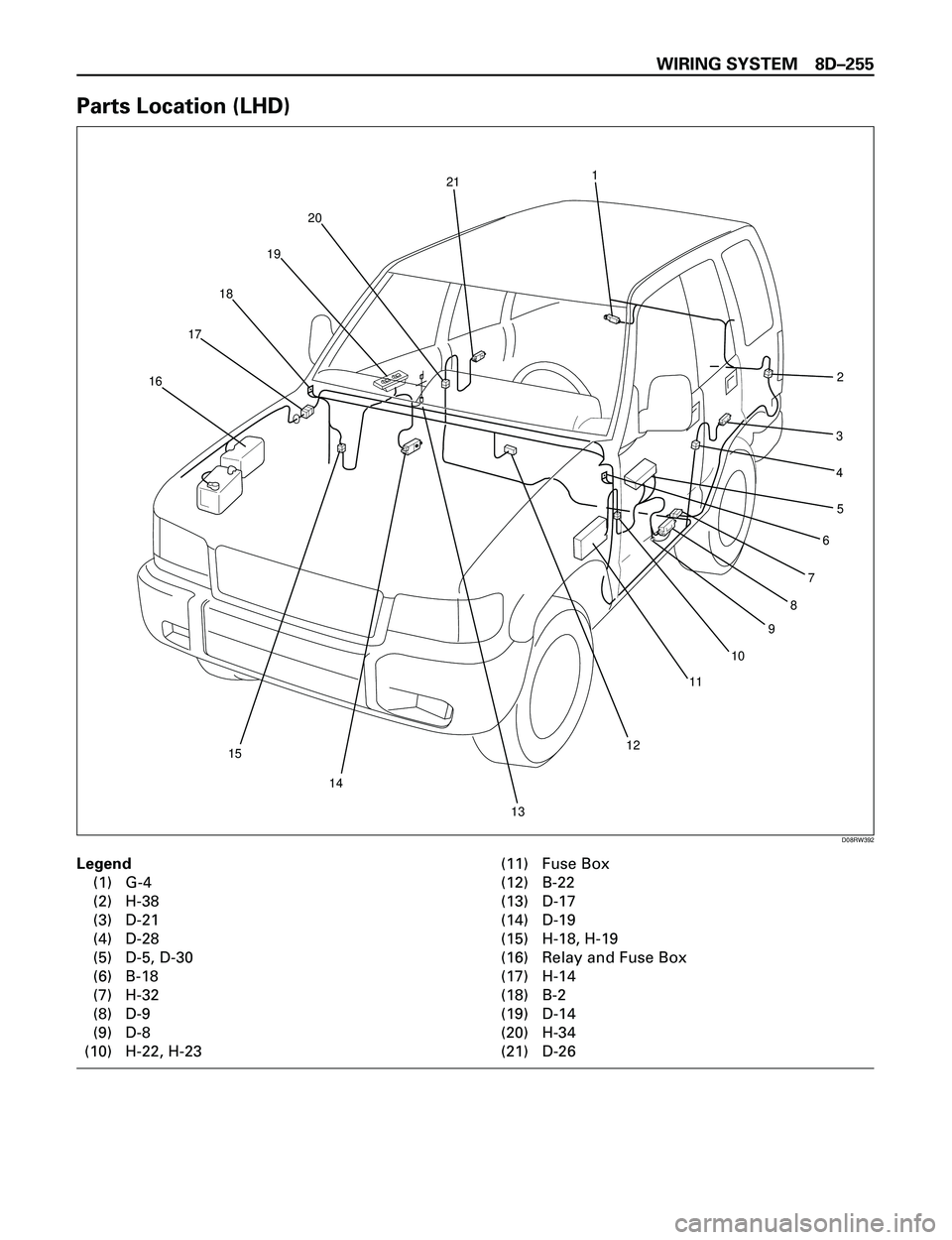

WIRING SYSTEM 8DÐ255
Parts Location (LHD)
Legend
(1) G-4
(2) H-38
(3) D-21
(4) D-28
(5) D-5, D-30
(6) B-18
(7) H-32
(8) D-9
(9) D-8
(10) H-22, H-23(11) Fuse Box
(12) B-22
(13) D-17
(14) D-19
(15) H-18, H-19
(16) Relay and Fuse Box
(17) H-14
(18) B-2
(19) D-14
(20) H-34
(21) D-26
1
21
20
19
18
17
162
3
5
6
74
8
9
10
11
12
13 14 15
D08RW392

WIRING SYSTEM 8DÐ263
Parts Location (RHD)
Legend
(1) D-27
(2) D-20
(3) R-3
(4) D-22
(5) H-28, H-29
(6) D-11
(7) D-14
(8) H-46
(9) H-18, H-19
(10) B-1, B-2(11) B-26
(12) H-34, H-35
(13) H-47
(14) D-2
(15) H-22, H-23
(16) B-18, B-19
(17) Relay and Fuse Box
(18) Fuse Box (B-37)
(19) D-5, D-30
(20) D-25
19
9 2
4
18
17
3
201
10
11
121314 15
16
5
6
7
8
D08RW883

WIRING SYSTEM 8DÐ265
Parts Location (LHD)
Legend
(1) D-27
(2) B-18, B-19
(3) D-22
(4) D-20
(5) H-28, H-29
(6) D-2
(7) D-5, D-30
(8) H-46
(9) H-22, H-23(10) Fuse Box (B-37)
(11) B-26
(12) D-11
(13) H-18, H-19
(14) Relay and Fuse Box
(15) B-2
(16) D-14
(17) H-34, H-35
(18) D-25
2 1
18
17
16
15
14
13
12
11109 7
8654 3
D08RW882

WIRING SYSTEM 8DÐ275
Parts Location (RHD)
Legend
(1) B-52
(2) I-9
(3) I-6
(4) B-1
(5) H-7, H-8
(6) H-32
(7) Cruis Control Unit (B-9)(8) C-37
(9) Mode Switch A/T (M-25)
(10) H-10, H-11, H-53
(11) Fuse Box
(12) H-25, H-26
(13) Relay and Fuse Box
(14) B-13
(15) B-16
1
4
5
6
7
89
10
11
12
13
14
15
23
D08RW941

8DÐ278 WIRING SYSTEM
Parts Location (LHD)
Legend
(1) B-52
(2) H-7, H-8, H-25
(3) H-32
(4) Fuse Box
(5) B-16
(6) B-13
(7) Mode Switch (M-25)(8) H-10, H-11, H-53
(9) Cruise Control Unit (B-9)
(10) C-37
(11) Relay and Fuse Box
(12) H-12, H-48
(13) B-2
(14) I-6
(15) I-9
1
2
3
4
5
6
7 8 9 10 1112131415
D08RW394
